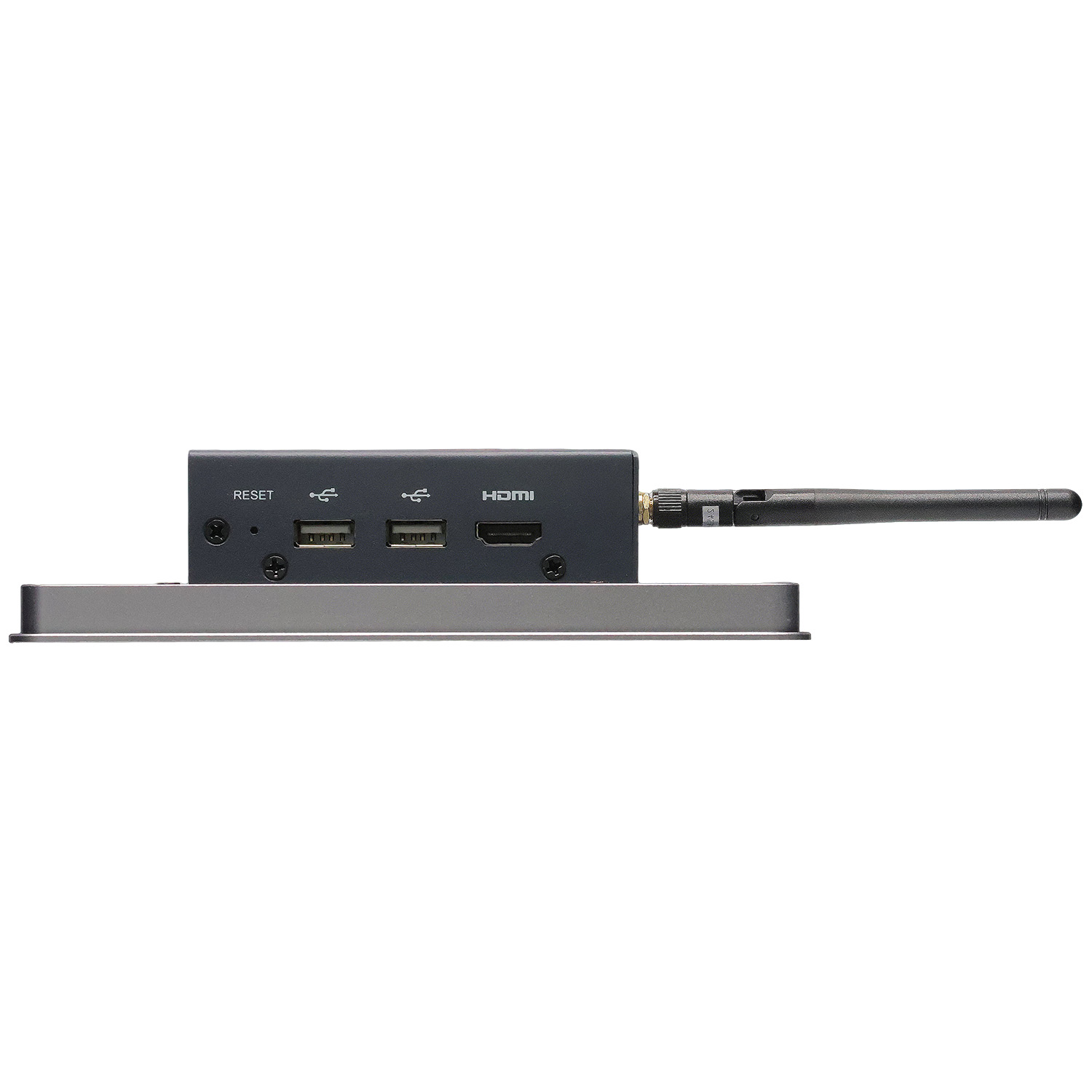

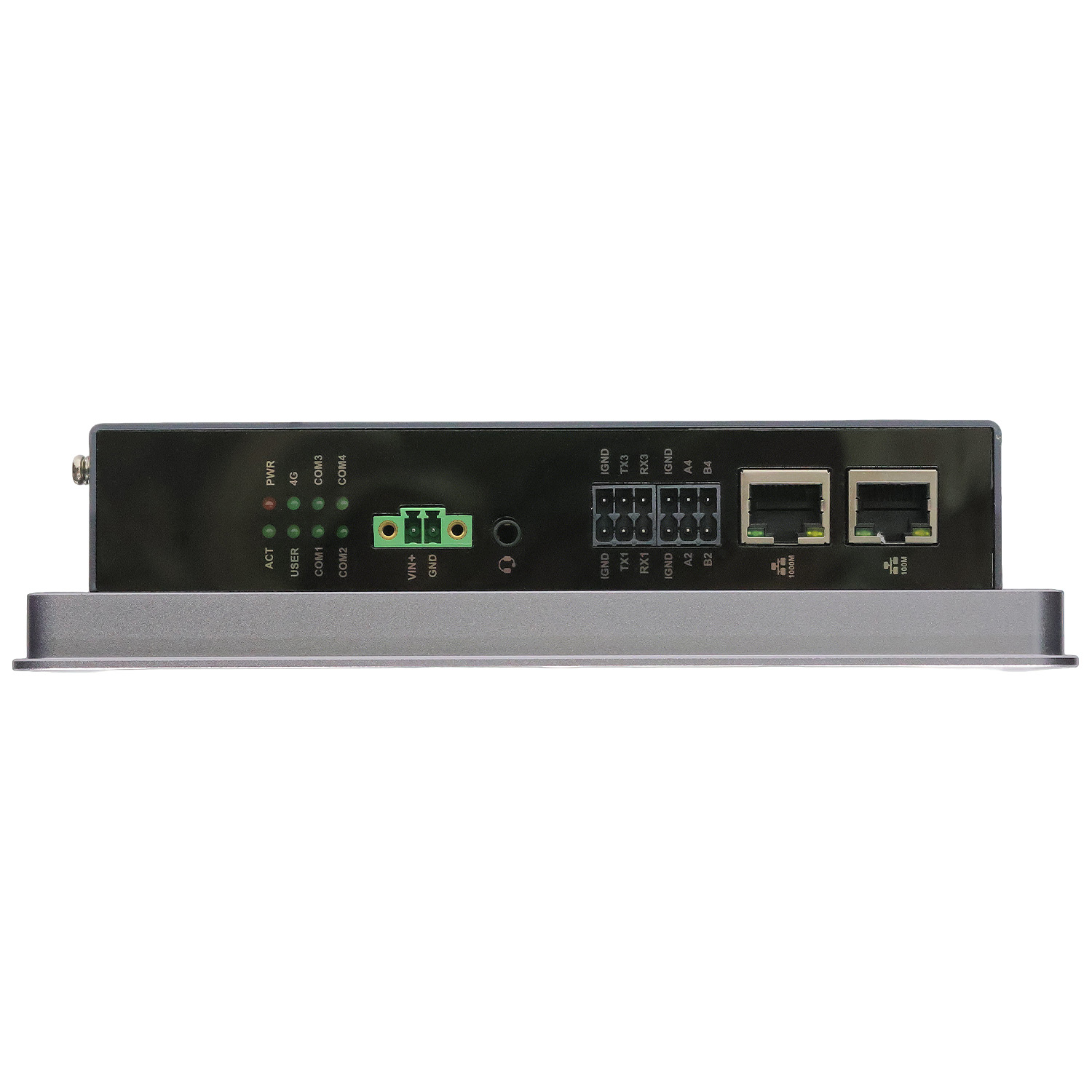

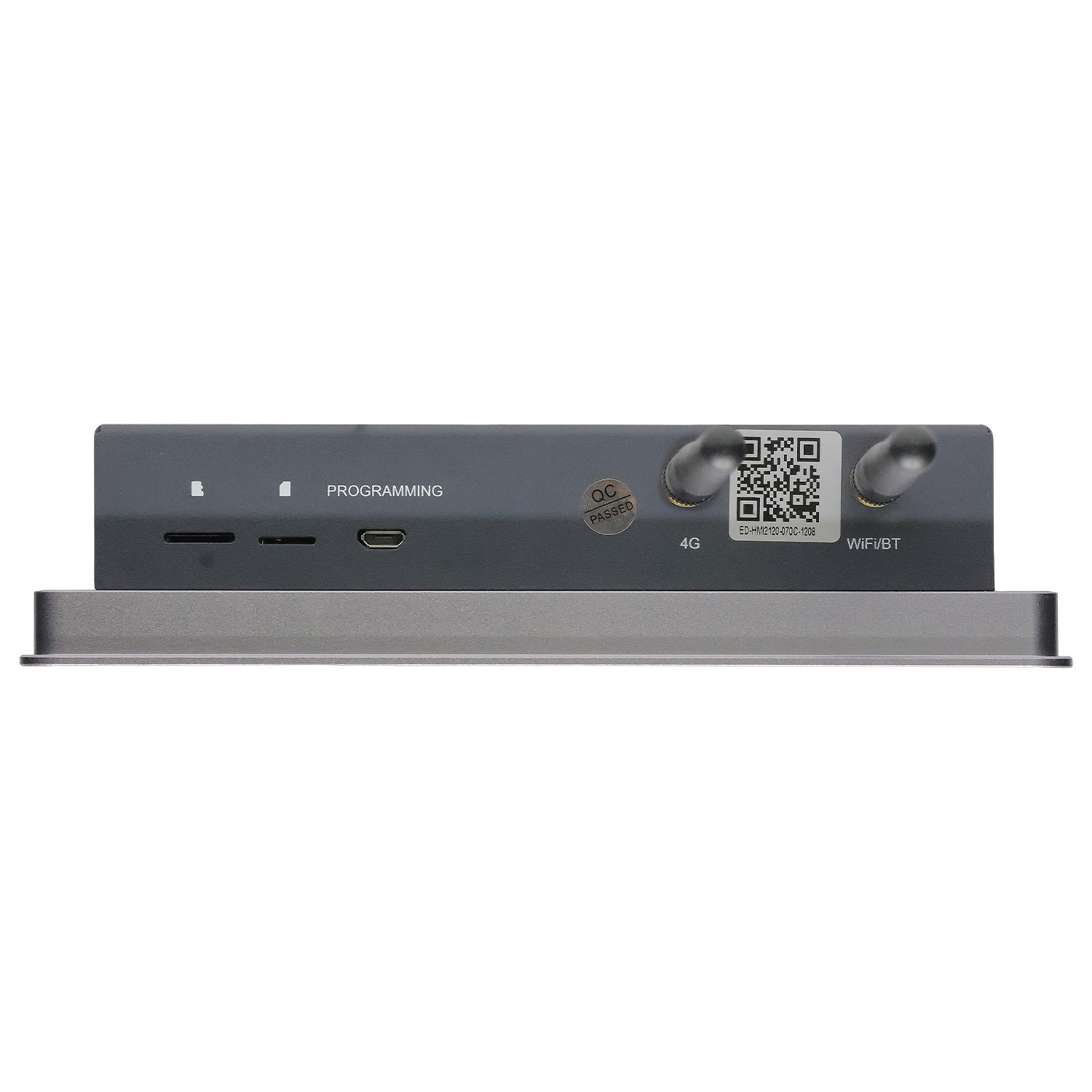

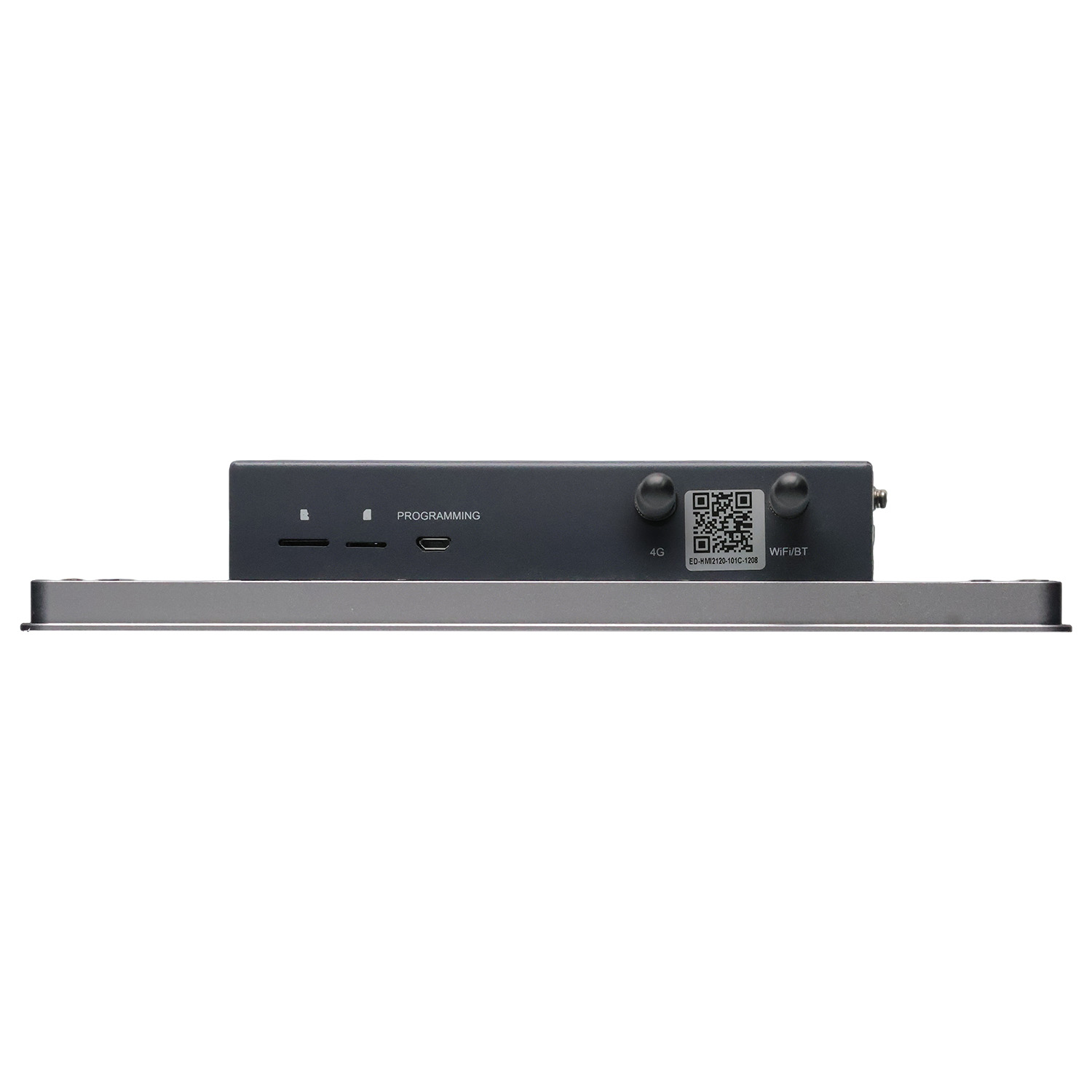

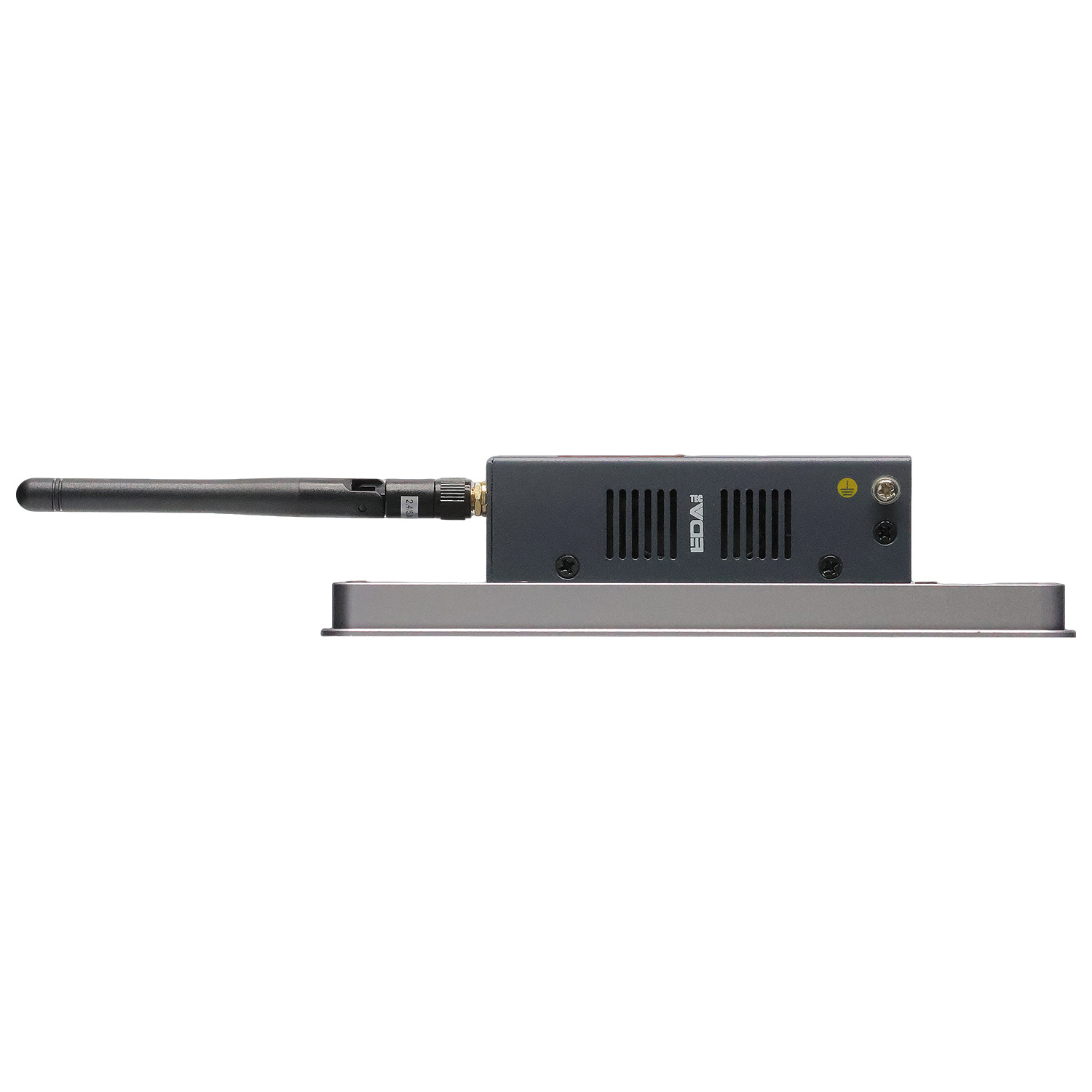

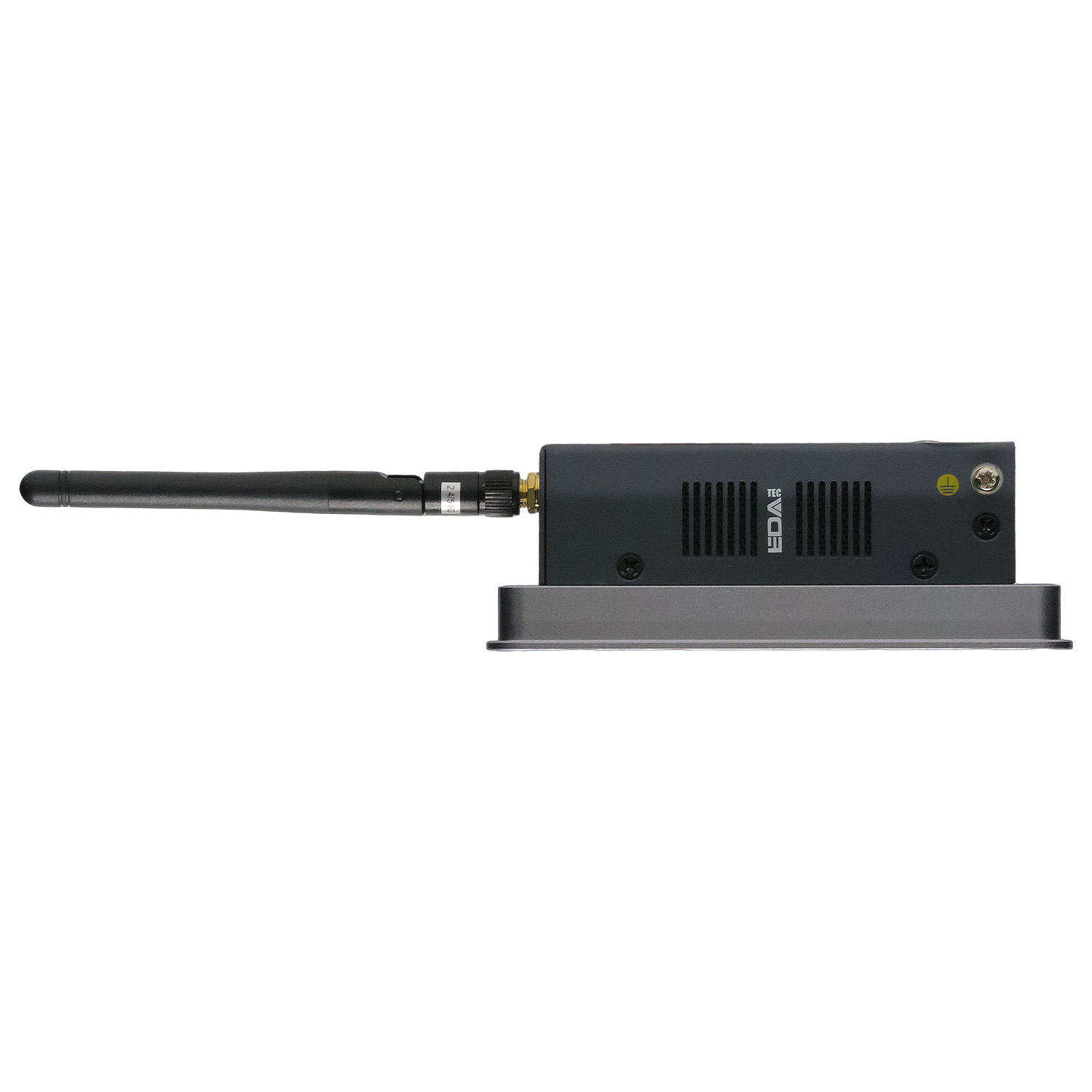

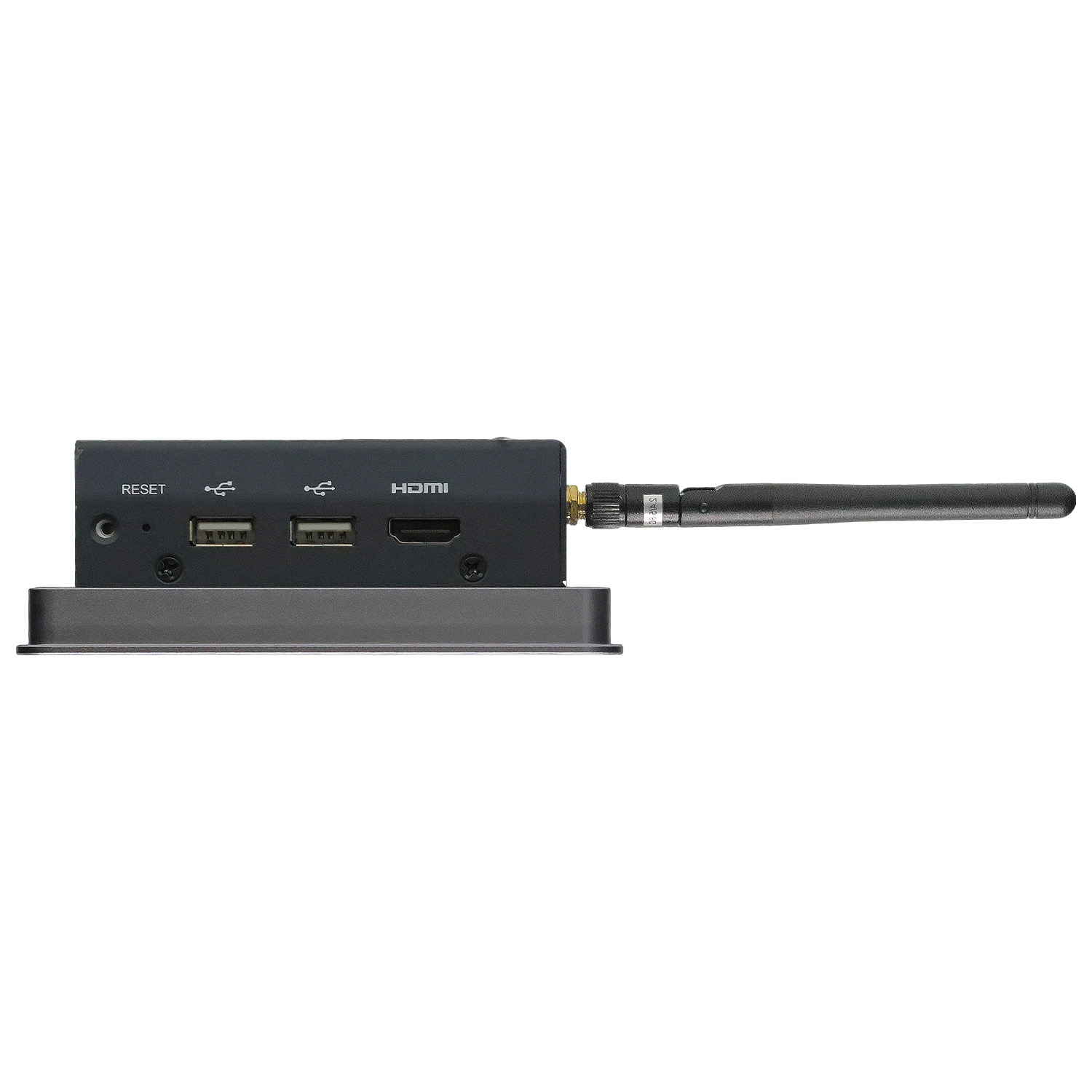

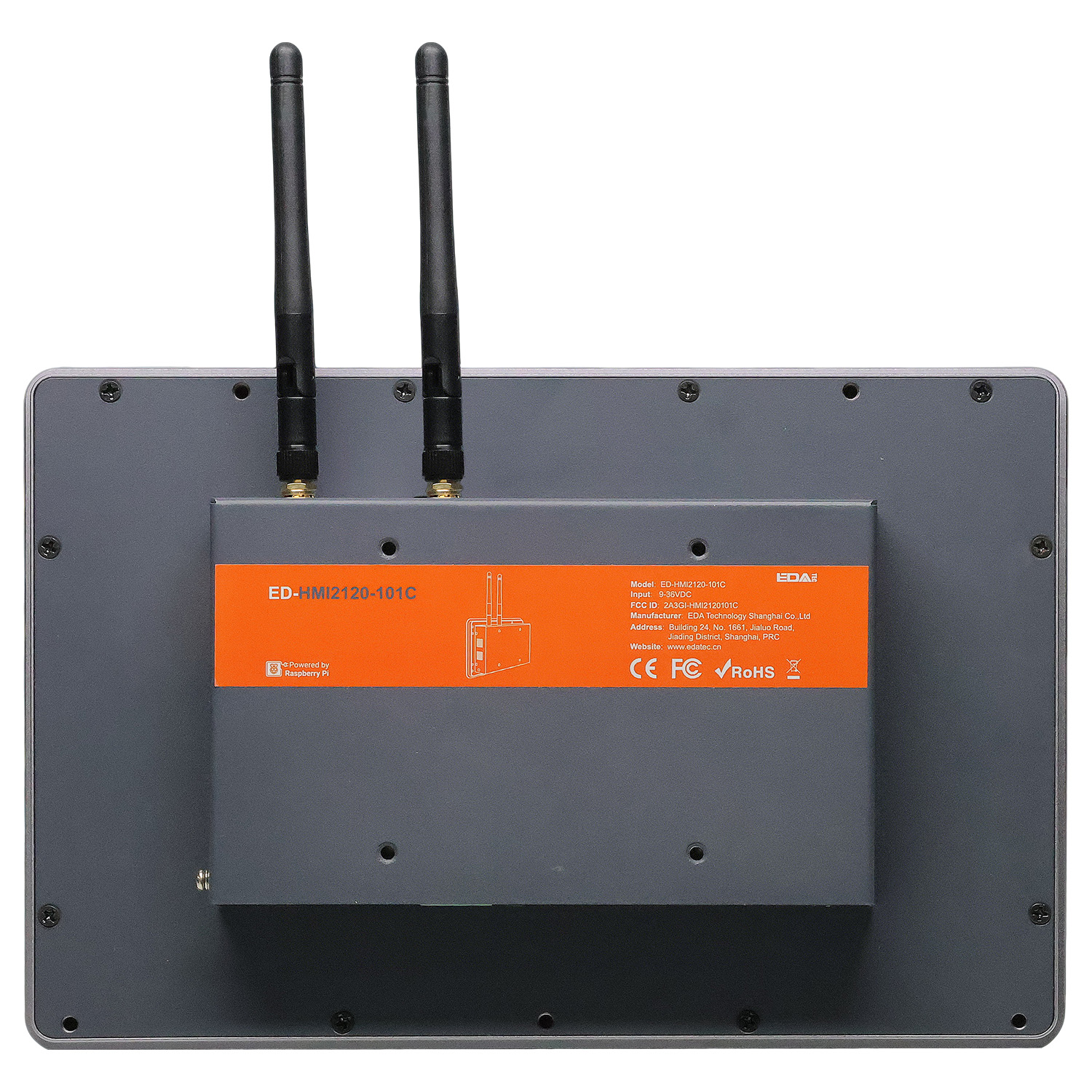

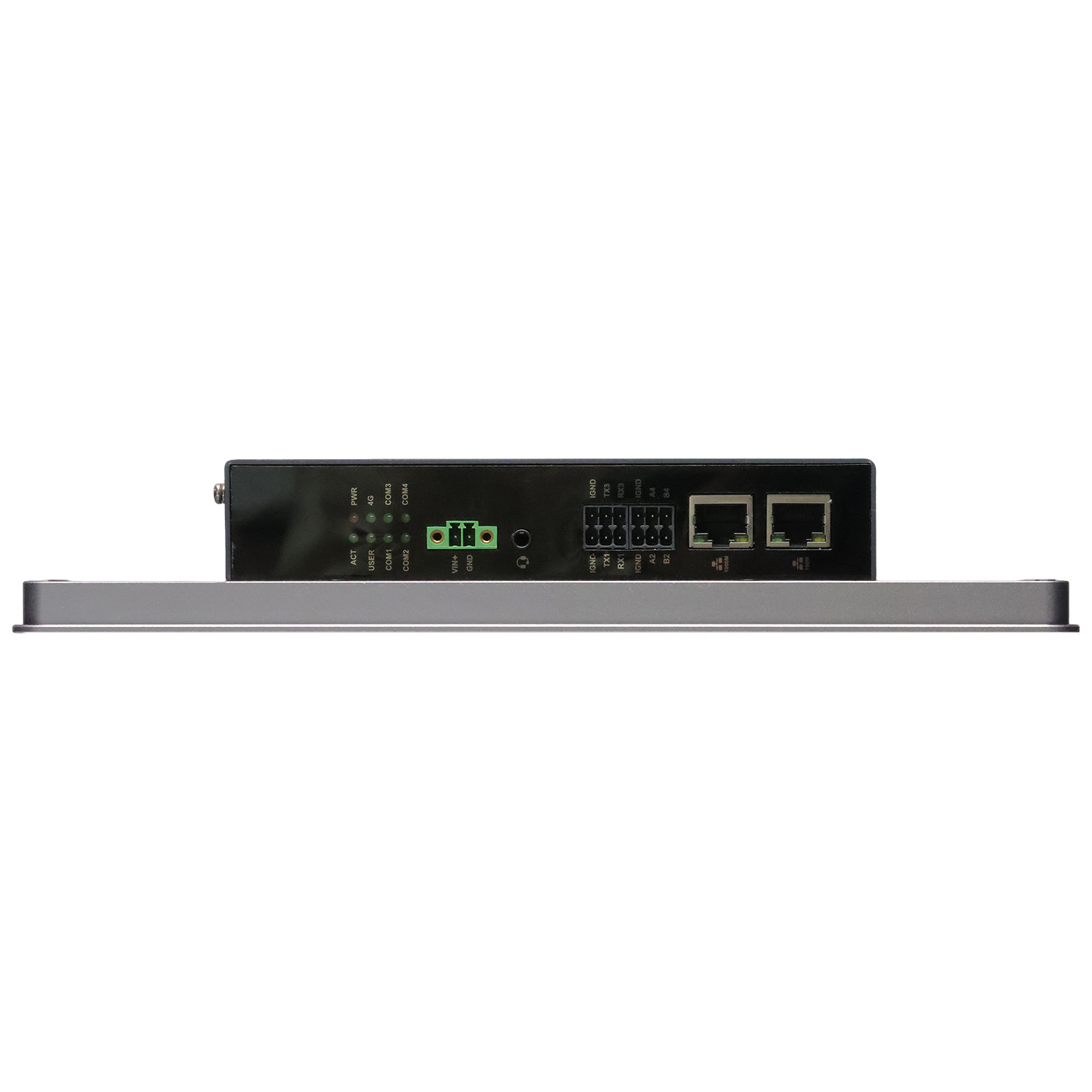

The ED-HMI2120 also features a pair of SMA ports for connecting antennas, either for 4G or Wi-Fi/BT, and a built-in speaker system. Indicators include a reset button, power indicator, 4G signal indicator, system activity indicator, and user-customizable indicator, as well as indicators for UART communication status.
Model No. | LCD Size | Resolution | Aspect ratio | # of Colors | Luminance(cd/m2) | Viewing Angle(H/V) | Multi-touch(# of points) | Dimensions(mm) | Weight(g) |
| HMI2120-070C | 7" | 1024 x 600 | 16:9 | 16.7M | 400 | 160°/160° | 10 | 188 x 123 x 43.5 | About 1100g |
| HMI2120-101C | 10.1" | 1280 x 800 | 16:10 | 16.7M | 400 | 160°/160° | 10 | 258 x 172 x 42 | About 1500g |
Explore in-depth reviews and coverage of ED-HMI2120 by leading international media outlets! Click the links to learn more：
Tom's HARDWARE CNX SOFTWARE Industria embebidahoy
For expansion, the device includes an EEPROM for storage, crypto authentication for security, an RTC with a CR1220 battery backup, and a buzzer for alarms. It also features a hardware Watch Dog based on the RTC alarm function to ensure device reliability.
The expansion I/O includes 12V 1A DC OUT connectors for powering extended LCDs, a 40-pin GPIO header compatible with expansion modules, a 10-pin GPIO pin header for custom functions, an FPC HDMI connector for extended displays, a USB 2.0 connector for additional ports, and an M.2 B key connector for SSDs.

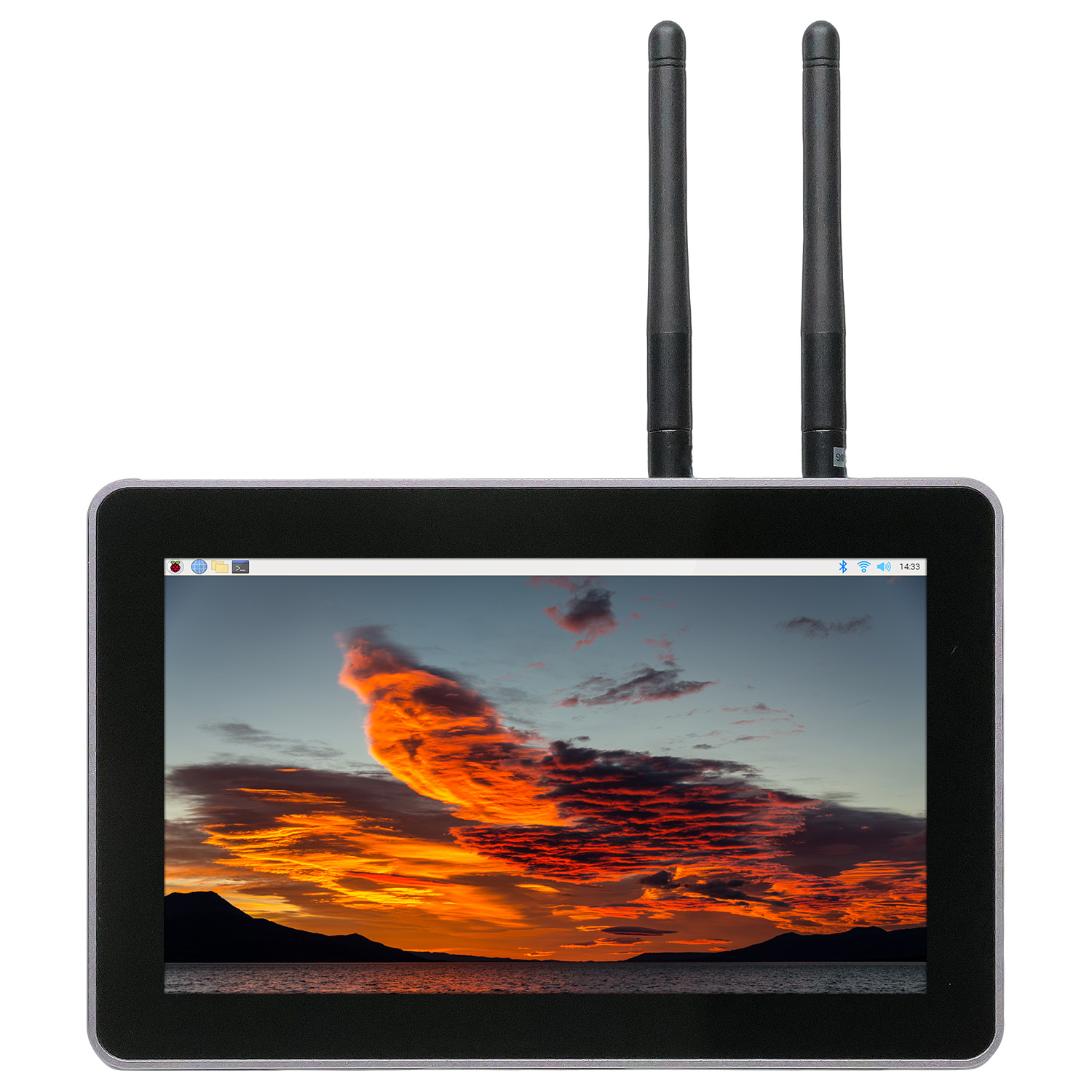

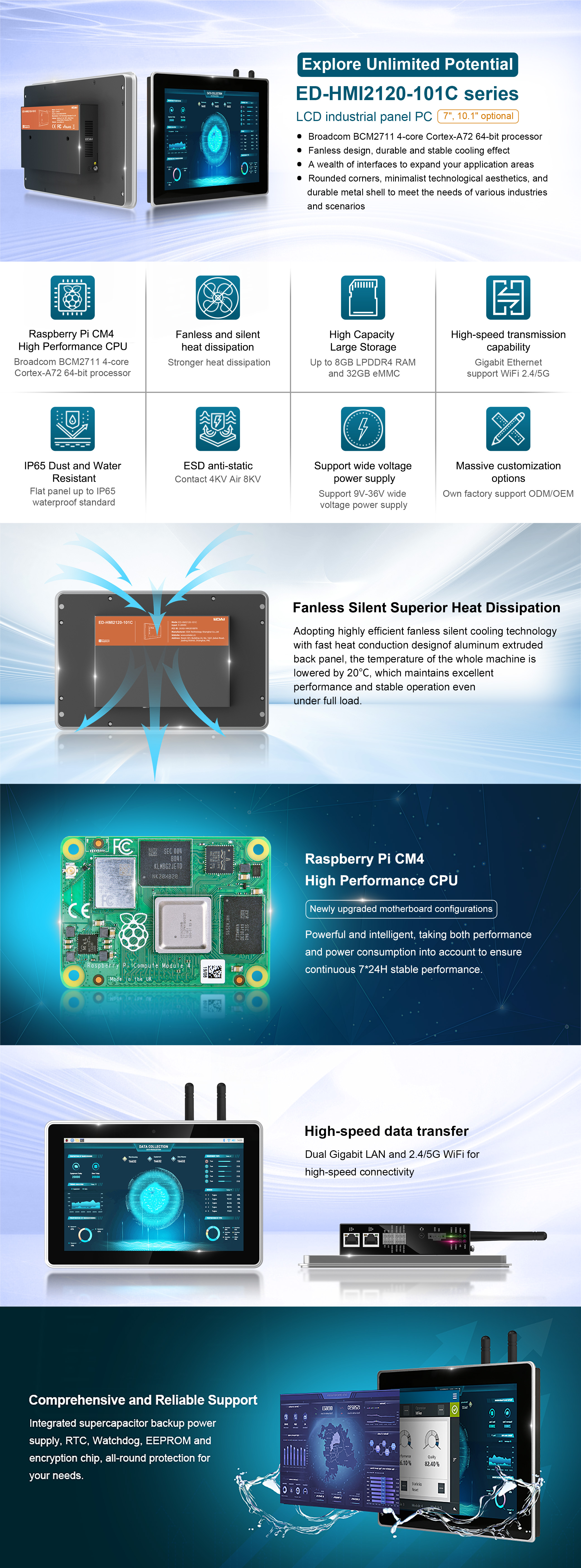

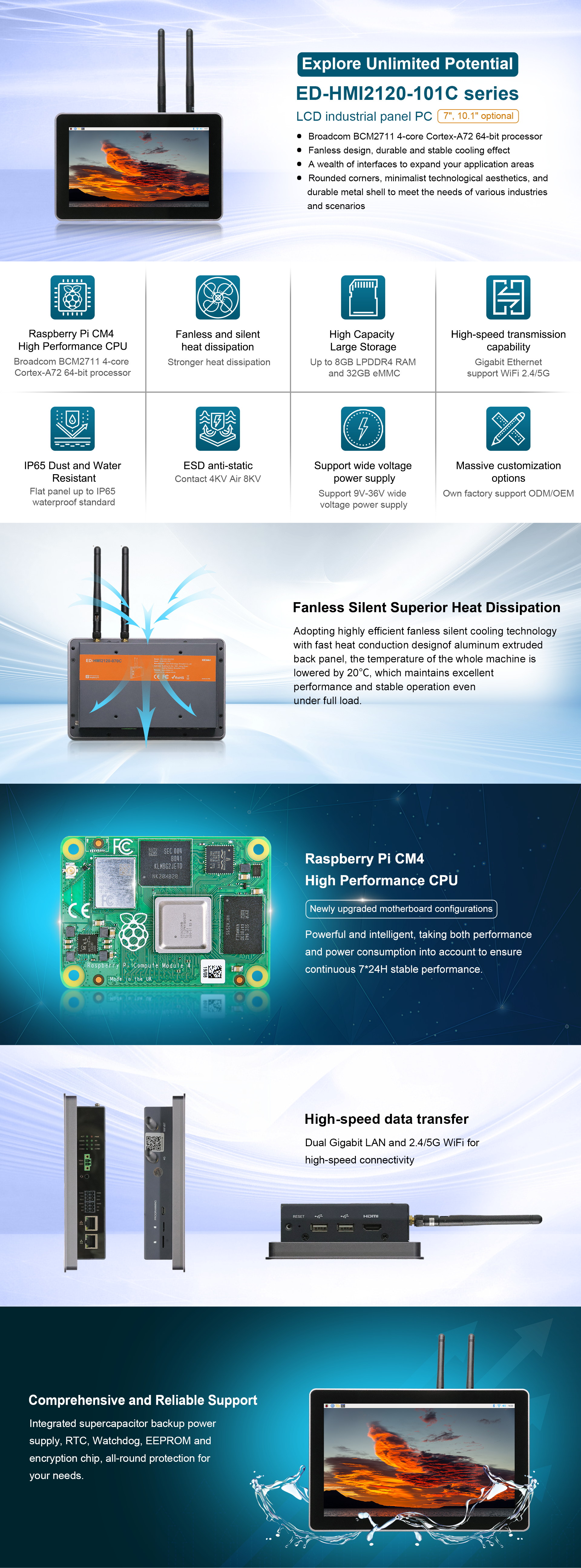

The ED-HMI2120 comes in two display sizes: a 7.0" model (ED-HMI2120-070C) with a resolution of 1024 x 600 and a 10.1" model (ED-HMI2120-101C) with a resolution of 1280x800. Both feature 16.7 million colors, LED backlighting, and a contrast ratio of 800:1 and 1000:1 respectively. The touchscreen is a multi-point capacitive type with a transmittance of ≥85%, supporting up to 10 points of touch and a surface hardness of 6H.
Electrically, the ED-HMI2120 operates on an input voltage of 9V to 36V DC and has a maximum power consumption of 25W. Mechanically, the dimensions and weight vary slightly between the two models, with the 7.0" model measuring 188mm x 123mm x 43.5mm and weighing 1Kg, while the 10.1" model is slightly larger and heavier at 258mm x 172mm x 42mm and 1.2Kg respectively.
Wireless capabilities include optional dual-band Wi-Fi (2.4GHz and 5GHz), Bluetooth 5.0, and various 4G LTE modules compatible with different regions around the world. The device is designed to operate in a wide range of temperatures, from -20°C to 60°C, and has received certifications such as FCC and CE, ensuring compliance with international standards.
The ED-HMI2120 is part of a larger family of HMI devices, each with varying features to suit different needs. The website also provides dimension diagrams and order information for easy selection and purchase.
HS CODE
| HS CODE | COO |
| 8471504001 | CN |
