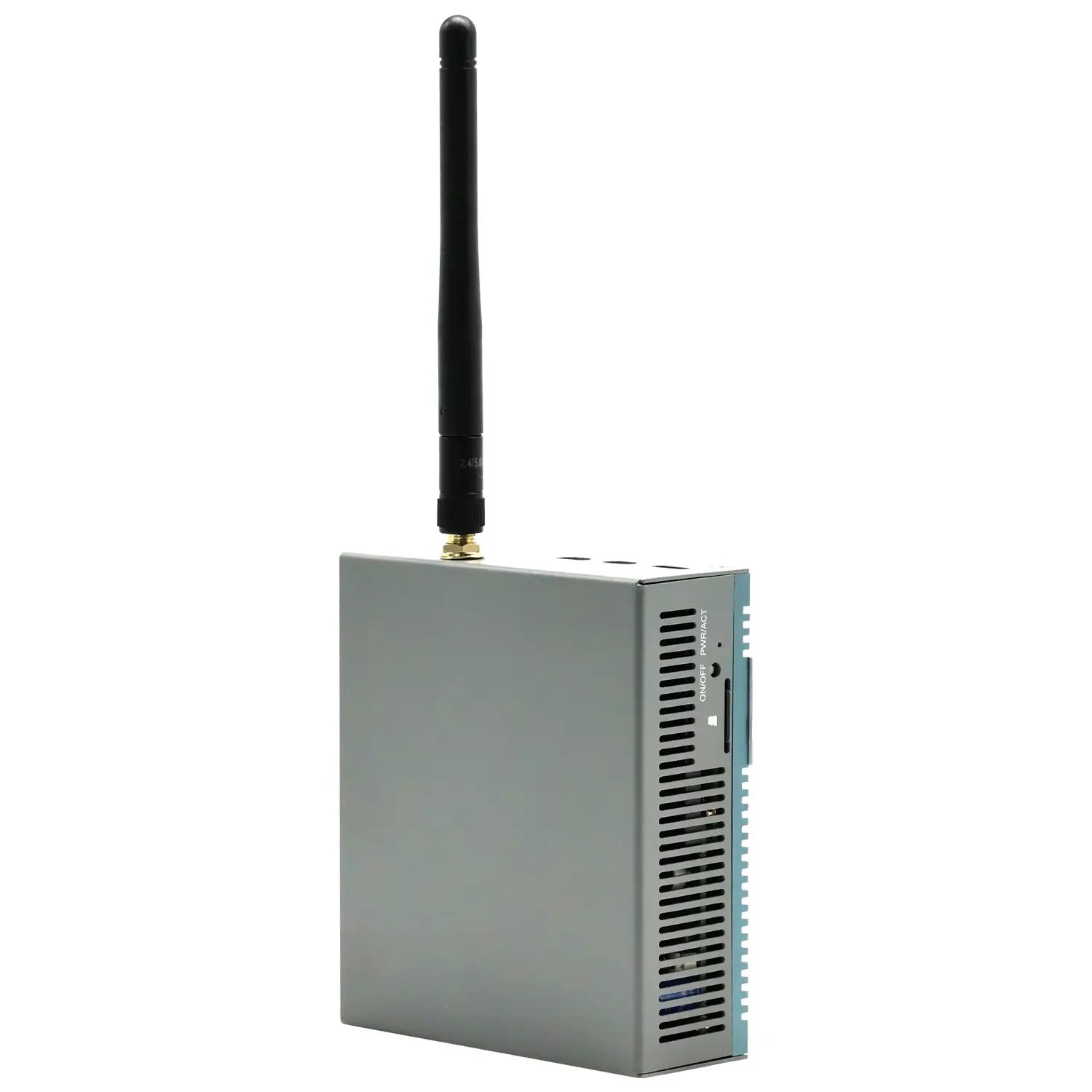

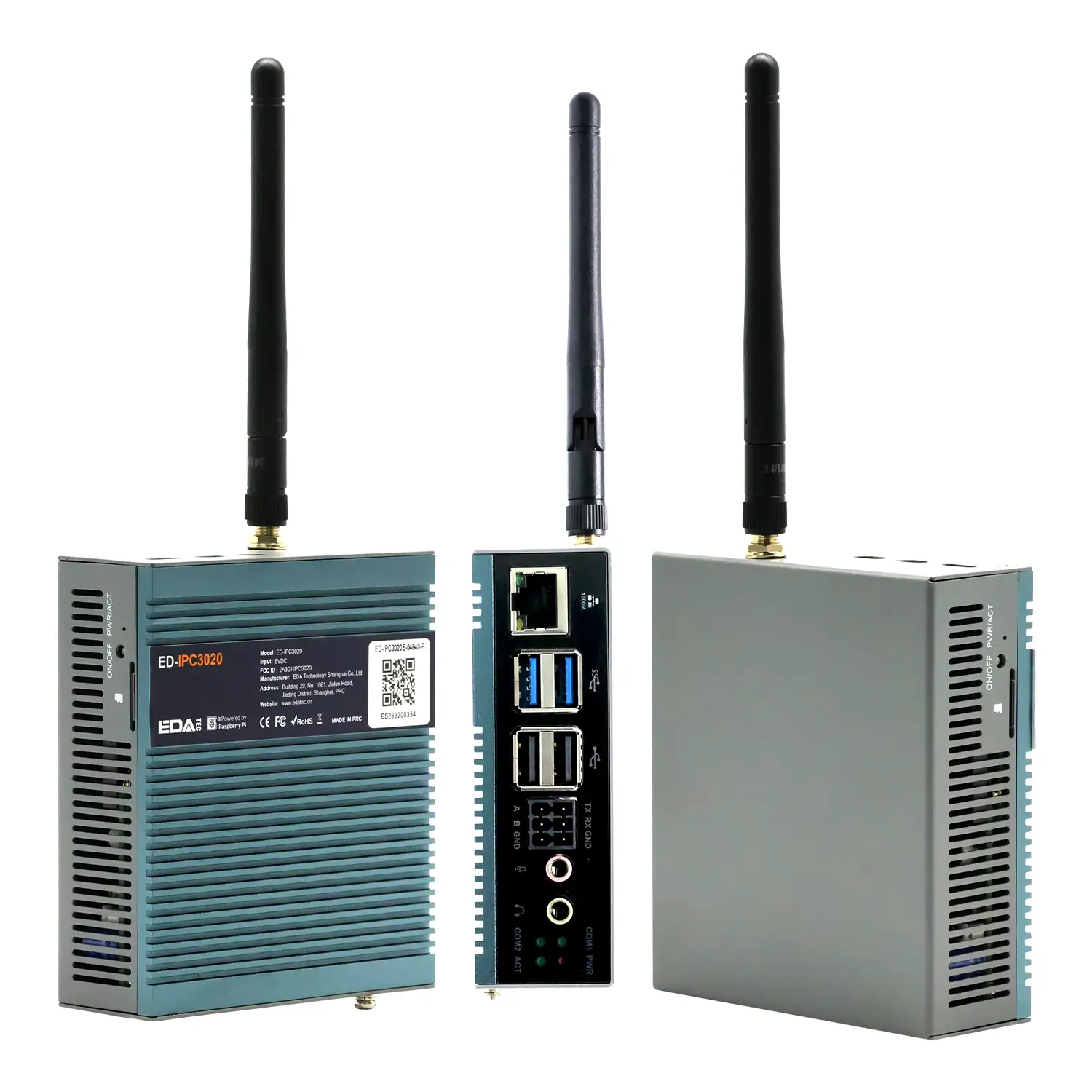

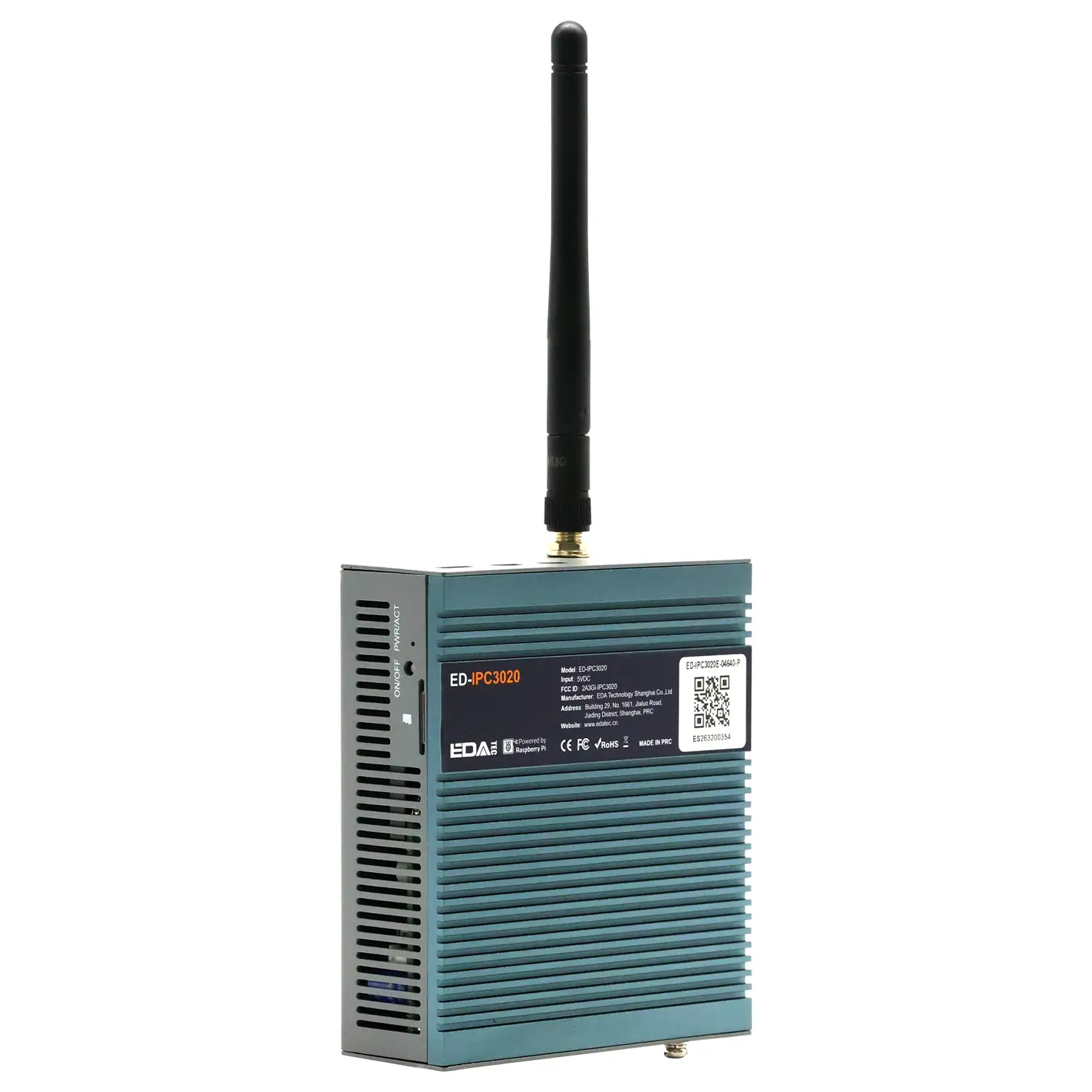

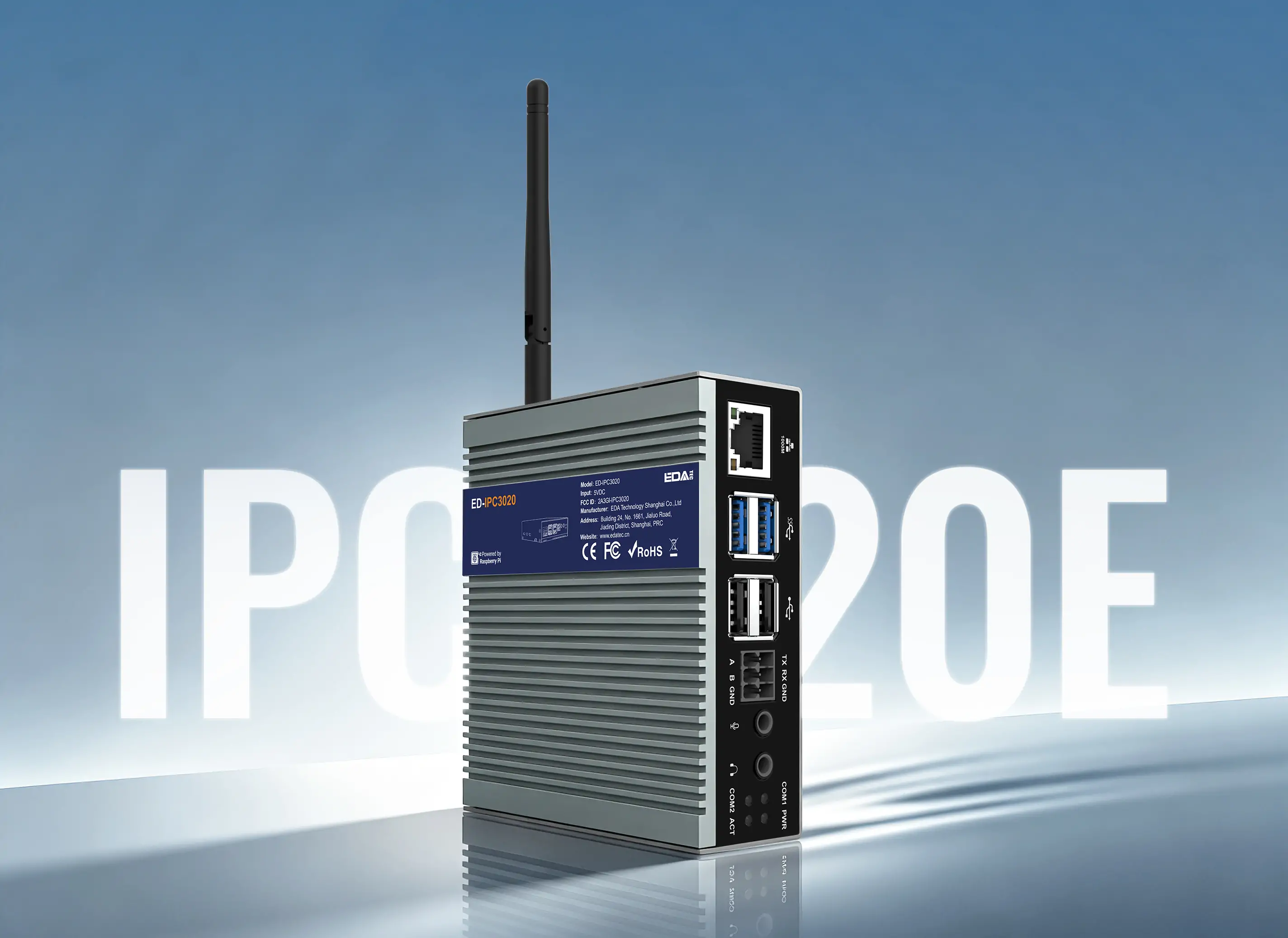

The ED-IPC3020E is an industrial-grade computer based on the Raspberry Pi 5. Its metal enclosure acts as a large heatsink, delivering fanless passive cooling that keeps the CPU running at full speed without throttling from -25°C to 50°C. An external Wi-Fi antenna addresses signal attenuation caused by the metal chassis, improving signal strength by ~16 dB on average in measured tests. The board also expands on the Pi 5 feature set with RS232, RS485, and audio input/output, plus optional PoE power and M.2 NVMe SSD. It is well suited for industrial control, data acquisition, edge computing, and similar applications.
Fanless Passive Cooling for Wide Temperature Operation
- CPU heat is conducted to the metal enclosure through the full-surface heatsink — no fan, no noise
- Operates from -25°C to 50°C; CPU runs at full speed without throttling at high temperatures
- Suitable for 24/7 continuous deployment

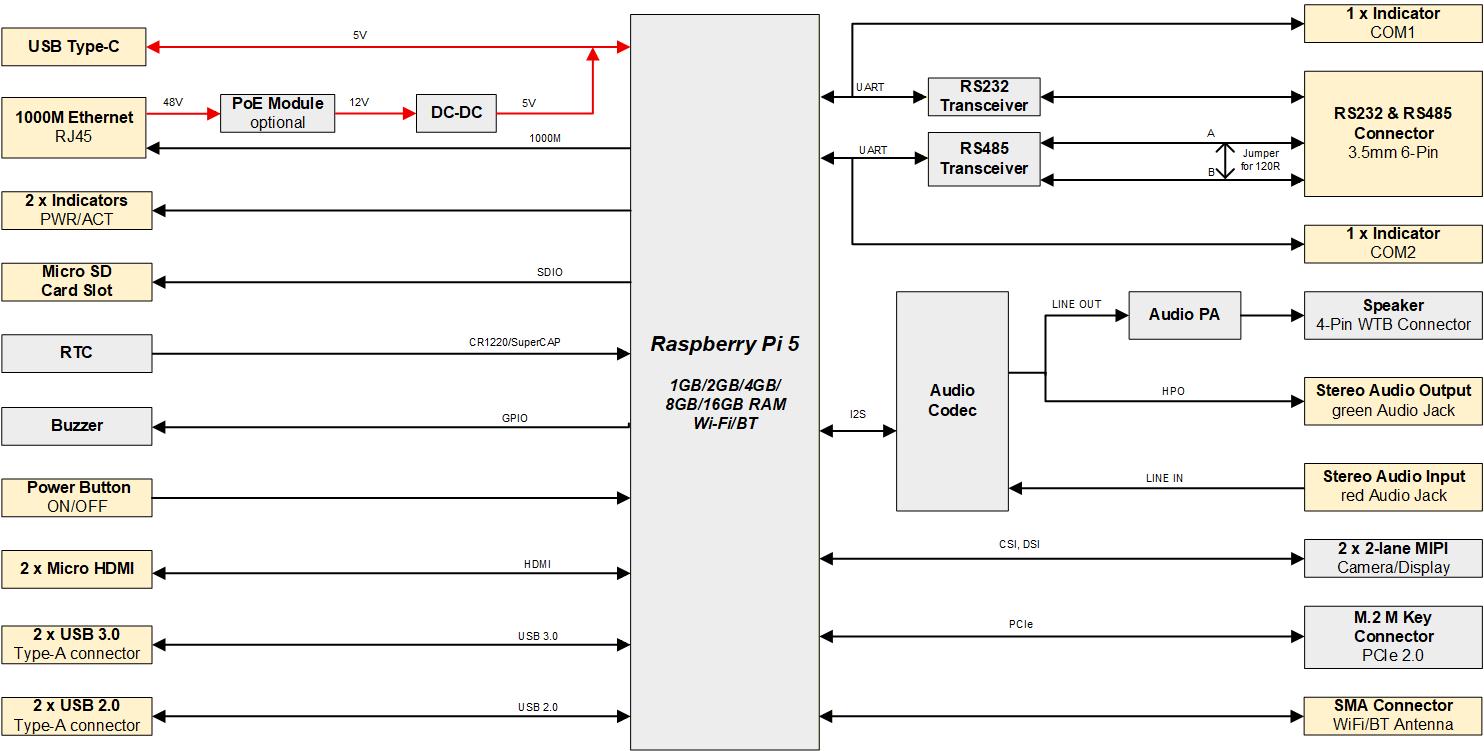

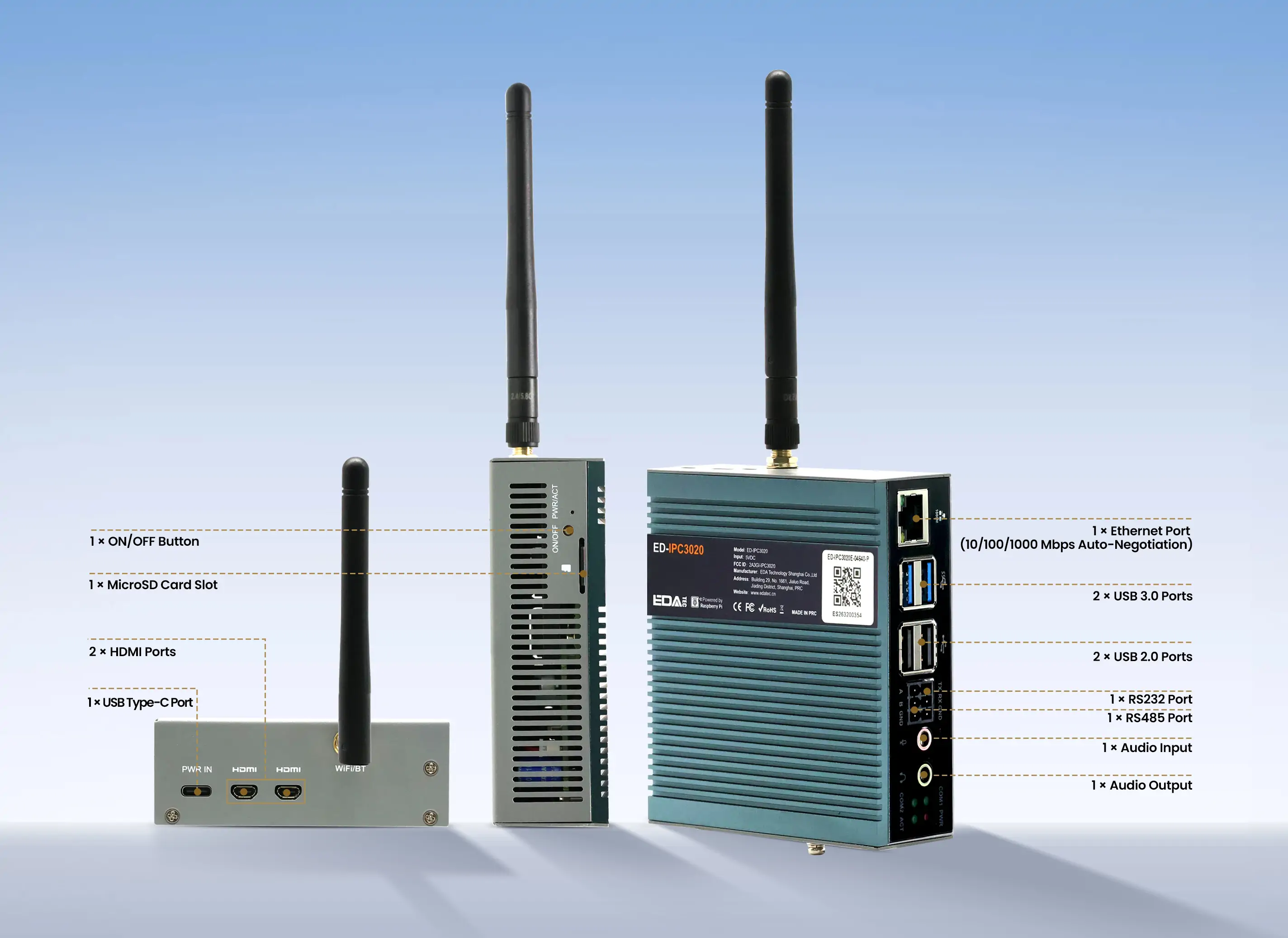

Expanded Industrial Interfaces
- Standard RS232 and RS485 ports provide direct connection to PLCs, instruments, and other field devices
- Audio input/output available via 3.5mm jacks
- Optional Power over Ethernet (PoE) supplies both data and power over a single cable
- Optional M.2 NVMe SSD; supports booting from SSD

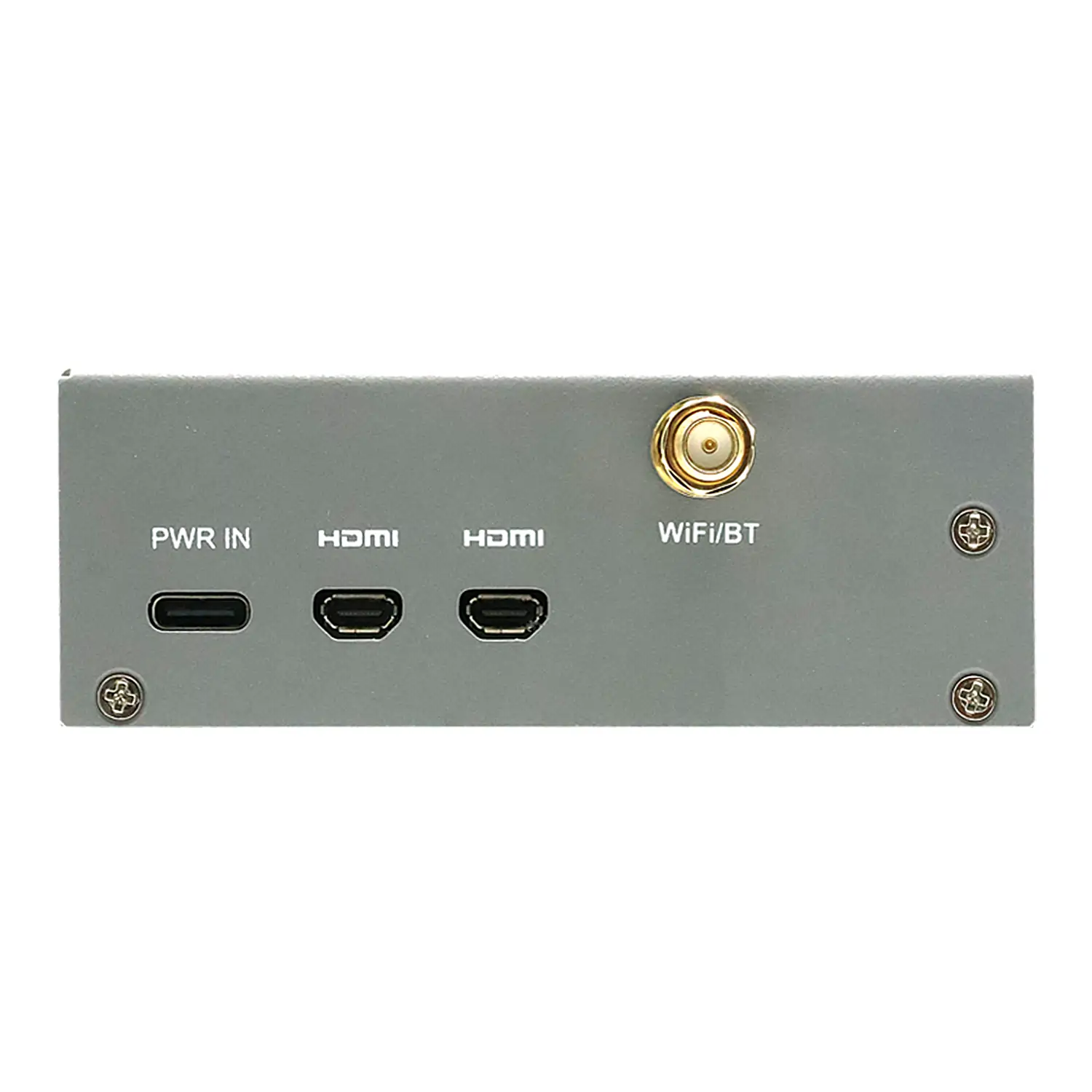

- Dual 4Kp60 HDMI outputs for extended dual-display setups

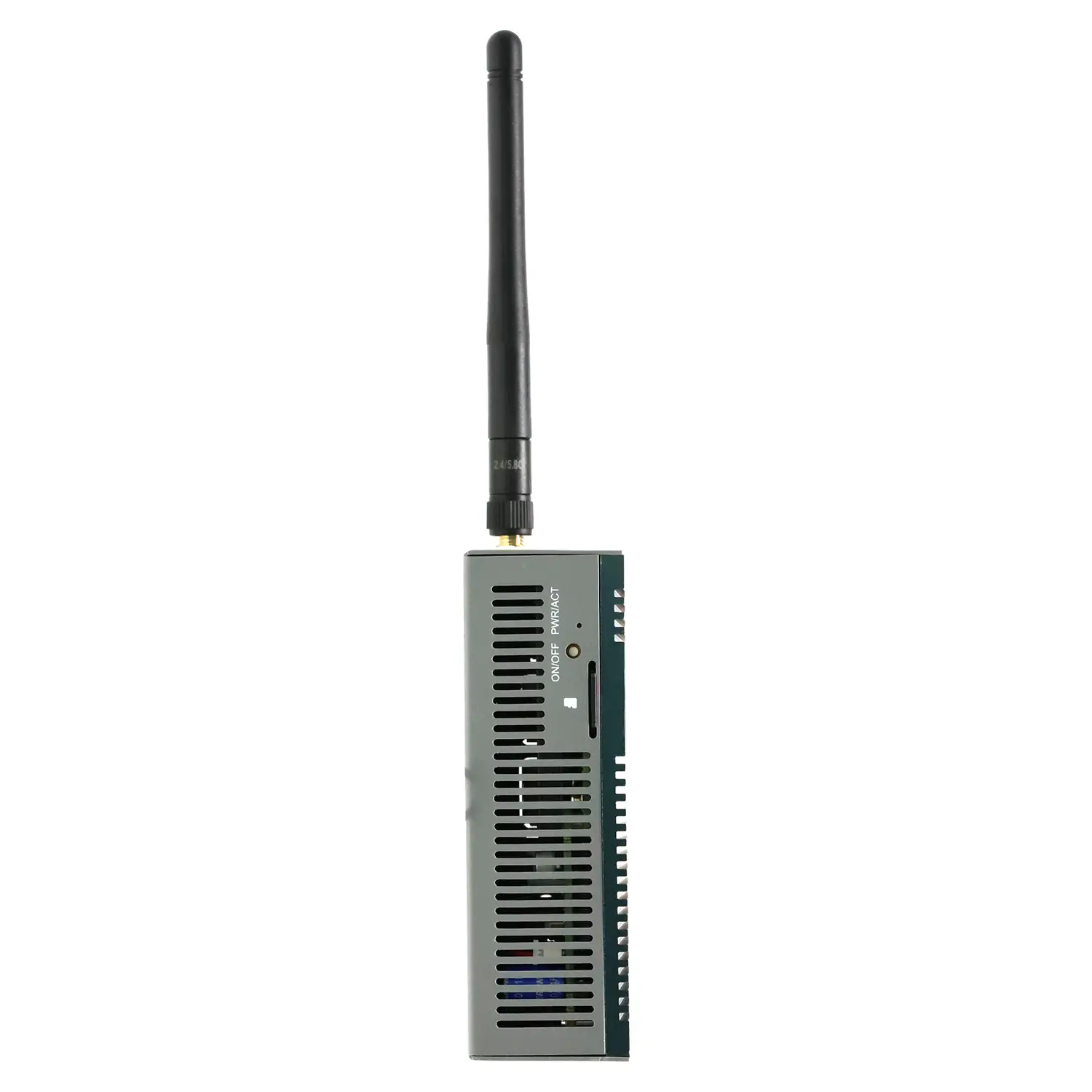

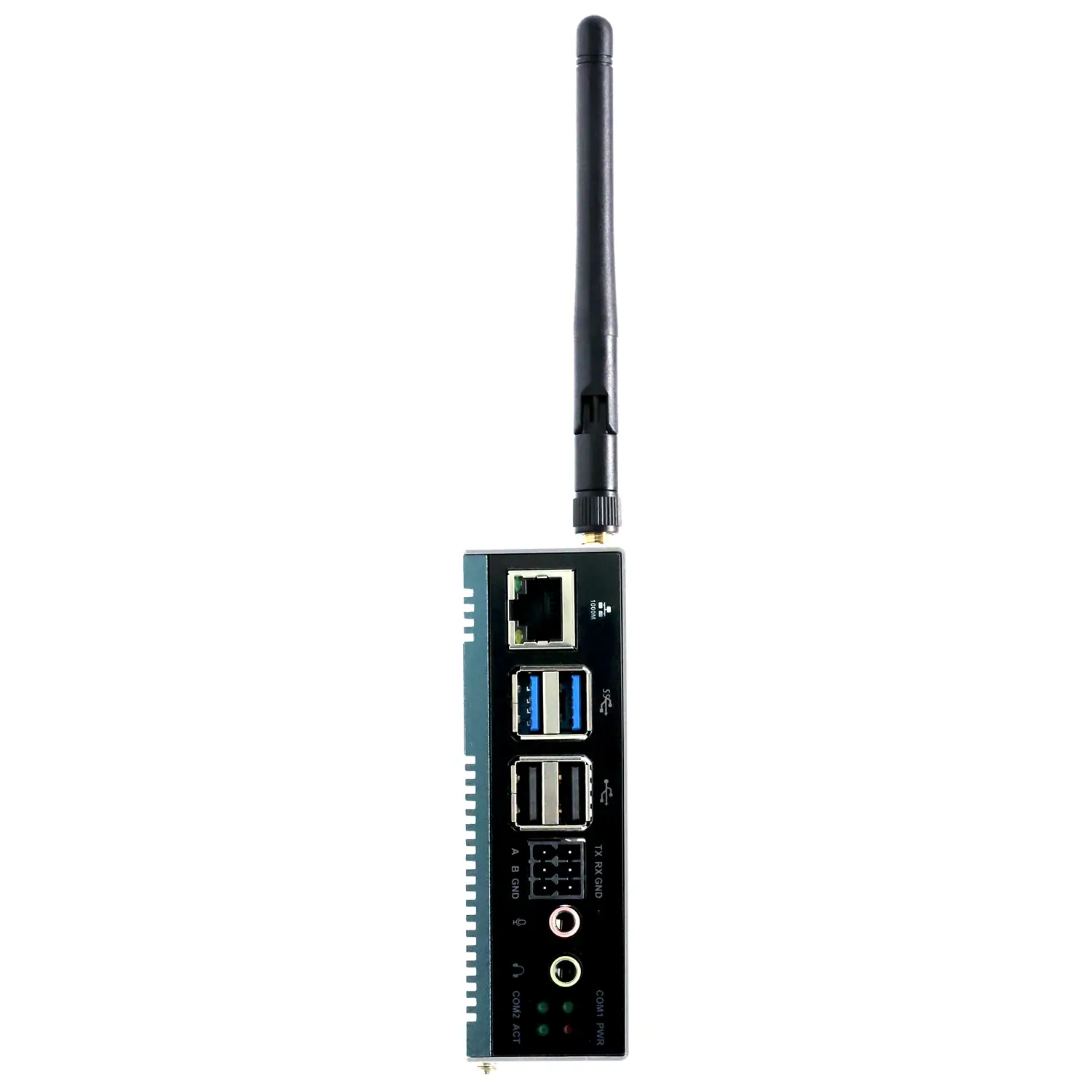

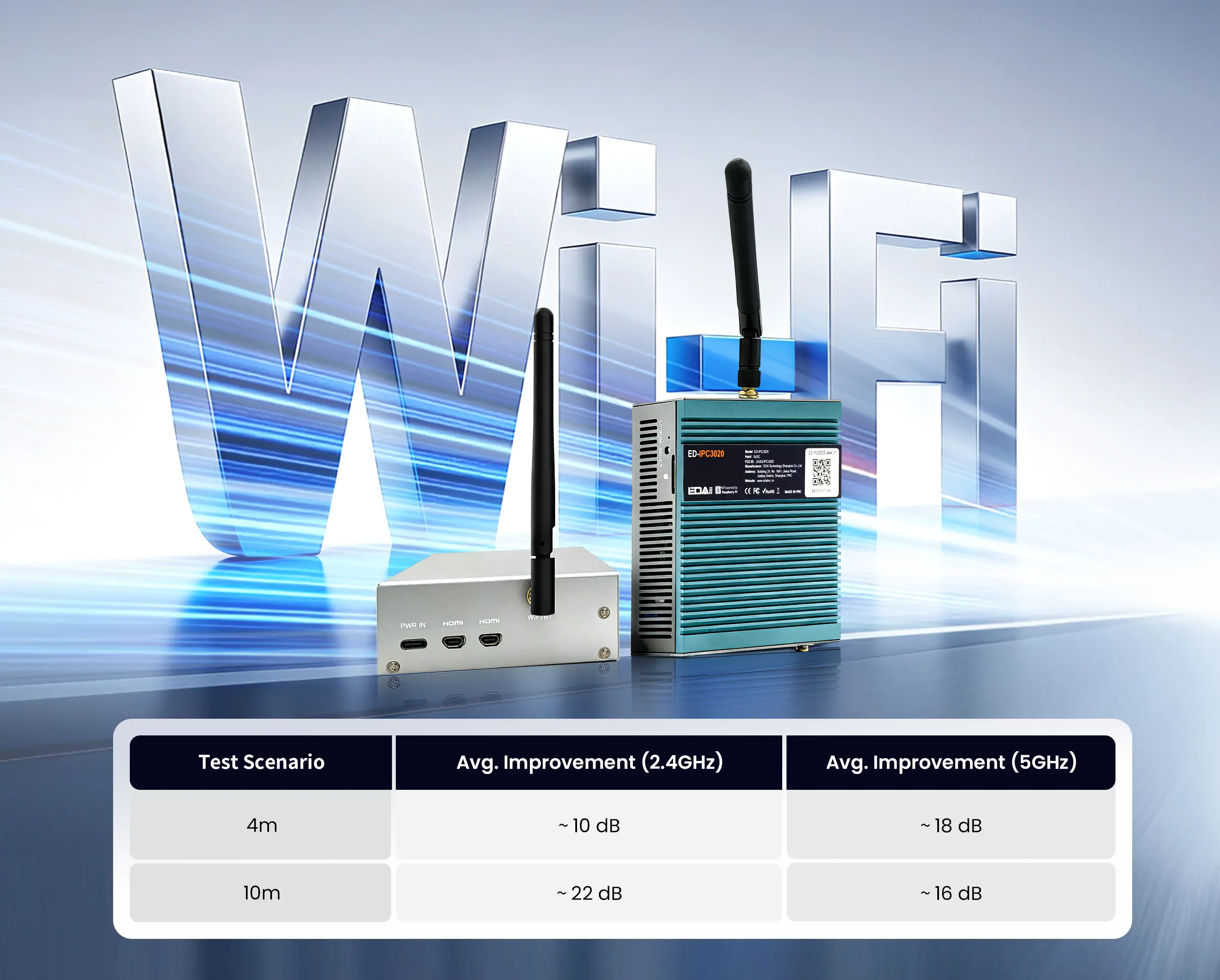

External Antenna Design Resolves Signal Attenuation in Metal Enclosures
Metal enclosures weaken the Wi-Fi signal from an onboard antenna. The ED-IPC3020E routes the antenna outside the enclosure through an IPEX connector and comes standard with a 2dBi rubber duck antenna, fundamentally improving signal quality.
Comparative test results (EDATEC Lab):
- Tested at 4m and 10m distances
- Measured on 7 channels in the 2.4GHz band and 9 channels in the 5GHz band
- Outperformed the onboard antenna version at all test points, with a minimum improvement of ~7 dB
- At 10m, the average improvement in the 2.4GHz band was ~22 dB, with a maximum of nearly 28 dB
Test Scenario | Avg. Improvement (2.4GHz) | Avg. Improvement (5GHz) |
4m | ~10 dB | ~18 dB |
10m | ~22 dB | ~16 dB |

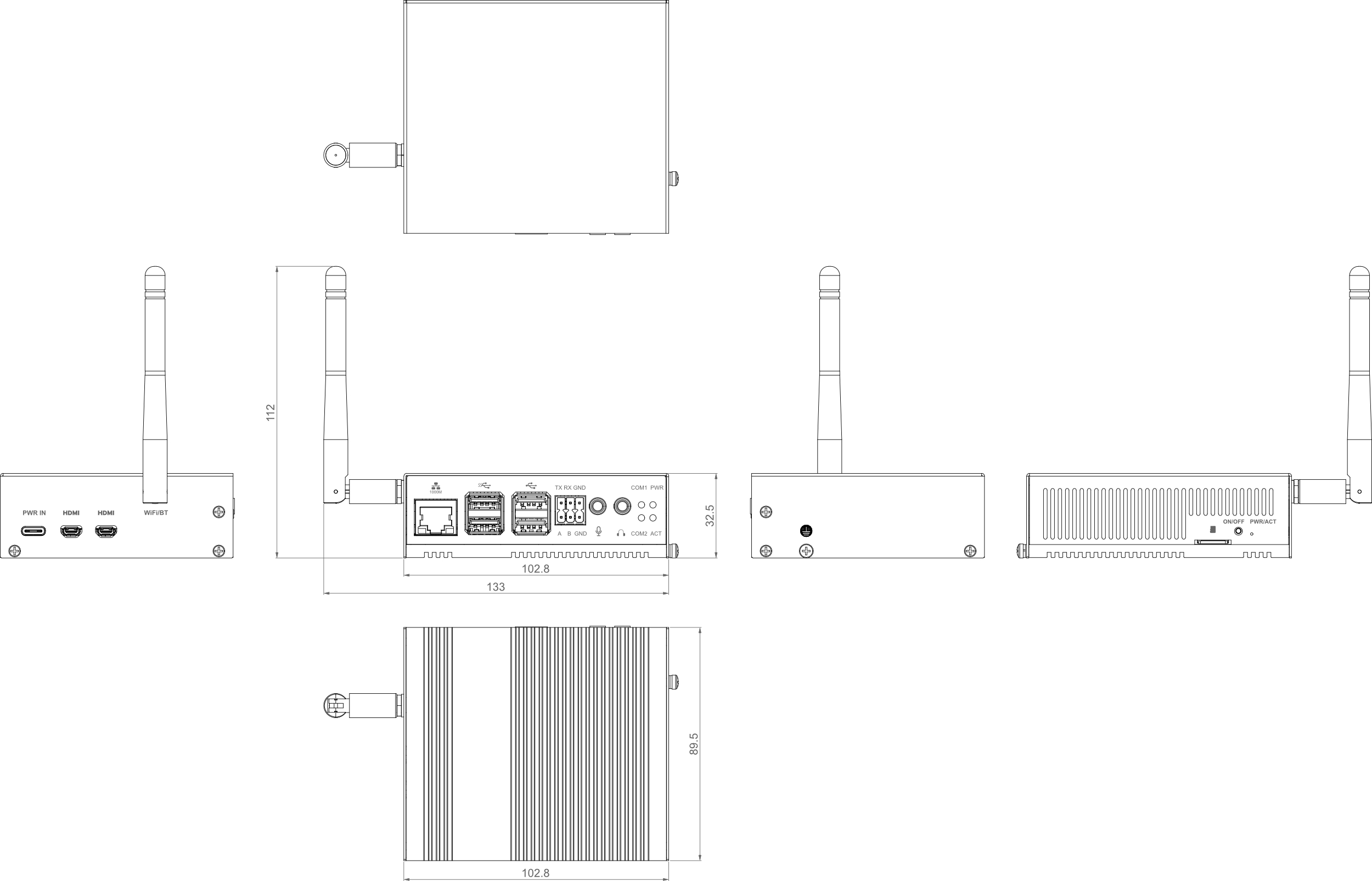

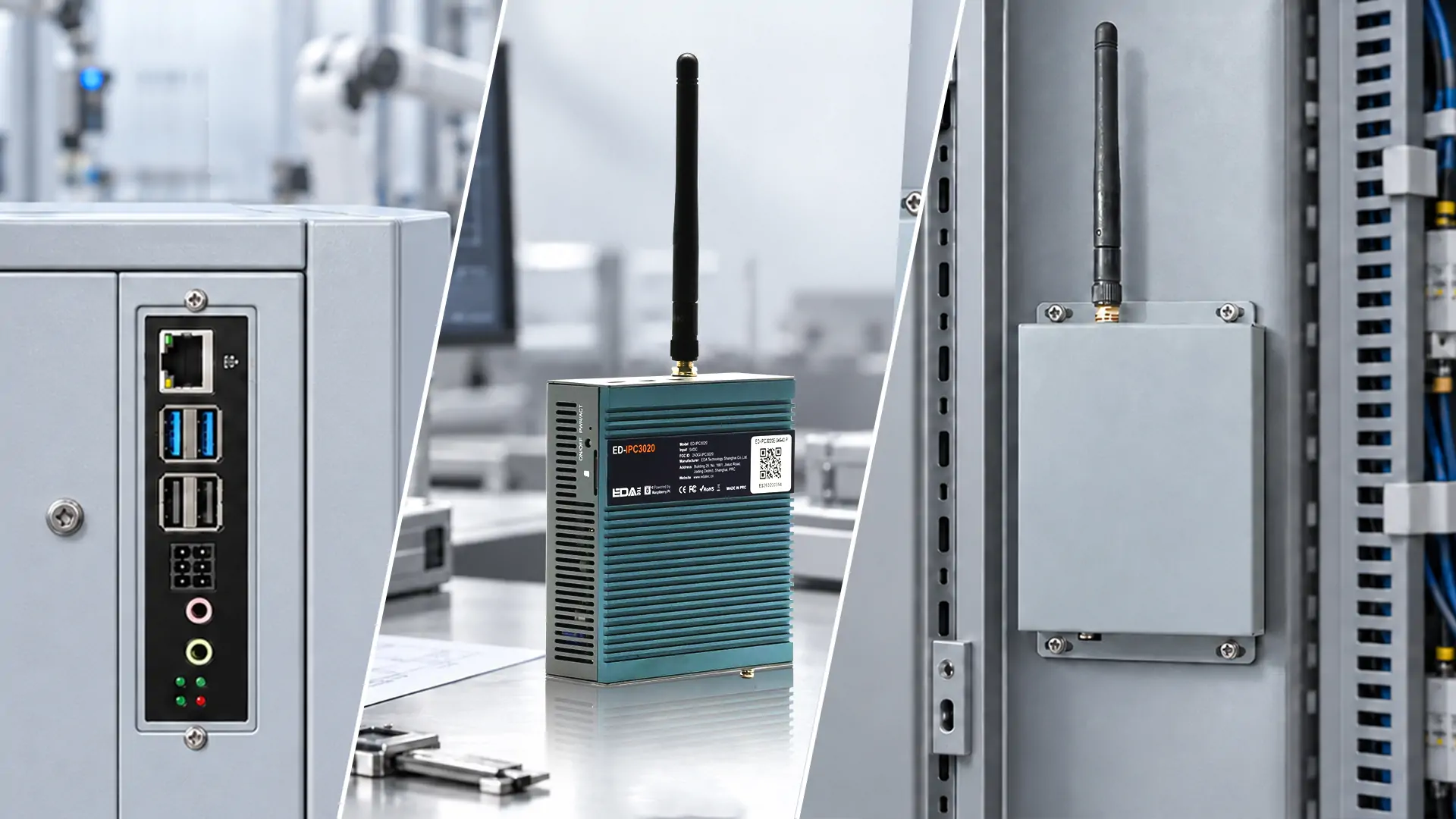

Compact and Flexible Installation
- Weighs approximately 300g; compact footprint fits space-constrained cabinets
- Desktop placement supported; optional wall-mount bracket available
