ED-GWL2110

ED-GWL2110

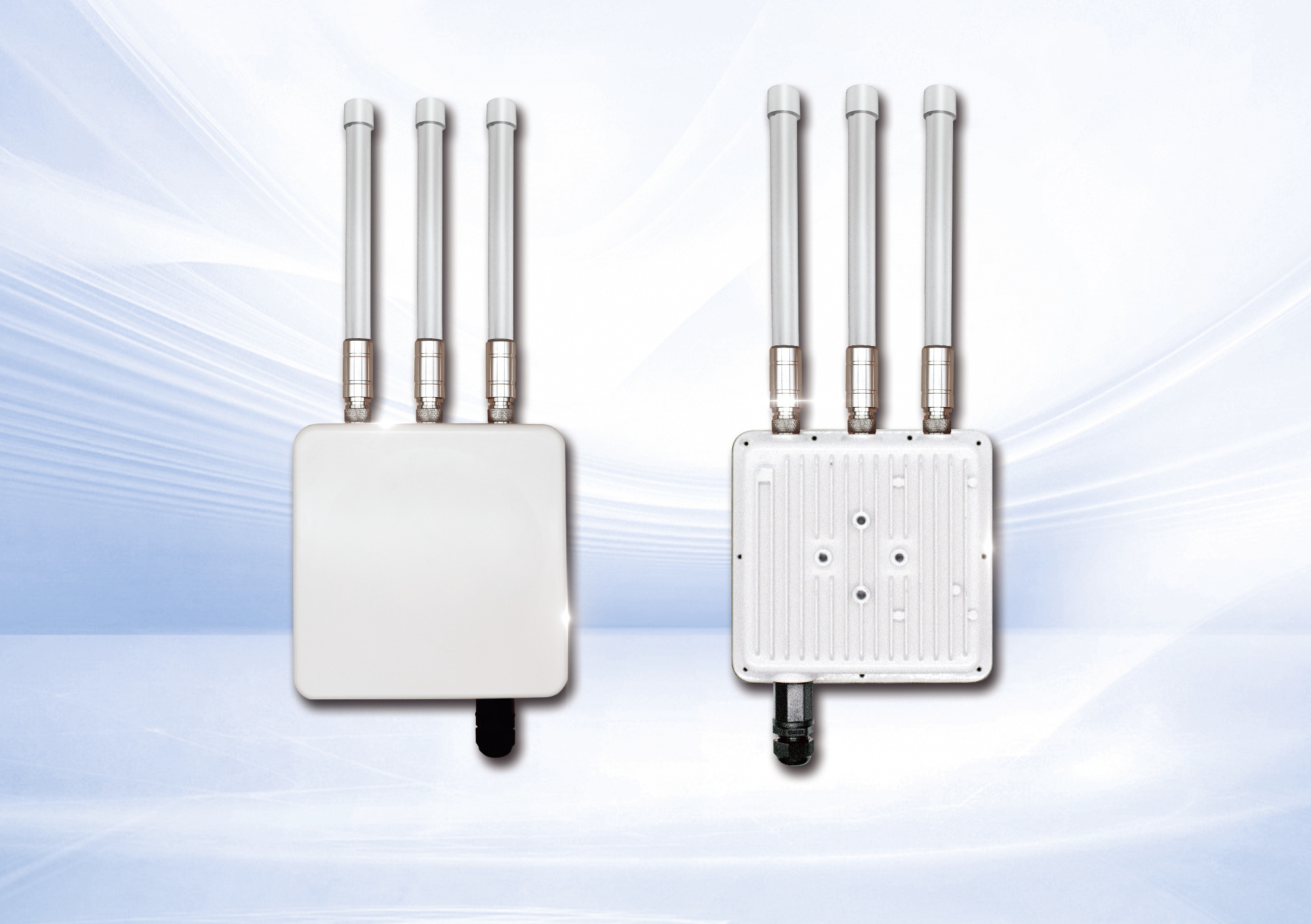

Outdoor IP65-rated waterproof industrial LoRa gateway, equipped with 4G, PoE, and GPS for demanding outdoor installations.

Key Featured
  • Broadcom BCM2711, quad core Arm Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • LPDDR4 from 1GB to 8GB
  • Dual SD card slots, support booting system and storing user data
  • 1 x Gigabit Ethernet with PoE
  • Optional 2.4GHz & 5GHz dual-band Wi-Fi/Bluetooth and 4G LTE
  • LoRa module powered by Semtech SX1302 baseband processor and SX1250 TX/RX front-end
  • Support global license-free frequency band including CN470, EU868 and US915
  • Built-in RTC, Watchdog and crypto authentication
  • Waterproof case design, IP65 waterproof grade

ED-GWL2110 is a robust outdoor IoT gateway designed by EDATEC to provide reliable connectivity for various IoT applications.

Engineered to withstand harsh outdoor environments, this gateway is enclosed in an all-aluminum alloy casing that offers excellent waterproof, moisture-proof, insect-proof, and lightning-proof characteristics.

It is based on the Raspberry Pi Compute Module 4 (CM4), which ensures a high level of integration and flexibility for different use cases.

At the core of ED-GWL2110 is a BCM2711 4-core ARM Cortex-A72 1.5GHz 64-bit CPU, which delivers powerful processing capabilities.

The system memory can be configured with options up to 8GB of RAM, and it supports dual micro SD cards for the system and storage expansion, with options up to 64GB.

The gateway also features a standard HDMI port for video output and a Gigabit Ethernet port for wired connectivity.

Wireless communication is well-covered with dual-band WiFi and Bluetooth 5.0, compliant with IEEE 802.11 b/g/n/ac standards.

For outdoor communication, a 4G/LTE module is supported, ensuring that outdoor equipment can upload and download data effectively.

The device also includes a GPS module that supports multiple satellite systems, facilitating precise positioning.

ED-GWL2110 features a SATA interface specifically for a LoRa module, supporting various frequency bands.

It also has a watchdog module to prevent system freezes and enhance operational stability. An onboard encryption chip on the I2C bus further ensures the security of the device's information.

For reliable operation, the gateway includes an RTC module powered by a CR1220 button cell. An independent button and an RGB LED provide additional functionality and status indication.

The device is powered through a POE supply ranging from 40V to 57V and is designed to work in temperatures between -25°C to 60°C.

ED-GWL2110's dimensions are 195(L) x 195(W) x 65(H) mm, and it comes with a cast aluminum waterproof shell that meets IP65 waterproof grade standards.

The system diagram and functional layout provide a clear overview of the device's components, including the GPS antenna port, LoRa mini-PCIe port, CM4 slot, 4G mini-PCIe port, UART port, HDMI port, Ethernet RJ45 port, and RTC battery slot.

Explore in-depth reviews and coverage of ED-GWL2110 by leading international media outlets! Click the links to learn more:

CNX SOFTWARE


HS CODE

HS CODECOO
8517699000CN


System Diagram
gwl2110-2
Specification
System
CPUBroadcom BCM2711, quad core Arm Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
VPUH.265 (HEVC), up to 4Kp60 decode
H.264, up to 1080p60 decode, 1080p30 encode
GPUOpenGL ES 3.1 & Vulkan 1.0
MemoryOptions for 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM
StorageOptions for 32GB, 64GB SD card storage, using for booting system
software
Operating SystemRaspberry Pi OS (Lite) 64-bit
Panel I/O
1000M Ethernet1 x adaptive 10/100/1000M ethernet port with PoE, RJ45 connector. It can be used to access the network and supply power for the device.
4G Antenna Port (optional)1 x SMA port, using to connect 4G antenna
LoRa Antenna Port1 x SMA port, using to connect LoRa antenna
Wi-Fi/BT Antenna Port (optional)1 x SMA port, using to connect Wi-Fi/BT antenna
Internal I/O
SD Card Slot2 x Micro-SD card slots, which is used to install SD card. It supports booting the OS and storing user data.
SIM Card Slot (optional)1 x Nano SIM card slot, using to install SIM card for getting 4G signal.
Button1 x USER button, you can define the function according to actual needs.
LED1 x USER LED, you can define the color according to actual needs.
Expansion Performance
Crypto AuthenticationIt can be matched to realize the required upper layer application and improves the security of device.
RTCWe provide a battery base, and a CR1220 battery can be installed as a backup power supply for RTC, which can ensure that the system clock is not affected by device power-off.
WatchdogSupport Watchdog to ensure the reliability of device.
Electrical Characteristics
Input VoltagePoE power supply, support 802.3af standard
Power Consumption15W (Max)
Mechanical Characteristics
Dimensions194.2mm x 194.2mm x 65.3mm (WxDxH, antenna is not included.)
WeightAbout 1kg
InstallationWall Mounting
Wireless
Wi-Fi/Bluetooth (optional)2.4GHz & 5GHz dual-band Wi-Fi and Bluetooth with antenna.
  • 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
  • 5GHz Wi-Fi: Compatible with IEEE 802.11 a/n/ac
  • The Bluetooth supports 2402MHz ~ 2480MHz frequency
LoRaSupport three LoRa modules with antenna
  • EU868 Module: 868MHz
  • US915 Module: 915MHz
  • CN470 Module: 470 MHz
4G (optional)Connect with various 4G LTE modules through the Mini PCIe interface, with antenna.
  • EC20-CE Module (China/India)
    • LTE FDD: B1/B3
    • LTE TDD: B38/B39/B40/B41
    • TDSCDMA: B34/B39
    • WCDMA: B1
    • CDMA 1x/EVDO: BC0
    • GSM: 900/1800MHz
    • GPS/GLONASS/BDS/Galileo/QZSS (optional)
  • EC25-AFX Module (North America)
    • LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
    • LTE TDD
    • WCDMA: B2/B4/B5
    • GSM/EDGE
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-AUX Module (Latin America/Australia/New Zealand)
    • LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
    • LTE TDD: B40
    • WCDMA: B1/B2/B4/B5/B8
    • GSM/EDGE: B2/B3/B5/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-EUX Module (Europe/Middle East/Africa/Thailand)
    • LTE FDD: B1/B3/B7/B8/B20/B28A
    • LTE TDD: B38/B40/B41
    • WCDMA: B1/B8
    • GSM/EDGE: B3/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-EM Module (Europe/Middle East/Africa/South-East Asia)
    • LTE FDD: B1/B3/B7/B8/B20/B28
    • LTE TDD: B38/B40/B41
    • WCDMA: B1/B5/B8
    • GSM/EDGE: B3/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
Environmental
Operating Temperature-25°C ~ 60°C
Storage Temperature-25°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals

Unit: mm

gwl2110-3
Ordering Code
gwl2110-orderingcode
