Raspberry Pi 500+

Raspberry Pi 500+ is a premium computer built into a high-quality mechanical keyboard, redefining the compact PC experience for power users and enthusiasts.

Key Featured
  • Processor: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
  • Memory: 16GB LPDDR4X-4267 SDRAM

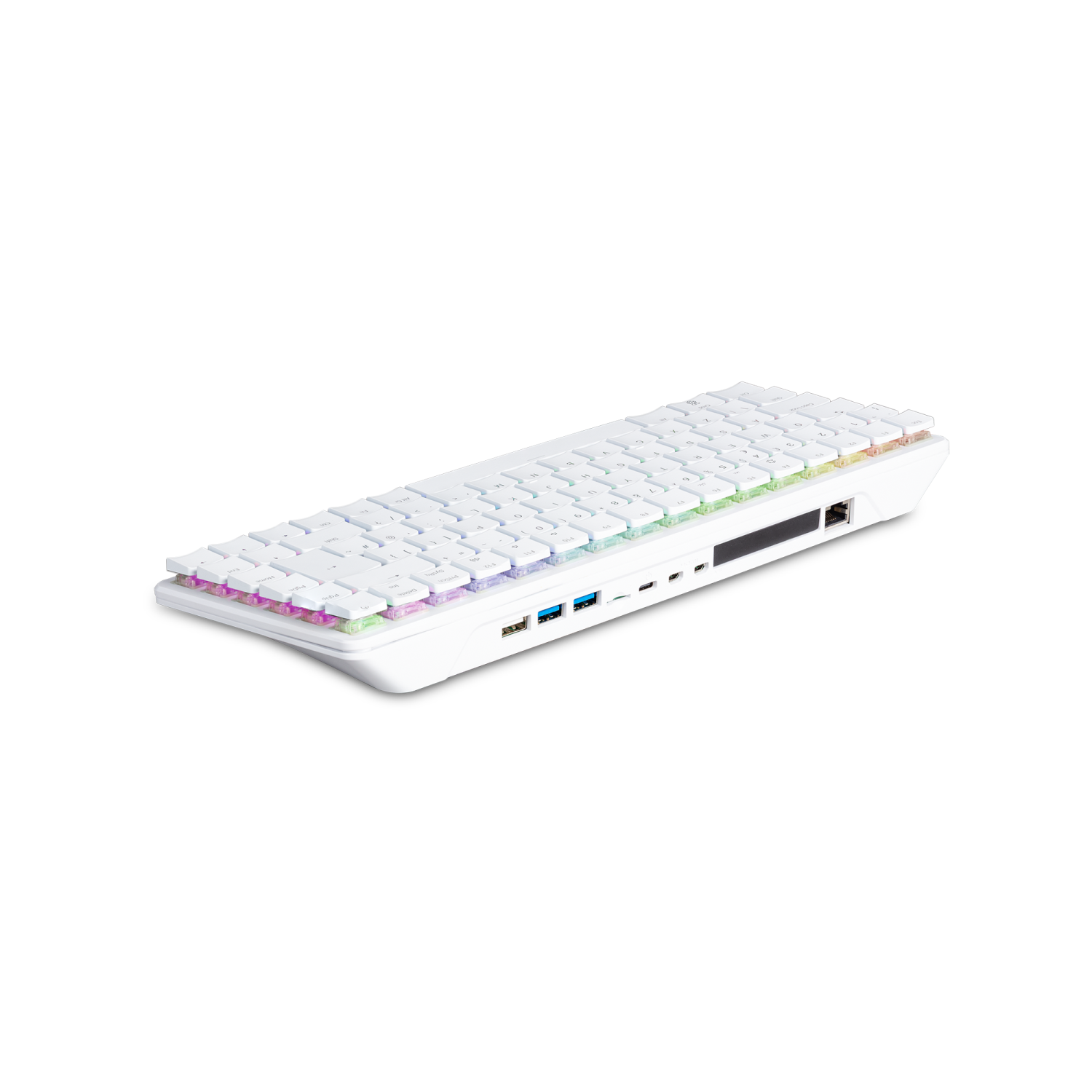

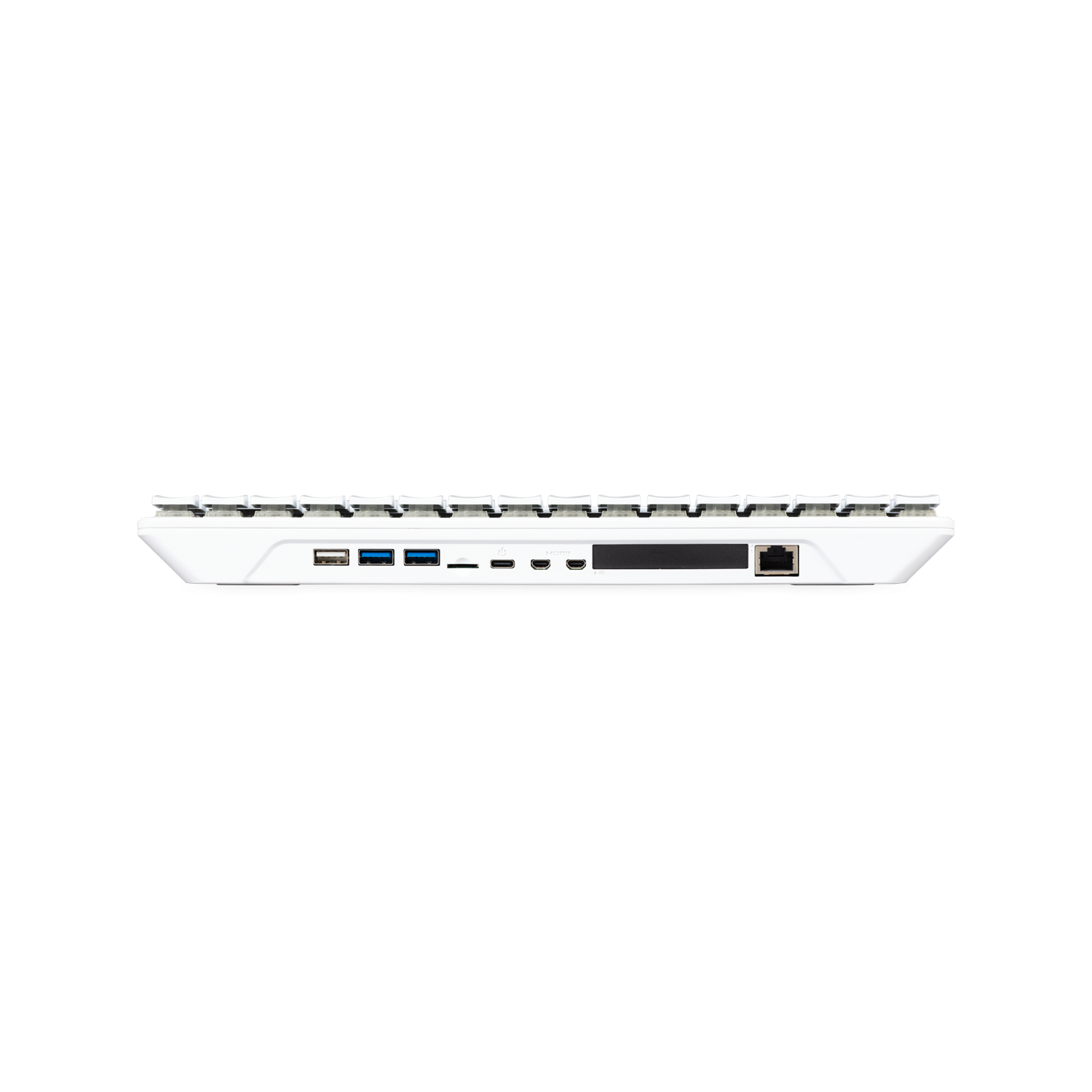

  • Connectivity: Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®; Bluetooth 5.0, BLE; Gigabit Ethernet; 2 × USB 3.0 ports and 1 × USB 2.0 port; 2 × micro HDMI ports
  • GPIO: Horizontal 40-pin GPIO header
  • Display output: Supports up to dual 4Kp60
  • Multimedia: H.265 (4Kp60 decode); OpenGL ES 3.0 graphics
  • Storage: 256GB Raspberry Pi SSD pre-installed with Raspberry Pi OS; Support for M.2 NVMe SSDs up to 2280 (22mm × 80mm) form factor; microSD card slot for operating system and data storage
  • Keyboard: 84-, 85- or 88-key mechanical keyboard (depending on regional variant); Gateron KS-33 Blue low-profile switches
  • Power: 5V DC via USB connector
  • Operating temperature: 0°C to +50°C
  • Dimensions: 312mm × 123.06mm × 35.76mm
  • Production lifetime: Raspberry Pi 500+ will remain in production until at least January 2035
  • Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com

Raspberry Pi 500+ is a premium computer built into a high-quality mechanical keyboard, redefining the compact PC experience for power users and enthusiasts.

Powered by the same quad-core 64-bit Arm processor and RP1 I/O controller found in Raspberry Pi 5, it also integrates a one-piece aluminium heatsink for improved thermal performance. This ensures your Raspberry Pi 500+ will run fast and smoothly even under heavy load, while delivering glorious dual 4K display output.

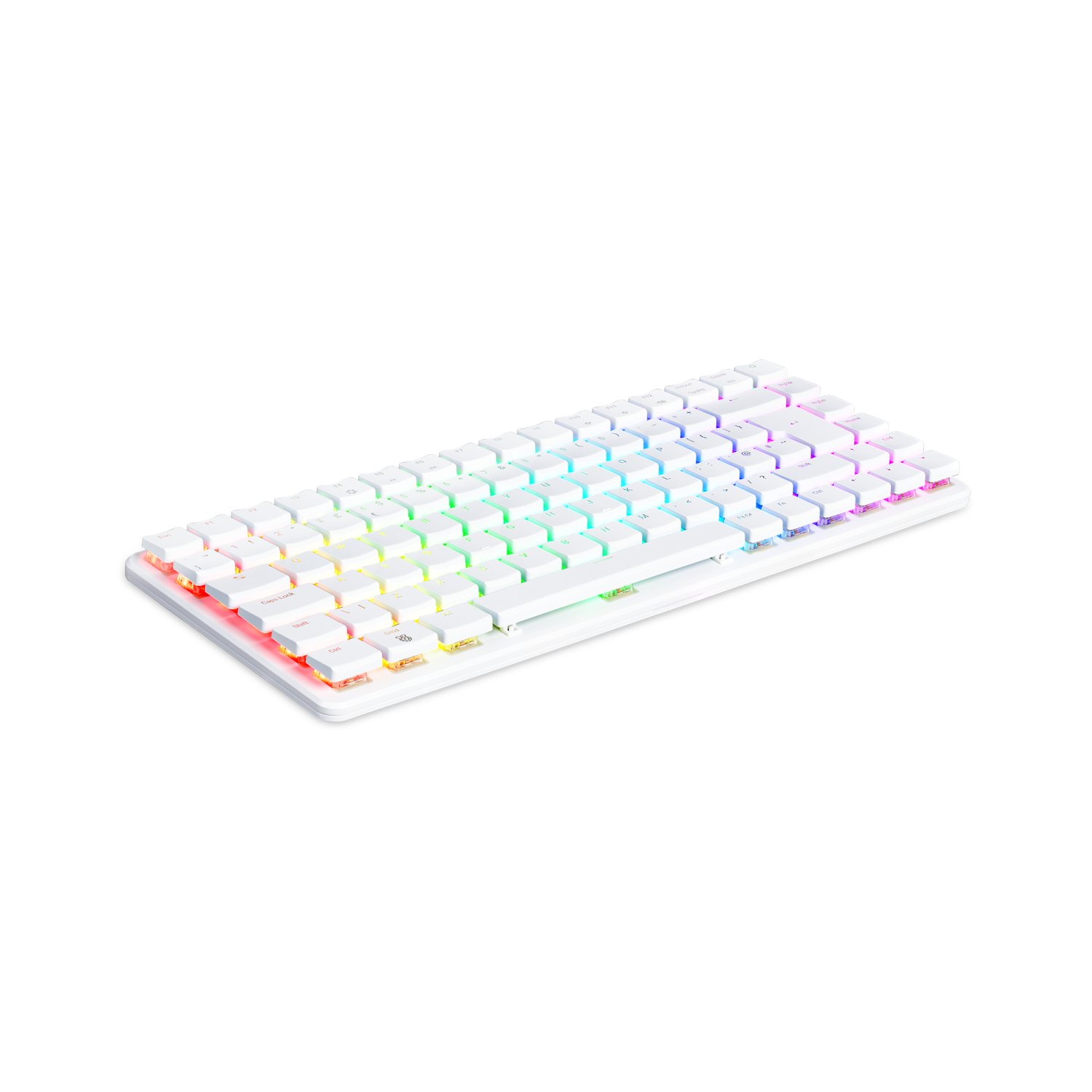

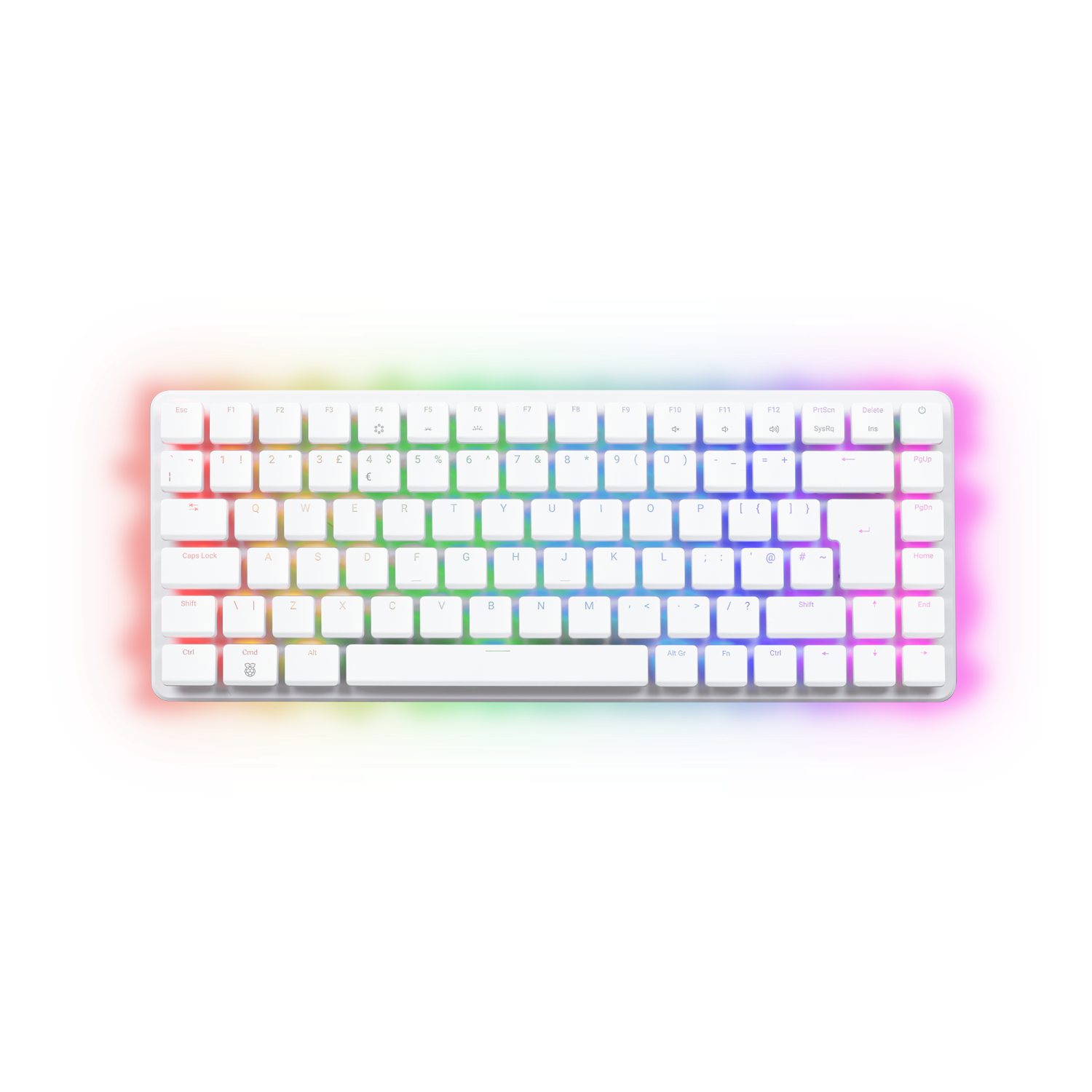

Raspberry Pi 500+ features 16GB of LPDDR4X-4267 SDRAM to handle the most memory-intensive workloads, and a pre-installed 256GB Raspberry Pi SSD for blazingly fast I/O performance. Clicky Gateron KS-33 Blue mechanical keyboard switches are paired with ergonomic low-profile keycaps and individually addressable RGB LEDs.

Tools are included for opening the case to replace the SSD and for swapping out the default keycaps.

For those looking for the complete Raspberry Pi 500+ setup, the Raspberry Pi 500+ Desktop Kit comes with a mouse, a USB-C power supply and an HDMI cable, along with the Official Raspberry Pi Beginner’s Guide, to help you get the most out of your new computer.

Docs
Type Title Publish Time
brief 500-plus-brief.pdf 2025-09-25
instructions SSD replacement instructions 2025-09-25
