Home > Products > HMI
Search List
CPU
BCM2711 1.5GHz quad-core A72
BCM2712 2.4GHz quad-core A76
RAM
1GB/2GB/4GB/8GB LPDDR4
2GB/4GB/8GB/16GB LPDDR4X
2GB/4GB/8GB LPDDR4X
Storage
8GB/16GB/32GB eMMC
16GB/32GB/64GB eMMC
Micro SD Card
SSD
Display
7"
10.1"
12.1"
15"
15.6"
17"
21.5"
Wireless
2.4GHz & 5GHz dual-band WiFi
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
4G
5G
Interface
1000M Ethernet
100M Ethernet
USB 2.0
USB 3.0
RS232
RS485
CAN
DI/DO
HDMI
Audio in&out
Other
RTC, CR1220
Hardware Watch Dog
Operating
-20℃~60℃
0 ~ 50°C
Mechanical
Fanless Design
Mounting
DIN & Wall
Power Input
5V DC via USB-C
DC 9V~28V
DC 9V~36V
ED-HMI2002 Series

The ED-HMI2002 is an industrial panel PC based on Raspberry Pi 4, offering robust processing, dual 4K HDMI output, and versatile connectivity options in a fanless aluminum case for reliable operation in various environments.

ED-HMI2020 Series

ED-HMI2020 is a versatile industrial HMI device featuring a Raspberry Pi Compute Module 4, offering a high-resolution touch screen, robust wireless connectivity, and wide temperature operation for reliable industrial control applications.

ED-HMI2120 Series

The ED-HMI2120 is a high-performance HMI device featuring a powerful quad-core processor, multiple connectivity options, and a choice between 7.0" and 10.1" touchscreen displays for industrial applications.

ED-HMI2220 Series

ED-HMI2220 is a high-performance industrial HMI device featuring a Raspberry Pi Compute Module 4, offering versatile wireless connectivity, multiple I/O options, and a wide operating temperature range for reliable industrial control and automation.

ED-HMI2320 Series

ED-HMI2320 is a versatile, high-performance industrial panel PC with a wide range of display options, advanced connectivity, and robust design for reliable operation in demanding environments.

ED-HMI2630-101C

ED-HMI2630-101C is a feature-rich 10.1" industrial HMI device with a quad-core BCM2711 processor, dual Ethernet ports, multiple isolated serial and digital I/Os, and support for WiFi, Bluetooth, and 4G LTE connectivity, designed for resilient operation in extreme temperatures.

ED-HMI3010 Series

ED-HMI3010 is a high-performance industrial HMI device featuring a powerful Broadcom BCM2712 CPU, dual 4K HDMI outputs, and versatile wireless connectivity in a fanless aluminum case for reliable operation in extreme temperatures.

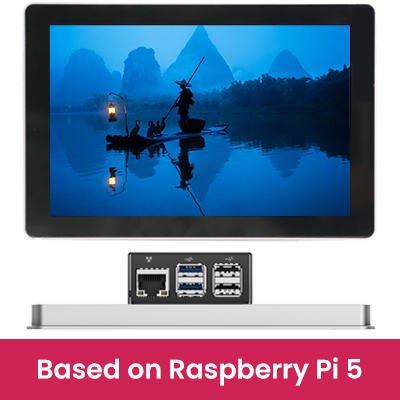

ED-HMI3020 Series
  • Pi5 Platform，Quad-core
  • 7"/10.1" True Flat Pcap LCD, 400cd/m²
  • 1 x GbE(PoE), 4 x USB, 1 x RS232/RS485
  • Metal Fanless Wide Temp(-20~60℃)
  • Supports Panel Mounting
ED-HMI3120 Series
  • CM5 platform, Quad-core
  • 7"/10.1" True Flat Pcap LCD, 400cd/m²
  • Dual LAN (GbE + 100M), RS232/485, HDMI, USB
  • Metal fanless wide temp(-20~60℃), 9~36V DC
  • Supports VESA 75/Panel Mounting
ED-HMI3630 Series
  • CM5 platform, Quad-core
  • 10.1" True Flat Pcap LCD, 400cd/m²
  • Dual LAN (GbE + 100M), RS232/485, DI, DO
  • Metal fanless wide temp(-20~60℃), 9~36V DC
  • Supports VESA 75/Panel Mounting


Function ClassificationED-HMI Series Feature Selection Guide
HMI2002HMI2020HMI2120HMI2220HMI2320HMI2630HMI3010HMI3020HMI3120HMI3630
CPUCM4✔✔✔✔✔✔----
CM5--------✔✔
Pi 5------✔✔--
RAM1/2/4/8GB LPDDR4✔✔✔✔✔✔----
2/4/8/16GB LPDDR4X------✔✔✔✔
Storage8/16/32GB eMMC-✔✔✔✔✔----
16/32/64GB eMMC--------✔✔
Micro SD Card
SSD--✔✔-✔✔✔✔✔
Display7''✔✔✔✔--✔✔✔-
10.1''✔✔✔✔-✔✔✔✔✔
11.6''------✔-✔✔
12.1''----✔-----
13.3''------✔-✔✔
15''----✔-----
15.6''----✔-✔-✔✔
17''----✔-----
18.5”------✔-✔✔
21.5''----✔-✔-✔✔
Wireless
Wi-Fi/BT
4G--✔✔✔✔--✔✔
Interface1000M Ethernetx 1x 1x 1x 3≤ x 2x 1x 1x 1x 1x 1
100M Ethernet--x 1--x 1--x 1x 1
USB 2.0x 2x 1x 2x 2≤ x 5x 2x 2x 2x 2x 2
USB 3.0x 2x 2-x 1x 2-x 2x 2--
RS232--x 2-≤ x 7≤ x 2-x 1 x 2≤ x 2
RS485--x 2-≤ x 2≤ x 4-x 1 x 2≤ x 4
CAN----- x 2---x 2
DI/DO----- x 8---x 8
HDMIx 2x 1x 1x 1x 1x 1x 2x 2x 1x 1
Audio in&out-✔✔✔✔✔-✔✔✔
OtherRTC-✔✔✔✔✔-✔✔✔
Hardware Watch Dog--✔✔✔✔-✔✔✔
Operating-20℃~60℃✔✔✔✔-✔✔✔✔✔
0 ~ 50℃----✔-----
MechanicalFanless Design
MountingEmbedded Mounting Frame
Power Input5V DC✔-----✔✔--
9V~28V DC-✔--------
9V~36V DC--✔✔✔✔--✔✔
