ED-HMI3010

Overview

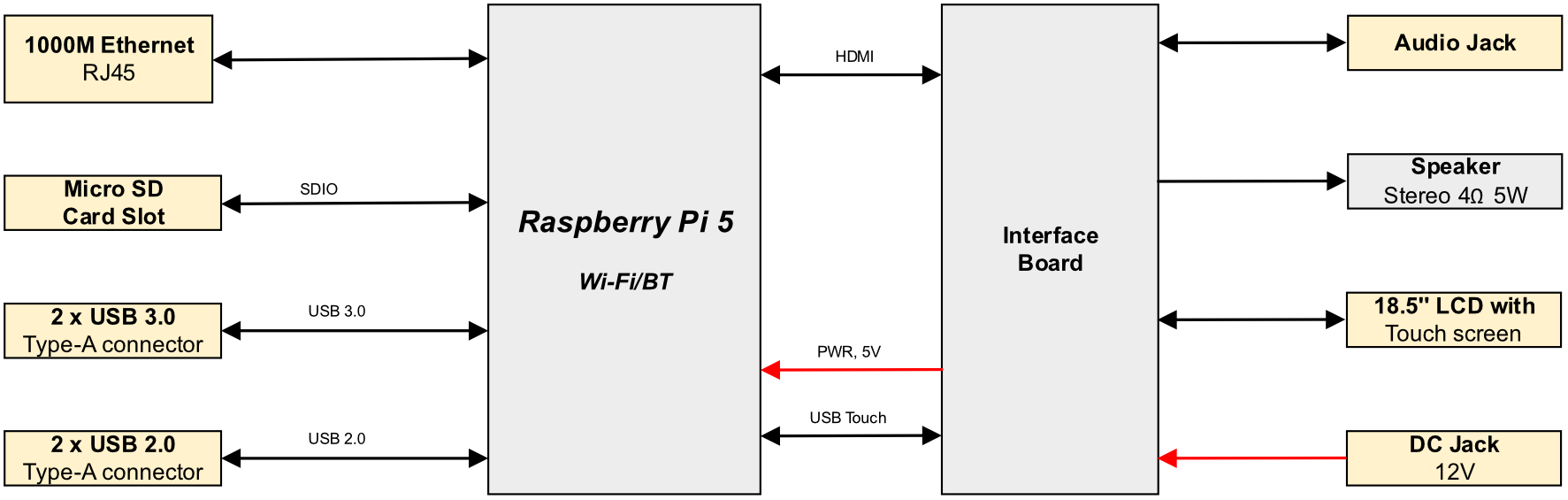

System Diagram

Specification

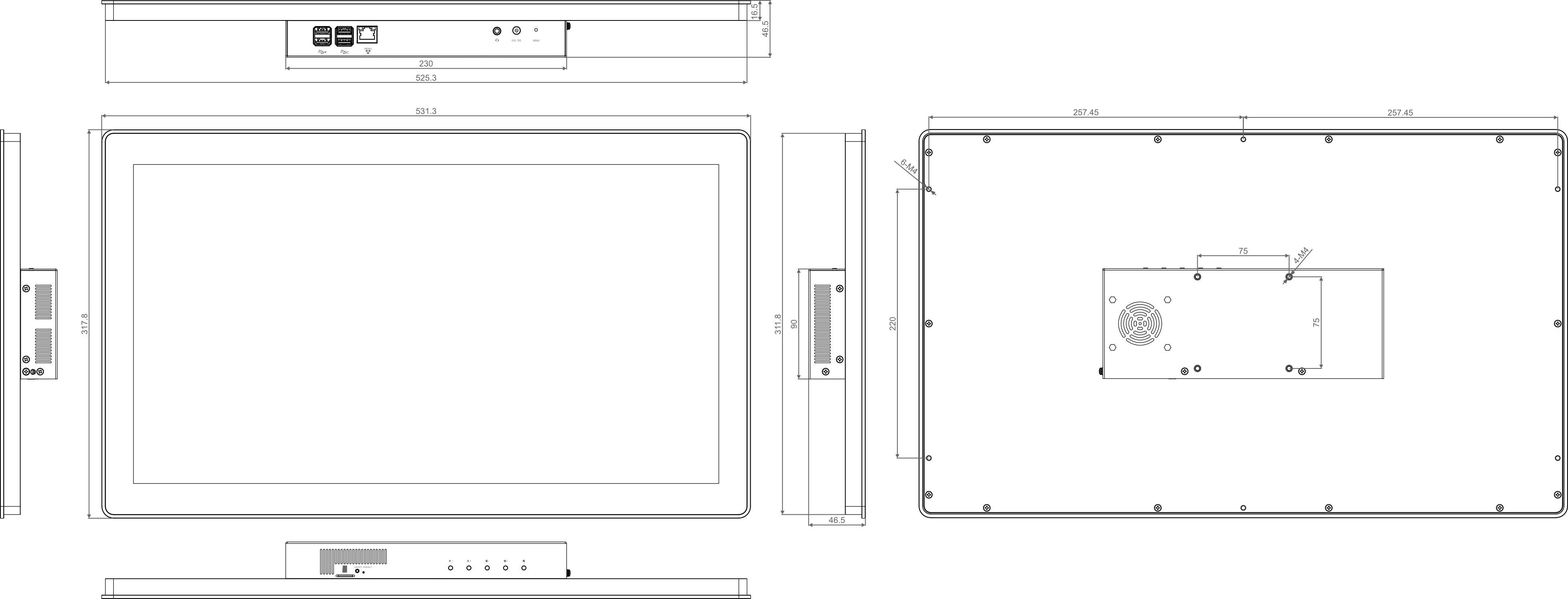

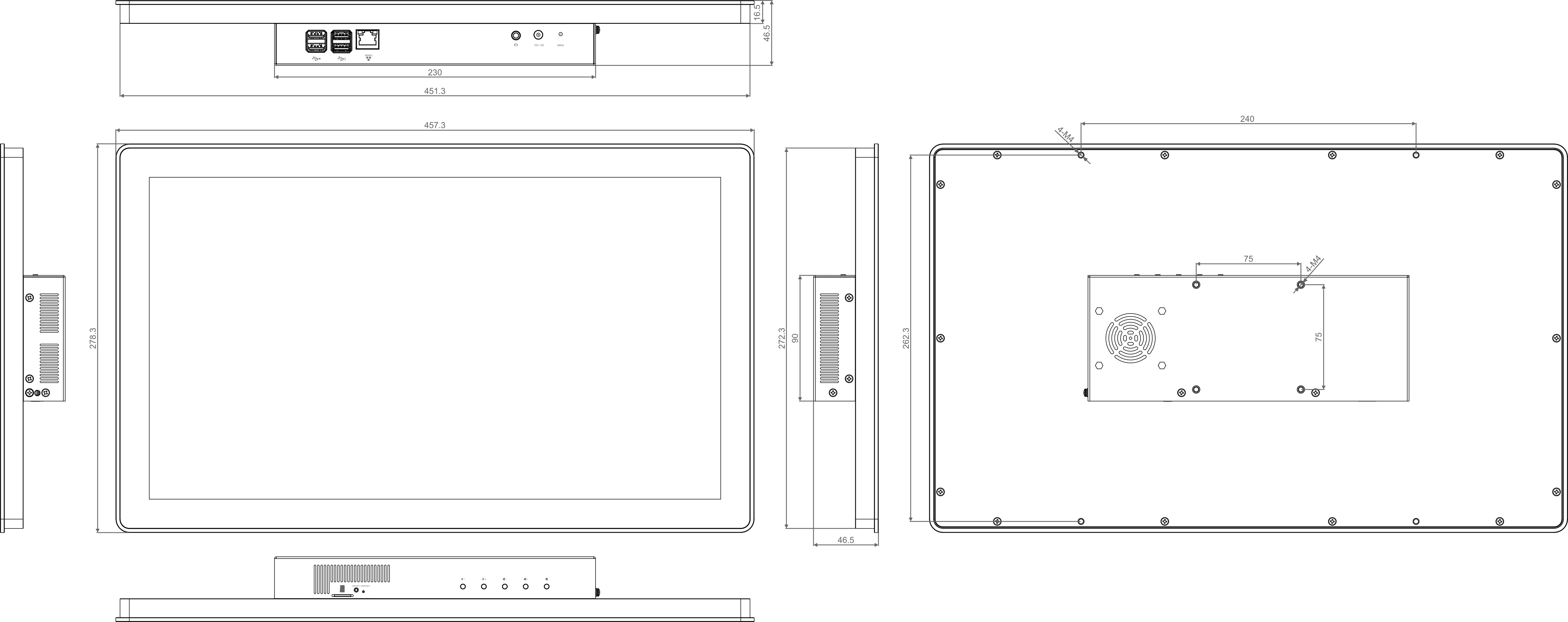

Mechanicals

Ordering Code

Docs

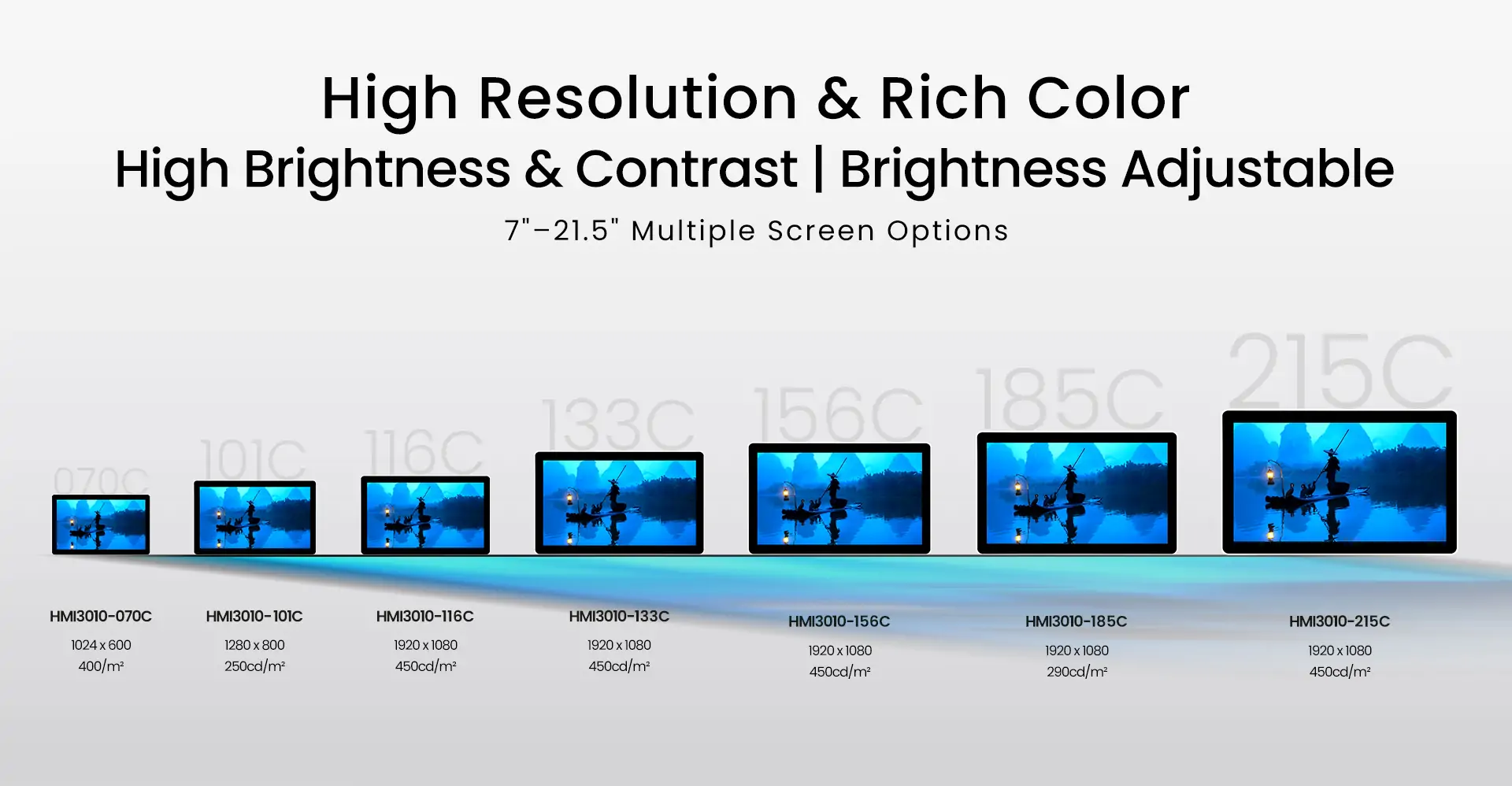

ED-HMI3010 Series Selection Guide

Model No.	LCD Size	Resolution	Aspect ratio	# of Colors	Luminance (cd/m2)	Viewing Angle (H/V)	Multi-touch (# of points)	Dimensions (mm)	Weight (g)
HMI3010-070C	7"	1024 x 600	16:9	16.7M	400	170°/170°	5	188 x 123 x 39	About 800g
HMI3010-101C	10.1"	1280 x 800	16:10	16.7M	250	160°/160°	5	258 x 172 x 38	About 900g
HMI3010-116C	11.6"	1920 x 1080	16:9	16.7M	450	170°/170°	5	303.4 x 191.4 x 46.5	About 2000g
HMI3010-133C	13.3"	1920 x 1080	16:9	16.7M	450	160°/160°	5	340.4 x 211.4 x 46.5	About 2200g
HMI3010-156C	15.6"	1920 x 1080	16:9	16.7M	450	178°/178°	5	388.4 x 238.4 x 46.5	About 2400g
HMI3010-185C	18.5"	1920 x 1080	16:9	16.7M	290	160°/160°	5	457.3 x 278.3 x 46.5	About 3300g
HMI3010-215C	21.5"	1920 x 1080	16:9	16.7M	450	178°/178°	5	531.3 x 317.8 x 46.5	About 4800g

Explore in-depth reviews and coverage of ED-HMI3010 by leading international media outlets! Click the links to learn more：

Tom's HARDWARE

CNX SOFTWARE

Hackster.io

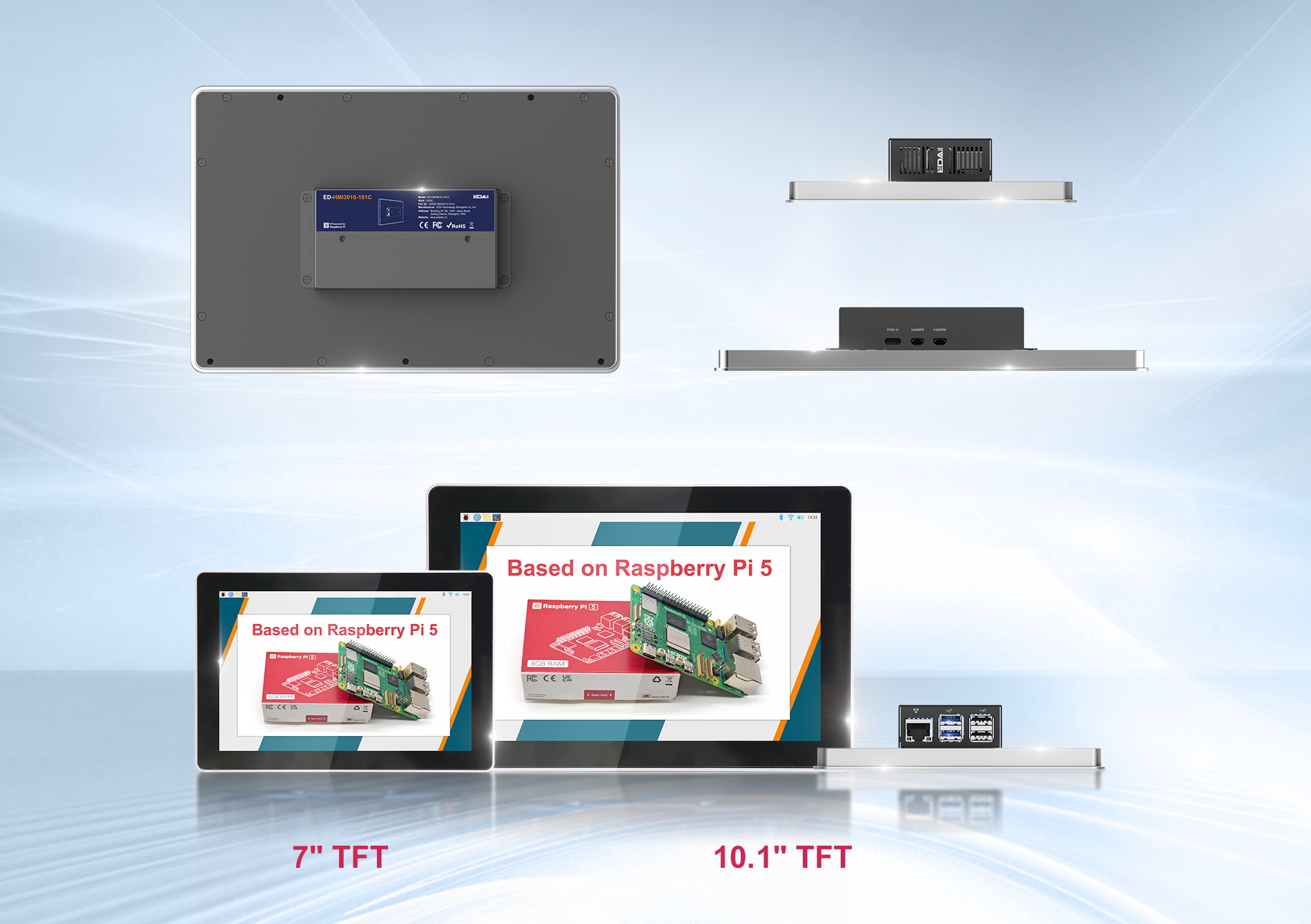

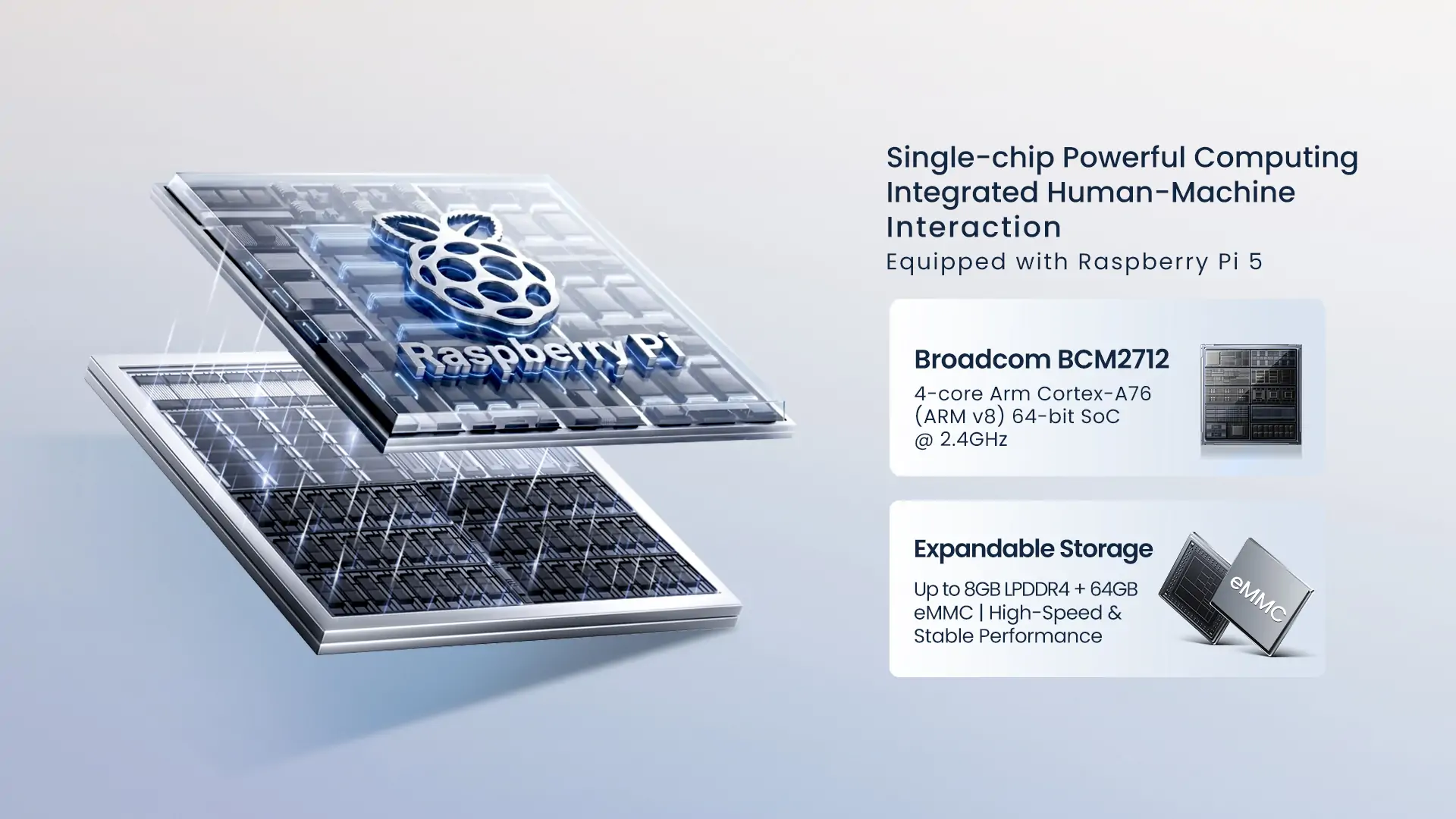

The ED-HMI3010 is a sophisticated industrial human-machine interface (HMI) device designed for advanced control and monitoring applications in various industries. This device is built around the powerful Broadcom BCM2712 processor, which features a 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, ensuring high-speed processing capabilities for demanding tasks.

The ED-HMI3010 comes with a choice between 4GB and 8GB of LPDDR4 RAM, allowing for smooth multitasking and efficient operation of resource-intensive applications. For storage, it offers options for either a 32GB or 64GB SD card, providing ample space for the operating system and user data. Wireless connectivity is enhanced with dual-band 2.4GHz and 5GHz WiFi as well as Bluetooth 5.0, facilitating seamless communication in modern industrial environments.

This HMI device boasts dual 4Kp60 HDMI display outputs, enabling high-resolution video display capabilities. It also features a range of interfaces including one Gigabit ethernet port, two USB 3.0 ports, and two USB 2.0 ports, which provide extensive options for connecting peripherals and networking devices. Power to the ED-HMI3010 is supplied through a 5V DC input via a USB-C connector, offering a modern and convenient power solution.

The ED-HMI3010 series is available in two models: the HMI3010-070C with a 7" LCD and the HMI3010-101C with a 10.1" LCD. Both models offer a capacitive multi-touch screen with a wide range of colors and excellent luminance, ensuring clear and vibrant visuals. The screens also provide wide viewing angles for visibility from different positions. An 8-megapixel front camera can be included as an optional feature for applications that require imaging capabilities.

Designed for reliable operation in challenging environments, the ED-HMI3010 is capable of withstanding a wide operating temperature range from -20°C to 60°C. Its aluminum CNC加上sheet metal case, along with a fanless design, ensures excellent cooling performance, which is essential for maintaining the device's integrity in industrial settings.

The ED-HMI3010 runs on the Raspberry Pi OS, offering both 32-bit and 64-bit versions for flexibility, and supports a range of applications and customization options. The device also includes internal I/O options such as a PCIe port and a PoE port for additional expansion capabilities.

In summary, the ED-HMI3010 is a high-performance, feature-rich HMI device designed for industrial applications that require powerful processing, advanced connectivity, and reliable operation under various conditions. Its robust design and versatile features make it an excellent choice for a wide array of industrial control and monitoring tasks.

HS CODE

HS CODE	COO
8471504001	CN

Function Classification

ED-HMI Series Feature Selection Guide

HMI2002

HMI2020

HMI2120

HMI2220

HMI2320

HMI2630

HMI3010

HMI3020

HMI3120

HMI3630

CPU

CM4

✔

CM5

✔

Pi 5

✔

RAM

1/2/4/8GB LPDDR4

✔

2/4/8/16GB LPDDR4X

✔

Storage

8/16/32GB eMMC

✔

16/32/64GB eMMC

✔

Micro SD Card

SSD

✔

Display

7''

✔

10.1''

✔

11.6''

✔

12.1''

✔

13.3''

✔

15''

✔

15.6''

✔

17''

✔

18.5”

✔

21.5''

✔

Wireless

Wi-Fi/BT

✔

Interface

1000M Ethernet

x 1

x 3

≤ x 2

x 1

100M Ethernet

x 1

USB 2.0

x 2

x 1

x 2

≤ x 5

x 2

USB 3.0

x 2

x 1

x 2

RS232

x 2

≤ x 7

≤ x 2

x 1

x 2

≤ x 2

RS485

x 2

≤ x 2

≤ x 4

x 1

x 2

≤ x 4

CAN

x 2

DI/DO

x 8

HDMI

x 2

x 1

x 2

x 1

Audio in&out

✔

Other

RTC

✔

Hardware Watch Dog

✔

Operating

-20℃~60℃

✔

0 ~ 50℃

✔

Mechanical

Fanless Design

Mounting

Embedded Mounting Frame

Power Input

5V DC

✔

9V~28V DC

✔

9V~36V DC

✔

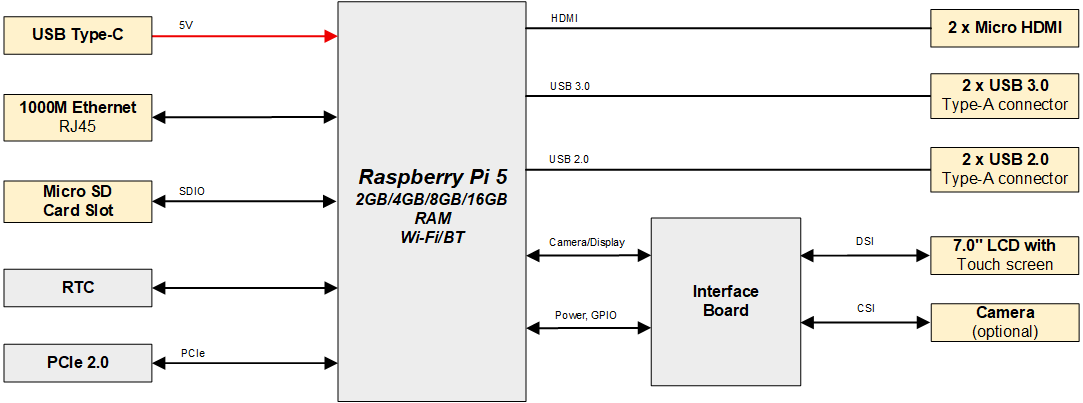

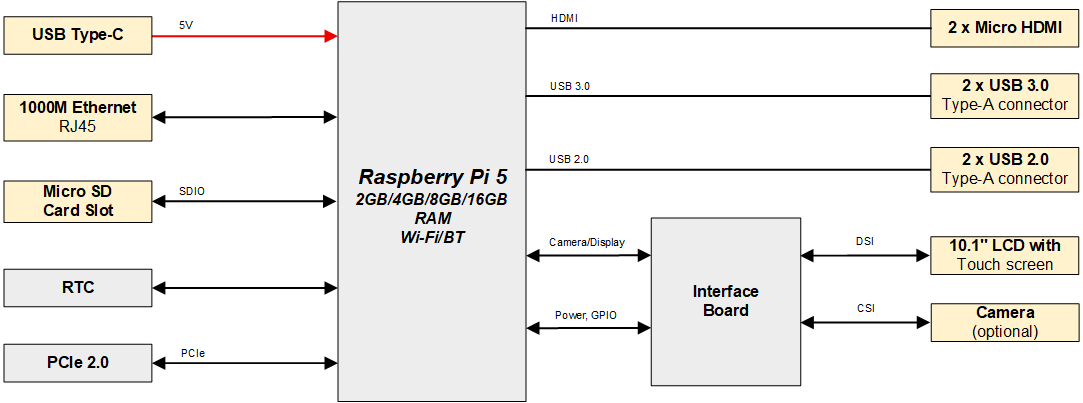

System Diagram

HMI3010-070C
HMI3010-101C
HMI3010-116C
HMI3010-133C
HMI3010-156C
HMI3010-185C
HMI3010-215C

ED-HMI2220-070C-DatasheetDiaggram-2024.05.21

Specification

HMI3010-070C
HMI3010-101C
HMI3010-116C
HMI3010-133C
HMI3010-156C
HMI3010-185C
HMI3010-215C

System
CPU	Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU	4Kp60 HEVC decoder
GPU	OpenGL ES 3.1 & Vulkan 1.0
Memory	4GB, 8GB and 16GB LPDDR4X-4267 SDRAM are optional
Storage	32GB and 64GB SD Storage Card are optional

Software
Operating System	Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

Front I/O
Camera	Built-in 8-megapixel front camera (optional)

Side I/O
USB 2.0	2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps.
USB 3.0	2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps.
1000M Ethernet	1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
SD Card Slot	1 x Micro SD card slot, which is used to install SD card. It supports booting the OS from SD card.
HDMI	2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz
Power	1 x power in port, USB Type-C connector, supporting 5V/5A DC power input.

Internal I/O
PCIe	1 x PCIe 2.0 port, reserving to connect peripherals.
PoE	1 x PoE port, reserving to connect PoE module.

LCD
LCD Size	7.0" TFT
Resolution	1024 x 600
Colors	16.7MB
Active Area	154.21mm (H) x 85.92mm (V)
Backlight	LED
MTBF	>30000h
Pixel Pitch	400cd/m²
Contrast Ratio	800:1
Response Time	30ms
Viewing Angle (CR≥10)	85° (L) / 85° (R) / 85° (U) / 85° (D)

Touch Screen
Type	Multi-point Capacitive Touch Screen
Transmittance	≥85％
Connection Method	COF
Controller Interface	I2C
Driver Support	Linux
Multi-touch	5 points
Surface Hardness	6H

Electrical Characteristics
Input Voltage	5V DC
Power Consumption	25W (Max)

Mechanical Characteristics
Dimensions	188mm x 123mm x 39mm (WxDxH)
Weight	About 800g
Installation	Embedded front installation

Wireless
Wi-Fi	Dual-band 802.11ac Wi-Fi
Bluetooth	Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Environmental & Regulatory
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-25°C ~ 60°C
Ambient humidity	5% ~ 95% (non-condensing)
Certifications	FCC FCC 47 CFR Part 15 Subpart B CE EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035 EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2

System
CPU	Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU	4Kp60 HEVC decoder
GPU	OpenGL ES 3.1 & Vulkan 1.0
Memory	4GB, 8GB and 16GB LPDDR4X-4267 SDRAM are optional
Storage	32GB and 64GB SD Storage Card are optional

Software
Operating System	Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

Front I/O
Camera	Built-in 8-megapixel front camera (optional)

Side I/O
USB 2.0	2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps.
USB 3.0	2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps.
1000M Ethernet	1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
SD Card Slot	1 x Micro SD card slot, which is used to install SD card. It supports booting the OS from SD card.
HDMI	2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz
Power	1 x power in port, USB Type-C connector, supporting 5V/5A DC power input.

Internal I/O
PCIe	1 x PCIe 2.0 port, reserving to connect peripherals.
PoE	1 x PoE port, reserving to connect PoE module.

LCD
LCD Size	10.1" TFT
Resolution	1280 x 800
Colors	16.7MB
Active Area	216.576mm (H) x 135.36mm (V)
Backlight	LED
MTBF	>30000h
Pixel Pitch	250cd/m²
Contrast Ratio	1000:1
Response Time	30ms
Viewing Angle (CR≥10)	80° (L) / 80° (R) / 80° (U) / 80° (D)

Touch Screen
Type	Multi-point Capacitive Touch Screen
Transmittance	≥85％
Connection Method	COF
Controller Interface	I2C
Driver Support	Linux
Multi-touch	5 points
Surface Hardness	6H

Electrical Characteristics
Input Voltage	5V DC
Power Consumption	25W (Max)

Mechanical Characteristics
Dimensions	258mm x 172mm x 38mm (WxDxH)
Weight	About 900g
Installation	Embedded front installation

Wireless
Wi-Fi	Dual-band 802.11ac Wi-Fi
Bluetooth	Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Environmental & Regulatory
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-25°C ~ 60°C
Ambient humidity	5% ~ 95% (non-condensing)
Certifications	FCC FCC 47 CFR Part 15 Subpart B CE EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035 EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2

System
CPU	Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU	H.265 (HEVC), up to 4Kp60 decode
GPU	OpenGL ES 3.1 & Vulkan 1.2
Memory	Options for 8GB, 16GB LPDDR4X-4267
Storage	64GB SD Storage Card

Software
Operating System	Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

Side I/O
1000M Ethernet	1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
USB 2.0	2 x USB 2.0 ports, dual layer Type-A connector, each channel supports up to 480Mbps transmission rate.
USB 3.0	2 x USB 3.0 ports, dual layer Type-A connector, each channel supports up to 5Gbps transmission rate.
Audio	1 x 3.5mm audio jack, stereo audio output
Speaker	1 x PA output, built-in a 4Ω 5W speaker.
Power	1 x DC Jack port, support 12V power input.
SD Card Slot	1 x Micro SD card slot, which is used to install Micro SD card. It supports booting the OS from SD card.

Buttons and Indicators
PWR	1 x Red power indicator, using to check the status of device power-on and power-off.
PWR/ACT	1 x Power/System status indicator, red and green, using to view the status of device power-up and system read/write.
Brightness Adjustment Button	2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button	2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button	1 x Mute button for mute and unmute audio.
ON/OFF Button	1 x Power button, which is used to turn on and turn off the device.

LCD
Type	11.6" TFT
Resolution	1920 x 1080
Color Number	16.7M
Active Area	256.32mm (H) x 144.18mm (V)
Backlight	LED
Luminance	450cd/m²
Contrast Ratio	1000:1
Response Time	30ms
Viewing Angle (CR≥10)	85° (L) / 85° (R) / 85° (U) / 85° (D)

Touch Screen
Type	Capacitive Touch Screen
multi-touch	Up to 5 points
Communication Method	USB
Transmittance	≥85％
Surface Hardness	≥6H

Electrical Characteristics
Input Voltage	12V DC (±10%)
Power Consumption	30W (Max)

Mechanical Characteristics
Dimensions	303.3mm x 191.3mm x 46.5mm (WxDxH)
Weight	About 1.8kg

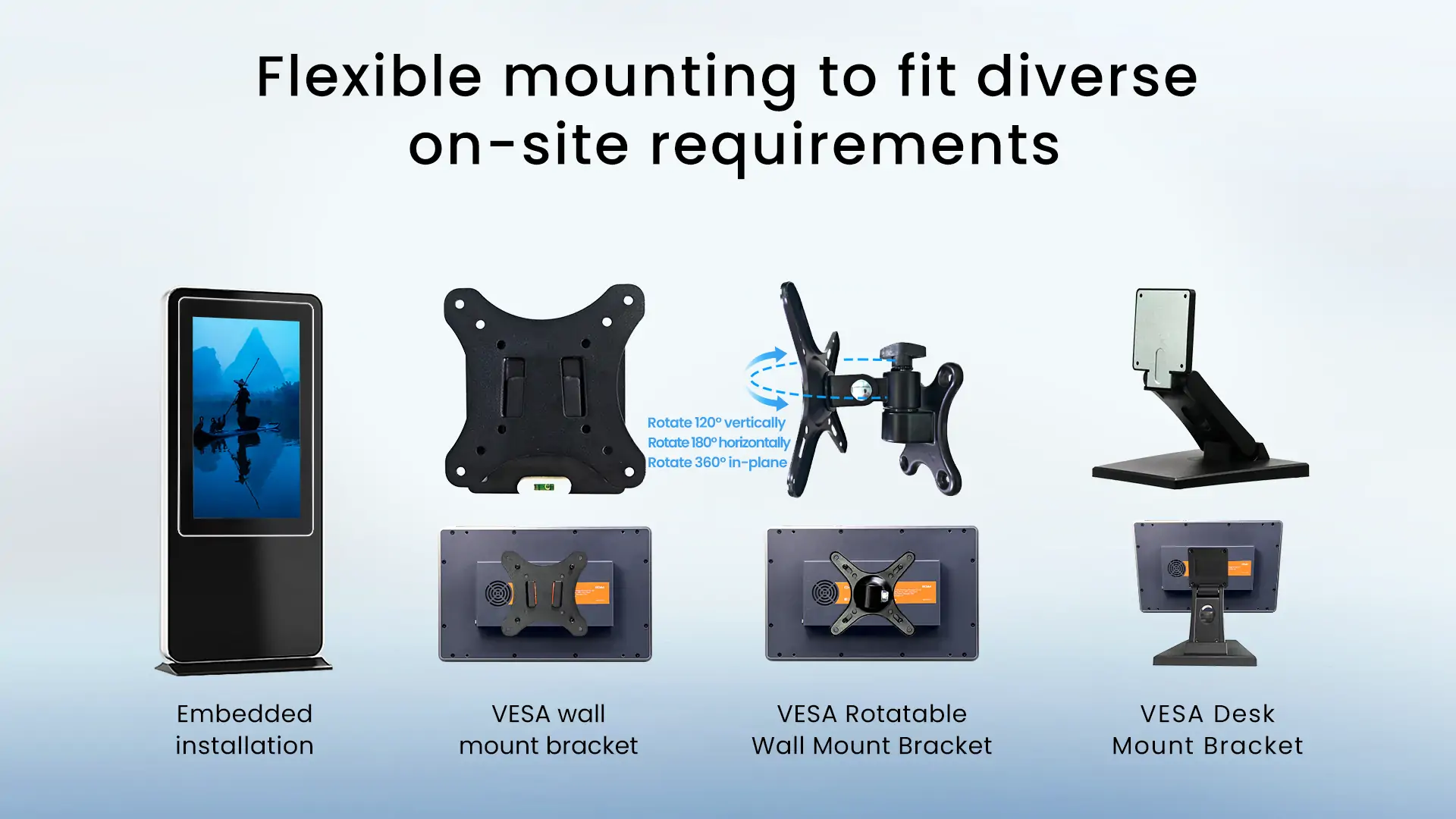

Installation	Embedded front installation and VESA bracket mounting

Wireless
Wi-Fi	Dual-band 802.11ac Wi-Fi
Bluetooth	Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Environmental
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-25°C ~ 60°C
Ambient humidity	5% ~ 95% (non-condensing)

System
CPU	Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU	H.265 (HEVC), up to 4Kp60 decode
GPU	OpenGL ES 3.1 & Vulkan 1.2
Memory	Options for 8GB, 16GB LPDDR4X-4267
Storage	64GB SD Storage Card

Software
Operating System	Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

Side I/O
1000M Ethernet	1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
USB 2.0	2 x USB 2.0 ports, dual layer Type-A connector, each channel supports up to 480Mbps transmission rate.
USB 3.0	2 x USB 3.0 ports, dual layer Type-A connector, each channel supports up to 5Gbps transmission rate.
Audio	1 x 3.5mm audio jack, stereo audio output
Speaker	1 x PA output, built-in a 4Ω 5W speaker.
Power	1 x DC Jack port, support 12V power input.
SD Card Slot	1 x Micro SD card slot, which is used to install Micro SD card. It supports booting the OS from SD card.

Buttons and Indicators
PWR	1 x Red power indicator, using to check the status of device power-on and power-off.
PWR/ACT	1 x Power/System status indicator, red and green, using to view the status of device power-up and system read/write.
Brightness Adjustment Button	2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button	2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button	1 x Mute button for mute and unmute audio.
ON/OFF Button	1 x power button, which is used to turn on and turn off the device.

LCD
Type	13.3" TFT
Resolution	1920 x 1080
Color Number	16.7M
Active Area	293.76mm (H) x 165.24mm (V)
Backlight	LED
Luminance	450cd/m²
Contrast Ratio	1500:1
Response Time	25ms
Viewing Angle (CR≥10)	80° (L) / 80° (R) / 80° (U) / 80° (D)

Touch Screen
Type	Capacitive Touch Screen
multi-touch	Up to 5 points
Communication Method	USB
Transmittance	≥83％
Surface Hardness	≥6H

Electrical Characteristics
Input Voltage	12V DC (±10%)
Power Consumption	33W (Max)

Mechanical Characteristics
Dimensions	340.2mm x 211.2mm x 46.5mm (WxDxH)
Weight	About 2.1kg
Installation	Embedded front installation and VESA bracket mounting

Wireless
Wi-Fi	Dual-band 802.11ac Wi-Fi
Bluetooth	Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Environmental
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-25°C ~ 60°C
Ambient humidity	5% ~ 95% (non-condensing)

System
CPU	Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU	H.265 (HEVC), up to 4Kp60 decode
GPU	OpenGL ES 3.1 & Vulkan 1.2
Memory	Options for 8GB, 16GB LPDDR4X-4267
Storage	64GB SD Storage Card

Software
Operating System	Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

Side I/O
1000M Ethernet	1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
USB 2.0	2 x USB 2.0 ports, dual layer Type-A connector, each channel supports up to 480Mbps transmission rate.
USB 3.0	2 x USB 3.0 ports, dual layer Type-A connector, each channel supports up to 5Gbps transmission rate.
Audio	1 x 3.5mm audio jack, stereo audio output
Speaker	1 x PA output, built-in a 4Ω 5W speaker.
Power	1 x DC Jack port, support 12V power input.
SD Card Slot	1 x Micro SD card slot, which is used to install Micro SD card. It supports booting the OS from SD card.

Buttons and Indicators
PWR	1 x Red power indicator, using to check the status of device power-on and power-off.
PWR/ACT	1 x Power/System status indicator, red and green, using to view the status of device power-up and system read/write.
Brightness Adjustment Button	2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button	2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button	1 x Mute button for mute and unmute audio.
ON/OFF Button	1 x power button, which is used to turn on and turn off the device.

LCD
Type	15.6" TFT
Resolution	1920 x 1080
Color Number	16.7M
Active Area	344.16mm (H) x 193.59mm (V)
Backlight	LED
Luminance	450cd/m²
Contrast Ratio	1000:1
Response Time	20ms

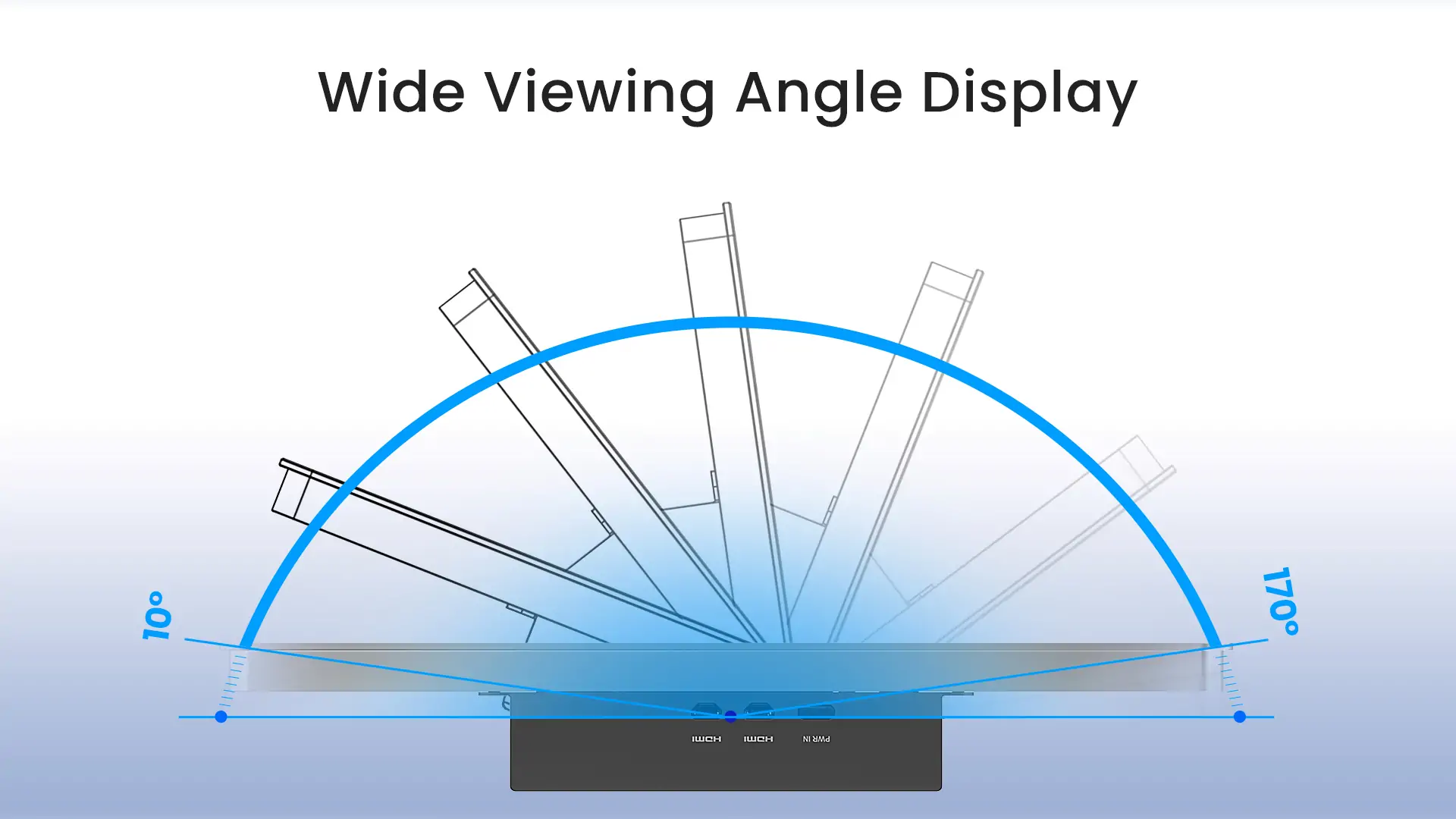

Viewing Angle (CR≥10)	89° (L) / 89° (R) / 89° (U) / 89° (D)

Touch Screen
Type	Capacitive Touch Screen
multi-touch	Up to 5 points
Communication Method	USB
Transmittance	≥85％
Surface Hardness	≥6H

Electrical Characteristics
Input Voltage	12V DC (±10%)
Power Consumption	35W (Max)

Mechanical Characteristics
Dimensions	388.3mm x 238.3mm x 46.5mm (WxDxH)
Weight	About 2.4kg
Installation	Embedded front installation and VESA bracket mounting

Wireless
Wi-Fi	Dual-band 802.11ac Wi-Fi
Bluetooth	Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Environmental
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-25°C ~ 60°C
Ambient humidity	5% ~ 95% (non-condensing)

System
CPU	Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU	H.265 (HEVC), up to 4Kp60 decode
GPU	OpenGL ES 3.1 & Vulkan 1.2
Memory	Options for 8GB, 16GB LPDDR4X-4267
Storage	64GB SD Storage Card

Software
Operating System	Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

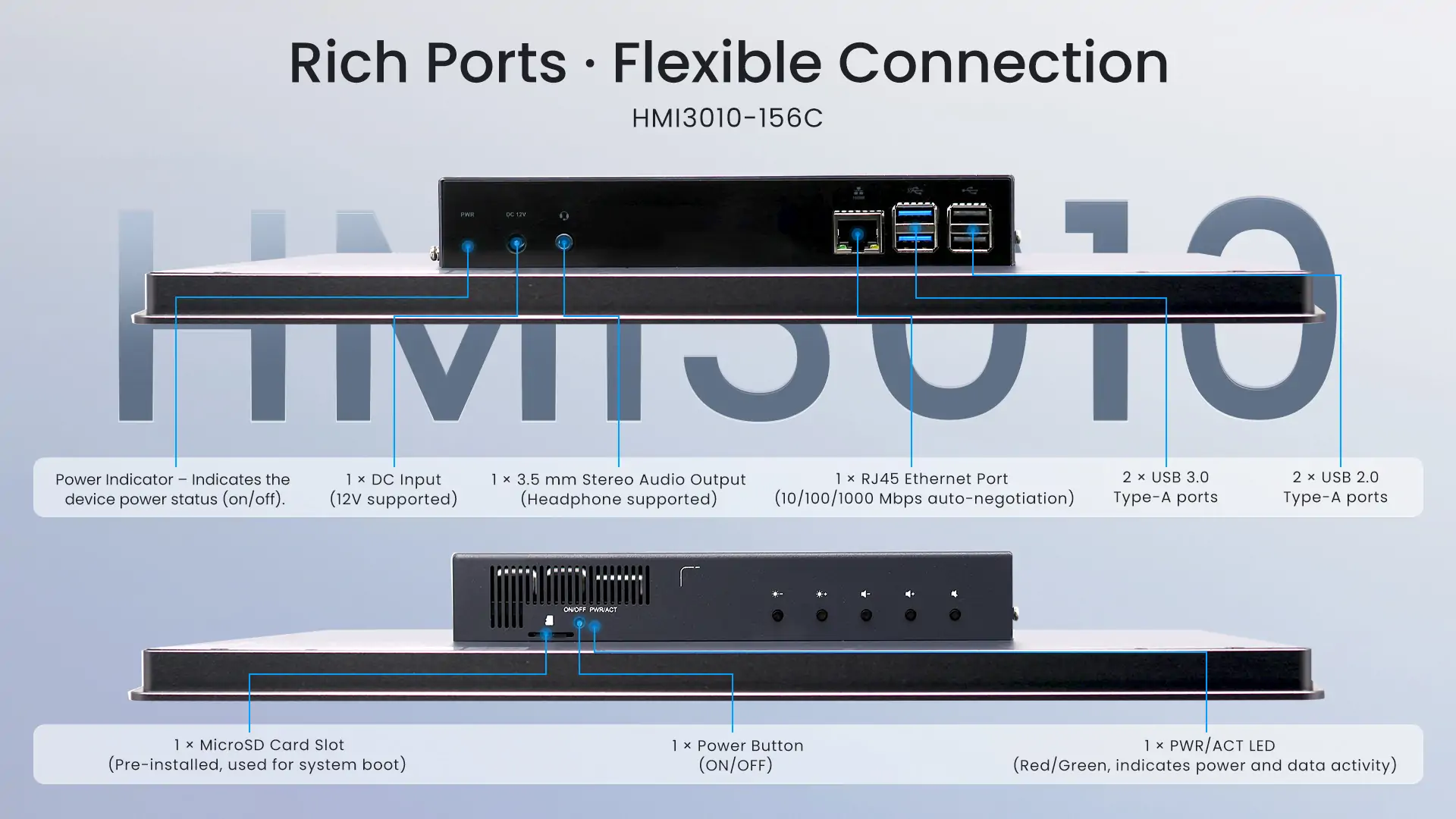

Side I/O
1000M Ethernet	1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
USB 2.0	2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps transmission rate.
USB 3.0	2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps transmission rate.
Audio	1 x 3.5mm audio jack, stereo audio output
Speaker	1 x PA output, built-in a 4Ω 5W speaker.
Power	1 x DC Jack port, support 12V power input.
SD Card Slot	1 x Micro SD card slot, which is used to install Micro SD card. It supports booting the OS from SD card.

Buttons and Indicators
PWR	1 x Red power indicator, using to check the status of device power-on and power-off.
PWR/ACT	1 x Power/System status indicator, red and green, using to view the status of device power-up and system read/write.
Brightness Adjustment Button	2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button	2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button	1 x Mute button for mute and unmute audio.
ON/OFF Button	1 x power button, which is used to turn on and turn off the device.

LCD
Type	18.5" TFT
Resolution	1920 x 1080
Color Number	16.7M
Active Area	408.96mm (H) x 230.04mm (V)
Backlight	LED
Luminance	290cd/m²
Contrast Ratio	1000:1
Response Time	14ms
Viewing Angle (CR﹥10)	80° (L) / 80° (R) / 80° (U) / 80° (D)

Touch Screen
Type	Capacitive Touch Screen
multi-touch	Up to 5 points
Communication Method	USB
Transmittance	≥85％
Surface Hardness	≥6H

Electrical Characteristics
Input Voltage	12V DC (±10%)
Power Consumption	35W (Max)

Mechanical Characteristics
Dimensions	457.3mm x 278.3mm x 46.5mm (WxDxH)
Weight	About 3.3kg
Installation	Embedded front installation and VESA bracket mounting

Wireless
Wi-Fi	Dual-band 802.11ac Wi-Fi
Bluetooth	Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Environmental
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-25°C ~ 60°C
Ambient humidity	5% ~ 95% (non-condensing)

System
CPU	Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU	H.265 (HEVC), up to 4Kp60 decode
GPU	OpenGL ES 3.1 & Vulkan 1.2
Memory	Options for 8GB, 16GB LPDDR4X-4267
Storage	64GB SD Storage Card

Software
Operating System	Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

Side I/O
1000M Ethernet	1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
USB 2.0	2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps transmission rate.
USB 3.0	2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps transmission rate.
Audio	1 x 3.5mm audio jack, stereo audio output
Speaker	1 x PA output, built-in a 4Ω 5W speaker.
Power	1 x DC Jack port, support 12V power input.
SD Card Slot	1 x Micro SD card slot, which is used to install Micro SD card. It supports booting the OS from SD card.

Buttons and Indicators
PWR	1 x Red power indicator, using to check the status of device power-on and power-off.
PWR/ACT	1 x Power/System status indicator, red and green, using to view the status of device power-up and system read/write.
Brightness Adjustment Button	2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button	2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button	1 x Mute button for mute and unmute audio.
ON/OFF Button	1 x power button, which is used to turn on and turn off the device.

LCD
Type	21.5" TFT
Resolution	1920 x 1080
Color Number	16.7M
Active Area	478.656mm (H) x 260.28mm (V)
Backlight	LED
Luminance	400cd/m²
Contrast Ratio	3000:1
Response Time	6.5ms
Viewing Angle (CR≥10)	89° (L) / 89° (R) / 89° (U) / 89° (D)

Touch Screen
Type	Capacitive Touch Screen
multi-touch	Up to 5 points
Communication Method	USB
Transmittance	≥82％
Surface Hardness	≥7H

Electrical Characteristics
Input Voltage	12V DC (±10%)
Power Consumption	41.2W (Max)

Mechanical Characteristics
Dimensions	531.3mm x 317.8mm x 46.5mm (WxDxH)
Weight	About 4.8kg
Installation	Embedded front installation and VESA bracket mounting

Wireless
Wi-Fi	Dual-band 802.11ac Wi-Fi
Bluetooth	Bluetooth 5.0 / Bluetooth Low Energy (BLE)

Environmental
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-25°C ~ 60°C
Ambient humidity	5% ~ 95% (non-condensing)

Mechanicals

HMI3010-070C
HMI3010-101C
HMI3010-116C
HMI3010-133C
HMI3010-156C
HMI3010-185C
HMI3010-215C

Unit: mm

ED-HMI2220-070C-DatasheetDimensions-2024.05.21

Unit: mm

Unit: mm

Unit: mm

Unit: mm

Unit: mm

Ordering Code

HMI3010-070C
HMI3010-101C
HMI3010-116C
HMI3010-133C
HMI3010-156C
HMI3010-185C
HMI3010-215C

Docs

Type	Title	Publish Time
Datasheet	ED-HMI3010-070C Datasheet	2024-04-10
Manual	ED-HMI3010-070C User Manual-en	2024-04-10
OS	ED-HMI3010-070C Installing OS	2024-04-10
Datasheet	ED-HMI3010-101C Datasheet	2024-04-10
Manual	ED-HMI3010-101C User Manual-en	2024-04-10
OS	ED-HMI3010-101C Installing OS	2024-04-10
Datasheet	ED-HMI3010-116C Datasheet	2024-04-10
Datasheet	ED-HMI3010-133C Datasheet	2024-04-10
Datasheet	ED-HMI3010-156C Datasheet	2024-04-10
Datasheet	ED-HMI3010-185C Datasheet	2024-04-10
Datasheet	ED-HMI3010-215C Datasheet	2024-04-10
FAQ	Optimization For White Screen Problem On 7-inch ED-HMI Series	2024-04-10
CE Report	ED-HMI3010 CE Report	2024-04-10
RoHS Certification	ED-HMI3010 RoHS Certification	2024-04-10
RoHS Report	ED-HMI3010 RoHS Report	2024-04-10
FCC Certification	ED-HMI3010 FCC Certification	2024-04-10
FCC Report	ED-HMI3010 FCC Report	2024-04-10
EU Declaration	ED-HMI3010 EU Declaration	2024-04-10
CODESYS	CODESYS-License Datasheet	2024-04-10

ED-IPC2000 Series

ED-IPC2100 Series

ED-IPC2200 Series

ED-IPC2400 Series

ED-IPC2500 Series

ED-IPC2600 Series

ED-IPC3020

ED-IPC3100 Series

ED-IPC3630 Series

CM4 Industrial

CM4 IO Computer

CM4 Media

CM4 Nano

CM4 Sensing

ED-HMI2002 Series

ED-HMI2020 Series

ED-HMI2120 Series

ED-HMI2220 Series

ED-HMI2320 Series

ED-HMI2630-101C

ED-HMI3010 Series

ED-HMI3020 Series

ED-HMI3120 Series

ED-HMI3630 Series

ED-PLC2010

ED-PAC3020

ED-PAC3100

ED-PAC3630

ED-GWL501

ED-GWL901

ED-GWL1010

ED-GWL2010

ED-GWL2110

ED-IoTHotspot-M1

ED-MONITOR-070C

ED-MONITOR-101C

ED-MONITOR-116C

ED-MONITOR-133C

ED-MONITOR-156C

ED-MONITOR-185C

ED-MONITOR-215C

Raspberry Pi Touch Display 2 - 5”

Raspberry Pi Touch Display 2 - 7”

Raspberry Pi 7” Touch Display

ED-AIC2000

ED-AIC3000

ED-AIC3100

EtherCAT Coupler

EtherCAT Digital Input Modules

EtherCAT Digital Output Modules

EtherCAT Analog Input Modules

EtherCAT Analog Output Modules

EtherCAT Temperature Input Module

EtherCAT High-Speed Counter

Power Expansion Supply Module

Bus End Cover

ED-SBC3300 Series

ED-SBC2300

Raspberry Pi 500+

Raspberry Pi 500

Raspberry Pi 5

Raspberry Pi 4 Model B

Raspberry Pi 3 Model B

Raspberry Pi 3 Model B+

Raspberry Pi 3 Model A+

Raspberry Pi Pico

Raspberry Pi Pico W

Raspberry Pi Pico 2

Raspberry Pi Pico 2 W

Raspberry Pi Zero

Raspberry Pi Zero W

Raspberry Pi Zero 2 W

Raspberry Pi CM5

Raspberry Pi CM4

Raspberry Pi CM3

Raspberry Pi CM3+

Raspberry Pi Radio Module 2

Compute Module IO Board V3

Compute Module Development Kit

C-Mount Lens
