ED-PAC3630

ED-PAC3630

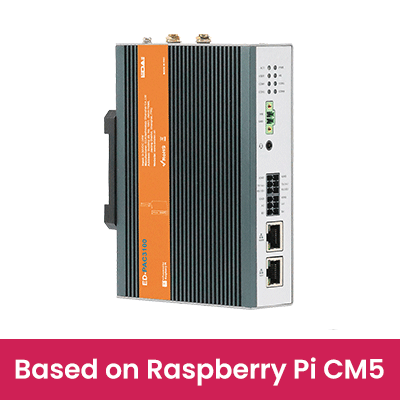

Real-time CODESYS Programmable Automation Controller

Key Featured
  • Broadcom BCM2712 Quad-core Cortex-A76 (2.4GHz), Supports 8GB DDR4 Memory
  • Supports Micro SD, M.2 B-Key 2230/2242 NVMe SSD
  • Port isolation for 4 x RS232/RS485、2 x CAN 2.0B、8 x DI/DO
  • 1 x Gigabit, 1 x 100M,1 x HDMI,2 x USB 2.0
  • CODESYS Control Real Time Engine (RTE) & Visualization (Target & Web)
  • Supports MQTT, OPC UA, EtherCAT, Modbus TCP Protocols
  • Wide Temperature (-25~60℃), 9~36V Wide Voltage Input, Integrated RTC, Supercapacitor Backup

Product Positioning

A high-performance industrial controller designed for high-real-time control and multi-protocol integration, combining Raspberry Pi CM5 hardware with CODESYS real-time systems. Ideal for precision equipment control, multi-axis synchronization, and industrial communication gateways in demanding environments such as factory automation, energy management, and edge computing.

Core Advantages

ModuleHighlightsKey Specifications/Technologies
High-Density I/O8 isolated DI/DO + Dual CAN buses, enabling direct connectivity to sensors, actuators, and industrial devices- DI: Wet/Dry contact support, 5KV isolation
- DO: 5-36V output (1.5A/channel)
- 2×CAN 2.0B (3KV isolation, 10-1000kbps)
- 2×RS232 + 2×RS485 (12-pin terminals with surge protection)
Hard Real-Time ControlMicrosecond-level precision for multi-axis coordination- CODESYS RTE core: ≤250μs control cycle
- 64-axis motion control within 1ms (EtherCAT Master)
Industrial RobustnessBuilt for extreme environments and unstable power conditions- 9-36V DC wide voltage input (overvoltage/overcurrent/reverse polarity protection)
- -25°C~60°C operating range + EMI
-resistant metal housing
- Supercapacitor backup (30-60s power hold-up)
Protocol VersatilitySeamless integration with industrial networks and cloud platforms- EtherCAT/Modbus TCP Master + OPC UA/MQTT support
- Dual Ethernet ports (1Gbps + 100Mbps) for control/data network separation
Scalable ArchitectureFlexible storage and connectivity expansion- 64GB eMMC + M.2 NVMe SSD (up to 512GB)
- Micro SD slot + 8GB LPDDR4 RAM for multitasking

Differentiation

High-Density I/O & Dual CAN: Eliminate expansion modules with 8 isolated DI/DO and 2×CAN 2.0B interfaces for direct device connectivity (sensors, actuators, vehicle ECUs).

PLC-Grade Real-Time Performance: CODESYS RTE enables 64-axis motion control at 1ms cycles, 40% cost reduction vs. traditional PLCs.

Industrial-Grade Isolation: 5KV isolation on DI/DO, 3KV on CAN/RS485, ensuring superior EMI/surge resistance in harsh environments.

Instant Power Backup: Supercapacitor + RTC backup secures critical data for 30-60s during outages, no battery maintenance required.

Typical Applications

🏭 Multi-Axis Production Line Control: Synchronize 16 servo axes via EtherCAT for high-speed packaging/injection molding machines.

🚗 Automotive Testing Systems: Dual CAN buses for real-time ECU communication and sensor data logging.

Smart Grid Protection: Monitor circuit breakers (8 DI) and control relays (8 DO) with Modbus TCP/SCADA integration.

📡 Edge-to-Cloud Gateways: Aggregate equipment data via OPC UA/MQTT while maintaining local control via dual Ethernet ports.

ED-PAC Series Feature selection Guide


Function ClassificationPAC3020PAC3100PAC3630
CPUBCM2711 1.5GHz quad-core A72---
BCM2712 2.4GHz quad-core A76
RAM4GB / 8GB / 16GB  LPDDR4X
Storage16GB / 32GB / 64GB eMMC-
Micro SD Card
SD
Wireless2.4GHz & 5GHz dual-band WiFi
Bluetooth 5.0 / Bluetooth Low Energy(BLE)
4G-
Interface1000M Ethernetx1x1x1
100M Ethernet-x1x1
USB 2.0x2x2x2
USB 3.0x2--
RS232x1up to 2up to 2
RS485x1up to 4up to 4
CAN--up to 2
HDMIx2x1x1
DSI-
CSI-
DI / DO--up to 8
otherRTC, CR1220
Hardware Watch Dog-
OperatingTemperature -25℃~60℃
Fanless Design
MechanicalDesktop--
DIN & Wall-
Power Input5V DC via USB-C--
DC 9V~36V-

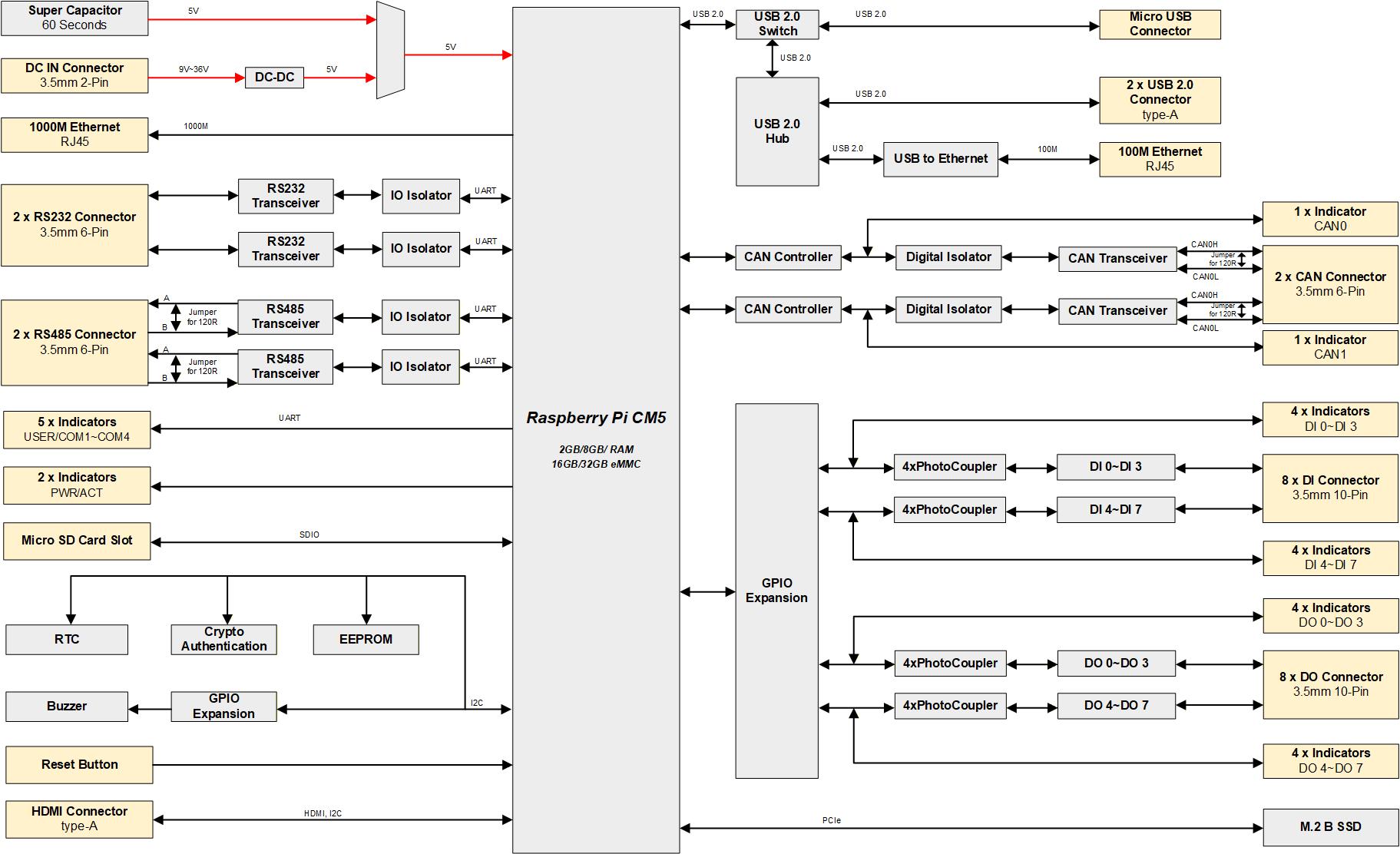

System Diagram
pac3630-diagram
Specification
Hardware System
CPUBroadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
VPUH.265 (HEVC), up to 4Kp60 decode
GPUOpenGL ES 3.1 & Vulkan 1.2
MemoryOptions for 2GB, 8GB LPDDR4-4267 SDRAM
StorageOptions for 16GB, 32GB eMMC storage
1 x Micro SD card slot (user storage expansion)
1 x M.2 B-Key interface (for 2230/2242 SSD storage expansion, optional 128GB/256GB/512GB supported)
CODESYS
RuntimeMulticore CODESYS Control Runtime System (pre-installed by default), with the Singlecore CODESYS Control Runtime System available as an optional add-on
Programming ModeIEC 61131-3 programming languages, including ST, LD, FBD, SFC and CFC
IDECODESYS V3.5
FieldbusCODESYS EtherCAT Master and CODESYS Modbus TCP Master
Motion ControlOptional CODESYS SoftMotion and CNC+Robotics
VisualizationOptional CODESYS TargetVisu and CODESYS WebVisu
OPC UASupport OPC UA Server
Software
Operating System Raspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit
Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Front I/O
Power1 x DC IN, 2-Pin 3.5mm pitch phoenix terminals with screw holes. It supports 9V~36V input, the signal is defined as VIN+/GND.
RS485/2322 x RS232 and 2 x RS485 ports, 12-Pin 3.5mm pitch phoenix terminals with IO isolator, which are equipped with electrostatic and surge protection.
1000M Ethernet1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
100M Ethernet1 x adaptive 10/100M ethernet port, RJ45 connector. It can be used to access the network.
CAN2 x CAN ports, 6-Pin 3.5mm pitch phoenix terminals
  • CAN Protocol: CAN 2.0B
  • Isolation Protection: 3 KV
  • Baud Rate: 10~1000 kbps
  • Signals: CANH, CANL, GND
DI8 x DI ports, 10-Pin 3.5mm pitch phoenix terminals
  • Sensor Type: Wet Contact (NPN & PNP), Dry Contact
  • Isolation Protection: 5 KV
  • Every 4 DI share one common pin (called COM): X0, X2, X4 and X6 share COMX0; X1, X3, X5 and X7 share COMX1
  • DI to COM:
    ON: 5~30 VDC or -30~-5 VDC
    OFF: 0~2 VDC or -2~0 VDC
DO8 x DO ports, 10-Pin 3.5mm pitch phoenix terminals
  • Sensor Type: NPN
  • Isolation Protection: 5 KV
  • Output: 5~36 VDC (24 VDC is recommended), maximum current is 1.5A (per channel)
Rear I/O
SD Card Slot1 x Micro SD card slot, which is used to install Micro SD card for storing user data.
Micro USB1 x Micro USB port, which supports to flash to eMMC for the system.
Side I/O
HDMI1 x HDMI port, Type-A connector. It is compatible with HDMI 2.0 standard and supports 4K 60Hz.
USB 2.02 x USB 2.0 ports, Type-A connector, supporting up to 480Mbps transmission rate.
Buttons and Indicators
Reset1 x Reset button, which can reset the device.
PWR1 x red power indicator, which is used to check the status of device power-on and power-off.
ACT1 x green system indicator, which is used to check the working status of device.
USER1 x green user indicator, user can customize a status according to actual application.
COM1~COM44 x green UART indicators, using to check the communication status of UART ports.
CAN0~CAN12 x green CAN indicators, using to check the communication status of CAN ports.
X0~X78 x green DI indicators, using to check the input status of DI ports.
Y0~Y74 x green DO indicators, using to check the output status of DO ports.
Expansion Functions
SuperCAPIntegrated 15F supercapacitor backup power supply, to protect the system power supply in 30s~60s from the impact of device power down, improve the reliability of the device.
EEPROMSupports 4K byte storage and improves the ease of use of device.
Encryption chipIt can be matched to realize the required upper layer application and improves the security of device.
RTCRTC with 1F SuperCAP backup, which can ensure that the system clock is not affected by device power-off. We also provide a battery base, and you can buy a CR1220 battery backup for RTC.
BuzzerA tip or an abnormity can be configurated according to actual application, which realizes the alarm function.
Electrical Characteristics
Input Voltage9V ~ 36V DC
Power Consumption24W (Max)
Mechanical Characteristics
Dimensions143mm x 100mm x 55mm (WxDxH, DIN-rail is not included.)
WeightAbout 800g
InstallationDIN-rail mounting
Environmental & Regulatory
Operating Temperature-25°C ~ 60°C
Storage Temperature-25°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals

Unit: mm

pac3630-dimension

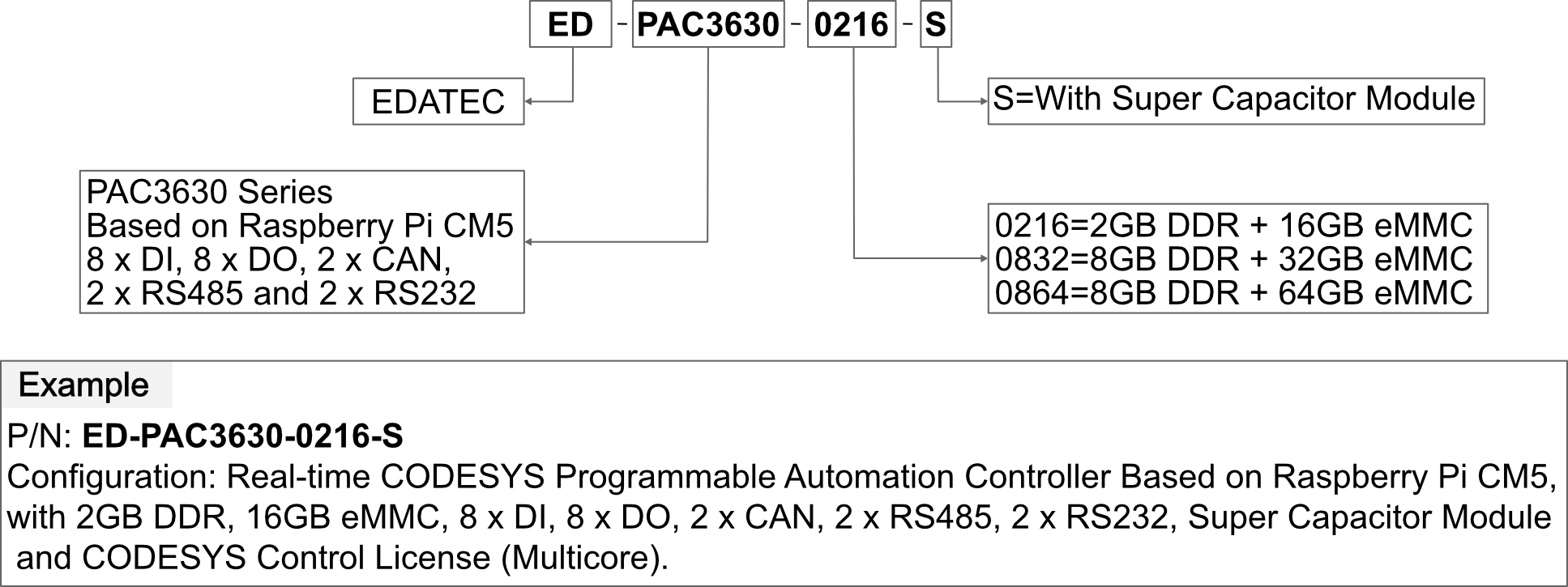

Ordering Code
pac3630-orderingcode

TIP

  • The pre-installed CODESYS license includes Multicore, EtherCAT Master, Modbus TCP Master, and OPC UA Server. If you require additional licenses, please purchase them separately from Optional CODESYS Ordering Code.
  • The device supports extended 4G and Wi-Fi, if you need 4G or Wi-Fi function, you can contact us individually.
