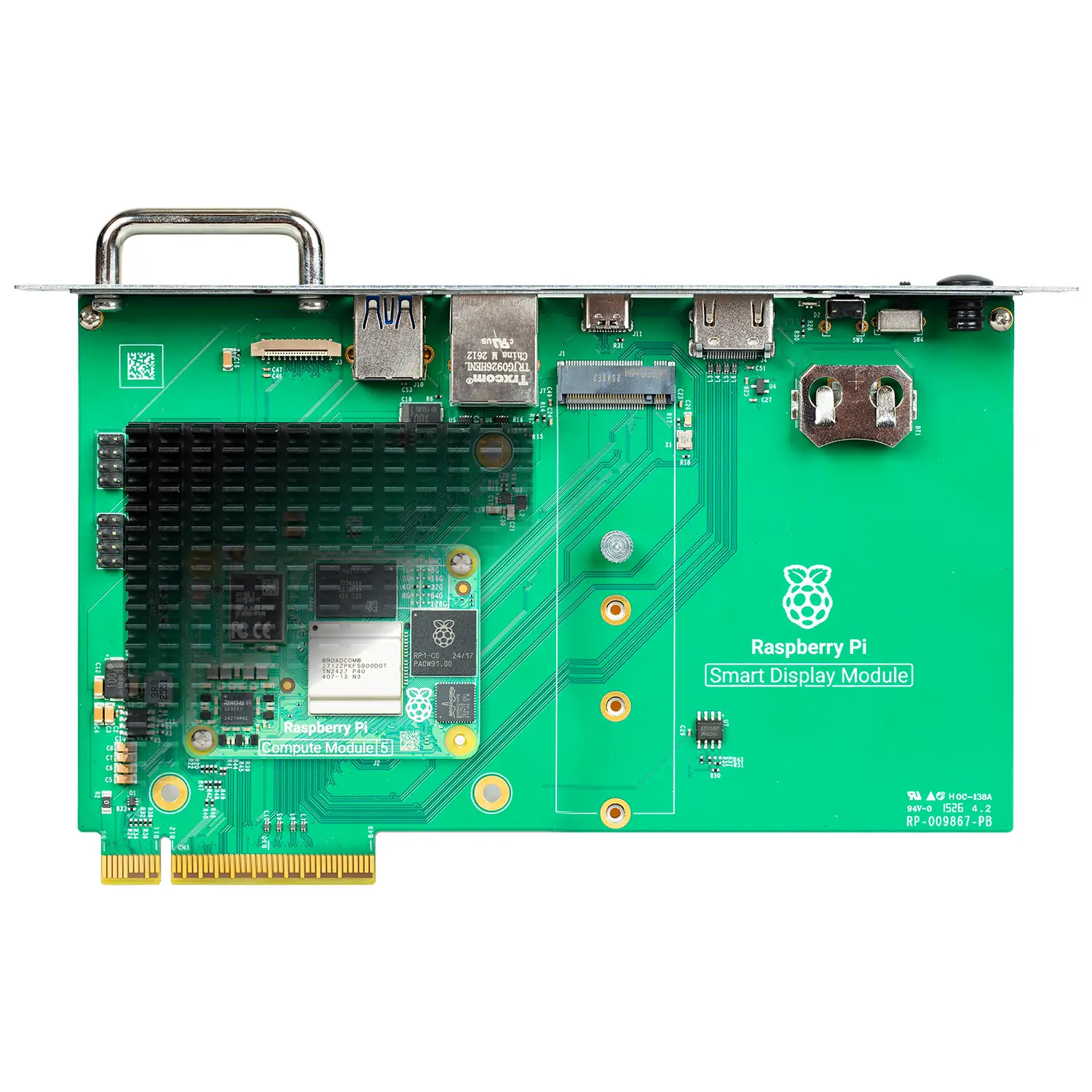

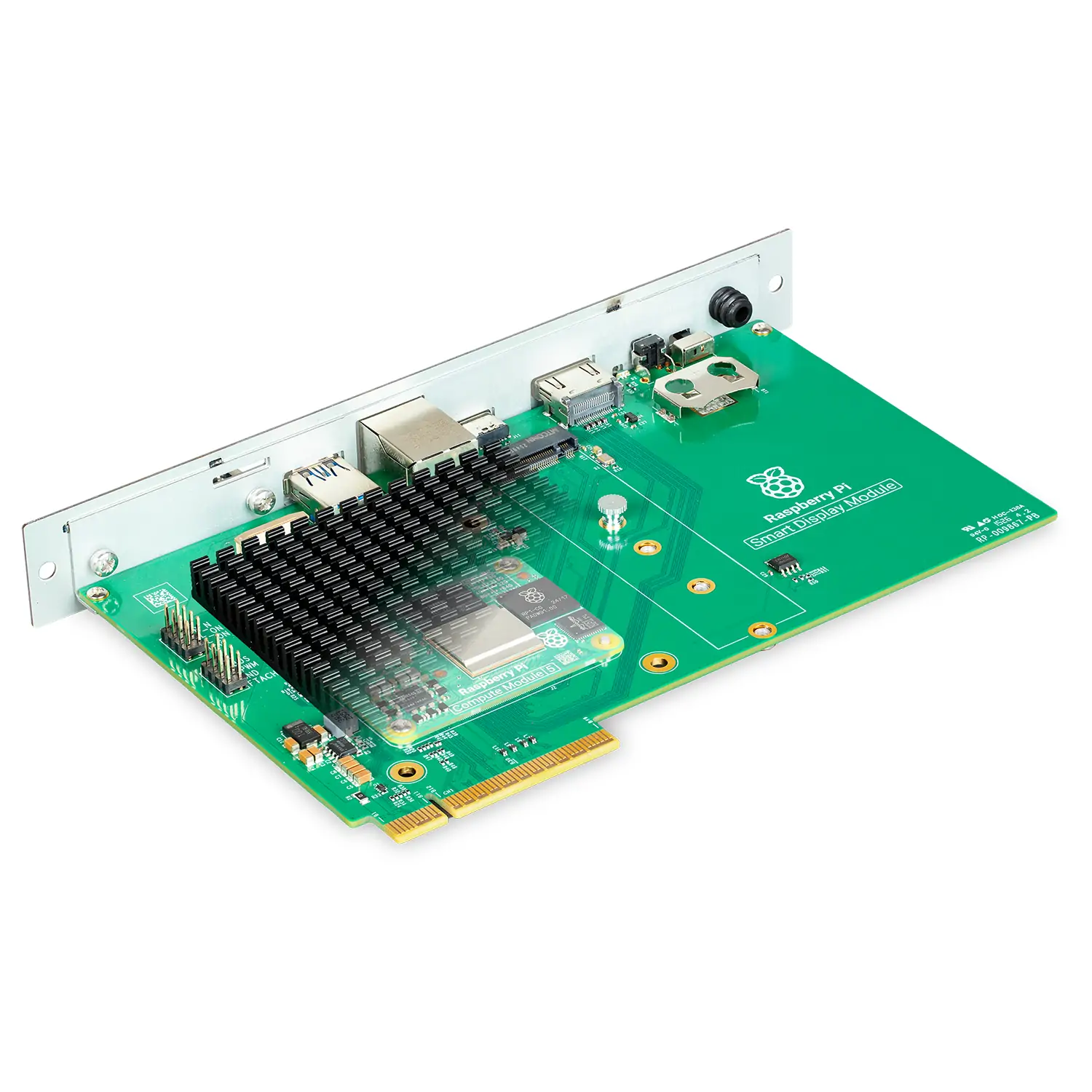

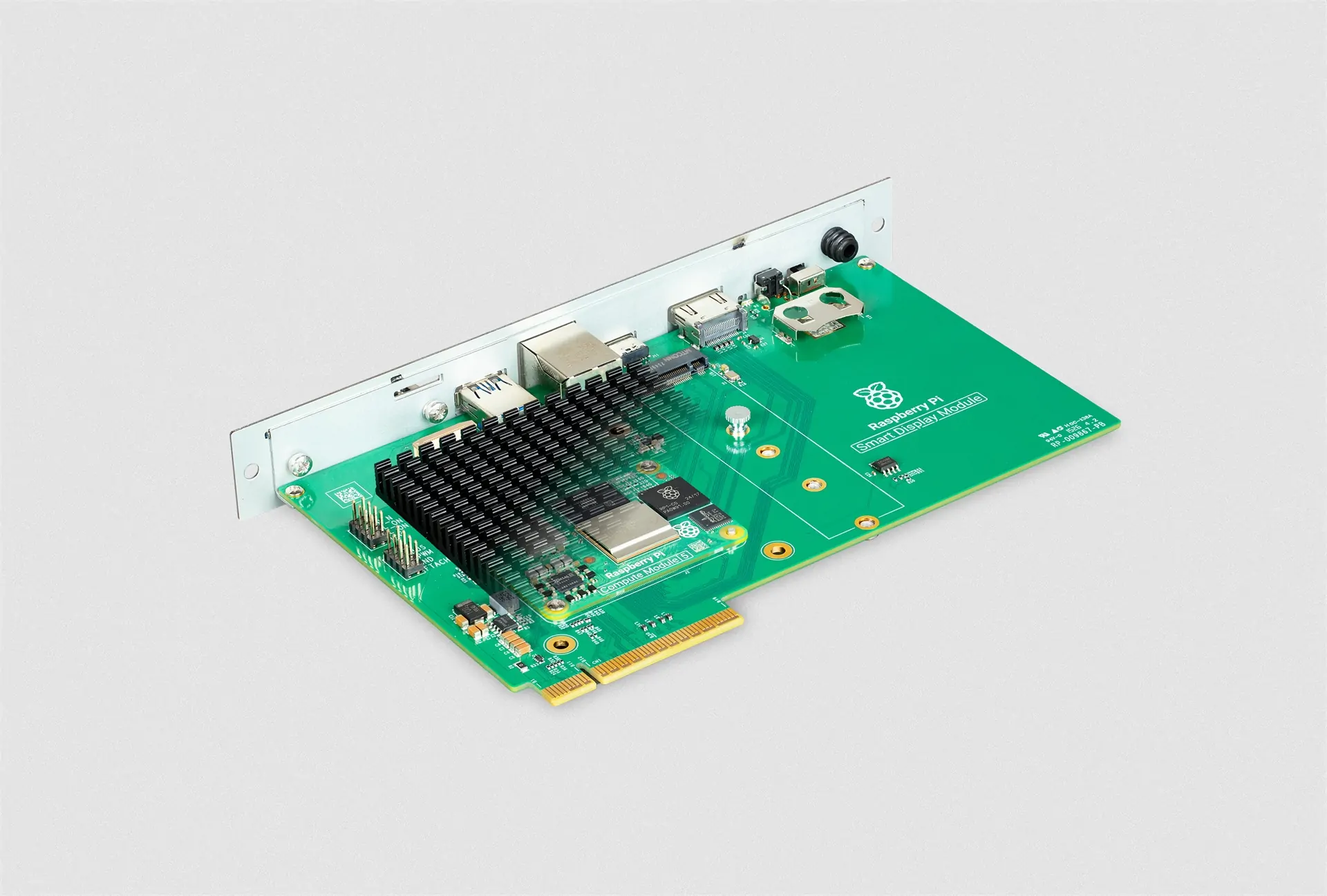

The Raspberry Pi Smart Display Module is an adapter board for Raspberry Pi Compute Module 5 that enables you to integrate your compute module into products that conform to the Intel® Smart Display Module (SDM) standard, with no external cabling or power source required. Typically used for digital signage, it is ideal for applications such as flight information display systems (FIDS), wayfinding, retail and corporate signage, and industrial displays. The module can also be paired with projectors that support Intel SDM to power applications including exhibits and immersive experiences. Compute Module 5 sold separately.
Compatible with Raspberry Pi Compute Module 5 (sold separately)Conforms to the Intel® SDM specificationSupport for a U.FL antenna on Compute Module 5 (such as the one included in the Raspberry Pi Antenna Kit)Boot mode switchExternal power buttonLED indicatorMounting for Raspberry Pi Antenna KitConnectivity interfaces including:
HDMI® 2.0
USB 3.0 Type-A
USB 2.0 Type-C (for programming Compute Module 5 only)
Gigabit Ethernet RJ45
M.2 M-key PCIe socket (compatible with the 2230, 2242, 2260, and 2280 form factors)
22-way MIPI DSI/CSI-2 connector
RTC battery socket (CR2032)
Raspberry Pi Compute Module 5 slot
Intel SDM edge connector providing:
HDMI 2.0
USB 3.0
2× I2C
General SPI
UART
