EtherCAT High-Speed Counter

EtherCAT High-Speed Counter

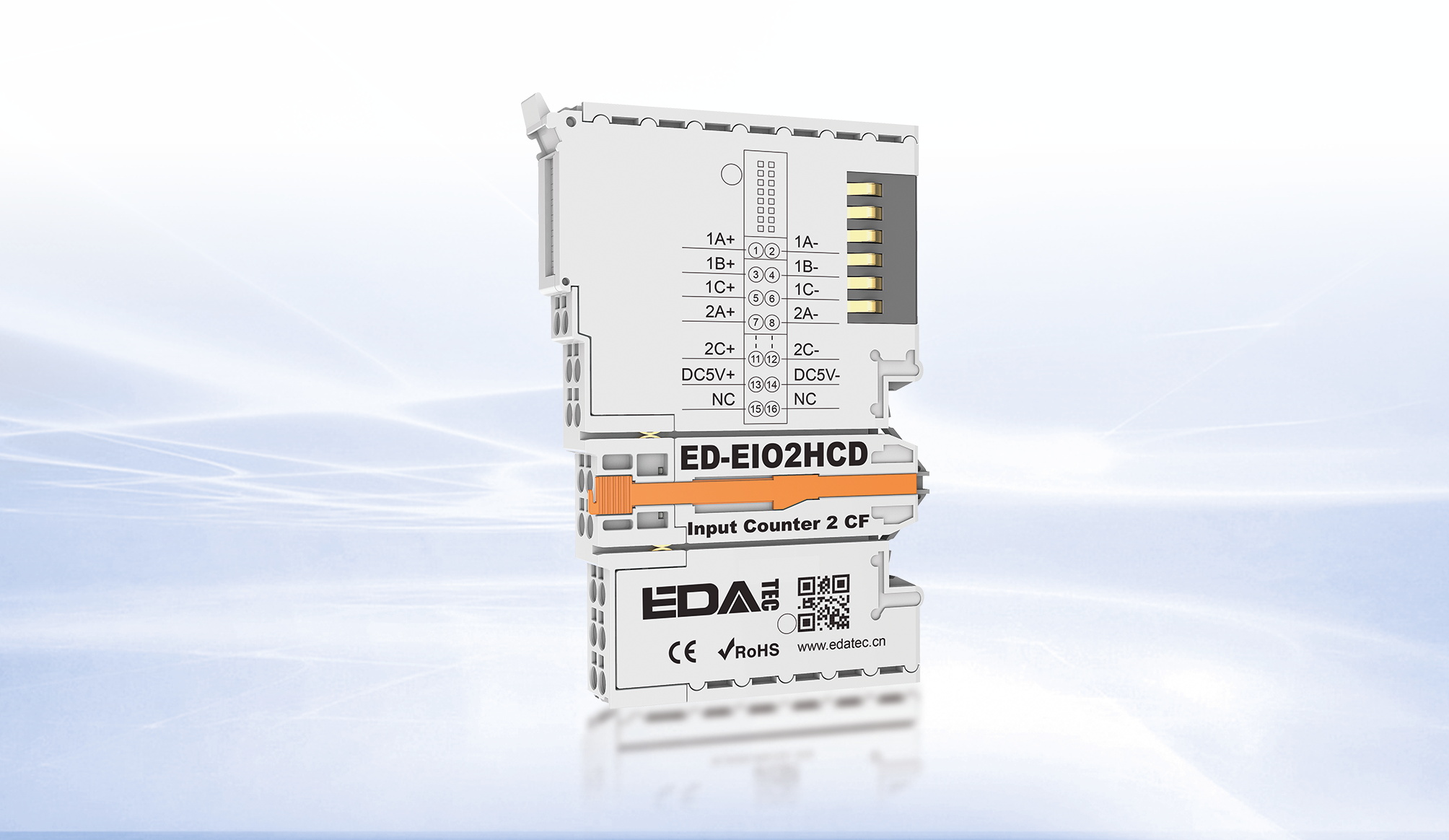

The EtherCAT high-speed counter module is a precision device for industrial automation

Key Featured
  • 2-channel differential high-speed counter module
  • Each channel is equipped with the LED for an operation check
  • Encoder input 5V DC
  • Up to 1MHz input frequency
  • Plug-in construction, DIN-rail installation
  • PT removable terminal block for screwless wiring
  • Support cascading up to 32 I/O modules without additional power supply

In the field of industrial automation, EtherCAT high-speed counter modules are key devices for achieving high-precision, high-speed counting. Here is a detailed introduction to these modules:

Product Features

  • High-Precision Counting: Provides 2-channel differential high-speed counting, supporting linear and circular counting modes, with a counting range of -2147483648 to 2147483648, ensuring high-precision counting.
  • High-Speed Input: Capable of handling input frequencies up to 1 MHz, suitable for high-speed production lines, ensuring error-free precise counting.
  • Multiple Counting Modes:Linear Counting: Suitable for simple counting tasks.Circular Counting: Suitable for applications requiring loop counting.
  • Multiple Multiplier Support: Quadrature encoder multiplier supports X1 (default), X2, X4, meeting different precision requirements.
  • High Reliability: Equipped with optocoupler isolation and an isolation voltage of AC 500V, ensuring stable signal transmission and reducing electromagnetic interference.
  • LED Status Indicators: Each channel has an independent LED indicator light, facilitating on-site debugging and fault diagnosis. The LED lights have three states: constantly on, flashing, and off, indicating that the module is powered, detecting encoder signals, and no signal input, respectively.
  • Plug-in Structure: Supports rail mounting, making installation and maintenance simple.
  • Cascading Function: Up to 32 modules can be cascaded without additional power supplies, simplifying system wiring.

Technical Specifications

  • Number of Input Channels: 2 channels.
  • Input Voltage: 5V DC (±10%), power consumption 210mA.
  • Counting Range: -2147483648 to 2147483648.
  • Input Frequency: Up to 1 MHz.
  • Input Impedance: >500KΩ.
  • Isolation Method: Optocoupler isolation.
  • Maximum Signal Line Connection Distance: 10m.
  • Dimensions: 100mm x 67.6mm x 14.8mm.
  • Weight: Approximately 51g.
  • Wiring Specifications: 0.2mm² to 1.5mm², screwless wiring method.
  • Installation Method: Rail mounting.

Application Fields

EtherCAT high-speed counter modules are widely used in various industrial automation scenarios, including but not limited to:

  • Position, Speed, and Velocity Measurement: Used for positioning tasks in motion control applications, such as robot control and machine tool control.
  • Piece Counting: Used for counting tasks on production lines, improving production efficiency and accuracy.
  • Absolute Position Detection: Analyzes signals from linear and rotary encoders, probes, and position measurement systems, as well as absolute encoders with SSI, EnDat-2.2, or BISS-C interfaces.
  • Incremental Position Detection: Analyzes SinCos 1 Vss signals, RS422 differential signals, TTL or open-collector 5V single-ended signals, and 24V HTL encoder signals.

Ordering Information

If you are interested in EtherCAT high-speed counter modules, consider the following ordering code:

  • ED-EIO2HCD: 2-channel high-speed counter module.

Installation and Maintenance

Installing EtherCAT high-speed counter modules is very simple. Just align the notch on the back of the module with the DIN rail and push it in along the arrow direction to fix it on the DIN rail. To remove the module, simply hold the module's latch and pull it out along the arrow direction. Before installation and removal, ensure that the device's power is turned off to avoid damaging the module.

EtherCAT high-speed counter modules have a broad application prospect in industrial automation. They not only provide efficient and stable counting solutions but also perfectly combine with the CODESYS software platform, providing engineers with powerful development tools. Whether in automated production line control or smart manufacturing systems, EtherCAT high-speed counter modules are key devices for achieving efficient industrial automation.


HS CODE

HS CODECOO
8517799000CN


Optional Remote I/O

ModelDescription
ED-EIOBRG-ECEtherCAT Coupler

Optional I/O Modules

Support a variety of I/O modules, the detailed ordering codes are the table below.

ModelDescription
ED-EIO8XP8-channel digital input module (PNP)
ED-EIO8XN8-channel digital input module (NPN)
ED-EIO16XP16-channel digital input module (PNP)
ED-EIO16XN16-channel digital input module (NPN)
ED-EIO8YP8-channel digital output module (PNP)
ED-EIO8YN8-channel digital output module (NPN)
ED-EIO16YP16-channel digital output module (PNP)
ED-EIO16YN16-channel digital output module (NPN)
ED-EIO4YR4-channel digital output module (Relay)
ED-EIO4ADV4-channel analog input module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4ADA4-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO8ADA8-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO4AD4-channel analog input module (voltage/current mixed), -5~5V/0~10V/-10~10V/4-20mA/0-20mA, configurable
ED-EIO4DAV4-channel analog output module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4DAA4-channel analog output module (current), 4-20mA/0-20mA, configurable
ED-EIO4RTD4-channel RTD Module
ED-EIO4TC4-channel TC Module
D-EIO2HCD2-channel High Speed Counter Module
ED-EIOPWRPower Expansion Supply Module
ED-EIOTERMBus End Cover


Specification
Input
Number of Input Signal Channels 2
Pulse Output Mode Differential (5V)
Powe Input Voltage: 5V DC(±10%)
Current Dissipation: 210mA
Input Frequency Up to 1MHz
Counting Mode Linear Counting, Ring Counting
Counting Range Linear Counting: -2147483648~2147483648
Encoder Mode X1 (default), X2, X4
Input Impedance >500KΩ
Isolation Type Opto-coupler Isolation
Connection Distance 10m (Max)
Software
FieldbusEtherCAT
EtherCAT Master Software PlatformCODESYS
Mechanical Characteristics
Dimensions100mm x 67.6mm x 14.8 mm
WeightAbout 51g
Wiring Specifications0.2mm² ~ 1.5mm²
Wiring MethodScrewless
InstallationDIN-rail installation
Environmental & Regulatory
Operating Temperature-10℃ ~ 55℃
Storage Temperature-20℃ ~ 85℃
Ambient Humidity5% ~ 95% (non-condensing)
Air Pressure≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2
Overvoltage CategoriesI
Protection ClassIP20
CertificationsCE and RoHS
Mechanicals

Unit: mm

2hcd-dimension
Ordering Code
ModelDescription
ED-EIO2HCD2-channel High-Speed Counter Module
Docs
Type Title Publish Time
Datasheet EtherCAT High-Speed Counter Module Datasheet 2025-01-14
Manual Remote I/O User Manual 2025-01-14
