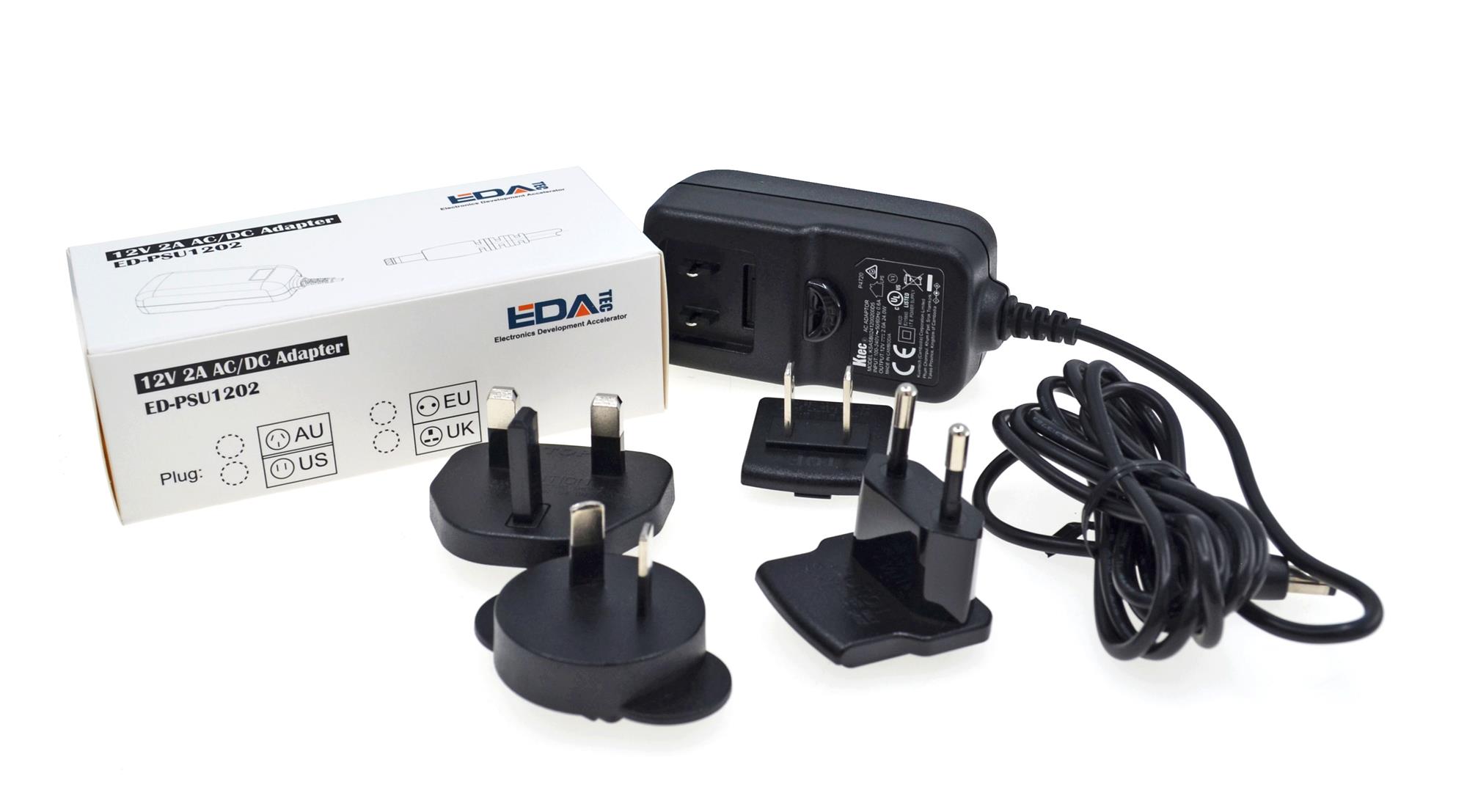

The ED-PSU1202 power supply is a high performance, high stability single phase 24W output power supply marketed by EDATEC and designed for use with the Raspberry Pi Compute Module 4 IO Board and all EDATEC 12V input computers. Designed by Kuantech Cooperate, the power supply is available in various versions to suit power outlets in different countries, including the UK, Europe, Australia and the US, and comes with replaceable plugs.
In terms of technical specifications, the ED-PSU1202 power supply supports a wide range of input voltages from 90V ac to 264V ac at 50/60Hz with a maximum input current of 0.6A. It has an input current of no more than 25mA at no-load with a power loss of up to 0.075W. The power supply has a DC output voltage of +12.0V and a rated load current of 2A. Rated output power reaches 24.0 W. In addition, the power supply's line regulation is ±5%, ripple and noise are controlled within 150 mVp-p, and switching efficiency is maintained between 76.8% and 86.8% at different loads. the ED-PSU1202 also features over-voltage, short-circuit, and over-current protections to ensure safe use.
In terms of reliability, the ED-PSU1202 power supply has a MTBF (Mean Time Between Failure) of 50K hours in accordance with the BELLCORE SR-332 methodology and a guaranteed life of 5 years for all electronic capacitors in a 25°C environment. The operating temperature range of the power supply is 0~40°C and the output connector is a 5.5mm/2.5mm DC plug.
In terms of regulatory standards, the ED-PSU1202 power supply complies with the IEC60950-1 Safety Extra Low Voltage (SELV) and Restricted Power standards, ensuring its safe use worldwide.
Regarding ordering, EDATEC provides detailed ordering codes to facilitate customers to choose the right power supply version according to their needs. In addition, EDATEC provides a FAQ section to answer frequently asked questions about power supply suitability and company relations, ensuring that customers receive adequate technical support and after-sales service during use.
