ED-GWL501

ED-GWL501

Entry-level industrial LoRa gateway designed for satellite positioning support and robust industrial environments.

Key Featured
  • Designed to provide low-power network coverage and earn cryptocurrency (HNT).
  • 64-bit Arm Cortex-A53 CPU for reliable performance.
  • 1x 10/100M Ethernet, 2.4GHz 802.11 b/g/n wireless LAN, and Bluetooth 4.2.
  • Covers both 868-870 MHz and 902-928 MHz frequency plans for international use.
  • 1x WiFi/BT external antenna and 1x 2.5dBi LoRa antenna, with an optional 5.8dBi LoRa antenna.
  • Semtech SX1302 + SX1250 Concentrator.
  • Enables automatic online upgrades without manual intervention.
  • Provides visual feedback with a single RGB LED.
  • Includes a button for easy hotspot configuration.
  • Dimensions of 95mm x 95mm x 26mm for easy placement.
  • CE/FCC qualified for safety and compliance.

ED-GWL501 is an innovative Helium Indoor Light Hotspot designed by EDATEC, engineered to provide extensive low-power network coverage for a myriad of devices.

This gateway plays a pivotal role in facilitating the deployment of IoT devices by extending the reach of network connectivity, thereby enabling the seamless operation of billions of devices across urban landscapes.

By positioning ED-GWL501 in either a home or office setting, users can contribute to the creation of a robust, low-power network infrastructure, which is essential for the functioning of various IoT applications.

At the heart of ED-GWL501 is a 1GHz quad-core 64-bit Arm Cortex-A53 CPU, ensuring the device has the processing capabilities necessary to manage the demands of a modern IoT network.

The gateway offers robust connectivity options, including a 10/100M Ethernet port for wired connections, 2.4GHz 802.11 b/g/n wireless LAN for wireless networking, and Bluetooth 4.2 with BLE for short-range communications.

It also features external antennas for both WiFi/BT and LoRa, allowing for enhanced signal reception and transmission.

ED-GWL501 supports a wide range of frequency plans, catering to different regions across the globe.

It operates on frequencies between 868 ~ 870 MHz for regions like the EU, India, and Russia, and between 902 ~ 928 MHz for the US, Australia, and other countries in South America and Asia.

This versatility in frequency support ensures that the gateway can be used in a multitude of locations worldwide.

One of the standout features of ED-GWL501 is its LoRa concentrator, which utilizes a Semtech SX1302 + SX1250 chipset. This chipset provides a wide range of capabilities, enhancing the device's ability to manage LoRa networks effectively.

The gateway also supports automatic OTA upgrades, eliminating the need for manual interventions and ensuring that the device is always running the latest software.

ED-GWL501 is equipped with an RGB LED indicator and a configuration button, allowing users to easily monitor the status of their hotspot and make necessary adjustments.

Its compact dimensions of 95mm x 95mm x 26mm make it a convenient and unobtrusive addition to any space.

The gateway also carries CE and FCC certifications, ensuring that it meets international safety and performance standards.

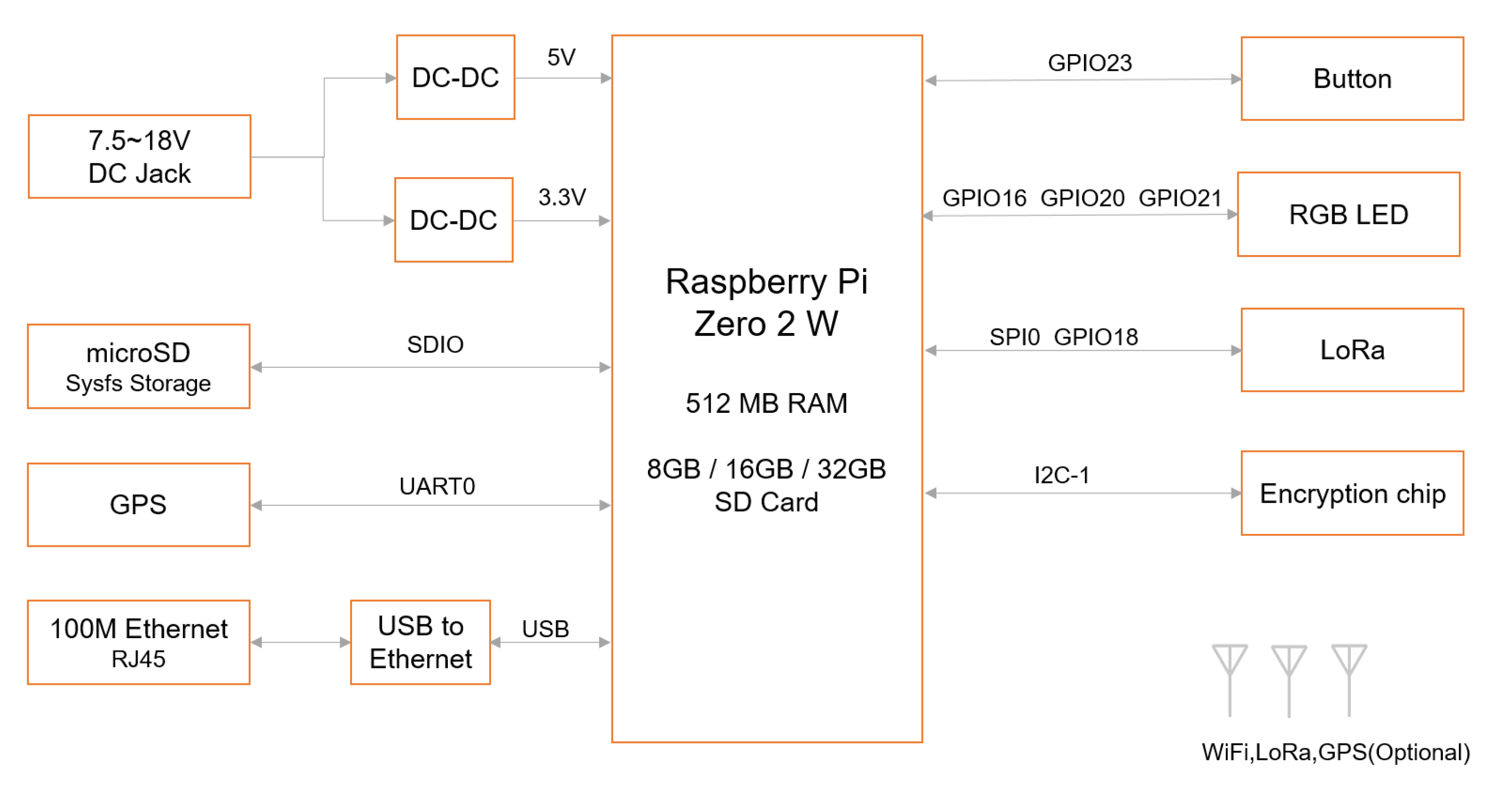

System Diagram

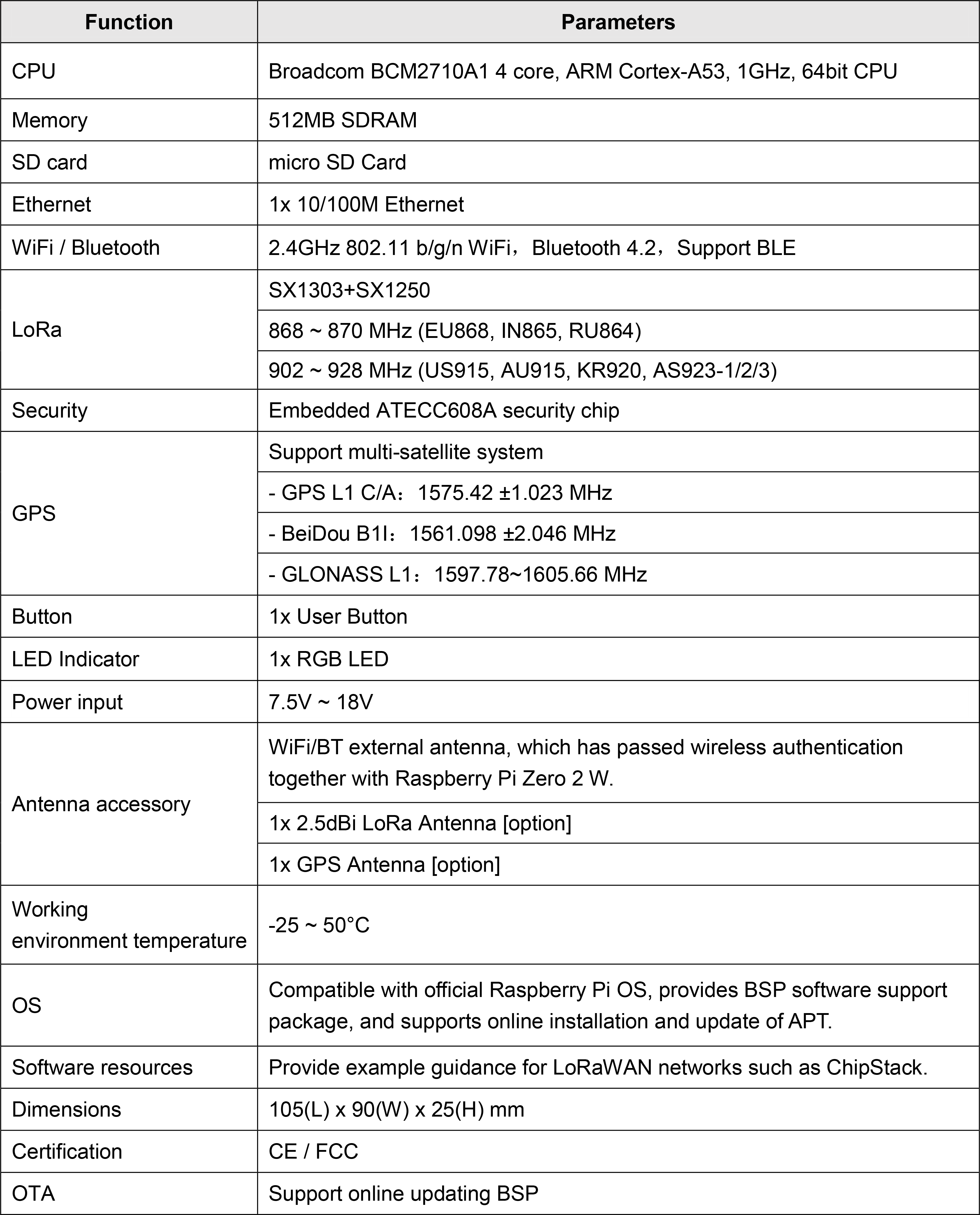

Specification

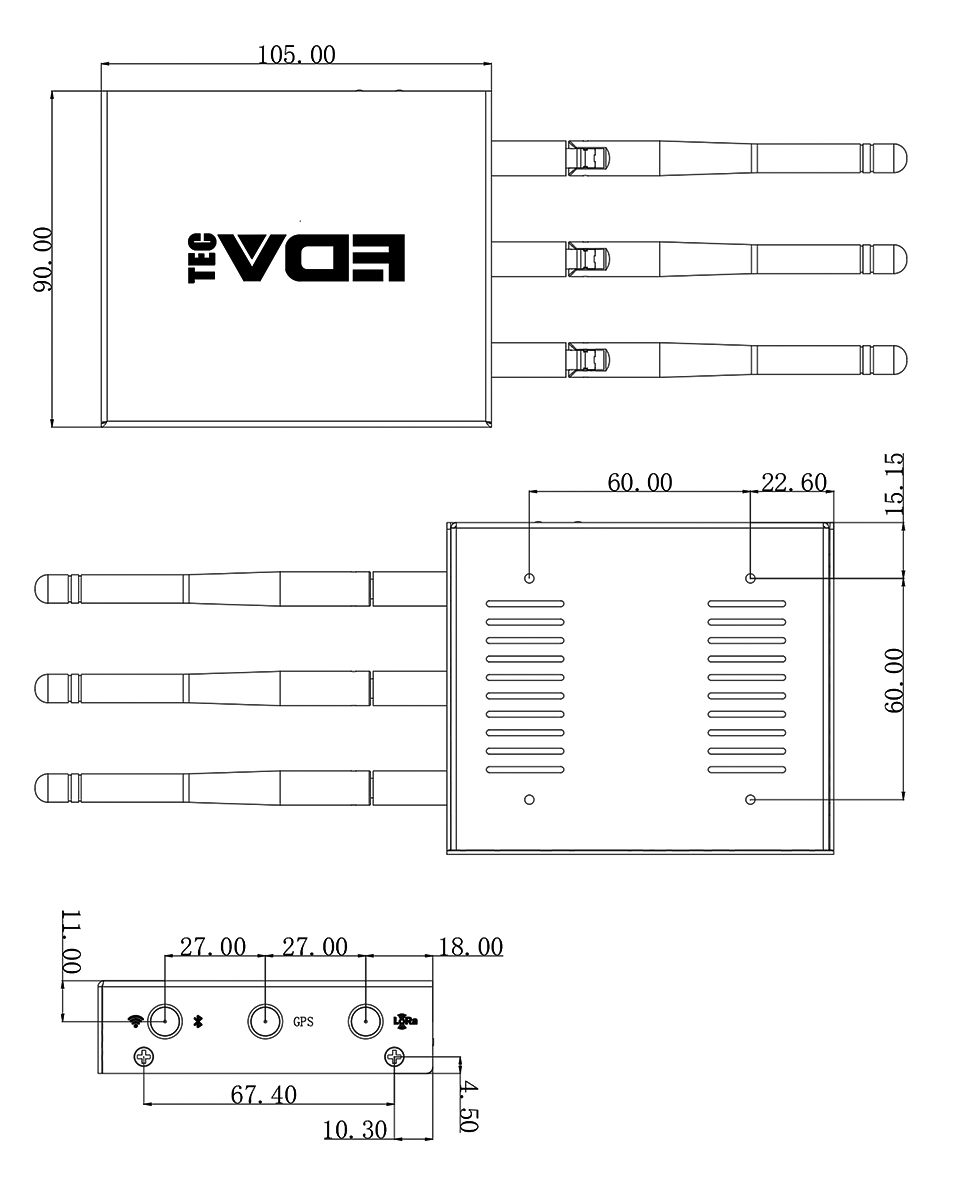

Mechanicals

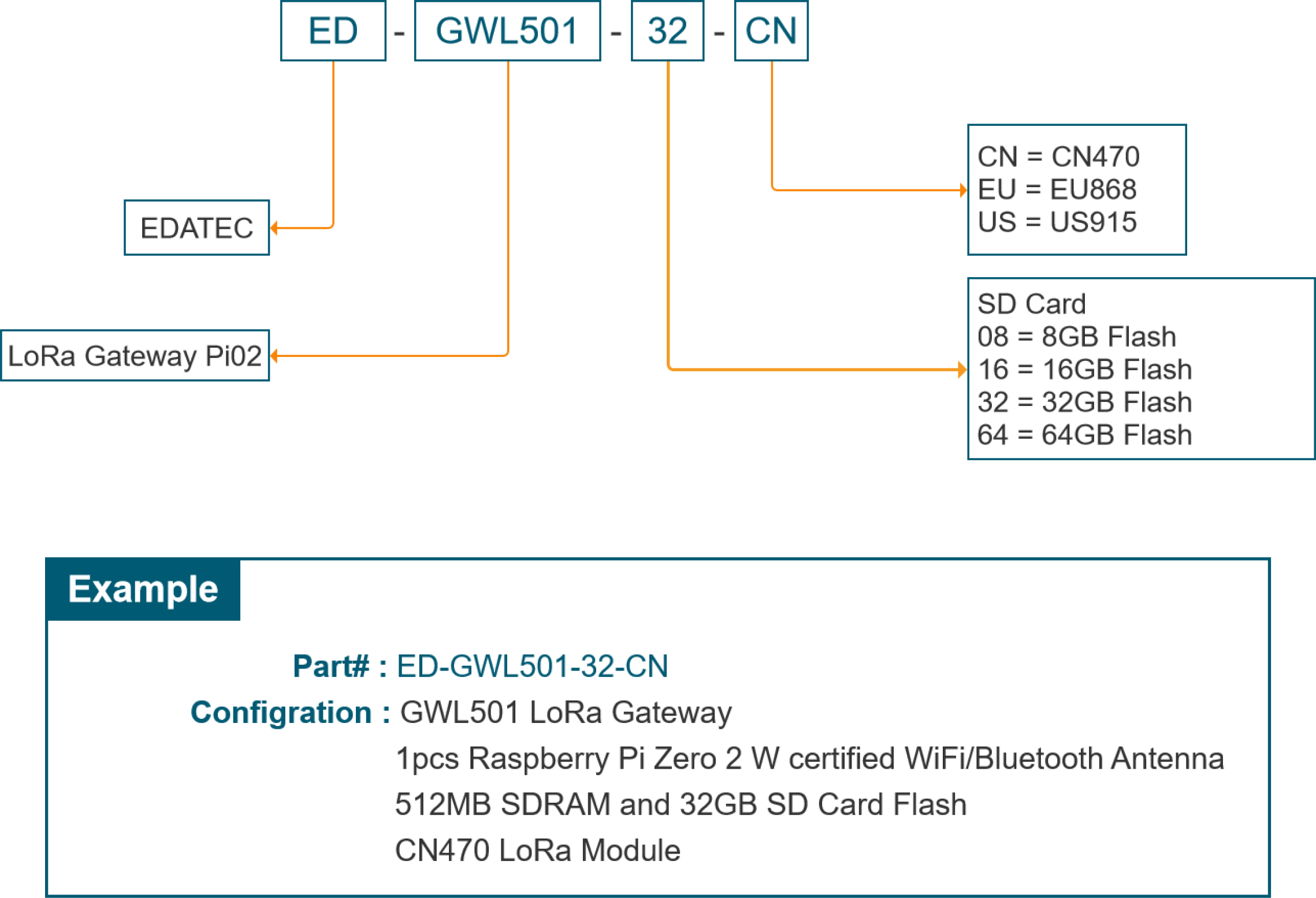

Ordering Code


Docs
Type Title Publish Time
PDF ED-GWL501 Datasheet-en 2024-04-10
PDF ED-GWL501 User Manual-en 2024-04-10
