ED-HMI3020 Series

ED-HMI3020 Series

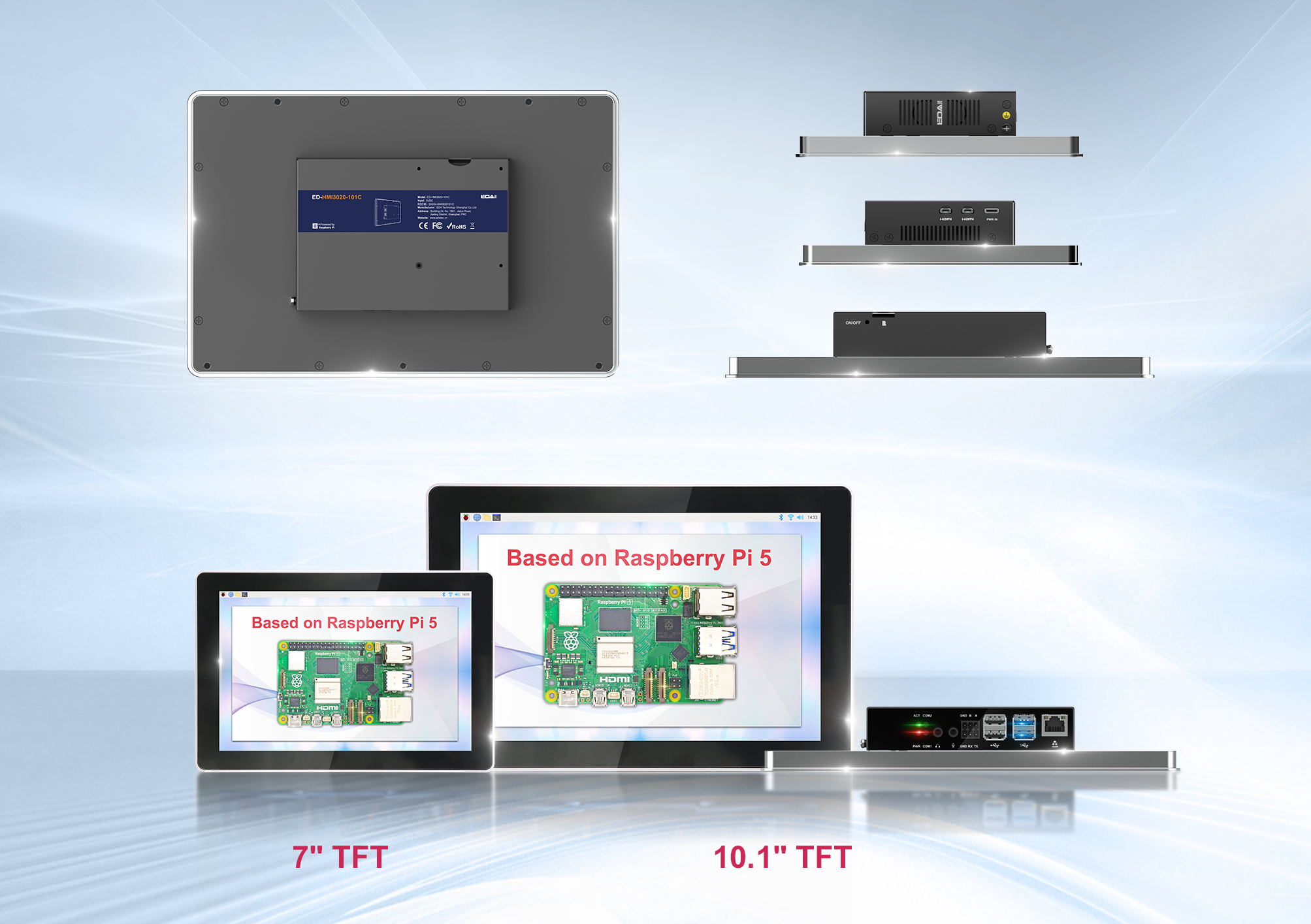

High-Performance Raspberry Pi 5 Industrial Tablet.

Key Featured
  • Broadcom BCM2712 Quad-core Cortex-A76 (2.4GHz), 8GB LPDDR4X, Micro SD/M.2 NVMe
  • 7"/10.1"(1024×600/1280×800) True Flat LCD With Pcap Multi-touch, 400cd/m² High Brightness
  • 1 x GbE (PoE Optional), 2 x USB3.0, 2 x USB2.0, 1 x RS232, 1 x RS485
  • Metal Housing, Fanless Wide Temp (-20℃~60℃), RTC, Supercapacitor Backup
  • Supports Panel Mounting
  • The product verified with CE, FCC, RoHS certification
ED-HMI3020 Series Selection Guide
Model No.LCD SizeResolutionAspect ratio# of ColorsLuminance
(cd/m2)
Viewing Angle
(H/V)
Multi-touch
(# of points)
Dimensions
(mm)
Weight
(g)
HMI3020-070C7"1024 x 60016:916.7M400160°/160°10188 x 123 x 40.6About 900g
HMI3020-101C10.1"1280 x 80016:1016.7M250160°/160°10258 x 172 x 39.6About 1000g


Product Positioning

A high-performance touchscreen terminal for industrial human-machine interaction (HMI) and edge control, powered by Raspberry Pi 5 and engineered for harsh environments. Combines sunlight-readable displays, multi-protocol connectivity, and industrial-grade reliability to deliver all-in-one control-visualization solutions for smart manufacturing, logistics, and energy management.

Core Advantages

ModuleHighlightsKey Specifications/Technologies
High-Performance ComputeRuggedized edge processing and real-time control- Quad-core Cortex-A76@2.4GHz (BCM2712)
- 8GB LPDDR4X RAM + M.2 NVMe SSD (up to 256GB)
Industrial-Grade DisplayGlare-resistant touchscreens for extreme visibility- 7" (1024×600) / 10.1" (1280×800) TFT panels
- 400cd/m² (7") / 250cd/m² (10.1") brightness
- 10-point capacitive touch (6H hardened glass)
Protocol ConnectivityDirect integration with industrial systems- Gigabit Ethernet (PoE-ready)
- 2× USB 3.0 (5Gbps) + 2× USB 2.0
- RS232/RS485 terminals (isolated)
Industrial ResilienceBuilt for 24/7 operation in demanding conditions- -20°C~60°C operating range
- IP65 front panel (dust/waterproof)
- Supercapacitor + RTC backup
Flexible DeploymentCompact and rugged design for diverse installations- Metal housing (7": 900g / 10.1": 1kg)
- Panel-mount design with M4 fasteners

Differentiation

Sunlight-Readable Touchscreens: 7" model delivers 400cd/m² brightness with 200% higher contrast in direct light vs. standard HMIs (typically 250cd/m²).

Dual Power Modes: 5V USB-C or PoE power eliminates complex wiring in production lines.

Industrial-Grade Thermal Tolerance: -20°C cold start + 60°C continuous operation suits 95% of global industrial environments.

Dual-Storage Architecture: M.2 NVMe SSD (high-speed data) + Micro SD (config backup) ensures system stability.

Typical Applications

🏭 Smart Production Control: RS485 interfaces with PLCs, USB 3.0 connects vision cameras for real-time QA.

📦 Logistics Sorting Hub: Touchscreen controls AGV fleets, Gigabit Ethernet syncs with sorters, NVMe SSD caches parcel data.

Energy Monitoring HMI: RS232 collects grid metrics, edge analytics optimizes consumption, live load curves displayed.

🔧 Equipment Maintenance Panel: Integrated fault diagnosis UI, USB 3.0 printers output service reports.

Explore in-depth reviews and coverage of ED-HMI3020 by leading international media outlets! Click the links to learn more:

CNX SOFTWARE

Tom's Hardware

Leepspvideo

magazina Mehatronika

HS CODE

HS CODECOO
8471504001CN


ED-HMI Series Feature Selection Guide


Function ClassificationHMI2002HMI2020HMI2120HMI2220HMI2320HMI2630HMI3010HMI3020HMI3120HMI3630
CPU1.5GHz quad-core A72----
2.4GHz quad-core A76------
RAM1/2/4/8GB LPDDR4----
2/4/8/16GB LPDDR4X--------
2/4/8GB LPDDR4X--------
Storage8/16/32GB eMMC-----
16/32/64GB eMMC--------
Micro SD Card
SSD----
Display7''--
10.1''-
11.6''-------
12.1''---------
13.3''-------
15''---------
15.6''------
17''---------
18.5”-------
21.5''------
Wireless
2.4GHz & 5GHz dual-band WiFi
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
4G----
5G----------
Interface1000M Ethernetx 1x 1x 1x 3≤ x 2x 1x 1x 1x 1x 1
100M Ethernet--x 1--x 1--x 1x 1
USB 2.0x 2x 1x 2x 2≤ x 5x 2x 2x 2x 2x 2
USB 3.0x 2x 2-x 1x 2-x 2x 2--
RS232--x 2-≤ x 7≤ x 2-x 1≤ x 2≤ x 2
RS485--x 2-≤ x 2≤ x 4-x 1≤ x 4≤ x 4
CAN-----≤ x 2---≤ x 2
DI/DO-----≤ x 8---≤ x 8
HDMIx 2x 1x 1x 1x 1x 1x 2x 2x 1x 1
Audio in&out--
otherRTC with backup
Hardware Watch Dog----
Operating-20℃~60℃-
0 ~ 50°C---------
MechanicalFanless Design
MountingEmbedded Mounting Frame
Power Input5V DC-------
9V~28V DC---------
9V~36V DC----

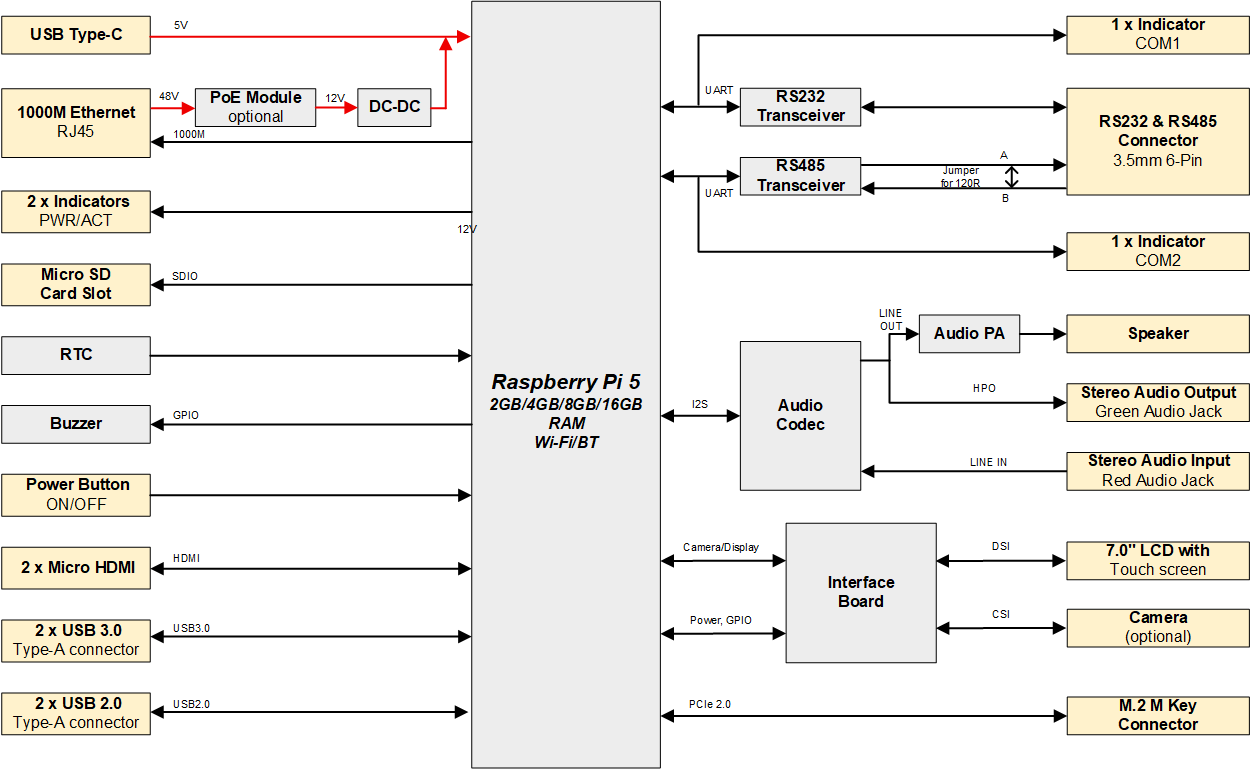

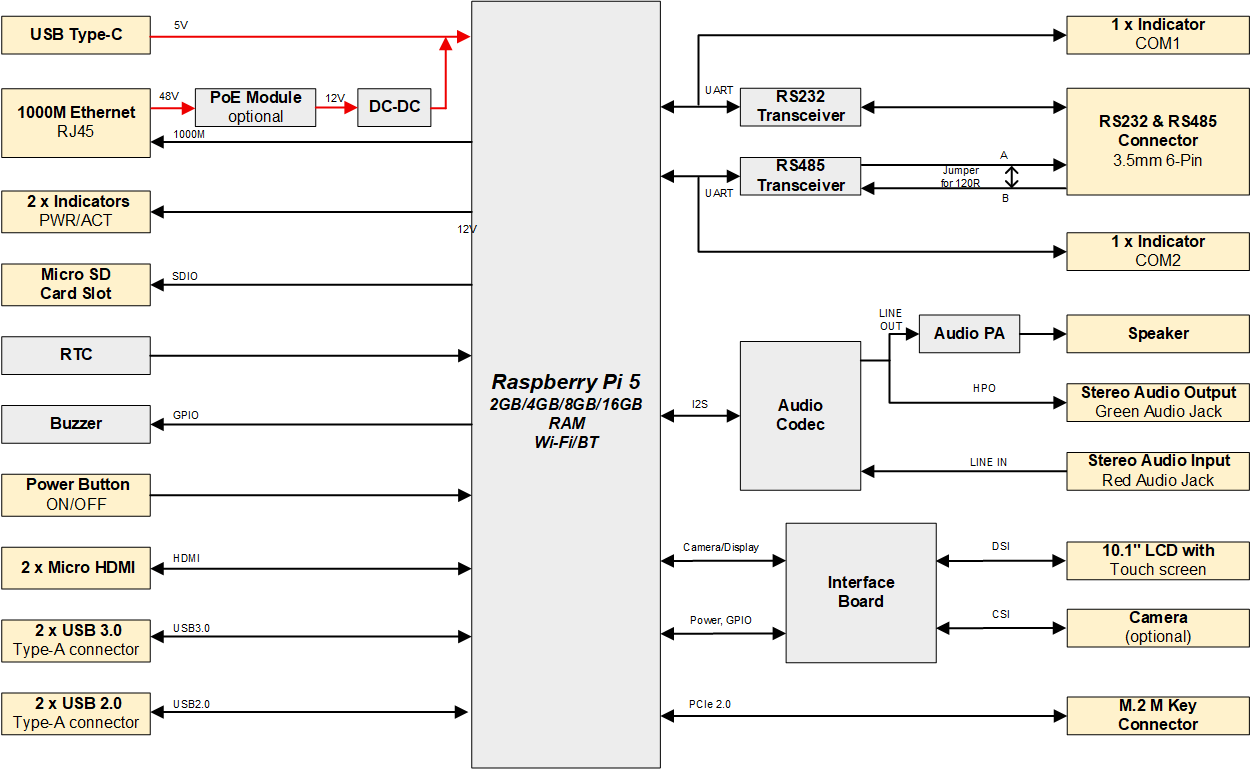

System Diagram
    1
  • HMI3020-070C
  • 2
  • HMI3020-101C
ED-HMI3020-070C-Datasheet-2024.05.21
ED-HMI3020-101C-Datasheet-2024.05.21
Specification
  • HMI3020-070C
  • HMI3020-101C
System
CPUBroadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU4Kp60 HEVC decoder
GPUOpenGL ES 3.1 & Vulkan 1.2
Memory4GB and 8GB LPDDR4X-4267 SDRAM are optional
StorageMicro SD Card Slot, supporting to select the 00GB/32GB/64GB SD card
M.2 NVMe SSD, supporting to select the 00GB/128GB/256GB SSD
software
Operating System Raspberry Pi OS(Desktop) 32-bit
Raspberry Pi OS(Lite) 32-bit
Raspberry Pi OS(Desktop) 64-bit
Raspberry Pi OS(Lite) 64-bit
Front I/O
CameraBuilt-in 8-megapixel front camera(optional)
Side I/O
Audio OUT1 x Audio Output(HPO), 3.5mm audio jack connector(green), stereo audio output.
Audio IN1 x Audio Input(LINE IN), 3.5mm audio jack connector(red), supporting stereo audio input.
Speaker1 x PA output, built-in a 4Ω 3W speaker.
RS4851 x RS485 port, 3-Pin 3.5mm pitch phoenix terminals with 120Ω terminal resistor.
The signal is defined as GND/A/B.
RS2321 x RS232 port, 3-Pin 3.5mm pitch phoenix terminals, the signal is defined RS232 as GND/TX/RX.
USB 2.02 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps.
USB 3.02 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps.
1000MEthernet1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access thenetwork.
PoE can be supported through expansion module.
SD Card Slot1 x Micro SD card slot, which is used to install Micro SD card. It supports booting the OS from Micro SD card.
HDMI2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz
Power1 x power in port, USB Type-C connector, supporting 5V/5A DC power input.
Buttons and Indicators
ON/OFF1 x power button, which is used to turn on and turn off the device.
PWR1 x red power indicator, which is used to check the status of device power-on and power-off.
ACT1 x green system indicator, which is used to check the working status of device.
COM1~COM22 x green UART indicators, which is used to check the communication status of UART port.
Internal I/O
M.2 M1 x M.2 M port, M.2 M Key connector, using to connect SSD and other fast peripherals.
It compatibles with M.2 2230, M.2 2242 and M.2 2260, supporting to boot the OS from SSD.
LCD
LCD Size7.0" TFT
Resolution1024 x 600
Colors16.7MB
Active Area154.21mm(H) x 85.92mm(V)
BacklightLED
MTBF>30000h
Pixel Pitch400cd/m^2
Contrast Ratio800:1
Response Time30ms
Viewing Angle (CR≥10)85°(L)/85°(R)/85°(U)/85°(D)
Touch Screen
TypeMulti-point Capacitive Touch Screen
Transmittance≥85%
ConnectionMethodCOF
ControllerInterfaceI2C
Driver SupportLinux
Multi-touch10 points
SurfaceHardness6H
Expansion Performance
RTCRTC with 1F SuperCAP backup, which can ensure that the system clock is not affected bydevice power-off.
We also provide a battery base, and you can buy a CR1220 batterybackup for RTC.
BuzzerA tip or an abnormity can be configurated according to actual application, which realizesthe alarm function.
Electrical Characteristics
Input Voltage5V DC
Power Consumption25W(Max)
Mechanical Characteristics
Dimensions188mm x 123mm x 40.6mm (WxDxH)
WeightAbout 900g
InstallationEmbedded front installation
Wireless
Wi-FiDual-band 802.11ac Wi-Fi
BluetoothBluetooth 5.0 / Bluetooth Low Energy (BLE)
Environmental & Regulatory
Operating Temperature-20°C ~ 60°C
Storage Temperature-25°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
CertificationsFCC
FCC 47 CFR Part 15 Subpart B
CE
EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3
EN 55032/EN 55035
EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52
EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2
System
CPUBroadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
VPU4Kp60 HEVC decoder
GPUOpenGL ES 3.1 & Vulkan 1.2
Memory4GB and 8GB LPDDR4X-4267 SDRAM are optional
StorageMicro SD Card Slot, supporting to select the 00GB/32GB/64GB SD card
M.2 NVMe SSD, supporting to select the 00GB/128GB/256GB SSD
software
Operating System Raspberry Pi OS(Desktop) 32-bit
Raspberry Pi OS(Lite) 32-bit
Raspberry Pi OS(Desktop) 64-bit
Raspberry Pi OS(Lite) 64-bit
Front I/O
CameraBuilt-in 8-megapixel front camera(optional)
Side I/O
Audio OUT1 x Audio Output(HPO), 3.5mm audio jack connector(green), stereo audio output.
Audio IN1 x Audio Input(LINE IN), 3.5mm audio jack connector(red), supporting stereo audio input.
Speaker1 x PA output, built-in a 4Ω 3W speaker.
RS4851 x RS485 port, 3-Pin 3.5mm pitch phoenix terminals with 120Ω terminal resistor.
The signal is defined as GND/A/B.
RS2321 x RS232 port, 3-Pin 3.5mm pitch phoenix terminals, the signal is defined as GND/TX/RX.
USB 2.02 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps.
USB 3.02 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps.
1000MEthernet1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access thenetwork. PoE can be supported through expansion module.
SD Card Slot1 x Micro SD card slot, which is used to install Micro SD card. It supports booting the OS from Micro SD card.
HDMI2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz
Power1 x power in port, USB Type-C connector, supporting 5V/5A DC power input.
Buttons and Indicators
ON/OFF1 x power button, which is used to turn on and turn off the device.
PWR1 x red power indicator, which is used to check the status of device power-on and power-off.
ACT1 x green system indicator, which is used to check the working status of device.
COM1~COM22 x green UART indicators, which is used to check the communication status of UART port.
Internal I/O
M.2 M1 x M.2 M port, M.2 M Key connector, using to connect SSD and other fast peripherals.
It compatibles with M.2 2230, M.2 2242 and M.2 2260, supporting to boot the OS from SSD.
LCD
LCD Size10.1" TFT
Resolution1280 x 800
Colors16.7MB
Active Area216.576mm(H) x 135.36mm(V)
BacklightLED
MTBF>30000h
Pixel Pitch250cd/m^2
Contrast Ratio1000:1
Response Time30ms
Viewing Angle (CR≥10)80°(L)/80°(R)/80°(U)/80°(D)
Touch Screen
TypeMulti-point Capacitive Touch Screen
Transmittance≥85%
ConnectionMethodCOF
ControllerInterfaceI2C
Driver SupportLinux
Multi-touch10 points
SurfaceHardness6H
Expansion Performance
RTCRTC with 1F SuperCAP backup, which can ensure that the system clock is not affected bydevice power-off.
We also provide a battery base, and you can buy a CR1220 batterybackup for RTC.
BuzzerA tip or an abnormity can be configurated according to actual application, which realizesthe alarm function.
Electrical Characteristics
Input Voltage5V DC
Power Consumption25W(Max)
Mechanical Characteristics
Dimensions258mm x 172mm x 39.6mm (WxDxH)
WeightAbout 1Kg
InstallationEmbedded front installation
Wireless
Wi-FiDual-band 802.11ac Wi-Fi
BluetoothBluetooth 5.0 / Bluetooth Low Energy (BLE)
Environmental & Regulatory
Operating Temperature-20°C ~ 60°C
Storage Temperature-25°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
CertificationsFCC
FCC 47 CFR Part 15 Subpart B
CE
EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3
EN 55032/EN 55035
EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52
EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2
Mechanicals
  • HMI3020-070C
  • HMI3020-101C

Unit: mm

ED-HMI3020-070C-Datasheetdimensions-2024.05.21

Unit: mm

ED-HMI3020-101C-Datasheedimensionst-2024.05.21
Ordering Code
  • HMI3020-070C
  • HMI3020-101C
ED-HMI3020-070C-Datasheetorderingcode-2024.05.21
ED-HMI3020-101C-Datasheetorderingcode-2024.05.21
Docs
Type Title Publish Time
Datasheet ED-HMI3020-070C Datasheet 2024-04-10
Manual ED-HMI3020-070C User Manual-en 2024-04-10
OS ED-HMI3020-070C Installing OS 2024-04-10
Datasheet ED-HMI3020-101C Datasheet 2024-04-10
Manual ED-HMI3020-101C User Manual-en 2024-04-10
OS ED-HMI3020-101C Installing OS 2024-04-10
Software Optimization for noise problem on ED-IPC3020&ED-HMI3020 2024-04-10
FAQ Fails to boot ED-IPC3020/ED-HMI3020/ED-HMI3010 from SD card-Trouble Shooting 2024-04-10
FAQ Optimization for white screen problem on 7-inch ED-HMI series 2024-04-10
CE Certification ED-HMI3020 CE Certification 2024-04-10
CE Report ED-HMI3020 CE Report 2024-04-10
RoHS Certification ED-HMI3020 RoHS Certification 2024-04-10
RoHS Report ED-HMI3020 RoHS Report 2024-04-10
FCC Certification ED-HMI3020 FCC Certification 2024-04-10
FCC Report ED-HMI3020 FCC Report 2024-04-10
EU Declaration ED-HMI3020 EU Declaration 2024-04-10
Related Products
ED-HMI2120 Series

The ED-HMI2120 is a high-performance HMI device featuring a powerful quad-core processor, multiple connectivity options, and a choice between 7.0" and 10.1" touchscreen displays for industrial applications.

Raspberry Pi Global Shutter Camera

The Raspberry Pi Global Shutter Camera is a high-speed, distortion-free imaging module designed for precise capture of fast motion, featuring a 1.6-megapixel Sony sensor and global shutter technology.

CM4 Sensing

CM4 Sensing is a versatile industrial IoT and data acquisition computer based on the Raspberry Pi Compute Module 4, featuring robust wireless communication, multiple serial interfaces, and wide temperature operation capabilities.

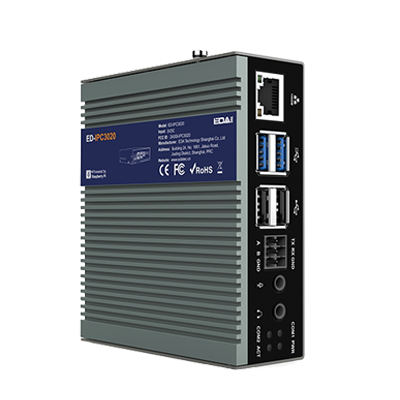

ED-IPC3020

The ED-IPC3020 is a high-performance, fanless industrial computer with a powerful Broadcom BCM2712 CPU, dual 4K HDMI outputs, and a wide range of I/O options, designed for reliable operation in extreme temperature environments.


Videos
ED-HMI Applications Video

EDATEC

Started in 2017, EDATEC has been certified as one of the global design partners of Raspberry Pi since 2018, providing Raspberry Pi based industrial computers design and manufacturing services for global customers.

  • Building 29, No. 1661, Jialuo Road, Jiading District, Shanghai.
  • CN: +86-18217351262 (Iris Zhou)
    US: +1 859-653-0800 (Randall Restle)
  • support@edatec.cn
Submit Your Message

INFO

By submitting, you agree to EDATEC's policies

Please enter the verification code

captcha
