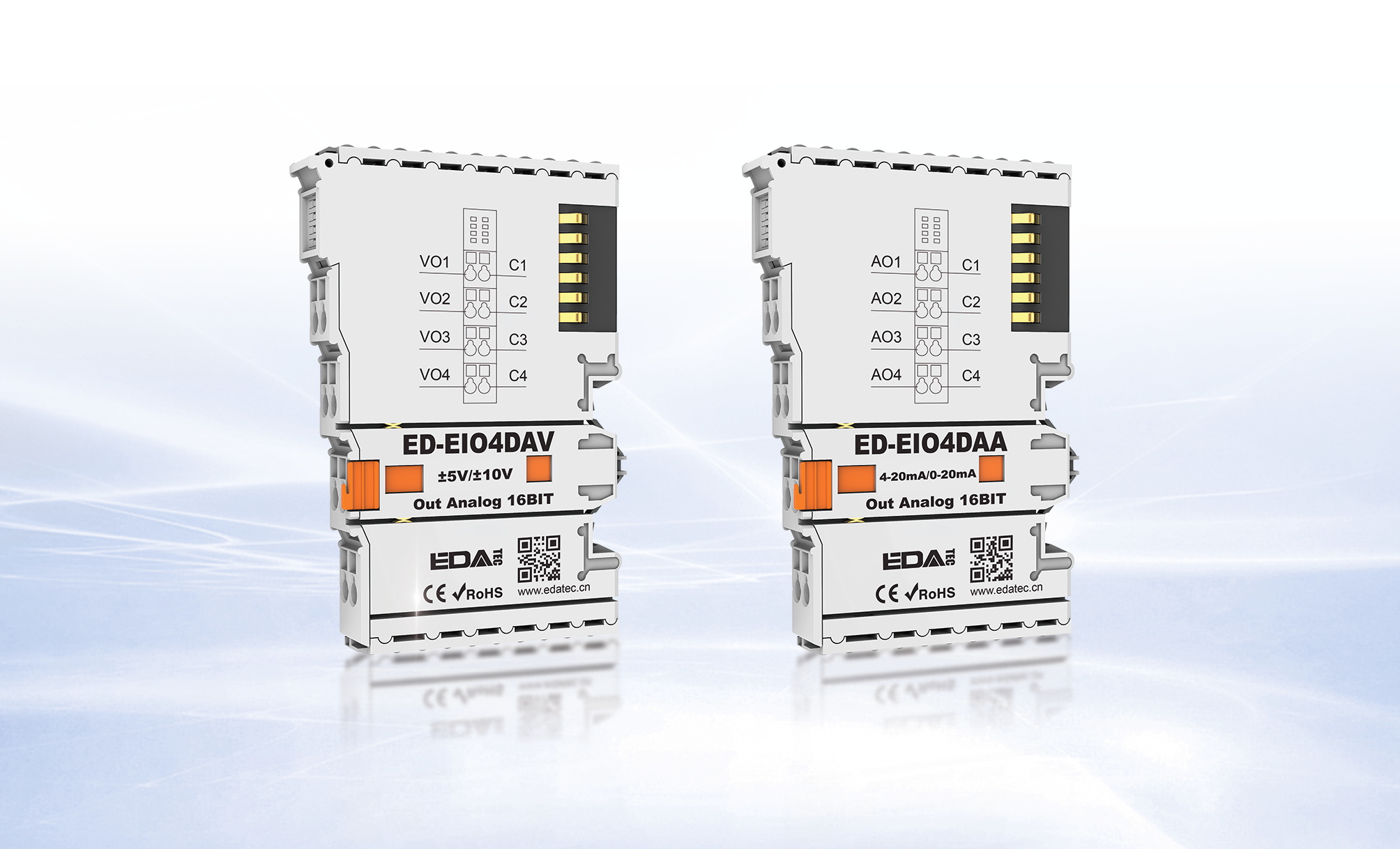

EtherCAT Analog Output Modules

EtherCAT Analog Output Modules

The EtherCAT analog output module is a high-precision device for industrial automation

Key Featured
  • 4-channel analog output (current/voltage module)
  • Each channel is equipped with the LED for an operation check
  • Signal current supports 4~20mA or 0~20mA
  • Signal voltage supports -5~5V/0~10V/-10~10V
  • 16-bit high-precision analog output
  • Plug-in construction, DIN-rail installation
  • PT removable terminal block for screwless wiring
  • Support cascading up to 32 modules without additional power supply

In the field of industrial automation, EtherCAT analog output modules are key devices for high-precision signal output. Here is a detailed introduction to these modules:

Product Features

  • High-Precision Signal Output: Provides 4-channel current or voltage output, supports various configurable output ranges, and features 16-bit resolution to ensure high-precision signal output.
  • Multiple Output Ranges:Current Output: Supports 020mA/420mA, with an output load of less than 500Ω.Voltage Output: Supports -55V/010V/-10~10V, with an output load of greater than 5KΩ.
  • High Reliability: Equipped with optocoupler isolation and an isolation voltage of AC 500V, ensuring stable signal transmission and reducing electromagnetic interference.
  • LED Status Indicators: Each channel has an independent LED indicator light, facilitating on-site debugging and fault diagnosis. The LED lights have two states: flashing and off, indicating that the channel is outputting a signal and no signal output, respectively.
  • Plug-in Structure: Supports rail mounting, making installation and maintenance simple.
  • Cascading Function: Up to 32 modules can be cascaded without additional power supplies, simplifying system wiring.

Technical Specifications

  • Number of Output Channels: 4 channels.
  • Current Output Range: 020mA/420mA.
  • Voltage Output Range: -55V/010V/-10~10V.
  • Power Consumption: 285mA for current output modules, 230mA for voltage output modules.
  • Load Type: Resistive load.
  • Resolution: 16-bit.
  • Precision: 0.02%.
  • Overvoltage Protection: Supported.
  • Isolation Voltage: AC 500V between the field side and the digital side, no isolation between channels.
  • Dimensions: 100mm x 67.6mm x 14.8mm.
  • Weight: Approximately 51g.
  • Wiring Specifications: 0.2mm² to 1.5mm², screwless wiring method.
  • Installation Method: Rail mounting.

Application Scenarios

EtherCAT analog output modules are widely used in various industrial automation scenarios, including but not limited to:

  • Production Line Automation: Used to control various actuators on the production line, such as solenoid valves and relays, to achieve automated control.
  • Robot Control: In robot control systems, used to control the movements of robots, achieving precise motion control.
  • Smart Manufacturing Systems: Used to connect various intelligent devices, enabling real-time data collection and processing, supporting the efficient operation of smart manufacturing.

Ordering Information

If you are interested in EtherCAT analog output modules, consider the following ordering codes:

  • ED-EIO4DAA: 4-channel current output module, 4-20mA/0-20mA, configurable.
  • ED-EIO4DAV: 4-channel voltage output module, -55V/010V/-10~10V, configurable.

Installation and Maintenance

Installing EtherCAT analog output modules is very simple. Just align the notch on the back of the module with the DIN rail and push it in along the arrow direction to fix it on the DIN rail. To remove the module, simply hold the module's latch and pull it out along the arrow direction. Before installation and removal, ensure that the device's power is turned off to avoid damaging the module.

EtherCAT analog output modules have a broad application prospect in industrial automation. They not only provide efficient and stable signal output solutions but also perfectly combine with the CODESYS software platform, providing engineers with powerful development tools. Whether in automated production line control or smart manufacturing systems, EtherCAT analog output modules are key devices for achieving efficient industrial automation.

HS CODE

HS CODECOO
8517799000CN


Optional Remote I/O

ModelDescription
ED-EIOBRG-ECEtherCAT Coupler

Optional I/O Modules

Support a variety of I/O modules, the detailed ordering codes are the table below.

ModelDescription
ED-EIO8XP8-channel digital input module (PNP)
ED-EIO8XN8-channel digital input module (NPN)
ED-EIO16XP16-channel digital input module (PNP)
ED-EIO16XN16-channel digital input module (NPN)
ED-EIO8YP8-channel digital output module (PNP)
ED-EIO8YN8-channel digital output module (NPN)
ED-EIO16YP16-channel digital output module (PNP)
ED-EIO16YN16-channel digital output module (NPN)
ED-EIO4YR4-channel digital output module (Relay)
ED-EIO4ADV4-channel analog input module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4ADA4-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO8ADA8-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO4AD4-channel analog input module (voltage/current mixed), -5~5V/0~10V/-10~10V/4-20mA/0-20mA, configurable
ED-EIO4DAV4-channel analog output module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4DAA4-channel analog output module (current), 4-20mA/0-20mA, configurable
ED-EIO4RTD4-channel RTD Module
ED-EIO4TC4-channel TC Module
D-EIO2HCD2-channel High Speed Counter Module
ED-EIOPWRPower Expansion Supply Module
ED-EIOTERMBus End Cover


Specification
Output (current module)
Signal Type Current output
Number of output signal channels 4
Output Current Range 0~20mA/4~20mA
Current Dissipation 285mA
Output Impedance <500Ω
Load Type Resistive load
Resolution 16-bit
Precision 0.02%
Overvoltage Protection Support
Isolation Voltage AC500V on field and digital side, no isolation between channels
Output (voltage module)
Signal Type Voltage output
Number of output signal channels 4
Output Voltage Range -5~5V/0~10V/-10~10V
Current Dissipation 230mA
Output Impedance >5KΩ
Load Type Resistive load
Resolution 16-bit
Precision 0.02%
Overvoltage Protection Support
Isolation Voltage AC500V on field and digital side, no isolation between channels
Software
FieldbusEtherCAT
EtherCAT Master Software Platform CODESYS
Mechanical Characteristics
Dimensions100mm x 67.6mm x 14.8 mm
WeightAbout 51g
Wiring Specifications0.2mm² ~ 1.5mm²
Wiring MethodScrewless
InstallationDIN-rail installation
Environmental & Regulatory
Operating Temperature-10℃ ~ 55℃
Storage Temperature-20℃ ~ 85℃
Ambient Humidity5% ~ 95% (non-condensing)
Air Pressure≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2
Overvoltage CategoriesI
Protection ClassIP20
CertificationsCE and RoHS
Mechanicals

Unit: mm

4daa-4dav-dimension
Ordering Code
ModelDescription
ED-EIO4DAA4-channel analog output module (current), 4-20mA/0-20mA, configurable
ED-EIO4DAV4-channel analog output module (voltage), -5~5V/0~10V/-10~10V, configurable
