In the field of industrial automation, power supply expansion modules are key components for ensuring stable system operation. Here is a detailed introduction to these modules:

Product Features

• Stable Power Supply: Provides DC 24V system power input and DC 5V power expansion, with a maximum output current of 2A, ensuring a stable power supply.
• High Reliability: Equipped with reverse polarity protection, overcurrent protection, and overvoltage protection. The system side supports AC500V electrical isolation, ensuring the safe operation of the power module and I/O modules.
• Plug-in Structure: Supports rail mounting, making installation and maintenance simple. The PT terminal design allows for screwless wiring.
• Cascading Function: Up to 32 modules can be cascaded without additional power supplies, simplifying system wiring.

Technical Specifications

• Power Specifications: DC 24V (±20%), maximum output current 2A.
• Common Terminal Voltage: Isolated 5V (±5%).
• Protection Parameters:Reverse Polarity Protection: Supported on the system side.Overcurrent Protection: Supported.Overvoltage Protection: Supported.
• Mechanical Parameters:Weight: Approximately 51g.Dimensions: 100mm x 68mm x 14mm.
• Wiring Specifications: 0.2mm² to 1.5mm², screwless wiring method.
• Installation Method: Rail mounting.

Application Fields

Power supply expansion modules are widely used in various industrial automation scenarios, including but not limited to:

• Industrial Automation: Provides a stable power supply for control systems, sensors, actuators, etc., ensuring the normal operation of equipment.
• Robot Control: Supplies power to various parts of robots, including motors, sensors, controllers, etc., ensuring the normal operation and precise control of robots.
• Automated Testing Systems: Provides a stable power supply for testing equipment, ensuring the accuracy and reliability of tests.
• Photovoltaic Systems: Supplies power to solar panels, ensuring the efficient operation of the system.
• Wind Power Systems: Supplies power to wind turbines, ensuring the efficient operation of the system.

Ordering Information

If you are interested in power supply expansion modules, consider the following ordering code:

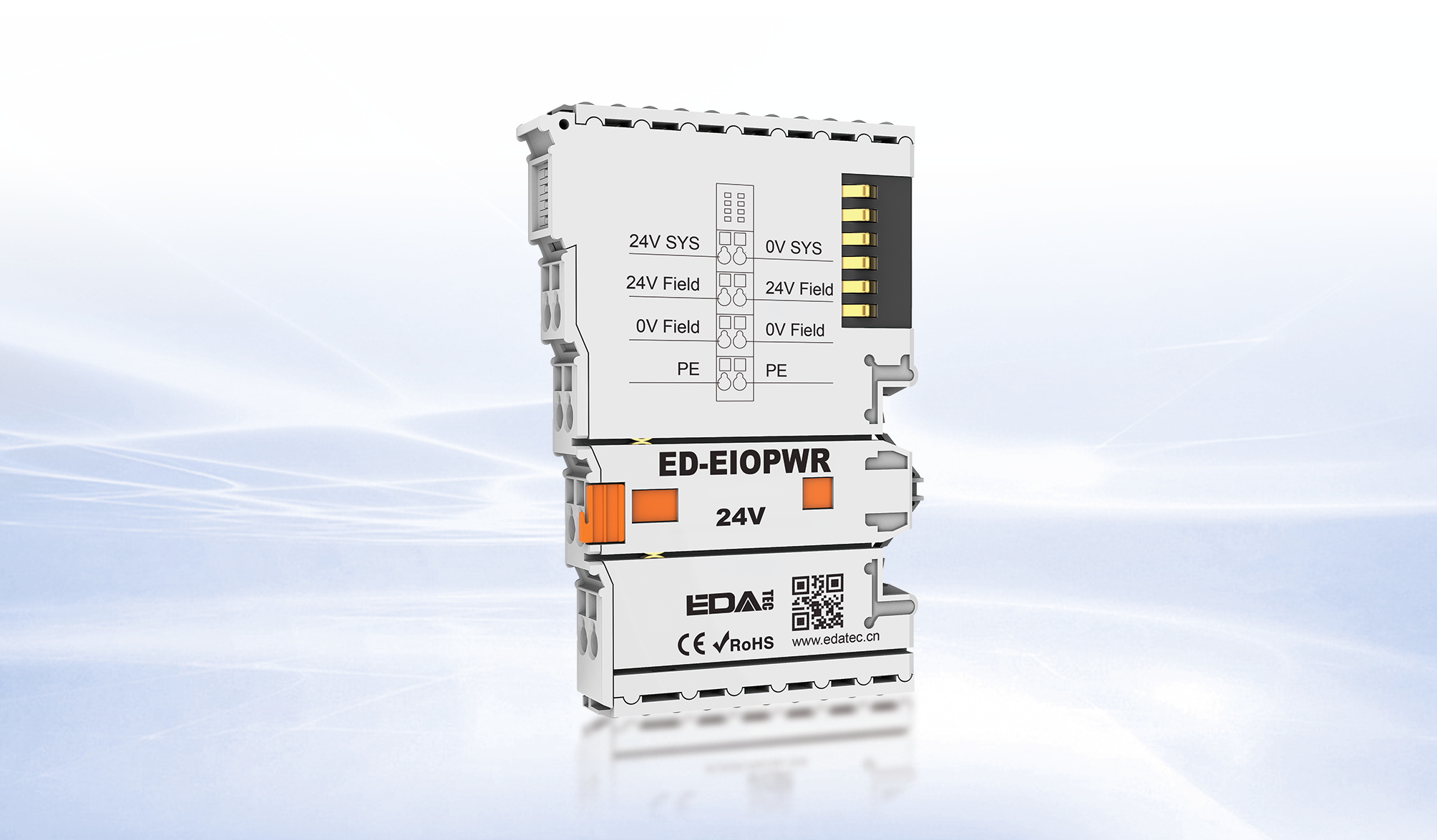

• ED-EIOPWR: Power supply expansion module.

Installation and Maintenance

Installing a power supply expansion module is very simple. Just align the notch on the back of the module with the DIN rail and push it in along the arrow direction to fix it on the DIN rail. To remove the module, simply hold the module's latch and pull it out along the arrow direction. Before installation and removal, ensure that the device's power is turned off to avoid damaging the module.

Conclusion

Power supply expansion modules have a broad application prospect in industrial automation. They not only provide efficient and stable power supply but also come with multiple protection functions to ensure the reliable operation of the system. Whether in automated production line control or smart manufacturing systems, power supply expansion modules are key devices for achieving efficient industrial automation.
