ED-IPC3600 Series

Home > Products > Industrial Computers

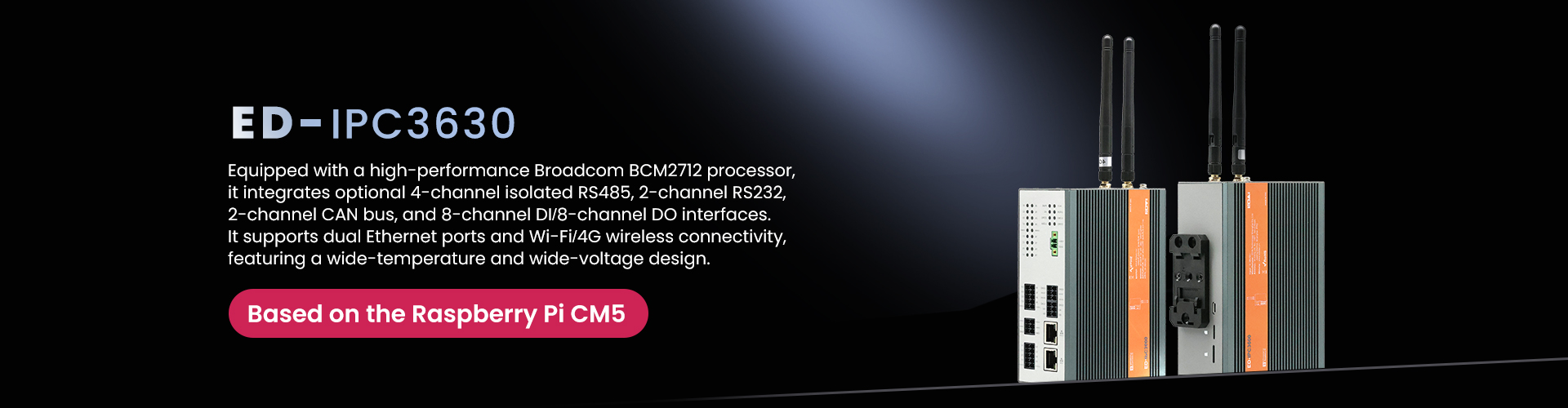

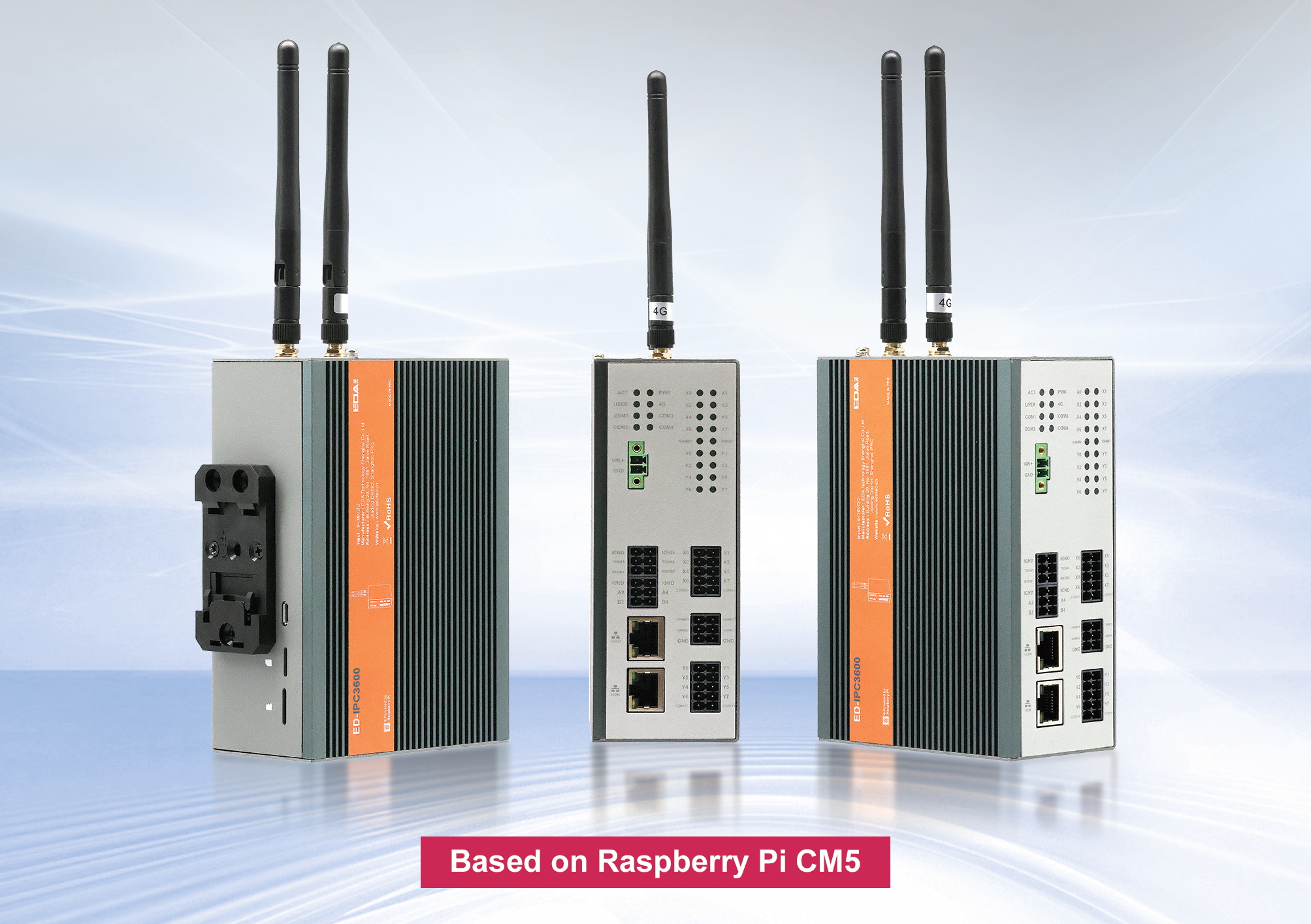

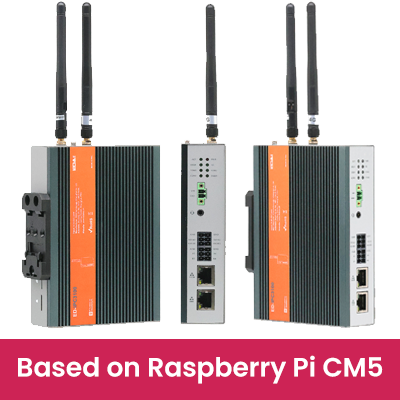

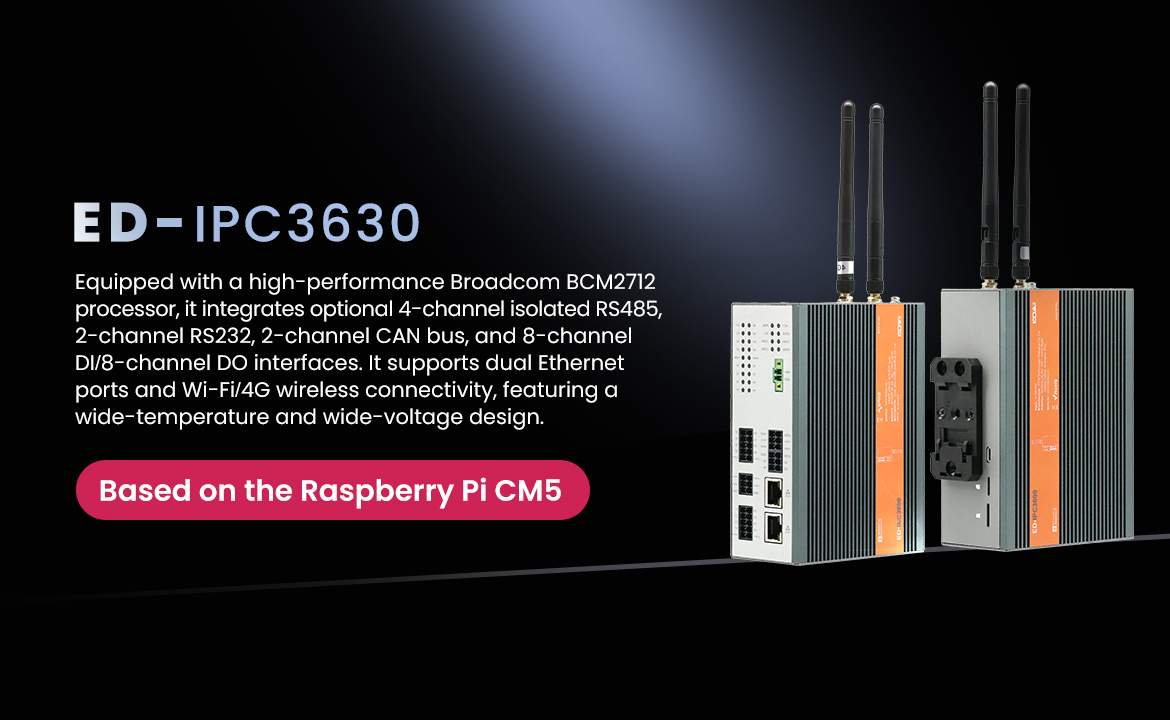

ED-IPC3600 Series

Industrial computer with a powerful processor, dual Ethernet, and extensive I/O options for reliable industrial applications

Key Featured
  • Broadcom BCM2712 quad Cortex-A76 (2.4GHz), support 8GB DDR4 memory/64GB eMMC
  • Supports Micro SD，M.2 B key 2230/2242 NVMe SSD storage
  • Port isolation for 4 x RS232&RS485, 2 x CAN 2.0B, 8 x DI, 8 x DO
  • 1 x Gigabit, 1 x 100M, 1 x HDMI, 2 x USB 2.0
  • Wide voltage (9V~36V), over-current/voltage/reverse protection
  • Wide temp (-25℃~60℃), metal case, DIN-rail installation
  • Supports the CODESYS runtime
Online Docs

Product Positioning

A multi-protocol convergence controller for advanced manufacturing and automation systems, integrating RS232, RS485, CAN bus, digital I/O, and industrial software ecosystems. Designed for robotics control, production line synchronization, and equipment interlocking, it delivers hardware-level real-time response and a hardware-software integrated control solution.

Core Advantages

ModuleHighlightsKey Specifications
Rich I/O SupportNative industrial fieldbus and digital signal integration- 4× configurable RS232/RS485 ports (configurable, 3KV isolation)
- 2× CAN 2.0B (10-1000kbps，3KV isolation)
- 8 x DI & 8 x DO（5KV isolation）
Industrial Reliability & ScalabilityWide-temperature operation and modular redundancy designBroadcom BCM2712 Quad-core Cortex-A76@2.4GHz
Up to 8GB LPDDR4 memory + 64GB eMMC
Hardware-Software SynergySupport integrated CODESYS runtime (IEC 61131-3 compliant)- EtherCAT Master
- Modbus TCP Master
- OPC UA Server
Security & MaintenanceHardware-level security and rapid diagnostics- ATECC608 encryption chip
- RTC
- Supercap backup
- Port status LEDs (RS232/RS485/CAN/DI/DO)

Differentiation

✅ Ecosystem Openness:

  • Compatible with Raspberry Pi GPIO ecosystem (Python/C++ code reuse)
  • Extendable to industrial CODESYS platform (IEC 61131-3 standard support)

✅ Comprehensive Interface Integration:

  • Industrial interfaces: 4× RS232/RS485 (configurable, 3KV isolation), 2× CAN 2.0B(3KV isolation), 8× DI/DO (5KV isolation)
  • Raspberry Pi interfaces: 40-Pin GPIO, MIPI CSI/DSI

✅ Hardware-Level Security:

  • Built-in ATECC608 encryption chip (AES-128/ECDSA)

Typical Applications

🏭 Automotive Manufacturing:

  • CAN bus synchronization for welding robots

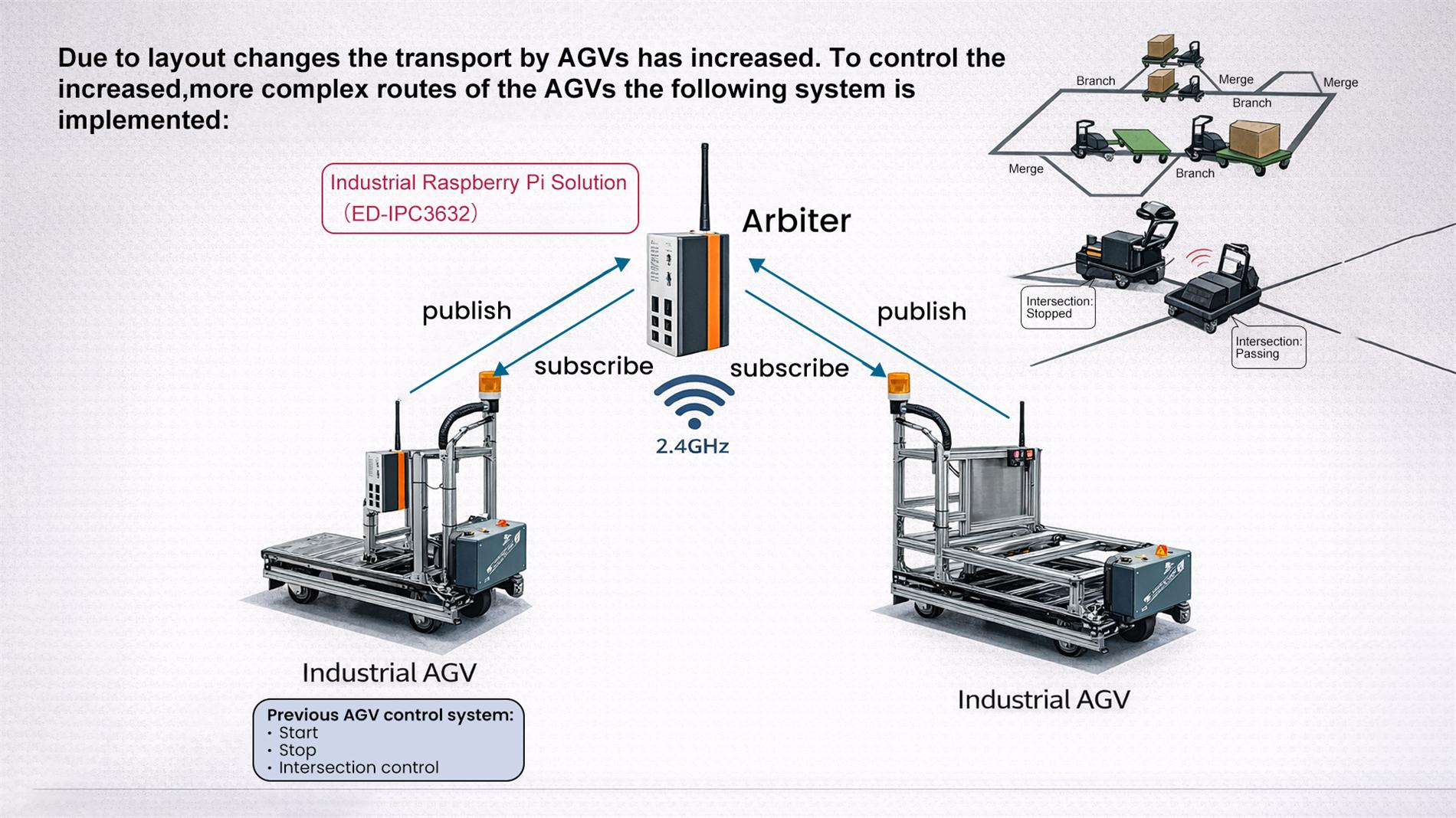

📦 Smart Warehousing:

  • AGV scheduling + photoelectric sensor interlock control

⚡ Energy & Power:

  • Real-time monitoring of power cabinet status (voltage/current/temperature)

🔧 Production Line Upgrade:

  • Seamless replacement of legacy PLC systems (requires CODESYS license support)

HS CODE

HS CODECOO
8471504090CN


ED-IPC Series Feature Selection Guide


Function ClassificationIPC2000IPC2100IPC2200IPC2400IPC2500IPC2600IPC3020IPC3100IPC3630
CPU1.5GHz quad-core A72✔✔✔✔✔✔---
2.4GHz quad-core A76------✔✔✔
RAM1/2/4/8GB LPDDR4✔✔✔✔✔✔---
2/4/8/16GB LPDDR4X------✔--
2/4/8GB LPDDR4X-------✔✔
Storage
8/16/32GB eMMC✔✔✔✔✔✔---
16/32/64GB eMMC-------✔✔
Micro SD Card
SSD-✔✔-✔✔✔✔✔
Wireless2.4GHz & 5GHz dual-band WiFi
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
4G-✔✔--✔-✔✔
5G----✔----
Interface1000M Ethernetx 1x 1x 3x 1x 3x 1x 1x 1x 1
100M Ethernet-x 1---x 1-x 1x 1
USB 2.0x 1x 2x 2x 1x 2x 2x 2x 2x 2
USB 3.0x 2-x 1x 2--x 2--
RS232-≤ x 2-≤ x 3-≤ x 2x 1≤ x 2≤ x 2
RS485-≤ x 4-≤ x 4-≤ x 4x 1≤ x 4≤ x 4
CAN-----≤ x 2 --≤ x 2
HDMIx 1x 1x 1x 1x 1x 1x 2x 1x 1
DSI✔✔✔✔-✔✔✔✔
CSI✔✔✔✔-✔✔✔✔
DI/DO-----≤ x 8--≤ x 8
otherRTC with backup
Hardware Watch Dog-✔✔-✔✔-✔✔
Operating-25℃~60℃
MechanicaFanless Design
MountingDesktop
DIN & Wall✔✔✔✔-✔-✔✔
Power Input5V DC------✔--
9V~28V DC✔--✔-----
9V~36V DC -✔✔-✔✔-✔✔



ED-CM4 Industrial Series Feature Selection Guide



Function ClassificationCM4 SensingCM4 IndustrialCM4 NanoCM4 MediaCM4 IO Computer
CPU1.5GHz quad-core A72✔✔✔✔✔
2.4GHz quad-core A76-----
RAM1/2/4/8GB LPDDR4✔✔✔✔✔
Storage8/16/32GB eMMC✔✔✔✔✔
Micro SD Card✔✔✔✔✔
SSD✔-✔✔✔
Wireless2.4GHz & 5GHz dual-band WiFi✔✔✔✔✔
Bluetooth 5.0 / Bluetooth Low Energy (BLE)✔✔✔✔✔
4G✔✔-✔✔
InterfaceGigabit Ethernetx 1x 1x 1x 1x 1
100M Ethernet-x 1---
USB 2.0x 2x 2x 1x 1x 2
USB 3.0--x 2x 2x 3
RS232x 1x 1---
RS485x4x2---
CANx1----
HDMIx2x2x2x2x2
DSI✔✔✔-✔
CSI-✔✔-✔
DI/DO-✔---
ADC-✔---
otherRTC, CR1220✔✔✔✔✔
Hardware Watch Dog✔✔✔✔✔
High Quality Stereo CODEC---✔-
Operating-25℃~60℃✔✔✔--
0 ~ 60°C---✔✔
MechanicalFanless Design✔✔✔✔-
MountingDesktop---✔✔
DIN & Wall✔✔✔--
Power InputDC 5V---✔-
DC 9V~28V✔----
DC 9V~36V-✔---
DC 12V----✔
DC 7V~18V--✔--


System Diagram

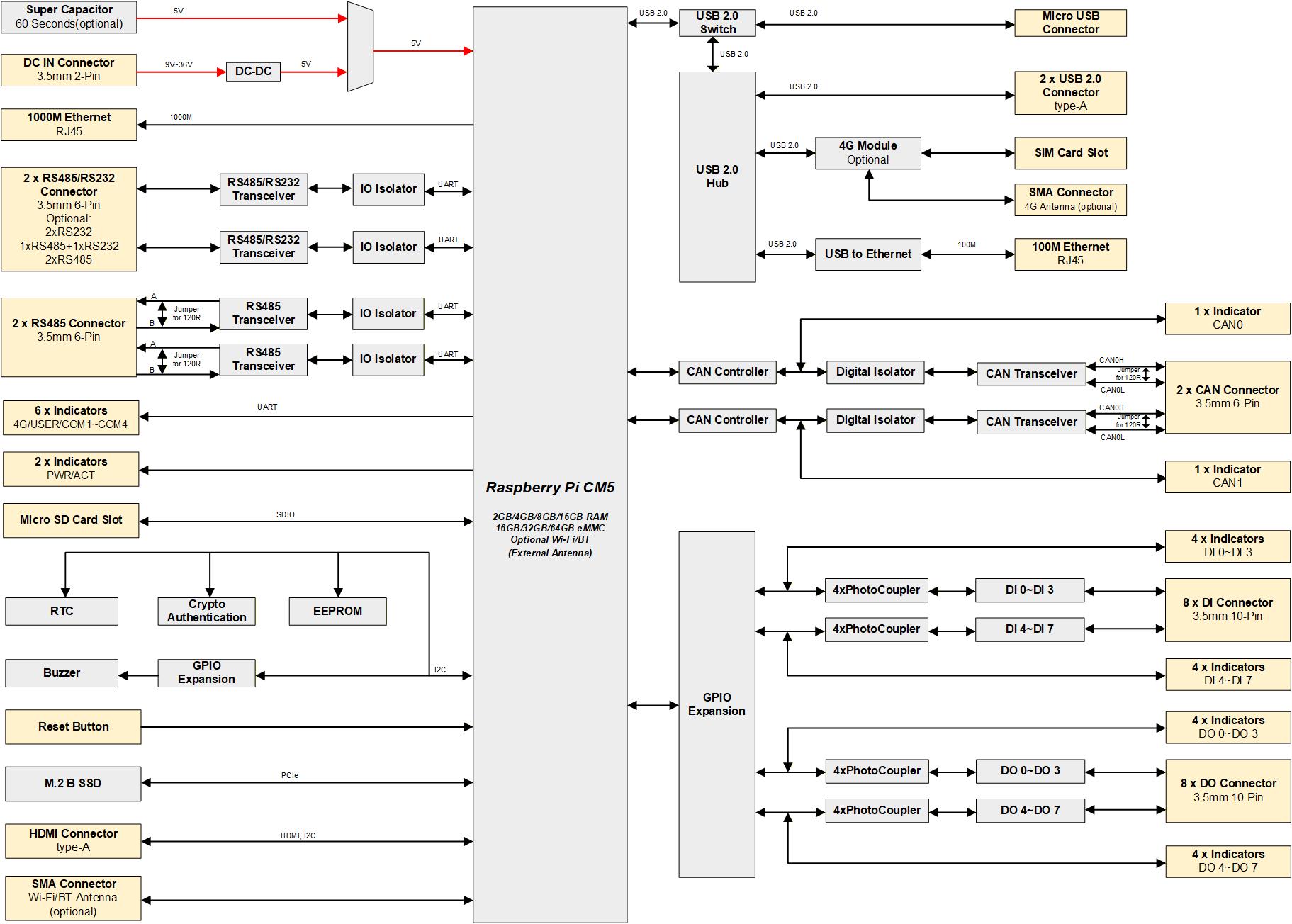

ED-IPC3630-diagram
Specification
System
CPUBroadcom BCM2712, quad core Arm Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
VPUH.265 (HEVC), up to 4Kp60 decode
GPUOpenGL ES 3.1 & Vulkan 1.2
MemoryOptions for 2GB, 4GB, 8GB LPDDR4-4267 SDRAM
StorageOptions for 16GB, 32GB, 64GB eMMC storage
Micro SD card (user storage expansion)
M.2 NVMe SSD (options for 128GB, 256GB, 512GB)
Software
Operating System Raspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit
Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Front I/O
Power1 x DC IN, 2-Pin 3.5mm pitch phoenix terminals with screw holes. It supports 9V~36V input, the signal is defined as VIN+/GND.
RS485/23212-Pin 3.5mm pitch phoenix terminals with IO isolator, which are equipped with electrostatic and surge protection. Different numbers of RS232 and RS485 ports can be selected according to actual application. The signal of RS485 is defined as IGND/A/B, and the signal of RS232 is defined as IGND/TX/RX.
  • ED-IPC3632：2 x RS485 + 2 x RS232
  • ED-IPC3633：3 x RS485 + 1 x RS232
  • ED-IPC3634：4 x RS485
1000M Ethernet1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
100M Ethernet1 x adaptive 10/100M ethernet port, RJ45 connector. It can be used to access the network.
CAN2 x CAN ports, 6-Pin 3.5mm pitch phoenix terminals
  • Isolation Protection: 3 KV
  • CAN Protocol: CAN 2.0B
  • Baud Rate: 10~1000 kbps
  • Signals: CANH, CANL, GND
DI8 x DI ports, 10-Pin 3.5mm pitch phoenix terminals
  • Sensor Type: Wet Contact (NPN & PNP), Dry Contact
  • Isolation Protection: 5 KV
  • Every 4 DI share one common pin (called COM): X0, X2, X4 and X6 share COMX0; X1, X3, X5 and X7 share COMX1
  • DI to COM:
    ON: 5~30 VDC or -30~-5 VDC
    OFF: 0~2 VDC or -2~0 VDC
DO8 x DO ports, 10-Pin 3.5mm pitch phoenix terminals
  • Sensor Type: NPN
  • Isolation Protection: 5 KV
  • Output: 5~36 VDC (24 VDC is recommended), maximum current is 1.5A (per channel)
Rear I/O
SD Card Slot1 x Micro SD card slot, which is used to install Micro SD card for storing user data.
SIM Card Slot1 x Nano SIM card slot, which is used to install Nano SIM card for getting 4G signal.
Micro USB1 x Micro USB port, which supports to flash to eMMC for the system.
Side I/O
HDMI1 x HDMI port, Type-A connector. It is compatible with HDMI 2.0 standard and supports 4K 60Hz.
USB 2.02 x USB 2.0 ports, Type-A connector, supporting up to 480Mbps transmission rate.
Antenna2 x SMA ports (optional), using to connect 4G antenna and Wi-Fi/BT antenna.
Buttons and Indicators
Reset1 x Reset button, which can reset the device.
PWR1 x red power indicator, which is used to check the status of device power-on and power-off.
4G1 x green 4G indicator, which is used to check the status of 4G signal.
ACT1 x green system indicator, which is used to check the working status of device.
USER1 x green user indicator, user can customize a status according to actual application.
COM1~COM44 x green UART indicators, using to check the communication status of UART ports.
CAN0~CAN12 x green CAN indicators, using to check the communication status of CAN ports.
X0~X78 x green DI indicators, using to check the input status of DI ports.
Y0~Y74 x green DO indicators, using to check the output status of DO ports.
Internal I/O
M.2 B1 x M.2 B, M.2 B Key connector, supporting to connect SSD. It is compatible with M.2 B 2230 and M.2 B 2242 SSD.
Expansion Functions
EEPROMSupports 4K byte storage and improves the ease of use of device.
Encryption chipIt can be matched to realize the required upper layer application and improves the security of device.
RTCRTC with 1F SuperCAP backup, which can ensure that the system clock is not affected by device power-off. We also provide a battery base, and you can buy a CR1220 battery backup for RTC.
BuzzerA tip or an abnormity can be configurated according to actual application, which realizes the alarm function.
Watch Dog*This function has been reserved on hardware. But we need additional software to support it, which is under development.
Electrical Characteristics
Input Voltage9V ~ 36V DC
Power Consumption24W (Max)
Mechanical Characteristics
Dimensions143mm x 100mm x 55mm (WxDxH, DIN-rail and antenna are not included.)
Weight1kg
InstallationDIN-rail mounting
Wireless
Wi-Fi/Bluetooth (optional)2.4GHz & 5GHz dual-band Wi-Fi and Bluetooth 5.0 with antenna
  • 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
  • 5GHz Wi-Fi: Compatible with IEEE 802.11 a/n/ac
  • The Bluetooth supports 2402MHz ~ 2480MHz frequency.
4G (optional)Connect with various 4G LTE modules through the Mini PCIe interface, with antenna.
  • EC20-CE Module (China/India)
    • LTE FDD: B1/B3
    • LTE TDD: B38/B39/B40/B41
    • TDSCDMA: B34/B39
    • WCDMA: B1
    • CDMA 1x/EVDO: BC0
    • GSM: 900/1800MH
    • GPS/GLONASS/BDS/Galileo/QZSS (optional)
  • EC25-AFX Module (North America)
    • LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
    • LTE TDD
    • WCDMA: B2/B4/B5
    • GSM/EDGE
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-AUX Module (Latin America/Australia/New Zealand)
    • LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
    • LTE TDD: B40
    • WCDMA: B1/B2/B4/B5/B8
    • GSM/EDGE: B2/B3/B5/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-EUX Module (Europe/Middle East/Africa/Thailand)
    • LTE FDD: B1/B3/B7/B8/B20/B28A
    • LTE TDD: B38/B40/B41
    • WCDMA: B1/B8
    • GSM/EDGE: B3/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-EM Module (Europe/Middle East/Africa/South-East Asia)
    • LTE FDD: B1/B3/B7/B8/B20/B28
    • LTE TDD: B38/B40/B41
    • WCDMA: B1/B5/B8
    • GSM/EDGE: B3/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
Environmental & Regulatory
Operating Temperature-25°C ~ 60°C
Storage Temperature-25°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals

Unit: mm

ED-IPC2630V-dimensions
Ordering Code
ED-IPC3630-ordering
