Home > Products > Industrial Monitor & Display

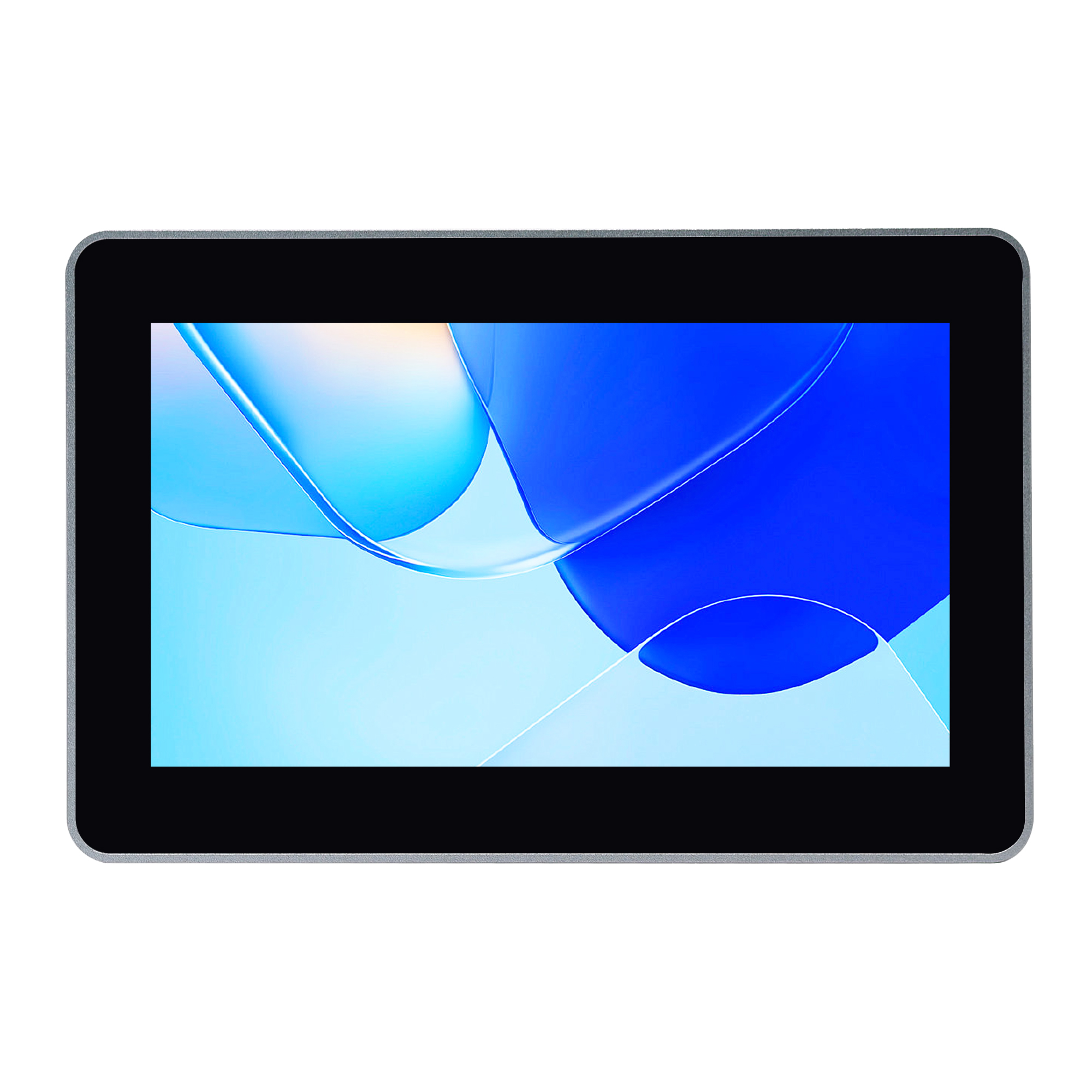

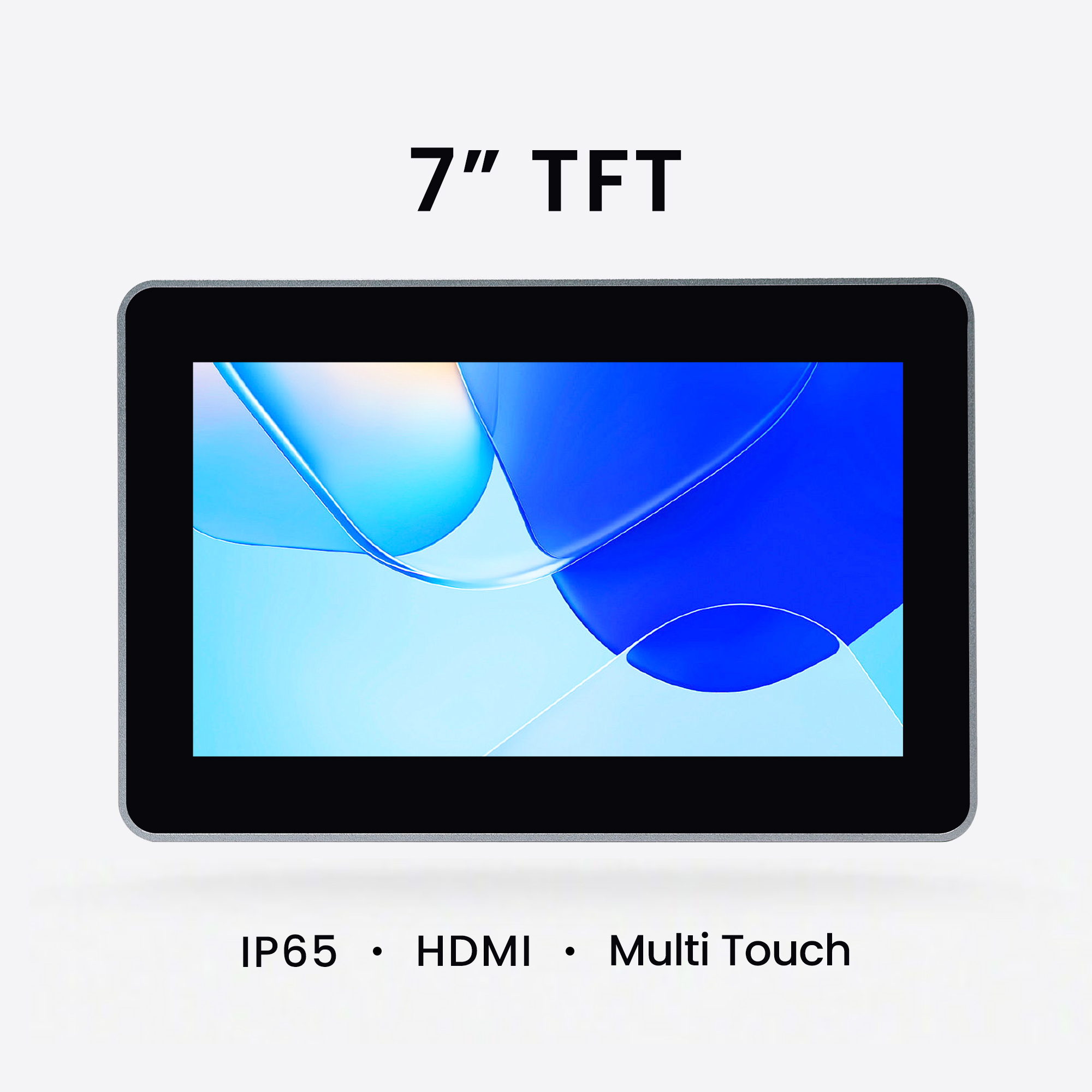

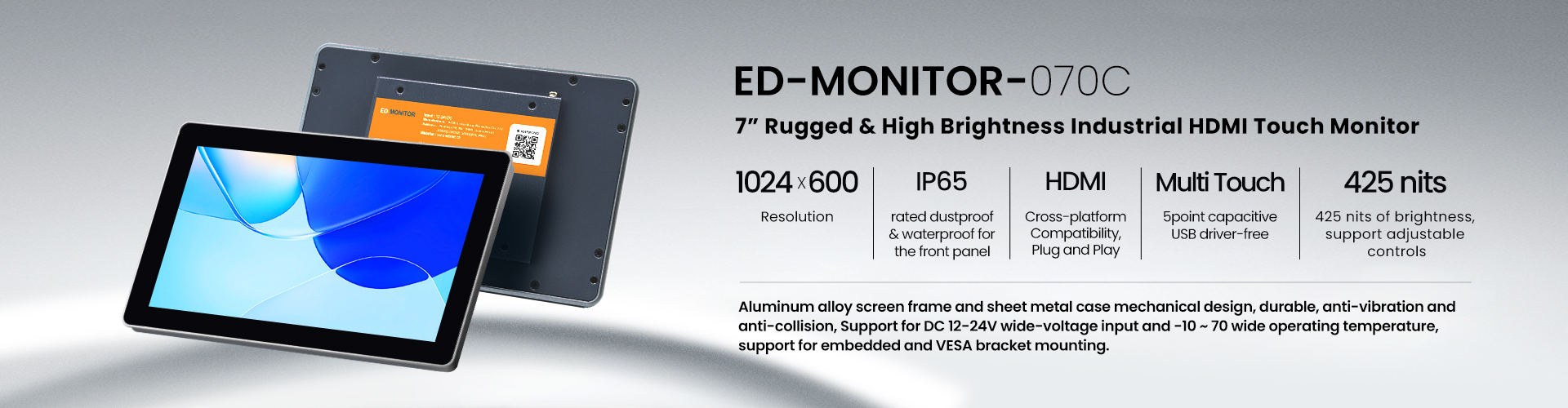

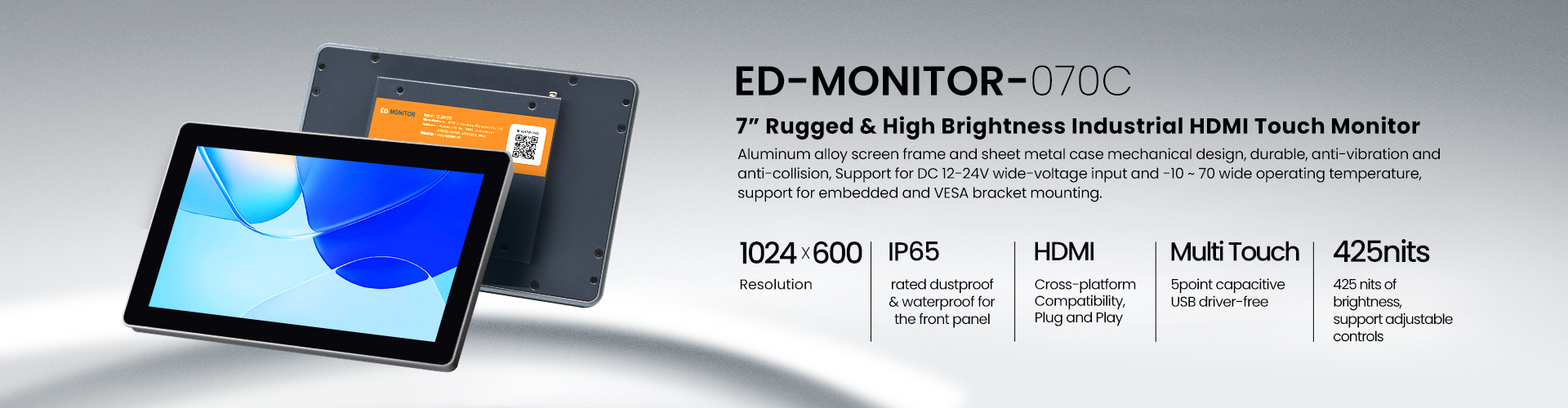

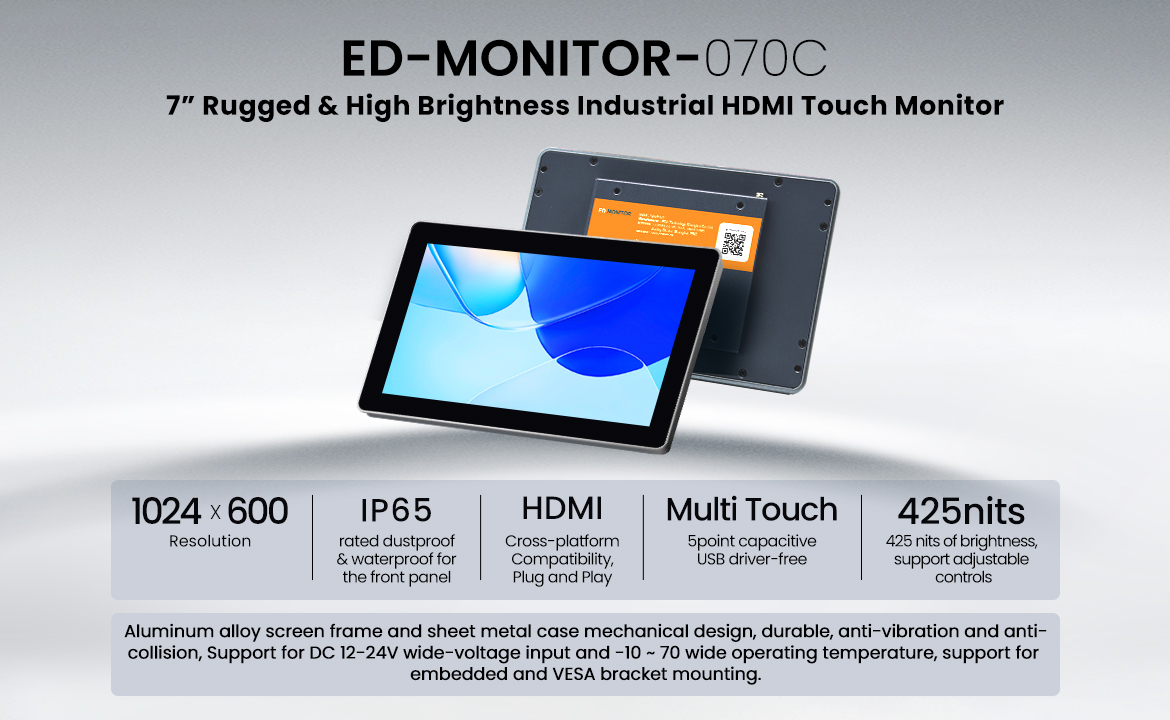

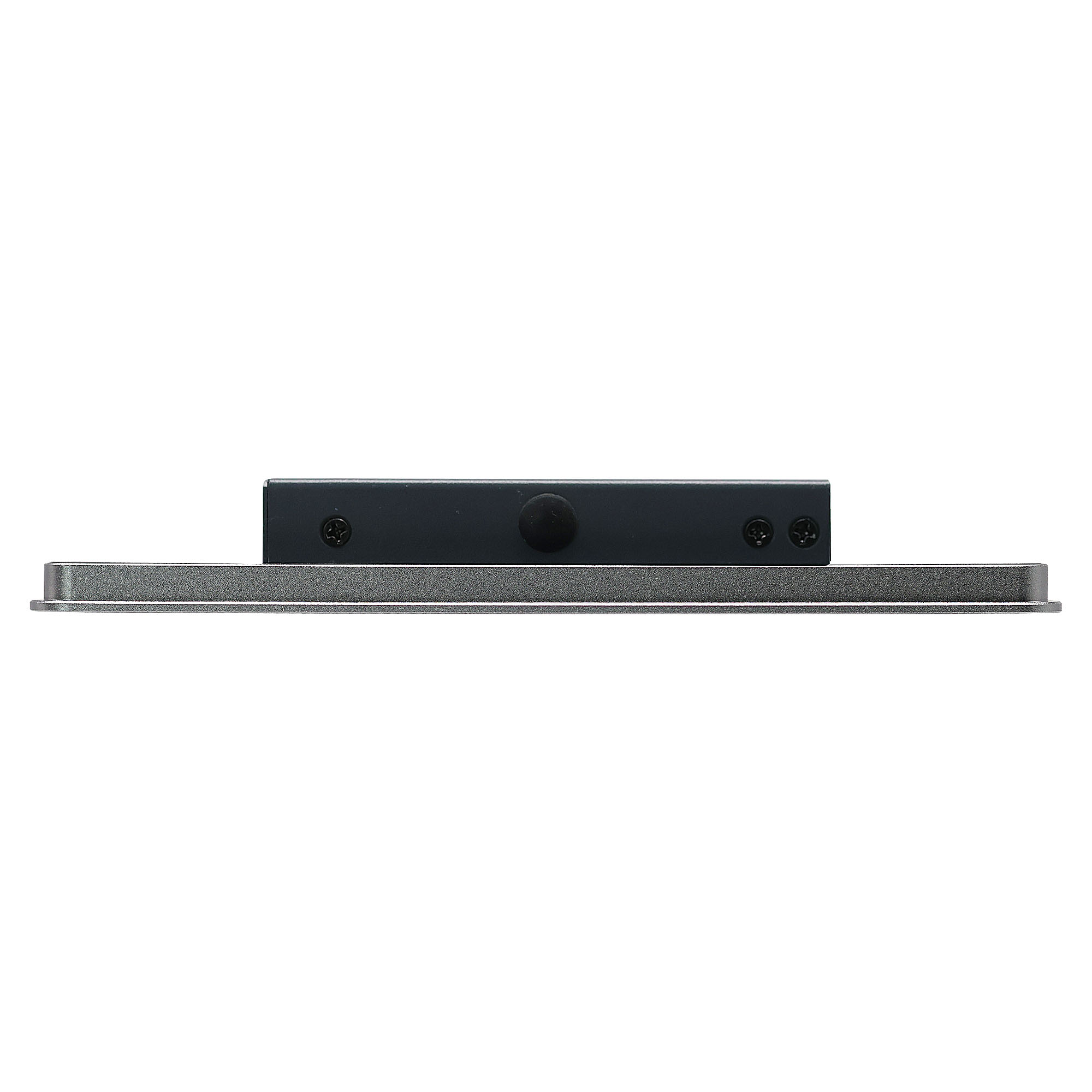

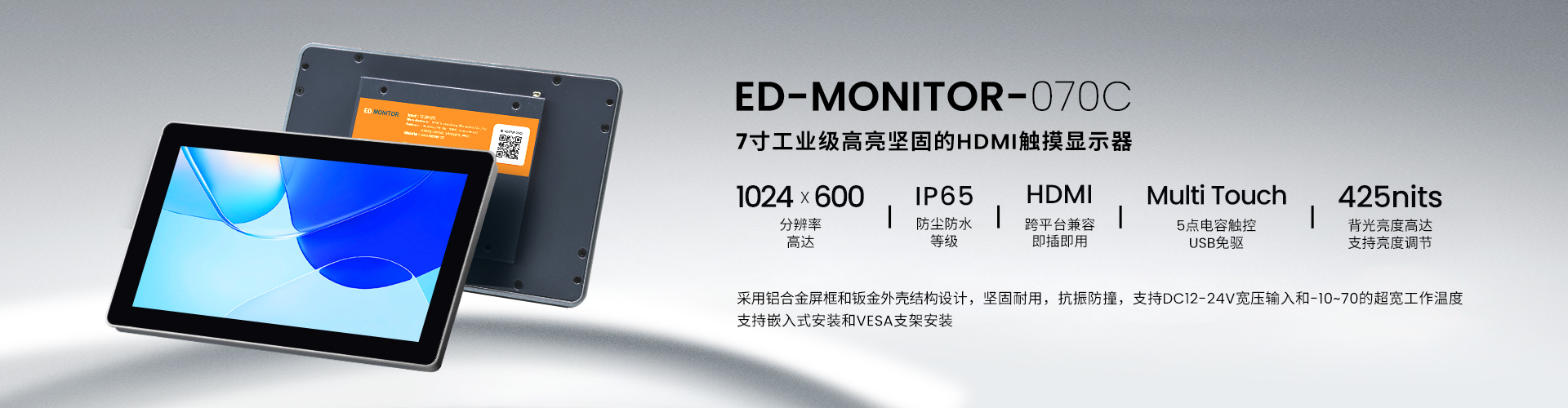

ED-MONITOR-070C

7” Rugged & High Brightness Industrial HDMI Touch Monitor

Key Featured

  • 7“, 1024 x 600 TFT LCD screen, Standard HDMI Input

  • USB multi-touch capacitive touch screen

  • 425 nits of brightness, support adjustable controls

  • IP65 rated dustproof & waterproof for the front panel

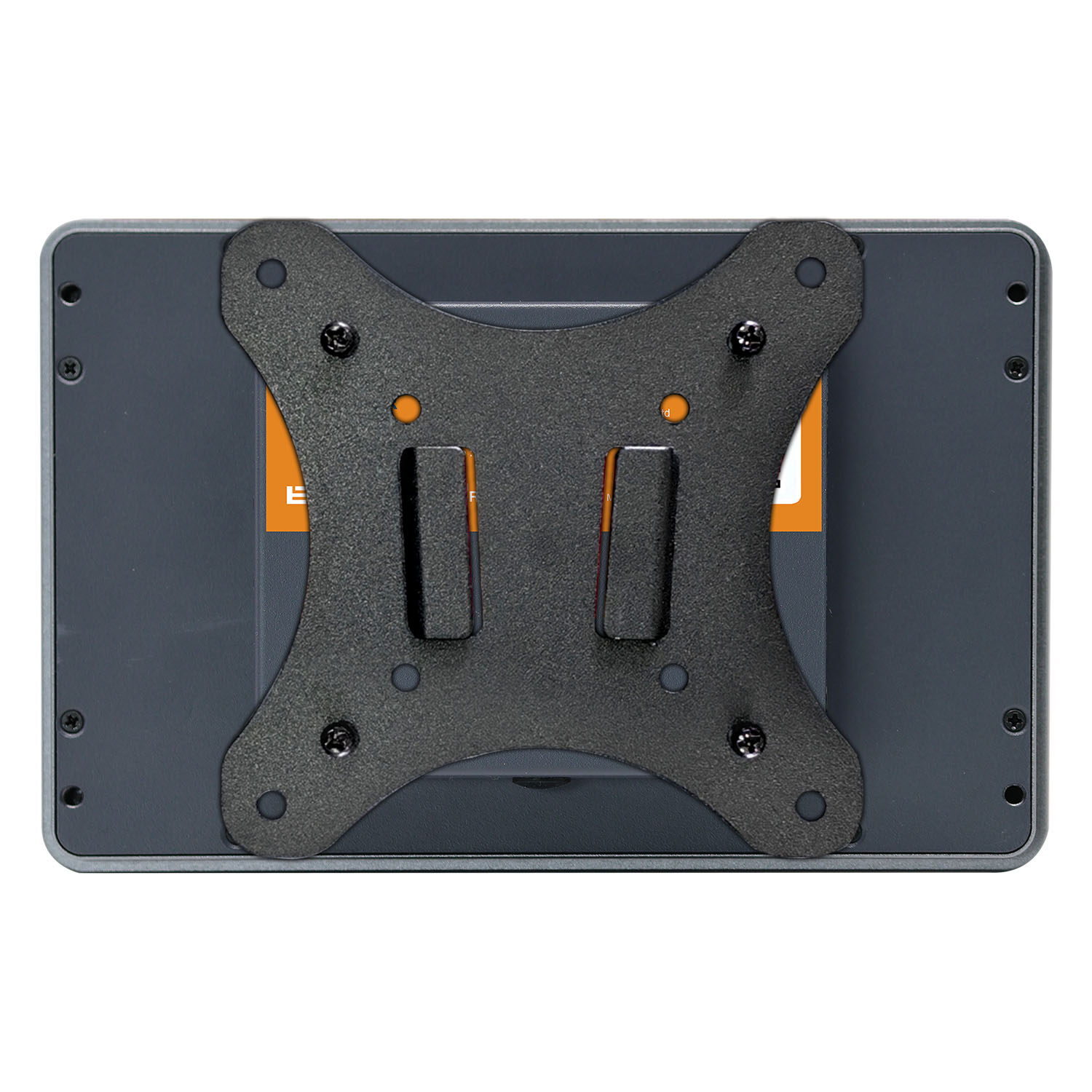

  • Embedded & VESA mounting

  • The product verified with CE-LVD, CE-EMC, FCC certification

Online Docs

Function ClassificationED-MONITOR
070C101C116C133C156C185C215C

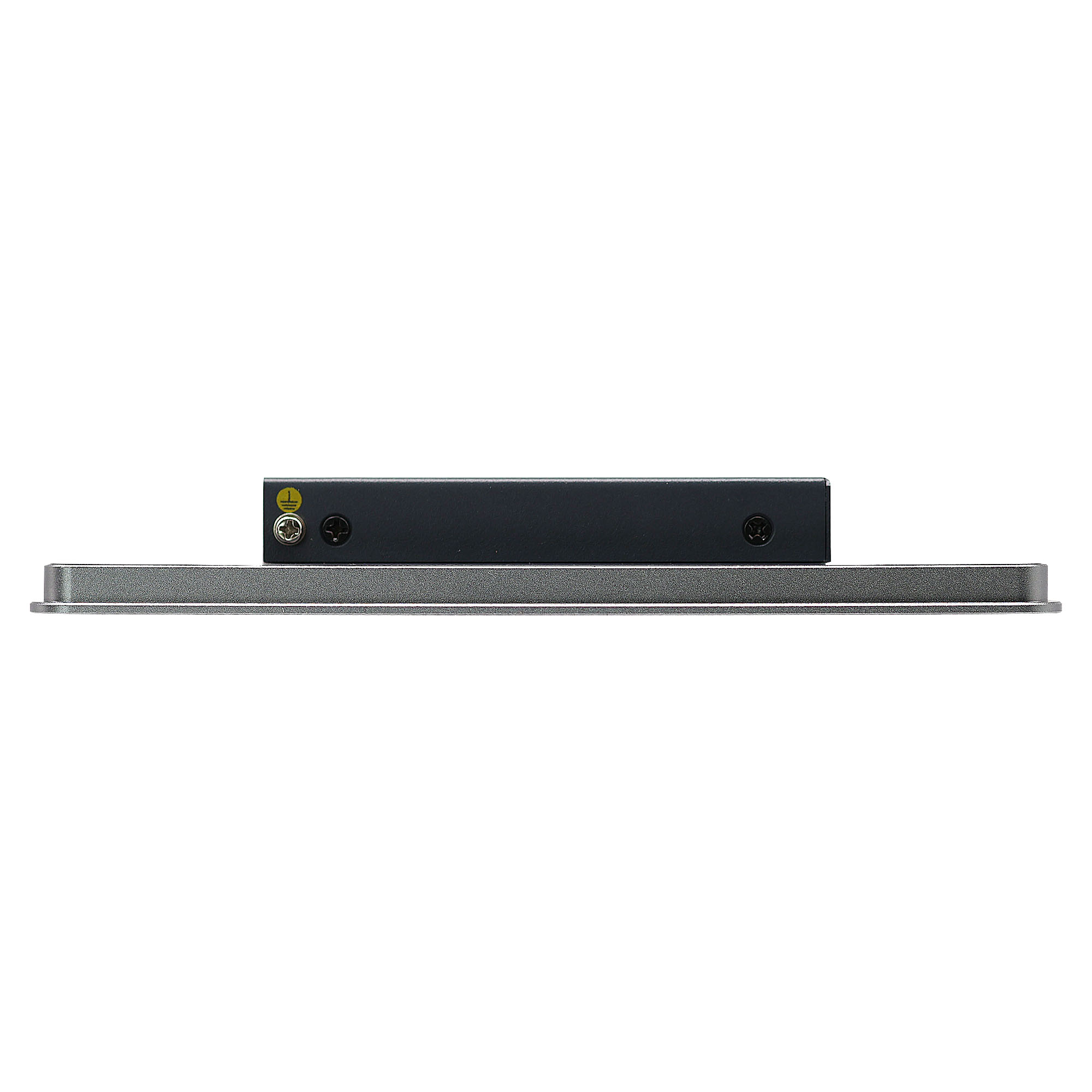

Panel I/OHDMI1 x HDMI port, Type-A connector, connecting to HDMI output.
USB1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.
Audio1 x 3.5mm audio jack, stereo audio output.
Power1 x DC Jack port, support 12V~24V power input.
Buttons and IndicatorsPWR1 x Red power indicator, using to check the status of device power-on and power-off.

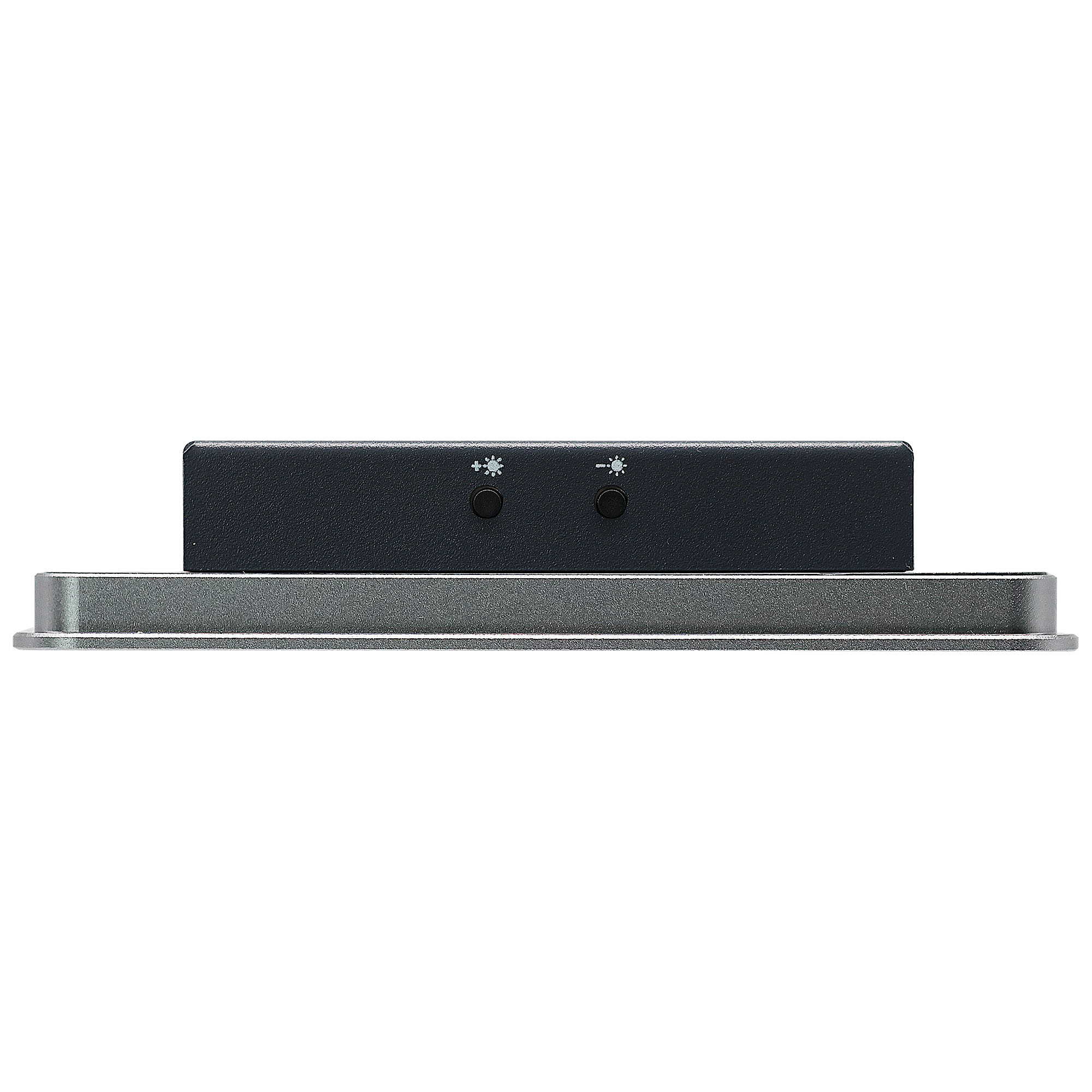

Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button
2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button
1 x Mute button for mute and unmute audio.
LCDType7.0" TFT10.1" TFT11.6" TFT13.3" TFT15.6" TFT18.5" TFT21.5" TFT
Resolution1024x6001920x1080
Color Number16.7M
Active Area(mm /HV)154.21x85.92222.72x125.28256.32x144.18293.76x165.24344.16x193.59408.96x230.04478.656x260.280
BacklightLED
Luminance (cd/m2)425500450450450290400
Contrast Ratio800:1800:11000:11500:11000:13000:1
Response Time30ms25ms30ms25ms14ms6.5ms
Viewing Angle (CR>10)85° / 85°80° / 80°85° / 85°80° / 80°89° / 89°
Touch ScreenTypeapacitive Touch Screen
Multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical CharacteristicsInput Voltage12-24V DC
Power Consumption10W15W18W
Mechanical CharacteristicsDimensions (mm)188x123x24.5257.7x159.7x29.2303.3x191.3x35340.2x211.2x35388.3x238.3x35457.3x278.3x35531.3x317.8x35
WeightAbout 495gAbout 940gAbout 1.6kgAbout 1.9kgAbout 2.3kgAbout 3.1kgAbout 4.6kg

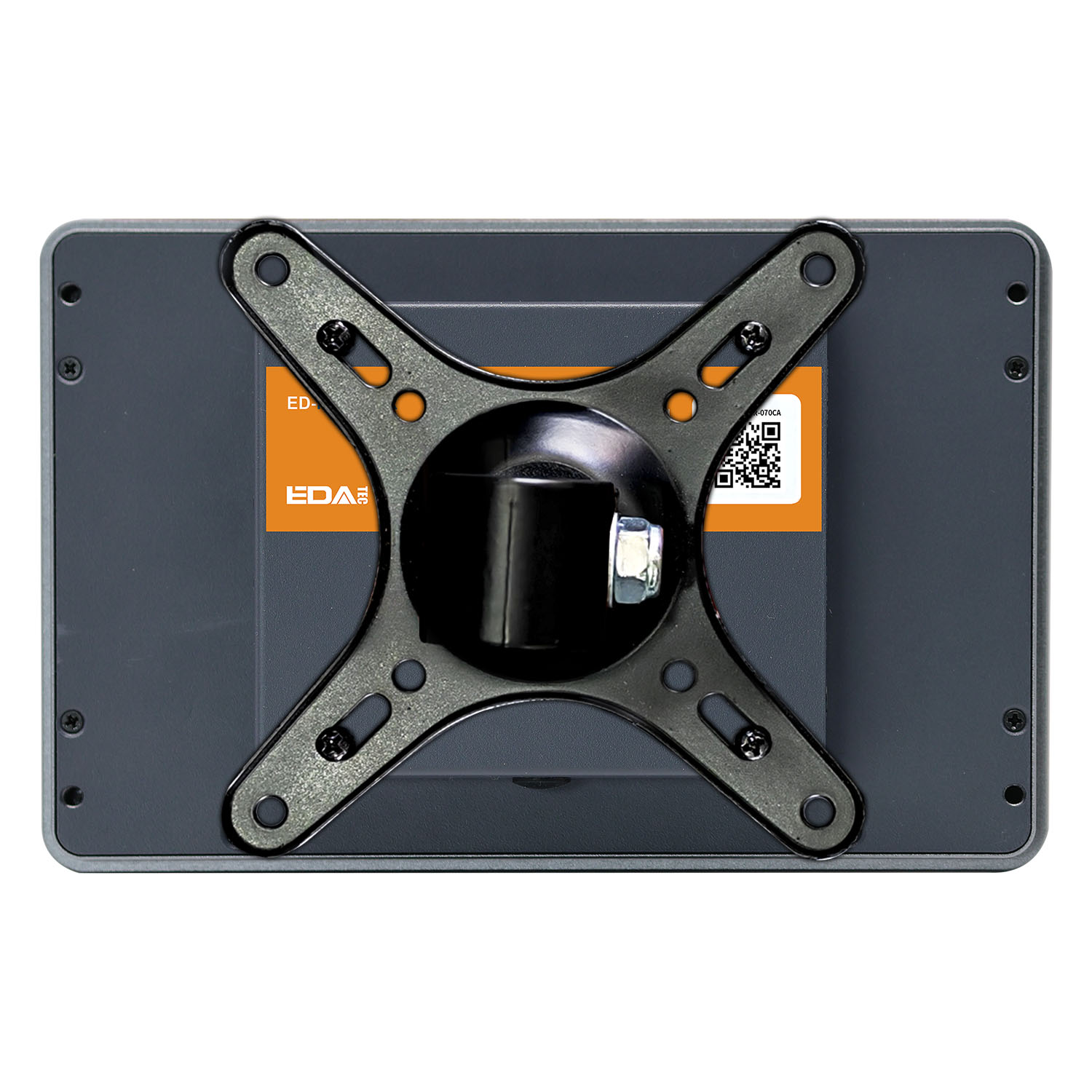

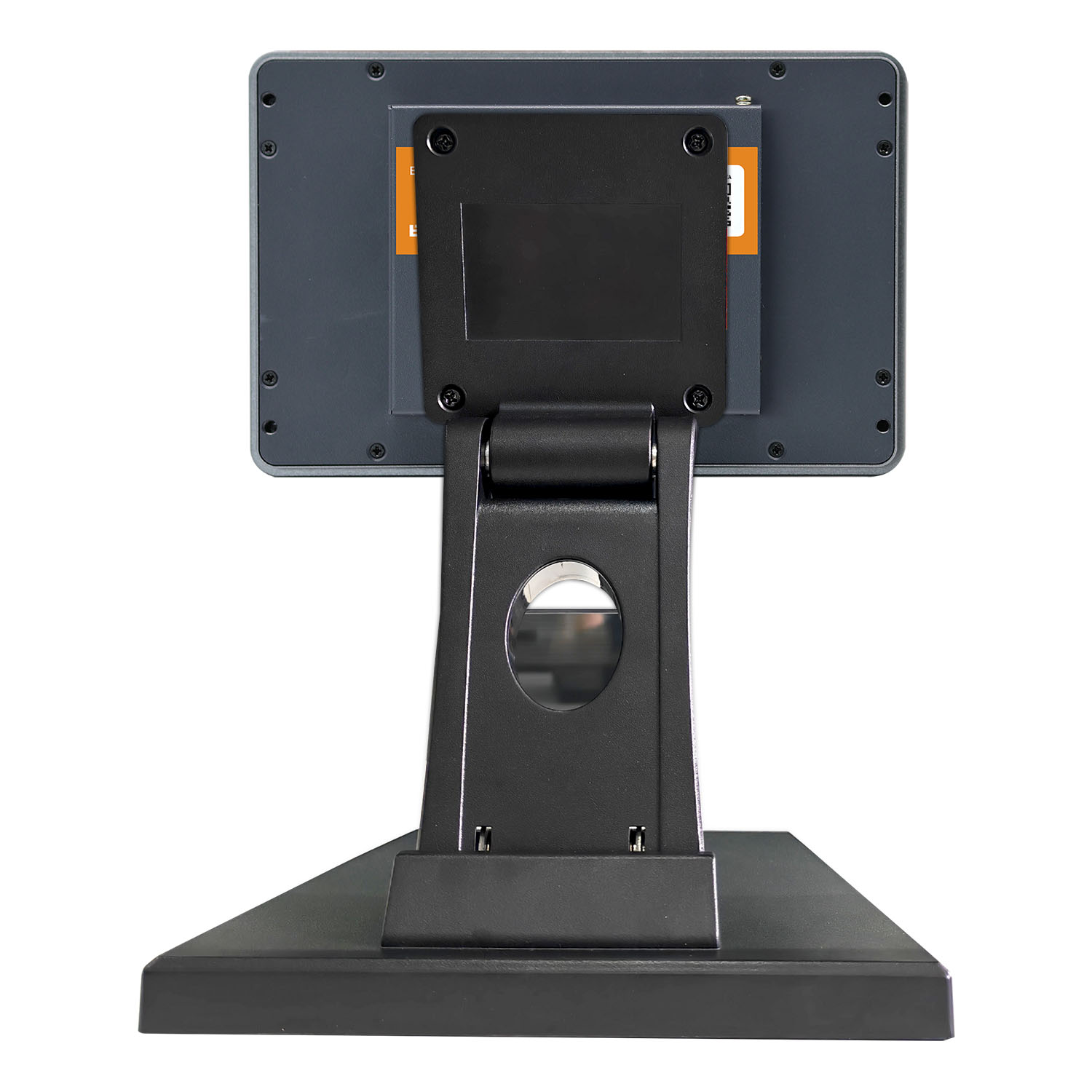

InstallationEmbedded front installation and VESA bracket mounting
Environmental & RegulatoryOperating Temperature-10°C ~60°C-20°C ~ 50°C
Storage Temperature-20°C ~70°C-20°C ~ 60°C
Ambient humidityAmbient humidity 5% ~ 95%（non-condensing）


System Diagram
monitor-070c-diagram
Specification

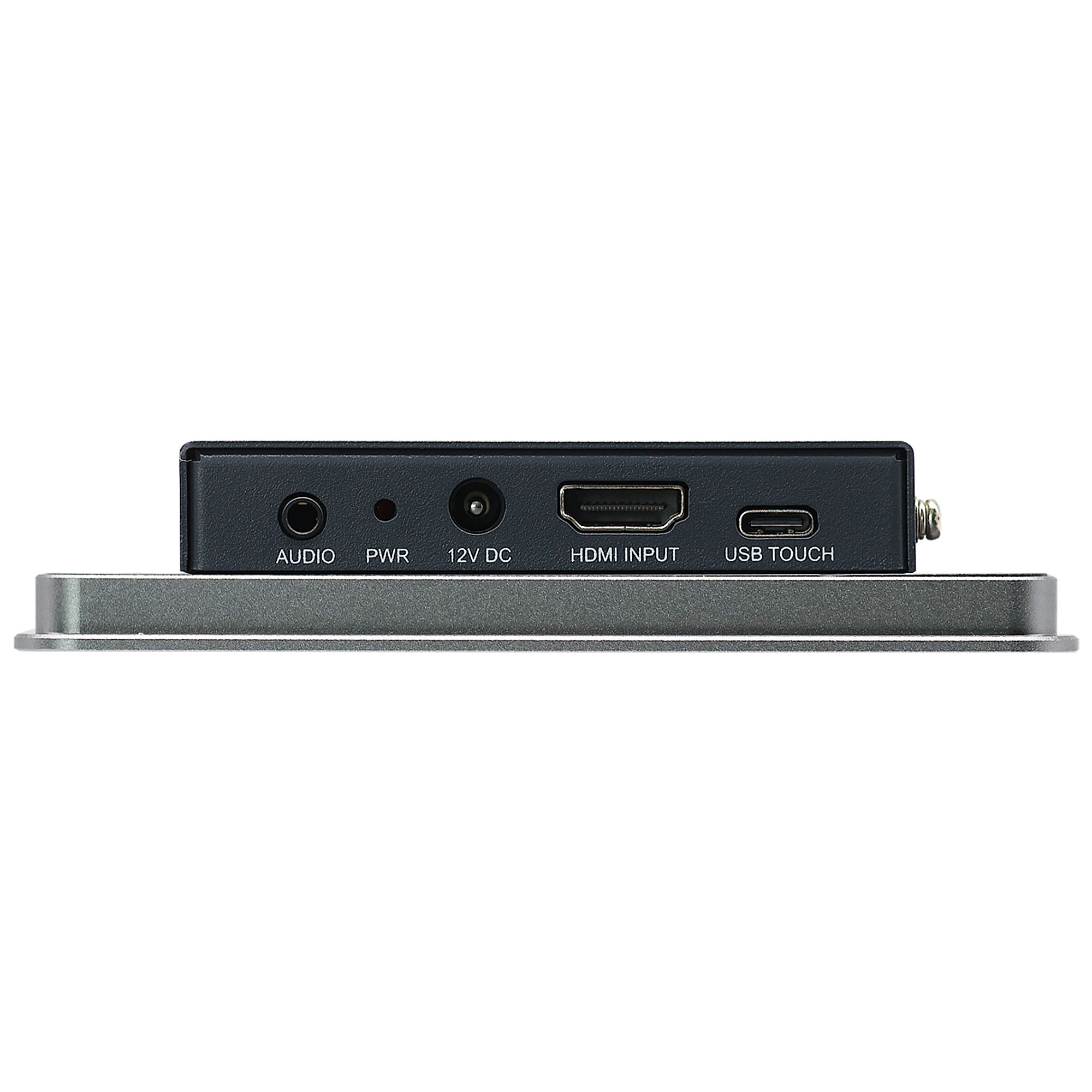

Panel I/O
HDMI1 x HDMI port, Type-A connector, connecting to HDMI output.
USB1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.
Audio1 x 3.5mm audio jack, stereo audio output
Power1 x DC Jack port, support 12V~24V power input.
Buttons and Indicators
PWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
LCD
Type7.0" TFT
Resolution1024 x 600
Color Number16.7M
Active Area154.21mm (H) x 85.92mm (V)
BacklightLED
Luminance425cd/m2
Contrast Ratio800:1
Response Time30ms
Viewing Angle (CR>10)85° (L) / 85° (R) / 85° (U) / 85° (D)
Touch Screen
TypeCapacitive Touch Screen
Multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical Characteristics
Input Voltage12V~24V DC
Power Consumption10W (Max)
Mechanical Characteristics
Dimensions188mm x 123mm x 24.5mm (WxDxH)
WeightAbout 495g
InstallationEmbedded front installation and VESA bracket mounting
Environmental & Regulatory
Operating Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Ambient humidity5% ~ 95% (non-condensing)
Certifications
  • FCC
    • FCC 47 CFR Part 15 Subpart B
  • CE
    • EN IEC 62368-1:2024 + A11:2024
    • EN 55032:2015 + A1:2020 + A11:2020/EN 55035:2017 + A11:2020
      EN IEC 61000-3-2:2019 + A1:2021 + A2:2024/EN 61000-3-3:2013 + A1:2019 + A2:2021
Mechanicals

Unit: mm

monitor-070c-dimension
Ordering Code
monitor-070c-orderingcode
Docs
Type Title Publish Time
Datasheet ED-MONITOR-070C Datasheet 2025-05-09
Manual ED-MONITOR-070C User Manual 2025-05-09
CE-LVD Certification ED-MONITOR-070C CE-LVD Certification 2025-05-09
CE-EMC Certification ED-MONITOR-070C CE-EMC Certification 2025-05-09
CE-LVD Report ED-MONITOR-070C CE-LVD Report 2025-05-09
CE-EMC Report ED-MONITOR-070C CE-EMC Report 2025-05-09
FCC Certification ED-MONITOR-070C FCC Certification 2025-05-09
FCC Report ED-MONITOR-070C FCC Report 2025-05-09
