Raspberry Pi SSD Kits for Pi 5

Raspberry Pi SSD Kits for Pi 5

Key Featured
  • 256GB NVMe SSD:IOPS3(4KB random read)up to 40k,IOPS (4KB random write)up to 70k.
  • 512GB NVMe SSD:IOPS3(4KB random read)up to 50k,IOPS (4KB random write)up to 90k.

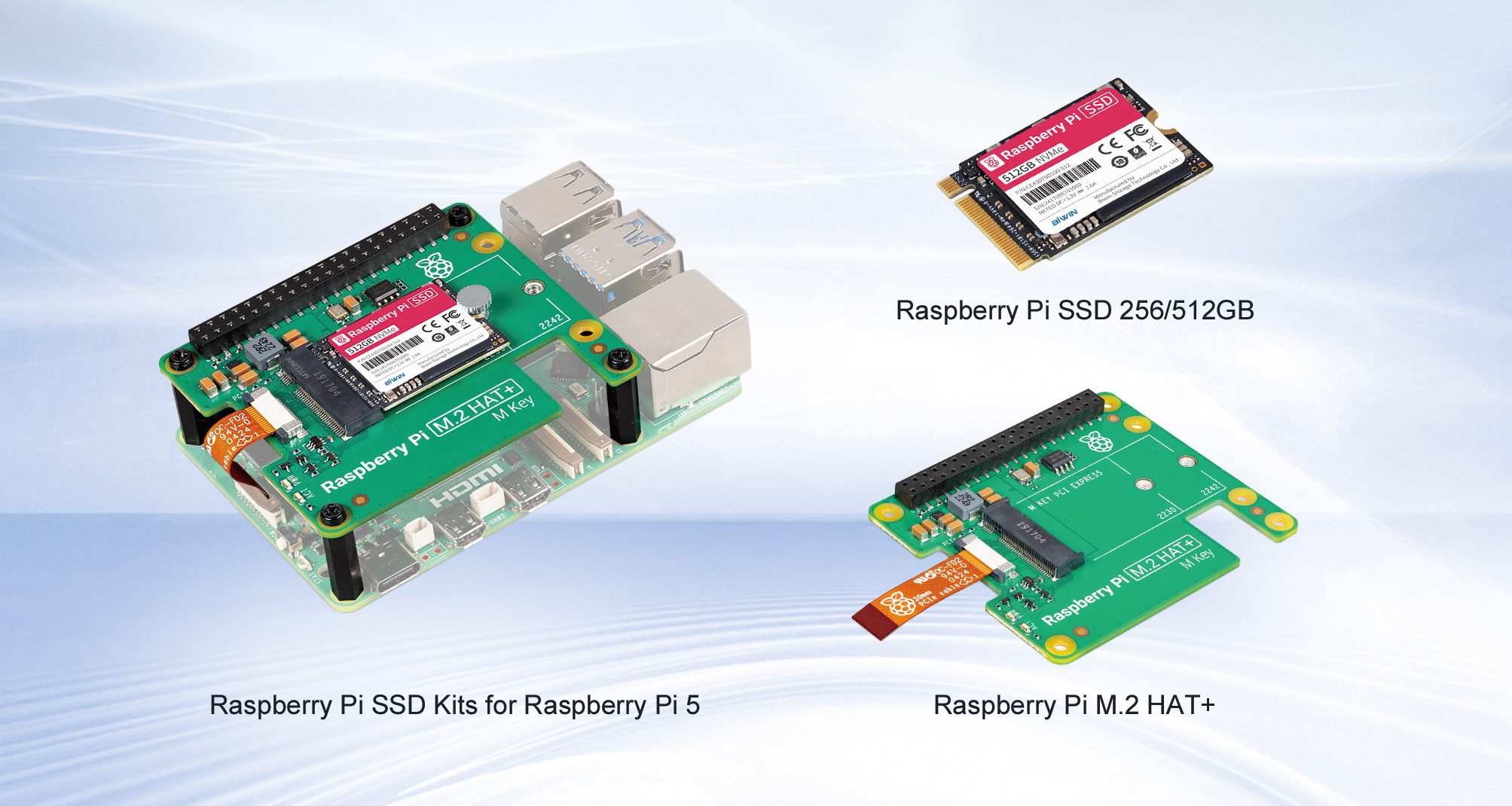

Raspberry Pi SSD Kits bundle a 256GB or 512GB NVMe SSD with the Raspberry Pi M.2 HAT+, offering customers excellent I/O performance on Raspberry Pi 5.

Includes a high-performance Raspberry Pi NVMe SSD capable of the following performance:

  • 256GB NVMe SSD:IOPS3(4KB random read)up to 40k,IOPS (4KB random write)up to 70k.
  • 512GB NVMe SSD:IOPS3(4KB random read)up to 50k,IOPS (4KB random write)up to 90k.

Conforms to the Raspberry Pi HAT+ specification.

SSD pre-assembled on the Raspberry Pi M.2 HAT+, so ready out of the box to use with a Raspberry Pi 5.

Supplied with a 16mm stacking header and spacers/screws to enable the M.2 HAT+ to be fitted to a Raspberry Pi 5 with the Active Cooler in place.

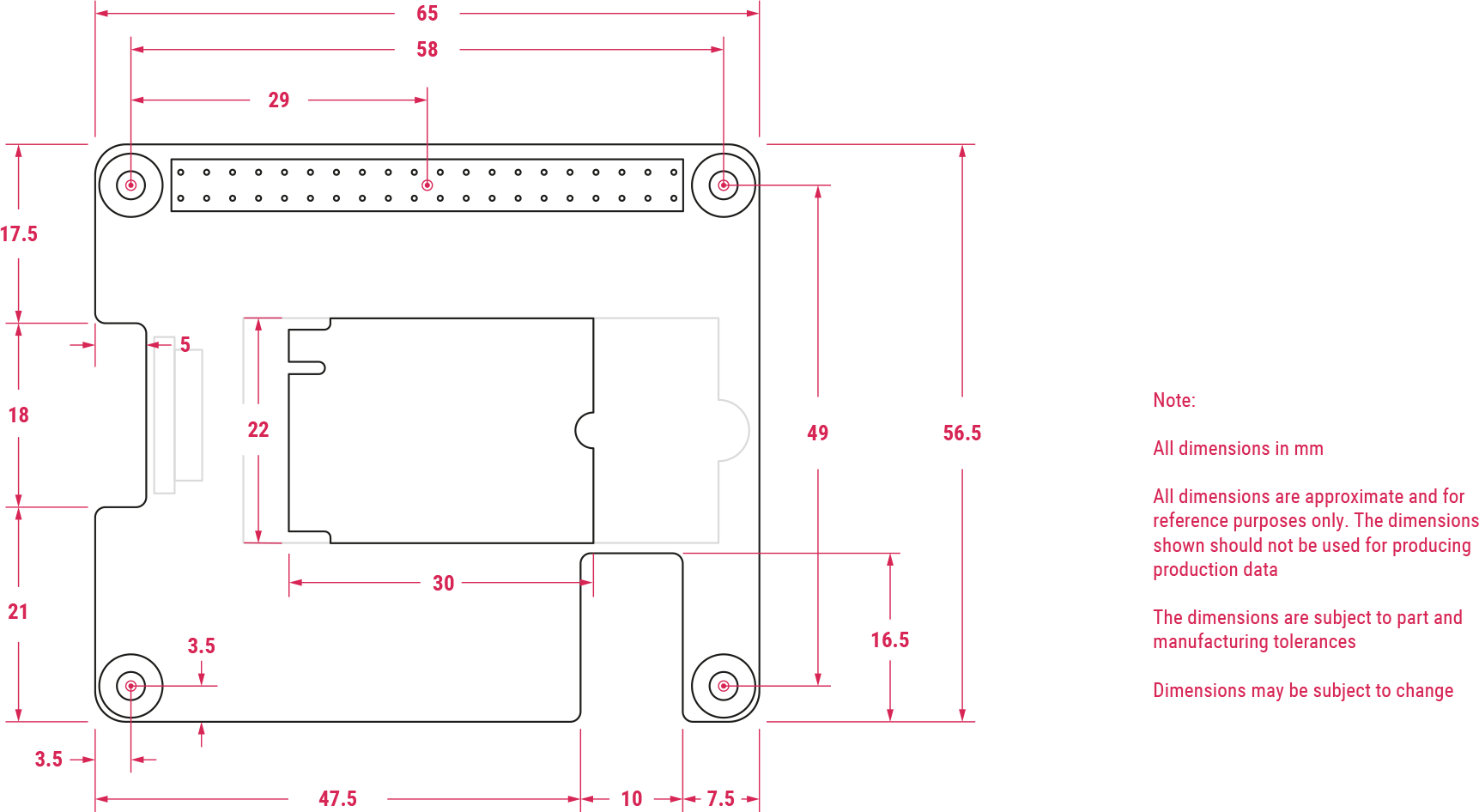

Mechanicals

Docs
Type Title Publish Time
product brief Raspberry Pi SSD Kit product brief.pdf 2024-04-10
