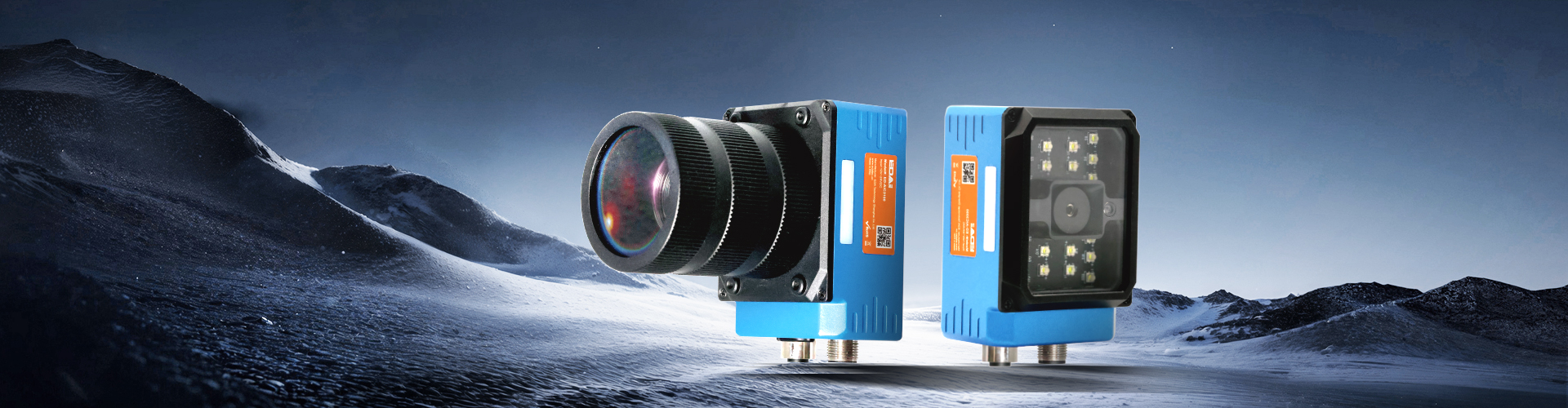

Industrial Smart Camera Selection Guide
| Function Classification | ED-AIC1000 | ED-AIC2000 | ED-AIC3000 | ED-AIC3100 | |
| CPU | CM0 | ✔ | - | - | - |
| CM4 | - | ✔ | - | - | |
| CM5 | - | - | ✔ | ✔ | |
| RAM | 512MB SDRAM | ✔ | - | - | - |
| 1/2/4/8GB LPDDR4 | - | ✔ | - | - | |
| 2/4/8GB LPDDR4 | - | - | ✔ | ✔ | |
| Storage | 8/16GB eMMC | ✔ | - | - | - |
| 8/16/32GB eMMC | - | ✔ | - | - | |
| 16/32/64GB eMMC | - | - | ✔ | ✔ | |
| Image Performance | Image Sensor | 1.3MP，Global Shutter Exposure | 12MP | 12MP | 12MP |
| Capture Rate | 120 FPS | 60 FPS | 60 FPS | 60 FPS | |
| Lens and Lighting | Lens Mount / Type | M12 Fixed-Focal-Length Lens | |||
| Autofocus | Motorized Autofocus | Liquid Lens Autofocus | Liquid Lens Autofocus | Liquid Lens Autofocus | |
| Lighting Configuration | 3 Independently Configurable Lighting Zones | 4 Independently Configurable LED Lighting Zoness | - | ||
| Illumination Mode / Aiming | - | Bright-field / Dark-field Illumination; Red Circular Spot Aiming | - | ||
| Interface | Power and I/O Connector | 12-Pin Aviation Connector | |||
| Network Interface | 100 Mbps Ethernet (via 12-Pin Cable) | 8-Pin Aviation Connector to RJ45 | |||
| Serial Port | RS232 | RS232 | RS232 | RS232 | |
| DI | - | x 1 | x 1 | x 1 | |
| DO | x 1 | x 2 | x 2 | x 2 | |
| Trigger / Strobe Control | Trigger | Trigger、External Strobe | Trigger、External Strobe | Trigger、External Strobe | |
| Buttons | - | TUNE、TRIG | TUNE、TRIG | TUNE、TRIG | |
| Operating | 0°C ~ 50°C | ✔ | - | - | - |
| 0°C ~ 45°C | - | ✔ | ✔ | ✔ | |
| Certifications and Testing | Certifications / Test Information | - | FCC、CE；Shock and Vibration Testing | FCC、CE | FCC、CE |
| Mounting | Mounting Bracket | ✔ | ✔ | ✔ | ✔ |
| Power Input（DC） | DC 24V / 1A / 24W | ✔ | - | - | - |
| DC 24V / 2A / 36W | - | ✔ | ✔ | ✔ | |
| “✓” indicates Supported / Available. “—” indicates Not supported / Not available. | |||||
