ED-IPC3100 Series

Home > Products > Industrial Computers

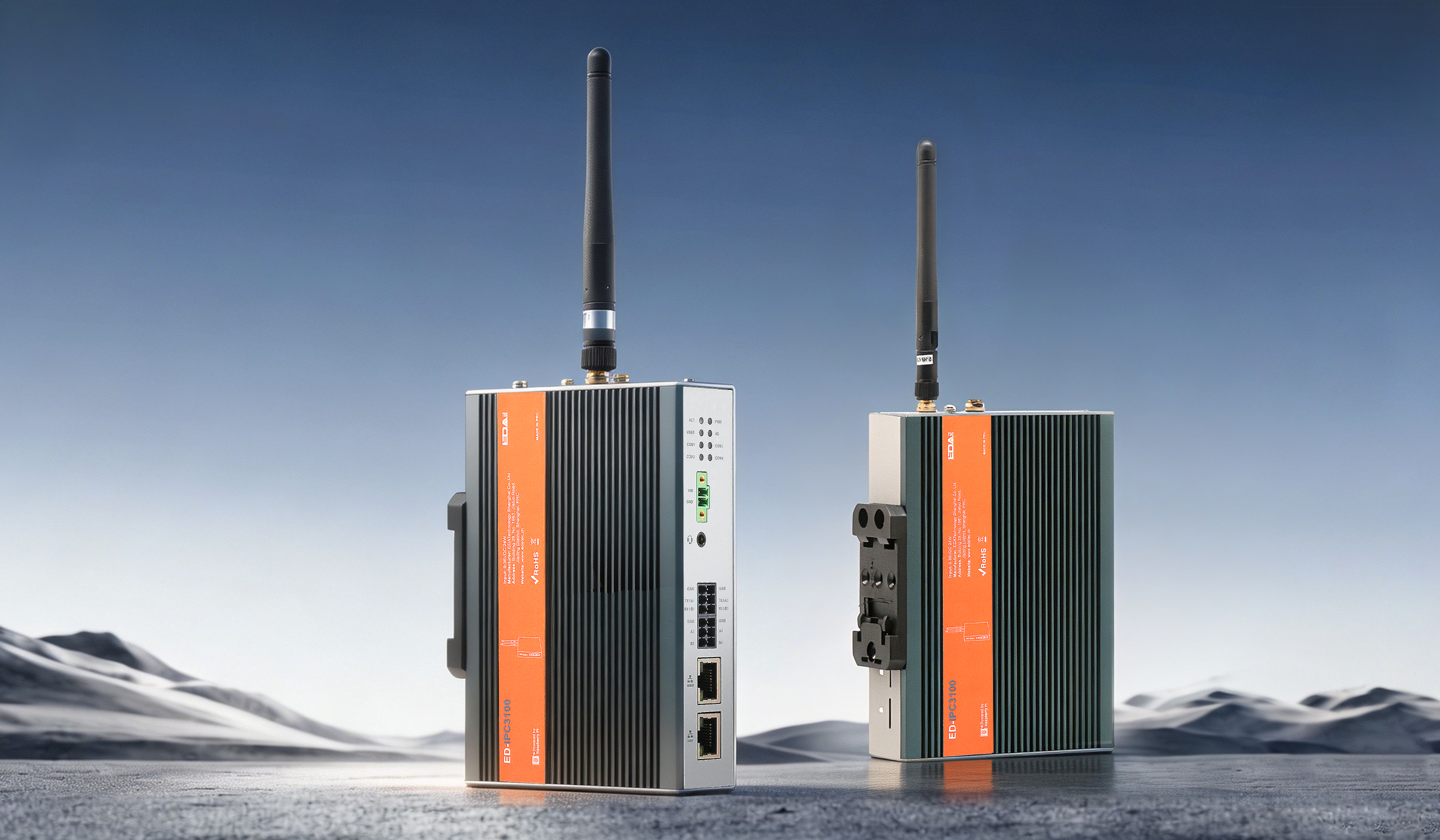

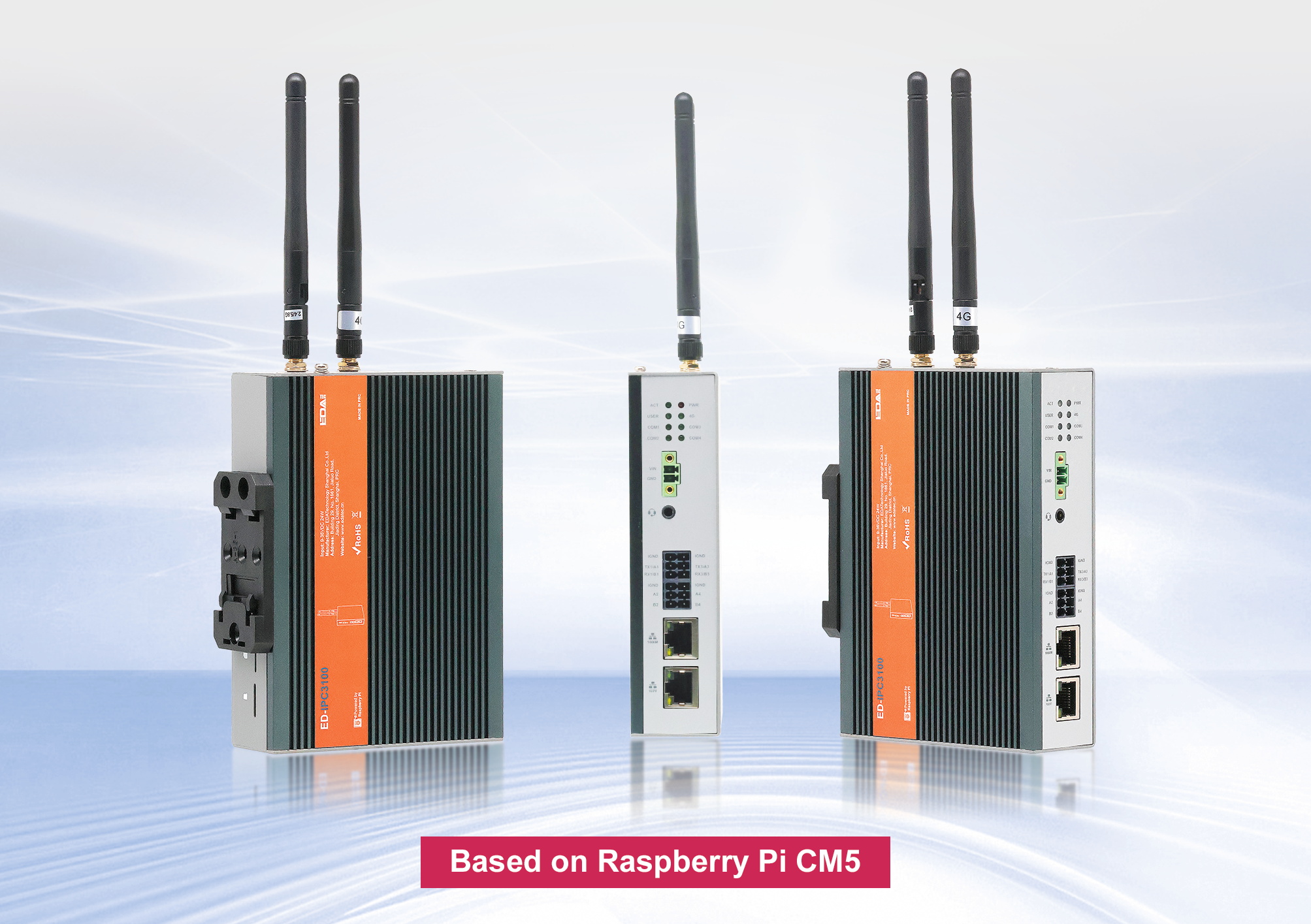

ED-IPC3100 Series

Expandable storage options, and robust connectivity including dual Ethernet, Wi-Fi, Bluetooth, and optional 4G LTE

Key Featured
  • Broadcom BCM2712 quad Cortex-A76 (2.4GHz), support 8GB DDR4 memory/64GB eMMC
  • Supports Micro SD，M.2 B key 2230/2242 NVMe SSD storage，AI modules
  • 1 x Gigabit, 1 x 100M, 4 x isolated RS232/485, 1 x HDMI, 2 x USB 2.0
  • Supports 2.4GHz/5GHz Wi-Fi, Bluetooth, optional 4G LTE
  • Wide voltage (9V~36V), over-current/voltage/reverse protection
  • Wide temp (-25℃~60℃), metal case, DIN-rail installation
Online Docs

A compact industrial controller powered by Raspberry Pi CM5, designed for harsh environments in automation, edge computing, and IoT. Ideal for data acquisition, device connectivity, and lightweight control with industrial-grade durability.

CategoryKey FeaturesTechnical Specifications

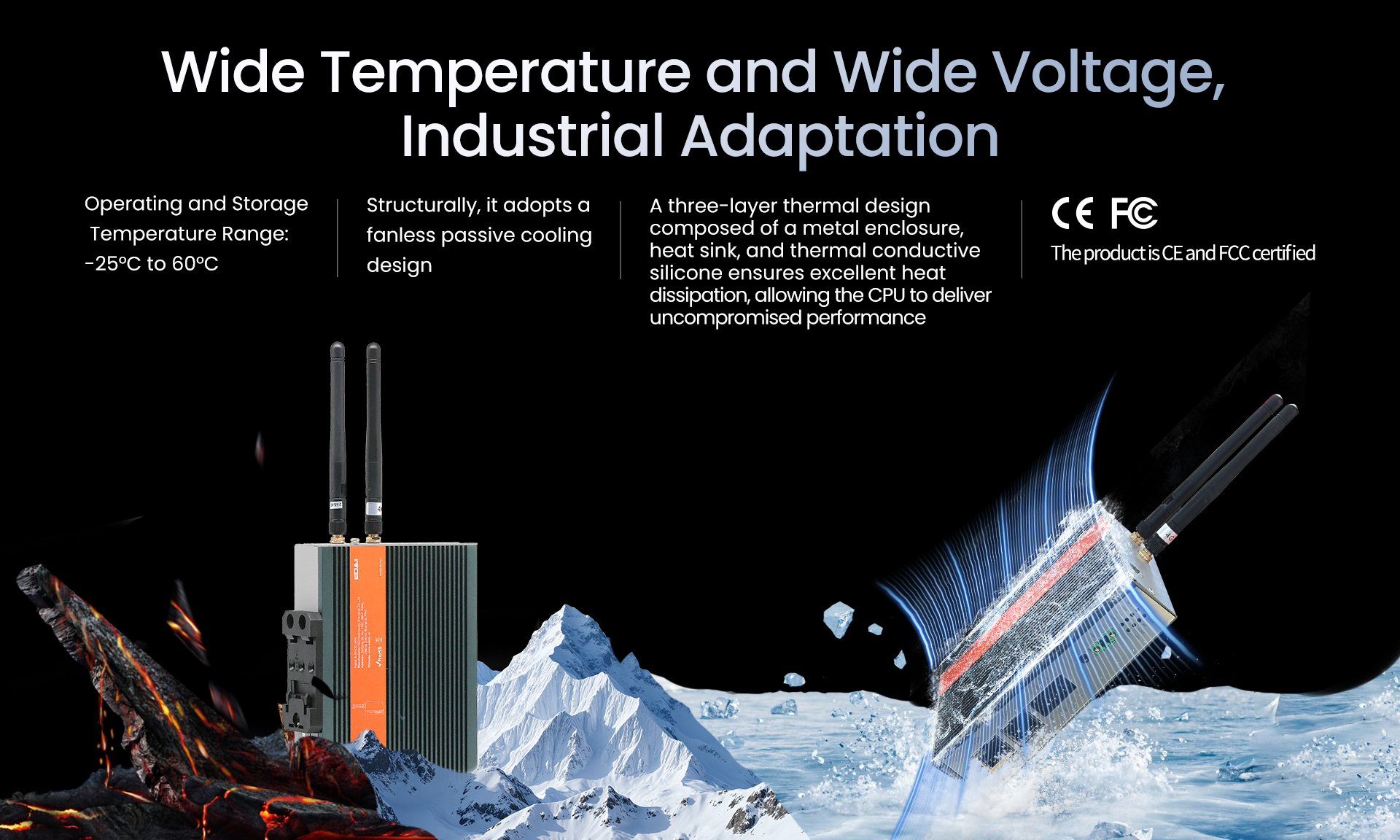

Industrial ReliabilityBuilt for extreme conditions and unstable power environments-25°C to 60°C operating range
9-36V DC wide voltage input (over-current/voltage/reverse protection)
Metal case, DIN-rail installation
High PerformanceMulti-core processing for edge computing demandsBroadcom BCM2712 quad-core Cortex-A76@2.4GHz
Up to 8GB LPDDR4 memory + 64GB eMMC
Versatile ConnectivityHybrid wired/wireless networking for industrial protocols1 x Gigabit + 1 x 100M Ethernet
2.4GHz/5GHz Wi-Fi 6 + Bluetooth 5.0
4G LTE multi-band support (optional)
Flexible ExpansionScalable I/O and storage for customized solutions4× isolated RS232/RS485 (configurable)
ED-IPC3110: 2 x RS485 + 2 x RS232
ED-IPC3120: 2 x RS485 + 2 x RS232
ED-IPC3130: 3 x RS485 + 1 x RS232
ED-IPC3140: 4 x RS485, without RS232
Supports Micro SD，M.2 B key 2230/2242 NVMe SSD storage
Support AI modules*
Security & MaintenanceHardware-level security and remote managementEncryption chip + EEPROM storage
Hardware watchdog
RTC backup power
 *Hailo-8™ M.2 AI Acceleration Modules M.2 Key B+M 2242 or Hailo-8L™ M.2 AI Acceleration Modules M.2 Key B+M 2242.

Competitive Differentiation

✅ Raspberry Pi Ecosystem Compatibility: Native Raspberry Pi OS support for seamless development.

✅ Cost-Effective Industrial Design: Balances consumer-grade hardware with industrial protections.

✅ Lightweight Edge Node: Ultra-compact (143×100×35mm) with ≤24W power consumption.

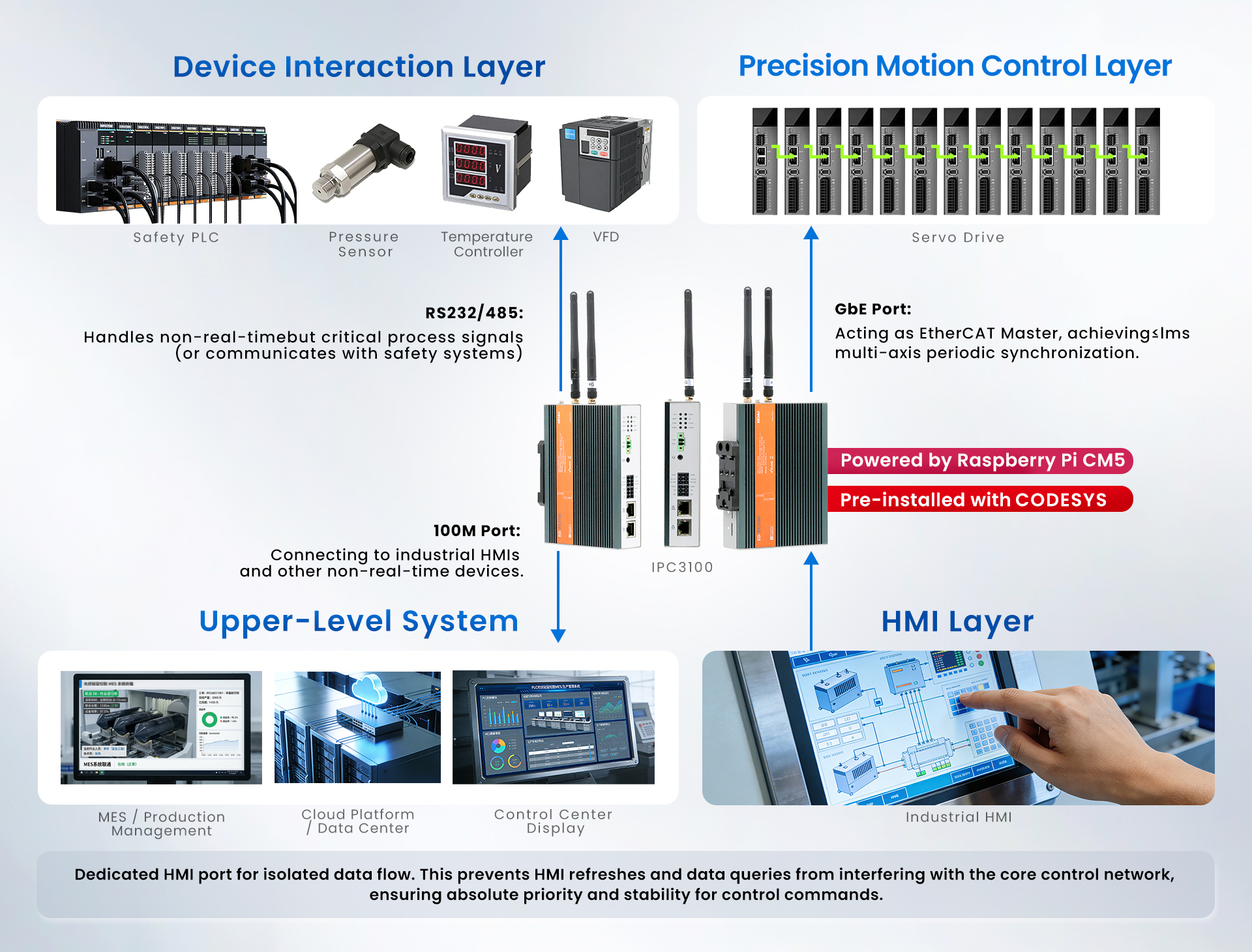

Typical Applications

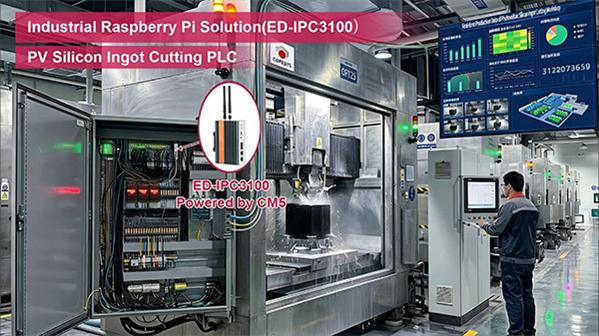

🔧 Factory equipment data collection (PLC communication, sensor integration)

📡 Smart warehouse wireless gateway (Wi-Fi/4G backhaul)

🌐 Edge AI inference (expandable with Hailo modules)

HS CODE

HS CODECOO
8471504090CN


ED-IPC Series Feature Selection Guide


Function ClassificationIPC2000IPC2100IPC2200IPC2400IPC2500IPC2600IPC3020IPC3100IPC3630
CPU1.5GHz quad-core A72✔✔✔✔✔✔---
2.4GHz quad-core A76------✔✔✔
RAM1/2/4/8GB LPDDR4✔✔✔✔✔✔---
2/4/8/16GB LPDDR4X------✔--
2/4/8GB LPDDR4X-------✔✔
Storage
8/16/32GB eMMC✔✔✔✔✔✔---
16/32/64GB eMMC-------✔✔
Micro SD Card
SSD-✔✔-✔✔✔✔✔
Wireless2.4GHz & 5GHz dual-band WiFi
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
4G-✔✔--✔-✔✔
5G----✔----
Interface1000M Ethernetx 1x 1x 3x 1x 3x 1x 1x 1x 1
100M Ethernet-x 1---x 1-x 1x 1
USB 2.0x 1x 2x 2x 1x 2x 2x 2x 2x 2
USB 3.0x 2-x 1x 2--x 2--
RS232-≤ x 2-≤ x 3-≤ x 2x 1≤ x 2≤ x 2
RS485-≤ x 4-≤ x 4-≤ x 4x 1≤ x 4≤ x 4
CAN-----≤ x 2 --≤ x 2
HDMIx 1x 1x 1x 1x 1x 1x 2x 1x 1
DSI✔✔✔✔-✔✔✔✔
CSI✔✔✔✔-✔✔✔✔
DI/DO-----≤ x 8--≤ x 8
otherRTC with backup
Hardware Watch Dog-✔✔-✔✔-✔✔
Operating-25℃~60℃
MechanicaFanless Design
MountingDesktop
DIN & Wall✔✔✔✔-✔-✔✔
Power Input5V DC------✔--
9V~28V DC✔--✔-----
9V~36V DC -✔✔-✔✔-✔✔



ED-CM4 Industrial Series Feature Selection Guide



Function ClassificationCM4 SensingCM4 IndustrialCM4 NanoCM4 MediaCM4 IO Computer
CPU1.5GHz quad-core A72✔✔✔✔✔
2.4GHz quad-core A76-----
RAM1/2/4/8GB LPDDR4✔✔✔✔✔
Storage8/16/32GB eMMC✔✔✔✔✔
Micro SD Card✔✔✔✔✔
SSD✔-✔✔✔
Wireless2.4GHz & 5GHz dual-band WiFi✔✔✔✔✔
Bluetooth 5.0 / Bluetooth Low Energy (BLE)✔✔✔✔✔
4G✔✔-✔✔
InterfaceGigabit Ethernetx 1x 1x 1x 1x 1
100M Ethernet-x 1---
USB 2.0x 2x 2x 1x 1x 2
USB 3.0--x 2x 2x 3
RS232x 1x 1---
RS485x4x2---
CANx1----
HDMIx2x2x2x2x2
DSI✔✔✔-✔
CSI-✔✔-✔
DI/DO-✔---
ADC-✔---
otherRTC, CR1220✔✔✔✔✔
Hardware Watch Dog✔✔✔✔✔
High Quality Stereo CODEC---✔-
Operating-25℃~60℃✔✔✔--
0 ~ 60°C---✔✔
MechanicalFanless Design✔✔✔✔-
MountingDesktop---✔✔
DIN & Wall✔✔✔--
Power InputDC 5V---✔-
DC 9V~28V✔----
DC 9V~36V-✔---
DC 12V----✔
DC 7V~18V--✔--


System Diagram

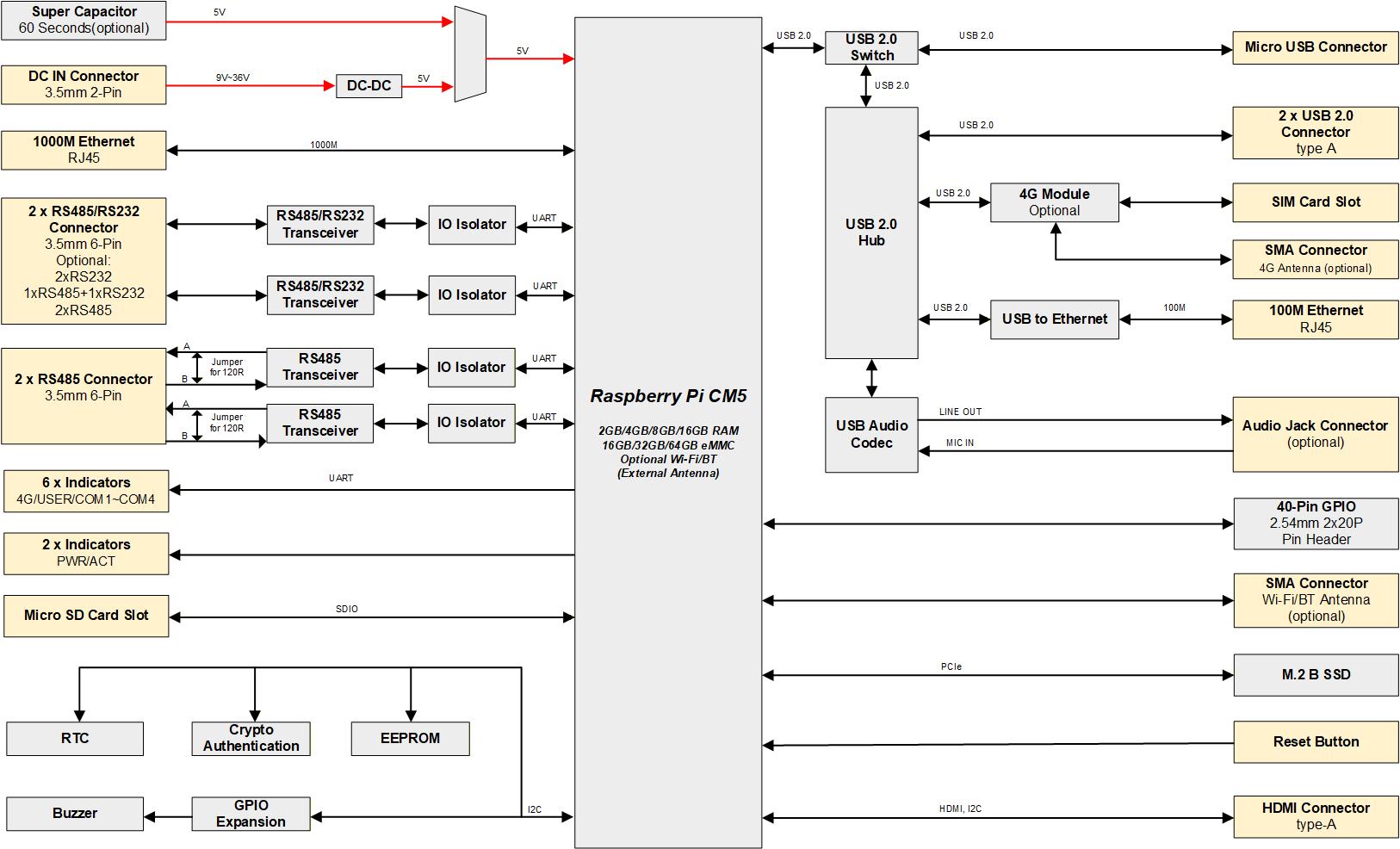

IPC2100V System Diagram
Specification
System
CPUBroadcom BCM2712, quad core Cortex-A78 (ARM v8) 64-bit SoC @ 2.4GHz
VPUH.265 (HEVC), up to 4Kp60 decode
GPUOpenGL ES 3.1 & Vulkan 1.2
MemoryOptions for 2GB, 4GB, 8GB LPDDR4-4267 SDRAM
StorageOptions for 16GB, 32GB, 64GB eMMC storage
Micro SD card (user storage expansion)
M.2 NVMe SSD (options for 128GB, 256GB, 512GB)
Software
Operating SystemRaspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit
Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit

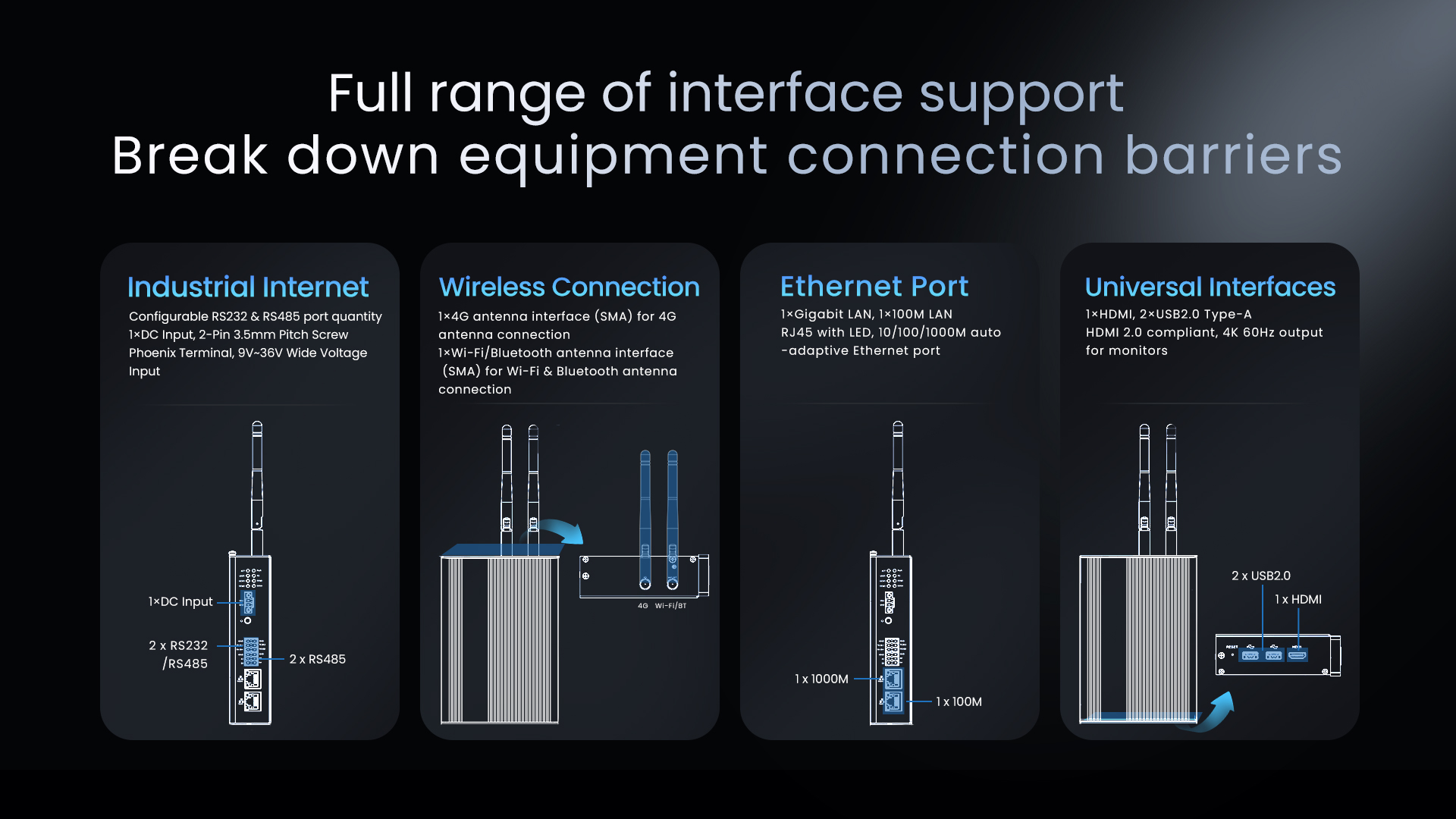

Front I/O
Power1 x DC IN, 2-Pin 3.5mm pitch phoenix terminals with screw holes.
It supports 9V~36V input, the signal is defined as VIN+/GND.
Audio (optional)1 x Audio In/Stereo Out, 3.5mm audio jack connector. It can be used as MIC IN and LNE OUT.
  • When a headphone is connected, the audio output switches to the headphone.
  • When no headphone is connected, the audio output switches to the speaker.
Note: Only ED-IPC3120 contains this interface.
RS485/23212-Pin 3.5mm pitch phoenix terminals with IO isolator, which are equipped with electrostatic and surge protection.
Different numbers of RS232 and RS485 ports can be selected according to actual application.
The signal of RS485 is defined as IGND/A/B, and the signal of RS232 is defined as IGND/TX/RX.
  • ED-IPC3110: 2 x RS485 + 2 x RS232
  • ED-IPC3120: 2 x RS485 + 2 x RS232
  • ED-IPC3130: 3 x RS485 + 1 x RS232
  • ED-IPC3140: 4 x RS485, without RS232
1000M Ethernet1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
100M Ethernet1 x adaptive 10/100M ethernet port, RJ45 connector. It can be used to access the network.
Rear I/O
SD Card Slot1 x Micro SD card slot, using to install Micro SD card for storing user data.
SIM Card Slot1 x Nano SIM card slot, using to install Nano SIM card for getting 4G signal.
Micro USB1 x Micro USB port, supporting to flash to eMMC for the system.
Side I/O
HDMI1 x HDMI port, Type-A connector. It is compatible with HDMI 2.0 standard and supports 4K 60Hz.
USB 2.02 x USB 2.0 ports, Type-A connector, supporting up to 480Mbps.
Antenna2 x SMA ports (optional), using to connect 4G antenna and Wi-Fi/BT antenna.
Buttons and Indicators
Reset1 x Reset button, which can reset the device.
PWR1 x red power indicator, using to check the status of device power-on and power-off.
4G1 x green 4G indicator, using to check the status of 4G signal.
ACT1 x green system indicator, using to check the working status of device.
USER1 x green user indicator, user can customize a status according to actual application.
COM1~COM44 x green UART indicators, using to check the communication status of UART port.
Internal I/O
40-Pin GPIO1 x GPIO Pin Header, 2x20-Pin 2.54mm pitch, using to lead out the GPIO ports of CM4.
These pins are defined as GPIO1~GPIO27/3V3/5V2/GND. It is Compatible with expansion modules, and reserves to connect expansion accessories.
M.2 B1 x M.2 B, M.2 B Key connector, supporting to connect SSD.
It is compatibles with M.2 B 2230 and M.2 B 2242 SSD.
Expansion Functions
EEPROMSupports 4K byte storage and improves the ease of use of device.
Crypto AuthenticationIt can be matched to realize the required upper layer application and improves the security of device.
RTCRTC with 1F SuperCAP backup, which can ensure that the system clock is not affected by device power-off.
We also provide a battery base, and you can buy a CR1220 battery backup for RTC.
BuzzerA tip or an abnormity can be configurated according to actual application, which realizes the alarm function.
Watch Dog*This function has been reserved on hardware. But we need additional software to support it, which is under development.
Electrical Characteristics
Input Voltage9V ~ 36V DC
Power Consumption24W (Max)
Mechanical Characteristics
Dimensions143mm x 100mm x 35mm (WxDxH, DIN-rail bracket and antenna are not included.)
Weight750g
InstallationDIN-rail installation
Wireless
Wi-Fi/Bluetooth (optional)2.4GHz & 5GHz dual-band Wi-Fi and Bluetooth with antenna.
  • 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
  • 5GHz Wi-Fi: Compatible with IEEE 802.11 a/n/ac
  • The Bluetooth supports 2402MHz ~ 2480MHz frequency
4G (optional) Connect with various 4G LTE modules through the Mini PCIe interface, with antenna.
  • EC20-CE Module (China/India)
    • LTE FDD: B1/B3
    • LTE TDD: B38/B39/B40/B41
    • TDSCDMA: B34/B39
    • WCDMA: B1
    • CDMA 1x/EVDO: BC0
    • GSM: 900/1800MHz
    • GPS/GLONASS/BDS/Galileo/QZSS (optional)
  • EC25-AFX Module (North America)
    • LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
    • LTE TDD
    • WCDMA: B2/B4/B5
    • GSM/EDGE
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-AUX Module (Latin America/Australia/New Zealand)
    • LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
    • LTE TDD: B40
    • WCDMA: B1/B2/B4/B5/B8
    • GSM/EDGE: B2/B3/B5/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-EUX Module (Europe/Middle East/Africa/Thailand)
    • LTE FDD: B1/B3/B7/B8/B20/B28A
    • LTE TDD: B38/B40/B41
    • WCDMA: B1/B8
    • GSM/EDGE: B3/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
  • EC25-EM Module (Europe/Middle East/Africa/South-East Asia)
    • LTE FDD: B1/B3/B7/B8/B20/B28
    • LTE TDD: B38/B40/B41
    • WCDMA: B1/B5/B8
    • GSM/EDGE: B3/B8
    • GPS/GLONASS/BDS/Galileo/QZSS
Environmental & Regulatory
Operating Temperature-25°C ~ 60°C
Storage Temperature-25°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals

Unit: mm

IPC2100 Dimensions
Ordering Code
IPC2100V Odering Code
Docs
Type Title Publish Time
Datasheet ED-IPC3100 Datasheet 2025-01-07
Manual ED-IPC3100 User Manual 2025-01-07
OS ED-IPC3100 Installing OS 2025-01-07
Errata Update 4G Module Firmware 2025-01-07
Errata Nano SIM Card Slot Compatibility with 0.8mm Thickness SIM Cards 2025-01-07
Related Products

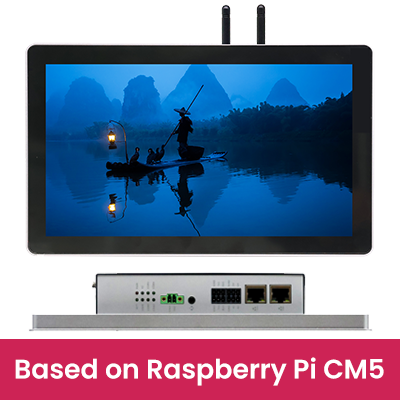

ED-HMI3120 Series
