Home > Products > Industrial Computers

ED-IPC1100

Compact, cost-effective Industrial Connectivity Computer based on Raspberry Pi CM0, featuring RS485 and 4G LTE

Key Featured

  • Powered by Raspberry Pi CM0, balanced of cost, performance and power consumption

  • Rich Industrial interfaces with 1x Ethernet, 1x RS485, 2x USB 2.0, 1x HDMI

  • Full wireless network coverage with WiFi and 4G CAT1

  • Ready-to-use Raspberry Pi OS, sharing the same Raspberry Pi ecosystem

  • Excellent passive cooling performance, wide voltage and temperature ranges with 9-28V DC input, -20 to 60C

  • Compact all-metal body, supports DIN rail mounting

Online Docs

ED-IPC1100 is a low-cost industrial connectivity computer based on the Raspberry Pi Compute Module Zero (CM0). Featuring a compact and robust metal enclosure, it supports passive cooling and DIN rail mounting, combining durability with easy deployment. While delivering light computing power, it comes fully equipped with industrial-grade connectivity options, including Ethernet, USB, HDMI, RS485, and optional 4G CAT1, WLAN, and Bluetooth modules. With a built-in RTC and watchdog mechanism, it ensures reliable long-term system operation.

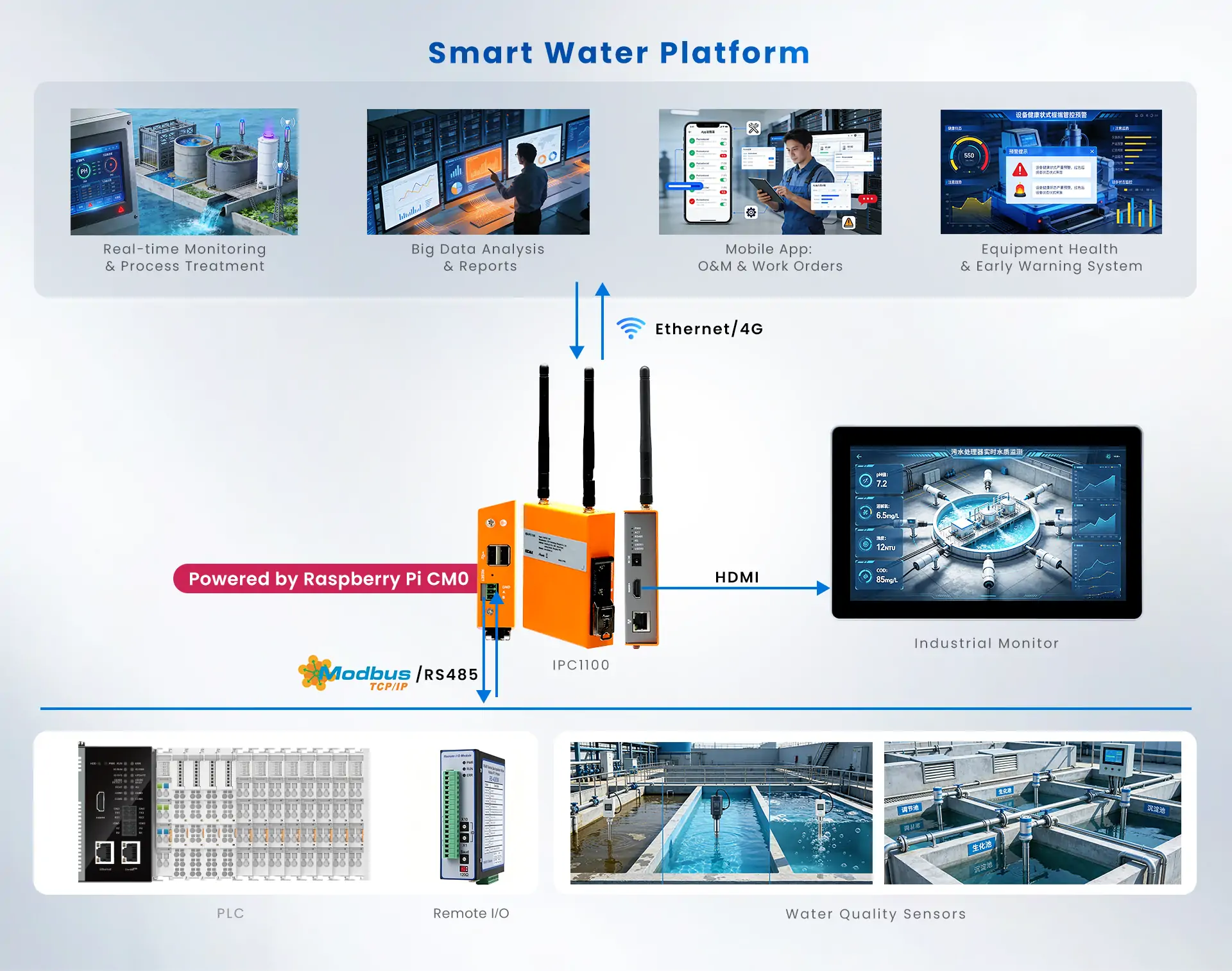

ED-IPC1100 is suitable for a wide range of applications such as industrial data acquisition, Bluetooth Mesh gateways, Industrial IoT, and 4G computing, offering an excellent cost-effective industrial connectivity solution.

Furthermore, it shares the extensive Raspberry Pi software ecosystem and stable Raspberry Pi OS, and supports ready-to-use software middleware such as CODESYS and Node-RED, significantly lowering development barriers and accelerating project implementation.

xplore in-depth reviews and coverage of ED-IPC1100 by leading international media outlets! Click the links to learn more：

CNX Software

Industrial Computer Feature Selection Guide


Function ClassificationIPC2000IPC2100IPC2200IPC2400IPC2500IPC2600IPC3020IPC3100IPC3630CM4 SENCM4 INDCM4 NanoCM4 MEDCM4 IO
CPUCM4✔✔✔✔✔✔---✔✔✔✔✔
CM5-------✔✔-----
Pi 5------✔-------
RAM1/2/4/8GB LPDDR4✔✔✔✔✔✔---✔✔✔✔✔
2/4/8/16GB LPDDR4------✔✔✔-----
Storage8/16/32GB eMMC✔✔✔✔✔✔---✔✔✔✔✔
64GB eMMC-------✔✔-----
Micro SD Card
SSD-✔✔-✔✔✔✔✔✔-✔✔✔
WirelessWi-Fi/BT
4G-✔✔--✔-✔✔✔✔-✔✔
5G----✔---------
Interface1000M Ethernetx 1x 1x 3x 1x 3x 1x 1x 1x 1x 1x 1x 1x 1x 1
100M Ethernet-x 1---x 1-x 1x 1-x 1---
USB 2.0x 1x 2x 2x 1x 2x 2x 2x 2x 2x 2x 2x 1x 1x 2
USB 3.0x 2-x 1x 2--x 2----x 2x 2x 3
RS232-≤ x 2-≤ x 3-≤ x 2x 1≤ x 2≤ x 2x 1x 1---
RS485-≤ x 4-≤ x 4-≤ x 4x 1≤ x 4≤ x 4x 4x 2---
CAN-----≤ x 2--≤ x 2x 1----
HDMIx 1x 1x 1x 1x 1x 1x 2x 1x 1x 2x 2x 2x 2x 2
DSI✔✔✔✔-✔✔✔✔✔✔✔-✔
CSI✔✔✔✔-✔✔✔✔-✔✔-✔
DI/DO-----≤ x 8--≤ x 8-✔---
ADC-----✔----✔---
OtherRTC
Hardware Watch Dog-✔✔-✔✔-✔✔✔✔✔✔✔
High Quality Stereo CODEC-------✔----✔-
Operating-25~60℃✔✔✔✔✔✔✔✔✔✔✔✔--
0 ~ 60°C------------✔✔
MechanicaFanless Design✔✔✔✔✔✔✔✔✔✔✔✔✔-
MountingDIN & Wal!✔✔✔✔-✔-✔✔✔✔✔--
Desktop✔✔✔✔✔✔✔✔✔---✔✔
Power Input（DC）9V~28V✔--✔-----✔----
9V~36V-✔✔-✔✔-✔✔-✔---
7V~18V-----------✔--
5V------✔-----✔-
12V-------------✔


System Diagram
ED-ipc1100-diagram
Specification
System
CPU1GHz quad-core 64-bit Arm Cortex-A53 processor
VPUH.264/MPEG-4 video decoding, 1080p@30fps
H.264 encoding, 1080p@30fps
GPUOpenGL ES 1.1/2.0 graphics processing
Memory512MB SDRAM
Storage8GB or 16GB eMMC storage available
Software
Operating System Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Raspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit
Front I/O
Power1 x DC input, DC jack connector, supports 9V~28V input.
HDMI1 x HDMI port, Type-A connector, compliant with HDMI 1.3a standard, supports 1080p resolution at 30Hz.
100M Ethernet1 x adaptive 10M/100M ethernet port, RJ45 connector. It can be used to access the network.
Rear I/O
Nano SIM Card Slot1 x Nano SIM card slot for installing a Nano SIM card to obtain 4G signal.
Micro SD Card Slot1 x Micro SD card slot, supports installation of a Micro SD card for system boot.
Note: The Micro SD card slot is only compatible with the CM0Lite.
Type-C USB Interface1 x Type-C USB interface, supports eMMC flashing via this interface.
Side I/O
USB 2.02 x USB 2.0 ports, stacked Type-A connector, each supporting a maximum data transfer rate of 480Mbps.
RS4851 x RS485 interface, 3-pin 3.5mm pitch phoenix terminal, signal definitions: GND/A/B.
Antenna Interface2 x Antenna interfaces, SMA connector, for Wi-Fi/BT and 4G antenna
Buttons and Indicators
PWR1 x red power indicator, used to display the device's power on/off status.
ACT1 x green system status indicator, used to monitor the device's operating status.
4G1 x 4G signal indicator, green, for checking the status of the 4G signal.
USER1 and USER22 x User indicators, green, allowing users to customize the status based on actual needs.
RS4851 x RS485 indicator, green, for viewing the communication status of the serial port.
Reset1 x reset button, recessed design, pressing the button restarts the device.
Expansion Functions
RTCBuilt-in RTC function with a 1F supercapacitor as the RTC backup power supply.
Electrical Characteristics
Input Voltage9V~28V DC
Power ConsumptionAbout 5W
Mechanical Characteristics
Dimensions104mm x 86.4mm x 26mm (W x D x H, DIN-rail bracket and antenna are not included)
WeightAbout 270g
InstallationDIN rail mounting
Wireless
Wi-Fi/BluetoothSupports 2.4GHz Wi-Fi and Bluetooth, with an external antenna.
  • 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
  • Bluetooth 5.0: Compatible frequency band 2402MHz ~ 2480MHz
4GOnboard 4G module with antenna.
  • EC800M-CN Module (China)
    • LTE FDD: B1/B3/B5/B8
    • LTE TDD: B34/B38/B39/B40/B41
  • EC800K-EU Module (Europe)
    • LTE-FDD: B1/B3/B5/B7/B8/B20/B28
  • EC800Q-NA Module (America)
    • LTE-FDD: B2/B4/B5/B12/B13/B66
Environmental & Regulatory
Operating Temperature-20°C ~ 60°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals

Unit: mm

ipc1100-dimension
Ordering Code

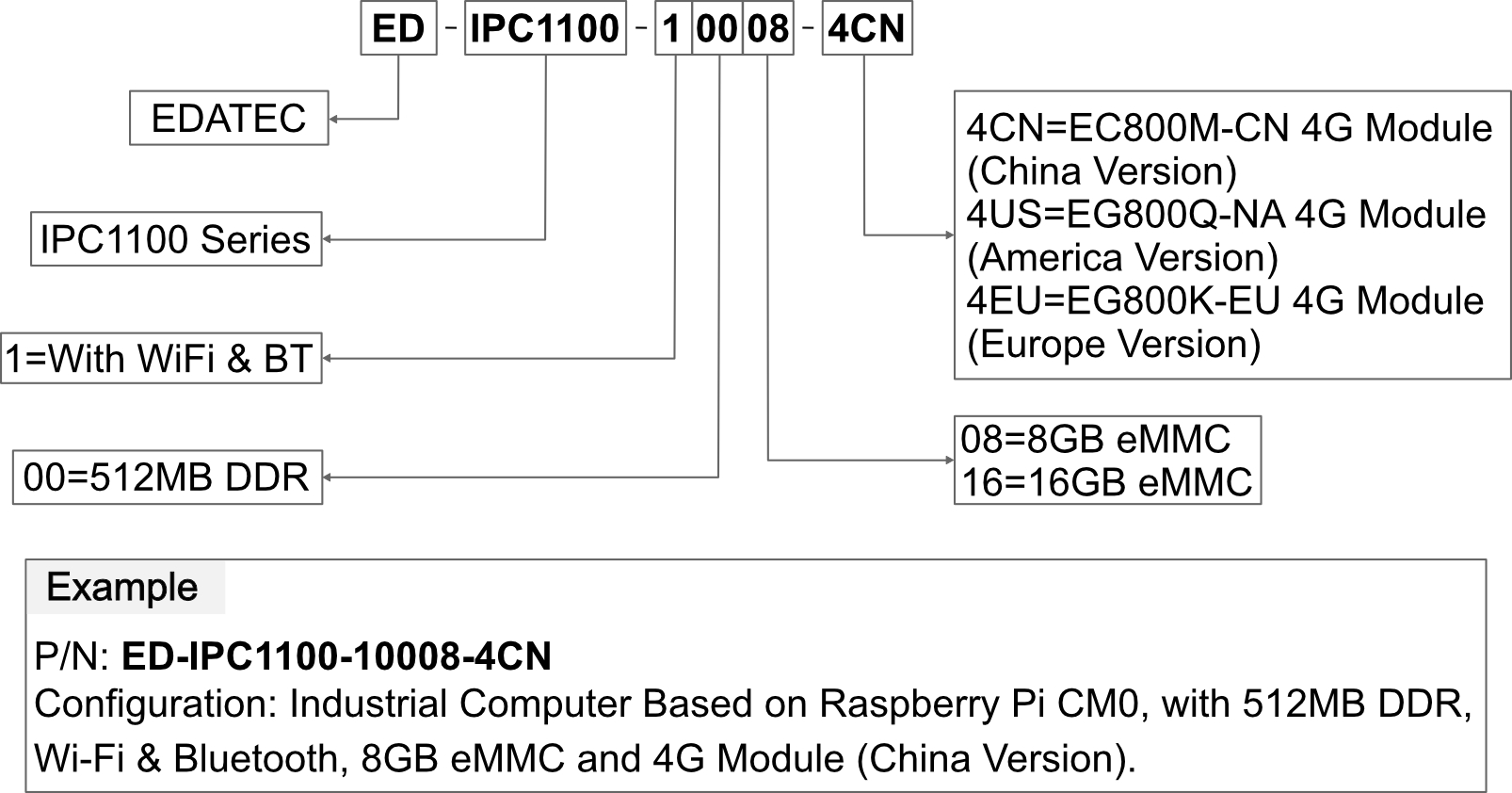

Coding Rules

ipc1100-orderingcode

Ordering Code

ModelDescriptionStocking Level
ED-IPC1100-10008-4CNWi-Fi/BT, 8GB eMMC, Chinese version 4G moduleStandard Stock
ED-IPC1100-10008-4EUWi-Fi/BT, 8GB eMMC, EU version 4G moduleStandard Stock
ED-IPC1100-10008-4USWi-Fi/BT, 8GB eMMC, US version 4G moduleStandard Stock

TIP

If you require products with other configurations, please contact our sales team separately.​

Docs
Type Title Publish Time
Datasheet ED-IPC1100 Datasheet 2026-01-15
Manual ED-IPC1100 User Manual 2026-01-15
