ED-MONITOR-215C

ED-MONITOR-215C

21.5" Full HD Rugged Waterproof Industrial HDMI Touch Monitor

Key Featured
  • 21.5“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting

ED-MONITOR-215C is an 21.5” industrial HDMI touch monitor. The flat front panel is slim and compact, with IP65 grade dustproof and waterproof process, it is the preferred model for embedded installation of cabinet equipment. With a resolution of up to 1920 x 1080, it supports USB multi-touch, is drive-free and ready to use, and has a built-in audio output interface, which is perfectly adapted to Raspberry Pi and other platforms. Aluminum alloy screen frame and sheet metal shell mechanical design, enhance the mechanical rigidity of the machine, anti-interference and heat dissipation performance.It is fearless of high and low temperatures, oil, dust, vibration and other harsh working conditions, is the ideal choice for industrial control, terminal support, human-computer interaction.

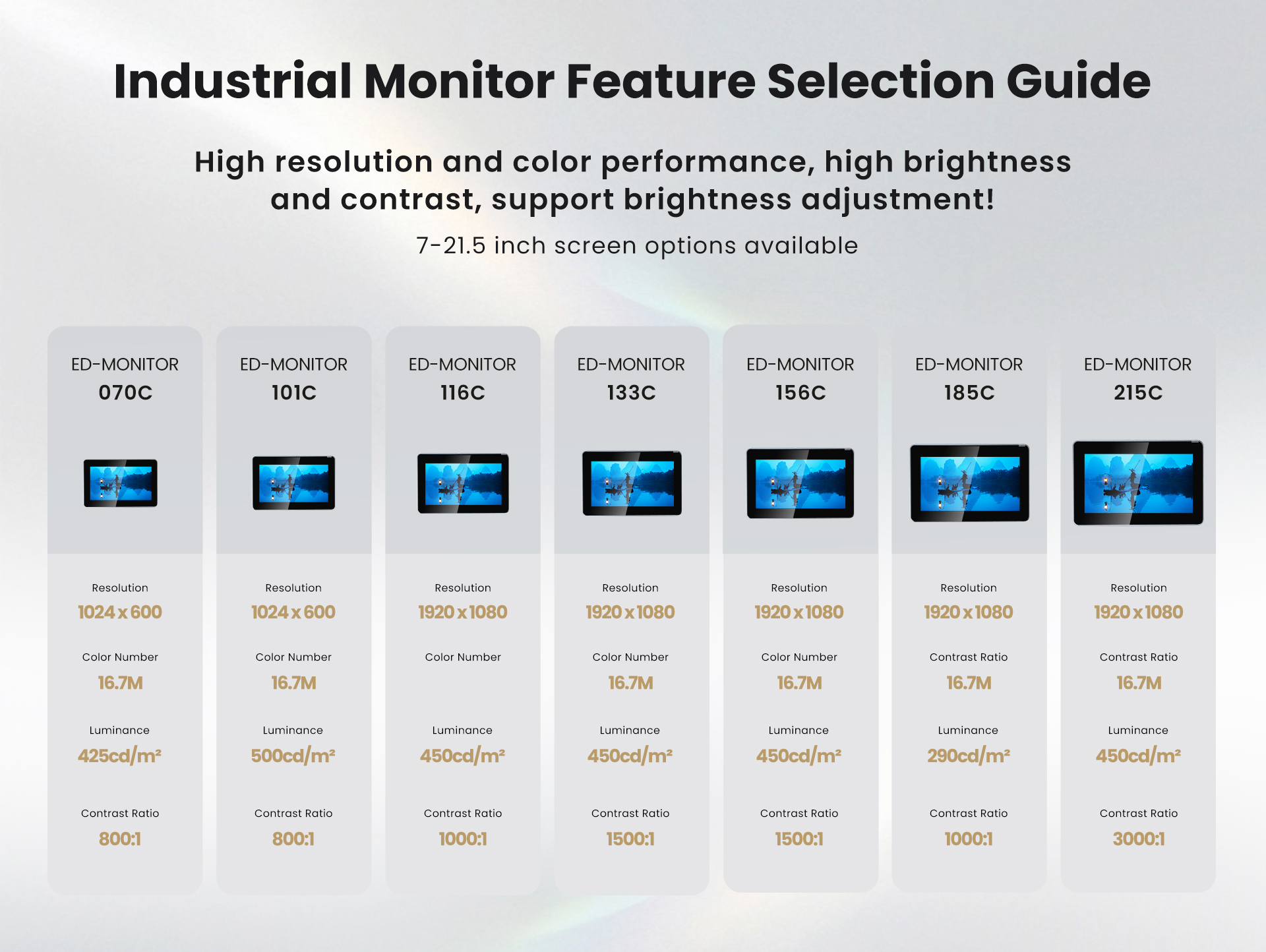

Function ClassificationED-MONITOR
070C101C116C133C156C185C215C

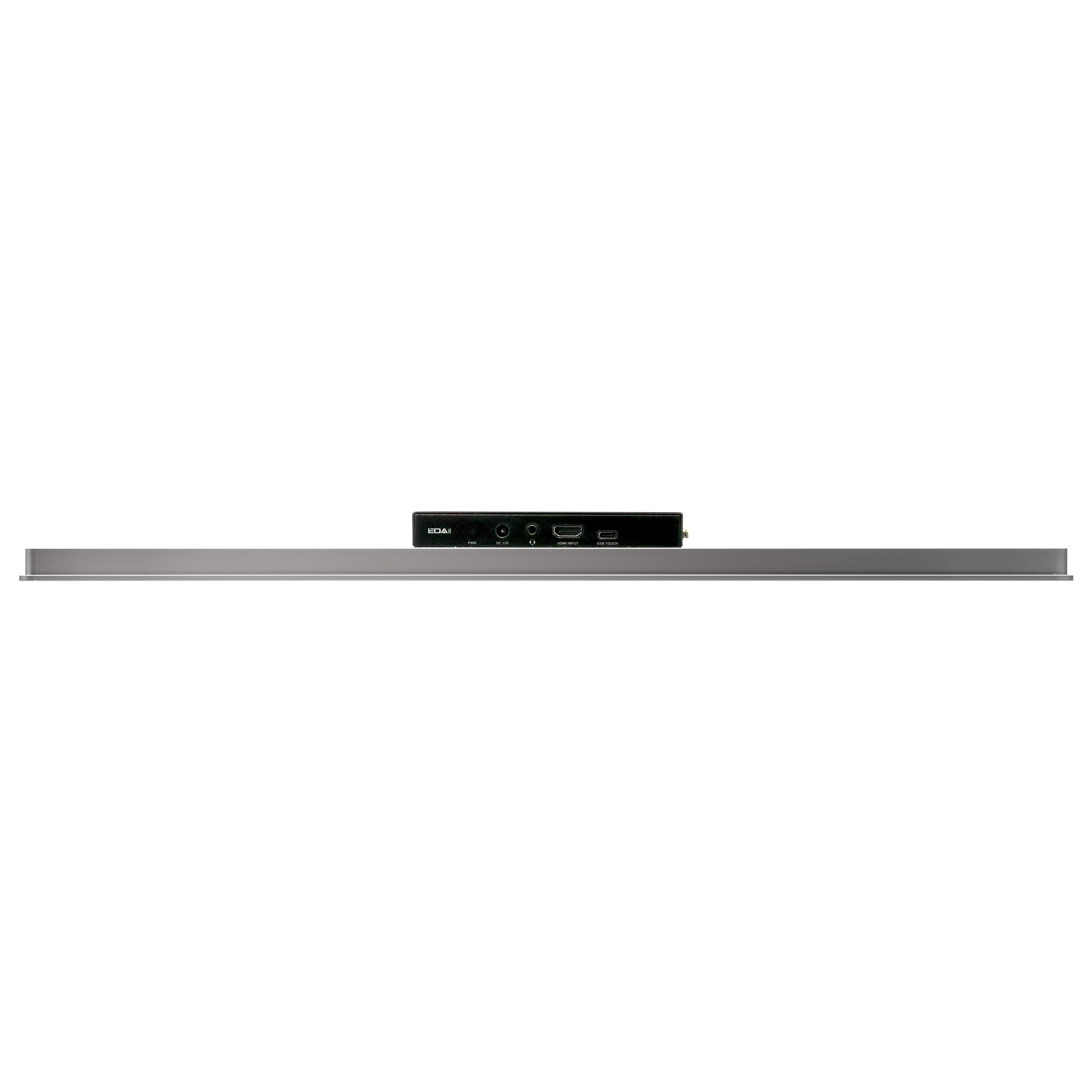

Panel I/OHDMI1 x HDMI port, Type-A connector, connecting to HDMI output.
USB1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.
Audio1 x 3.5mm audio jack, stereo audio output.
Power1 x DC Jack port, support 12V~24V power input.
Buttons and IndicatorsPWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button 2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button1 x Mute button for mute and unmute audio.
LCDType7.0" TFT 10.1" TFT11.6" TFT13.3" TFT15.6" TFT18.5" TFT21.5" TFT
Resolution 1024x6001920x1080
Color Number16.7M
Active Area(mm /HV)154.21x85.92 222.72x125.28256.32x144.18293.76x165.24344.16x193.59408.96x230.04478.656x260.280
BacklightLED
Luminance (cd/m2)425500450450450290450
Contrast Ratio800:1800:11000:1 1500:11000:1 3000:1
Response Time30ms 25ms30ms 25ms14ms6.5ms
Viewing Angle (CR>10)85° / 85°80° / 80°85° / 85°80° / 80°89° / 89°
Touch ScreenTypeapacitive Touch Screen
Multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85%
Surface Hardness≥6H
Electrical CharacteristicsInput Voltage12-24V DC
Power Consumption10W 15W18W
Mechanical CharacteristicsDimensions (mm) 188x123x20.8257.7x159.7x28303.4x191.4x46.5340.4x211.4x46.5388.4x238.4x46.5457.3x278.3x46.5531.3x317.8x46.5
WeightAbout495gAbout940gAbout1.9kgAbout2.1kgAbout2.3kgAbout3.1kgAbout4.6kg

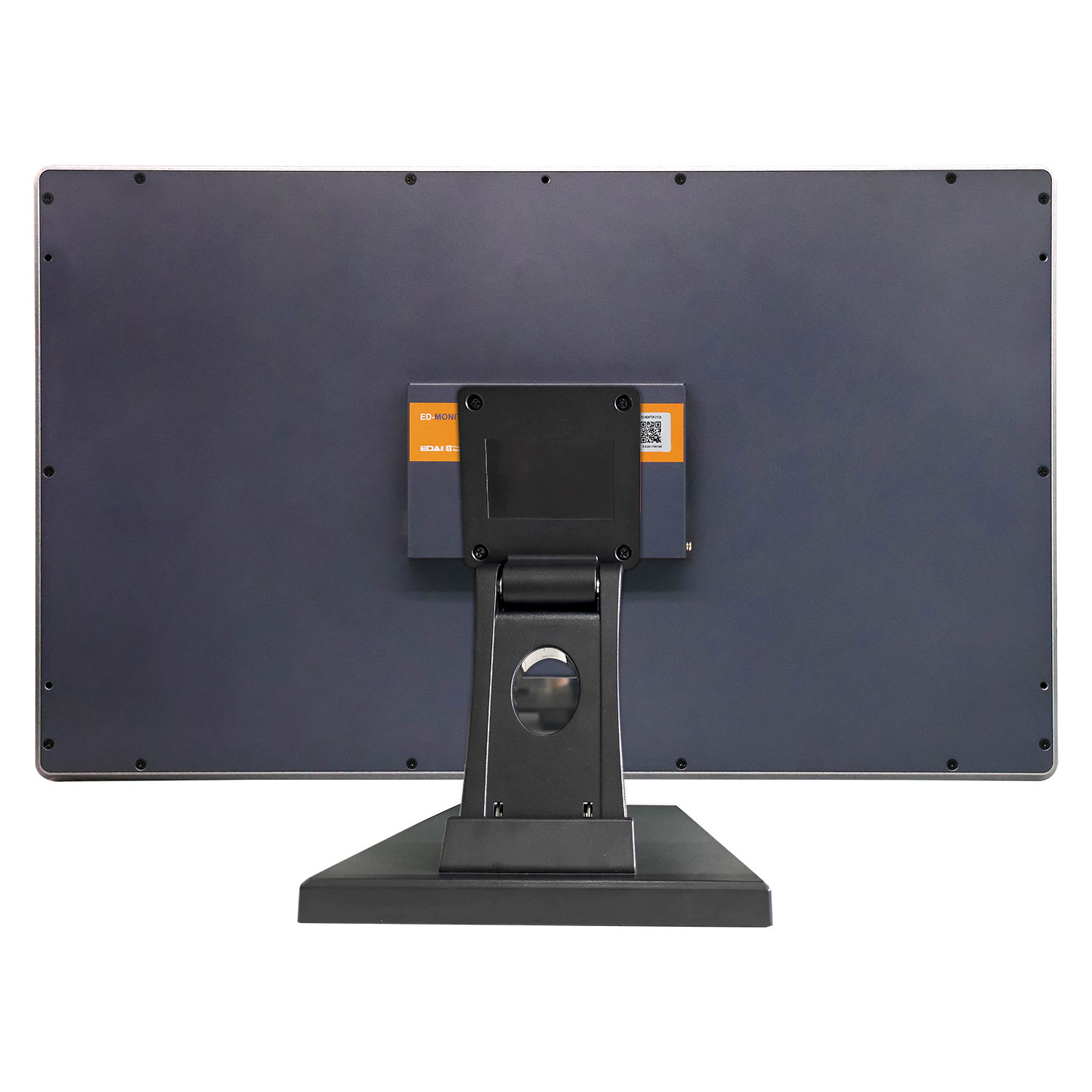

InstallationEmbedded front installationEmbedded front installation and VESA bracket mounting
Environmental & RegulatoryOperating Temperature-10°C ~60°C0°C ~ 50°C
Storage Temperature-20°C ~70°C
-20°C ~ 60°C
Ambient humidityAmbient humidity 5% ~ 95%(non-condensing)


System Diagram
monitor-215c-diagram
Specification
Panel I/O
HDMI1 x HDMI port, Type-A connector, connecting to HDMI output.
USB1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.
Audio1 x 3.5mm audio jack, stereo audio output
Power1 x DC Jack port, support 12V~24V power input.
Buttons and Indicators
PWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button1 x Mute button for mute and unmute audio.
LCD

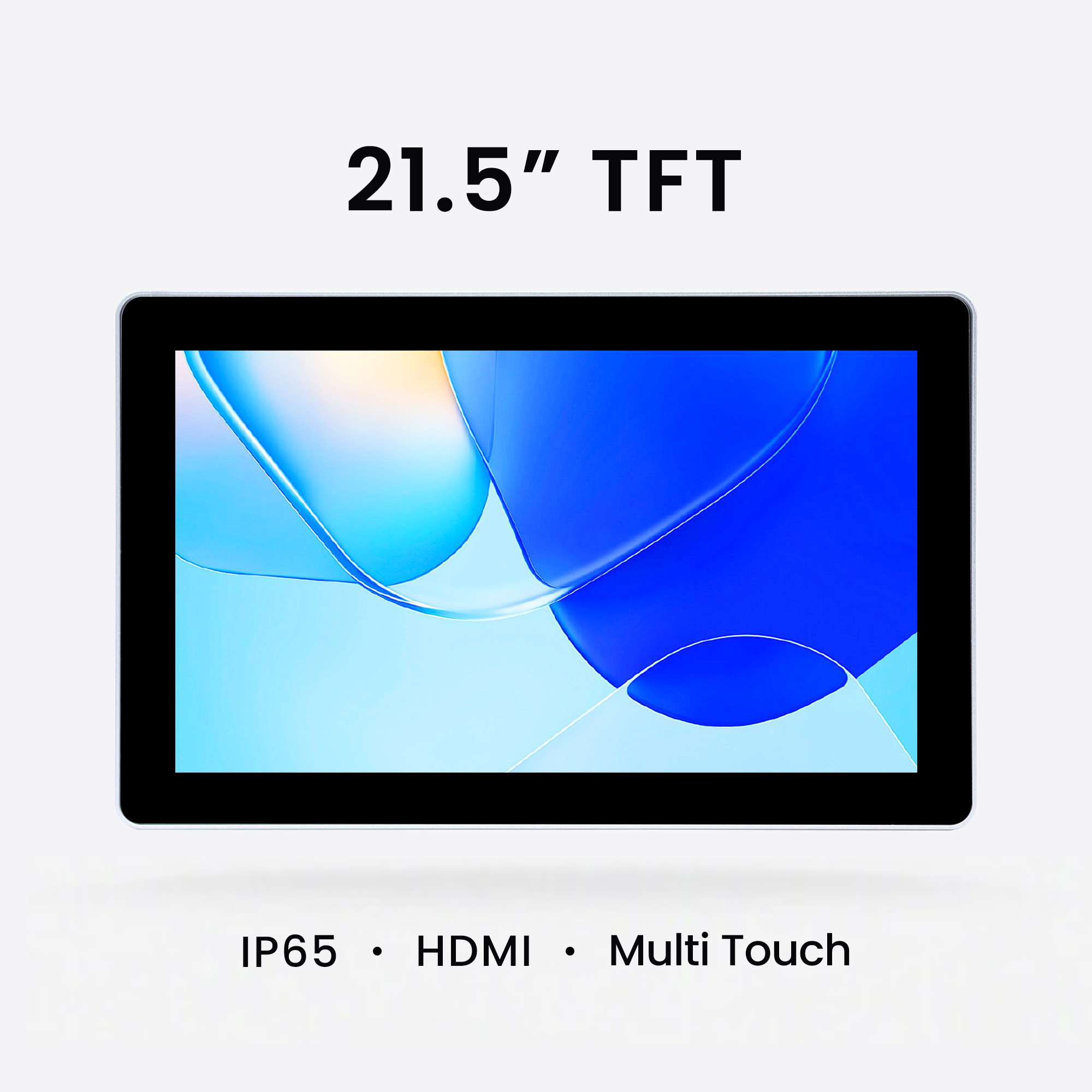

Type21.5" TFT
Resolution1920 x 1080
Color Number16.7M
Active Area478.656mm (H) x 260.280mm (V)
BacklightLED
Luminance450cd/m2
Contrast Ratio3000:1
Response Time6.5ms
Viewing Angle (CR≥10)89° (L) / 89° (R) / 89° (U) / 89° (D)
Touch Screen
TypeCapacitive Touch Screen
multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85%
Surface Hardness≥6H
Electrical Characteristics
Input Voltage12V~24V DC
Power Consumption18W (Max)
Mechanical Characteristics
Dimensions531.3mm x 317.8mm x 35mm (WxDxH)
WeightAbout 4.6kg

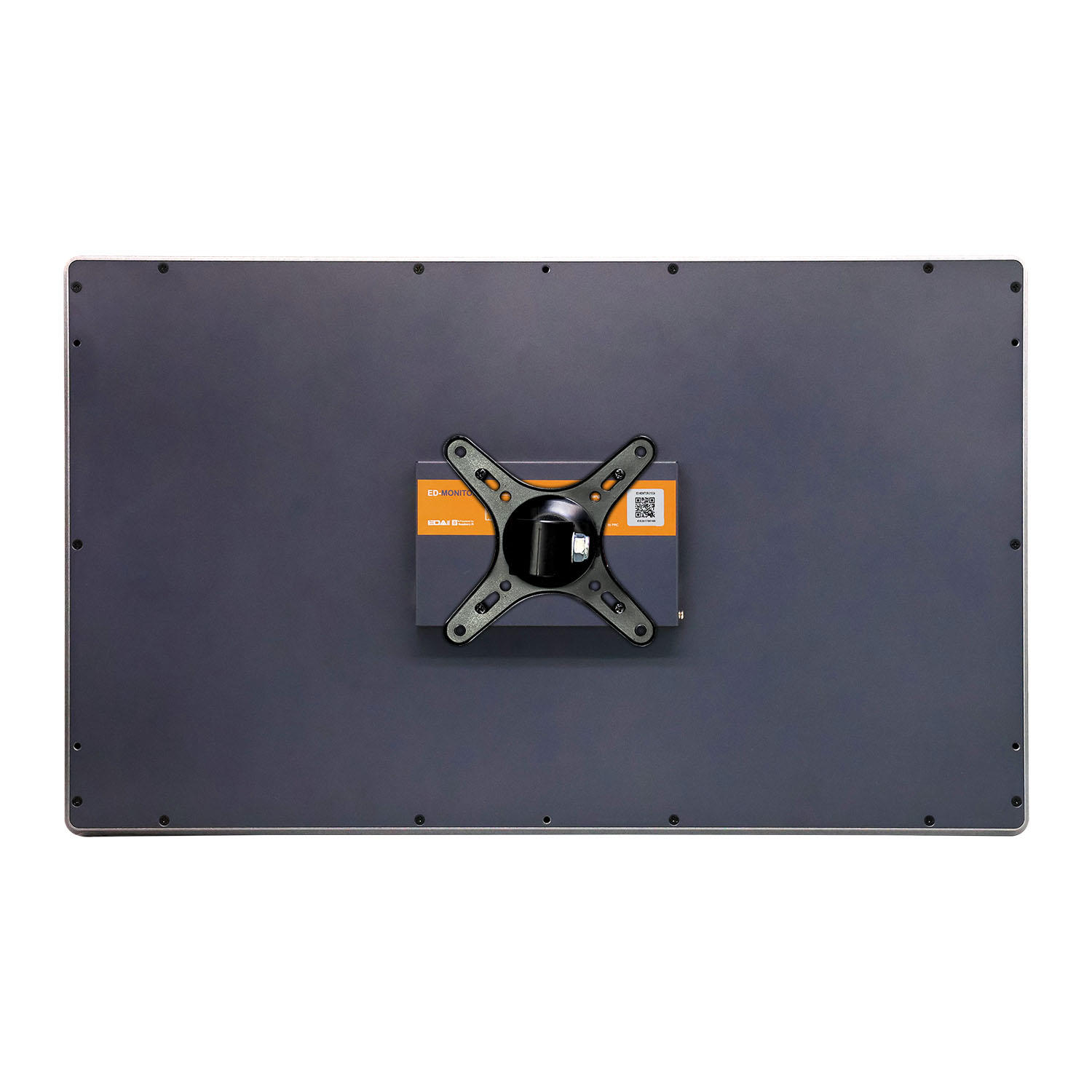

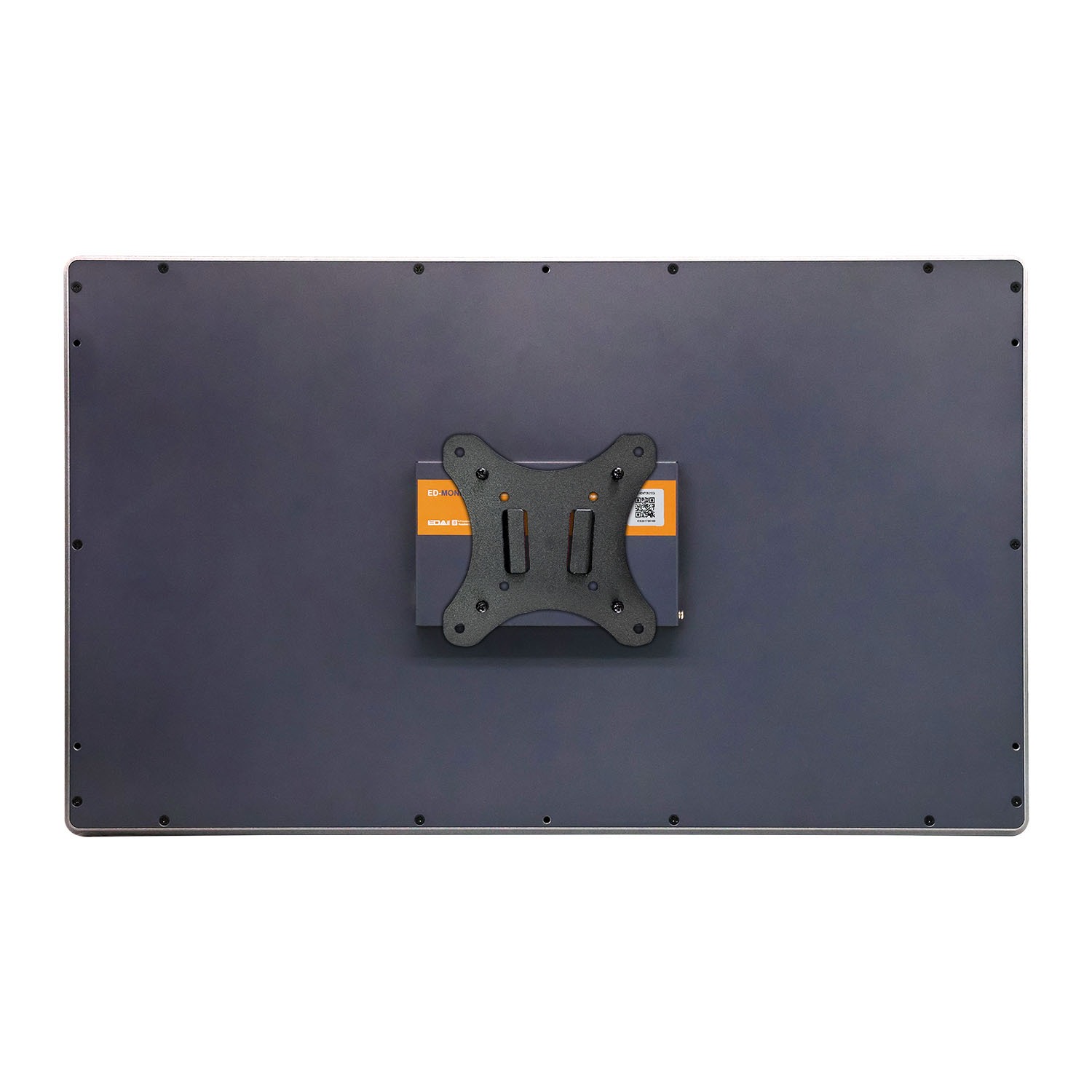

InstallationEmbedded front installation and VESA bracket mounting
Environmental & Regulatory
Operating Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Ambient humidity5% ~ 95% (non-condensing)

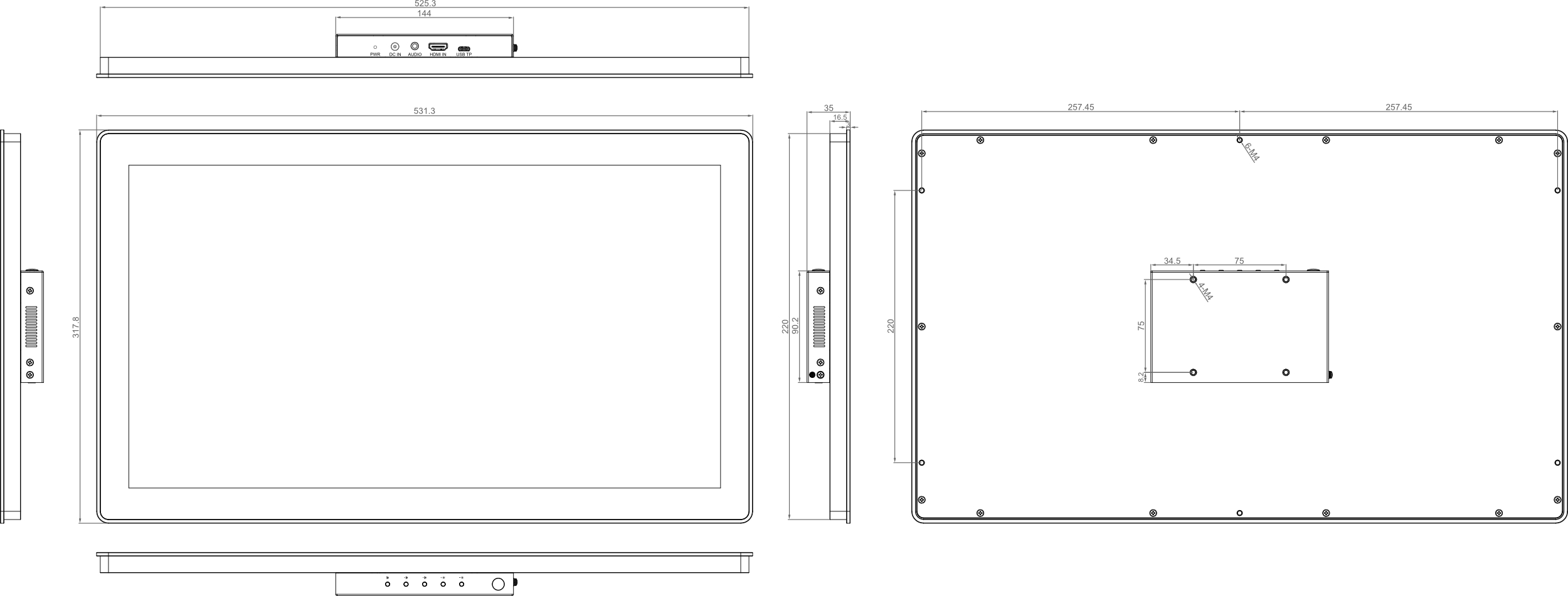

Mechanicals

Unit: mm

monitor-215c-dimension
Ordering Code
monitor-215c-orderingcode
Docs
Type Title Publish Time
Datasheet ED-MONITOR-215C Datasheet 2025-05-09
Related Products
ED-VESA-C

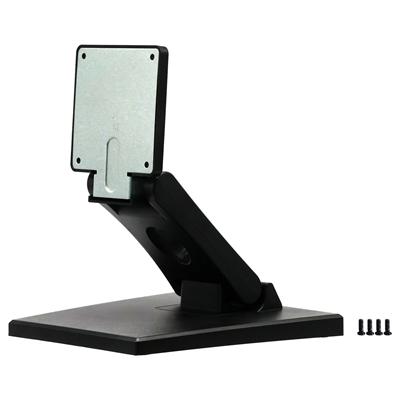

  • VESA 75mm Desk Mount Bracket
ED-VESA-B
  • VESA Adjustable Wall-mounted Bracket​

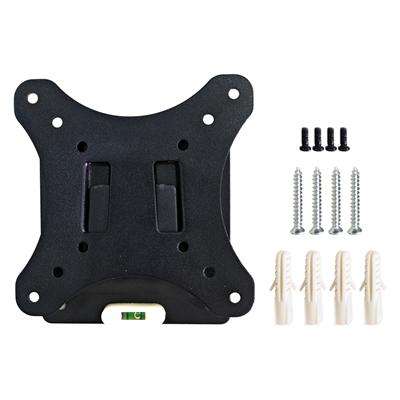

ED-VESA-A

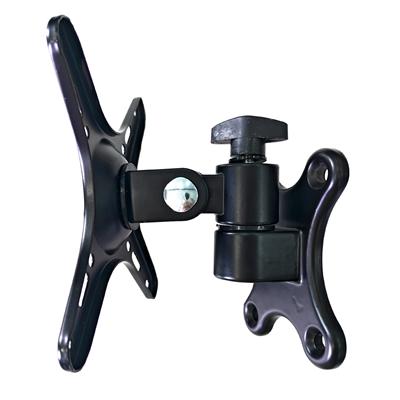

  • VESA Wall-mounted Bracket

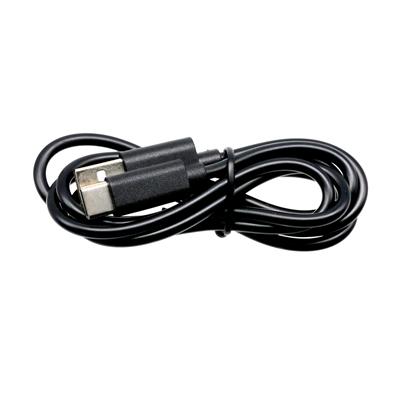

ED-CAB-USBC
  • USB-A to USB Type-C Cable

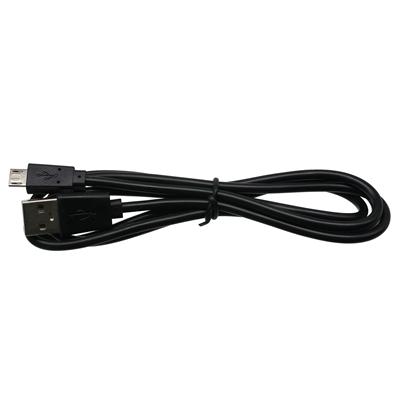

ED-CAB-USBB
  • USB-A to Micro USB Cable

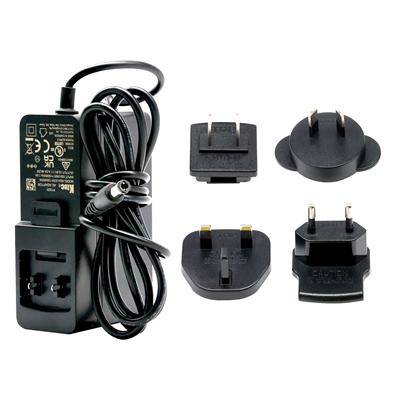

ED-PSU1204
