ED-GWL901

ED-GWL901

A cost-effective industrial LoRa gateway offering flexible storage configurations and versatile interfaces for complex deployments.

Key Featured
  • Supports CM3+/CM3/CM1 full series solutions.
  • Includes WiFi, Bluetooth, optional 4G Module, and optional LoRa for diverse connectivity.
  • Features 10/100M Ethernet, USB2.0, UART, and RS485 with lightning protection.
  • Equipped with 2Kb EEPROM and 32Mb Serial Flash for system and user data storage.
  • RTC, low voltage detector, and a high precision temperature sensor for reliable operation.
  • Raspberry Pi Standard 40 Pins Connector, Mini PCI-e, and 24 Pins DIP connector.
  • Supports high-resolution cameras via CSI, HDMI output, and official Raspberry Pi displays via DSI.
  • Accepts 8~18V DC Input, providing flexibility for various power sources.
  • Comes with Raspberry Pi Raspbian OS pre-installed for immediate use.
  • Features LED indicators, system reset button, custom user button, and a buzzer for interaction.
  • With dimensions of 160mm x 120mm x 20mm, it's built for durability in IoT applications.

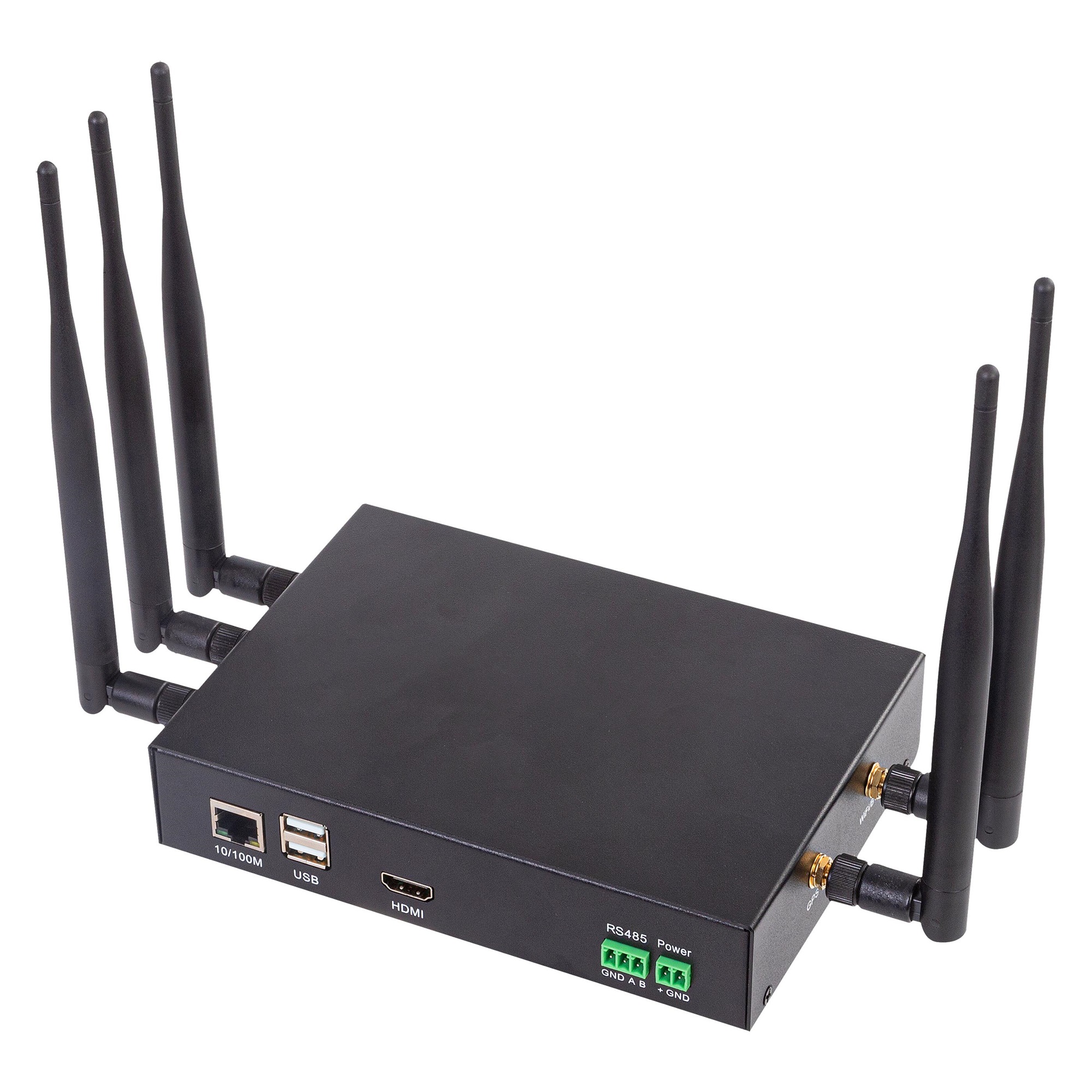

ED-GWL901 is a versatile IoT gateway based on the Raspberry Pi Compute Module, designed specifically for a wide range of IoT applications.

This gateway supports the full series of Raspberry Pi Compute Modules, including CM3+, CM3, and CM1, providing a robust platform for developers and businesses looking to build and manage IoT networks.

One of the standout features of ED-GWL901 is its rich wireless communication capabilities, which include WiFi, Bluetooth, and optional 4G LTE and LoRa modules.

This flexibility allows users to create an IoT network that can communicate effectively across various devices and platforms.

In addition to wireless connectivity, the gateway also supports multiple wired communication options, such as 10/100M Ethernet, USB 2.0, UART, and RS485, ensuring comprehensive connectivity for diverse applications.

ED-GWL901 is equipped with onboard storage options, including a microSD card slot, a 2Kb EEPROM, and a 32Mb serial flash, which can be used to store system and user data.

This storage capability is complemented by a real-time clock (RTC), a temperature sensor, and a low voltage detector circuit, which monitor the system's operating conditions and help ensure reliable performance.

For multimedia applications, the gateway supports high-resolution cameras through its CSI interface and can connect to Raspberry Pi official displays via the DSI interface.

The powerful video codec capabilities enable a variety of multimedia applications, making  ED-GWL901 suitable for more than just basic IoT tasks.

Users can expand the functionality of ED-GWL901 through several interfaces, including a Raspberry Pi standard 40-pin connector, a Mini PCI-e socket, and a 24-pin DIP connector.

This allows for the integration of additional features and capabilities tailored to specific IoT requirements.

With dimensions of 160mm x 120mm x 20mm, the ED-GWL901 is compact and designed for easy integration into various environments.

It operates on a power supply of 8 to 18V DC, making it adaptable to different power sources. The software environment is based on the Raspberry Pi Raspbian OS, providing a familiar and robust platform for development.

In summary, ED-GWL901 is a powerful and flexible IoT gateway that combines the capabilities of the Raspberry Pi Compute Module with extensive connectivity options, making it an ideal choice for building and managing IoT networks across various applications.

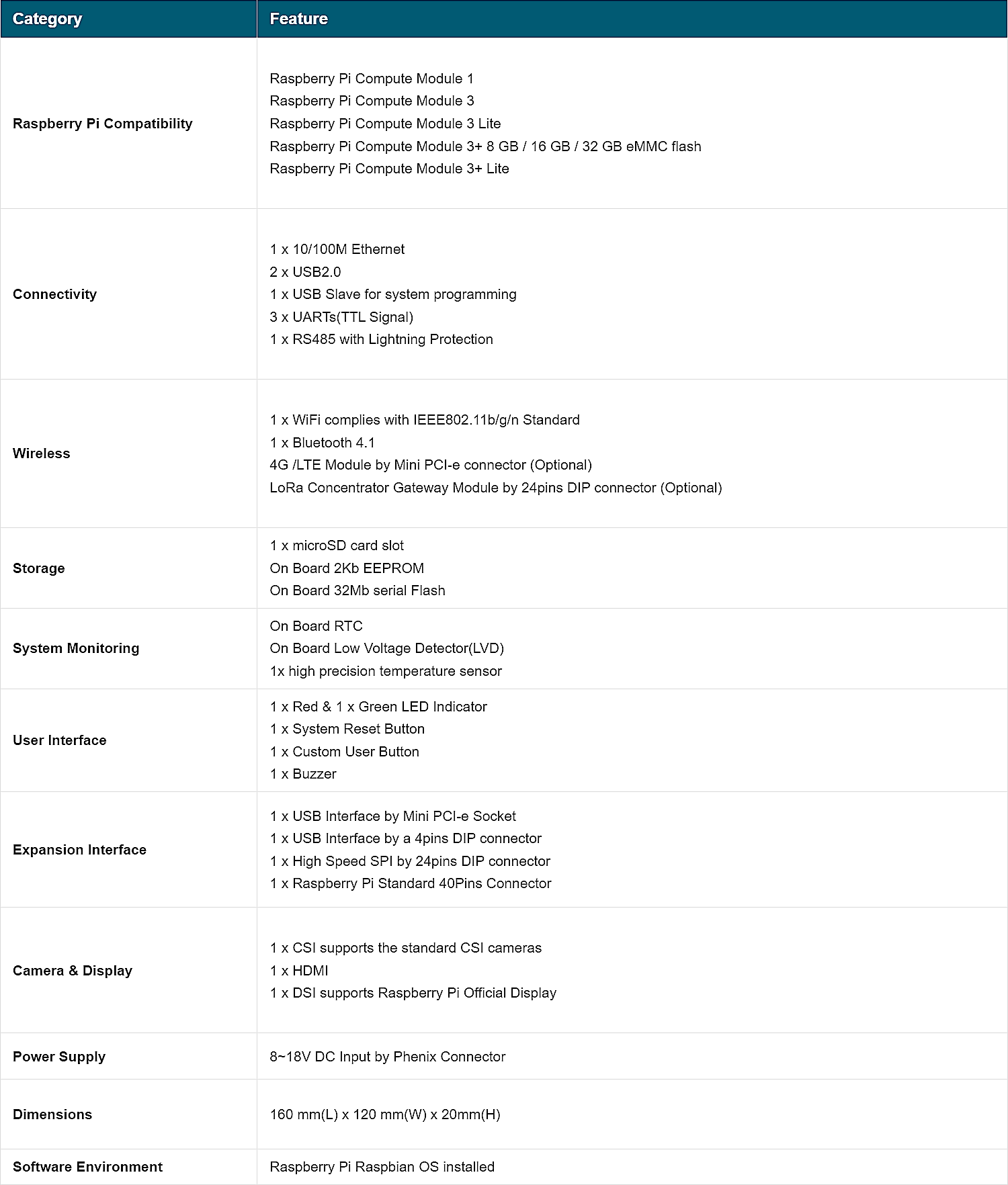

Specification

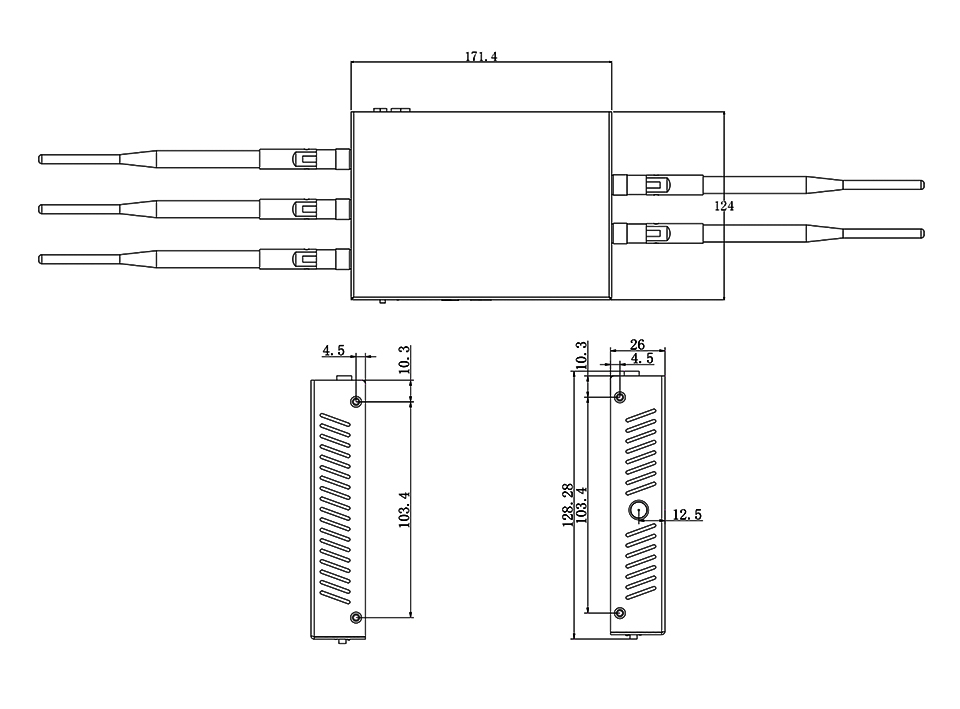

Mechanicals

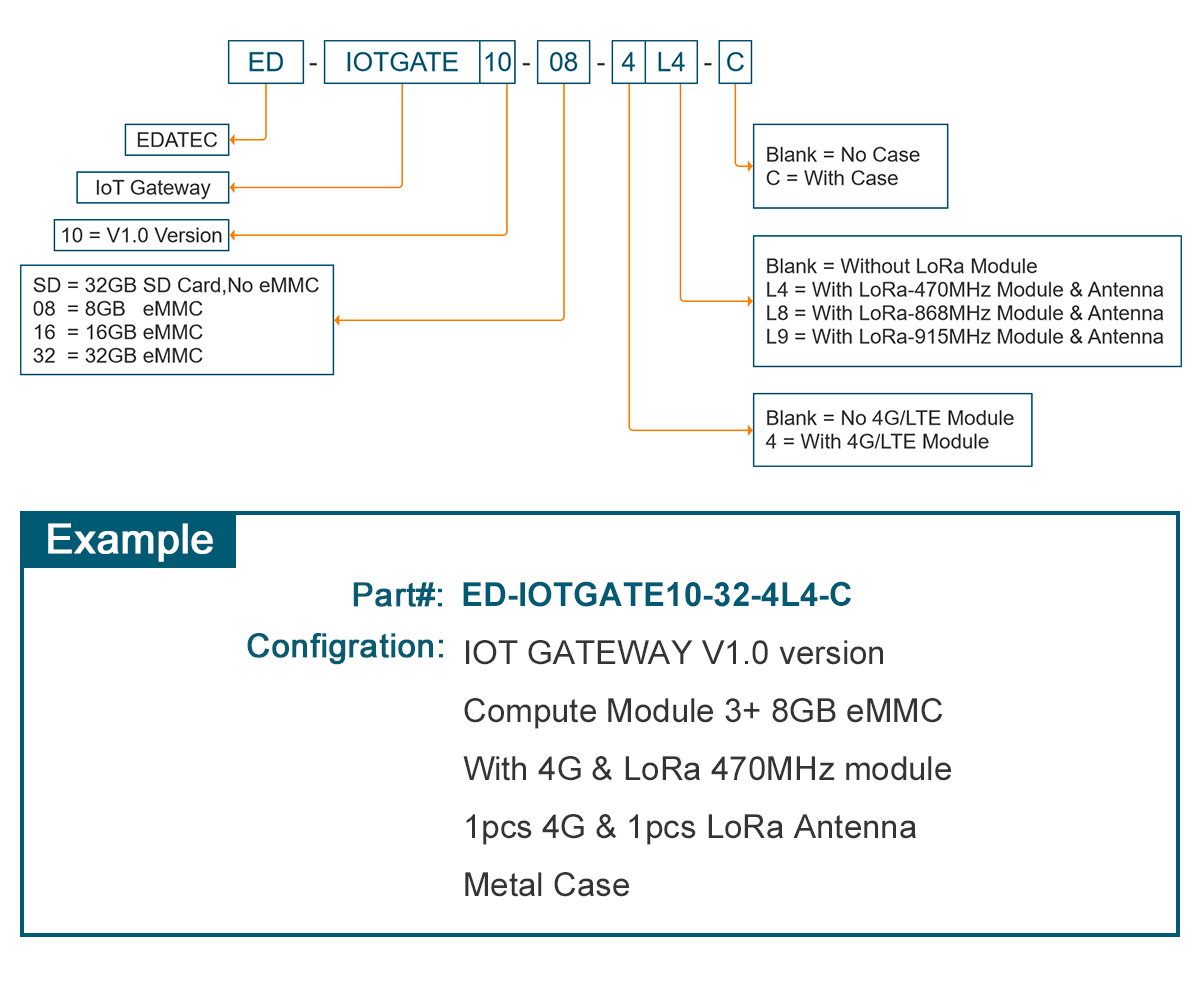

Ordering Code


Docs
Type Title Publish Time
PDF ED-GWL901 Datasheet-en.pdf 2024-04-10
