Home > Products > Industrial AI Camera

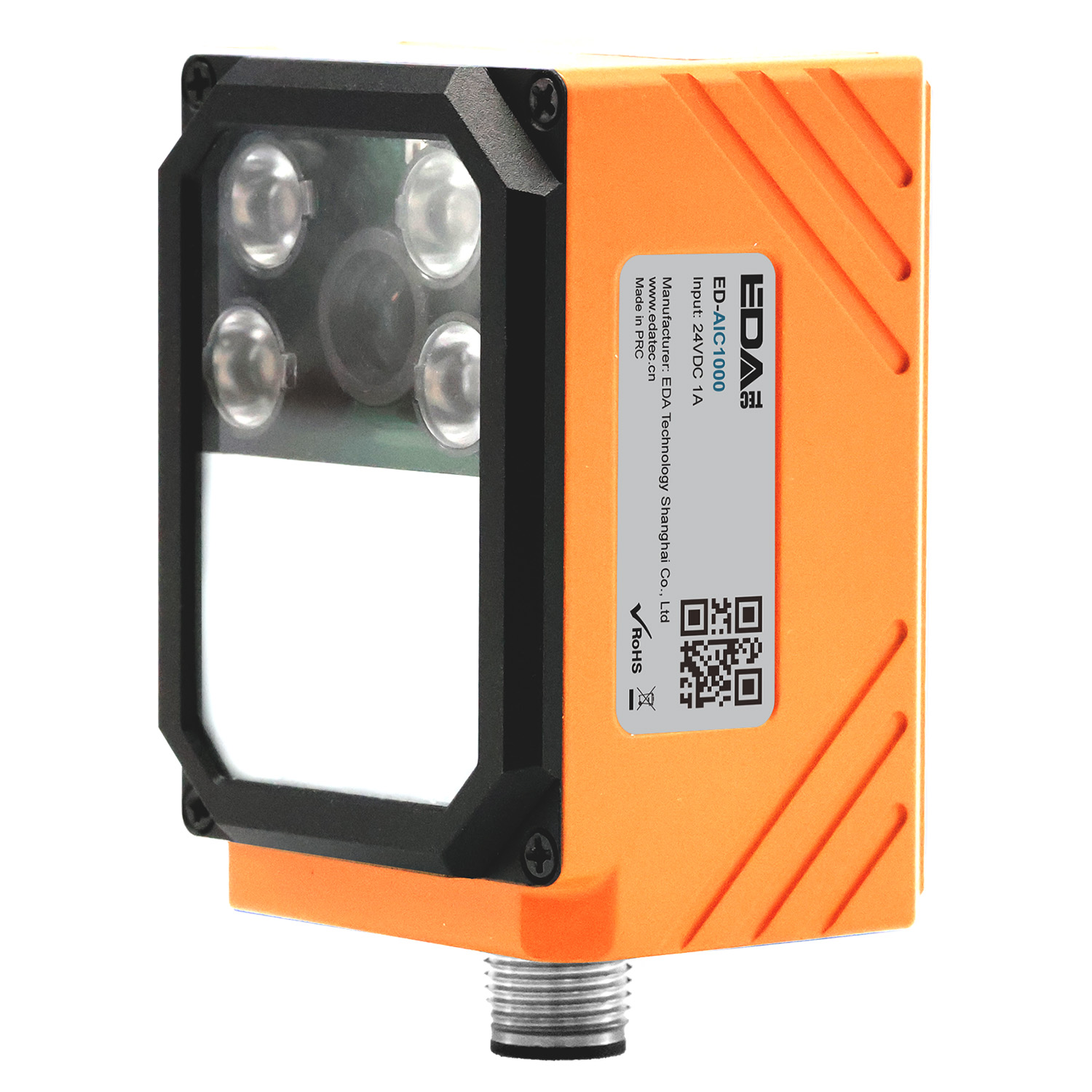

ED-AIC1000

Compact industrial smart camera based on the Raspberry Pi CM0 with an entry-level cost

Key Features

  • Powered by Raspberry Pi CM0, 1GHz quad-core 64-bit Arm Cortex-A53 CPU, 512MB LPDDR2 SDRAM

  • 1.3MP global shutter sensor, up to 120fps full resolution, no motion blur

  • Polarized modular illumination, ideal for complex surface

  • Motorized autofocus lens, large depth of field, support flexible configuration

  • Equipped with 1x RS232, 1x Ethernet, 1x trigger DI, 1x isolated DO

  • Industrial-grade reliability, with 0-60°C wide temperature range，vibration-resistant with EN 60068

  • Shares Raspberry Pi ecosystem, supports rapid development


Online Docs

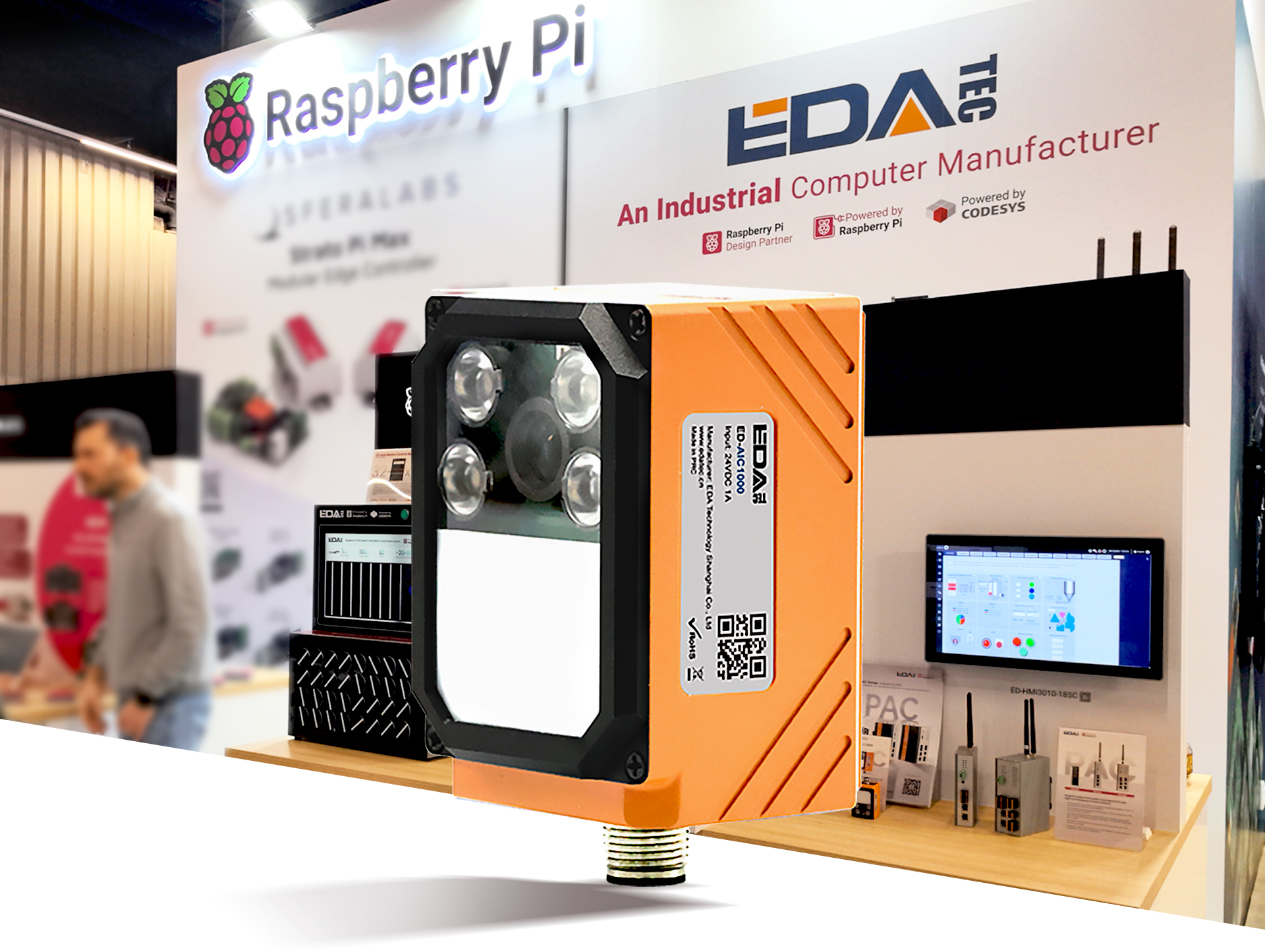

This is a compact industrial smart camera powered by the latest Raspberry Pi CM0 platform, designed for industrial automation scenarios to deliver high-performance machine vision at an affordable cost with seamless integration into various automation systems. We have officially showcased this product at Embedded World in Germany, which has attracted extensive attention from industrial customers and partners. This product is expected to be officially launched in Q2 2026. A limited number of samples are available for purchase now, and pre-orders are open, allowing you to be the first to experience the latest technology!

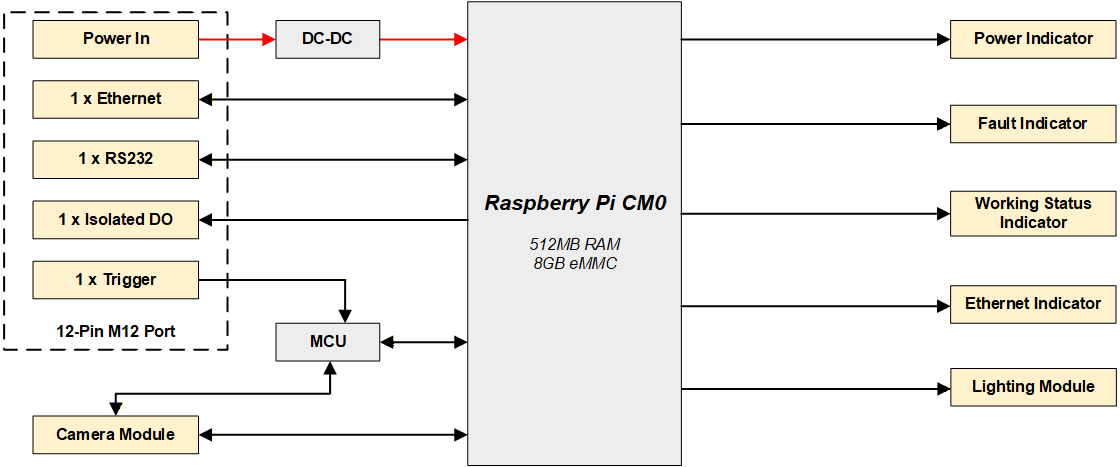

System Diagram
aic1000-diagram
Specification
System
CPU1GHz quad-core 64-bit Arm Cortex-A53 processor
VPUH.264/MPEG-4 video decoding, 1080p@30fps
H.264 encoding, 1080p@30fps
GPUOpenGL ES 1.1/2.0 graphics processing
Memory512MB SDRAM
Storage8GB or 16GB eMMC storage available
Software
Operating SystemRaspberry Pi OS (Lite) 32-bit
Communication ProtocolsModbus TCP, TCP/IP, and UDP
Panel I/O

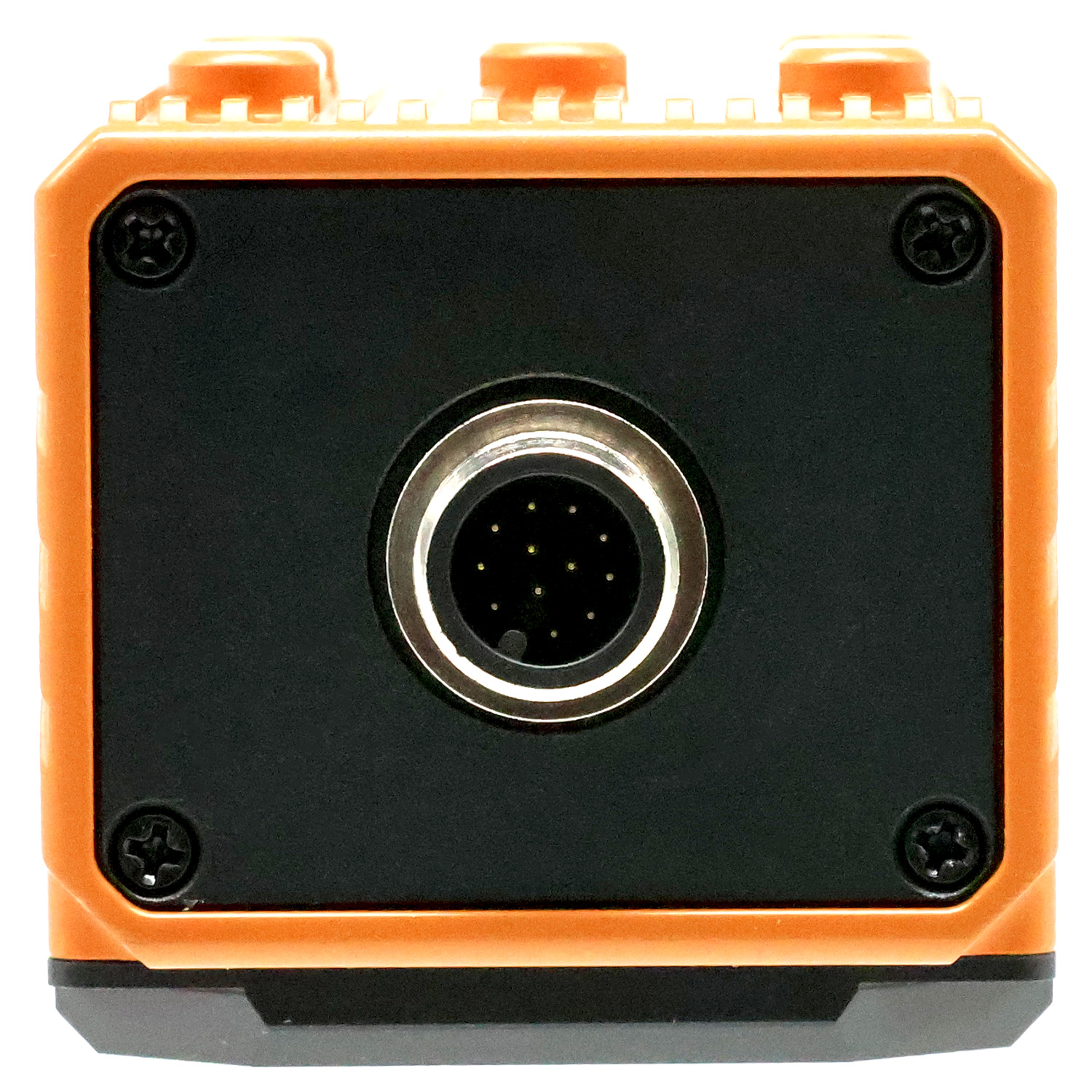

Power & I/O (12-Pin)1 x Power & I/O Connector, 12-Pin aviation connector. External signals are accessed via a Power & I/O Cable (12-Pin M12 female to bare wire/RJ45), including power input, 100M Ethernet, RS232, trigger, and DO.
  • 1 x DC IN: 2-Pin, supports DC 24V input, signal definition DC-/DC+
  • 1 x 100M Ethernet: 4-Pin, signal definition TX+/TX-/Rx+/RX-
  • 1 x RS232: 2-Pin, signal definition TX/RX
  • 1 x DO: 2-Pin, signal definition DO/COM_OUTPUT
  • 1 x Trigger: External trigger signal, 2-Pin, signal definition Trigger+/Trigger+

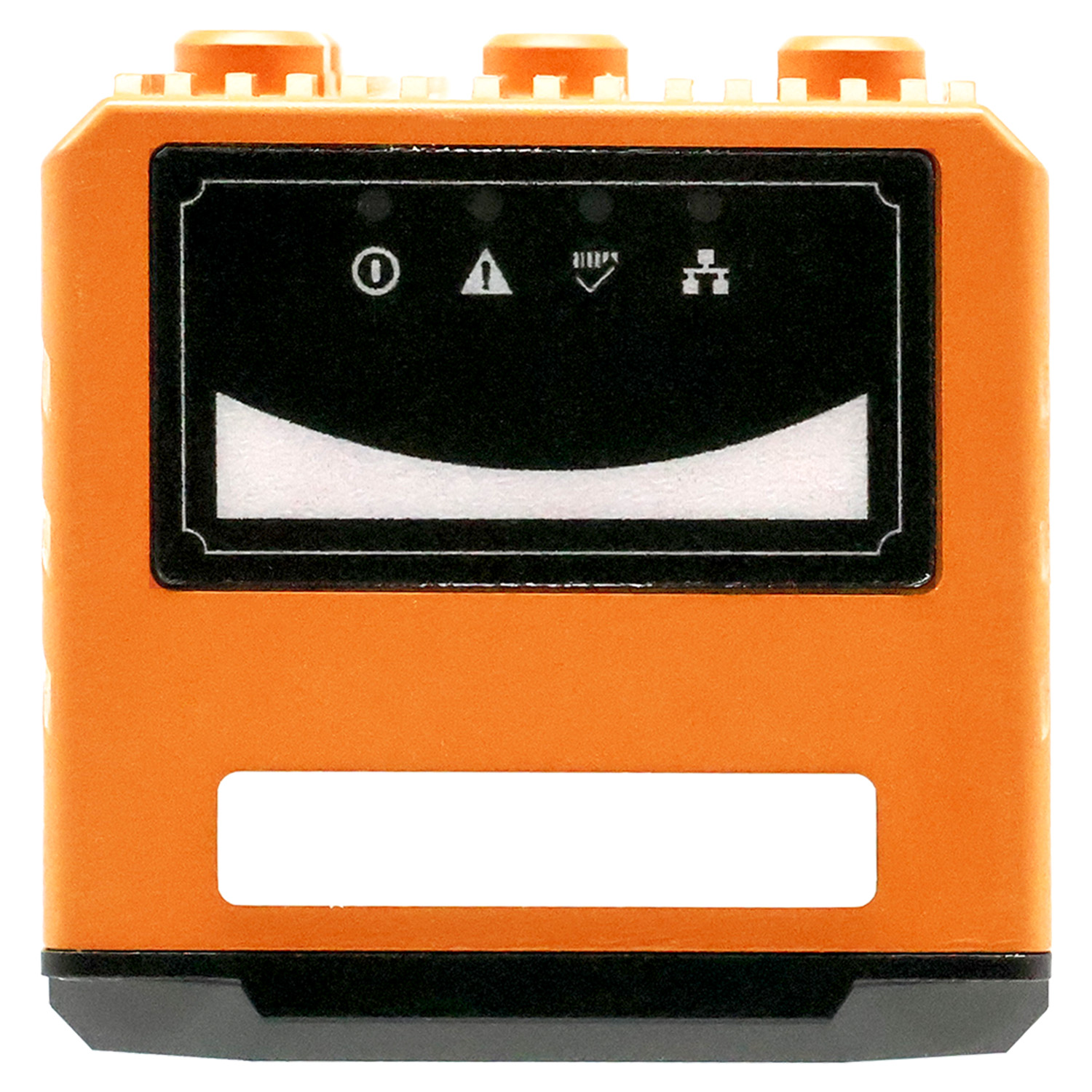

Indicator
Power1 x Power indicator, indicates camera power on/off status
Fault1 x Fault indicator, indicates camera fault status
Status1 x Status indicator, indicates camera operational status
Network2 x Network indicators, indicate network link and data communication status

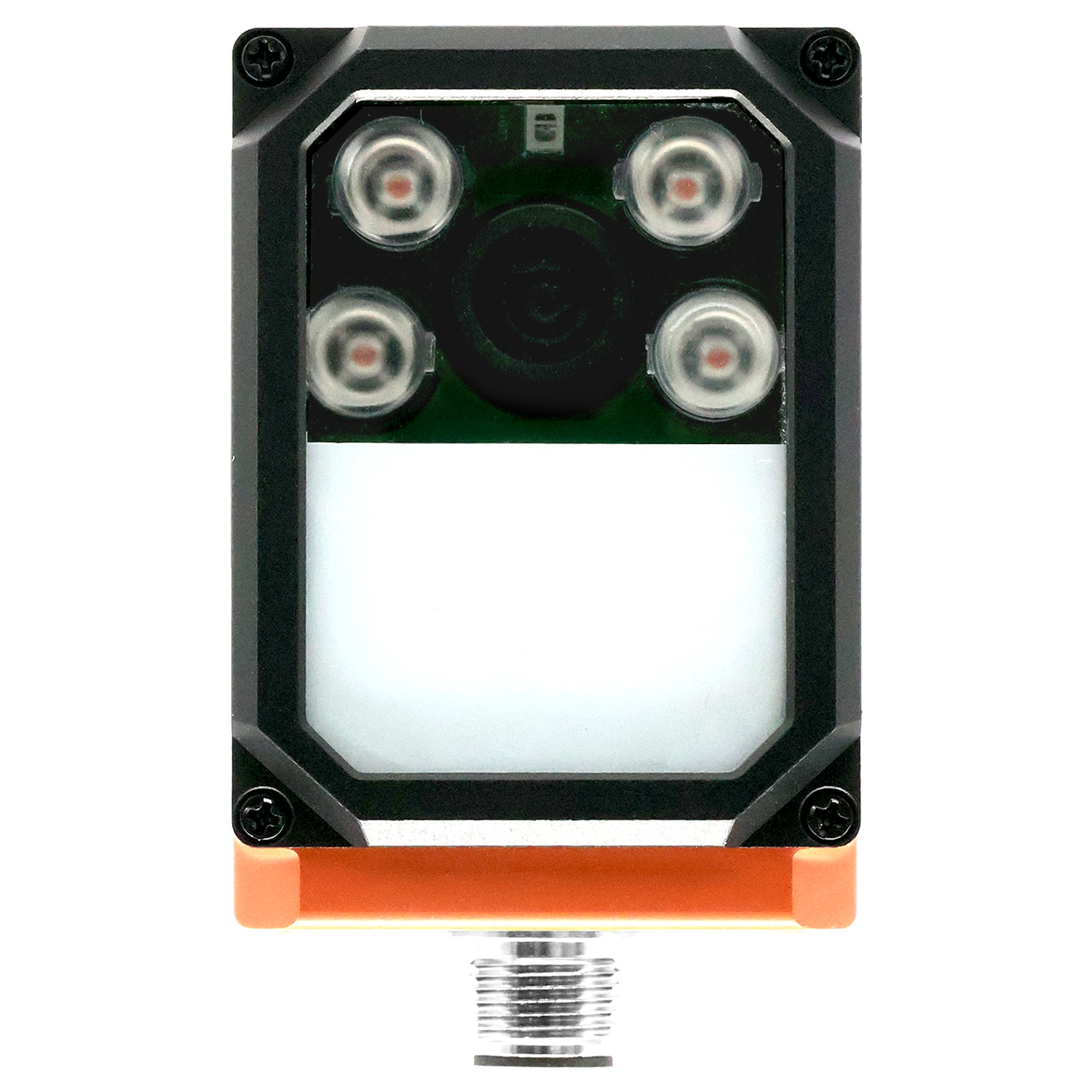

Lighting and Lens
Lighting3 lighting zones, default red light, each zone supports independent configuration
LensSupports optional 6mm, 8mm, or 12mm M12 fixed-focal-length lenses
Includes motorized auto-focus module for automatic focusing
Performance Characteristics
Image Sensor1.3MP, Global Shutter
Frame RateUp to 120 FPS
Aiming PointRed LED dot
Electrical Characteristics
Input VoltageDC 24V (±10%)
A DC 24V 1A power adapter is recommended.
Power Consumption24W (Max)
Mechanical Characteristics
Dimensions67mm x 46mm x 46mm
WeightAbout 120g

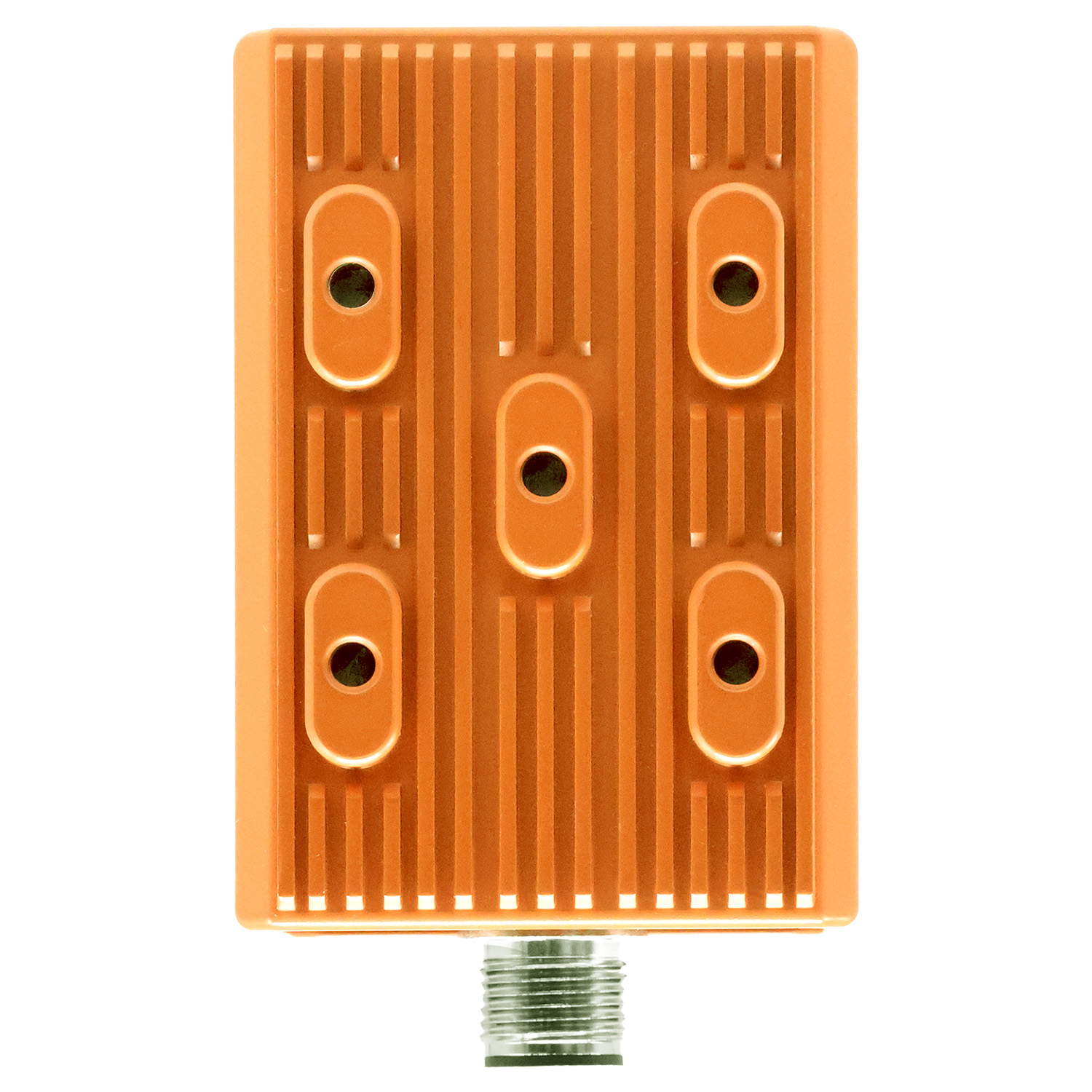

InstallationBracket mounting, mounting bracket optional
Environmental & Regulatory
Operating Temperature0°C ~ 60°C
Storage Temperature-40°C ~ 70°C
Ambient Humidity5% ~ 90% (non-condensing)
Mechanicals

Unit: mm

aic1000-dimension
Ordering Code

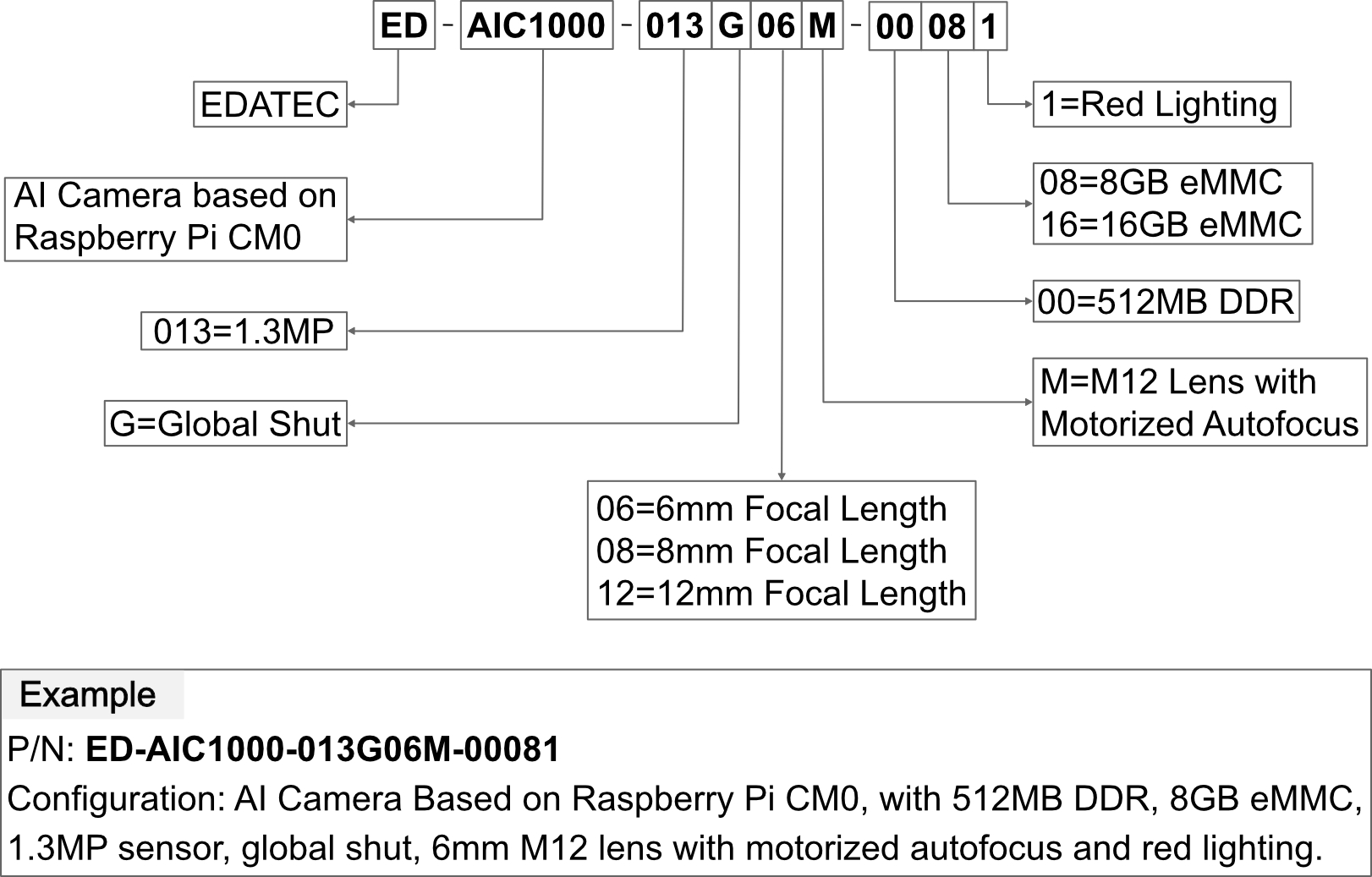

Coding Rules

aic1000-orderingcode

Ordering Code

ModelDescriptionStocking Level
ED-AIC1000-013G06M-0008100512MB DDR, 8GB eMMC, 1.3MP sensor, global shut, 6mm M12 lens with motorized autofocus and red lightingPreview
ED-AIC1000-013G08M-0008100512MB DDR, 8GB eMMC, 1.3MP sensor, global shut, 8mm M12 lens with motorized autofocus and red lightingPreview
ED-AIC1000-013G12M-0008100512MB DDR, 8GB eMMC, 1.3MP sensor, global shut, 12mm M12 lens with motorized autofocus and red lightingPreview

TIP

If you require products with other configurations, please contact our sales team separately.

Docs
Type Title Publish Time
Datasheet ED-AIC1000 Datasheet 2026-03-06
