EtherCAT Temperature Input Module

EtherCAT Temperature Input Module

The EtherCAT temperature input module is a high-precision device for industrial automation

Key Featured
  • 4-channel RTD module, 4-channel TC module
  • Each channel is equipped with the LED for an operation check
  • Support PT100/PT200/PT500/PT1000/Ni20 RTDs
  • Support K/J/T/E/N/S/R/B/C TCs
  • Plug-in construction, DIN-rail installation
  • PT removable terminal block for screwless wiring
  • Support cascading up to 32 I/O modules without additional power supply


In the field of industrial automation, EtherCAT temperature input modules are key devices for high-precision temperature measurement. Here is a detailed introduction to these modules:

Product Features

  • High-Precision Temperature Measurement: Offers 4-channel inputs for both RTD and thermocouple sensors, supporting various sensor types, with a resolution of 0.1°C and an accuracy of ±1°C, ensuring accurate temperature measurement.
  • Multiple Sensor Support:RTD: Supports PT100, PT200, PT500, PT1000, and Ni20 type RTDs.Thermocouple: Supports K, J, T, E, N, S, R, B, and C type thermocouples.
  • Multiple Connection Methods: Supports 2-wire, 3-wire, and 4-wire connections, defaulting to 3-wire.
  • High Reliability: Equipped with optocoupler isolation and an isolation voltage of AC 500V, ensuring stable signal transmission and reducing electromagnetic interference.
  • LED Status Indicators: Each channel has an independent LED indicator light, facilitating on-site debugging and fault diagnosis. The LED lights have two states: flashing and off, indicating that the channel is detecting a temperature signal and no signal input, respectively.
  • Plug-in Structure: Supports rail mounting, making installation and maintenance simple.
  • Cascading Function: Up to 32 modules can be cascaded without additional power supplies, simplifying system wiring.

Technical Specifications

  • Number of Input Channels: 4 channels.
  • Temperature Range:RTD: -200~+800°C (PT sensors), -79~+309°C (Ni sensors).Thermocouple: K type (default): -100~+1370°C.
  • Resolution: 0.1°C.
  • Accuracy: ±1°C.
  • Overvoltage Protection: Supported.
  • Isolation Voltage: 500V between the field side and the digital side, no isolation between channels.
  • Dimensions: 100mm x 67.6mm x 14.8mm.
  • Weight: Approximately 51g.
  • Wiring Specifications: 0.2mm² to 1.5mm², screwless wiring method.
  • Installation Method: Rail mounting.

Application Scenarios

EtherCAT temperature input modules are widely used in various industrial automation scenarios, including but not limited to:

  • Industrial Automation: Used to control various devices on the production line, such as machine tools, assembly lines, packaging machines, and injection molding machines.
  • Medical Equipment: Used in temperature control of medical equipment, such as medical ovens, sterilizers, and incubators.
  • Laboratory Equipment: Used in temperature control of laboratory equipment, such as constant temperature boxes, drying boxes, and incubators.
  • Aerospace: Used in temperature control in the aerospace field, such as spacecraft, satellites, and aircraft.
  • Energy Industry: Used in temperature control in the energy industry, such as oil, natural gas, and electricity.
  • Automotive Industry: Used in temperature control in the automotive industry, such as engine cooling systems and air conditioning systems.

Ordering Information

If you are interested in EtherCAT temperature input modules, consider the following ordering codes:

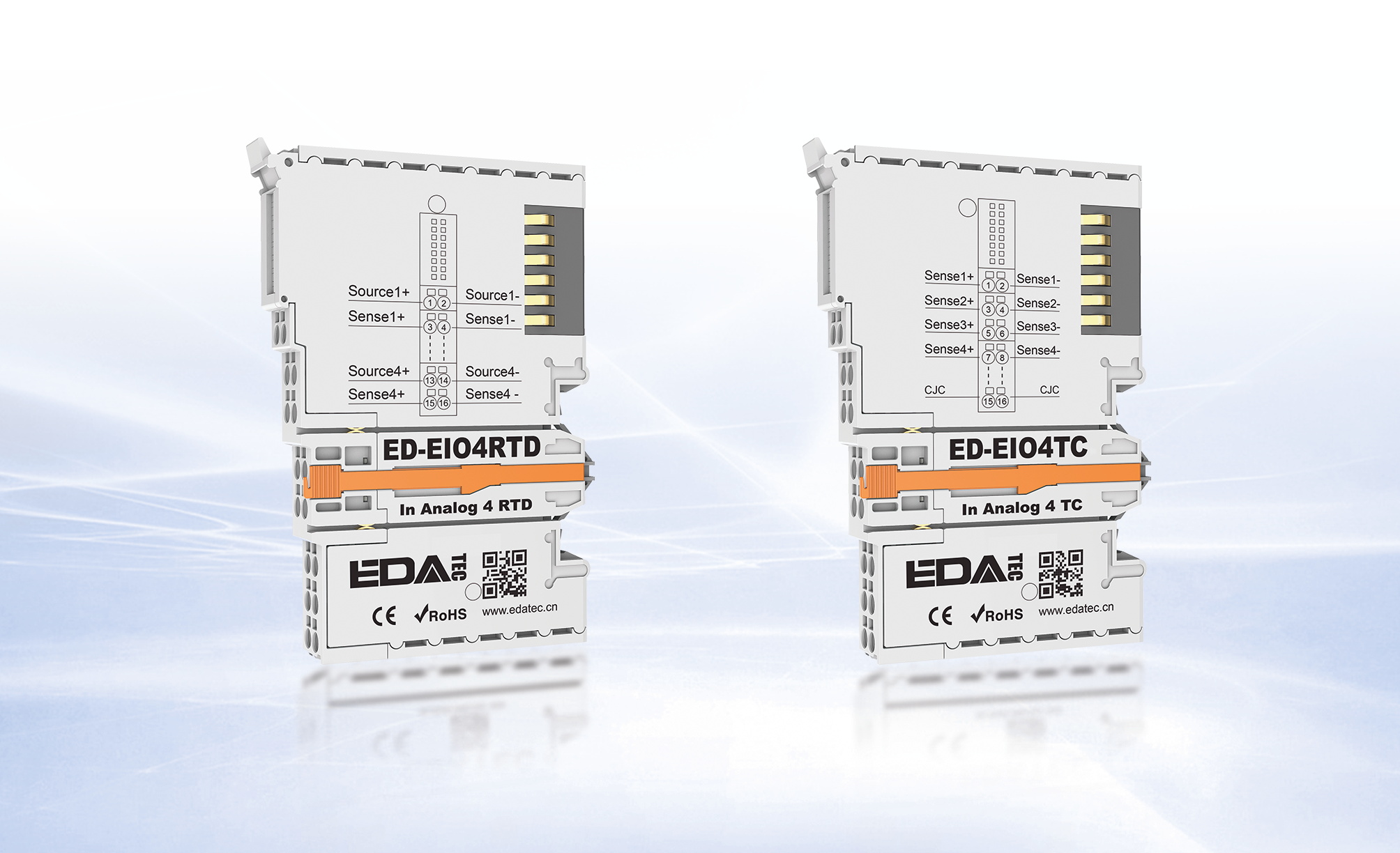

  • ED-EIO4RTD: 4-channel RTD module.
  • ED-EIO4TC: 4-channel thermocouple module.

Installation and Maintenance

Installing EtherCAT temperature input modules is very simple. Just align the notch on the back of the module with the DIN rail and push it in along the arrow direction to fix it on the DIN rail. To remove the module, simply hold the module's latch and pull it out along the arrow direction. Before installation and removal, ensure that the device's power is turned off to avoid damaging the module.

EtherCAT temperature input modules have a broad application prospect in industrial automation. They not only provide efficient and stable temperature measurement solutions but also perfectly combine with the CODESYS software platform, providing engineers with powerful development tools. Whether in automated production line control or smart manufacturing systems, EtherCAT temperature input modules are key devices for achieving efficient industrial automation.

HS CODE

HS CODECOO
8517799000CN


Optional Remote I/O

ModelDescription
ED-EIOBRG-ECEtherCAT Coupler

Optional I/O Modules

Support a variety of I/O modules, the detailed ordering codes are the table below.

ModelDescription
ED-EIO8XP8-channel digital input module (PNP)
ED-EIO8XN8-channel digital input module (NPN)
ED-EIO16XP16-channel digital input module (PNP)
ED-EIO16XN16-channel digital input module (NPN)
ED-EIO8YP8-channel digital output module (PNP)
ED-EIO8YN8-channel digital output module (NPN)
ED-EIO16YP16-channel digital output module (PNP)
ED-EIO16YN16-channel digital output module (NPN)
ED-EIO4YR4-channel digital output module (Relay)
ED-EIO4ADV4-channel analog input module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4ADA4-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO8ADA8-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO4AD4-channel analog input module (voltage/current mixed), -5~5V/0~10V/-10~10V/4-20mA/0-20mA, configurable
ED-EIO4DAV4-channel analog output module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4DAA4-channel analog output module (current), 4-20mA/0-20mA, configurable
ED-EIO4RTD4-channel RTD Module
ED-EIO4TC4-channel TC Module
D-EIO2HCD2-channel High Speed Counter Module
ED-EIOPWRPower Expansion Supply Module
ED-EIOTERMBus End Cover


Specification
Input
Signal Type RTD TC
Number of Input Signal Channels 4
Input Filter Configurable from 1 to 6, the default is 1
Connection 2-wire/3-wire(default)/4-wire 2-wire
Sensor Type PT100/PT200/PT500/PT1000/Ni20 K/J/T/E/N/S/R/B/C
Temperature Range PT sensor: -200~+800 ℃
Ni sensor: -79~+309 ℃
K sensor (default): -100~+1370 ℃
Resolution 0.1℃
Precision ±1℃ 0.5% (full-scale)
Overvoltage Protection Support
Isolation Voltage AC500V on field and digital side, no isolation between channels
Diagnostics and Alarms
Temperature Anomaly AlarmSupport
Disconnection AlarmSupport
System Power MonitoringSupport
Software
FieldbusEtherCAT
EtherCAT Master Software PlatformCODESYS
Mechanical Characteristics
Dimensions100mm x 67.6mm x 14.8 mm
WeightAbout 51g
Wiring Specifications0.2mm² ~ 1.5mm²
Wiring MethodScrewless
InstallationDIN-rail installation
Environmental & Regulatory
Operating Temperature-10℃ ~ 55℃
Storage Temperature-20℃ ~ 85℃
Ambient Humidity5% ~ 95% (non-condensing)
Air Pressure≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2
Overvoltage CategoriesI
Protection ClassIP20
CertificationsCE and RoHS
Mechanicals

Unit: mm

4tc-4rtd-dimension
Ordering Code
ModelDescription
ED-EIO4RTD4-channel RTD Module
ED-EIO4TC4-channel TC Module
