The ED-AIC3100 is an industrial smart camera based on the Raspberry Pi CM5, featuring a Broadcom BCM2712 quad-core Cortex-A78 (ARM v8) 64-bit SoC running at 2.4GHz. It supports up to 8GB of LPDDR4 RAM and 64GB of eMMC storage.

Explore in-depth reviews and coverage of ED-AIC3100 by leading international media outlets! Click the links to learn more：

Electronics Lab

As manufacturers move toward smart manufacturing, industrial machine vision has become essential for small and medium-sized enterprises to improve quality and efficiency. Yet adoption is often held back by a common industry challenge: high-performance systems are expensive, while affordable options lack capability.

To address this gap, EDATEC introduces the AIC3100 Industrial Intelligent Camera—a cost-effective, easy-to-deploy smart vision solution designed for real-world industrial use.

High Performance, Precision in Every Detail

EDATEC innovatively integrates high-performance computing directly into the camera, powered by the Rockchip RK3588 platform. The system features a quad-core Cortex-A76 CPU with clock speeds of up to 2.4 GHz, and is configurable with up to 8 GB of LPDDR4 memory and 64 GB of eMMC storage.

The AIC3100 is equipped with a 12-megapixel high-resolution sensor and supports frame rates of up to 70 fps, enabling precise capture of fine details in high-speed motion. Featuring a standard C-mount lens interface, it offers flexible compatibility with a wide range of lenses and focal lengths.

EDATEC innovatively integrates high-performance computing directly into the camera, eliminating the need for an external industrial PC. This highly integrated design significantly improves deployment flexibility and, without compromising core camera performance, reduces the procurement and maintenance costs of industrial PCs and related equipment such as GPUs, network switches, and cabinets.

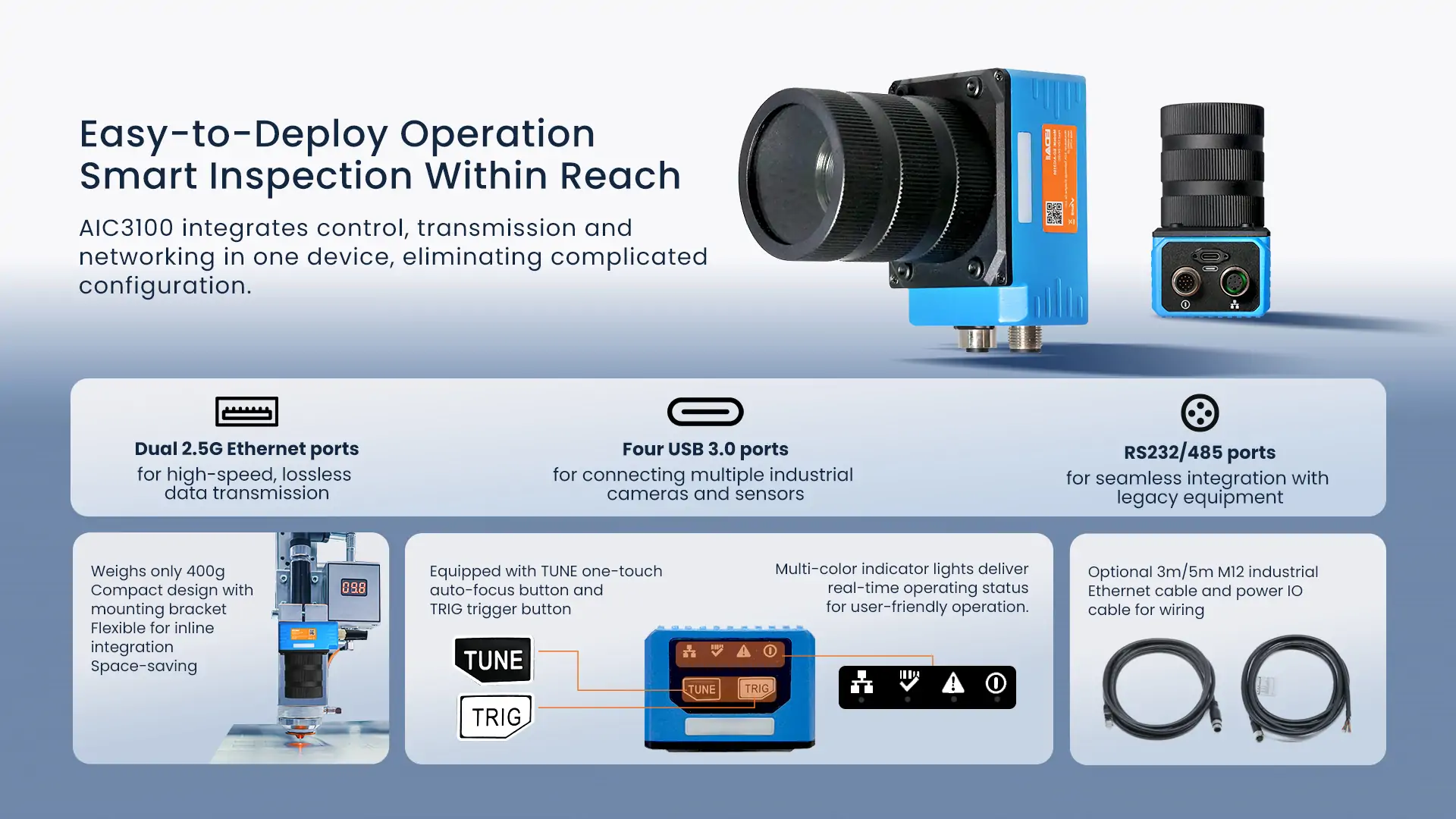

Easy-to-Deploy Operation, Smart Inspection Within Reach

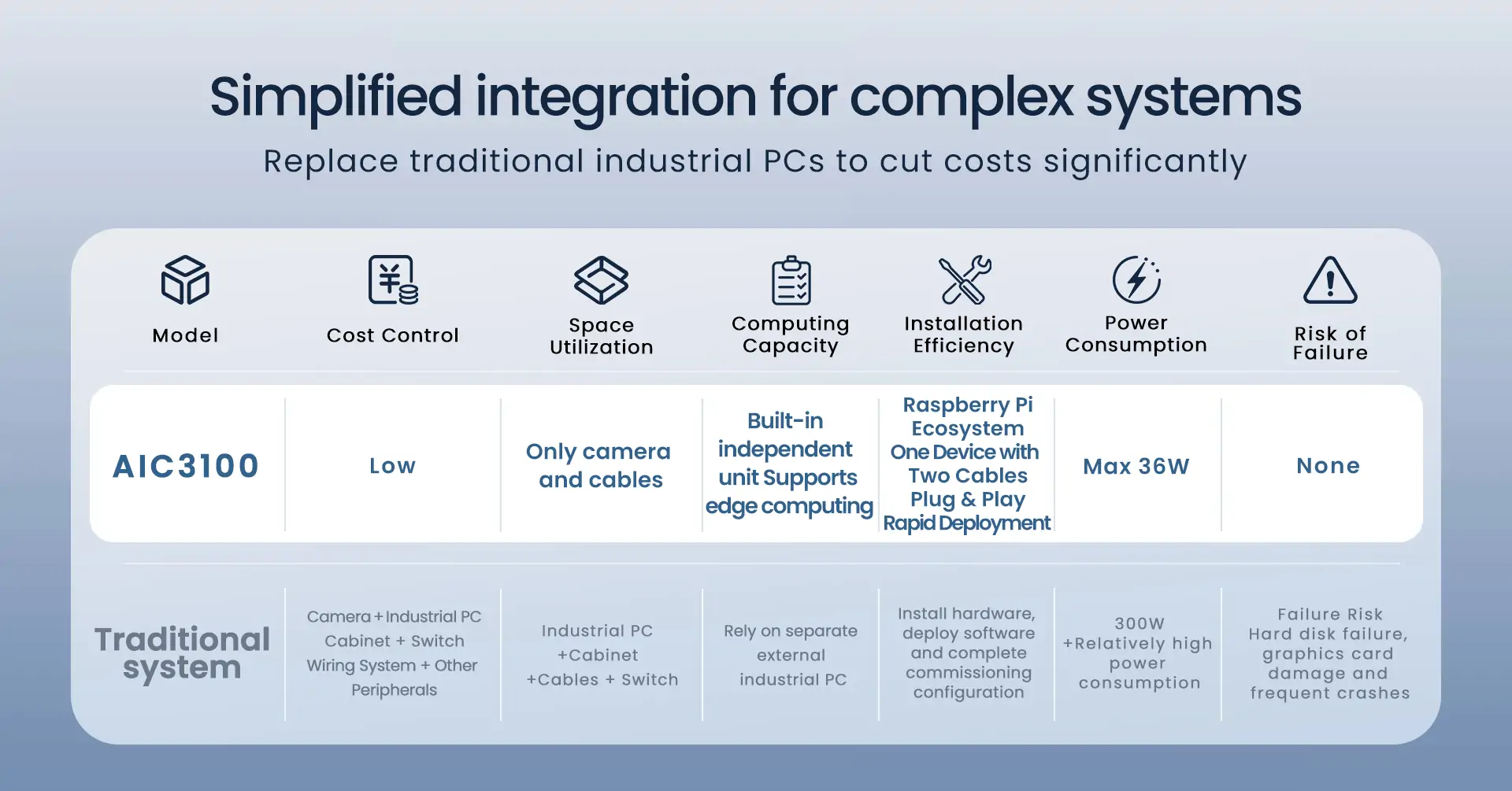

A single AIC3100 can replace the traditional setup of an industrial PC, PLC, and gateway, dramatically simplifying deployment and operation. The camera features a compact body measuring 85 mm × 60 mm × 108.9 mm and weighing approximately 400 g. Its bracket-style mount allows flexible integration into existing production lines without taking up valuable space.

Connectivity:

• Dual 2.5G Ethernet ports for high-speed, lossless data transmission

• Four USB 3.0 ports for connecting multiple industrial cameras and sensors

• RS232/485 ports for seamless integration with legacy equipment

• Optional 3/5/10 m M12 industrial cables for network and power IO connections

Operation is made easy with the TUNE one-touch auto-focus button, TRIG trigger button, and multicolor LED indicators that provide real-time device status feedback, ensuring a highly flexible and user-friendly setup.

Industrial-Grade Reliability for Harsh Production Environments

Designed for the complexities of industrial applications, the AIC3100 features a fully industrial-optimized hardware design. Its industrial-grade blue aluminum alloy housing not only provides robust structural integrity but also effectively protects against dust and water ingress, preventing device malfunctions caused by environmental factors.

The AIC3100 demonstrates exceptional environmental tolerance, with a storage temperature range of -4°C to 60°C, an operating temperature range of 0°C to 45°C, and support for 5%–90% non-condensing humidity. It can operate reliably even in extreme scenarios such as high-temperature workshops and low-temperature storage facilities.

Compatible with the Raspberry Pi Ecosystem for Hassle-Free Customization

The AIC3100 fully supports Raspberry Pi OS and leverages Raspberry Pi’s mature hardware and software ecosystem. Developers can directly reuse numerous open-source libraries and development tools to quickly implement customized functions using Python, C++.
