| Model No. | LCD Size | Resolution | Aspect ratio | # of Colors | Luminance (cd/m2) | Viewing Angle (H/V) | Multi-touch (# of points) | Dimensions (mm) | Weight (g) |
| HMI2020-070C | 7" | 1024 x 600 | 16:9 | 16.7M | 400 | 160°/160° | 10 | 188 x 123 x 42 | About 1000g |
| HMI2020-101C | 10.1" | 1280 x 800 | 16:10 | 16.7M | 400 | 160°/160° | 10 | 258 x 172 x 40 | About 1400g |
Explore in-depth reviews and coverage of ED-HMI2020 by leading international media outlets! Click the links to learn more：
The ED-HMI2020 is an industrial human-machine interface (HMI) device designed for robustness and flexibility in industrial control systems. Based on the Raspberry Pi Compute Module 4 (CM4), this device offers a powerful computing solution with its Broadcom BCM2711 processor, a quad-core Arm Cortex-A72 CPU running at 1.5GHz. The system can be customized with 1GB, 2GB, 4GB, or 8GB of LPDDR4 RAM and comes with options for 8GB, 16GB, or 32GB eMMC storage, supplemented by support for a micro-SD card.
This HMI device offers a range of wired connectivity options, including a Gigabit Ethernet port for high-speed network access, an HDMI Type A port for high-definition video output, and multiple USB ports (two USB 3.0 and one USB 2.0) for connecting peripherals. Wireless communication is also well-supported, with dual-band Wi-Fi and Bluetooth capabilities.

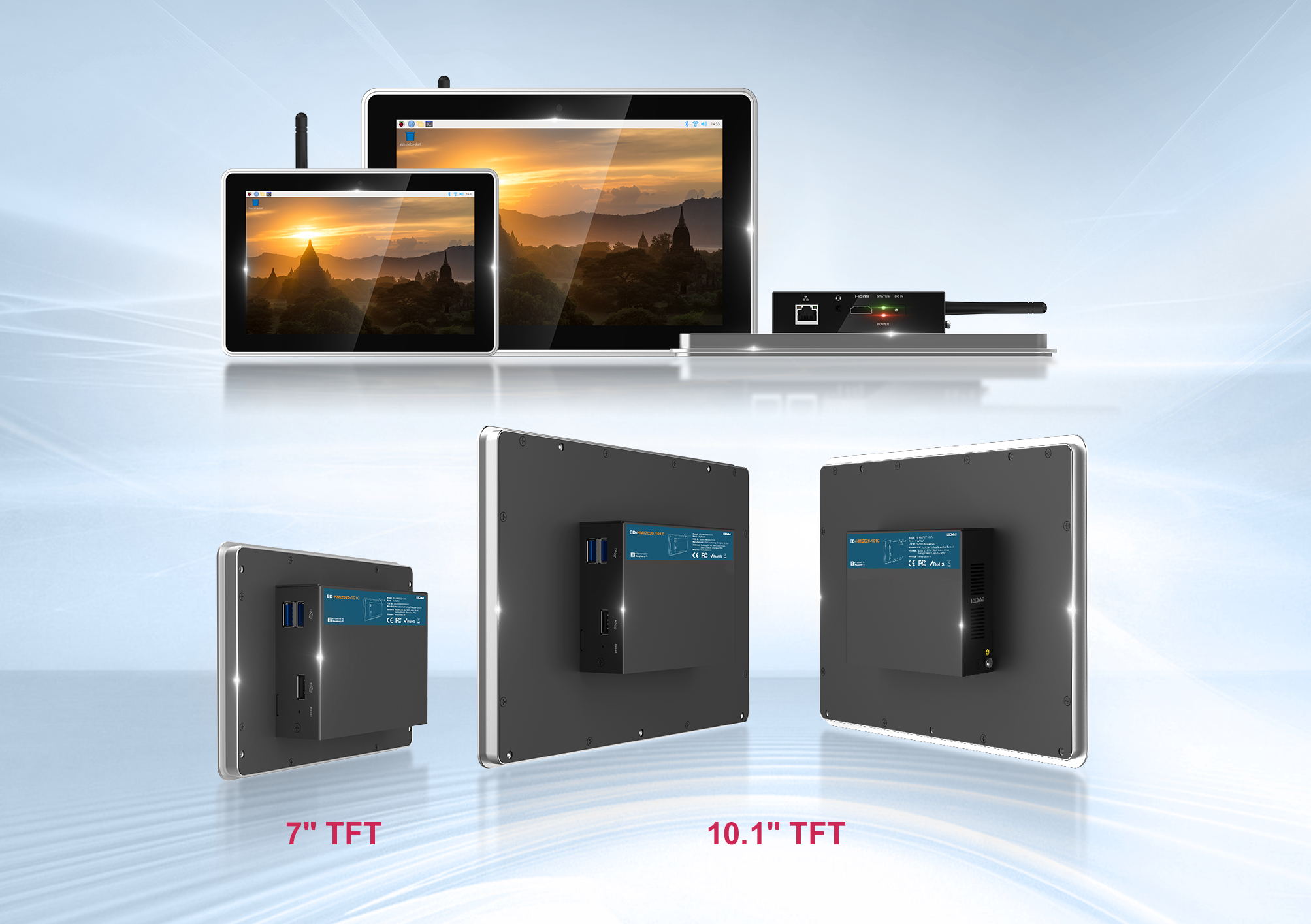

The ED-HMI2020 is available in two models: the HMI2020-070C with a 7" LCD and the HMI2020-101C with a 10.1" LCD. Both models feature a capacitive multi-touch screen, a wide range of color display, high luminance, and wide viewing angles, making them suitable for various display needs. The devices are enclosed in a high-quality metal case, designed for front-mounted, embedded installations and are also compatible with VESA standard bracket mounting.
For additional functionality, an 8-megapixel front camera can be included as an optional feature. The ED-HMI2020 also includes an RTC with a CR1220 battery, an EEPROM for storage, and crypto authentication for secure operations. It also features a buzzer, reset button, and LED indicators for the status and power of the device.
The device supports the Raspberry Pi OS in various versions, including 32-bit and 64-bit options for both Desktop and Lite, allowing for a flexible software environment. An expansion I/O option includes a 40-pin GPIO header, which is compatible with a range of expansion modules and accessories, enhancing the versatility of the HMI2020.
The ED-HMI2020 is designed to operate in a wide range of temperatures, from -20°C to 60°C, making it suitable for diverse industrial environments. It also carries certifications such as FCC and CE, ensuring compliance with international safety and emissions standards.
In summary, the ED-HMI2020 is a feature-rich industrial HMI device that combines a durable design with advanced computing capabilities, making it an excellent choice for applications that require reliable interaction and control in industrial settings.
HS CODE
| HS CODE | COO |
| 8471504001 | CN |
