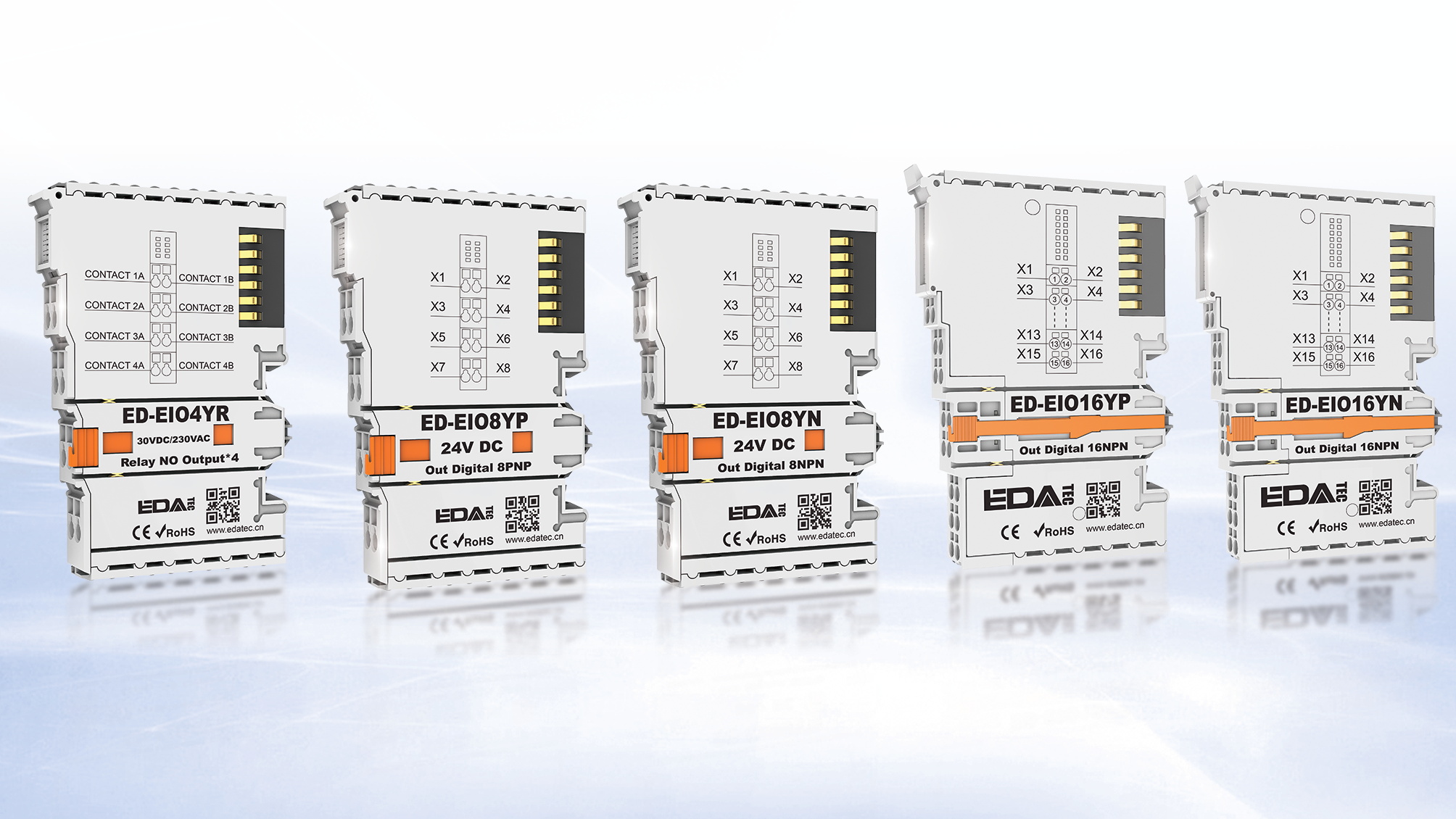

EtherCAT Digital Output Modules

EtherCAT Digital Output Modules

The EtherCAT digital output module is a high-performance industrial automation

Key Featured
  • 8-channel digital output or 16-channel digital output, equipped with the
  • LED for an operation check
  • Output signals support Transistor and Relay
  • Transistor type support PNP or NPN
  • Opto-coupler isolated output
  • Plug-in construction, DIN-rail installation
  • PT removable terminal block for screwless wiring
  • Support cascading up to 32 modules without additional power supply

EtherCAT digital output modules are high-performance devices used in industrial automation control. They provide 4/8/16-channel digital signal outputs, support both transistor (PNP or NPN) and relay outputs, and feature optocoupler isolation and LED status indicators for high reliability and easy maintenance. These modules communicate with the master station via the EtherCAT bus protocol, ensuring high-speed signal transmission and low-latency processing.

Technical Specifications

  • Number of Output Channels: 4, 8, or 16 channels.
  • Output Type: Supports both transistor (PNP or NPN) and relay outputs.
  • Drive Capability:Transistor Output: Single-channel load of 500mA, rated output voltage of 24V DC (±25%).Relay Output: Supports 230V AC or 30V DC, suitable for resistive, inductive, and lamp loads.
  • Power Consumption:Transistor Output: 66mA for PNP type, 19mA for NPN type.Relay Output: 45mA.
  • Isolation Voltage: AC 500V, optocoupler isolation.
  • Dimensions: 100mm x 67.6mm x 14.8mm.
  • Weight: Approximately 51g.
  • Wiring Specifications: 0.2mm² to 1.5mm², screwless wiring method.
  • Installation Method: Rail mounting.

Features

  • High Reliability: Optocoupler isolation ensures stable signal transmission and reduces electromagnetic interference.
  • LED Status Indicators: Each channel has an independent LED indicator light, facilitating on-site debugging and fault diagnosis.
  • Plug-in Structure: Supports rail mounting, making installation and maintenance simple.
  • Cascading Function: Up to 32 modules can be cascaded without additional power supplies, simplifying system wiring.
  • Strong Compatibility: Compatible with CODESYS EtherCAT master stations, suitable for various industrial automation scenarios.

Application Scenarios

EtherCAT digital output modules are widely used in various industrial automation scenarios, including but not limited to:

  • Production Line Automation: Used to control various actuators on the production line, such as solenoid valves and relays, to achieve automated control.
  • Robot Control: In robot control systems, used to control the movements of robots, achieving precise motion control.
  • Smart Manufacturing Systems: Used to connect various intelligent devices, enabling real-time data collection and processing, supporting the efficient operation of smart manufacturing.

Ordering Information

If you are interested in EtherCAT digital output modules, consider the following ordering codes:

  • ED-EIO4YR: 4-channel relay output module.
  • ED-EIO8YP: 8-channel digital output module, PNP type.
  • ED-EIO8YN: 8-channel digital output module, NPN type.
  • ED-EIO16YP: 16-channel digital output module, PNP type.
  • ED-EIO16YN: 16-channel digital output module, NPN type.

Installation and Maintenance

Installing EtherCAT digital output modules is very simple. Just align the notch on the back of the module with the DIN rail and push it in along the arrow direction to fix it on the DIN rail. To remove the module, simply hold the module's latch and pull it out along the arrow direction. Before installation and removal, ensure that the device's power is turned off to avoid damaging the module.

EtherCAT digital output modules have a broad application prospect in industrial automation. They not only provide efficient and stable signal output solutions but also perfectly combine with the CODESYS software platform, providing engineers with powerful development tools. Whether in automated production line control or smart manufacturing systems, EtherCAT digital output modules are key devices for achieving efficient industrial automation.

HS CODE

HS CODECOO
8517799000CN


Optional Remote I/O

ModelDescription
ED-EIOBRG-ECEtherCAT Coupler

Optional I/O Modules

Support a variety of I/O modules, the detailed ordering codes are the table below.

ModelDescription
ED-EIO8XP8-channel digital input module (PNP)
ED-EIO8XN8-channel digital input module (NPN)
ED-EIO16XP16-channel digital input module (PNP)
ED-EIO16XN16-channel digital input module (NPN)
ED-EIO8YP8-channel digital output module (PNP)
ED-EIO8YN8-channel digital output module (NPN)
ED-EIO16YP16-channel digital output module (PNP)
ED-EIO16YN16-channel digital output module (NPN)
ED-EIO4YR4-channel digital output module (Relay)
ED-EIO4ADV4-channel analog input module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4ADA4-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO8ADA8-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO4AD4-channel analog input module (voltage/current mixed), -5~5V/0~10V/-10~10V/4-20mA/0-20mA, configurable
ED-EIO4DAV4-channel analog output module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4DAA4-channel analog output module (current), 4-20mA/0-20mA, configurable
ED-EIO4RTD4-channel RTD Module
ED-EIO4TC4-channel TC Module
D-EIO2HCD2-channel High Speed Counter Module
ED-EIOPWRPower Expansion Supply Module
ED-EIOTERMBus End Cover


Specification
Output (Relay)
Number of output signal channels4
Power Dissipation45mA
Driving Ability230V AC or 30V DC
Load TypeResistive load, Inductive load, Lamp load
Isolation VoltageAC 500V
IsolationOpto-coupler Isolation
Output (Transistor)
Signal Type PNP NPN
Number of input signal channels 8 16 8 16
Power Dissipation 66mA 106mA 66mA 106mA
Rated Output Voltage 24V DC (±25%) 0V DC (±3%)
Driving Ability Single-channel load 500mA
Load Type Resistive load, Inductive load, Lamp load
Isolation Voltage AC 500V
Isolation Type Opto-coupler Isolation
Software
FieldbusEtherCAT
EtherCAT Master Software PlatformCODESYS
Mechanical Characteristics
Dimensions100mm x 67.6mm x 14.8 mm
WeightAbout 51g
Wiring Specifications0.2mm² ~ 1.5mm²
Wiring MethodScrewless
InstallationDIN-rail installation
Environmental & Regulatory
Operating Temperature-10℃ ~ 55℃
Storage Temperature-20℃ ~ 85℃
Ambient Humidity5% ~ 95% (non-condensing)
Air Pressure≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2
Overvoltage CategoriesI
Protection ClassIP20
CertificationsCE and RoHS
Mechanicals

Unit: mm

4-channel digital output module (Relay):

4yr-dimension

8-channel digital output module:

8yp-8yn-dimension

16-channel digital output module:

16yn-16yp-dimension
Ordering Code
ModelDescription
ED-EIO4YR4-channel digital output module (Relay)
ED-EIO8YP8-channel digital output module (PNP)
ED-EIO8YN8-channel digital output module (NPN)
ED-EIO16YP16-channel digital output module (PNP)
ED-EIO16YN16-channel digital output module (NPN)
