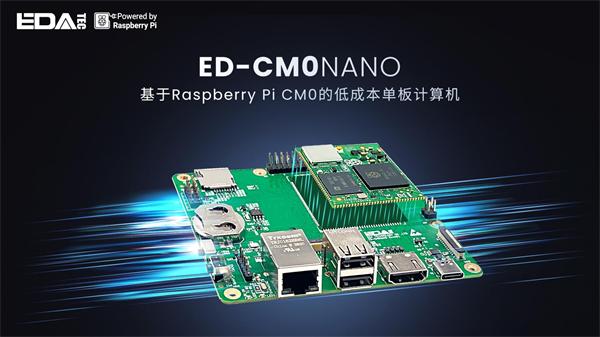

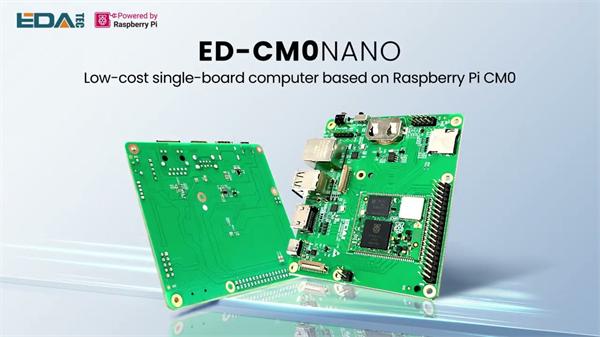

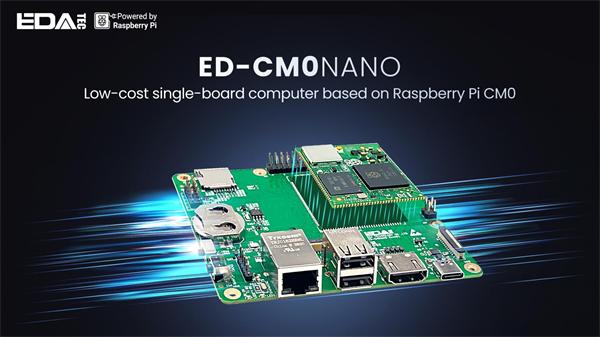

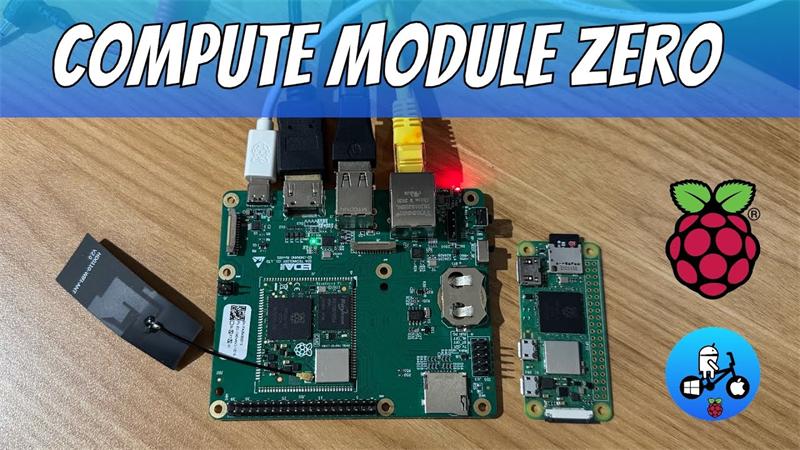

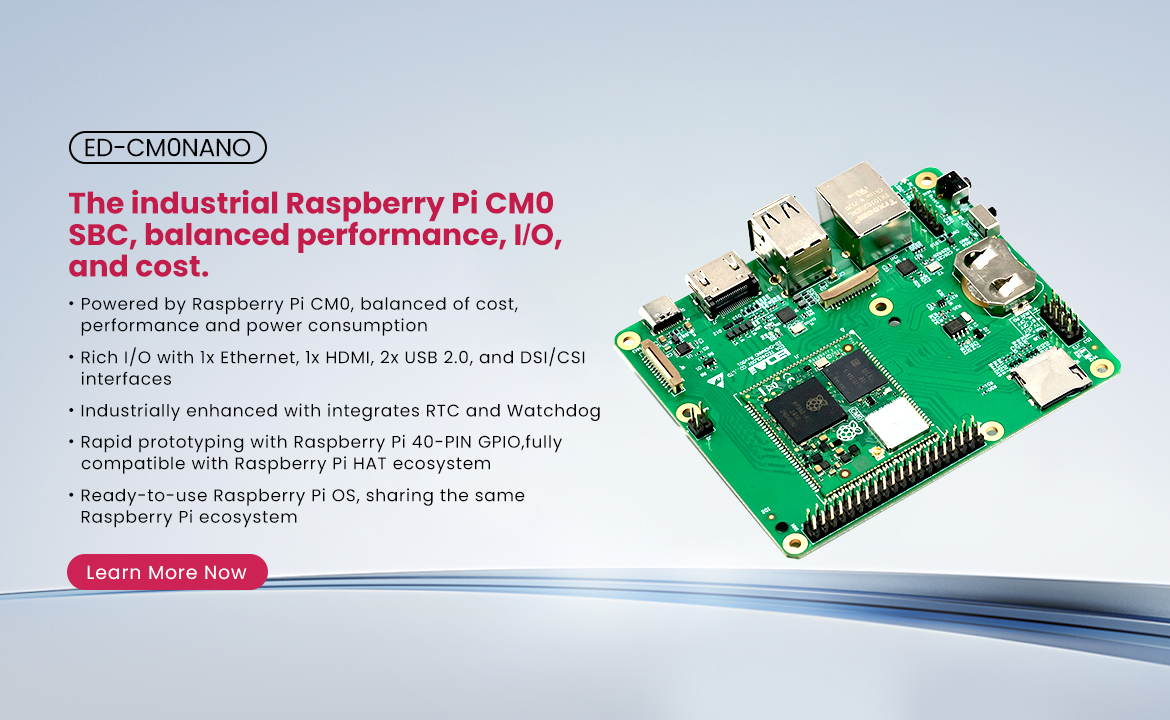

ED-CM0NANO

The industrial Raspberry Pi CM0 SBC, balanced performance, I/O, and cost.

Key Featured
  • Powered by Raspberry Pi CM0, balanced of cost, performance and power consumption

  • Rich I/O with 1x Ethernet, 1x HDMI, 2x USB 2.0, and DSI/CSI interfaces

  • Industrially enhanced with integrates RTC and Watchdog integrated

  • Rapid prototyping with Raspberry Pi 40-PIN GPIO, fully compatible with Raspberry Pi HAT ecosystem

  • Ready-to-use Raspberry Pi OS, sharing the same Raspberry Pi ecosystem


If you are an influential Raspberry Pi enthusiast, maker, someone who loves hands-on work, develops projects, and creates reviews, or if you have your own Raspberry Pi community, are active in various Raspberry Pi forums, or are a successful tech content creator/blogger/Yotuber—you can send your project introduction to zwang@edatec.cn to apply for the CM0 NANO sample review. Click here to learn about the rules!

System Diagram
cm0nano-diagram
Specification
System
CPU1GHz quad-core 64-bit Arm Cortex-A53 processor
VPUH.264/MPEG-4 video decoding, 1080p@30fps
H.264 encoding, 1080p@30fps
GPUOpenGL ES 1.1/2.0 graphics processing
Memory512MB SDRAM
Storage8GB or 16GB eMMC storage available
Micro SD card slot (When the CM0Lite is used, a Micro SD card can be inserted for system boot)
Software
Operating SystemRaspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Raspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit
Panle I/O
RTC Battery Base1 x RTC Battery Base, allows for the installation of an RTC battery (CR2032) through this interface.
DIP Switch1 x DIP switch, supports switching between normal operation mode and flashing mode.
  • LD (switch positioned toward the RTC battery base): Flashing mode
  • RUN (switch positioned toward the reset button): Normal operation mode (default state)
Power1 x DC input, USB Type-C connector, supports 5V input.
HDMI1 x HDMI port, Type-A connector, compliant with HDMI 1.3a standard, supports 1080p resolution at 30Hz.
USB 2.02 x USB 2.0 ports, stacked Type-A connector, each supporting a maximum data transfer rate of 480Mbps.
100M Ethernet1 x adaptive 10M/100M ethernet port, RJ45 connector. It can be used to access the network.
Micro SD Card Slot1 x Micro SD card slot, supports installation of a Micro SD card for system boot.
Note: The Micro SD card slot is only compatible with the CM0Lite.
Buttons and Indicators
PWR1 x red power indicator, used to display the device's power on/off status.
ACT1 x green system status indicator, used to monitor the device's operating status.
RESET1 x reset button, recessed design, pressing the button restarts the device.
Expansion I/O
PoE HAT Header1 x PoE HAT Header, 2x2-pin 2.54mm pitch header, supports expansion connection for Raspberry Pi PoE HAT module.
IPEX-1 Interface1 x IPEX-1 interface, supports connection to an external antenna.
Raspberry Pi 40-Pin GPIO Header1 x Raspberry Pi 40-Pin GPIO Header, 2x20-pin 2.54mm pitch header. Pin definitions include GPIO2-GPIO27, 2x 3V3, 2x 5V, 1x ID_SD and 1x ID_SC, supports connection with Raspberry Pi standard accessories.
4-lane CSI Interface1 x 4-lane CSI Interface, 22-pin FPC connector, compatible with Raspberry Pi Camera modules.
4-lane DSI Interface1 x 4-lane DSI Interface, 22-pin FPC connector, compatible with Raspberry Pi Touch Display.
USB 2.0 Interface1 x USB 2.0 interface, 1x5-pin 2.54mm pitch header. Pin definitions: VBUS/USB_DM/USB_DP/GND/NC, supports expansion of USB 2.0 interface.
10-Pin Header1 x 10-Pin Header, 2x5-pin 2.54mm pitch header. Pin definitions: 4xGND/RUN_PG/WL_ON/BT_ON/TV_OUT/RUN_PG_BUF/GLOBAL_EN, reserved for future functions.
  • Short GND (Pin 1) and RUN_PG (Pin 2): Shuts down the ED-CM0NANO
  • Short GND (Pin 3) and WL_ON (Pin 4): Disables Wi-Fi functionality
  • Short GND (Pin 5) and BT_ON (Pin 6): Disables Bluetooth functionality
  • Connect a button between RUN_PG_BUF (Pin 9) and GLOBAL_EN (Pin 10): Can be used to wake the ED-CM0NANO from sleep mode
Expansion Functions
RTCIntegrated RTC function with an RTC battery base, supporting the installation of a CR2032 battery as RTC backup power.
Watch DogBuilt-in Watch Dog function, enhancing system reliability.​
Electrical Characteristics
Input Voltage5V DC
Power ConsumptionAbout 3.5W
Mechanical Characteristics
Dimensions100mm x 85mm (WxD)
WeightAbout 52g
Wireless
Wi-Fi/Bluetooth (optional)Supports 2.4GHz Wi-Fi and Bluetooth, with an external FPC antenna.
  • 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
  • Bluetooth 5.0: Compatible frequency band 2402MHz ~ 2480MHz
Environmental & Regulatory
Operating Temperature-20°C ~ 60°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals

Unit: mm

ED-CM0NANO-dimension
Ordering Code

Coding Rules

ED-CM0NANO-orderingcode

Ordering Code

ModelDescriptionStocking Level
ED-CM0NANO-10008Wi-Fi/BT, 8GB eMMCStandard Stock
ED-CM0NANO-10000Wi-Fi/BT, without eMMC (CM0Lite)Standard Stock

TIP

If you require products with other configurations, please contact our sales team separately.​

Docs
Type Title Publish Time
Datasheet ED-CM0NANO Datasheet 2025-11-21
Manual ED-CM0NANO User Manual 2025-11-21
PCB ED-CM0NANO_REV001_SCH.pdf 2025-11-21
