ED-GWL1010

ED-GWL1010

High-performance industrial LoRa gateway with PoE capability and rugged metal enclosure, resilient in harsh conditions.

Key Featured
  • 4-core ARM Cortex-A55 (ARM v8), 2GHz, 64bit CPU for powerful processing.
  • Supports 1GB / 2GB / 4GB / 8GB LPDDR-3200 SDRAM.
  • Options for 0GB / 8GB / 16GB / 32GB storage.
  • 2.4G / 5.8G dual WiFi and Bluetooth 5.0.
  • Based on Semtech SX1302+SX1250, with CE/FCC certification.
  • 1x 10/100M Ethernet with Power over Ethernet capability.
  • 1x USB 3.0 Type A and 1x USB 2.0 Type A.
  • For extending LoRa gateway module and supports SPI bus.
  • Equipped with 1x RGB LED and 1x User Button for interaction.
  • Accepts 7V ~ 18V power input.
  • Dimensions of 110mm x 90mm x 26mm for space efficiency.
  • Pre-installed with Debian 11, Lite, 64-bit OS.
  • Provides example guidance for LoRaWAN networks such as ChipStack.
  • Includes 1x WiFi/BT External antenna and 1x LoRa External antenna.
  • Suitable for -25 ~ 50°C environments.

ED-GWL1010 is a cost-effective LoRaWAN indoor gateway solution developed by EDATEC, tailored to provide efficient connectivity for IoT applications within indoor environments.

This gateway leverages EDATEC's innovative single-board computer platform, the ED-REIMEI1, which combines a motherboard with an expansion board to offer a versatile and powerful computing solution.

At the heart of the ED-GWL1010 is the AMLogic S905X4 CPU, a 4-core ARM Cortex-A55 processor running at 2GHz, ensuring robust performance for handling various IoT protocols and data processing tasks.

The system memory can be configured with options up to 8GB of LPDDR-3200 SDRAM, and storage can be expanded with eMMC flash memory options up to 32GB, or by using a Micro SD card.

ED-GWL1010 is equipped with a 10/100M Ethernet port that supports PoE (Power over Ethernet), allowing for convenient power and data transmission over a single cable.

For wireless connectivity, the gateway offers dual-band 2.4G/5.8G WiFi and Bluetooth 5.0, ensuring compatibility with a wide range of wireless devices.

The LoRa gateway module is based on Semtech's SX1302+SX1250 chipset, which has passed CE/FCC certification, and is available in both European and American frequency versions to suit different regional requirements.

The gateway features USB 3.0 and USB 2.0 Type A ports for connecting peripherals or expanding the system's capabilities.

A mini PCIe slot is also provided for extending the LoRa gateway module, offering additional flexibility for custom applications.

ED-GWL1010 includes an RGB LED indicator and a user button for easy status monitoring and device interaction.

Power input is versatile, supporting a range of 7V to 18V, and the gateway is housed in a desktop-type sheet metal case for durability and protection.

ED-GWL1010 operates within a temperature range of -25°C to 50°C, making it suitable for various indoor environments.

It comes with Debian 11 Lite, a 64-bit operating system that provides a stable and efficient platform for IoT applications.

EDATEC also offers software resources, including example guidance for LoRaWAN networks such as ChipStack, to help users quickly set up and deploy their IoT solutions.

In summary, ED-GWL1010 is a feature-rich LoRaWAN indoor gateway that combines powerful processing, flexible connectivity options, and a robust operating system, making it an ideal choice for indoor IoT deployments.

Its compact design and versatile features make it suitable for a wide range of applications, from smart home automation to industrial monitoring systems.

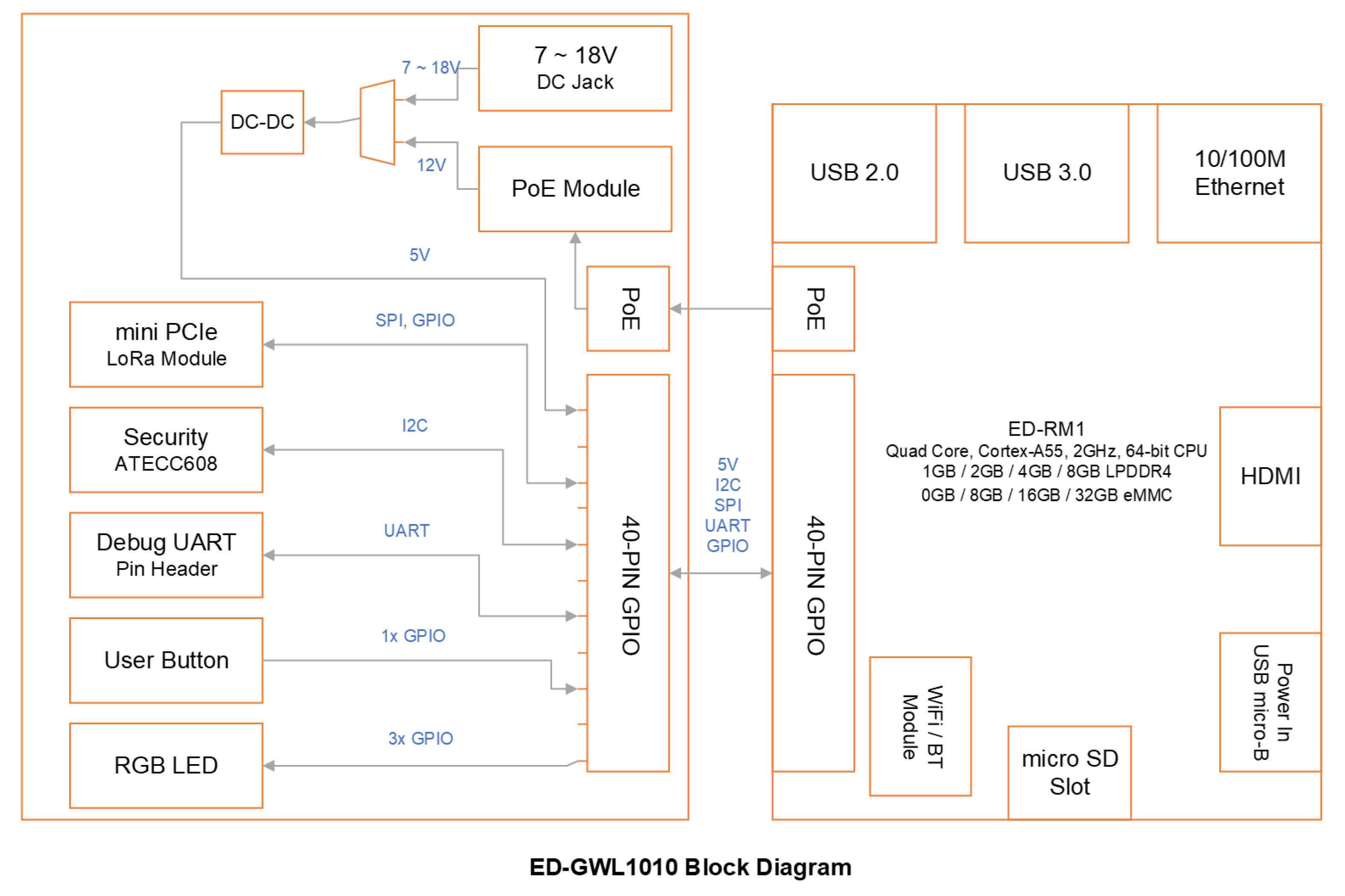

System Diagram


Specification

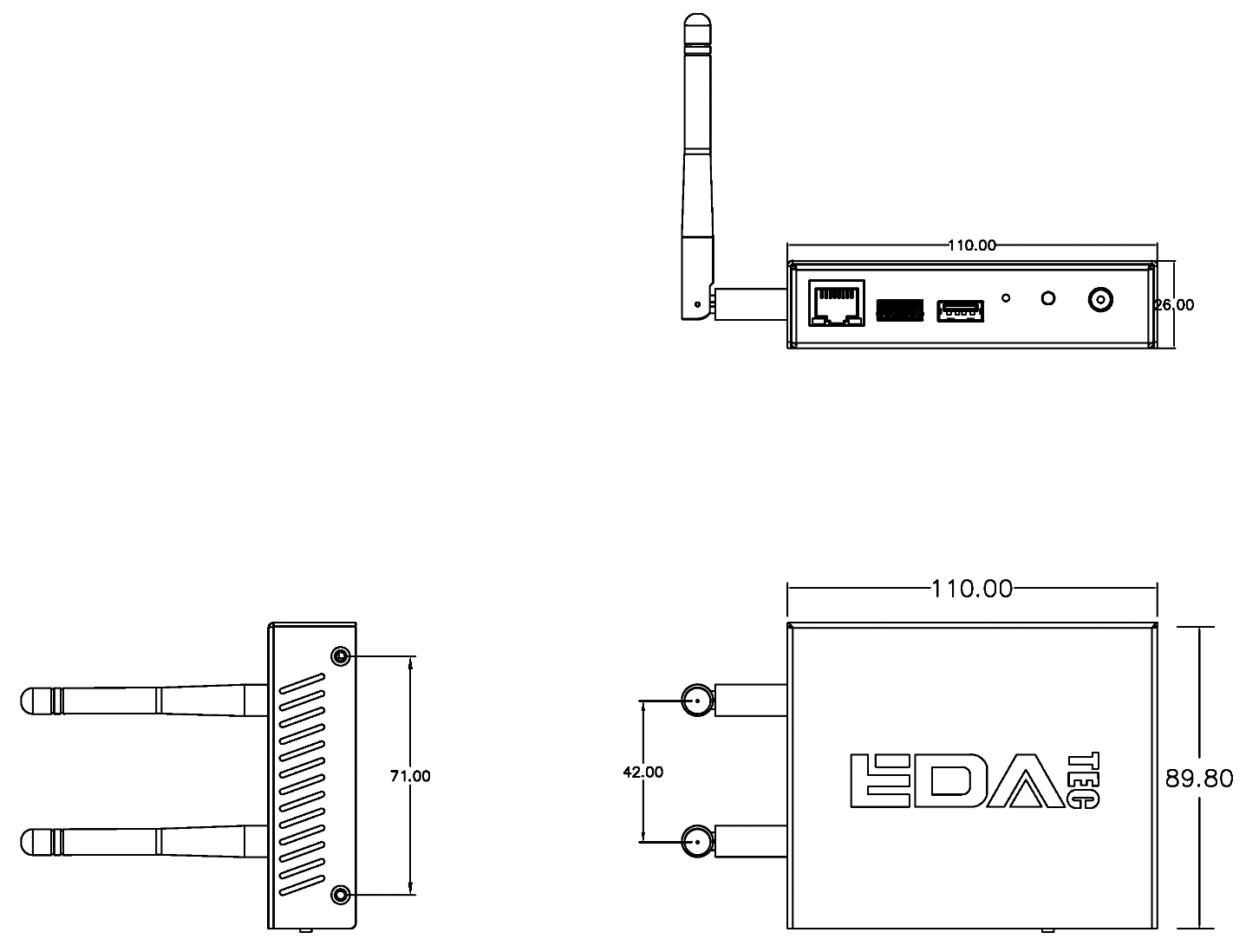

Mechanicals

Ordering Code


Docs
Type Title Publish Time
PDF ED-GWL1010 Datasheet-en.pdf 2024-04-10
PDF ED-GWL1010 User Manual-en.pdf 2024-04-10
Related Products
ED-GW1303S LoRaWAN

ED-GW1303S is a mini-PCIe form-factor LoRaWAN gateway module featuring low power consumption, support for multiple frequency bands, and SPI interfaces, designed to facilitate the development of IoT and M2M applications.

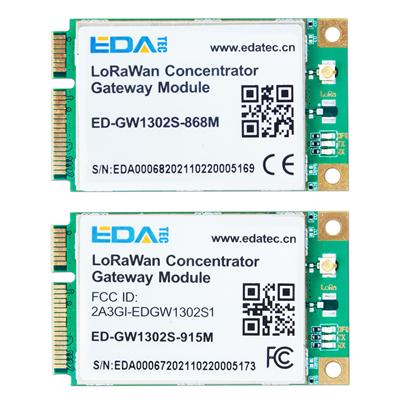

ED-GW1302S LoRaWAN
