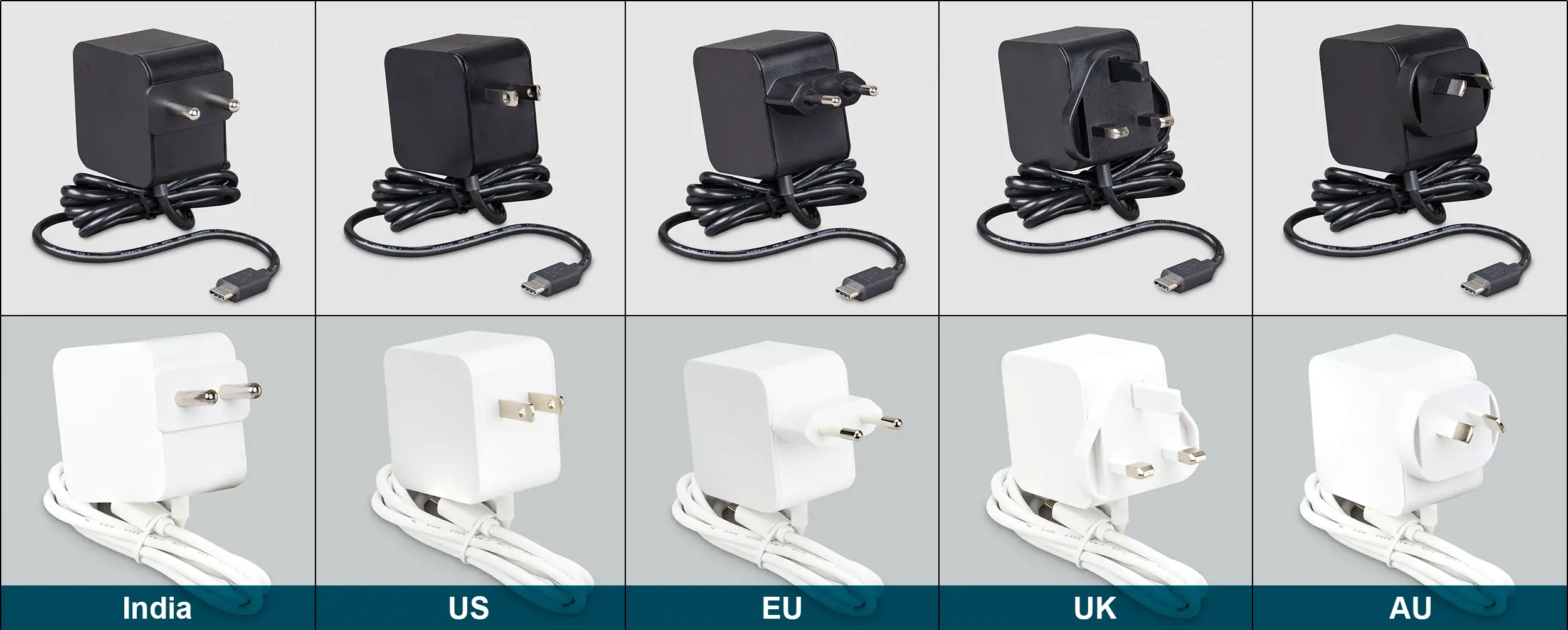

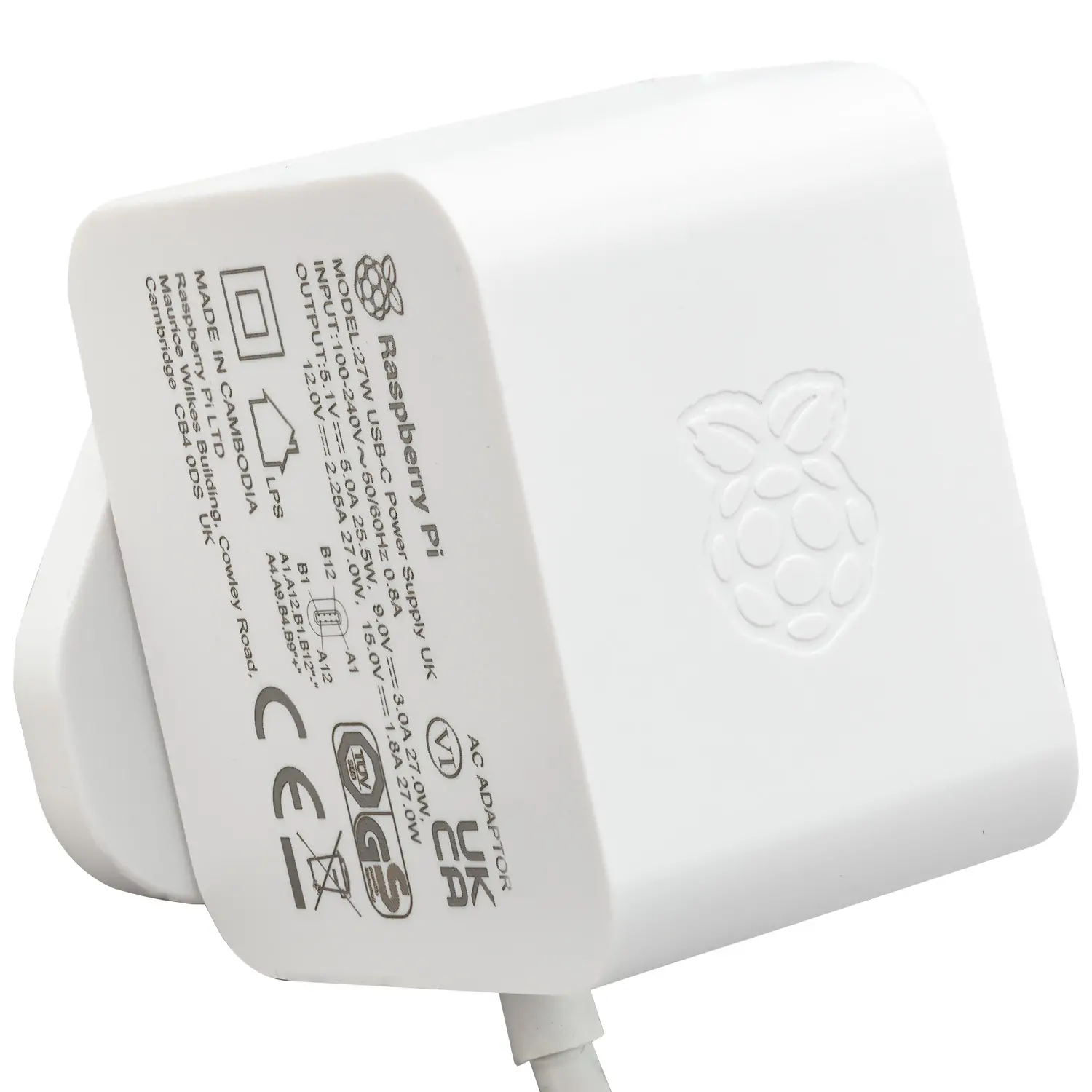

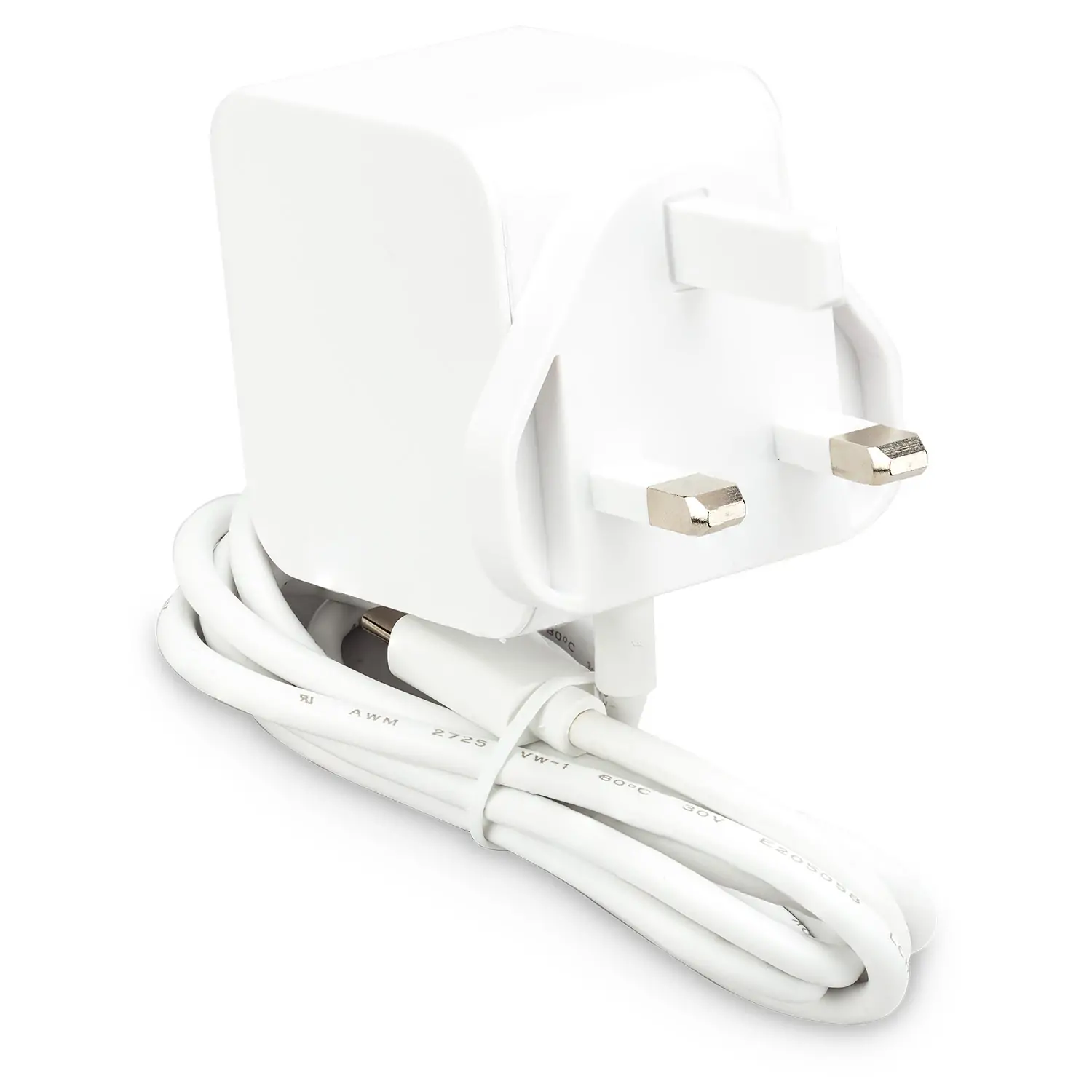

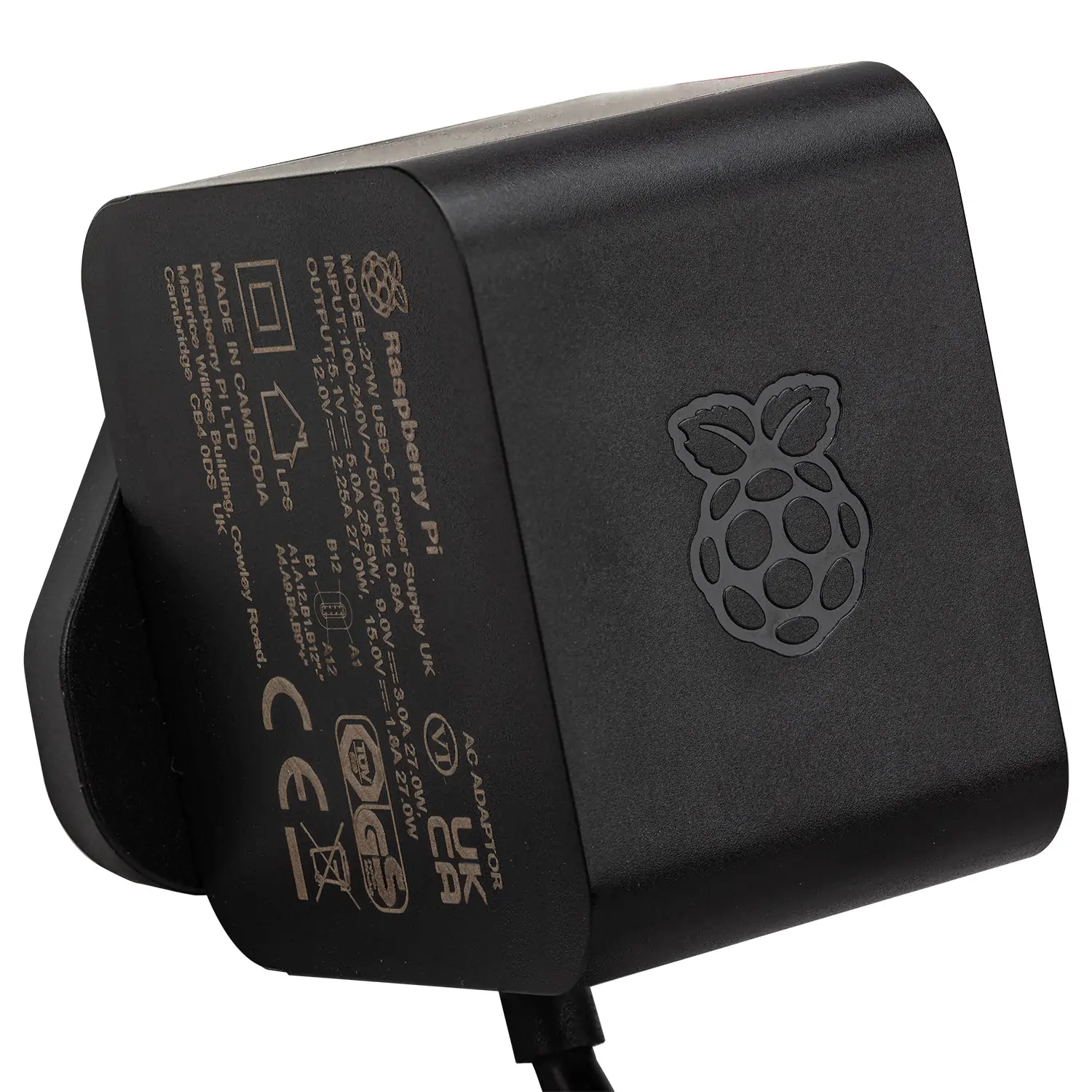

Raspberry Pi 27W USB-C Power Supply

The Raspberry Pi 27W USB-C Power Supply is an ideal power supply for Raspberry Pi 5.

Key Features
  • Input voltage: 100 - 240 v.a.c

  • Input AC frequency: 50-60Hz

  • Output voltage: 5.1V

  • Output current: 5.0A

  • Output power: 25.5W

  • Average active efficiency: 89.0%

  • Efficiency at low load (10 %): 87.9%

  • No-load power consumption: 0.1W

  • Connector: USB-C

  • Cable: 1.2m 17AWG, white or black


The Raspberry Pi 27W USB-C Power Supply is an ideal power supply for Raspberry Pi 5, especially for users who wish to drive high-power peripherals such as hard drives and SSDs from Raspberry Pi 5's four Type A USB ports. Additional built-in power profiles mean the Raspberry Pi 27W USB-C Power Supply is also an excellent option for powering third-party PD-compatible products.

The available profiles are 9V, 3A; 12V, 2.25A; and 15V, 1.8A, all limited to a maximum of 27W.

Raspberry Pi 27W USB-C Power Supply will remain in production until at least January 2035.


Docs
Type Title Publish Time
Product Brief 27w-usb-c-power-supply-product-brief.pdf 2026-05-22
