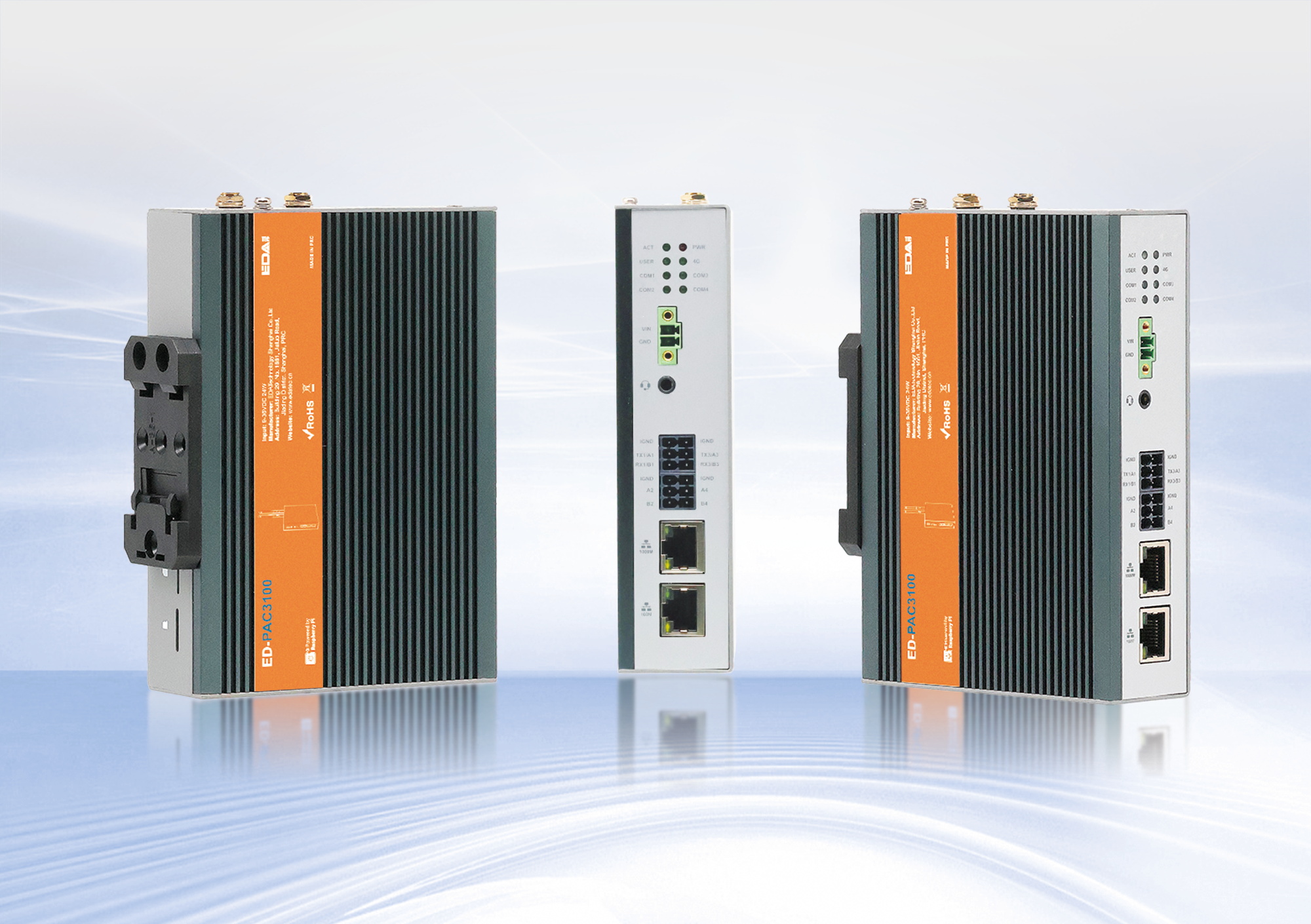

ED-PAC3100

ED-PAC3100

Real-time CODESYS Programmable Automation Controller

Key Featured
  • Broadcom BCM2712 Quad-core Cortex-A76 (2.4GHz), Supports 8GB DDR4 Memory/64GB eMMC
  • Supports Micro SD, M.2 B-Key 2230/2242 NVMe SSD
  • 1 x Gigabit, 1 x 100M, 2 x USB 2.0, 4 x Isolated RS232&RS485
  • CODESYS Control Real Time Engine (RTE) & Visualization (Target & Web)
  • Supports MQTT, OPC UA, EtherCAT, Modbus TCP Protocols
  • Wide Temperature (-25~60℃), 9~36V Wide Voltage Input, Integrated RTC, Supercapacitor Backup Power

Product Positioning

A ruggedized controller engineered for high-reliability industrial automation and complex protocol integration, built on Raspberry Pi CM5 architecture. Featuring dual Ethernet ports, fully isolated interfaces, and industrial-grade protection, it serves as a robust edge control hub for harsh environments, delivering stable performance for production line connectivity, energy monitoring, and other mission-critical applications.

Core Advantages

ModuleHighlightsKey Specifications/Technologies
Industrial ReliabilityUninterrupted operation in extreme conditions- -25°C~60°C operating range + 9-36V DC wide-range input (reverse polarity/overvoltage protection)
- 4× isolated RS232/RS485 terminals (ESD/surge protection)
- DIN rail mounting + EMI-shielded metal housing
Real-Time ControlDeterministic performance for precision automation- Quad-core Cortex-A76@2.4GHz + 8GB LPDDR4
- CODESYS RTE core: 250μs PLC cycle (16-axis sync) / 1ms PLC cycle (64-axis sync)
- Dual Ethernet ports (1Gbps + 100Mbps, independent channels)
Protocol IntegrationSeamless OT/IT convergence- Native EtherCAT/Modbus TCP Master
- OPC UA Server + bidirectional MQTT
- 4G/Wi-Fi expansion (optional)
Redundant StorageMulti-tier data protection and scalability- 64GB eMMC system drive + 512GB M.2 NVMe data drive
- Micro SD expansion
- Non-volatile EEPROM configuration storage (4KB capacity)
Fault ToleranceHardware-level safeguards for system resilience- Dual supercapacitor backup (30-60s system power buffer + RTC clock retention)
- Encryption chip + hardware watchdog
- Buzzer alarm for critical failures

Differentiation

Ultra-Isolated Serial Ports: 4× fully isolated RS232/RS485 interfaces with 3KV surge protection, engineered for heavy EMI environments (e.g., welding plants, power substations).

Dual-Network Segmentation: 1Gbps control network + 100Mbps data network with physical isolation to prevent cross-traffic interference.

Triple-Layer Storage Architecture: eMMC (system), NVMe (high-speed data), and Micro SD (backup) ensure industrial data integrity under vibration/shock.

Extended Power Resilience: 15F supercapacitor sustains critical processes for minutes during outages, eliminating battery maintenance costs.

Typical Applications

🏭 64-Axis Production Line Control: Synchronize motion devices via EtherCAT, stream real-time production data via OPC UA to MES/SCADA.

Energy Management Platform: Collect grid meter data via Modbus TCP, backhaul via 4G to cloud EMS for load optimization.

📦 Smart Warehouse Hub: 1Gbps port for AGV fleet control + 100Mbps port for RFID/vision systems.

🔧 Predictive Maintenance: Store vibration sensor time-series data on NVMe SSD, perform edge AI analysis for motor/gear health monitoring.

ED-PAC Series Feature selection Guide


Function ClassificationPAC3020PAC3100PAC3630
CPUBCM2711 1.5GHz quad-core A72---
BCM2712 2.4GHz quad-core A76
RAM4GB / 8GB / 16GB  LPDDR4X
Storage16GB / 32GB / 64GB eMMC-
Micro SD Card
SD
Wireless2.4GHz & 5GHz dual-band WiFi
Bluetooth 5.0 / Bluetooth Low Energy(BLE)
4G-
Interface1000M Ethernetx1x1x1
100M Ethernet-x1x1
USB 2.0x2x2x2
USB 3.0x2--
RS232x1up to 2up to 2
RS485x1up to 4up to 4
CAN--up to 2
HDMIx2x1x1
DSI-
CSI-
DI / DO--up to 8
otherRTC, CR1220
Hardware Watch Dog-
OperatingTemperature -25℃~60℃
Fanless Design
MechanicalDesktop--
DIN & Wall-
Power Input5V DC via USB-C--
DC 9V~36V-


System Diagram

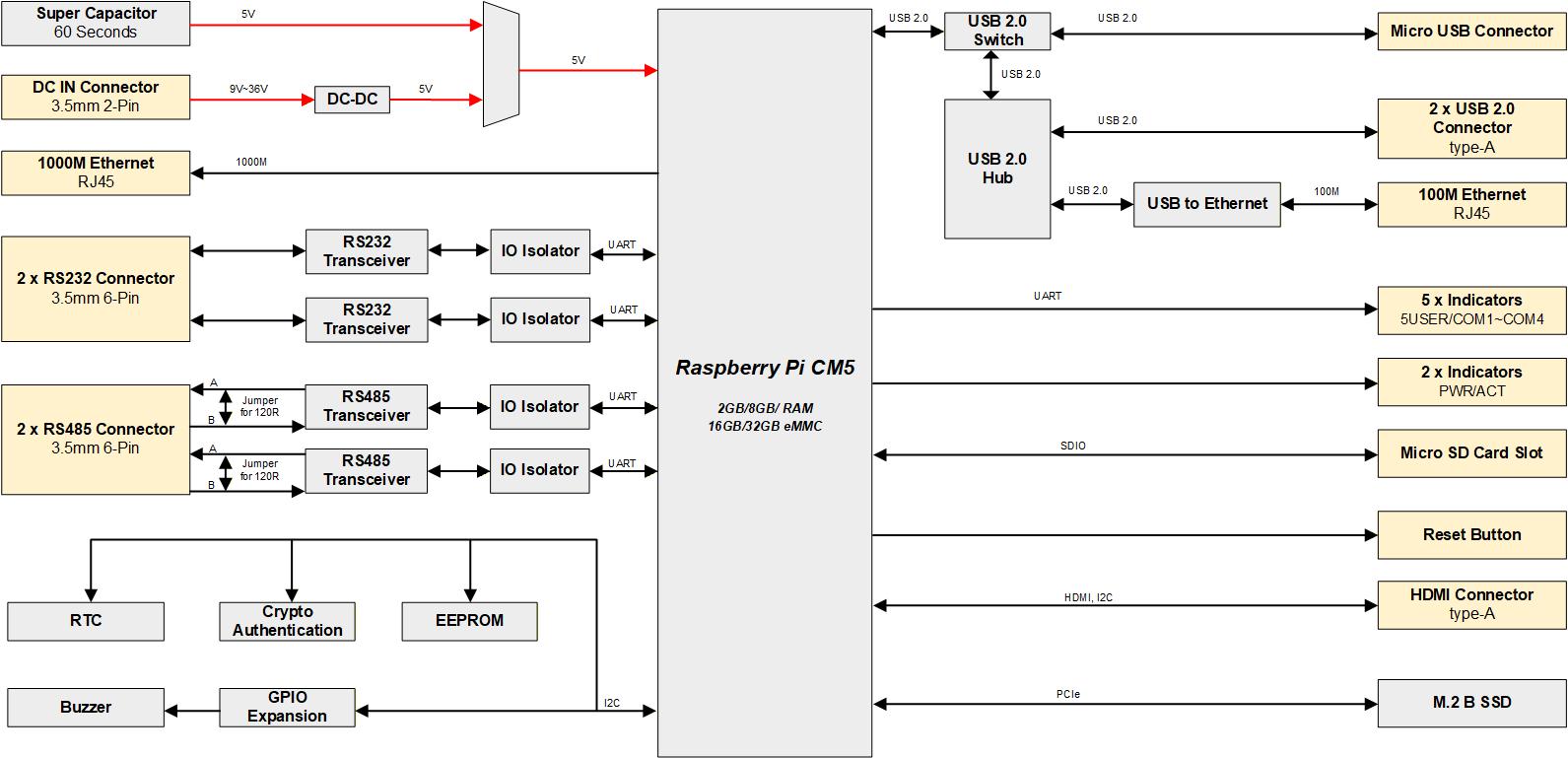

pac3110 System Diagram
Specification
Hardware System
CPUBroadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
VPUH.265 (HEVC), up to 4Kp60 decode
GPUOpenGL ES 3.1 & Vulkan 1.2
MemoryOptions for 2GB, 8GB LPDDR4-4267 SDRAM
StorageOptions for 16GB, 32GB eMMC storage
1 x Micro SD card slot (user storage expansion)
1 x M.2 B-Key interface (for 2230/2242 SSD storage expansion, optional 128GB/256GB/512GB supported)
CODESYS
RuntimeMulticore CODESYS Control Runtime System (pre-installed by default), with the Singlecore CODESYS Control Runtime System available as an optional add-on
Programming ModeIEC 61131-3 programming languages, including ST, LD, FBD, SFC and CFC
IDECODESYS V3.5
FieldbusCODESYS EtherCAT Master and CODESYS Modbus TCP Master
Motion ControlOptional CODESYS SoftMotion and CNC+Robotics
VisualizationOptional CODESYS TargetVisu and CODESYS WebVisu
OPC UASupport OPC UA Server
Software
Operating SystemRaspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit
Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Front I/O
Power1 x DC IN, 2-Pin 3.5mm pitch phoenix terminals with screw holes. It supports 9V~36V input, the signal is defined as VIN+/GND.
RS485/2322 x RS232 and 2 x RS485 ports, 12-Pin 3.5mm pitch phoenix terminals with IO isolator, which are equipped with electrostatic and surge protection.
1000M Ethernet1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
100M Ethernet1 x adaptive 10/100M ethernet port, RJ45 connector. It can be used to access the network.
Rear I/O
SD Card Slot1 x Micro SD card slot, using to install Micro SD card for storing user data.
Micro USB1 x Micro USB port, supporting to flash to eMMC for the system.
Side I/O
HDMI1 x HDMI port, Type-A connector. It is compatible with HDMI 2.0 standard and supports 4K 60Hz.
USB 2.02 x USB 2.0 ports, Type-A connector, supporting up to 480Mbps.
Buttons and Indicators
Reset1 x Reset button, which can reset the device.
PWR1 x red power indicator, using to check the status of device power-on and power-off.
ACT1 x green system indicator, using to check the working status of device.
USER1 x green user indicator, user can customize a status according to actual application.
COM1~COM44 x green UART indicators, using to check the communication status of UART port.
Expansion Functions
SuperCAPIntegrated 15F supercapacitor backup power supply, to protect the system power supply in 30s~60s from the impact of device power down, improve the reliability of the device.
EEPROMSupports 4K byte storage and improves the ease of use of device.
Crypto AuthenticationIt can be matched to realize the required upper layer application and improves the security of device.
RTCRTC with 1F SuperCAP backup, which can ensure that the system clock is not affected by device power-off.
We also provide a battery base, and you can buy a CR1220 battery backup for RTC.
BuzzerA tip or an abnormity can be configurated according to actual application, which realizes the alarm function.
Electrical Characteristics
Input Voltage9V ~ 36V DC
Power Consumption24W (Max)
Mechanical Characteristics
Dimensions143mm x 100mm x 35mm (WxDxH, DIN-rail bracket is not included.)
Weight750g
InstallationDIN-rail installation
Environmental & Regulatory
Operating Temperature-25°C ~ 60°C
Storage Temperature-25°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals

Unit: mm

pac3110 Dimensions
Ordering Code

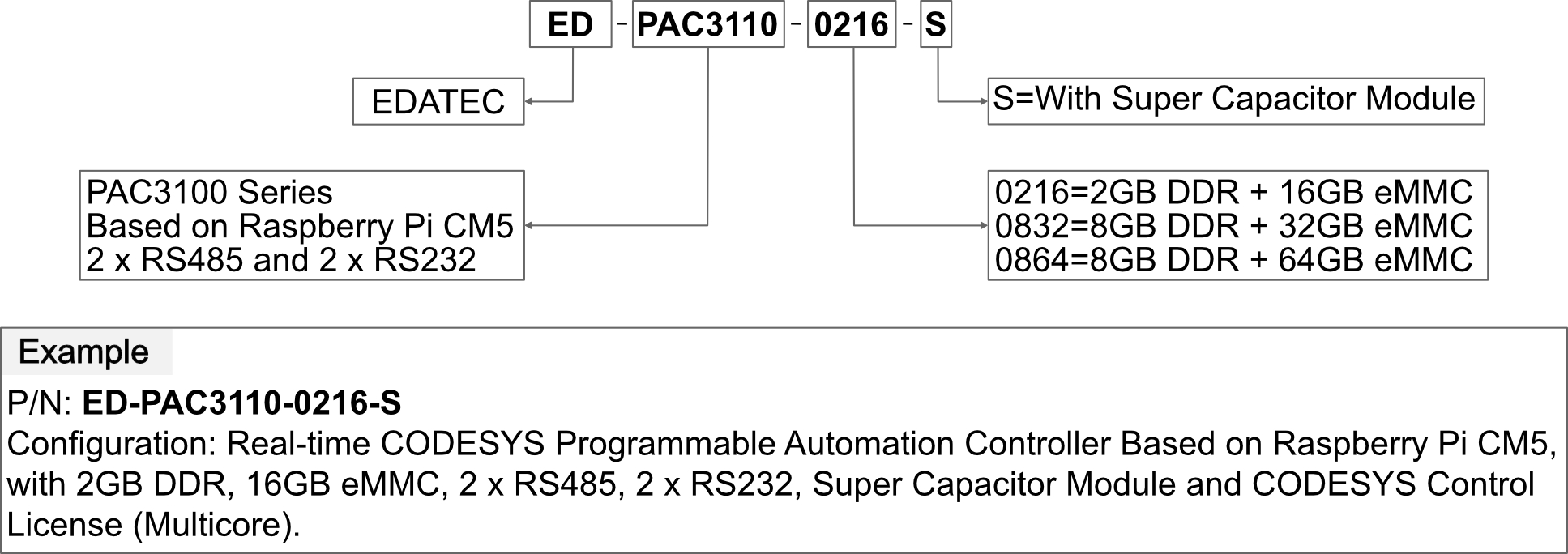

pac3110 Odering Code

TIP

  • The pre-installed CODESYS license includes Multicore, EtherCAT Master, Modbus TCP Master, and OPC UA Server. If you require additional licenses, please purchase them separately from Optional CODESYS Ordering Code.
  • The device supports extended 4G and Wi-Fi, if you need 4G or Wi-Fi function, you can contact us individually.
Docs
Type Title Publish Time
Datasheet ED-PAC3100 Datasheet 2024-04-10
Related Products

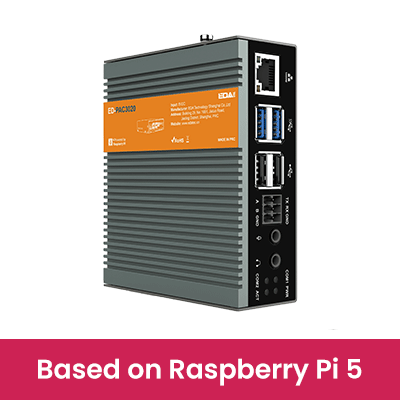

ED-PAC3020
