The ED-IPC2500 is an industrial computer designed with resilience and adaptability in mind, featuring a robust Broadcom BCM2711 CPU. This quad-core Cortex-A72 processor, based on the 64-bit ARM v8 architecture and clocking at 1.5GHz, offers substantial computational power. The system is configurable with up to 8GB of LPDDR4-3200 SDRAM, and storage options range from 0GB to 32GB of eMMC, with the added flexibility of a Micro SD card that supports booting the operating system and an optional mSATA SSD.

Visual output is facilitated by an HDMI port compatible with HDMI 2.1 standard, enabling 4K resolution at 60Hz, ensuring high-quality display capabilities. For wireless communication, the ED-IPC2500 comes equipped with 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth, and is 5G ready, making it a versatile choice for connecting to various networks.

The computer is furnished with three Gigabit Ethernet ports and two USB 2.0 ports, providing ample options for wired connectivity. Power is supplied through a wide voltage range of DC 9V to 36V, with safeguards against reverse polarity, overvoltage, and overcurrent. Additional features include an integrated supercapacitor for backup power supply (optional), an RTC, a watchdog timer, an EEPROM, and crypto authentication, enhancing the device's reliability and security.

The ED-IPC2500 operates over a wide temperature range of -25℃ to 60℃, suitable for diverse environments. Its compact dimensions of 143mm x 100mm x 34mm and weight of 750g make it a portable yet sturdy industrial solution. The high-quality metal case is designed for desktop mounting and can also accommodate antennas for wireless communication.

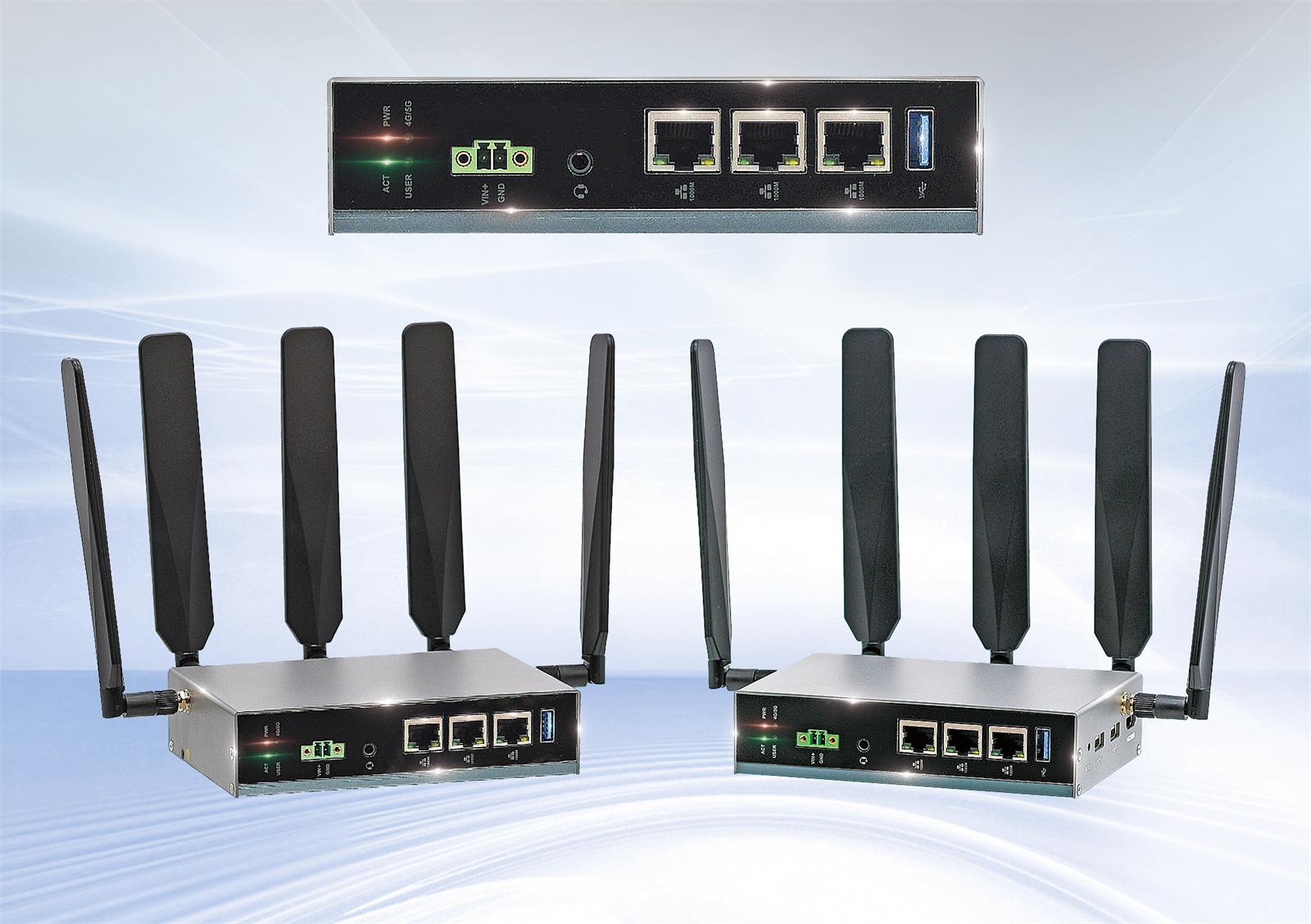

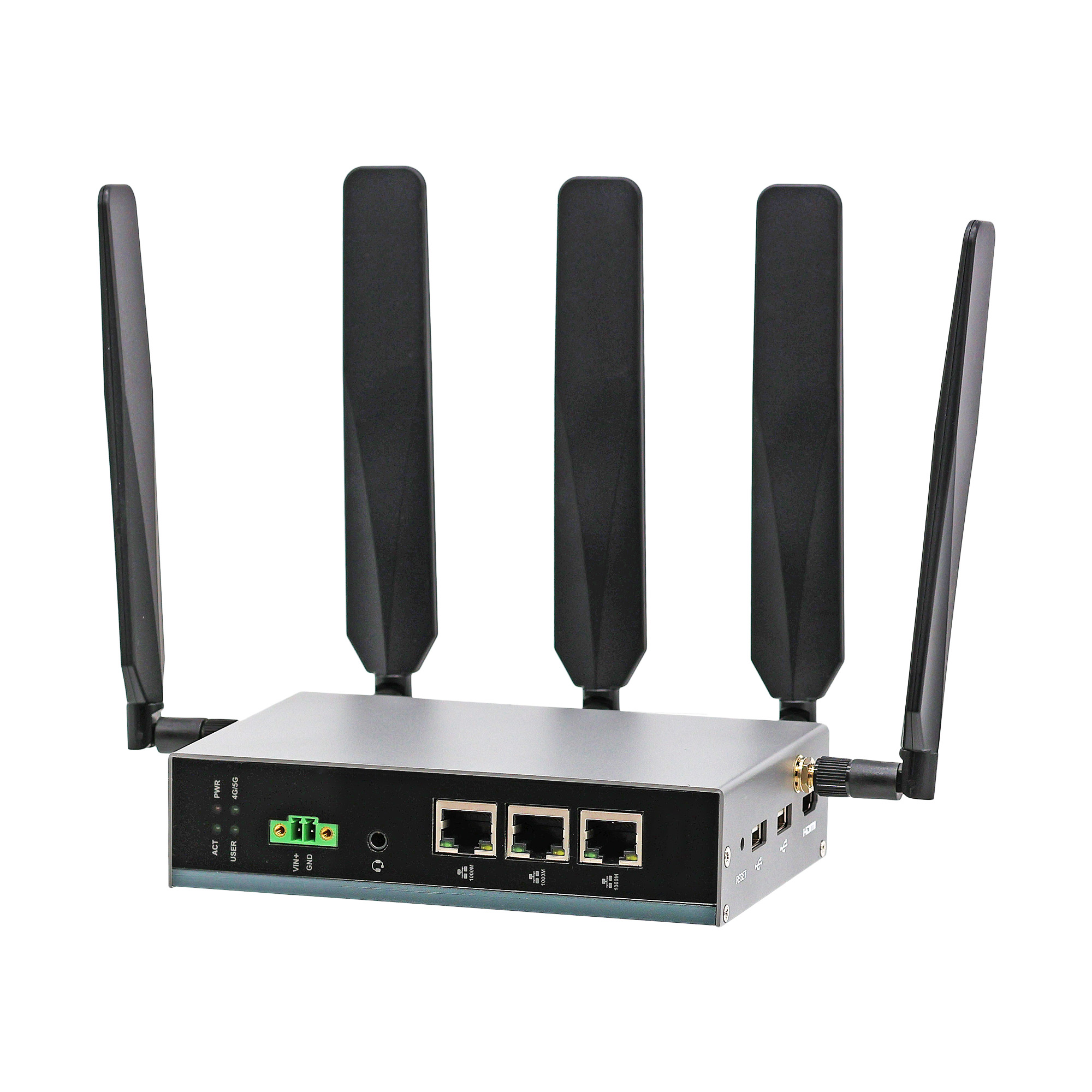

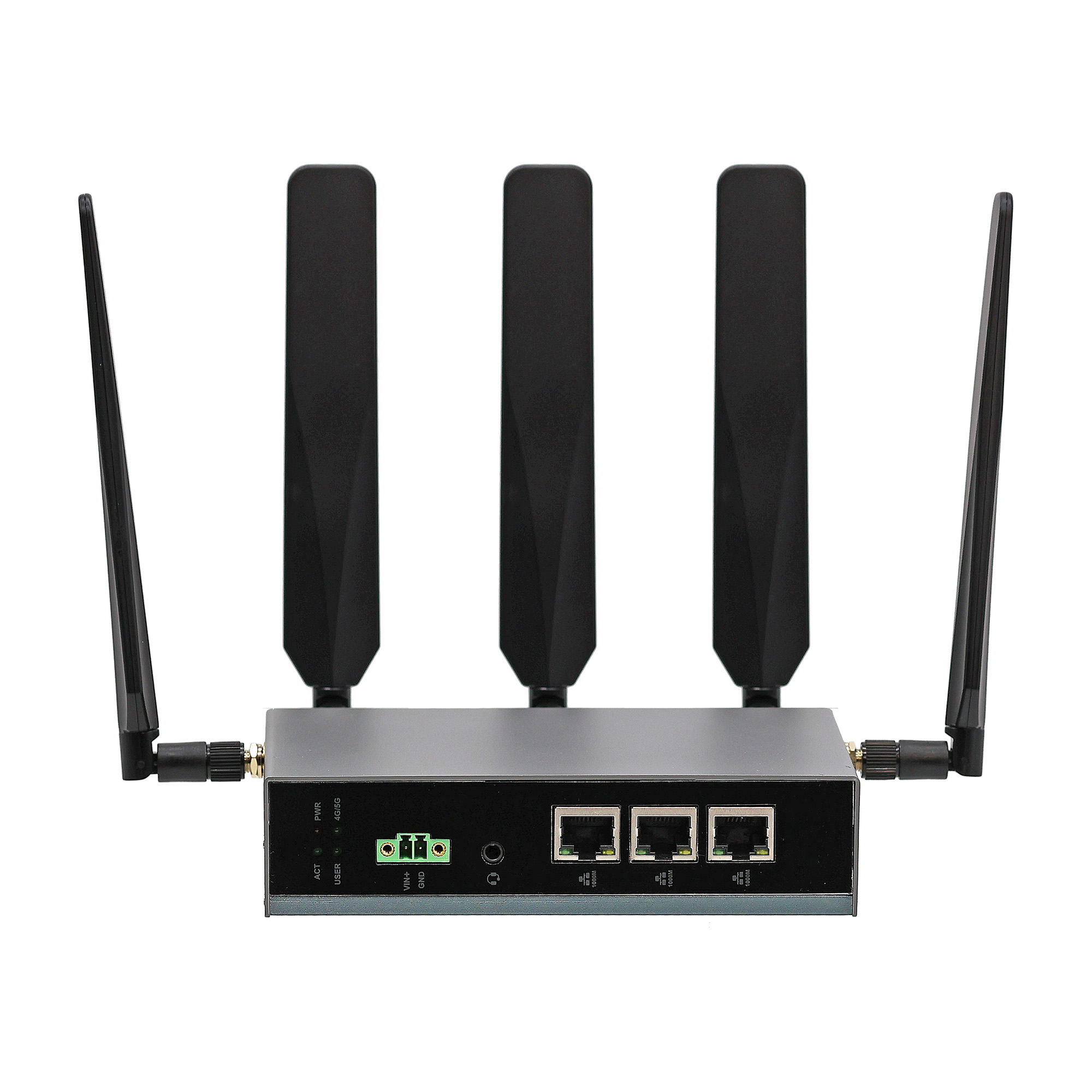

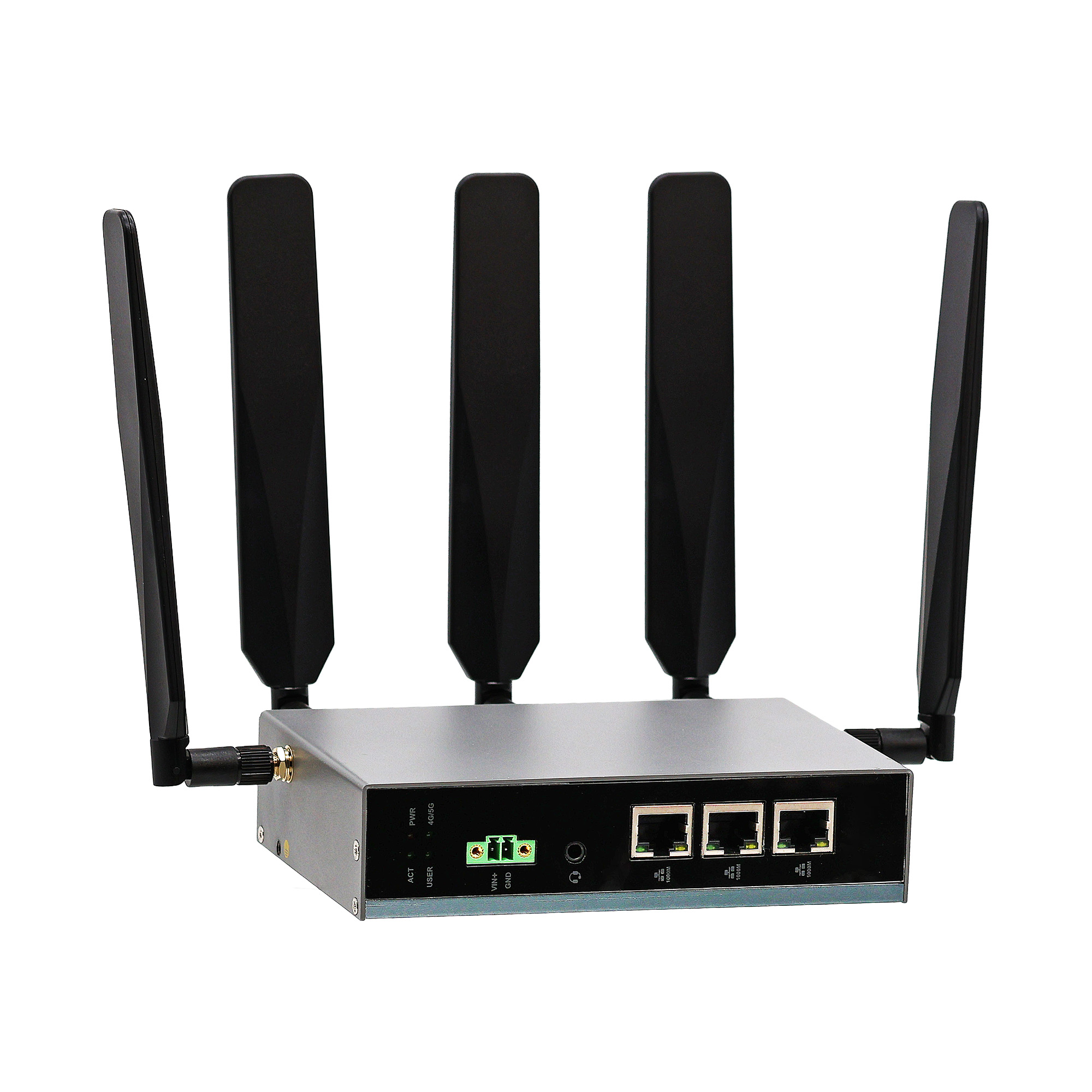

The front of the unit features DC power input and three Gigabit Ethernet ports for network access. On the rear, a Micro-SD card slot allows for OS booting, a Nano SIM card slot enables 5G connectivity, and a Micro USB port is available for system flashing. Side I/O includes an HDMI port and two USB 2.0 ports, along with SMA ports for connecting 5G antennas.

The ED-IPC2500 also includes reset and power buttons, along with various indicators such as a 5G signal indicator, a system activity light, and a user-definable indicator. For expansion, it offers 12V 1A and 5V 1A DC output connectors, a 40-Pin GPIO header compatible with CM4, and a 10-Pin GPIO header for custom functions. USB 2.0 ports and a Mini PCIe connector for SSD connectivity are also available for additional expansion possibilities.

The ED-IPC2500 ensures device ease-of-use and security with its EEPROM and crypto authentication features, maintains system clock continuity with an RTC, and includes a buzzer for alarms and a watchdog function for reliability. With certifications such as FCC and CE, the ED-IPC2500 adheres to international standards, making it suitable for a broad range of industrial applications.

More Products

Model	Processor	Ethernet	RS232/485	CAN	DI/DO	4G/5G LTE Support	ADC	Supercap	PoE	SSD
ED-IPC2000	CM4	x 1	-	-	-	-	-	-	√	√
ED-IPC2100	CM4	x 2	x 4	-	-	4G	-	√	√	√
ED-IPC2200	CM4	x 3	-	-	-	4G	-	√	√	√
ED-IPC2400	CM4	x 1	x 4	-	-	-	-	-	√	√
ED-IPC2500	CM4	x 3	-	-	-	5G	-	√	-	-
ED-IPC2610	CM4	x 2	x 4	-	x 8 / x 8	4G	-	√	√	√
ED-IPC2620	CM4	x 2	x 4	x 1	x 4 / x 4	4G	-	√	√	√
ED-IPC2630	CM4	x 2	x 4	x 2	x 8 / x 8	4G	-	√	√	√
ED-IPC3100	CM5	x 2	x 4	-	-	4G	-	√	√	√
ED-IPC3630	CM5	x 2	x 4	x 2	x 8 / x 8	4G	-	√	√	√
ED-IPC3020	Pi 5	x 1	x 2	-	-	4G	-	√	√	√
ED-CM4SEN	CM4	x 1	x 5	x 1	-	4G	-	-	-	-
ED-CM4IO	CM4	x 1	-	-	-	-	-	-	√	√
ED-CM4MED	CM4	x 1	-	-	-	4G	-	-	-	-
ED-CM4IND	CM4	x 2	x 3	-	x 3	4G	x 3	-	√	√
ED-CM4NANO	CM4	x 1	-	-	-	-	-	-	√	√
ED-SBC2300	CM4	x 2	x 9	-	-	4G	-	-	√	√
ED-SBC2300	CM5	x 2	x 9	-	-	4G	-	-	√	√

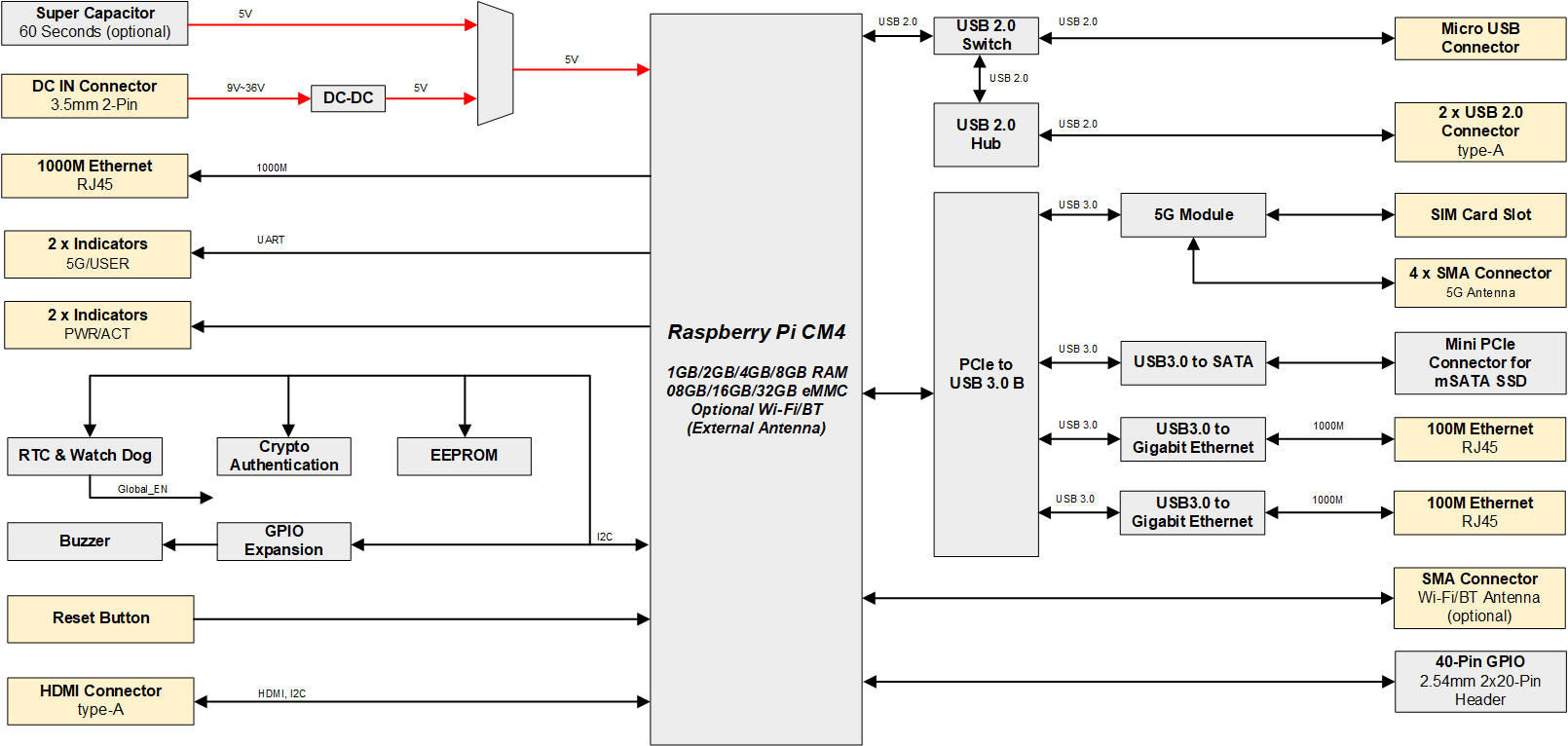

System Diagram

Specification

System
CPU	Broadcom BCM2711, quad core Arm Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
VPU	H.265(HEVC), up to 4Kp60 decode H.264, up to 1080p60 decode, 1080p30 encode
GPU	OpenGL ES 3.1 & Vulkan 1.0
Memory	Options for 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM
Storage	Options for 0GB, 8GB, 16GB, 32GB eMMC storage Micro SD card (support booting OS) mSATA SSD (optional)

software
Operating System	Raspberry Pi OS (Desktop) 32-bit Raspberry Pi OS (Lite) 32-bit Raspberry Pi OS (Desktop) 64-bit Raspberry Pi OS (Lite) 64-bit

Front I/O
Power	1 x DC IN, 2-Pin 3.5mm pitch phoenix terminals with screw holes. It supports 9V~36V input, the signal is defined as VIN+/GND.
1000M Ethernet	3 x adaptive 10/100/1000M ethernet ports, RJ45 connector. It can be used to access the network.

Rear I/O
SD Card Slot	1 x Micro-SD card slot, which is used to install SD card for booting the OS.
SIMCard Slot	1 x Nano SIM card slot, which is used to install SIM card for getting 5G signal.
Micro USB	1 x Micro USB port, which supports to flash to eMMC for the system.
Antenna	3 x SMA ports (1 x WiFi/BT antenna port, 2 x 5G antenna ports), which is used to connect 5Gantenna and WiFi/BT antenna.

Side I/O
HDMI	1 x HDMI port, type A connector. It is compatibles with HDMI2.0 standard and supports 4K 60Hz.
USB 2.0	2 x USB 2.0 ports, type A connector, which support up to 480Mbps.
Antenna	2 x SMA ports, which is used to connect 5G antenna.

Buttons and Indicators
Reset	1 x Reset button, which can reset the device.
PWR	1 x red power indicator, using to check the status of device power-on and power-off.
5G	1 x green 5G indicator, which is used to check the status of 5G signal.
ACT	1 x green system indicator, using to check the working status of device.
USER	1 x green user indicator, user can customize a status according to actual application.

Expansion I/O
12V 1A	3 x DC OUT, 2-Pin 2.0mm pitch WTB connector, supporting 12V 1A output. These pins are defined as GND/12V, reserving to provide power supply for extended LCD.
5V 1A	1 x DC OUT, 3-Pin 2.0mm pitch WTB connector, supporting 12V 1A output. These pins are defined as GND/5V/GND, reserving to provide power supply for extended LCD.
40-Pin GPIO	1 x GPIO, 2x20-Pin 2.54mm pitch header, using to lead out the GPIO ports of CM4.These pins are defined as GPIO1~GPIO27/3V3/5V2/GND, compatibles with expansion modules, which reserves to connect expansion accessories.
10-Pin GPIO	1 x GPIO Pin Header, 2x5-pin 2.54mm pitch header, using to lead out the expansion GPIOports. User can customize the function according to actual application, these pins aredefined as 8xGPIO/3V3/GND.
USB2.0	2 x USB 2.0, 5-pin 1.5mm pitch WTB connector, which can be expanded USB 2.0 ports.
mSATA	1 x mSATA, mini PCIe connector, which supports to connect mSATA SSD.

Expansion Performance
EEPROM	Supports 4K byte storage and improves the ease of use of device.
Crypto Authentication	It can be matched to realize the required upper layer application and improves the security of device.
RTC	Ensure that the system clock is not affected by device power-off. Note: A CR1220 battery is provided by default in China.
Buzzer	A tip or an abnormity can be configurated according to actual application, which realizes the alarm function.
Watch Dog	Realize the hardware Watch Dog based on the RTC alarm function to ensure the reliabilityof device.

Electrical Characteristics
Input Voltage	9V ~ 36V DC
Power Consumption	24W (Max)

Mechanical Characteristics
Dimensions	143mm x 100mm x 34mm (WxDxH, antennas are not included.)
Weight	750g
Installation	Desktop Mounting

Wireless
Wi-Fi/Bluetooth (optional)	2.4GHz and 5GHz dual-band Wi-Fi with antenna. 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n 5GHz Wi-Fi: Compatible with IEEE 802.11 a/n/ac Bluetooth 5.0 with antenna, compatible with 2402MHz ~ 2480MHz frequency.
5G	Connect with various 5G module(RM500U-CNV) through the M.2 B Key interface,with 4 antennas. 5G NR: 3GPP Release 15/Release 16 NSA/SA operation, Sub-6 GHz 5G NR NSA: n41/78/79 5G NR SA: n1/28/41/77/78/79 Downlink 4 x 4 MIMO: n1/41/77/78/79 LTE Category: Downlink Cat 12, Uplink Cat 13 LTE-FDD: B1/2/3/5/7/8/20/28 LTE-TDD: B34/38/39/40/41 Downlink 2 x 2 MIMO: B1/2/3/5/7/8/20/28/34/38/39/40/41 WCDMA: B1/2/5/8

Wireless

Wi-Fi/Bluetooth (optional)

2.4GHz and 5GHz dual-band Wi-Fi with antenna.

2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
5GHz Wi-Fi: Compatible with IEEE 802.11 a/n/ac
Bluetooth 5.0 with antenna, compatible with 2402MHz ~ 2480MHz frequency.

Connect with various 5G module(RM500U-CNV) through the M.2 B Key interface,with 4 antennas.

5G NR: 3GPP Release 15/Release 16 NSA/SA operation, Sub-6 GHz
5G NR NSA: n41/78/79
5G NR SA: n1/28/41/77/78/79

Downlink 4 x 4 MIMO: n1/41/77/78/79

LTE Category: Downlink Cat 12, Uplink Cat 13
LTE-FDD: B1/2/3/5/7/8/20/28
LTE-TDD: B34/38/39/40/41

Downlink 2 x 2 MIMO: B1/2/3/5/7/8/20/28/34/38/39/40/41

WCDMA: B1/2/5/8

Environmental & Regulatory
Operating Temperature	-25°C ~ 60°C
Storage Temperature	-25°C ~ 60°C
Ambient humidity	5% ~ 95% (non-condensing)
Certifications	FCC FCC 47 CFR Part 15 Subpart B CE EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035 EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2

Mechanicals

Unit: mm

ED-IPC2500 Datasheet Dimensions-2024.05.21
