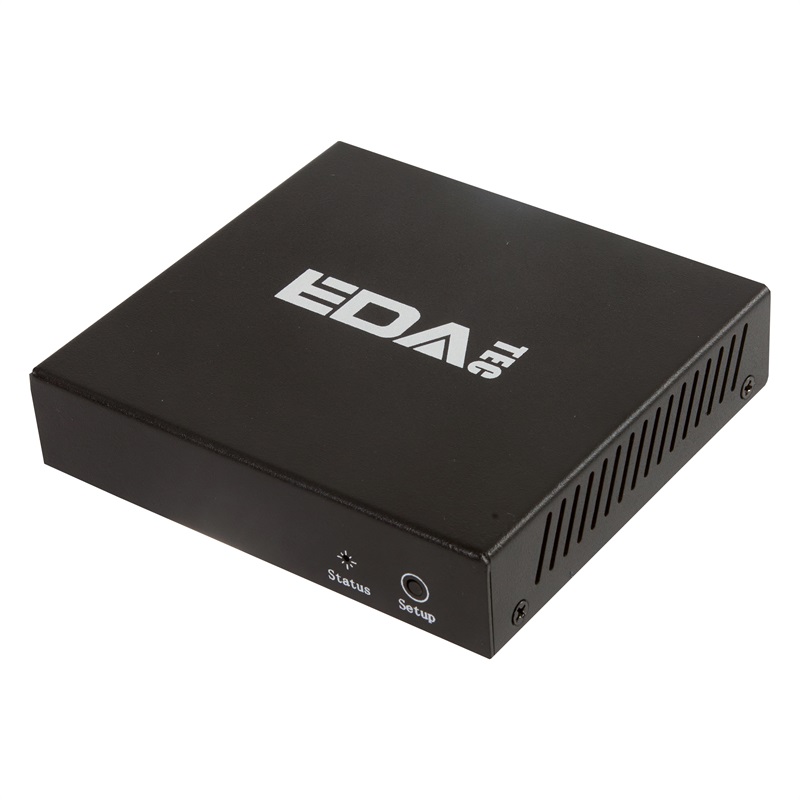

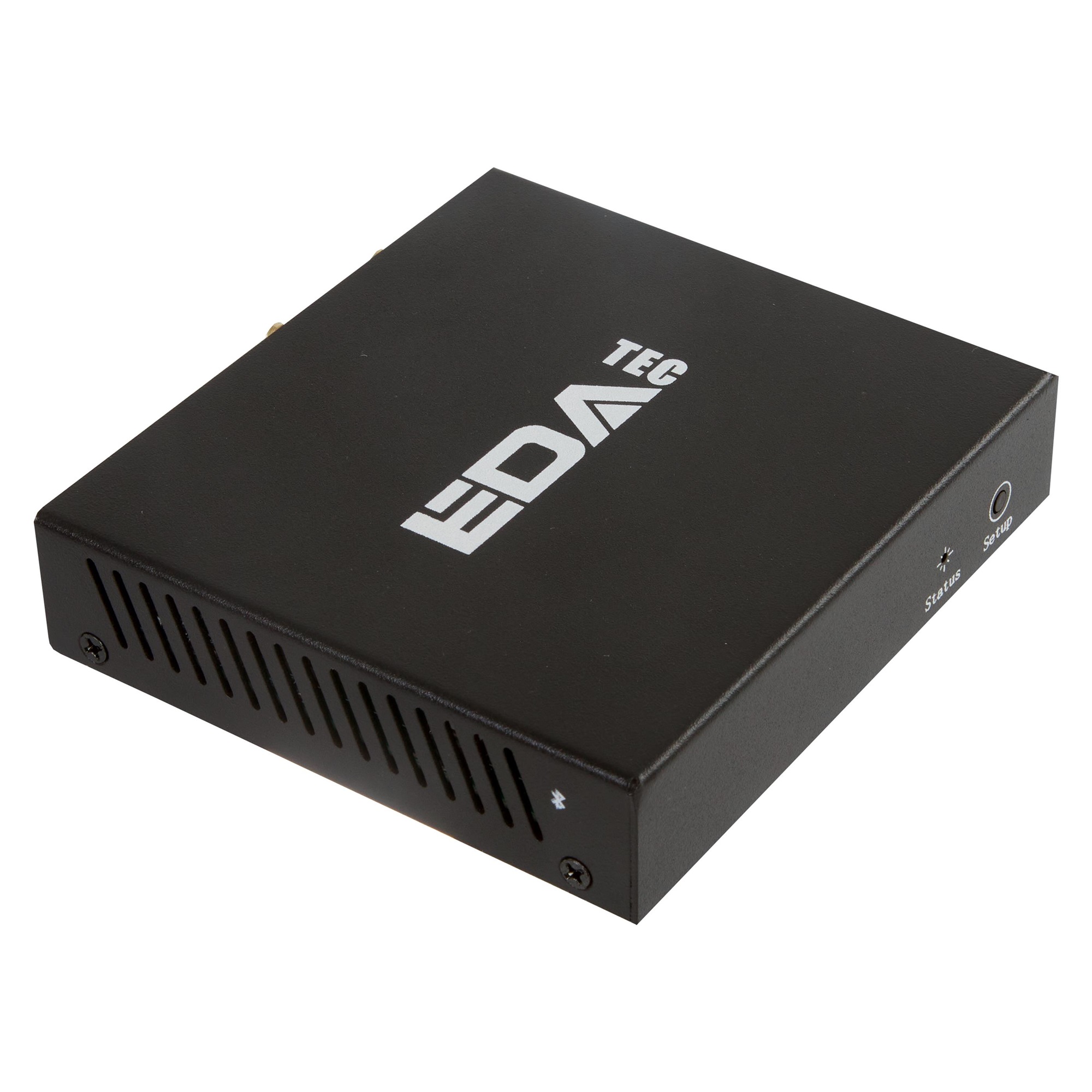

ED-IoTHotspot-M1

ED-IoTHotspot-M1

Portable LoRa hotspot with high sensitivity reception and an intuitive user configuration interface for flexible IoT connectivity on the go.

Key Featured
  • 1GHz ARM Cortex-A53 64-bit CPU for reliable performance.
  • 2.4GHz 802.11 b/g/n WiFi and Bluetooth 4.2 with external antenna for enhanced signal strength.
  • Semtech SX1302 + SX1250 for wide-range coverage and low power consumption.
  • Built-in ATECC608A crypto device for secure communications.
  • Covers both 868-870 MHz and 902-928 MHz frequency bands for global compatibility.
  • -125dBm sensitivity at 125KHz/SF7 and up to 27dBm TX power for robust signal transmission.
  • 1x WiFi/BT external antenna and 1x 2.5dBi LoRa antenna, with an optional 5.8dBi LoRa antenna.
  • 1x RGB LED for status indication and 1x button for hotspot configuration.
  • Supports DC 7.5V to 18V power input.
  • Designed for use in temperatures from 0°C to 50°C.
  • Dimensions of 95mm x 95mm x 26mm for easy placement.
  • Supports remote access, dashboard in LAN, self-diagnostic, and repair.
  • Enables automatic online upgrades without manual intervention.

ED-IoTHotspot-M1 by EDATEC is a specialized Helium Indoor Light Hotspot designed to extend low-power network coverage for IoT devices across cities and buildings.

This device not only enhances connectivity but also offers an opportunity to earn the HNT cryptocurrency, making it an innovative solution for both expanding network capabilities and participating in the digital economy.

At the heart of ED-IoTHotspot-M1 is a powerful Quad-core, 1GHz ARM Cortex-A53 64-bit CPU, which is complemented by 512MB of RAM and 8GB of storage, ensuring smooth operation and ample space for data.

The device provides comprehensive network coverage through WiFi and Bluetooth 4.2, with the added advantage of external antennas for improved wireless communication reliability.

One of the key features of ED-IoTHotspot-M1 is the integration of a Semtech SX1302 + SX1250 concentrator, which enables wide-ranging coverage and low power consumption, making it an efficient choice for IoT networks.

The device is also equipped with a built-in ATECC608A crypto device for enhanced security, supporting various frequency bands that cater to different regions, including Europe, India, Russia, and the United States.

With sensitivity down to -125dBm and a transmit power of up to 27dBm, the ED-IoTHotspot-M1 ensures robust connectivity for IoT devices.

The device comes with a WiFi/BT external antenna and a 2.5dBi LoRa antenna, with the option to upgrade to a 5.8dBi LoRa antenna for even better performance.

An RGB LED indicator and a button for hotspot configuration provide straightforward visual feedback and easy setup.

ED-IoTHotspot-M1 is designed for remote management and diagnostics, with the ability to be monitored and repaired through a local area network dashboard.

Its support for over-the-air (OTA) updates simplifies maintenance and ensures the device is always running the most current software.

The device's power supply ranges from DC 7.5V to 18V, and it operates within a temperature range of 0°C to 50°C, making it suitable for various environments.

In terms of physical dimensions, ED-IoTHotspot-M1 measures 95mm by 95mm by 26mm, featuring a metal enclosure for effective heat dissipation.

This Helium hotspot is a compact and powerful addition to any IoT infrastructure, providing both enhanced network coverage and the potential for cryptocurrency earnings.

System Diagram

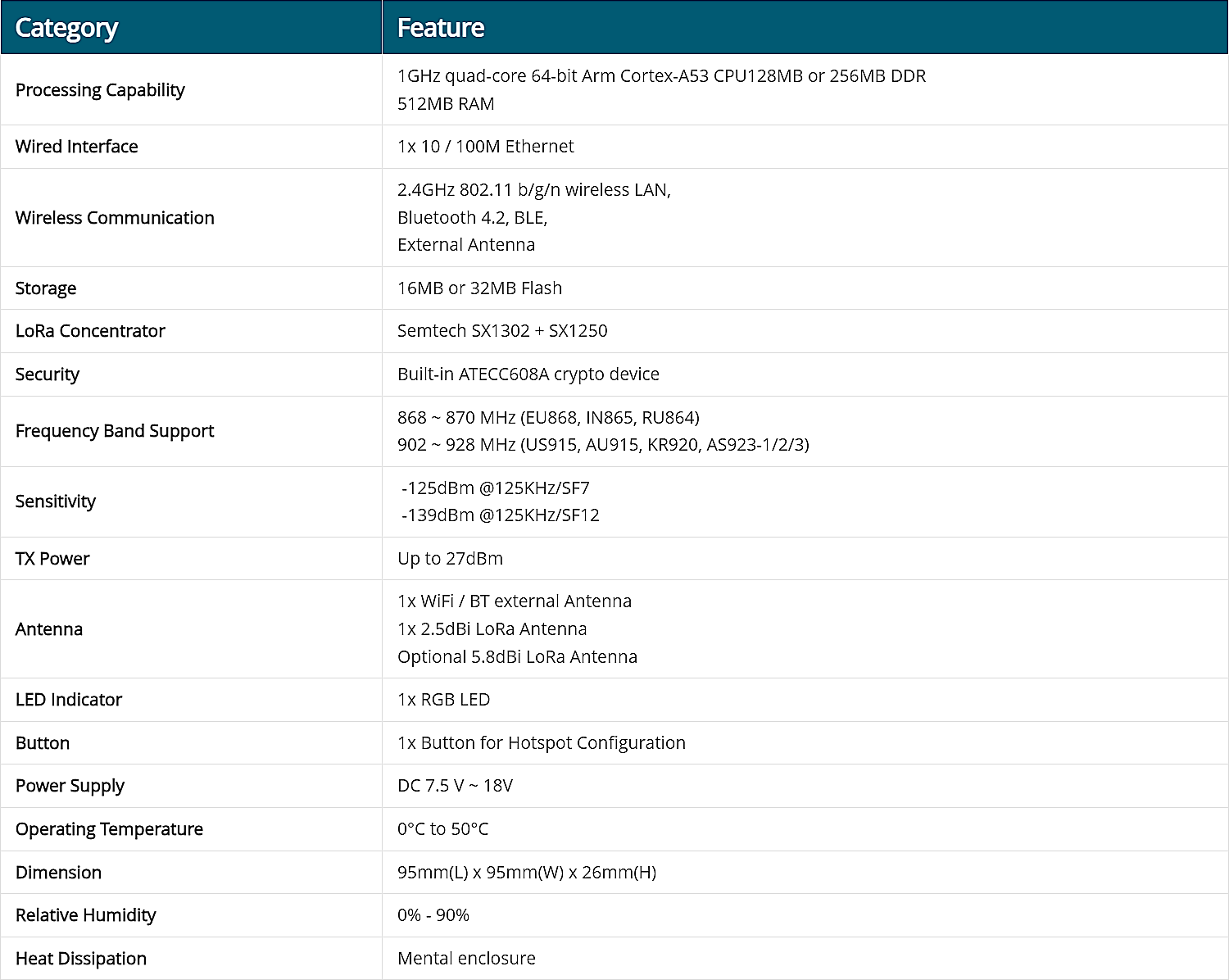

Specification

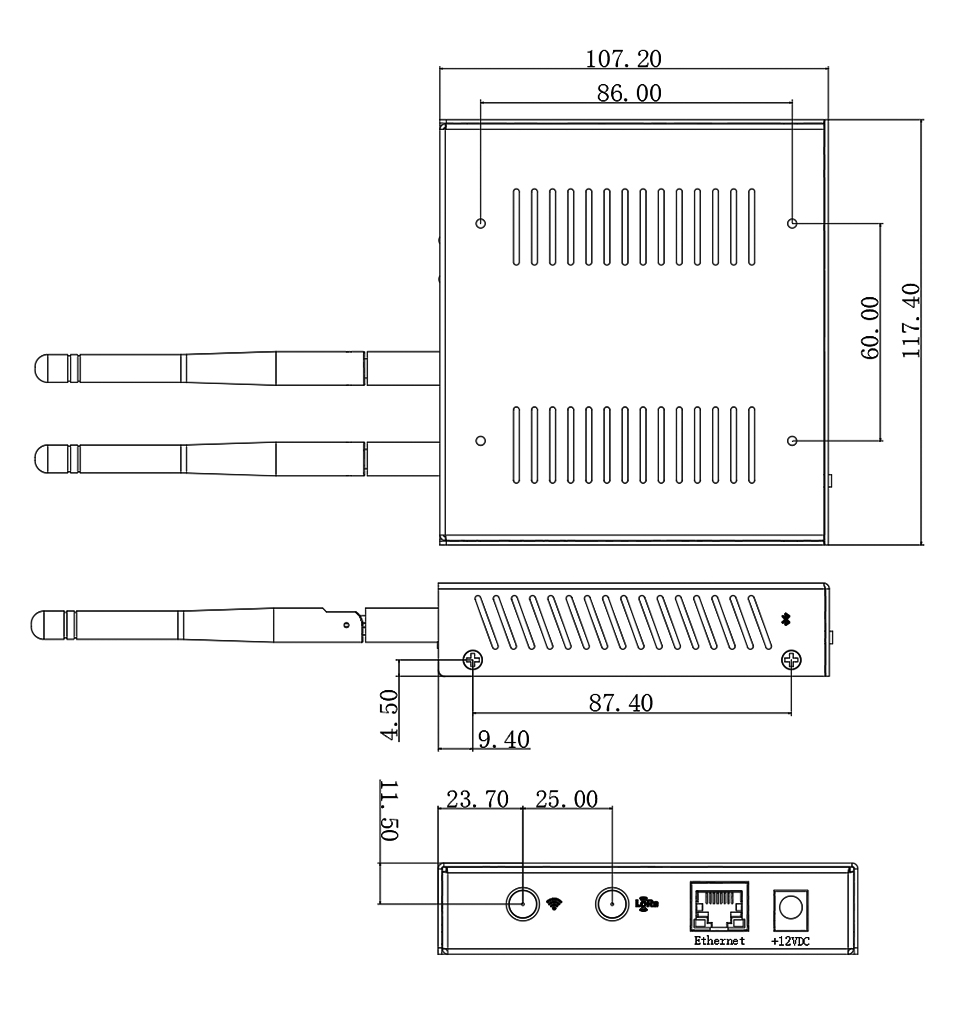

Mechanicals

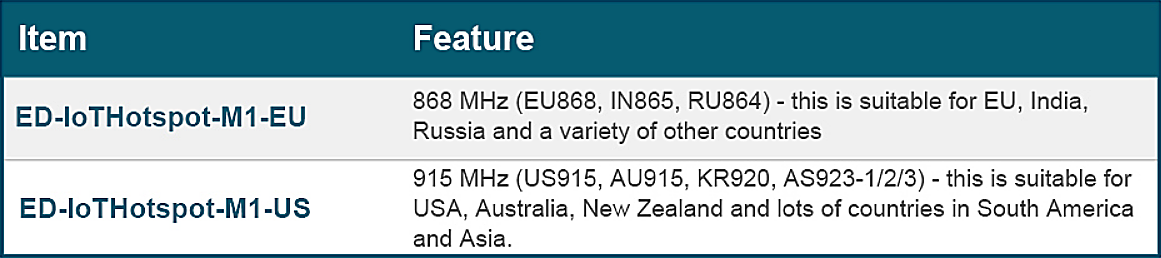

Ordering Code

Docs
Type Title Publish Time
PDF ED-IoTHotspot-M1 Datasheet-en.pdf 2024-04-10
