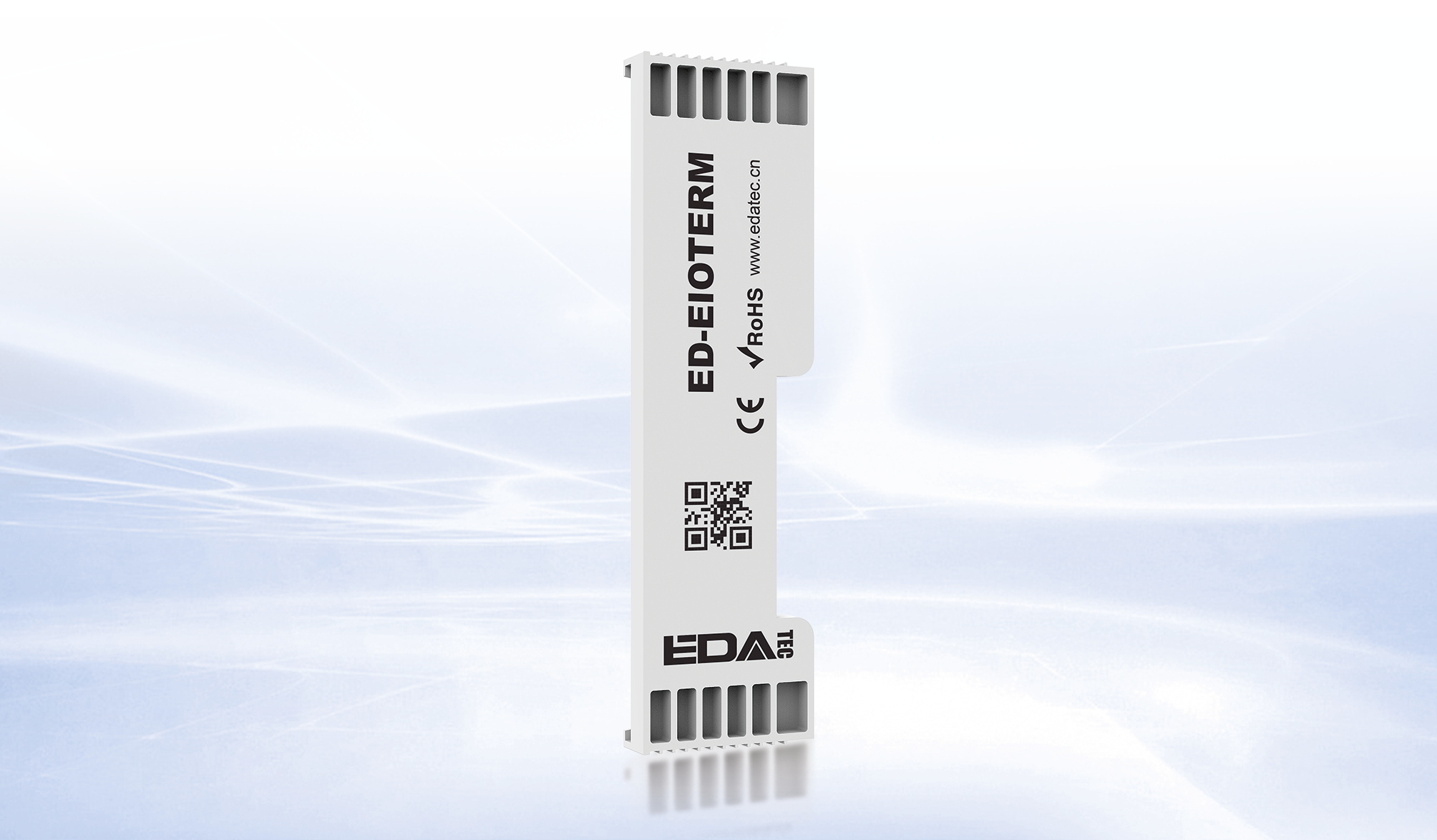

Bus End Cove

Bus End Cove

A protective cover for the E-bus contacts at the end of an EtherCAT bus

Key Featured
  • Covers the E-bus contacts of the EtherCAT Bus End I/O module and protects the E-bus contacts mechanically and electrically
  • Plug-in construction, screwless wiring


In the realm of industrial automation, the EtherCAT Bus End Cover (ED-EIOTERM) plays a crucial role in maintaining the integrity and longevity of EtherCAT bus systems. This component is specifically designed to protect the E-bus contacts of the terminal I/O module, safeguarding them from environmental factors and physical damage that could compromise the system's performance.

Product Features

  • Mechanical and Electrical Protection: The Bus End Cover provides robust protection for the E-bus contacts, shielding them from dust, moisture, and physical impacts that could lead to corrosion or damage.
  • Plug-in Construction: This cover features a plug-in design that allows for screwless installation, making it quick and easy to mount onto the DIN rail. This not only saves time during installation but also reduces the risk of installation errors.
  • Compact Design: With dimensions of 100mm x 27.5mm x 7.2mm and a weight of approximately 10g, the Bus End Cover is compact and lightweight, ensuring it does not add unnecessary bulk to the system.
  • High Compatibility: It is designed to be fully compatible with standard EtherCAT bus systems, ensuring seamless integration with existing infrastructure.

Technical Specifications

  • Weight: Approximately 10g
  • Dimensions: 100mm x 27.5mm x 7.2mm
  • Operating Temperature: -10℃ to 55℃
  • Storage Temperature: -20℃ to 85℃
  • Ambient Humidity: 5% to 95% (non-condensing)
  • Air Pressure: ≥ 795 hPa (at altitudes ≤ 2000 meters), compliant with IEC 61131-2 standards
  • Certifications: CE and RoHS certified
  • Protection Class: IP20

Application Scenarios

The EtherCAT Bus End Cover is essential in a variety of industrial settings, including:

  • Manufacturing Plants: Protects the terminal I/O modules in production lines, ensuring continuous and reliable operation of the automation systems.
  • Automotive Industry: Used in the assembly lines of vehicles, safeguarding the EtherCAT bus system from the harsh conditions of the manufacturing environment.
  • Food and Beverage Industry: Ensures that the control systems in packaging and processing lines are protected from moisture and contaminants, maintaining hygiene standards.
  • Pharmaceutical Industry: Critical for protecting the precision control systems in manufacturing and packaging, ensuring compliance with strict regulatory standards.

Installation Instructions

  1. Power Off: Before installation, ensure that the system is powered off to prevent any electrical hazards.
  2. Align Notches: Align the notches of the Bus End Cover with those of the I/O module.
  3. Mount on DIN Rail: Push the Bus End Cover onto the DIN rail in the direction of the arrow, ensuring it fully covers the E-bus contacts and fits securely over the rail.

The EtherCAT Bus End Cover (ED-EIOTERM) is a vital component for protecting the terminal I/O modules in EtherCAT bus systems. Its design ensures that the system remains protected from environmental factors, thereby enhancing the reliability and lifespan of the automation equipment. Whether in a manufacturing plant or a high-precision pharmaceutical facility, this cover plate is an indispensable part of maintaining a robust and efficient industrial automation setup.

HS CODE

HS CODECOO
8517799000CN


Optional Remote I/O

ModelDescription
ED-EIOBRG-ECEtherCAT Coupler

Optional I/O Modules

Support a variety of I/O modules, the detailed ordering codes are the table below.

ModelDescription
ED-EIO8XP8-channel digital input module (PNP)
ED-EIO8XN8-channel digital input module (NPN)
ED-EIO16XP16-channel digital input module (PNP)
ED-EIO16XN16-channel digital input module (NPN)
ED-EIO8YP8-channel digital output module (PNP)
ED-EIO8YN8-channel digital output module (NPN)
ED-EIO16YP16-channel digital output module (PNP)
ED-EIO16YN16-channel digital output module (NPN)
ED-EIO4YR4-channel digital output module (Relay)
ED-EIO4ADV4-channel analog input module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4ADA4-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO8ADA8-channel analog input module (current), 4-20mA/0-20mA, configurable
ED-EIO4AD4-channel analog input module (voltage/current mixed), -5~5V/0~10V/-10~10V/4-20mA/0-20mA, configurable
ED-EIO4DAV4-channel analog output module (voltage), -5~5V/0~10V/-10~10V, configurable
ED-EIO4DAA4-channel analog output module (current), 4-20mA/0-20mA, configurable
ED-EIO4RTD4-channel RTD Module
ED-EIO4TC4-channel TC Module
D-EIO2HCD2-channel High Speed Counter Module
ED-EIOPWRPower Expansion Supply Module
ED-EIOTERMBus End Cover


Specification
Mechanical Characteristics
Dimensions100mm x 27.5mm x 7.2mm
WeightAbout 8g
Environmental & Regulatory
Operating Temperature-10℃ ~ 55℃
Storage Temperature-20℃ ~ 85℃
Ambient Humidity5% ~ 95% (non-condensing)
Air Pressure≥ 795 hPa (altitude ≤ 2000 m), compliant with IEC 61131-2
Protection ClassIP20
CertificationsCE and RoHS
Mechanicals

Unit: mm

term-dimension
Ordering Code
ModelDescription
ED-EIOTERMBus End Cover
