ED-MONITOR-101C

10” Rugged & High Brightness Industrial HDMI Touch Monitor

Key Featured
  • 10“, 1024 x 600 TFT LCD screen, Standard HDMI Input
  • USB multi-touch capacitive touch screen
  • 500 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
Online Docs

ED-MONITOR-101C is a 10-inch industrial HDMI touch monitor designed for industrial applications. The resolution is up to 1024 x 600, supports USB multi-touch, drive-free and ready to use, and has a built-in audio output interface, providing a complete multimedia solution, perfectly adapted to Raspberry Pi and other platforms. Aluminum alloy screen frame and sheet metal case mechanical design, durable, anti-vibration and anti-collision, the front panel support IP65 grade waterproof and dustproof. Up to 500nits of backlight brightness, the content is clearly visible. Support for DC 12-24V wide-voltage input and -10 ~ 70 wide operating temperature, support for embedded and VESA bracket mounting.

Function ClassificationED-MONITOR
070C101C116C133C156C185C215C
Panel I/OHDMI1 x HDMI port, Type-A connector, connecting to HDMI output.
USB1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.
Audio1 x 3.5mm audio jack, stereo audio output.
Power1 x DC Jack port, support 12V~24V power input.
Buttons and IndicatorsPWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button 2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button1 x Mute button for mute and unmute audio.
LCDType7.0" TFT 10.1" TFT11.6" TFT13.3" TFT15.6" TFT18.5" TFT21.5" TFT
Resolution 1024x6001920x1080
Color Number16.7M
Active Area(mm /HV)154.21x85.92 222.72x125.28256.32x144.18293.76x165.24344.16x193.59408.96x230.04478.656x260.280
BacklightLED
Luminance (cd/m2)425500450450450290450
Contrast Ratio800:1800:11000:1 1500:11000:1 3000:1
Response Time30ms 25ms30ms 25ms14ms6.5ms
Viewing Angle (CR>10)85° / 85°80° / 80°85° / 85°80° / 80°89° / 89°
Touch ScreenTypeapacitive Touch Screen
Multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical CharacteristicsInput Voltage12-24V DC
Power Consumption10W 15W18W
Mechanical CharacteristicsDimensions (mm) 188x123x20.8257.7x159.7x28303.4x191.4x46.5340.4x211.4x46.5388.4x238.4x46.5457.3x278.3x46.5531.3x317.8x46.5
WeightAbout495gAbout940gAbout1.9kgAbout2.1kgAbout2.3kgAbout3.1kgAbout4.6kg
InstallationEmbedded front installationEmbedded front installation and VESA bracket mounting
Environmental & RegulatoryOperating Temperature-10°C ~60°C0°C ~ 50°C
Storage Temperature-20°C ~70°C
-20°C ~ 60°C
Ambient humidityAmbient humidity 5% ~ 95%（non-condensing）


System Diagram
monitor-101c-diagram
Specification
Panel I/O
HDMI1 x HDMI port, Type-A connector, connecting to HDMI output.
USB1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.
Audio1 x 3.5mm audio jack, stereo audio output
Power1 x DC Jack port, support 12V~24V power input.
Buttons and Indicators
PWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
LCD
Type10.1" TFT
Resolution1024 x 600
Color Number16.7M
Active Area222.72mm (H) x 125.28mm (V)
BacklightLED
Luminance500cd/m2
Contrast Ratio800:1
Response Time25ms
Viewing Angle (CR≥10)85° (L) / 85° (R) / 85° (U) / 85° (D)
Touch Screen
TypeCapacitive Touch Screen
multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical Characteristics
Input Voltage12V~24V DC
Power Consumption10W (Max)
Mechanical Characteristics
Dimensions257.7mm x 159.7mm x 29.2mm (WxDxH)
WeightAbout 940g
InstallationEmbedded front installation and VESA bracket mounting
Environmental & Regulatory
Operating Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Ambient humidity5% ~ 95% (non-condensing)

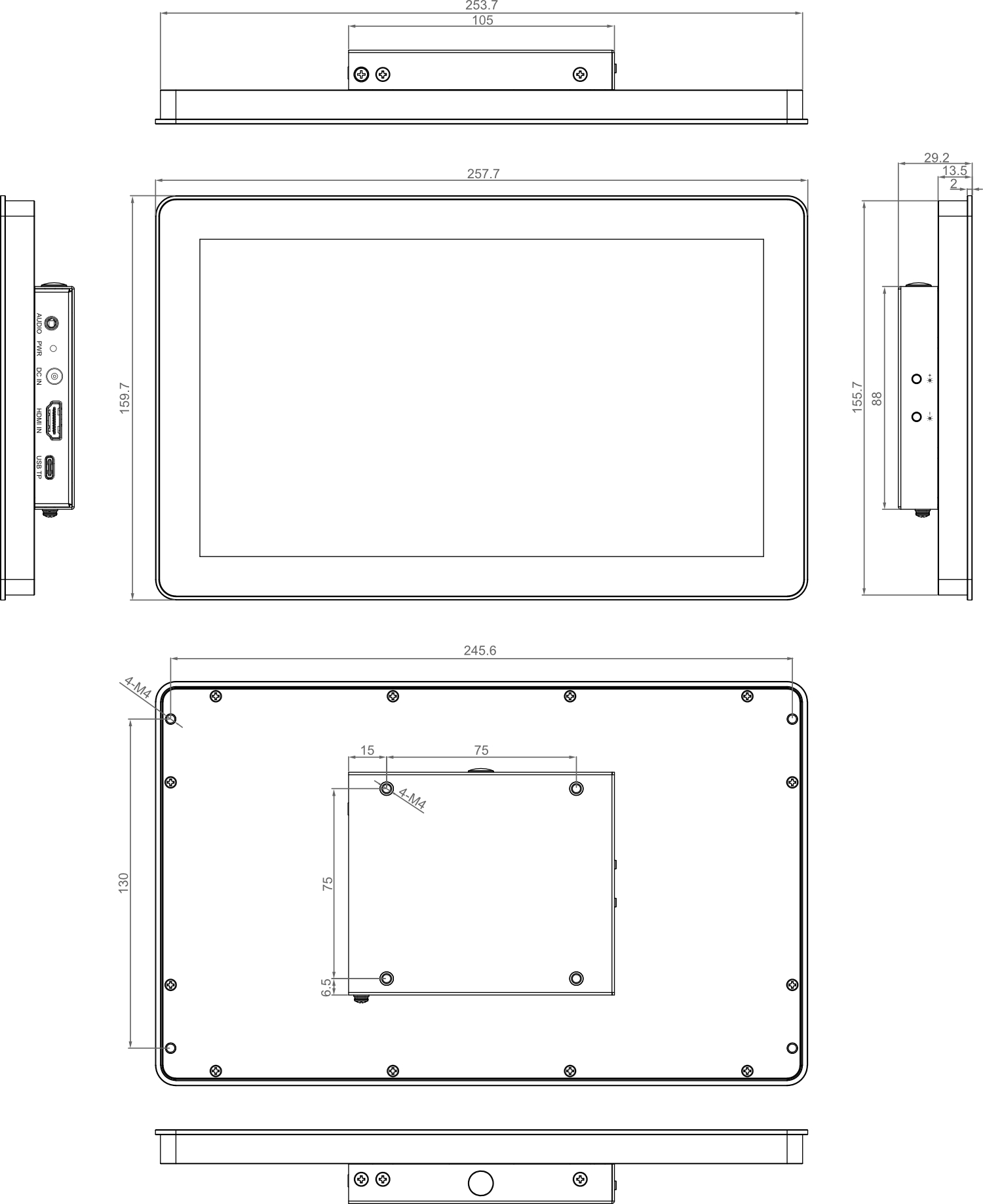

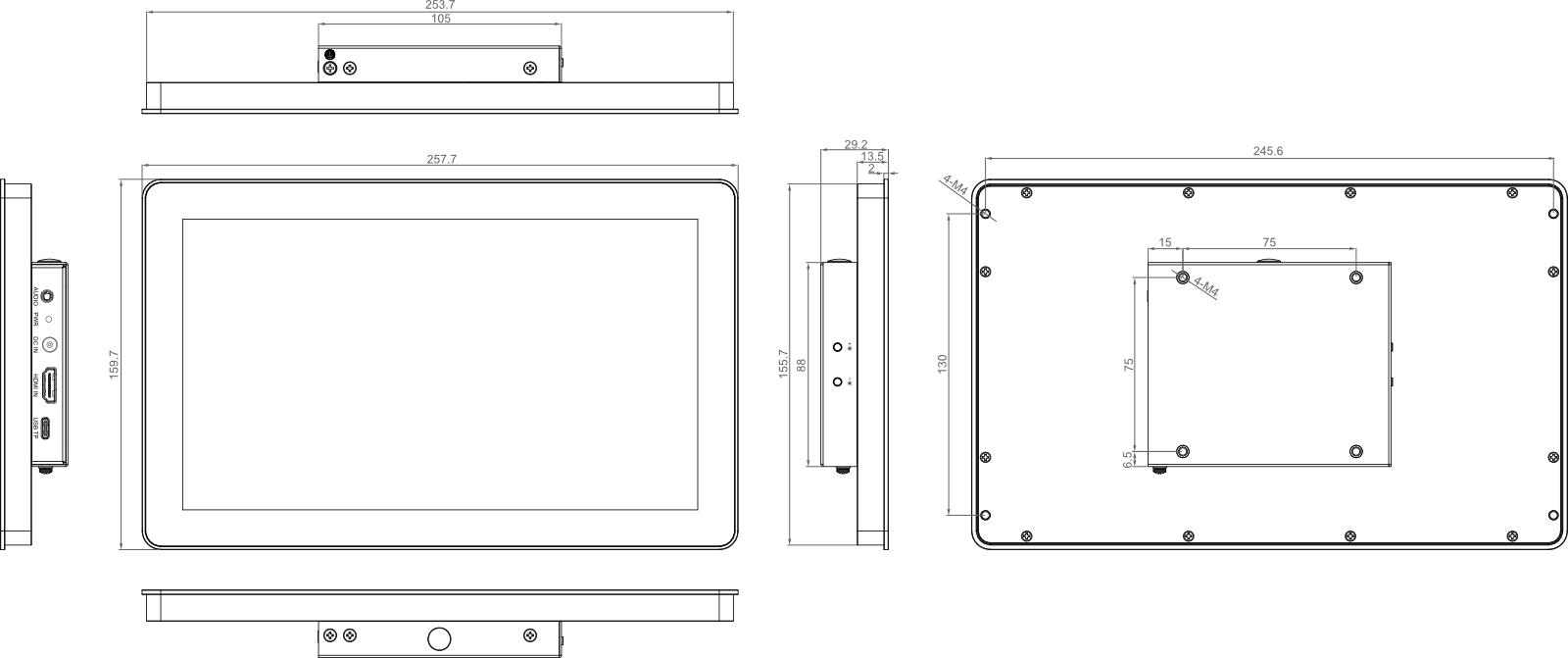

Mechanicals

Unit: mm

monitor-101c-dimension
Ordering Code
monitor-101c-orderingcode
Docs
Type Title Publish Time
Datasheet ED-MONITOR-101C Datasheet 2025-05-09
