Home > Products > Industrial Computers

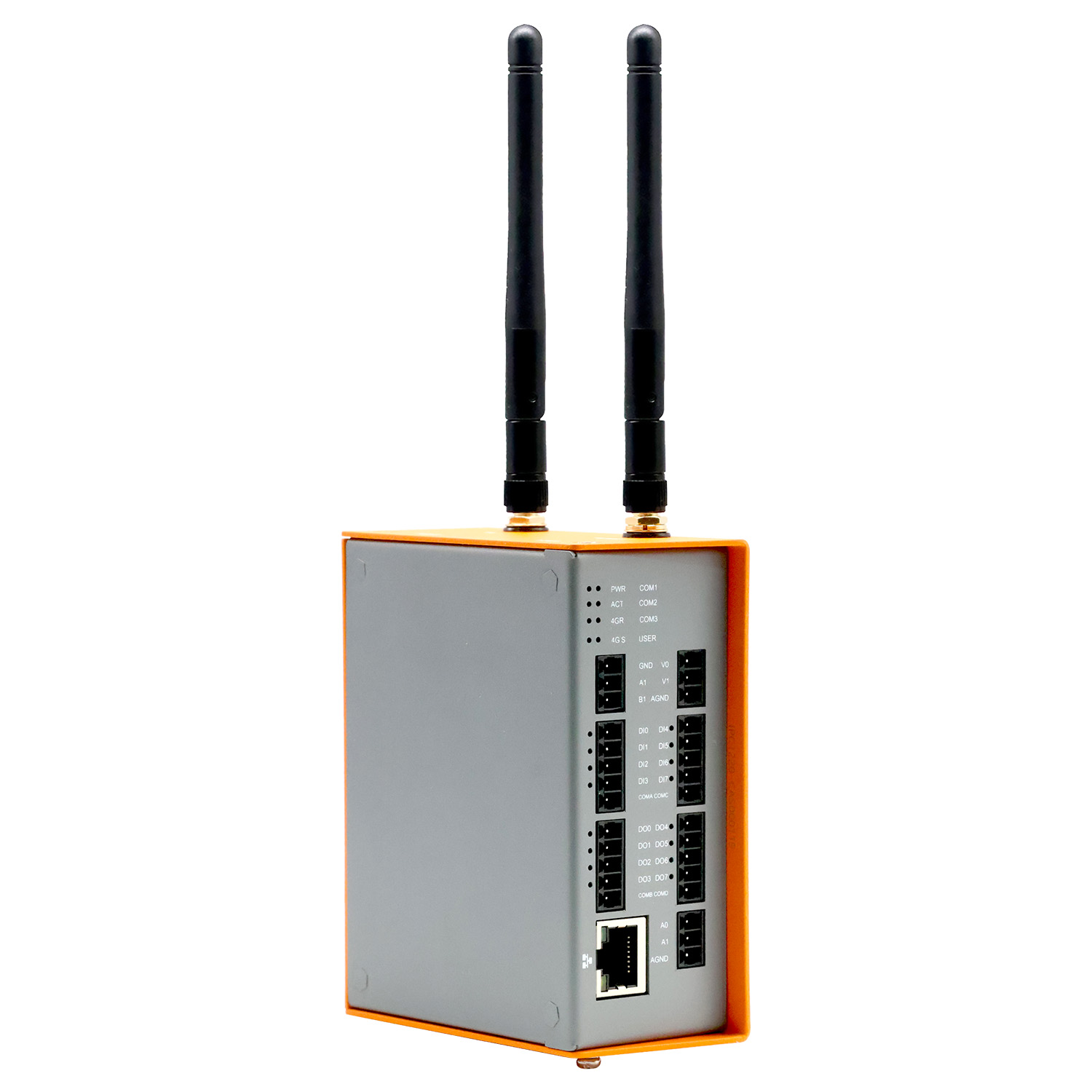

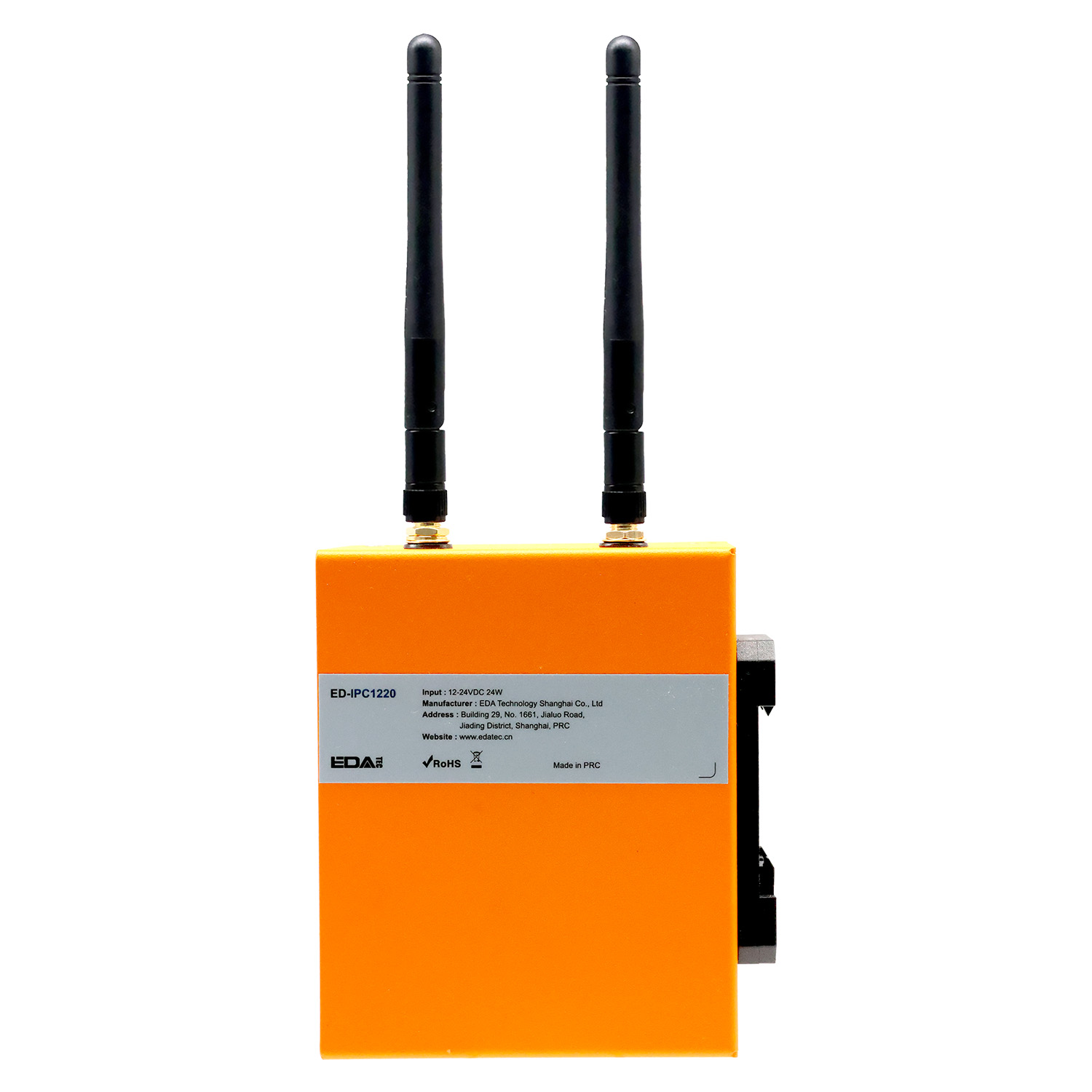

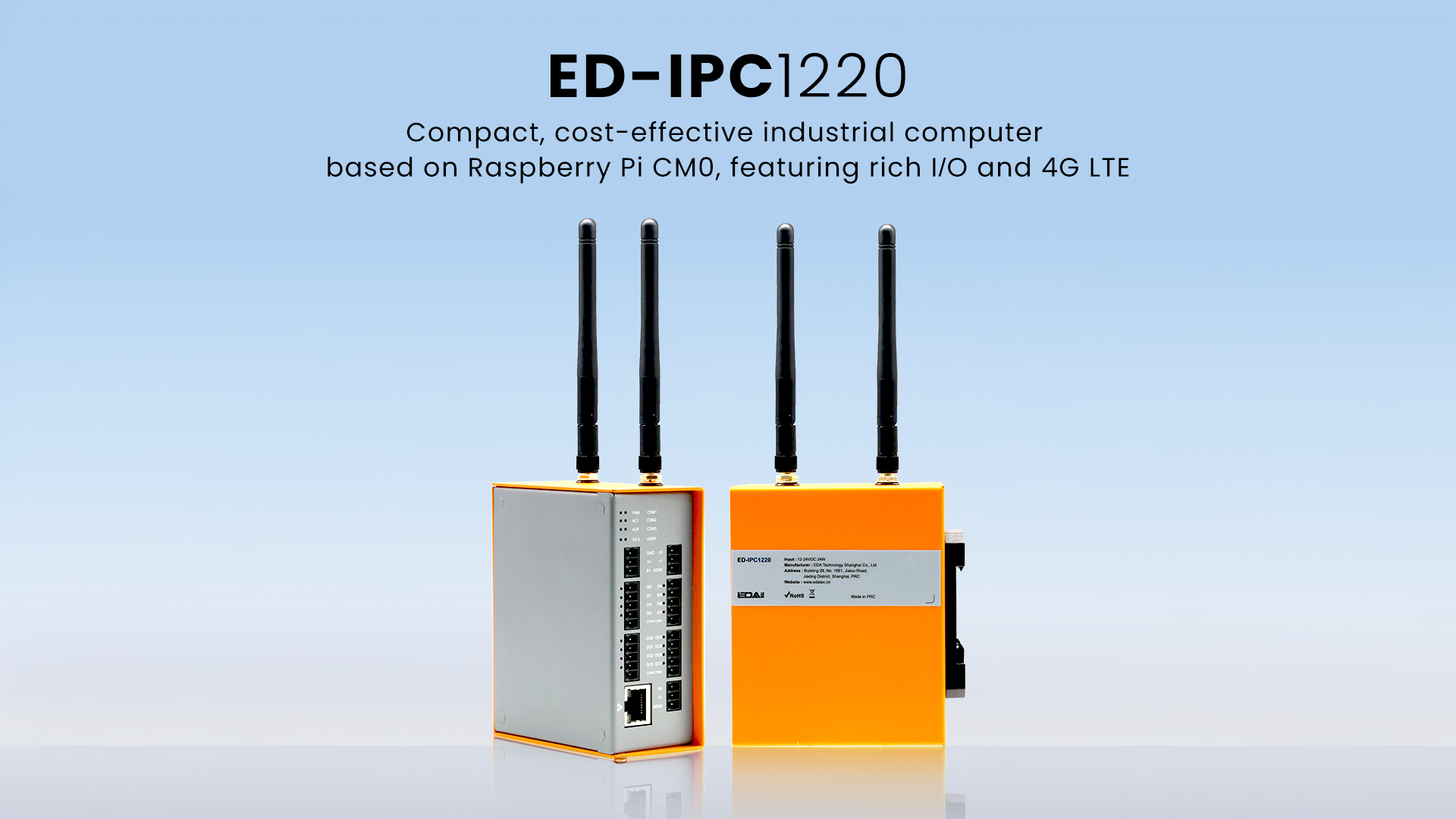

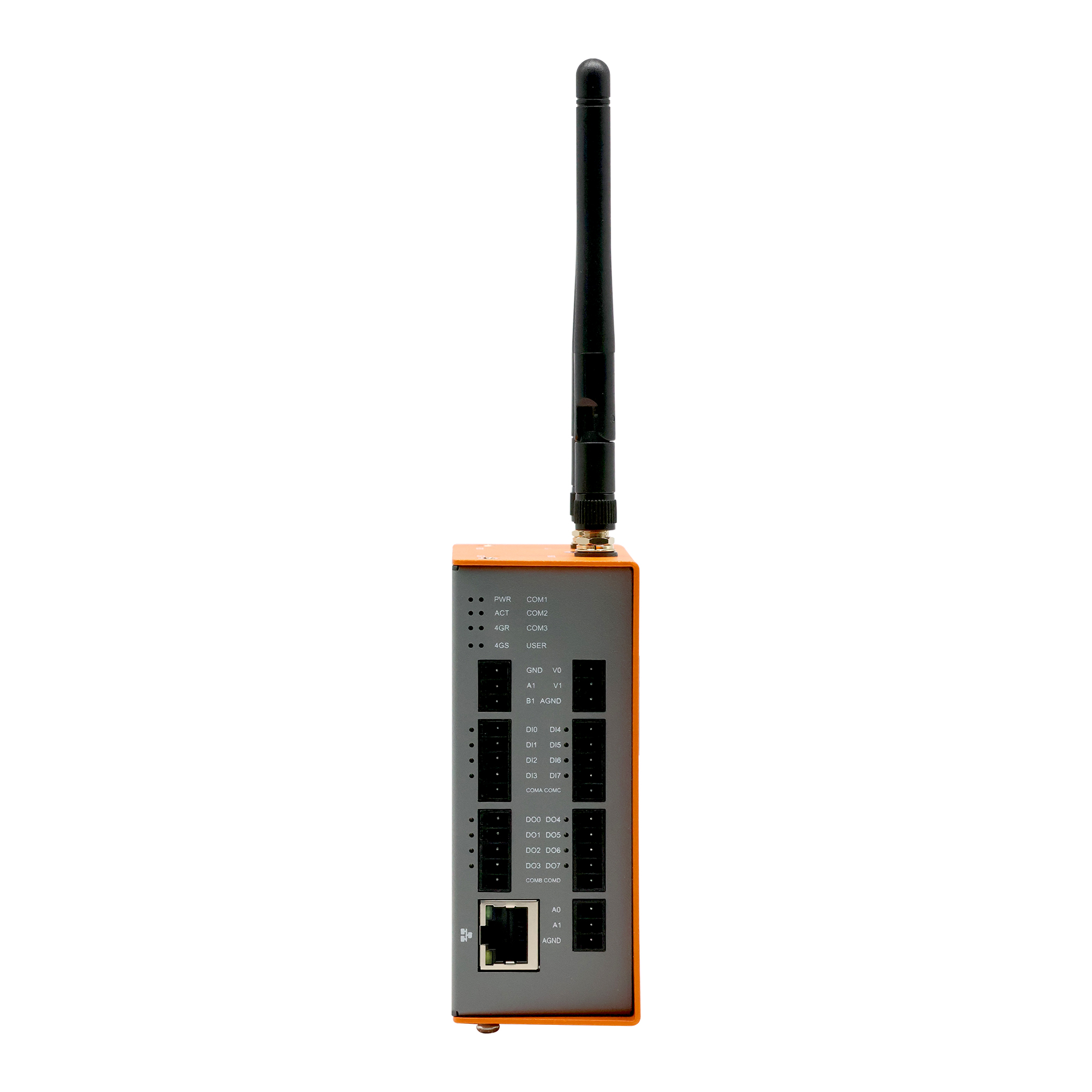

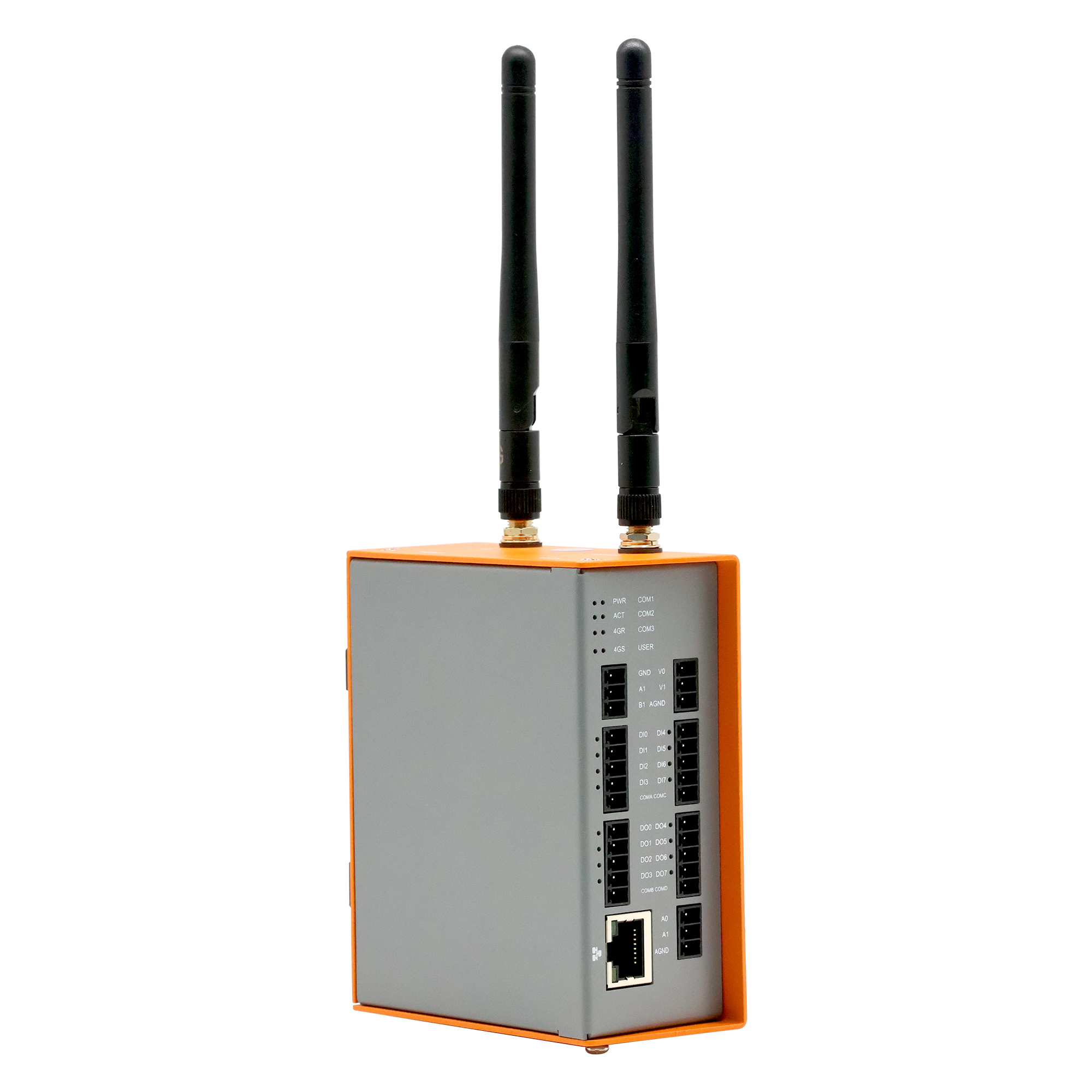

ED-IPC1220

Industrial Computer Based on Raspberry Pi CM0

Key Features

  • 1GHz quad-core 64-bit Arm Cortex-A53 processor

  • 512MB SDRAM, 8GB or 16GB eMMC storage available

  • 1 x USB 2.0, 1 x 100M Ethernet, 2 x RS485, 1 x RS232

  • 8 x DI, 8 x DO, 2 x ADA, 2 x ADV

  • Supports 2.4GHz Wi-Fi & Bluetooth and 4G CAT1

  • 9V~28V wide-range power input with reverse connection protection

  • Integrated RTC with a 1F supercapacitor as the RTC backup power supply

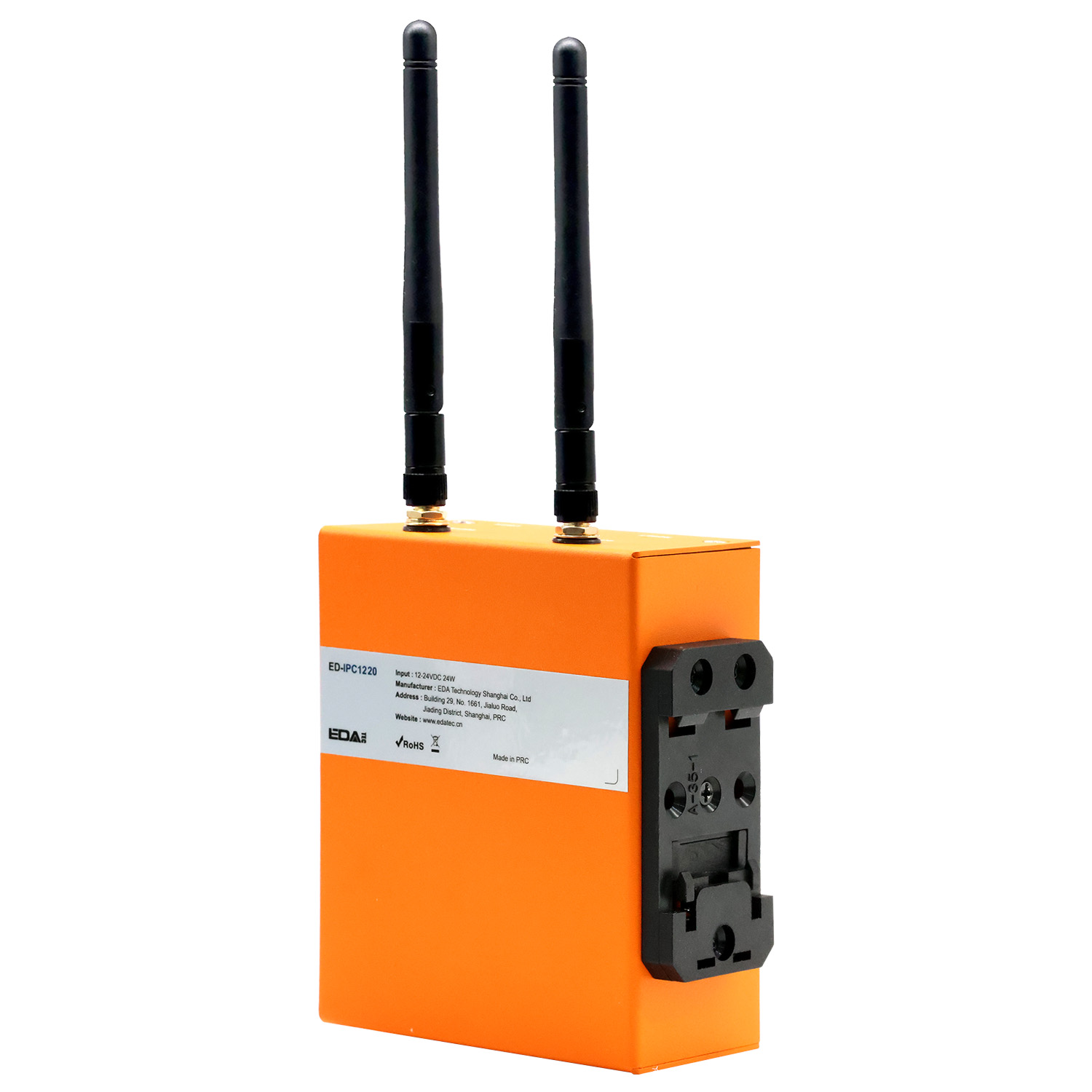

  • Supports DIN Rail Mounting

Online Docs

This product is expected to be officially launched in Q2 2026. A limited number of samples are available for purchase now, and pre-orders are open, allowing you to be the first to experience the latest technology!

ED-IPC1220 is a low-cost industrial computer based on the Raspberry Pi Compute Module Zero (CM0). Featuring a compact and robust metal enclosure, it supports passive cooling and DIN rail mounting, combining durability with easy deployment. While delivering light computing power, it comes fully equipped with industrial-grade connectivity options, including Ethernet, USB, HDMI, RS232, RS485, and optional 4G CAT1, WLAN, and Bluetooth. It also features a wide range of I/O options, including opto-isolated digital inputs (DI) and outputs (DO), as well as analog voltage and current inputs. With a built-in RTC and watchdog mechanism, it ensures reliable long-term system operation.

ED-IPC1220 is ideal for Industrial IoT applications, such as industrial data acquisition, Industrial gateways, and 4G Gateway, offering an excellent cost-effective industrial IoT solution.

Furthermore, it shares the extensive Raspberry Pi software ecosystem and stable Raspberry Pi OS, and supports ready-to-use software middleware Node-RED, significantly lowering development barriers and accelerating project implementation.

Performance

Powered by Raspberry Pi CM0, the perfect balance, just the right of computing

  • 1GHz quad-core, 64-bit Arm Cortex-A53 Processor

  • VideoCore IV GPU, supports OpenGL ES 1.1/2.0

  • 1080p@30 VPU:

  • H.264/MPEG-4 video decoding, 1080p@30fps

  • H.264 encoding, 1080p@30fps

  • 512MB LPDDR2, 8GB eMMC

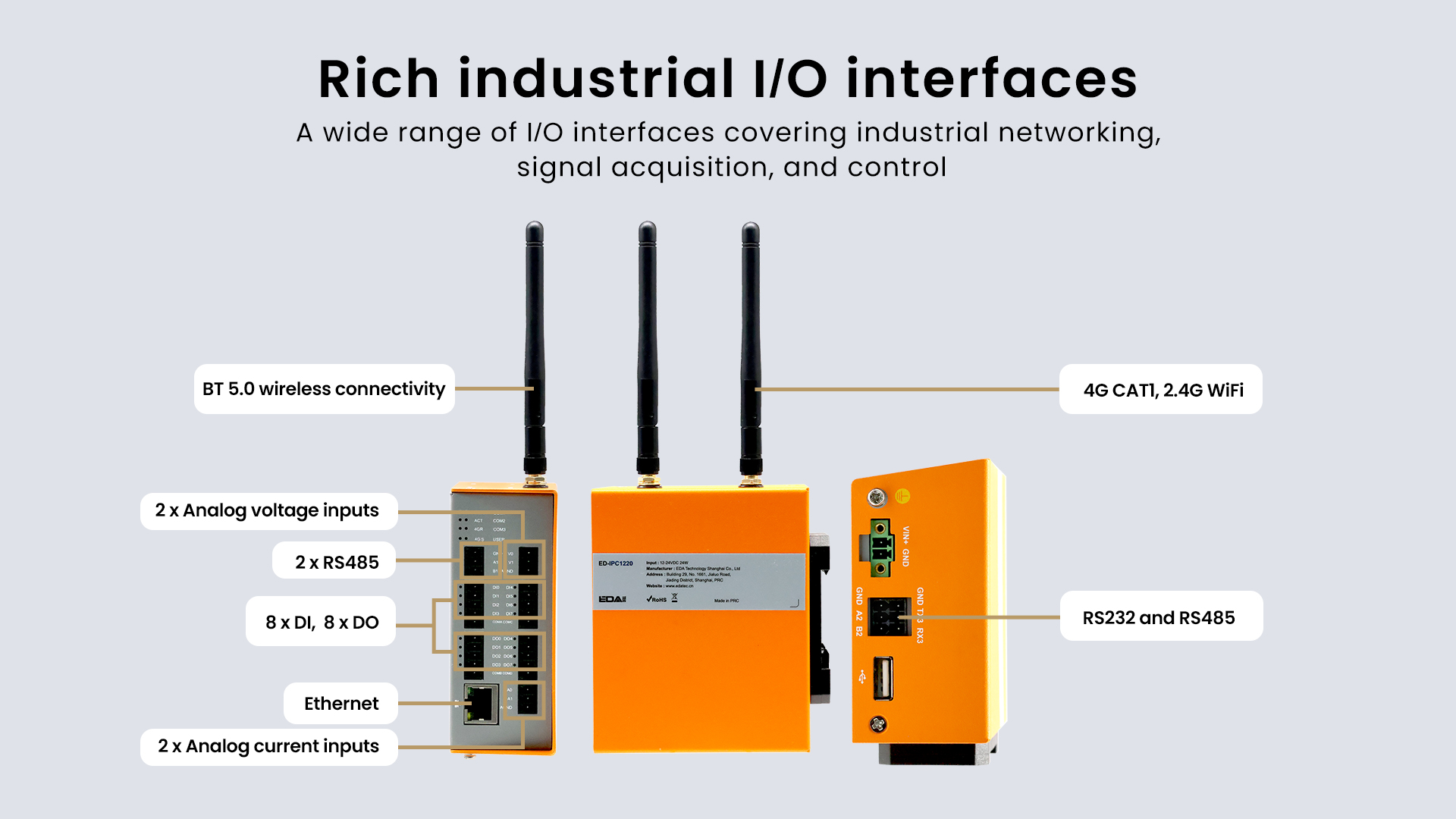

Rich industrial I/O interfaces

A wide range of I/O interfaces covering industrial networking, signal acquisition, and control.

  • Industrial connectivity including Ethernet, RS232 and RS485

  • 4G CAT1, 2.4G WiFi & BT 5.0 wireless connectivity

  • Up to 8x DI, 8x DO, 2x Analog voltage inputs, 2x Analog current inputs

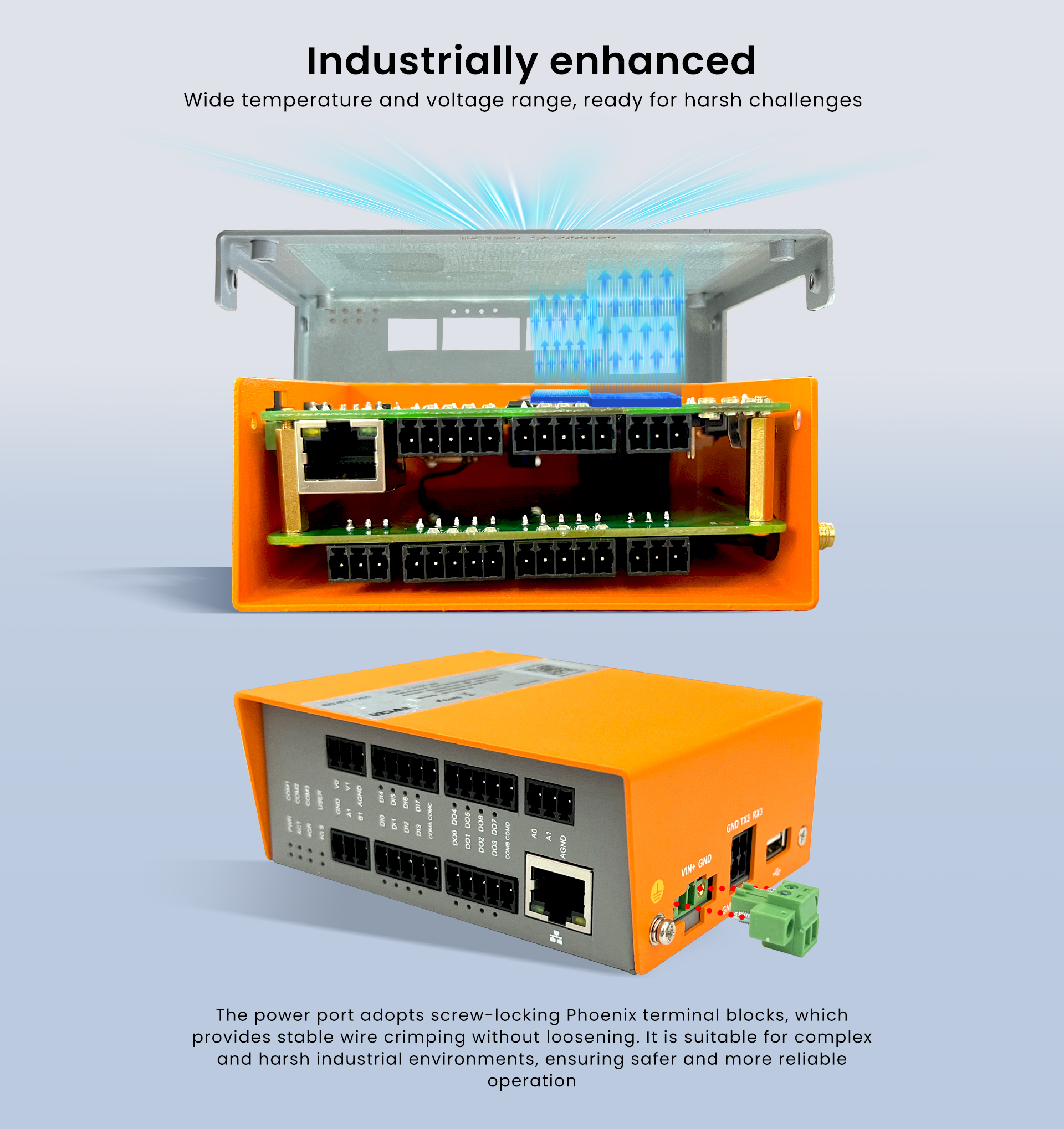

Industrially enhanced

Wide temperature and voltage range, ready for harsh challenges

  • Supports 9-28V wide-range DC input with operating temperatures ranging from -20°C to 60°C

  • Excellent passive cooling performance for full-speed operation without compromise at 60°C

  • Compact, all-metal enclosure, supports DIN rail mounting

Effective software stack & shares the same mature Raspberry Pi community

A stable, reliable, out-of-box, and extremely simple-to-develop Raspberry Pi ecosystem

  • Ready to use, stable and reliable Raspberry Pi OS

  • Simple embedded Linux development with configuration approach avoiding Linux driver development

  • A wide range of ready-to-use software, including NODE-RED, and many more

  • Solutions to a huge number of common problems can be found in the community

Application

  • Industrial IoT Gateway

  • Industrial Data Acquisition

  • Industrial 4G Gateway

  • Smart Building

Industrial Computer Feature Selection Guide: Table 1


Industrial Computer based on Raspberry Pi CM0
Function ClassificationIPC1000IPC1100IPC1200IPC1220
CPUCM0✔
RAM512MB SDRAM✔
Storage8/16GB eMMC✔
Micro SD Card✔---
WirelessWi-Fi/BT
✔
4G-✔✔✔

100M Ethernetx 1
USB 2.0x 2x 2x 1x 1
RS232--x 1x 1
RS485-x 1x 2x 2
HDMIx 1x 1--
DSI--✔✔
DI/DO--DI x 4, DO x 4DI x 8, DO x 8
ADC---ADA x 2, ADV x 2
OtherRTC✔
Hardware Watch Dog✔---
Operating-20~60℃✔
MechanicaFanless Design✔
MountingDIN & Wall✔
Desktop✔
Power Input（DC）9V~28V-✔✔✔
5V✔---

I

Industrial Computer Feature Selection Guide: Table 2



Function ClassificationIPC2000IPC2100IPC2200IPC2400IPC2500IPC2600IPC3020IPC3100IPC3630CM4 SENCM4 INDCM4 NanoCM4 MEDCM4 IO
CPUCM4✔✔✔✔✔✔---✔✔✔✔✔
CM5-------✔✔-----
Pi 5------✔-------
RAM1/2/4/8GB LPDDR4✔✔✔✔✔✔---✔✔✔✔✔
2/4/8/16GB LPDDR4------✔✔✔-----
Storage8/16/32GB eMMC✔✔✔✔✔✔---✔✔✔✔✔
64GB eMMC-------✔✔-----
Micro SD Card
SSD-✔✔-✔✔✔✔✔✔-✔✔✔
WirelessWi-Fi/BT
4G-✔✔--✔-✔✔✔✔-✔✔
5G----✔---------
Interface1000M Ethernetx 1x 1x 3x 1x 3x 1x 1x 1x 1x 1x 1x 1x 1x 1
100M Ethernet-x 1---x 1-x 1x 1-x 1---
USB 2.0x 1x 2x 2x 1x 2x 2x 2x 2x 2x 2x 2x 1x 1x 2
USB 3.0x 2-x 1x 2--x 2----x 2x 2x 3
RS232-≤ x 2-≤ x 3-≤ x 2x 1≤ x 2≤ x 2x 1x 1---
RS485-≤ x 4-≤ x 4-≤ x 4x 1≤ x 4≤ x 4x 4x 2---
CAN-----≤ x 2--≤ x 2x 1----
HDMIx 1x 1x 1x 1x 1x 1x 2x 1x 1x 2x 2x 2x 2x 2
DSI✔✔✔✔-✔✔✔✔✔✔✔-✔
CSI✔✔✔✔-✔✔✔✔-✔✔-✔
DI/DO-----≤ x 8--≤ x 8-✔---
ADC-----✔----✔---
OtherRTC
Hardware Watch Dog-✔✔-✔✔-✔✔✔✔✔✔✔
High Quality Stereo CODEC-------✔----✔-
Operating-25~60℃✔✔✔✔✔✔✔✔✔✔✔✔--
0 ~ 60°C------------✔✔
MechanicaFanless Design✔✔✔✔✔✔✔✔✔✔✔✔✔-
MountingDIN & Wal!✔✔✔✔-✔-✔✔✔✔✔--
Desktop✔✔✔✔✔✔✔✔✔---✔✔
Power Input（DC）9V~28V✔--✔-----✔----
9V~36V-✔✔-✔✔-✔✔-✔---
7V~18V-----------✔--
5V------✔-----✔-
12V-------------✔

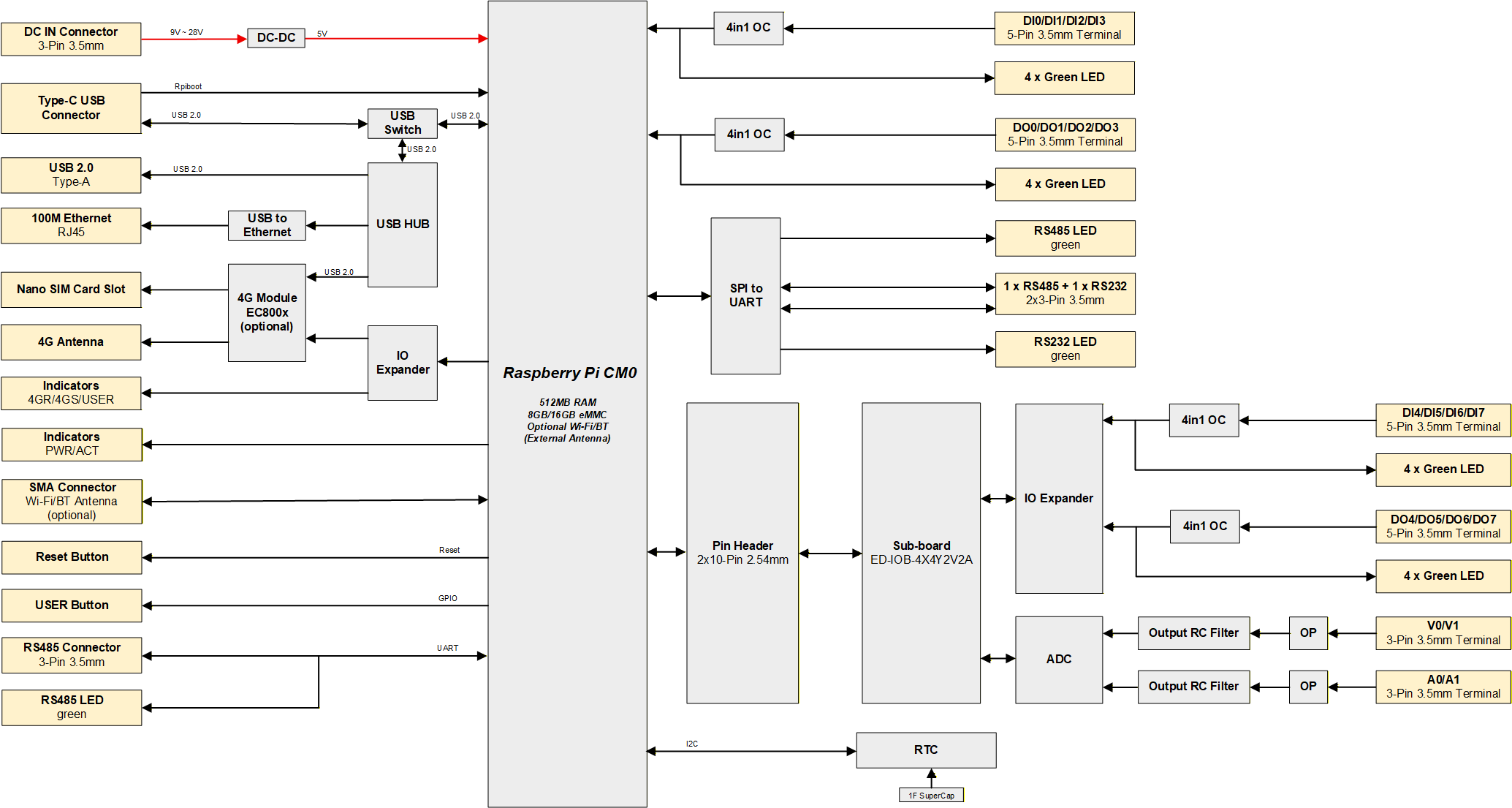

System Diagram
ED-ipc1220-diagram
Specification
System
CPU1GHz quad-core 64-bit Arm Cortex-A53 processor
VPUH.264/MPEG-4 video decoding, 1080p@30fps
H.264 encoding, 1080p@30fps
GPUOpenGL ES 1.1/2.0 graphics processing
Memory512MB SDRAM
Storage8GB or 16GB eMMC storage available
Software
Operating System Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit
Raspberry Pi OS (Desktop) 32-bit
Raspberry Pi OS (Lite) 32-bit

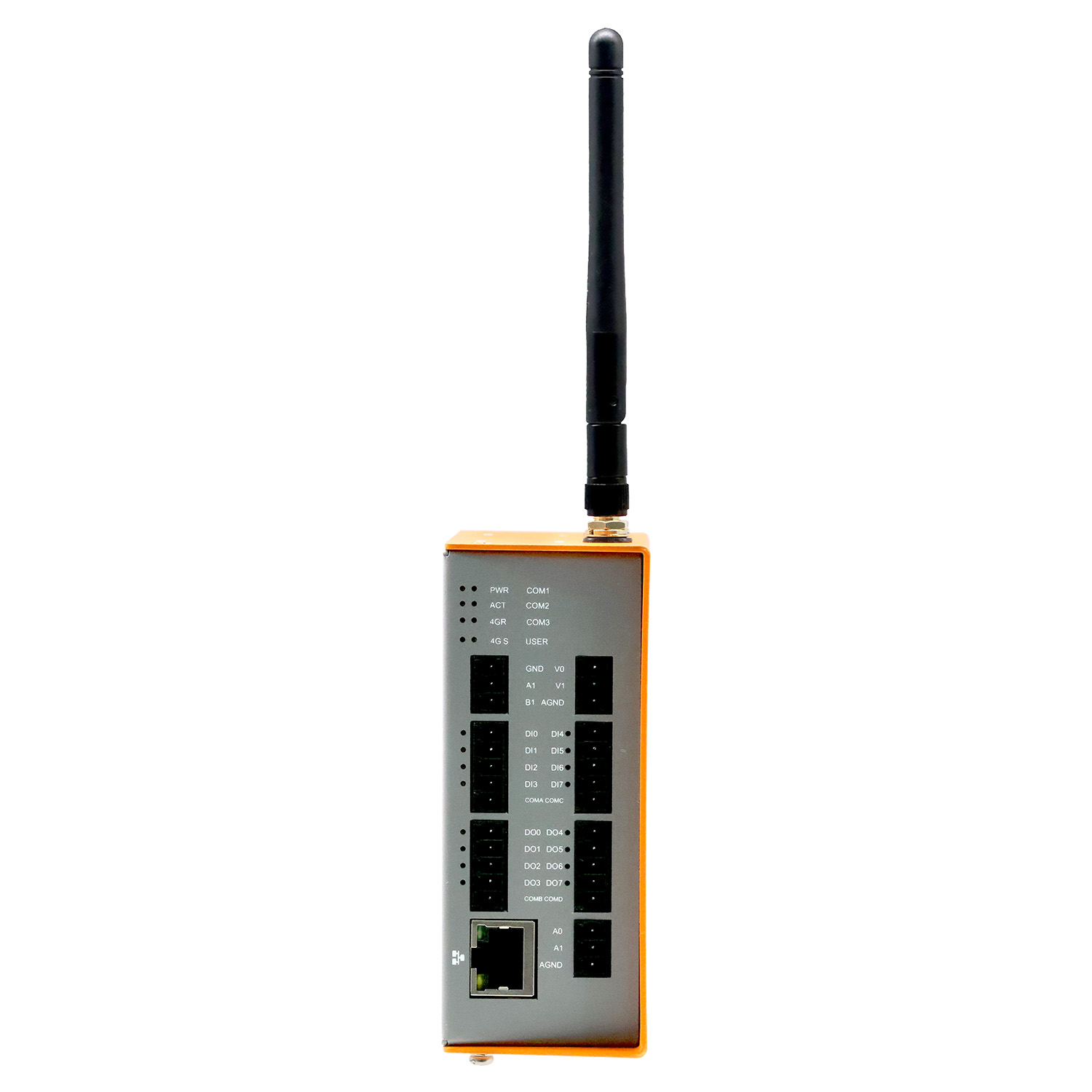

Front I/O
RS485 Port1 x RS485, 3-Pin 3.5mm Pitch Phoenix Terminal, Signal Definition: GND/A1/B1
DI Port8 x DI, 2 x 5-Pin 3.5mm Pitch Phoenix Terminals
  • Sensor Type: Wet Contact (NPN)
  • Isolation Protection: 3.75kV
  • 4 DI share 1 common terminal COM: DI0~DI3 share common terminal COMA, DI4~DI7 share common terminal COMC.
  • DI to COM:
    ON State: 5~30 VDC or -30~-5 VDC
    OFF State: 0~2 VDC or -2~0 VDC
DO Port8 x DO, 2 x 5-Pin 3.5mm Pitch Phoenix Terminals
  • Sensor Type: Sink Type (NPN)
  • Sensor Type: NPN
  • Isolation Protection: 3.75kV
  • Output: 5~36 VDC (24 VDC is recommended), maximum current is 0.2A (per channel)
  • 4 DO share 1 common terminal COM: DO0~DO3 share common terminal COMB, DO4~DO7 share common terminal COMD.
ADV Port2 x Analog voltage inputs, 3-Pin 3.5mm pitch phoenix terminal
  • Signal Type: Voltage input (differential)
  • Input Voltage range: 0-10V
  • Input Impedance: 10MΩ
  • Resolution: 12-bit
  • Accuracy: ±0.1% of full scale at 25°C; ±0.3% of full scale from -20°C to 60°C
  • Sampling Rate: 3kHz
ADA Port2 x Analog current inputs, 3-Pin 3.5mm pitch phoenix terminal
  • Signal Type: current input (differential)
  • Input Current Range: 0-20mA
  • Sample resistor for Current：120Ω
  • Input Impedance: 10MΩ
  • Resolution: 12-bit
  • Accuracy: ±0.1% of full scale at 25°C; ±0.3% of full scale from -20°C to 60°C
  • Sampling Rate: 3kHz
100M Ethernet Port1 x adaptive 10M/100M ethernet port, RJ45 connector. It can be used to access the network.
Rear I/O
Nano SIM Card Slot1 x Nano SIM card slot for installing a Nano SIM card to obtain 4G signal.
Note: If the 4G function is not selected as an option, the Nano SIM card slot will not function.
Type-C USB Port1 x Type-C USB Port, supports eMMC flashing via this port.

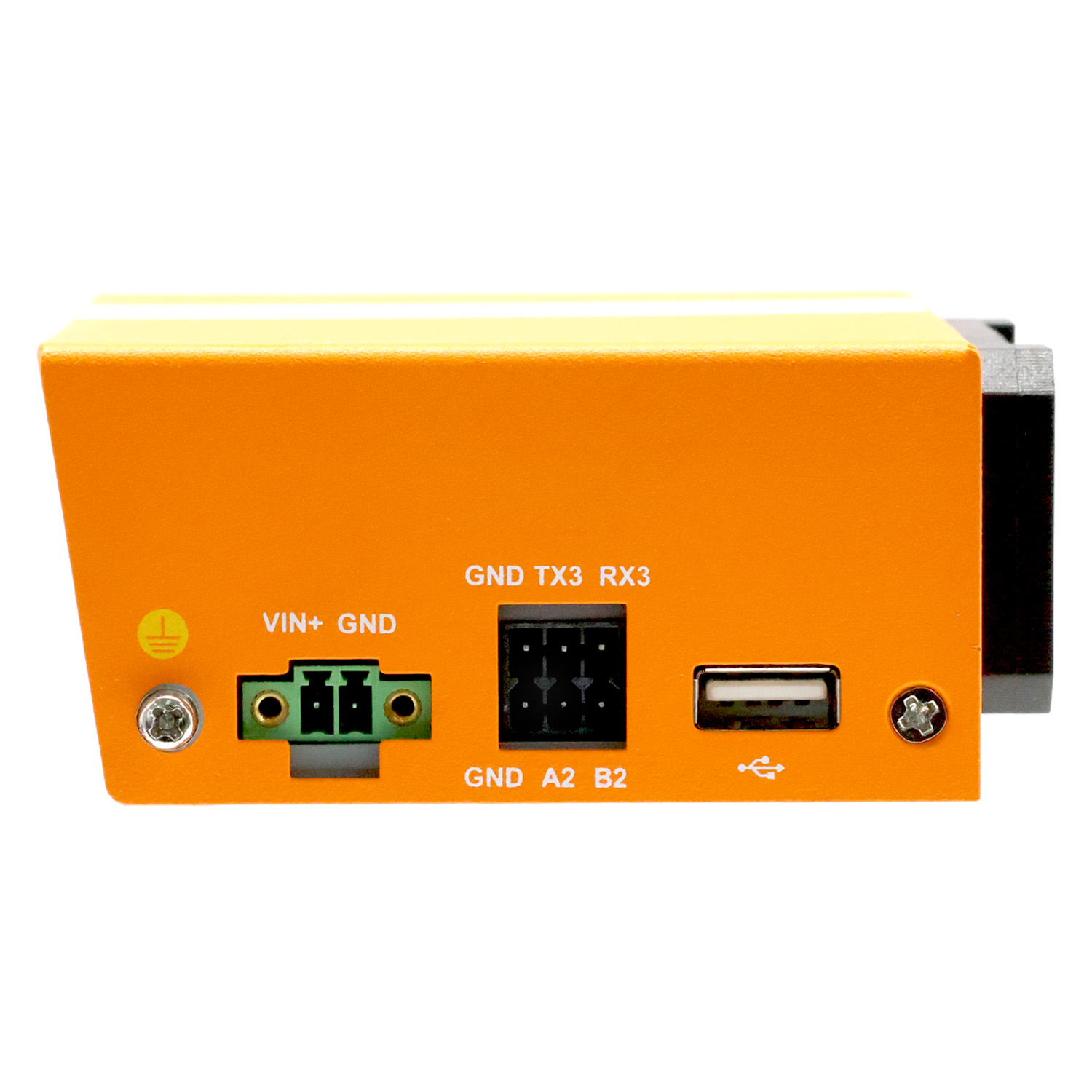

Side Panel I/O
USB 2.0 Port1 x USB 2.0, Type-A Connector, supports up to 480Mbps transfer rate.
RS485 Port1 x RS485 Port, 3-Pin 3.5mm Pitch Phoenix Terminal, Signal Definition: GND/A2/B2.
RS232 Port1 x RS232 Port, 3-Pin 3.5mm Pitch Phoenix Terminal, Signal Definition: GND/TX3/RX3.
Antenna Port (Optional)2 x SMA Connectors, for connecting 4G and Wi-Fi/BT antennas.
Power Port1 x DC Input, 2-Pin 3.5mm Pitch Phoenix Terminal with Screw Holes; Supports 9V~28V Input, Signal Definition: VIN+/GND.
Button
RESET Button1 x Reset Button, hidden button, press to reboot the device.
USER Button1 x User Button, hidden button, user can define actions as needed.
Indicator
PWR1 x Power Indicator, Red, shows device power status.
ACT1 x System Status Indicator, Green, shows device working status.
4GR1 x 4G Registration Indicator, Red/Green Dual-color, shows 4G module registration status.
4GS1 x 4G Signal Indicator, Red/Green Dual-color, shows 4G signal status.
USER1 x User Indicator, Green, user can define status as needed.
COM1~COM33 x Serial Port Indicators, Green, show serial port communication status.
DI0~DI78 x DI Indicators, Green, show DI port input status.
DO0~DO78 x DO Indicators, Green, show DO port output status.
Expansion Functions
RTCBuilt-in RTC function with a 1F supercapacitor as the RTC backup power supply.
Electrical Characteristics
Input Voltage9V~28V DC
Power ConsumptionAbout 5W
Mechanical Characteristics
Dimensions105mm x 86mm x 42mm (W x D x H, DIN-rail bracket and antenna are not included)
WeightAbout 435g
InstallationDIN rail mounting
Wireless
Wi-Fi/Bluetooth (Optional)Supports 2.4GHz Wi-Fi and Bluetooth, with antenna
  • 2.4GHz Wi-Fi: Compliant with IEEE 802.11 b/g/n
  • Bluetooth 5.0: Compatible band 2402MHz ~ 2480MHz
4G (Optional)Connects to various 4G modules via connector, with antenna
  • EC800M-CN Module (China)
    • LTE FDD: B1/B3/B5/B8
    • LTE TDD: B34/B38/B39/B40/B41
  • EC800K-EU Module (Europe)
    • LTE-FDD: B1/B3/B5/B7/B8/B20/B28
  • EC800Q-NA Module (America)
    • LTE-FDD: B2/B4/B5/B12/B13/B66
Environmental & Regulatory
Operating Temperature-20°C ~ 60°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals

Unit: mm

ipc1220-dimension
Ordering Code

Coding Rules

ipc1220-orderingcode

Ordering Code

ModelDescriptionStocking Level
ED-IPC1220-10008-4CNWi-Fi/BT, 8GB eMMC, China Version 4G Module, 8 x DI, 8 x DO, 2 x ADV, 2 x ADAPreview
ED-IPC1220-10008-4EUWi-Fi/BT, 8GB eMMC, Europe Version 4G Module, 8 x DI, 8 x DO, 2 x ADV, 2 x ADAPreview
ED-IPC1220-10008-4USWi-Fi/BT, 8GB eMMC, USA Version 4G Module, 8 x DI, 8 x DO, 2 x ADV, 2 x ADAPreview

TIP

If you require products with other configurations, please contact our sales team separately.​
