Home > Products > Industrial Monitor & Display

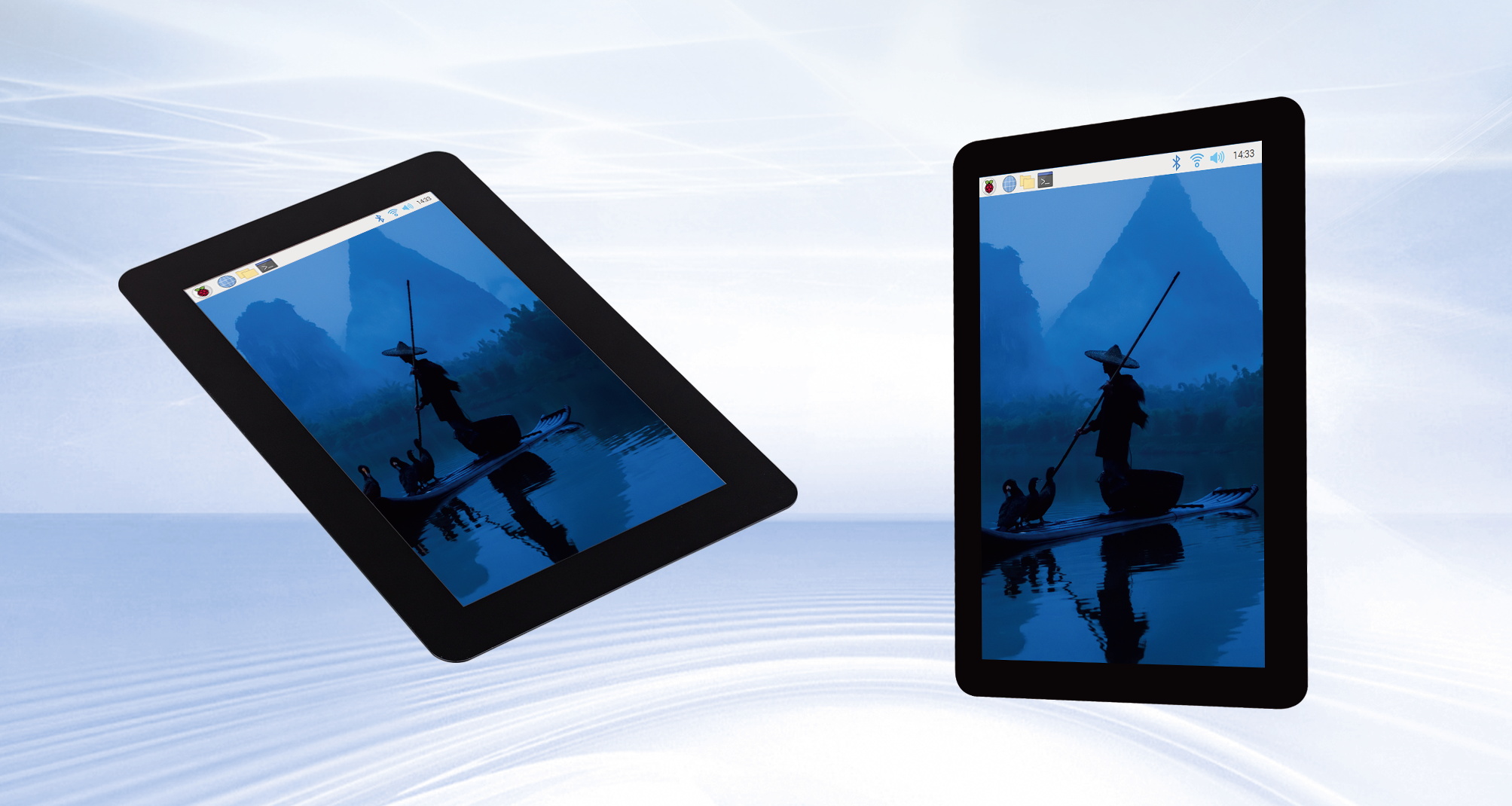

Raspberry Pi Touch Display 2 - 7”

Key Featured
  • 720 (RGB) × 1280 pixels display format
  • 88mm × 155mm active area
  • TFT, normally white, transmissive LCD type
  • True multi-touch capacitive touch panel, supporting five-finger touch
  • Anti-glare surface
  • Dimensions: 120mm(W) x 190mm(L) x 6.6mm(H)
  • Weight: 244g

Raspberry Pi Touch Display 2 is the long-awaited successor to our popular 7” Touch Display.

Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

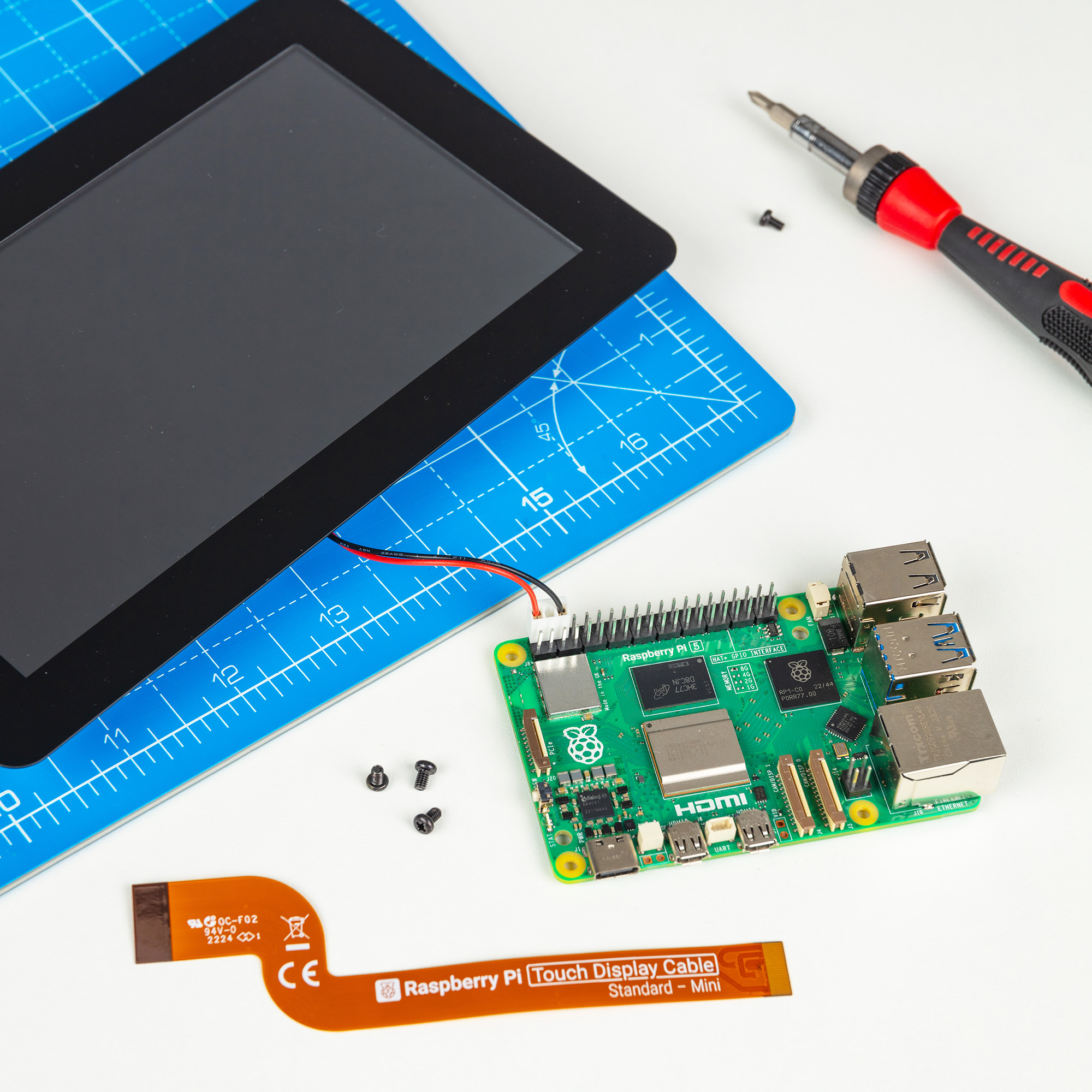

Only two connections are required to connect the 720 × 1280 display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line.

It is a portrait-native display offering:

  • 720 (RGB) × 1280 pixels display format
  • 88mm × 155mm active area
  • TFT, normally white, transmissive LCD type
  • True multi-touch capacitive touch panel, supporting five-finger touch
  • Anti-glare surface
  • Dimensions: 120mm(W) x 190mm(L) x 6.6mm(H)
  • Weight: 244g

The original 7" Touch Display will remain in mass production and remains a mandatory-stocked item.

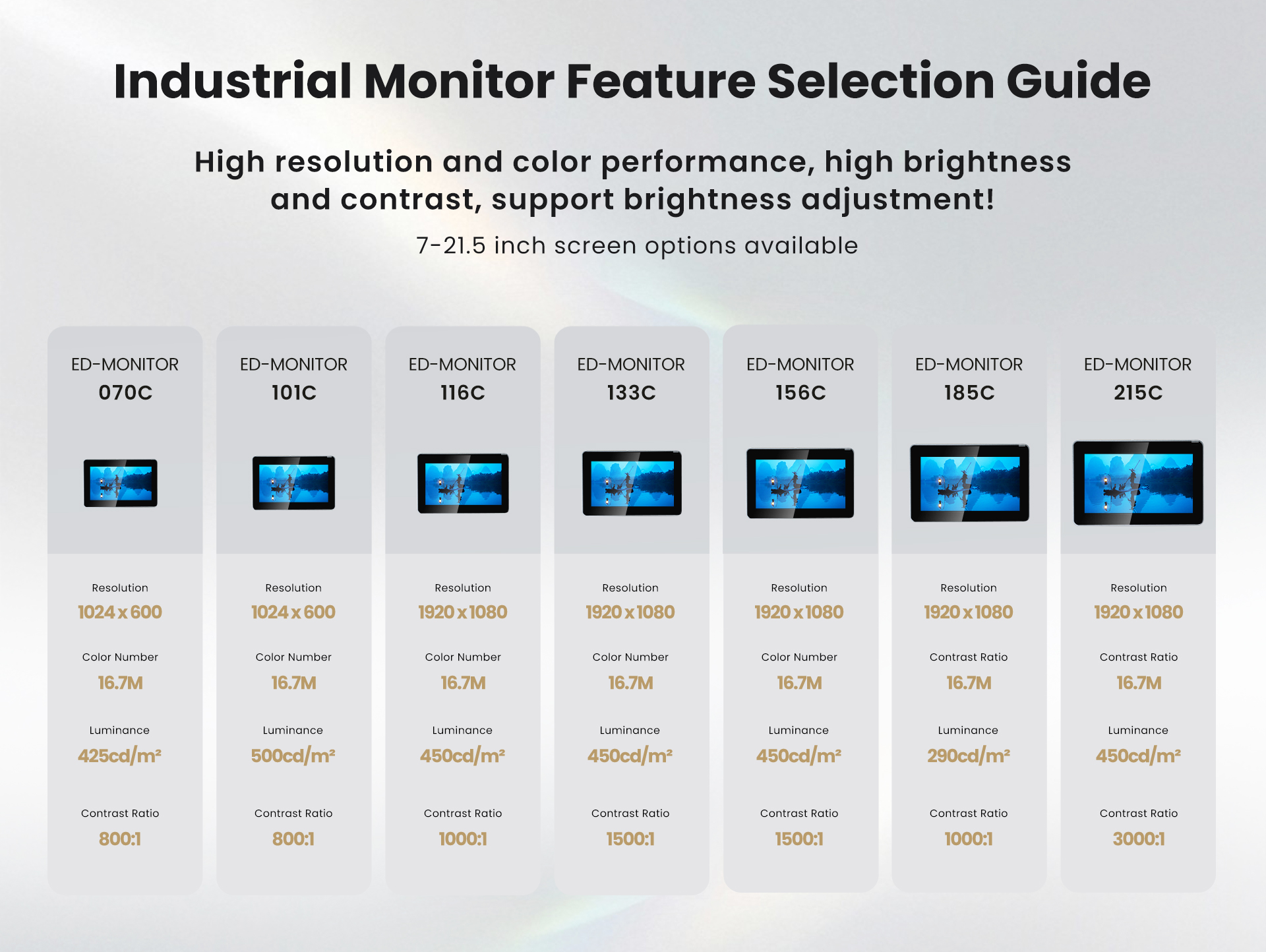

Function ClassificationED-MONITOR
070C101C116C133C156C185C215C
Panel I/OHDMI1 x HDMI port, Type-A connector, connecting to HDMI output.
USB1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.
Audio1 x 3.5mm audio jack, stereo audio output.
Power1 x DC Jack port, support 12V~24V power input.
Buttons and IndicatorsPWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button 2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button1 x Mute button for mute and unmute audio.
LCDType7.0" TFT 10.1" TFT11.6" TFT13.3" TFT15.6" TFT18.5" TFT21.5" TFT
Resolution 1024x6001920x1080
Color Number16.7M
Active Area(mm /HV)154.21x85.92 222.72x125.28256.32x144.18293.76x165.24344.16x193.59408.96x230.04478.656x260.280
BacklightLED
Luminance (cd/m2)425500450450450290450
Contrast Ratio800:1800:11000:1 1500:11000:1 3000:1
Response Time30ms 25ms30ms 25ms14ms6.5ms
Viewing Angle (CR>10)85° / 85°80° / 80°85° / 85°80° / 80°89° / 89°
Touch ScreenTypeapacitive Touch Screen
Multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical CharacteristicsInput Voltage12-24V DC
Power Consumption10W 15W18W
Mechanical CharacteristicsDimensions (mm) 188x123x20.8257.7x159.7x28303.4x191.4x46.5340.4x211.4x46.5388.4x238.4x46.5457.3x278.3x46.5531.3x317.8x46.5
WeightAbout495gAbout940gAbout1.9kgAbout2.1kgAbout2.3kgAbout3.1kgAbout4.6kg
InstallationEmbedded front installationEmbedded front installation and VESA bracket mounting
Environmental & RegulatoryOperating Temperature-10°C ~60°C0°C ~ 50°C
Storage Temperature-20°C ~70°C
-20°C ~ 60°C
Ambient humidityAmbient humidity 5% ~ 95%（non-condensing）


Mechanicals

Docs
Type Title Publish Time
install guide Raspberry Pi Touch Display 2 install guide 2024-04-10
