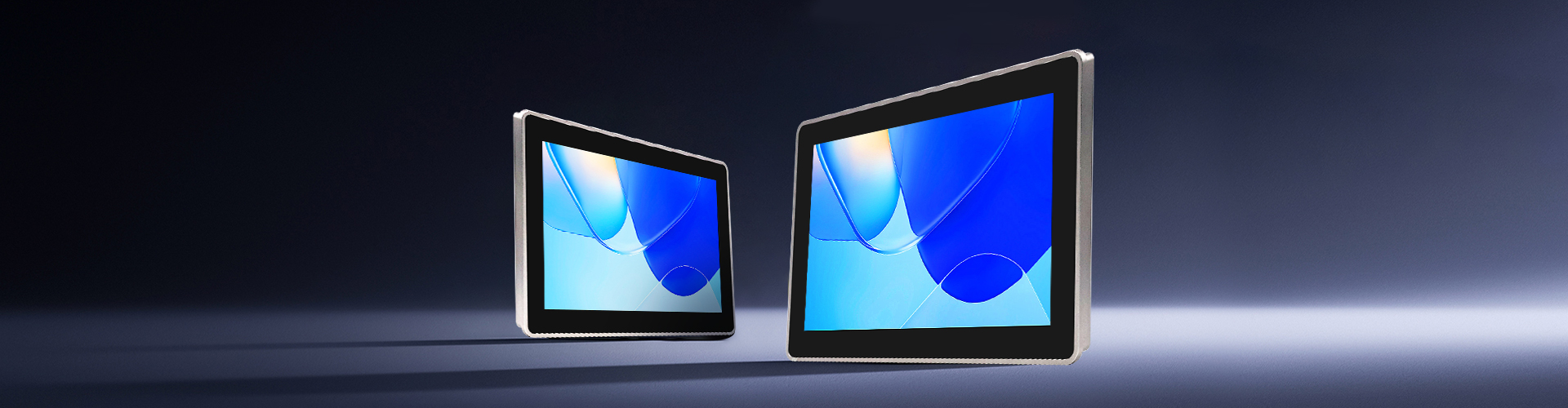

Home > Products > Industrial Monitor & Display
Search List
ED-MONITOR-070C
  • 7“, 1024 x 600 TFT LCD screen, Standard HDMI Input
  • USB multi-touch capacitive touch screen
  • 425 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
ED-MONITOR-101C
  • 10“, 1024 x 600 TFT LCD screen, Standard HDMI Input
  • USB multi-touch capacitive touch screen
  • 500 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
ED-MONITOR-116C
  • 11.6“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
ED-MONITOR-133C
  • 13.3“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
ED-MONITOR-156C
  • 15.6“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
ED-MONITOR-185C
  • 18.5“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 290 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
ED-MONITOR-215C
  • 21.5“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
Raspberry Pi Touch Display 2 - 5”

Raspberry Pi Touch Display 2 is the long-awaited successor to our popular 5” Touch Display

Raspberry Pi Touch Display 2 - 7”

Raspberry Pi Touch Display 2 is the long-awaited successor to our popular 7” Touch Display

Raspberry Pi 7” Touch Display

The Raspberry Pi 7" Touch Display is a compact, high-resolution touchscreen designed to seamlessly integrate with Raspberry Pi devices for a variety of interactive applications.

Function ClassificationED-MONITOR
070C101C116C133C156C185C215C
Panel I/OHDMI1 x HDMI port, Type-A connector, connecting to HDMI output.
USB1 x USB touch screen interface (Type-C USB) for connecting to USB interface and transmitting touch screen signals.
Audio1 x 3.5mm audio jack, stereo audio output.
Power1 x DC Jack port, support 12V~24V power input.
Buttons and IndicatorsPWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button 2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button1 x Mute button for mute and unmute audio.
LCDType7.0" TFT 10.1" TFT11.6" TFT13.3" TFT15.6" TFT18.5" TFT21.5" TFT
Resolution 1024x6001920x1080
Color Number16.7M
Active Area(mm /HV)154.21x85.92 222.72x125.28256.32x144.18293.76x165.24344.16x193.59408.96x230.04478.656x260.280
BacklightLED
Luminance (cd/m2)425500450450450290450
Contrast Ratio800:1800:11000:1 1500:11000:1 3000:1
Response Time30ms 25ms30ms 25ms14ms6.5ms
Viewing Angle (CR>10)85° / 85°80° / 80°85° / 85°80° / 80°89° / 89°
Touch ScreenTypeapacitive Touch Screen
Multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical CharacteristicsInput Voltage12-24V DC
Power Consumption10W 15W18W
Mechanical CharacteristicsDimensions (mm) 188x123x20.8257.7x159.7x28303.4x191.4x46.5340.4x211.4x46.5388.4x238.4x46.5457.3x278.3x46.5531.3x317.8x46.5
WeightAbout495gAbout940gAbout1.9kgAbout2.1kgAbout2.3kgAbout3.1kgAbout4.6kg
InstallationEmbedded front installationEmbedded front installation and VESA bracket mounting
Environmental & RegulatoryOperating Temperature-10°C ~60°C0°C ~ 50°C
Storage Temperature-20°C ~70°C
-20°C ~ 60°C
Ambient humidityAmbient humidity 5% ~ 95%（non-condensing）
