ED-VESA-B

Home > Products > Accessories

ED-VESA-B

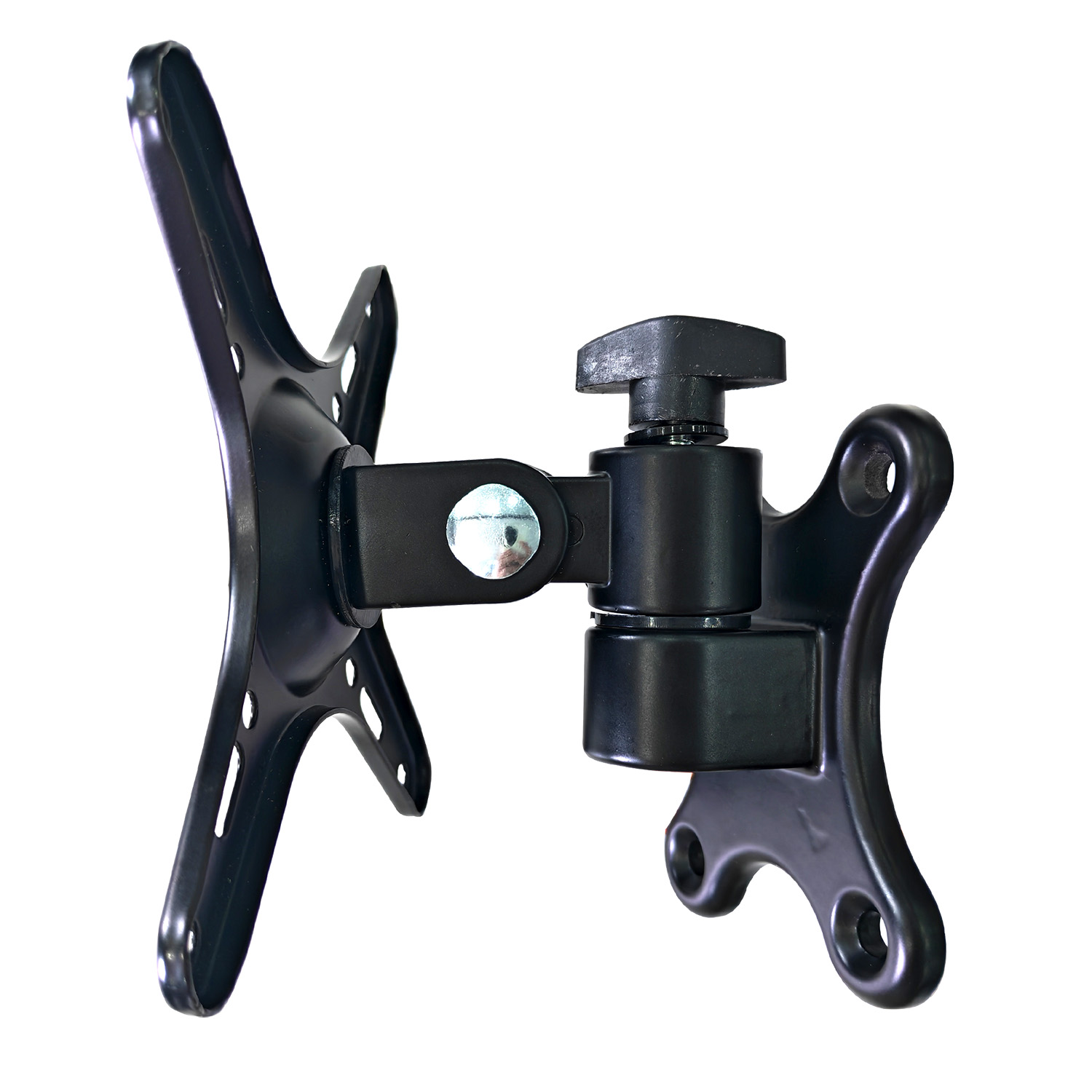

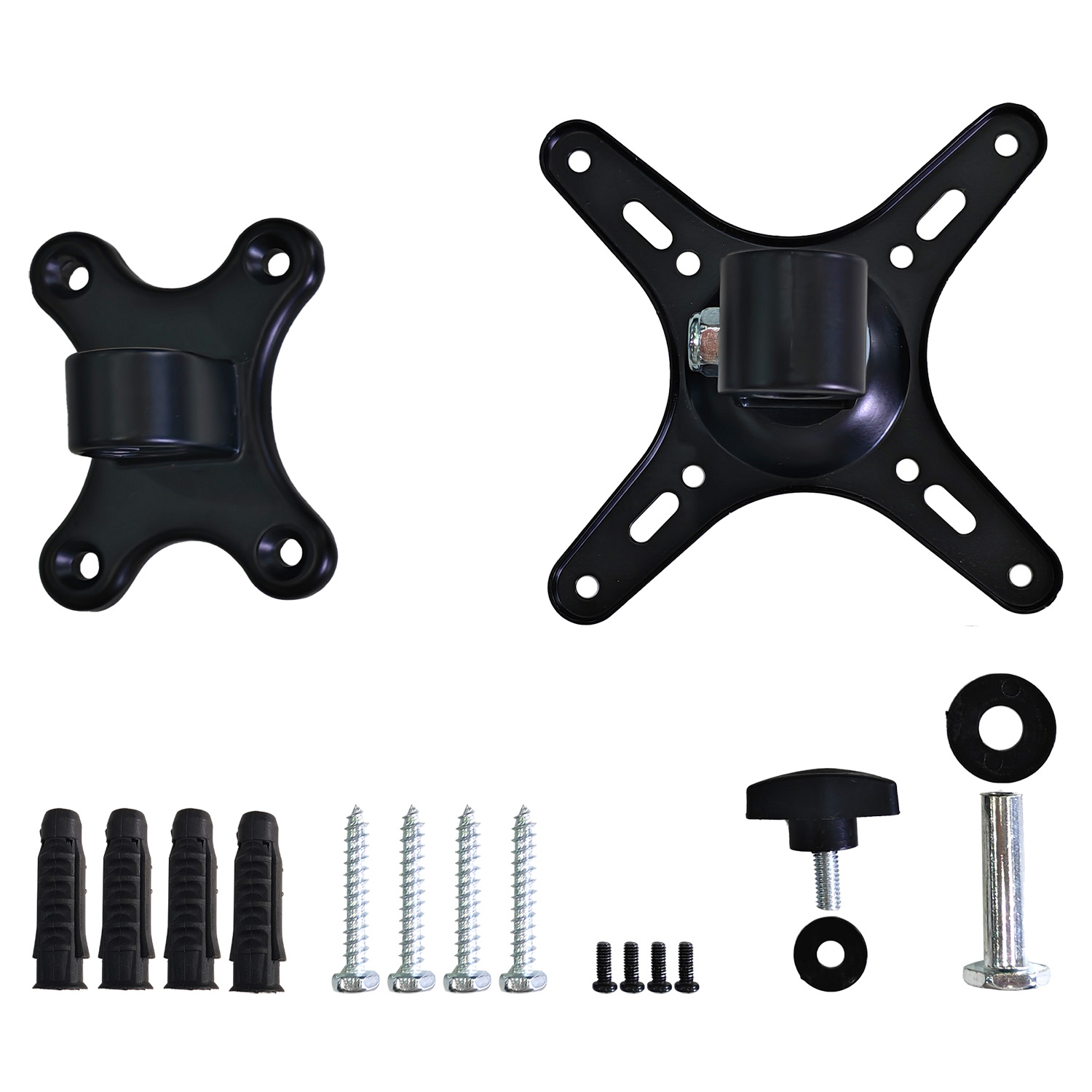

VESA Adjustable Wall-mounted Bracket​

Key Featured
  • VESA Adjustable Wall-mounted Bracket​
Online Docs


Specification
Mechanical Characteristics
MaterialAluminum alloy and cold-rolled steel
ColorBlack
WeightAbout 326g
Max Load Capacity10kg
VESA Hole Pattern50mm/75mm/100mm
Clearance From The Wall85mm
InstallationWall-mounted

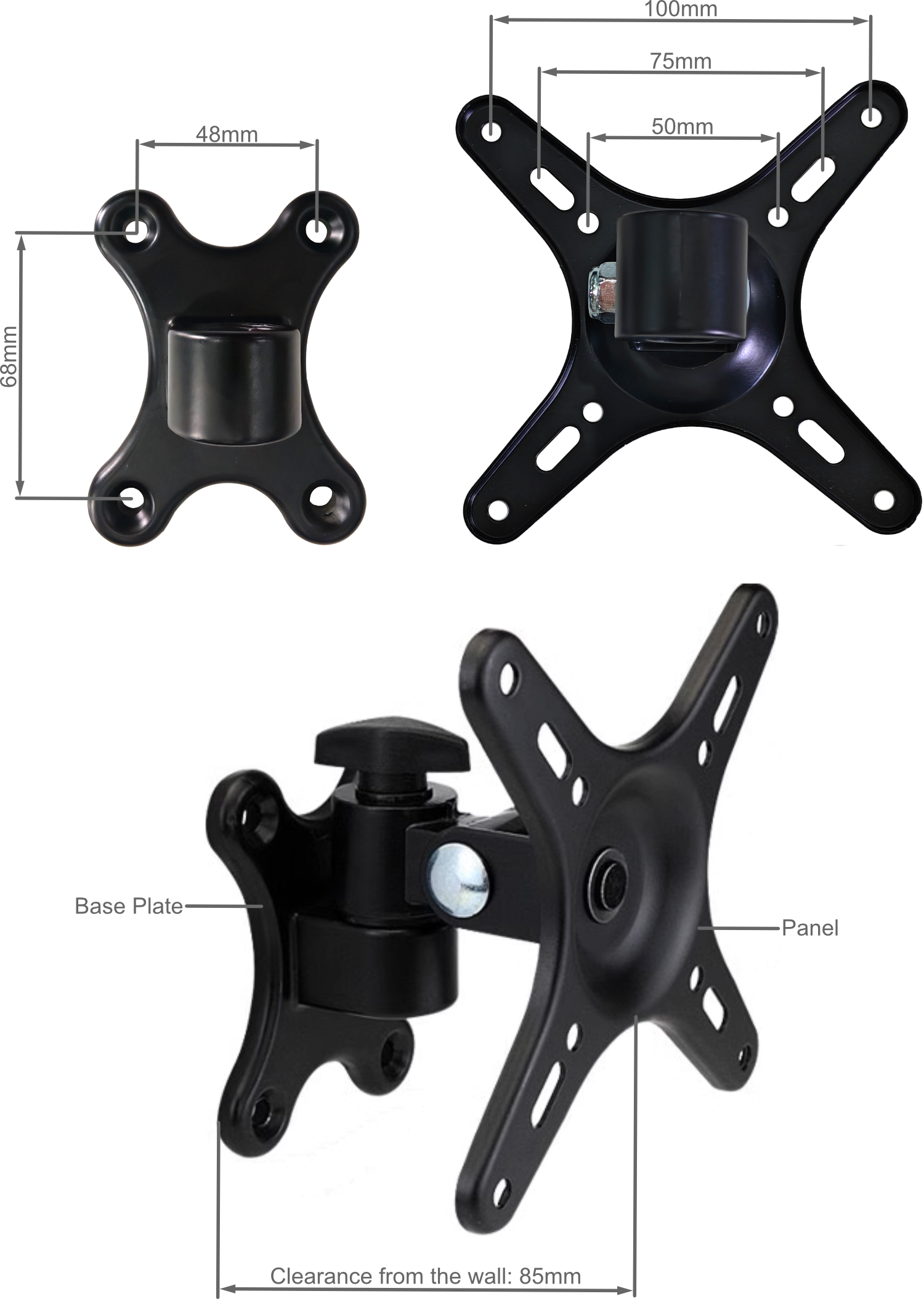

Mechanicals
l3020-dimension
Ordering Code
ModelDescription

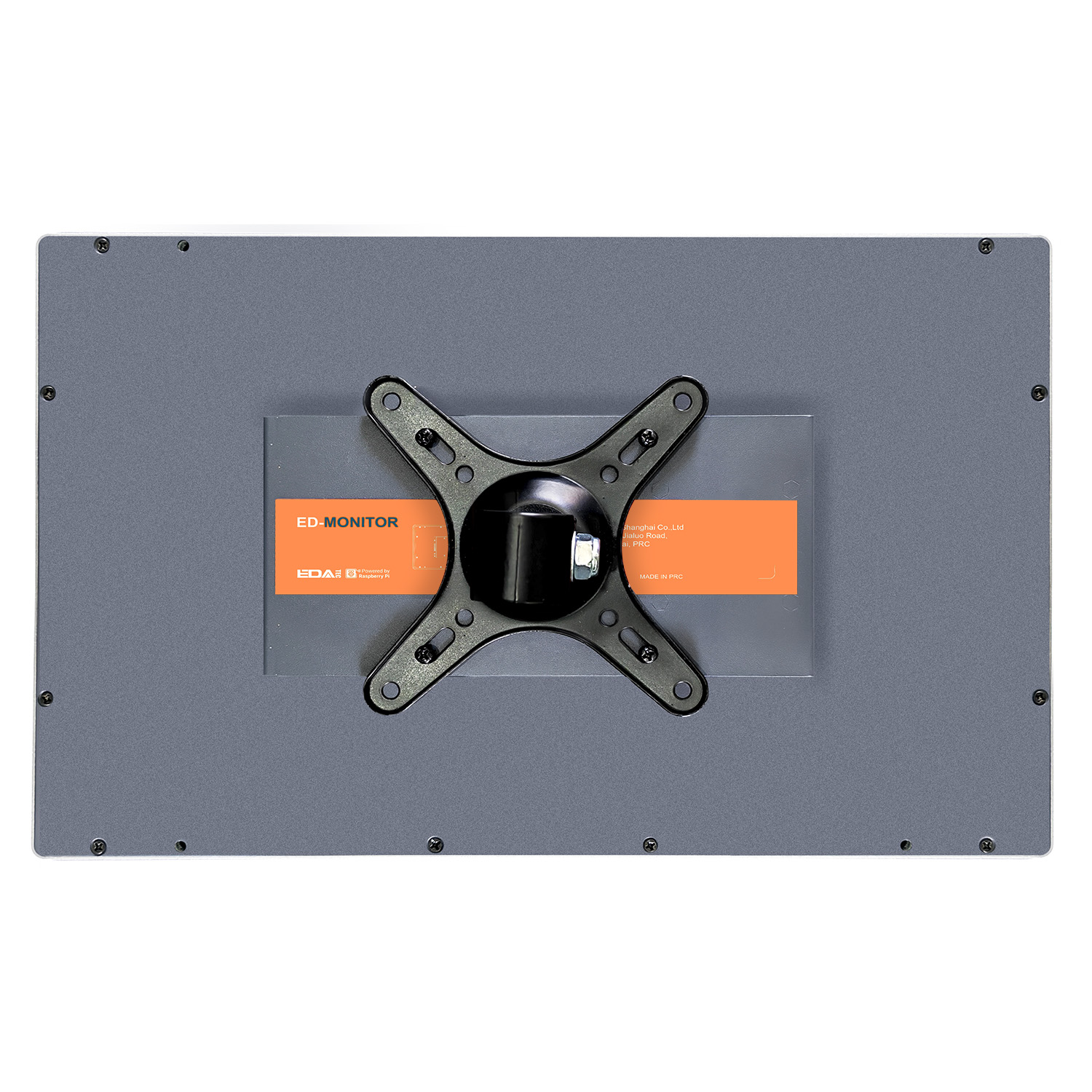

ED-VESA-BVESA Adjustable Wall-mounted Bracket for ED-MONITOR
Docs
Type Title Publish Time
Datasheet ED-VESA-B Datasheet 2025-06-10
Related Products
ED-MONITOR-156C
  • 15.6“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting

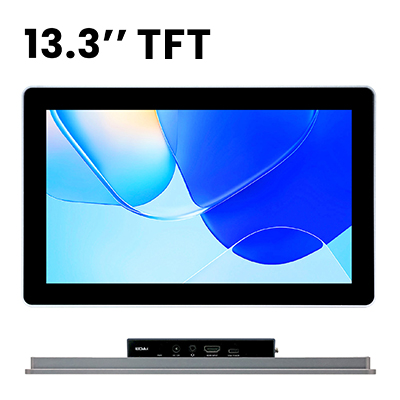

ED-MONITOR-133C
  • 13.3“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting
ED-MONITOR-185C
  • 18.5“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 290 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting

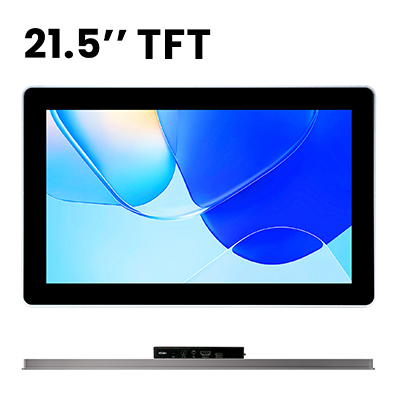

ED-MONITOR-215C
  • 21.5“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting

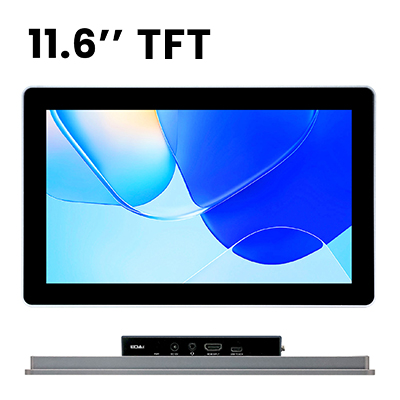

ED-MONITOR-116C
  • 11.6“, Industrial Grade TFT LCD Panel, Standard HDMI Input
  • 1920 x 1080 Full HD Resolution
  • USB multi-touch capacitive touch screen
  • 450 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting

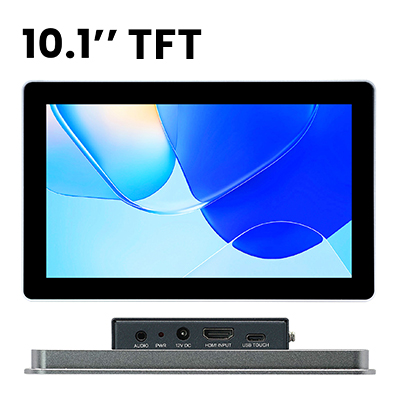

ED-MONITOR-101C
  • 10“, 1024 x 600 TFT LCD screen, Standard HDMI Input
  • USB multi-touch capacitive touch screen
  • 500 nits of brightness, support adjustable controls
  • IP65 rated dustproof & waterproof for the front panel
  • Embedded & VESA mounting

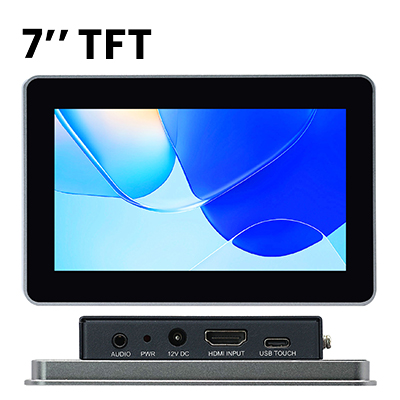

ED-MONITOR-070C
