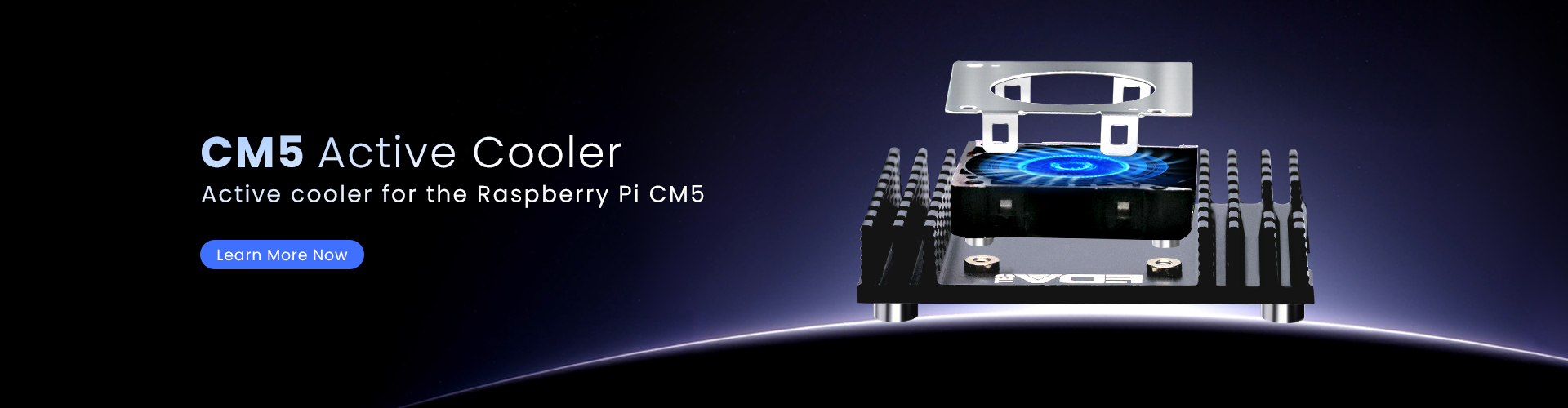

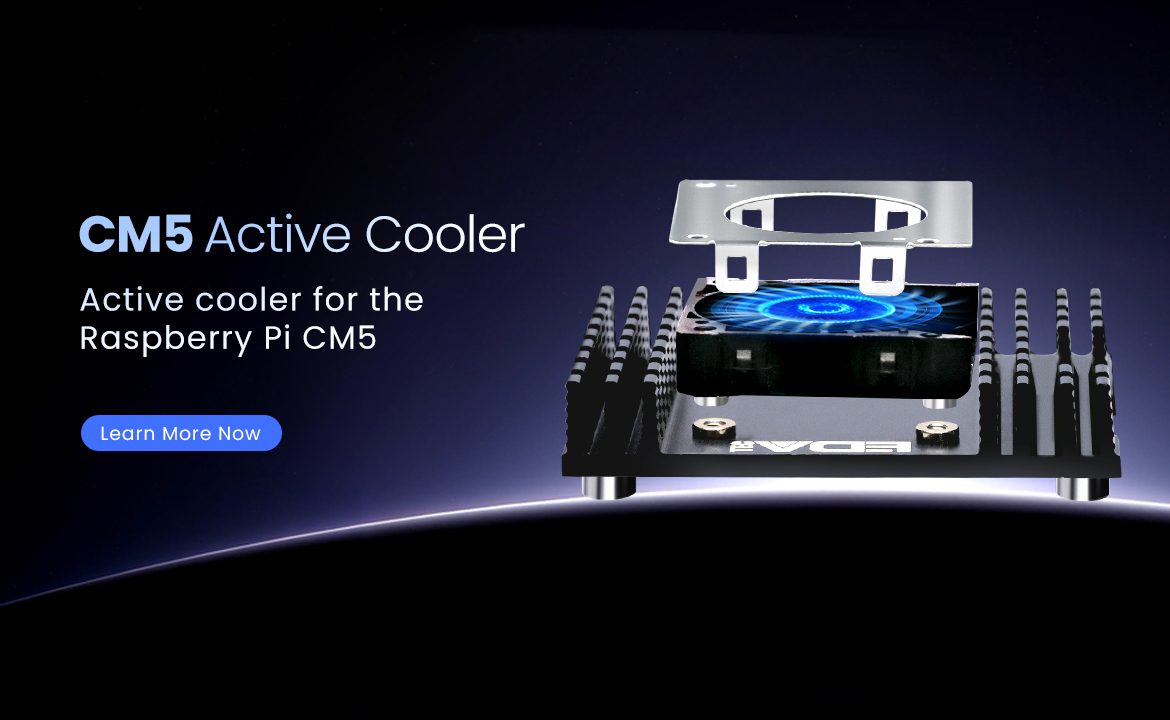

CM5 Active Cooler

Active cooler specifically designed for the Raspberry Pi CM5

Key Featured

  • Aluminum construction for durability and heat dissipation.

  • Temperature-controlled fan that adjusts speed based on temperature.

  • Dimensions: 56.5mm x 41mm x 14.1mm, weighing 31g.

  • Fan specs: 5V DC input, max 8000 RPM, 1.09 CFM airflow, 27.7dB noise.

  • Cooling performance: Reduces CPU temperature by 27℃ in a 25℃ environment.

  • Installation: Easy with included screws and nylon gaskets.

  • Ordering: Comes with an accessory set for mounting.

Product Positioning

The ED-CM5ACOOLER is based on the Raspberry Pi CM5 active heatsink with an integrated blower, which is designed to accelerate heat dissipation and effectively reduce the operating temperature of the Raspberry Pi CM5 through the combination of a radial blower and heat sink.

  • Aluminium profile, CNC cut, easy to install

  • Active Cooler with a temperature-controlled blower fan and pre-installed with thermal conductive silicone

  • Excellent cooling performance to reduce the temperature of Raspberry Pi CM5 CPU, Wi-Fi module and power management chip

Explore in-depth reviews and coverage of CM5 Active Cooler by leading international media outlets! Click the links to learn more：

Jeff Geerling      Level 2 Jeff     Leepsvideo   Tom's hardware     Tom's Hardware     CNX Software

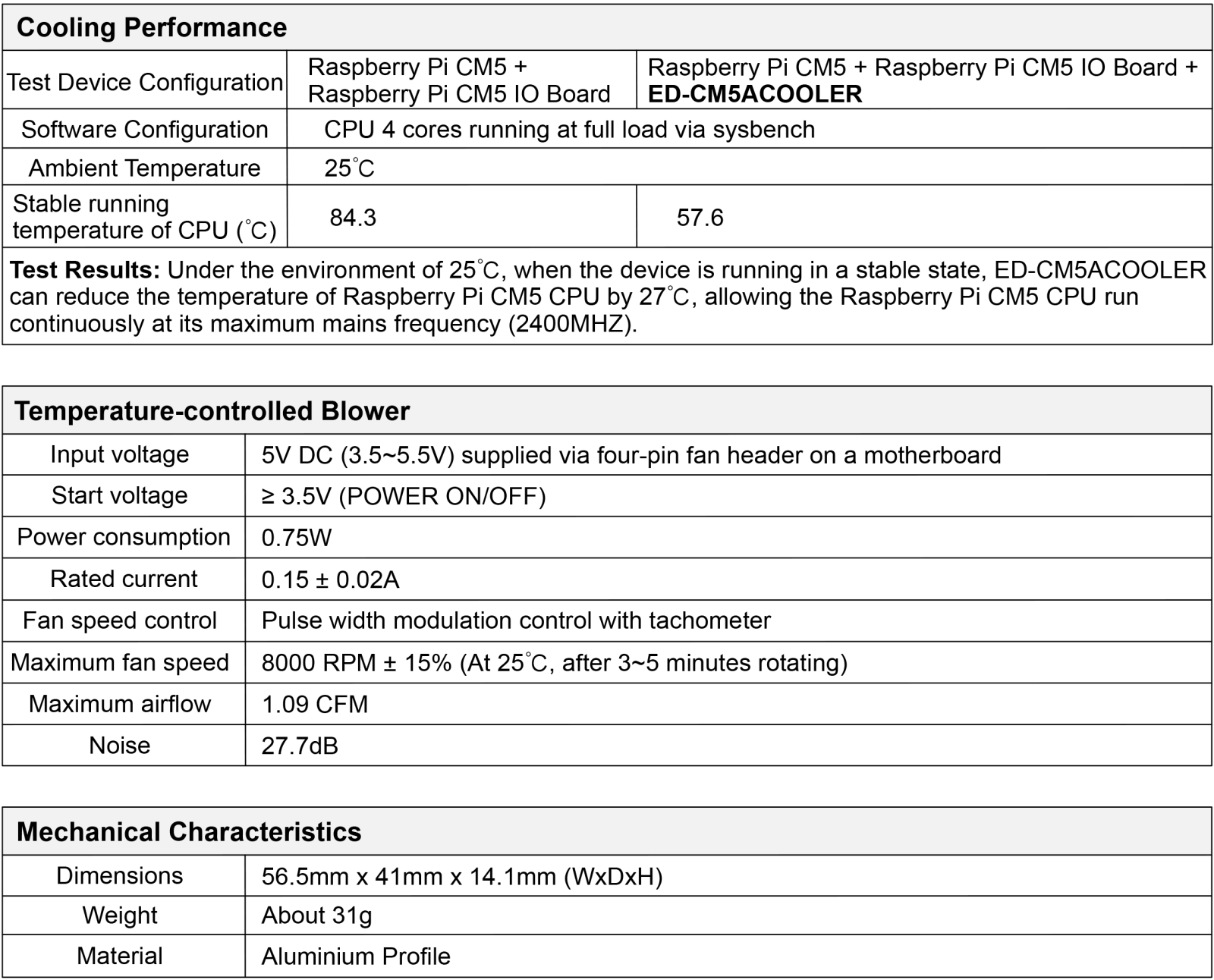

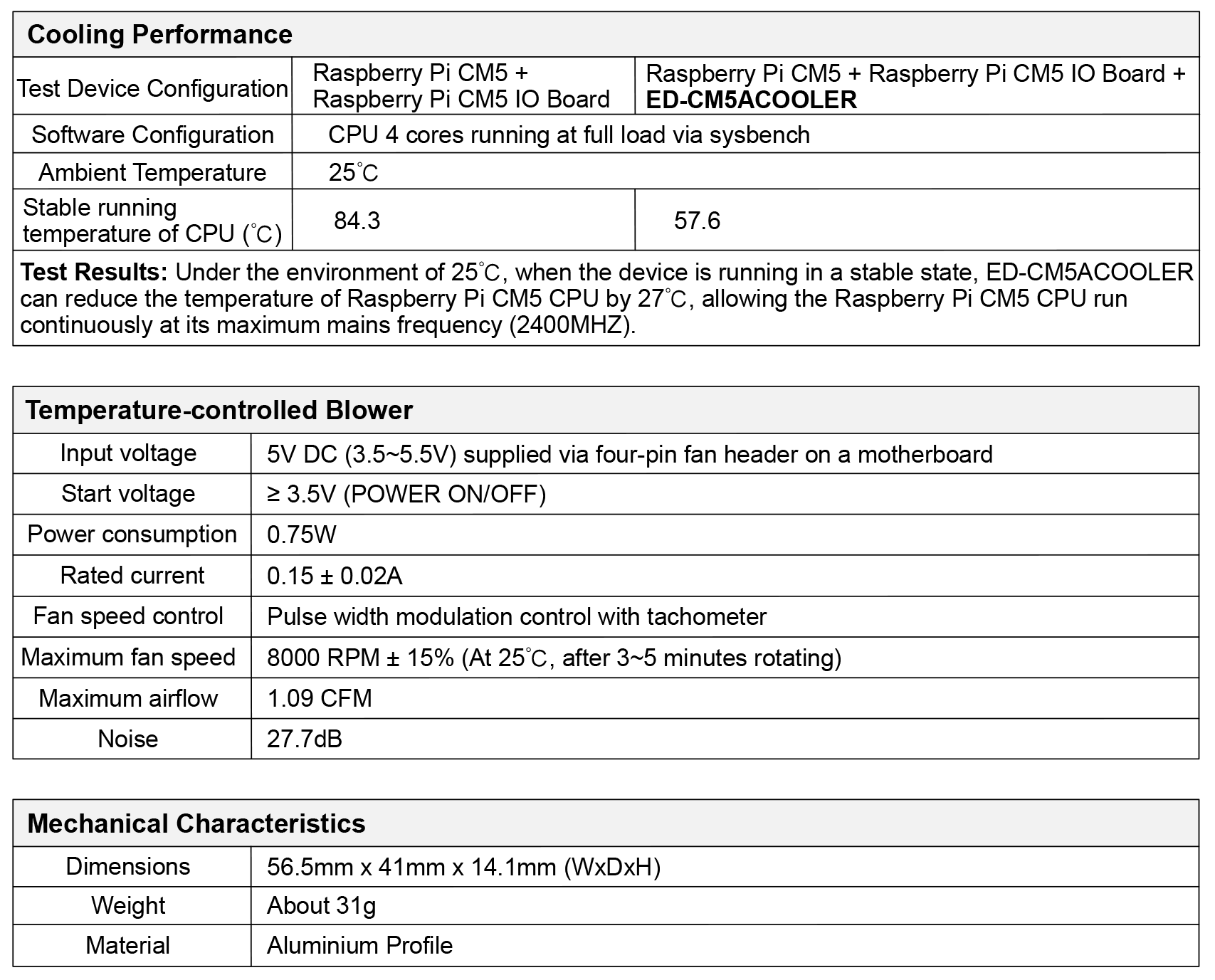

Specification

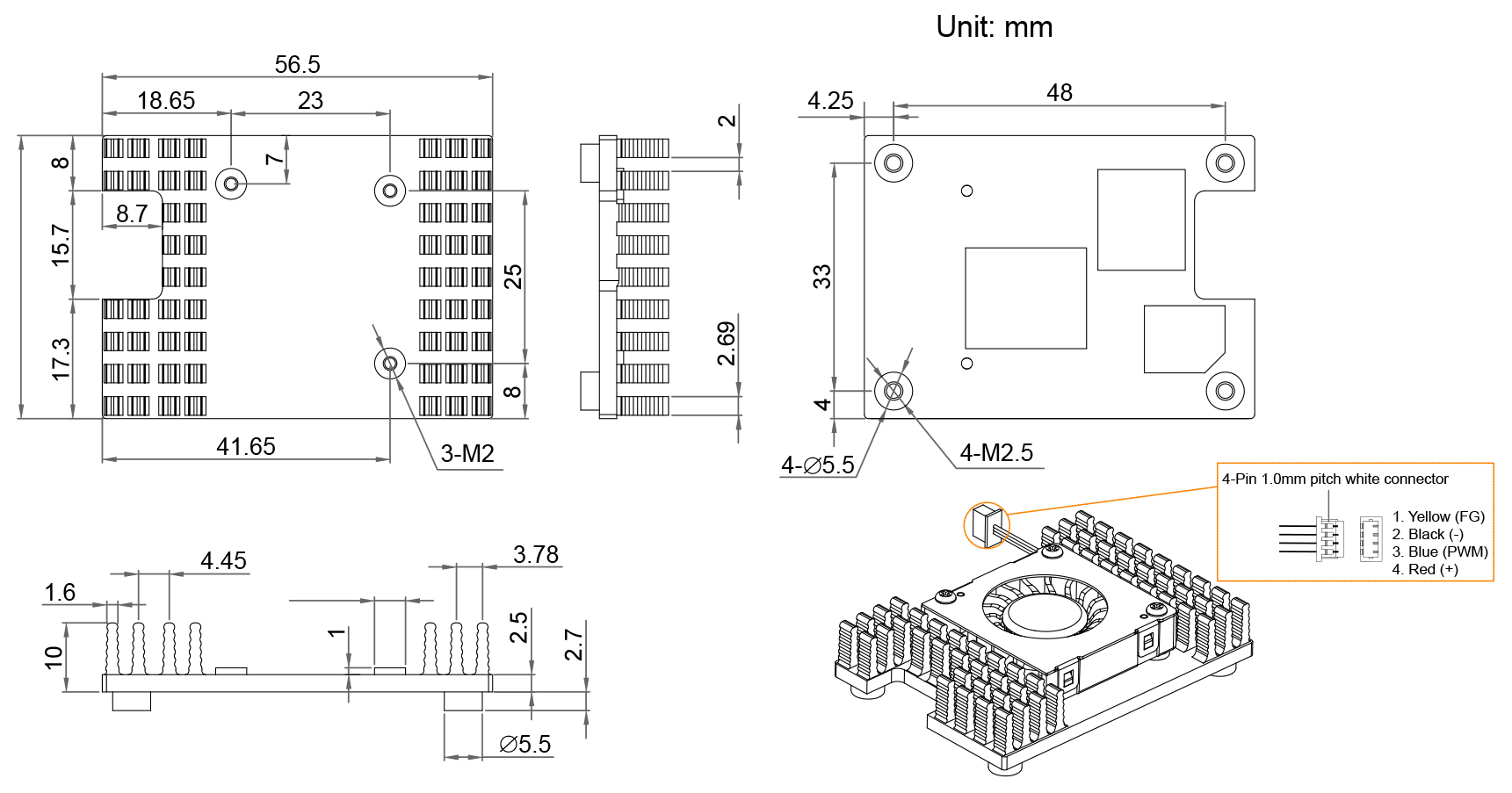

Mechanicals

Docs
Type Title Publish Time
Datasheet ED-CM5ACOOLER Datasheet-EN-2024.10.18.pdf 2025-01-15
Test Report ED-CM5ACOOLER Cooling Performance Test Report.pdf 2025-01-15
Related Products
Raspberry Pi CM5

The Raspberry Pi Compute Module 5 (CM5) is a System on Module (SoM) containing processor, memory, eMMC Flash, and supporting power circuitry.

Videos

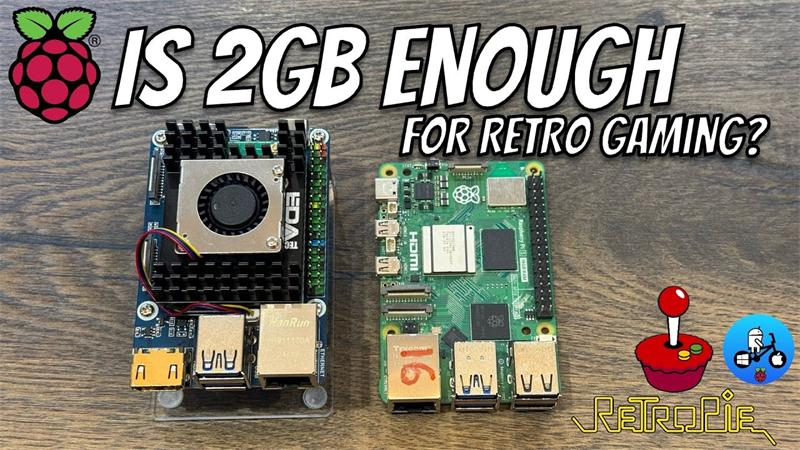

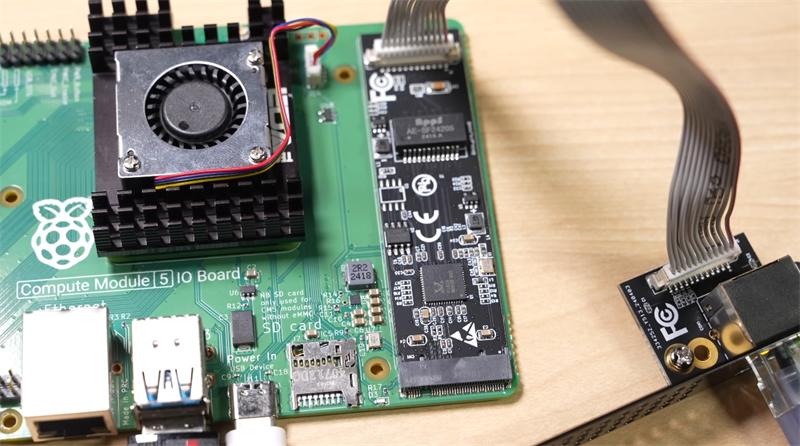

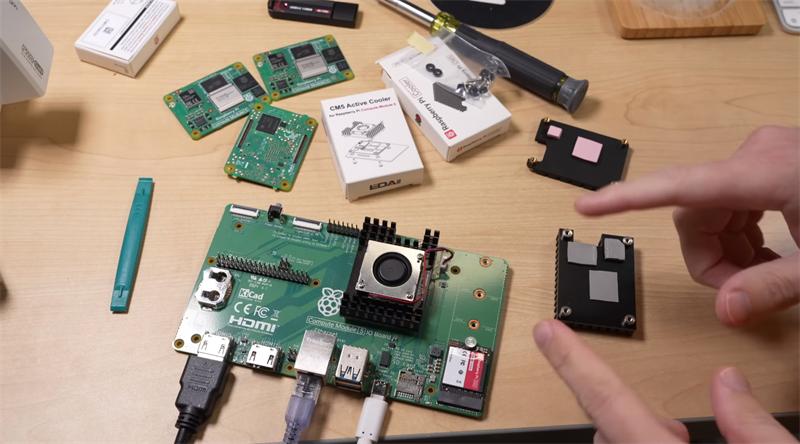

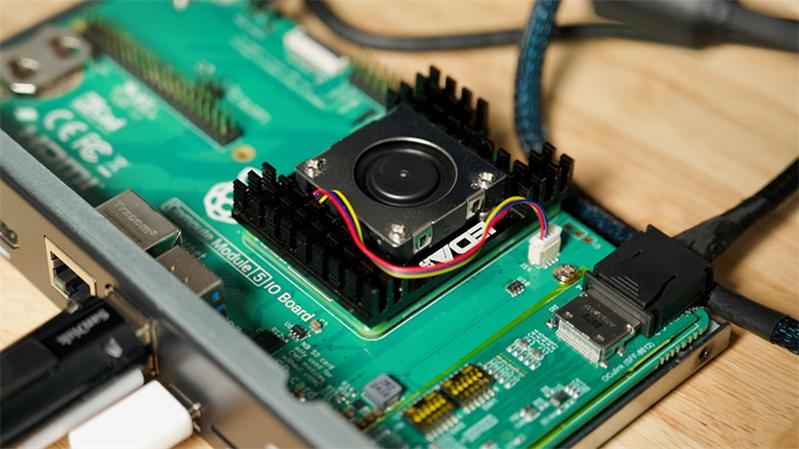

Leepsvideo Review - CM5 Active Cooler
Level 2 Jeff Review - CM5 Active Cooler
Jeff Geerling Review - CM5 Active Cooler
