ED-PSU1201

ED-PSU1201

The ED-PSU1201 is a compact 12W power supply with safety and efficiency features.

Key Featured
  • High Reliability: Up to 50K-hour MTBF at 25°C per Telcordia SR-332 issue 3, ensuring stability.
  • Full voltage output: DC SELV-compliant, IEC 62368-1, for user safety.
  • Wide Input Range: 100-240Vac input; 90-264Vac operational, fitting various power standards.
  • High efficiency: ≥82.96% average, conserving energy.
  • Stable output: ±5% line regulation at full load, stable with ±10% input fluctuation.
  • Low Ripple: Ripple under 120 mVp-p for clean output.
  • Protection: Short-circuit and overcurrent, auto-resume post-fault.
  • Easy Integration: Simple design for versatile device integration.
  • Environmental Fit: Operable up to 40°C indoor ambient.
  • Global Standards: Compatible with AU, EU, UK, US plug standards.

The ED-PSU1201 power supply is an efficient and reliable power adapter designed and marketed by EDATEC with the following features:

Design Concept:

ED-PSU1201 power supply adopts a simple design concept, focusing on providing users with stable and efficient power solutions. Its DC output voltage complies with the Safe Extra Low Voltage (SELV) standard specified in IEC 62368-1, ensuring safety in use.

Performance Characteristics:

This power supply is a single-phase, 12.0 watt, single-output stage power supply that offers high reliability with a Mean Time Between Failure (MTBF) of 50K hours (calculated using Telcordia SR-332 issue 3 methodology in a 25°C environment). It is capable of stable operation in indoor ambient temperatures up to 40°C with natural convection cooling.

Input and Output Requirements:

The ED-PSU1201 power supply has a rated input voltage of 100-240Vac, with a wide operating range that can accommodate voltage fluctuations from 90-264Vac. It has a rated input frequency of 50/60Hz +/- 3Hz and a rated input current of up to 0.4 A. At no load, power consumption is extremely low at 0.1 W. The power supply also has built-in primary current protection, which is achieved by providing sufficient internal fuses on the AC input lines.

On the output side, the rated DC output voltage is +12.0V, the minimum load current is 0.01A, the rated load current is 1.0A, and the rated output power is 12.0W. The line regulation is less than ±5% at rated load, and remains stable even with +/-10% variations in input voltage. Ripple and noise are controlled to within 120 mVp-p, ensuring a clean output from the power supply.

Efficiency and Protection:

With an average efficiency of at least 82.96%, the ED-PSU1201 maintains high efficiency under varying loads. It also features short-circuit and over-current protection to ensure that the adapter will not be damaged in the event of a fault and will be able to return to normal operation once the fault condition is removed.

Appearance & Ordering:

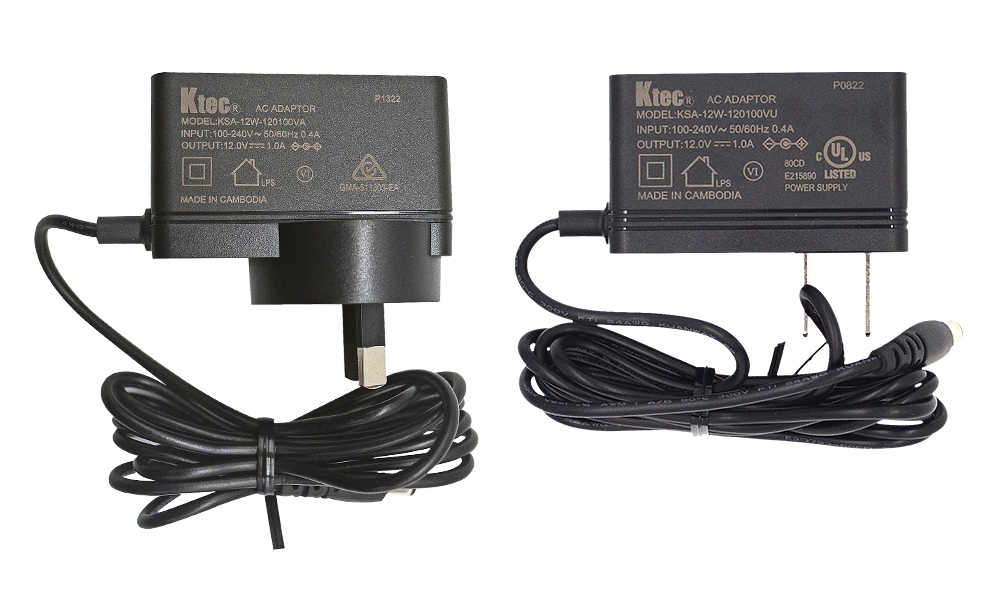

The power adapters are available in a variety of appearance sizes to suit different regional standards such as AU, EU, UK, and US.Users can choose the right model to order as needed.

ED-PSU1201 power supply is a suitable power adapter for a wide range of application scenarios, its high reliability, stable output and comprehensive protection features make it an ideal power supply choice for electronic devices.

HS CODE

HS CODECOO
8504401400CN



Specification



Ordering Code


Docs
Type Title Publish Time
PDF ED-PSU1201-US 2024-04-10
PDF ED-PSU1201-EU 2024-04-10
PDF ED-PSU1201-UK 2024-04-10
PDF ED-PSU1201-AU 2024-04-10
