ED-MONITOR Series

Home > Products > Display

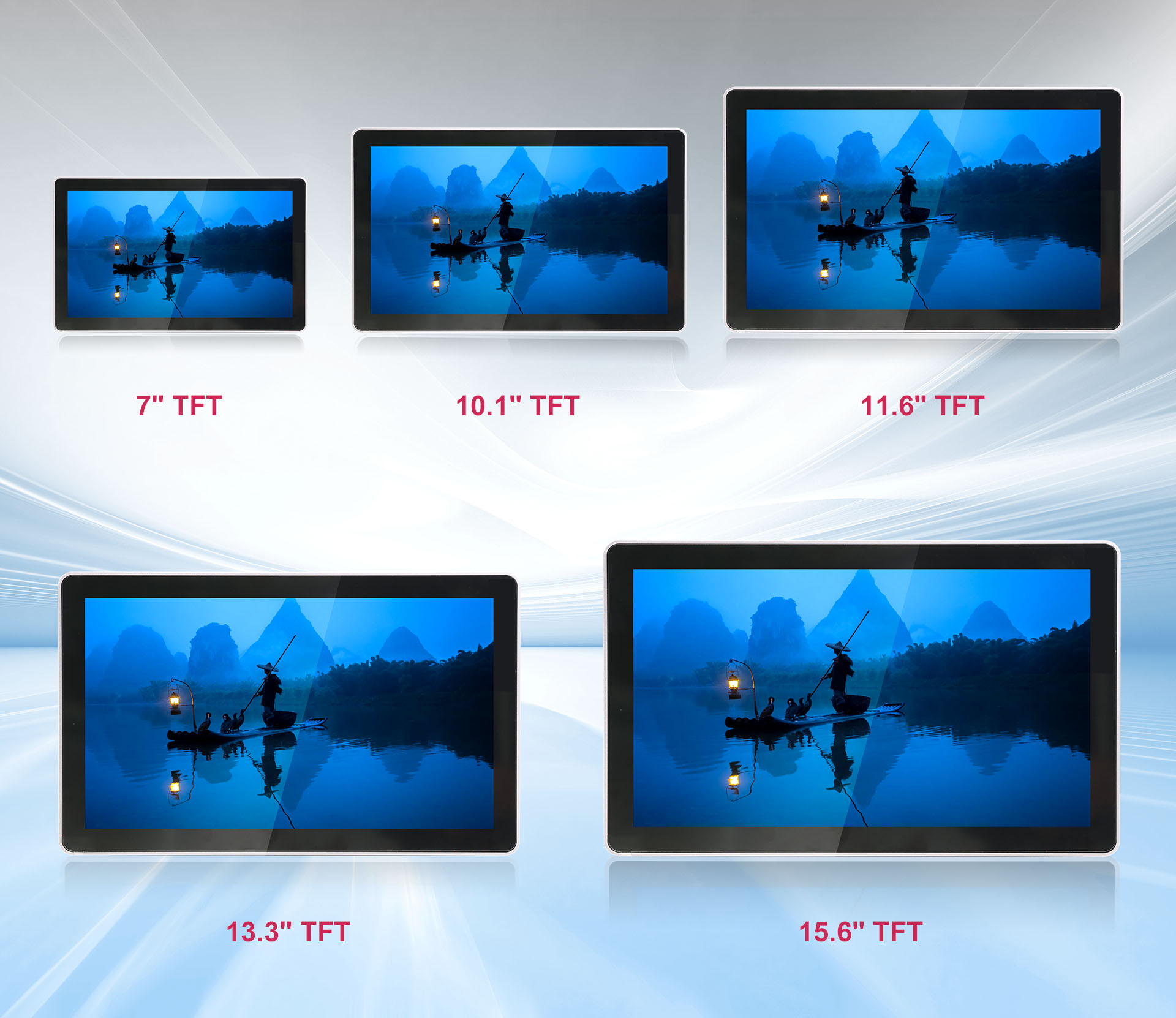

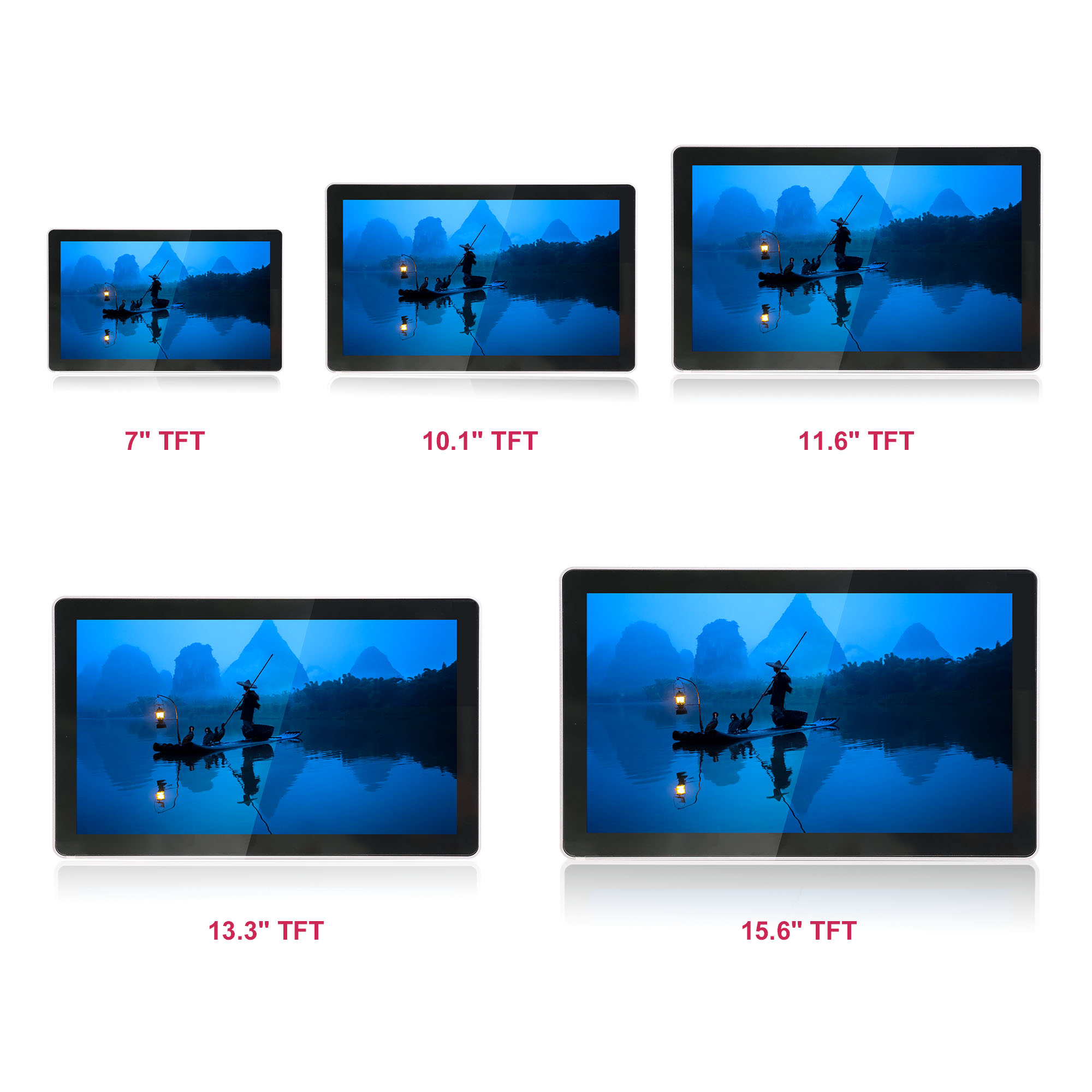

ED-MONITOR Series

Industrial Touchscreen Monitor

Key Featured
  • Multiple screen sizes available, up to 425cd/m2 Luminance, multi-touch capacitive touch screen
  • Standard HDMI port for direct connection to Raspberry Pi HDMI output
  • Type-A USB port to connect to Raspberry Pi USB port for touch function without driver installation
  • Optional stereo audio output, support headphone and speaker
  • 12V power input on DC Jack connector
  • Thin and light ccase with aluminum alloy frame and sheet metal housing
  • Embedded installation
Online Docs

System Diagram
    1
  • MONITOR-070C
    • 2
  • MONITOR-101C
    • 3
  • MONITOR-116C
    • 4
  • MONITOR-133C
    • 5
  • MONITOR-156C
monitor-070c-diagram
monitor-101c-diagram
monitor-116c-diagram
monitor-133c-diagram
monitor-156c-diagram
Specification
  • MONITOR-070C
  • MONITOR-101C
  • MONITOR-116C
  • MONITOR-133C
  • MONITOR-156C
Panel I/O
HDMI1 x HDMI port, Type-A connector, connecting to HDMI output of Raspberry Pi 4 or Raspberry Pi 5.
USB1 x Type-A USB port, connecting to the USB port of the Raspberry Pi 4 or Raspberry Pi 5 to transmit touchscreen signals.
Audio (optional)1 x 3.5mm audio jack, stereo audio output
Power1 x DC Jack port, support 12V power input.
Indicator
PWR1 x Red power indicator, using to check the status of device power-on and power-off.
LCD
Type7.0" TFT
Resolution1024 x 600
Color Number16.7M
Active Area154.21mm (H) x 85.92mm (V)
BacklightLED
Luminance425cd/m2
Contrast Ratio800:1
Response Time30ms
Viewing Angle (CR>10)85° (L) / 85° (R) / 85° (U) / 85° (D)
Touch Screen
TypeCapacitive Touch Screen
Multi-touchUp to 5 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical Characteristics
Input Voltage12V DC (±10%)
Power Consumption10W (Max)
Mechanical Characteristics
Dimensions188mm x 123mm x 20.8mm (WxDxH)
WeightAbout 495g
InstallationEmbedded front installation
Environmental & Regulatory
Operating Temperature-20°C ~ 50°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Panel I/O
HDMI1 x HDMI port, Type-A connector, connecting to HDMI output of Raspberry Pi 4 or Raspberry Pi 5.
USB1 x Type-A USB port, connecting to the USB port of the Raspberry Pi 4 or Raspberry Pi 5 to transmit touchscreen signals.
Audio (optional)1 x 3.5mm audio jack, stereo audio output
Power1 x DC Jack port, support 12V power input.
Indicator
PWR1 x Red power indicator, using to check the status of device power-on and power-off.
LCD
Type10.1" TFT
Resolution1024 x 600
Color Number16.7M
Active Area222.72mm (H) x 125.28mm (V)
BacklightLED
Luminance500cd/m2
Contrast Ratio800:1
Response Time25ms
Viewing Angle (CR≥10)85° (L) / 85° (R) / 85° (U) / 85° (D)
Touch Screen
TypeCapacitive Touch Screen
multi-touchUp to 10 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical Characteristics
Input Voltage12V DC (±10%)
Power Consumption10W (Max)
Mechanical Characteristics
Dimensions257.7mm x 159.7mm x 28mm (WxDxH)
WeightAbout 940g
InstallationEmbedded front installation
Environmental & Regulatory
Operating Temperature-20°C ~ 50°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Panel I/O
HDMI1 x HDMI port, type A connector, connecting to HDMI output of Raspberry Pi 4 or Raspberry Pi 5.
USB1 x Type-C USB port, connecting to the USB port of the Raspberry Pi 4 or Raspberry Pi 5 to transmit touchscreen signals.
Audio (optional)1 x 3.5mm audio jack, stereo audio output
Speaker (optional)1 x PA output, built-in a 4Ω 5W speaker.
Power1 x DC Jack port, support 12V power input.
Buttons and Indicators
PWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button1 x Mute button for mute and unmute audio.
LCD
Type11.6" TFT
Resolution1920 x 1080
Color Number16.7M
Active Area256.32mm (H) x 144.18mm (V)
BacklightLED
Luminance250cd/m2
Contrast Ratio1000:1
Response Time30ms
Viewing Angle (CR≥10)85° (L) / 85° (R) / 85° (U) / 85° (D)
Touch Screen
TypeCapacitive Touch Screen
multi-touchUp to 10 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical Characteristics
Input Voltage12V DC (±10%)
Power Consumption15W (Max)
Mechanical Characteristics
Dimensions303.4mm x 191.4mm x 46.5mm (WxDxH)
WeightAbout 1.9kg
InstallationEmbedded front installation and VESA bracket mounting
Environmental & Regulatory
Operating Temperature0°C ~ 50°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Panel I/O
HDMI1 x HDMI port, type A connector, connecting to HDMI output of Raspberry Pi 4 or Raspberry Pi 5.
USB1 x Type-C USB port, connecting to the USB port of the Raspberry Pi 4 or Raspberry Pi 5 to transmit touchscreen signals.
Audio (optional)1 x 3.5mm audio jack, stereo audio output
Speaker (optional)1 x PA output, built-in a 4Ω 5W speaker.
Power1 x DC Jack port, support 12V power input.
Buttons and Indicators
PWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button1 x Mute button for mute and unmute audio.
LCD
Type13.3" TFT
Resolution1920 x 1080
Color Number16.7M
Active Area293.76mm (H) x 165.24mm (V)
BacklightLED
Luminance250cd/m2
Contrast Ratio1500:1
Response Time25ms
Viewing Angle (CR≥10)80° (L) / 80° (R) / 80° (U) / 80° (D)
Touch Screen
TypeCapacitive Touch Screen
multi-touchUp to 10 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical Characteristics
Input Voltage12V DC (±10%)
Power Consumption15W (Max)
Mechanical Characteristics
Dimensions340.4mm x 211.4mm x 46.5mm (WxDxH)
WeightAbout 2.1kg
InstallationEmbedded front installation and VESA bracket mounting
Environmental & Regulatory
Operating Temperature0°C ~ 50°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Panel I/O
HDMI1 x HDMI port, type A connector, connecting to HDMI output of Raspberry Pi 4 or Raspberry Pi 5.
USB1 x Type-C USB port, connecting to the USB port of the Raspberry Pi 4 or Raspberry Pi 5 to transmit touchscreen signals.
Audio (optional)1 x 3.5mm audio jack, stereo audio output
Speaker (optional)1 x PA output, built-in a 4Ω 5W speaker.
Power1 x DC Jack port, support 12V power input.
Buttons and Indicators
PWR1 x Red power indicator, using to check the status of device power-on and power-off.
Brightness Adjustment Button2 x Brightness adjustment buttons for increasing and decreasing the brightness.
Volume Adjustment Button2 x Volume adjustment buttons for increasing and decreasing the volume.
Mute Button1 x Mute button for mute and unmute audio.
LCD
Type15.6" TFT
Resolution1920 x 1080
Color Number16.7M
Active Area344.16mm (H) x 193.59mm (V)
BacklightLED
Luminance210cd/m2
Contrast Ratio1500:1
Response Time25ms
Viewing Angle (CR≥10)85° (L) / 85° (R) / 85° (U) / 85° (D)
Touch Screen
TypeCapacitive Touch Screen
multi-touchUp to 10 points
Communication MethodUSB
Transmittance≥85％
Surface Hardness≥6H
Electrical Characteristics
Input Voltage12V DC (±10%)
Power Consumption15W (Max)
Mechanical Characteristics
Dimensions388.4mm x 238.4mm x 46.5mm (WxDxH)
WeightAbout 2.3kg
InstallationEmbedded front installation and VESA bracket mounting
Environmental & Regulatory
Operating Temperature0°C ~ 50°C
Storage Temperature-20°C ~ 60°C
Ambient humidity5% ~ 95% (non-condensing)
Mechanicals
  • MONITOR-070C
  • MONITOR-101C
  • MONITOR-116C
  • MONITOR-133C
  • MONITOR-156C

Unit: mm

monitor-070c-dimension

Unit: mm

monitor-101c-dimension

Unit: mm

monitor-116c-dimension

Unit: mm

monitor-133c-dimension

Unit: mm

monitor-156c-dimension
Ordering Code
  • MONITOR-070C
  • MONITOR-101C
  • MONITOR-116C
  • MONITOR-133C
  • MONITOR-156C
monitor-070c-orderingcode
monitor-101c-orderingcode
monitor-116c-orderingcode
monitor-133c-orderingcode
monitor-156c-orderingcode
Docs
Type Title Publish Time
Datasheet ED-MONITOR-070C Datasheet 2024-04-10
Datasheet ED-MONITOR-101C Datasheet 2024-04-10
Datasheet ED-MONITOR-116C Datasheet 2024-04-10
Datasheet ED-MONITOR-133C Datasheet 2024-04-10
Datasheet ED-MONITOR-156C Datasheet 2024-04-10
