ED-AIC3000

ED-AIC3000

Industrial Smart Camera Based on Raspberry Pi CM4

Key Featured
  • High-Performance Quad-core Cortex-A76 (2.4GHz), 8GB Memory & 64GB Storage
  • 12MP Image Sensor with 70 FPS High-Speed Capture
  • 12mm Focal Length Liquid Lens Provides Quick Autofocus
  • Supports Ethernet/IP, Modbus TCP, TCP/IP Protocols
  • IP65 Rated, Shock and Vibration Resistant, Industrial Aluminum Housing
  • Operating Temperature 0℃~45℃, Humidity 5%~90% (Non-Condensing)

Product Positioning

A high-performance vision inspection system for industrial automation and high-speed image processing, built on Raspberry Pi CM5 hardware and advanced optical modules. Designed for precision quality inspection, logistics sorting, and equipment monitoring in harsh industrial environments, it delivers real-time imaging, intelligent autofocus, and multi-protocol integration for mission-critical applications.

Core Advantages

ModuleHighlightsKey Specifications/Technologies
High-Speed ImagingCaptures dynamic details with unmatched speed- 12MP image sensor with 70 FPS frame rate
- Liquid autofocus module (12mm focal length, millisecond-level response)
Industrial DurabilityBuilt to withstand extreme conditions- IP65 protection rating + aluminum alloy housing
- Impact resistance (30g/11ms) + vibration resistance (EN 60068-2-6)
- 0°C~45°C operating range (5%~90% non-condensing humidity)
Adaptive OpticsPrecision lighting for complex surfaces- 4-zone programmable LED lighting (bright/dark field modes)
- Optimized for textured, reflective, or etched surfaces
Edge Computing PowerReal-time vision analytics at the source- Quad-core Cortex-A76@2.4GHz + 8GB LPDDR4 RAM
- 64GB eMMC storage for AI inference and data buffering
Industrial ConnectivitySeamless integration with automation systems- Ethernet/IP, Modbus TCP, TCP/IP protocols
- M12 aviation connectors (24V power, RS232, DI/DO)

Differentiation

Sub-Second Autofocus: Liquid lens enables <0.1s focus adjustment – 300% faster than mechanical alternatives.

Dynamic Lighting Control: 8 lighting presets across 4 zones adapt to metal, plastic, and glass surfaces.

Industrial-Grade Protection: IP65 sealing + wide-temperature operation for stamping/welding shop floors.

Ultra-Compact Form Factor: 85×60×45.9mm footprint (330g) with flexible mounting (bracket/robot arm).

Typical Applications

🏭 Smart Manufacturing QA: Detect PCB soldering defects at 70 FPS, sync with Modbus TCP-controlled robotic arms.

📦 High-Speed Logistics Sorting: 12MP barcode recognition for parcels, achieving >99.9% accuracy with Ethernet/IP sorter control.

Equipment Health Monitoring: Trigger image capture via DI/DO ports, analyze gear wear via edge AI, and issue predictive alerts.

🔍 Intelligent Security Patrols: AI-powered PPE compliance checks via TCP/IP alerts.

HS CODE

HS CODECOO
8525891900CN



System Diagram
aic3000-diagram
Specification
System
CPUBroadcom BCM2712, quad core Cortex-A78 (ARM v8) 64-bit SoC @ 2.4GHz
VPUH.265 (HEVC), up to 4Kp60 decode
GPUOpenGL ES 3.1 & Vulkan 1.2
MemoryOptions for 2GB, 4GB, 8GB LPDDR4-4267 SDRAM
StorageOptions for 16GB, 32GB, 64GB eMMC storage
Software
Operating SystemRaspberry Pi OS (Desktop) 64-bit
Communication ProtocolEthernet/IP, Modbus TCP and TCP/IP
Panel I/O

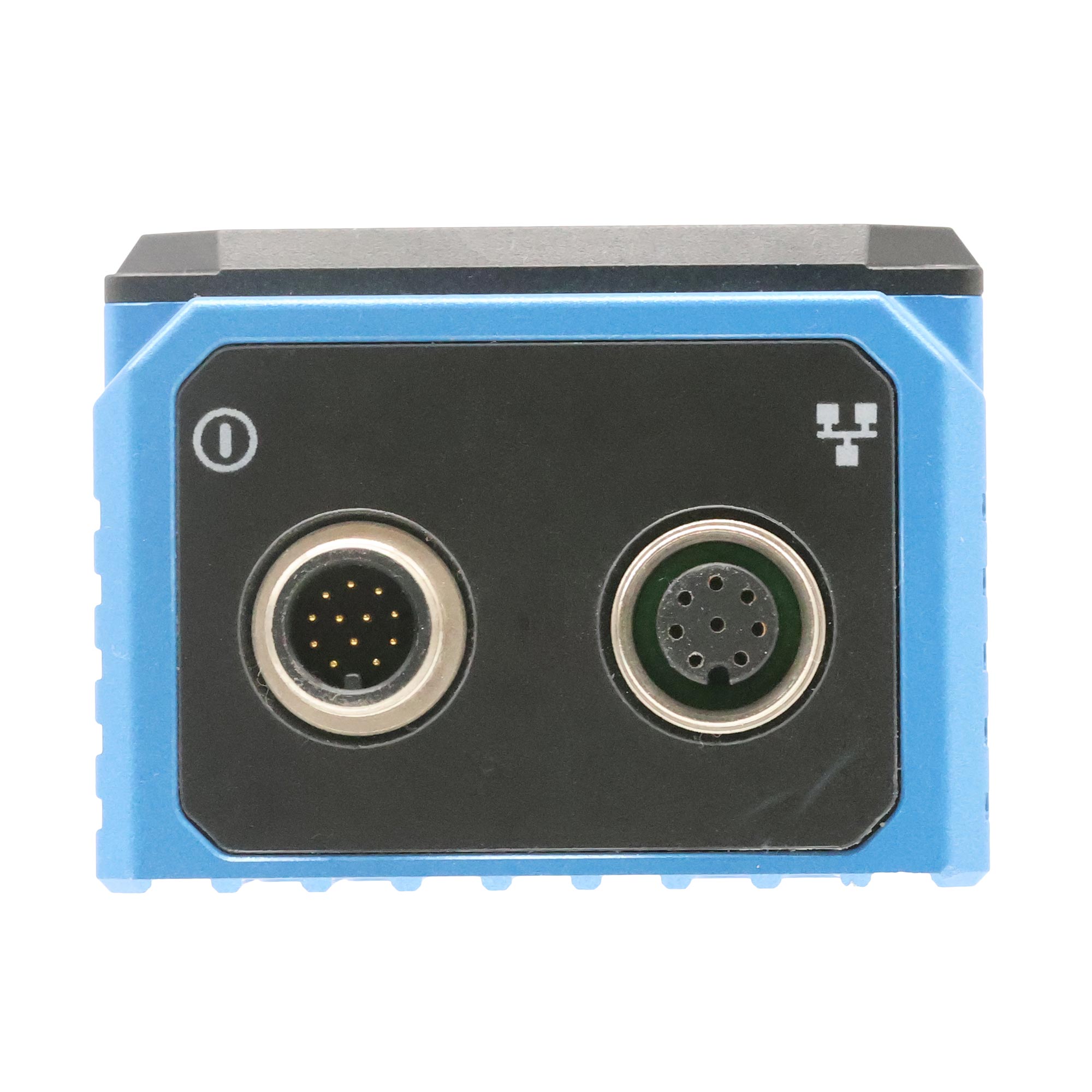

Power & I/O (12-Pin)1 x Power & I/O port, 12-Pin aviation connector, which is used to connect the power & I/O cable (12-Pin M12 connector to bare wire) to access external signals. The signals include power supply, RS232, DI and DO.
  • 1 x DC IN: 2-Pin, it supports DC 24V input and the signal is defined as DC-/DC+.
  • 1 x RS232: 3-Pin, the signal is defined as TX/RX/GND.
  • 1 x DI: 2-Pin, the signal is defined as DI/COMMON.
  • 2 x DO: 3-Pin, the signal is defined as DO1/DO2/COMMON.
  • 1 x Trigger: External trigger signal
  • 1 x External Strobe: Control signal of screen flicker
Communication (8-Pin)1 x Communication port, 8-Pin aviation connector, which is used to connect the ethernet cable (8-Pin M12 connector to RJ45 connector) to enable camera to access the network.
Light Source and Lens
Light Source4 areas for LED light source, each eara of light source supports independent configuration.
LensM12 Fixed Lens with Liquid Module Zoom
Buttons and Indicators
TUNE1 x Adjusting button, one-click button for Auto Focus
TRIG1 x Trigger button, one-click button for camera trigger
Power indicator1 x Power indicator, which is used to check the status of camera power-on and power-off.
Fault indicator1 x Fault indicator, which is used to check the fault status of camera.
Working status indicator1 x Working status indicator, which is used to check the working status of camera.
Network indicator 2 x Network indicators, which is used to view the status of network connection and data communications.
Performance Characteristics
Image Sensor12 million pixels
Sampling RateUp to 70 FPS
Aiming PointRed cross laser
Electrical Characteristics
Input VoltageDC 24V (±10%)
A DC 24V 2A power adapter is recommended.
Power Consumption36W (Max)
Mechanical Characteristics
Dimensions85mm x 60mm x 45.9mm
WeightAbout 330g
InstallationMouting bracket (optional)
Environmental & Regulatory
Operating Temperature 0°C ~ 45°C
Storage Temperature-4°C ~ 60°C
Ambient humidity5% ~ 90% (non-condensing)
Protection degreeIP65
Shock resistanceEN 60068-2-27, 30 g; 11ms; 3 impacts per axial direction
Vibration resistanceEN 60068-2-6, 14 mm @ 2 ~ 10 Hz, 1.5mm @ 13 ~ 55 Hz
2 g @ 70 ~ 500 Hz, 2-way 2 hours per axial direction
Certifications
  • FCC
    • FCC 47 CFR Part 15 Subpart B
  • CE
    • EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3
    • EN 55032/EN 55035
    • EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52
    • EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2
Mechanicals

Unit: mm

aic3000-dimension
Ordering Code
aic3000-orderingcode
Docs
Type Title Publish Time
Datasheet ED-AIC3000 Datasheet 2024-04-10
Manual ED-AIC3000 User Manual 2024-04-10
