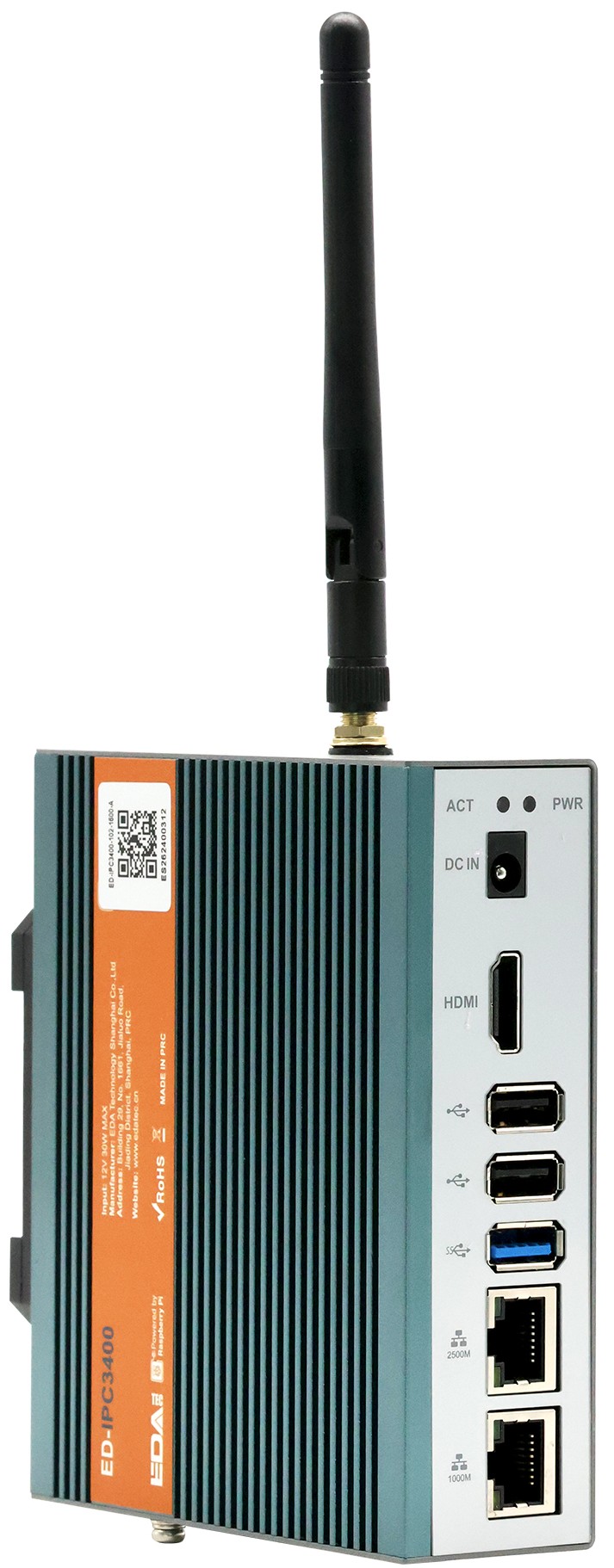

Industrial Computer Based on Raspberry Pi CM5
- Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
- Up to 16GB LPDDR4 RAM and 64GB eMMC storage
- Optional Micro SD Card support
- Expansion support for Hailo-8 13 TOPS module or M.2 NVMe SSD
- Dual Gigabit Ethernet ports: 1 x 2.5 Gigabit and 1 x Gigabit
- 1 x USB 3.0, 2 x USB 2.0, 1 x HDMI
- 2.4GHz & 5GHz Wi-Fi and Bluetooth wireless connectivity
- 9V~28V power input with TVS transient voltage protection
- Integrated RTC, EEPROM, and encryption chip
- Wide operating temperature range: -20℃ ~ 55℃
- High-quality metal enclosure, supports DIN rail mounting
|  |
| System |
|---|
| CPU | Broadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz |
| VPU | H.265 (HEVC), up to 4Kp60 decode |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | Options for 2GB, 4GB, 8GB, 16GB LPDDR4-4267 SDRAM |
| Storage | Options for 16GB, 64GB eMMC storage
Micro SD card (optional 32GB/64GB; used for system boot when using CM5Lite.)
M.2 NVMe SSD (options for 128GB, 256GB, 512GB) |
| Software |
|---|
| Operating System | Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit |
| Front I/O |
|---|
| Power | 1 x DC Input, DC Jack (5.5x2.5) connector; supports 9V~28V input. |
| HDMI | 1 x HDMI, Type-A connector, compliant with HDMI 2.0 standard, supports 4K@60Hz resolution. |
| USB 2.0 | 2 x USB 2.0, Type-A connector, up to 480Mbps transfer rate per port. |
| USB 3.0 | 1 x USB 3.0, Type-A connector, up to 5Gbps transfer rate. |
| 2.5G Ethernet | 1 x Ethernet port (10/100/1000M/2500M adaptive), RJ45 connector for network access. |
| Gigabit Ethernet Port | 1 x Ethernet port (10/100/1000M adaptive), RJ45 connector for network access. |
| Rear I/O |
|---|
| SD Card Slot | 1 x Micro SD card slot, using to install Micro SD card for system boot.
Note: Micro SD card support is valid only with CM5Lite. |
| Type-C USB | 1 x Type-C USB port, supports eMMC flashing via this interface. |
| Side I/O |
|---|
| Antenna | 1 x SMA port (optional), using to connect Wi-Fi/BT antenna. |
| Buttons and Indicators |
|---|
| ON/OFF Button | 1 x ON/OFF button for powering the device off. |
| PWR | 1 x red power indicator, using to check the status of device power-on and power-off. |
| ACT | 1 x green system indicator, using to check the working status of device. |
| Internal I/O |
|---|
| 40-Pin GPIO | 1 x GPIO Pin Header, 2x20-Pin, 2.54mm pitch, exposes CM5 GPIO pins for expansion accessories. |
| M.2 M Key Interface | 1 x M.2 M Key connector for external SSD or Hailo AI module. The SSD and Hailo AI module support only one of the two options; they cannot be installed simultaneously. - Compatible with M.2 M 2230, M.2 M 2242, M.2 M 2260, and M.2 M 2280 SSDs.
- Compatible with Hailo-8 13 TOPS module.
|
| MIPI Interfaces | 2 x 4-lane MIPI interfaces, 22-Pin FPC connectors, designated as DPHY0 (MIPI0) and DPHY1 (MIPI1). Both support expansion for Raspberry Pi camera and Raspberry Pi touch display. |
| Expansion Functions |
|---|
| EEPROM | Supports 4K byte storage and improves the ease of use of device. |
| Crypto Authentication | It can be matched to realize the required upper layer application and improves the security of device. |
| RTC | Integrated RTC maintains system clock during power-off; includes RTC battery holder supporting CR1220 battery backup. |
| Electrical Characteristics |
|---|
| Input Voltage | 9V~28V DC
Note: A 12V 4A power adapter of EDATEC is recommended. |
| Power Consumption | 24W (Max) |
| Mechanical Characteristics |
|---|
| Dimensions | 120mm x 100mm x 36mm (WxDxH, DIN-rail bracket and antenna are not included.) |
| Weight | About 600g |
| Installation | DIN rail mounting |
| Wireless |
|---|
| Wi-Fi/Bluetooth (optional) | 2.4GHz & 5GHz dual-band Wi-Fi and Bluetooth with antenna.
- 2.4GHz Wi-Fi: Compatible with IEEE 802.11 b/g/n
- 5GHz Wi-Fi: Compatible with IEEE 802.11 a/n/ac
- The Bluetooth supports 2402MHz ~ 2480MHz frequency
|
| Environmental & Regulatory |
|---|
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C |
| Ambient Humidity | 5% ~ 95% (non-condensing) |
Unit: mm
| Model | Description | Stocking Level |
|---|
| ED-IPC3400-1020032 | Wi-Fi/BT, 2GB DDR, 32GB SD Card | Preview |
| ED-IPC3400-1046400 | Wi-Fi/BT, 4GB DDR, 64GB eMMC | Preview |
| ED-IPC3400-1021600-A | Wi-Fi/BT, 2GB DDR, 16GB eMMC, a Hailo-8 13 TOPS Module | Preview |
| ED-IPC3400-1160000-3 | Wi-Fi/BT, 16GB DDR, 512G SSD | Preview |
TIP
If you require products with other configurations, please contact our sales team separately.
You can choose a power adapter according to actual needs.
| Model | Description | Picture |
|---|
| ED-PSU1204-UK | 100~240VAC to 12VDC/4A adapter, equipped with UK standard AC plug and DC Jack plug |  |
| ED-PSU1204-US | 100~240VAC to 12VDC/4A adapter, equipped with US standard AC plug and DC Jack plug |
| ED-PSU1204-AU | 100~240VAC to 12VDC/4A adapter, equipped with AU standard AC plug and DC Jack plug |
| ED-PSU1204-EU | 100~240VAC to 12VDC/4A adapter, equipped with EU standard AC plug and DC Jack plug |
| Note: Each model includes only one type of AC plug (UK, US, AU, or EU). |
- 1 x ED-IPC3400 Unit
- [Wi-Fi/BT Version - optional] 1 x 2.4GHz&5GHz Wi-Fi/BT Antenna
