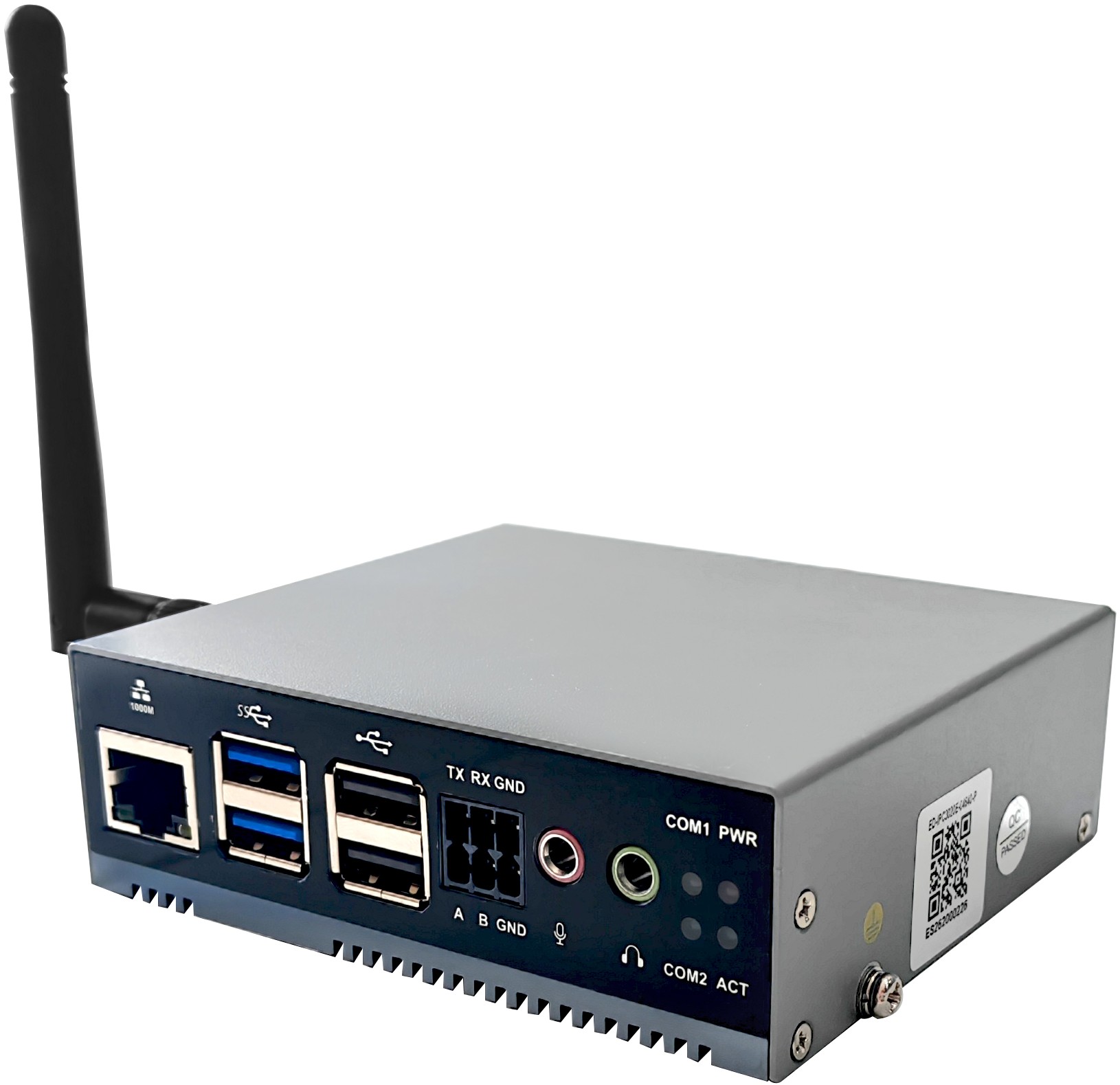

Industrial Computer Based on Raspberry Pi 5 with PoE, SSD & External Antenna support
- Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
- Up to 16GB LPDDR4X RAM
- Support Micro SD Card and M.2 NVMe SSD storage expansion
- 2 x USB 3.0, 2 x USB 2.0, 1 x RS232, 1 x RS485 and 1 x Buzzer
- 1 x Gigabit ethernet port with optional PoE
- Dual 4Kp60 HDMI display output
- Stereo audio input and output with separately 3.5mm audio jack
- 5V DC power input via USB-C, support ON/OFF power button
- Integrated RTC with supercapacitor backup power
- Fanless design with a high-quality metal case and heatsink for efficient thermal performance
|  |
| System |
|---|
| CPU | Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU |
| VPU | H.265 (HEVC) up to 4Kp60 decoding |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | Supports optional 1GB/2GB/4GB/8GB/16GB LPDDR4X-4267 SDRAM |
| Storage | Micro SD card slot (supports optional 32GB/64GB SD card)
M.2 NVMe SSD (supports optional 128GB/256GB SSD) |
| Software |
|---|
| Operating System | Raspberry Pi OS (Desktop) 64-bit
Raspberry Pi OS (Lite) 64-bit |
| Front I/O |
|---|
| Audio OUT | 1 x Audio Output (HPO), 3.5mm audio jack connector (green), stereo audio output. |
| Audio IN | 1 x Audio Input (LINE IN), 3.5mm audio jack connector (red), supporting stereo audio input. |
| RS485 | 1 x RS485 port, 3-Pin 3.5mm pitch Phoenix terminals with 120Ω terminal resistor. The signal is defined as GND/A/B. |
| RS232 | 1 x RS232 port, 3-Pin 3.5mm pitch Phoenix terminals, the signal is defined RS232 as GND/TX/RX. |
| USB 2.0 | 2 x USB 2.0, stacked Type-A connector, each channel supports up to 480Mbps transfer rate. |
| USB 3.0 | 2 x USB 3.0, stacked Type-A connector, each channel supports up to 5Gbps transfer rate. |
| 1000M Ethernet | 1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network, supporting optional PoE. |
| Rear I/O |
|---|
| SD Card Slot | 1 x Micro SD card slot, which is used to install SD card. It supports booting the OS from SD card. |
| Side I/O |
|---|
| HDMI*1 | 2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz. |
| Power | 1 x power in port, USB Type-C connector, supporting 5V/5A DC power input. |
| Antenna | 1 x SMA port, used to connect Wi-Fi/BT antenna. |
| *1: Some Micro HDMI cables have shorter Micro HDMI connectors, which may result in abnormal HDMI connections, so it is recommended to use Raspberry Pi's official Micro HDMI to standard HDMI cable, which can be purchased in the “Optional Accessory” section. |
| Buttons and Indicators |
|---|
| ON/OFF Button | 1 x power button, which is used to turn on and turn off the device. |
| PWR | 1 x red power indicator, used to check the status of device power-on and power-off. |
| ACT | 1 x green system indicator, used to check the working status of device. |
| COM1~COM2 | 2 x green UART indicators, which is used to check the communication status of UART port. |
| Internal I/O |
|---|
| M.2 M Key | 1 x M.2 M Key connector for external SSDs and high-speed devices; compatible with M.2 2230, 2242, and 2260 form factors; supports booting from SSD. |
| Expansion Functions |
|---|
| RTC | RTC with 1F SuperCAP backup, which can ensure that the system clock is not affected by device power-off. We also provide a battery base, and you can buy a CR1220 battery backup for RTC. |
| Buzzer | A tip or an abnormity can be configured according to actual application, which realizes the alarm function. |
| Electrical Characteristics |
|---|
| Input Voltage | 4.75V~5.25V DC |
| Power Consumption | 25W (Max) |
| Mechanical Characteristics |
|---|
| Dimensions | 102.8mm x 89.5mm x 32.5mm (WxDxH, antenna is not included.) |
| Weight | About 300g |
| Installation | Placing on the desk and wall mounting |
| Wireless |
|---|
| Wi-Fi/BT | Dual-band Wi-Fi and Bluetooth 5.0 with external antenna - Dual-band 802.11ac Wi-Fi
- Bluetooth 5.0 / Bluetooth Low Energy (BLE)
|
| Environmental & Regulatory |
|---|
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -25°C ~ 60°C |
| Ambient humidity | 5% ~ 95% (non-condensing) |
Unit: mm
| Model | Description | Stocking Level |
|---|
| ED-IPC3020E-02320 | Wi-Fi/BT, 2GB DDR, 32GB SD Card | Preview |
| ED-IPC3020E-04640-P | Wi-Fi/BT, 4GB DDR, 64GB SD Card, PoE | Preview |
| ED-IPC3020E-08001-P | Wi-Fi/BT, 8GB DDR, 128GB SSD, PoE | Preview |
TIP
If you require products with other configurations, please contact our sales team separately.
You can choose a power adapter according to actual needs.
| Model | Description | Picture |
|---|
| SC1149 | Raspberry Pi 27W USB-C Power Supply White UK |  |
| SC1153 | Raspberry Pi 27W USB-C Power Supply White US |
| SC1154 | Raspberry Pi 27W USB-C Power Supply Black UK |
| SC1155 | Raspberry Pi 27W USB-C Power Supply Black AU |
| SC1157 | Raspberry Pi 27W USB-C Power Supply Black EU |
| SC1407 | Raspberry Pi 27W USB-C Power Supply White EU |
| SC1158 | Raspberry Pi 27W USB-C Power Supply Black US |
It is recommended to choose the official Raspberry Pi Micro-HDMI to standard HDMI cable.
| Model | Description | Picture |
|---|
| SC0358 | Raspberry Pi Micro-HDMI to Standard HDMI (A/M), 1m cable |  |
An optional wall-mounted bracket is available for installation as needed.
| Model | Description | Picture |
|---|
| ED-ACCBKT-L3020 | Wall-mounted bracket for ED-IPC3020 and ED-PAC3020 |  |
- 1 x ED-IPC3020E Unit
- 1 x Wi-Fi/BT antenna
- 1 x 6-Pin Phoenix Terminal
- 1 x Tweezers (for SD card handling)
