ED-ANT-A
Omni-directional 4G Rod Antenna

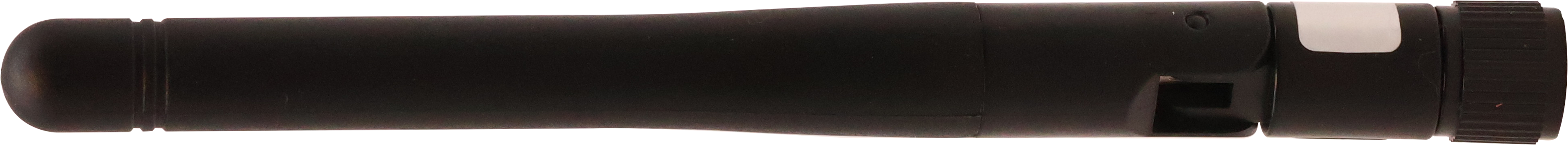

The ED-ANT-A is a 4G rod antenna specifically designed for ED-IPC and ED-HMI devices. By installing it to the antenna interface of the device, it can significantly enhance 4G signal transmission and reception capabilities, thereby effectively improving the stability and reliability of the device's 4G network connection.
Specifications
| Basic Parameters | |
|---|---|
| Antenna Structure | Rod Antenna |
| Working Frequency | 700MHz ~ 960MHz 1710MHz ~ 2690MHz |
| Gain | 2 dBi |
| Polarization | Vertical Linear Polarization |
| Radiation Pattern | Omni-directional |
| Impedance | 50 ohm |
| Power Handing | 50W dBm |
| Interface | SMA (Male) |
| Overall Dimensions | 108mm x 10mm |
| Weight | About 6.4g |
| Antenna Input Characteristics Testing | Using the Agilent E5071C vector network analyzer |
| Antenna Radiation Characteristics Testing | Using the SATIMO SG24 chamber |
| Operating Temperature | -20 °C to +85 °C |
| Storing Temperature | -40 °C to +90 °C |

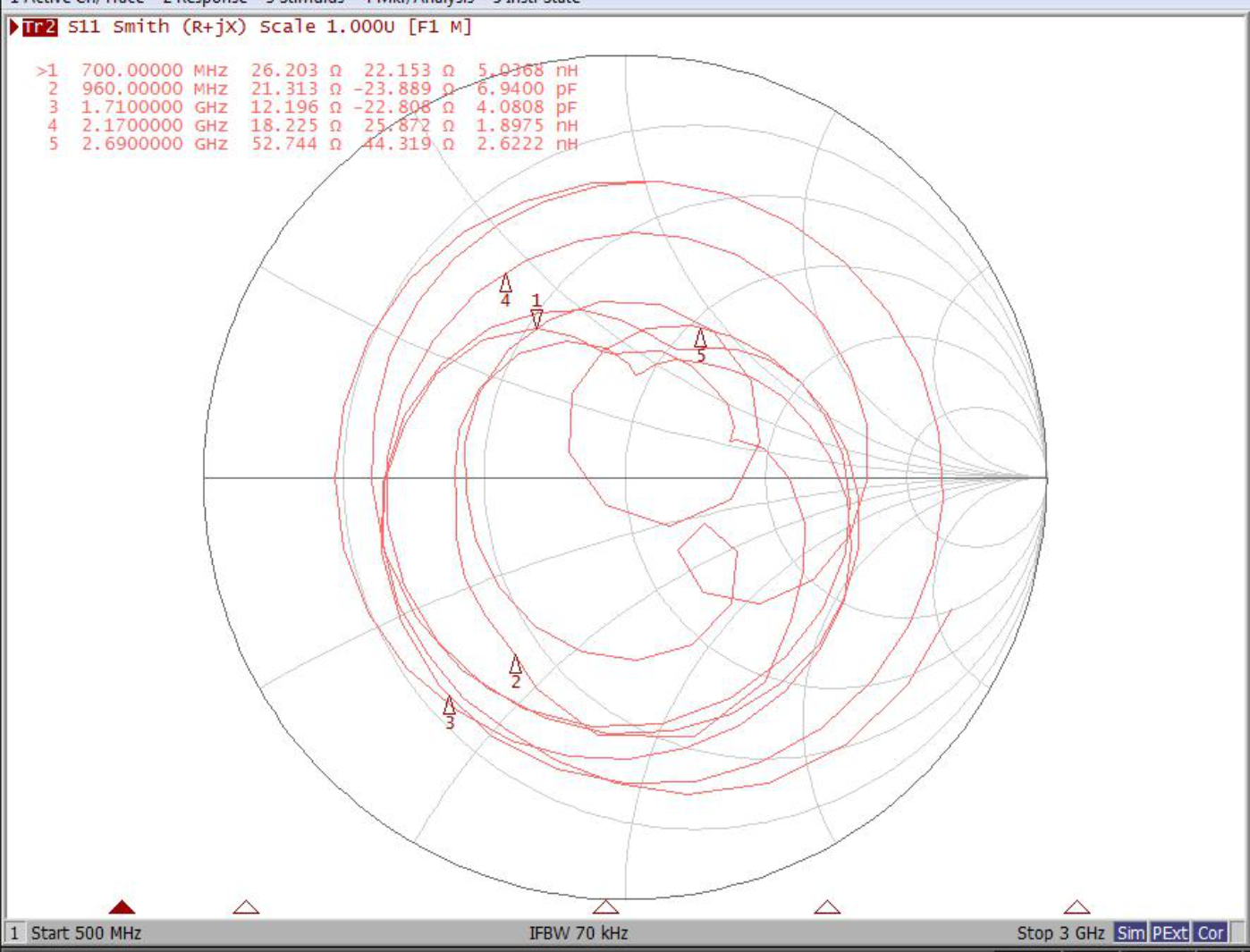

Impedance Smith Chart Testing

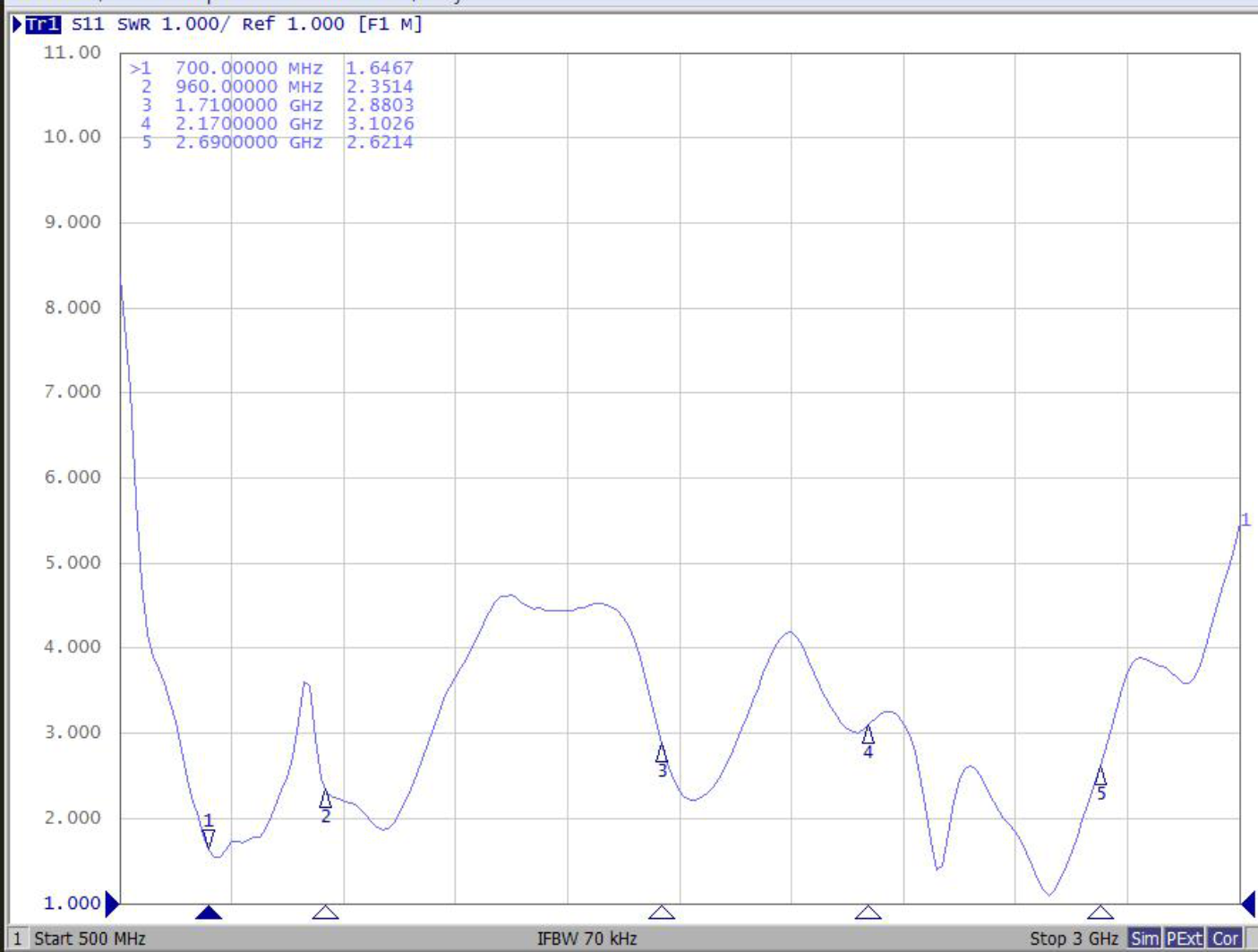

Wireless VSWR Testing
Efficiency and Gain
| Frequency (MHz) | Gain (dB) | Efficiency (dB) | Efficiency (%) |
|---|---|---|---|
| 700 | 0.4 | -3.8 | 41.4 |
| 710 | 0.6 | -3.6 | 43.8 |
| 720 | 0.6 | -3.5 | 45.1 |
| 730 | 0.6 | -3.4 | 45.6 |
| 740 | 0.6 | -3.4 | 45.9 |
| 750 | 0.6 | -3.5 | 44.7 |
| 760 | 0.8 | -3.4 | 45.4 |
| 770 | 0.5 | -3.8 | 42.0 |
| 780 | 0.5 | -3.9 | 40.9 |
| 790 | 0.3 | -4.2 | 38.4 |
| 800 | 0.1 | -4.3 | 36.8 |
| 810 | -0.6 | -4.8 | 33.0 |
| 820 | -0.7 | -4.9 | 32.0 |
| 830 | -0.6 | -4.9 | 32.7 |
| 840 | -0.9 | -5.3 | 29.8 |
| 850 | -0.6 | -5.1 | 30.6 |
| 860 | -0.7 | -5.4 | 28.9 |
| 870 | -0.6 | -5.3 | 29.8 |
| 880 | -0.5 | -5.4 | 29.1 |
| 890 | -0.3 | -5.3 | 29.6 |
| 900 | -0.5 | -5.6 | 27.4 |
| 910 | -1.0 | -5.9 | 25.9 |
| 920 | -1.2 | -6.2 | 24.2 |
| 930 | -1.2 | -6.3 | 23.5 |
| 940 | -1.3 | -6.5 | 22.3 |
| 950 | -1.6 | -6.6 | 21.7 |
| 960 | -1.5 | -6.5 | 22.4 |
| 1710 | -1.6 | -6.1 | 24.4 |
| 1730 | -1.4 | -6.2 | 24.1 |
| 1750 | -1.4 | -6.0 | 25.1 |
| 1770 | -1.4 | -6.0 | 25.2 |
| 1790 | -1.4 | -5.9 | 25.5 |
| 1810 | -1.3 | -5.8 | 26.1 |
| 1830 | -1.2 | -5.8 | 26.2 |
| 1850 | -0.7 | -5.8 | 26.4 |
| 1870 | 0.0 | -5.8 | 26.1 |
| 1890 | 0.7 | -5.3 | 29.3 |
| 1910 | 1.4 | -4.7 | 33.5 |
| 1930 | 2.1 | -4.2 | 37.7 |
| 1950 | 2.8 | -3.7 | 42.5 |
| 1970 | 2.9 | -3.6 | 44.0 |
| 1990 | 3.2 | -3.1 | 48.9 |
| 2010 | 3.2 | -3.0 | 50.5 |
| 2030 | 3.2 | -3.1 | 48.8 |
| 2050 | 3.5 | -3.0 | 50.2 |
| 2070 | 3.5 | -3.1 | 49.2 |
| 2090 | 3.2 | -3.2 | 47.4 |
| 2110 | 2.8 | -3.5 | 44.8 |
| 2130 | 2.6 | -3.7 | 43.0 |
| 2150 | 2.1 | -4.4 | 36.6 |
| 2170 | 1.6 | -5.0 | 31.3 |
| 2300 | 3.1 | -4.3 | 37.1 |
| 2320 | 3.3 | -4.2 | 38.0 |
| 2340 | 3.6 | -4.1 | 39.3 |
| 2360 | 3.6 | -4.1 | 38.7 |
| 2380 | 3.8 | -4.0 | 39.6 |
| 2400 | 3.7 | -4.0 | 39.5 |
| 2500 | 1.9 | -4.3 | 36.8 |
| 2520 | 1.9 | -4.3 | 36.9 |
| 2540 | 1.4 | -4.7 | 34.2 |
| 2560 | 1.3 | -4.7 | 33.9 |
| 2580 | 1.3 | -5.0 | 31.8 |
| 2600 | 1.7 | -4.9 | 32.6 |
| 2620 | 1.6 | -5.0 | 31.9 |
| 2640 | 1.6 | -5.0 | 31.4 |
| 2660 | 1.7 | -5.1 | 31.2 |
| 2690 | 1.8 | -5.1 | 30.8 |
Dimensions
Unit: mm
Ordering Code
| Model | Description |
|---|---|
| ED-ANT-A | Omni-directional 4G Rod Antenna |
Packing List
- 1 x ED-ANT-A
Installation
Parts List:
| NO. | Name | Quantity (PCS) |
|---|---|---|
| ① | ED-ANT-A | 1 |
| ③ | ED-IPC2100 (Not provided) | 1 |
TIP
Here, only the ED-IPC2100 device is taken as an example for introduction.
Preparation:
The antenna has been retrieved from the packaging box.
Steps:
- Locate the antenna interface on the device side, as shown in the marked position in the figure below.
- Align the interfaces on both the device and the antenna, then tighten the antenna clockwise until it is securely attached to prevent dislodgement.
