1 Hardware Manual

This chapter introduces the product overview, packing list, appearance, button, indicator and interface.

1.1 Overview

ED-HMI2020-101C is a 10.1-inch industrial HMI based on Raspberry Pi CM4. According to different application scenarios and user needs, different specifications of RAM and eMMC computer systems can be selected.

Options for 1GB, 2GB, 4GB and 8GB RAM
Options for 8GB, 16GB and 32GB eMMC storage

ED-HMI2020-101C provides common interfaces such as HDMI, USB 2.0, USB 3.0 and Ethernet, and supports access to the network through Wi-Fi and Ethernet. ED-HMI2020-101C integrates RTC, EEPROM and encryption chip, improving the ease of use and reliability of the product. It is mainly used in industrial control.

1.2 Packing List

1x ED-HMI2020-101C Unit
4 x buckles (including 4xM4*10 screws and 4xM4*16 screws)
[optional Wi-Fi/BT version] 1x 2.4GHz&5GHz Wi-Fi/BT Antenna

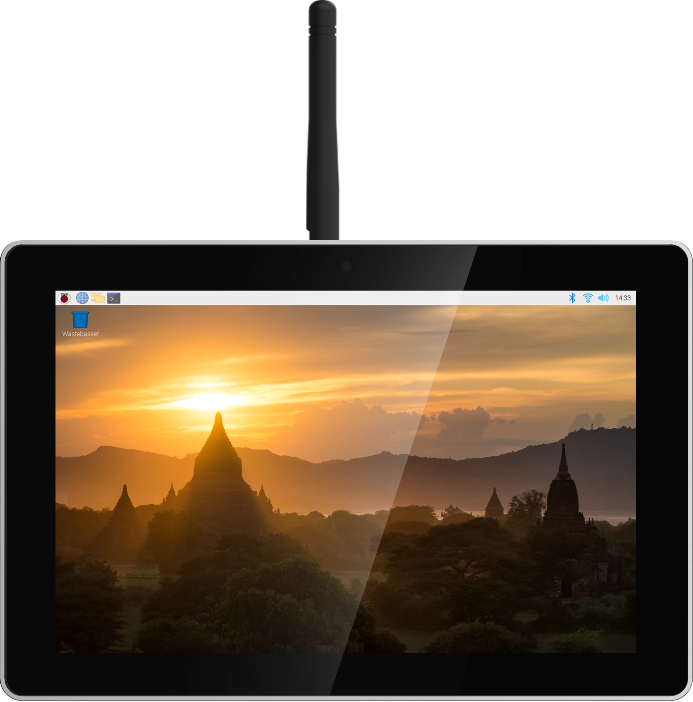

1.3 Appearance

Introducing the functions and definitions of interfaces on each panel.

1.3.1 Front Panel

Introducing the front panel interface types and definitions.

NO.	Function Definition
1	1 x LCD display, 10.1-inch LCD touch screen, which supports up to 1280x800 resolution and multi-point capacitive touchscreen.
2	1 x camera (optional), 8-megapixel front camera.

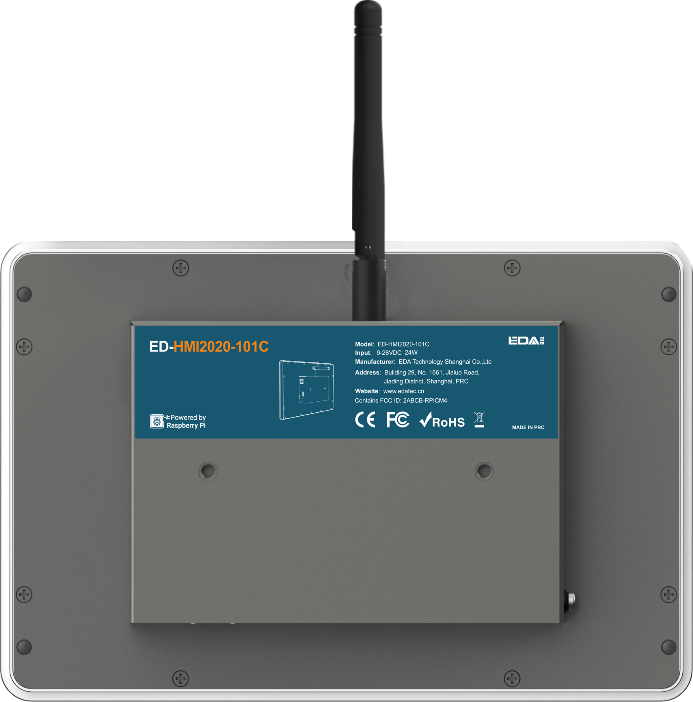

1.3.2 Rear Panel

Introducing the types and definitions of the rear panel interface.

NO.	Function Definition
1	5 x installation holes of buckle, which are used to fix the buckles to the device for installation. You only need to use 4 installation holes during installation, and reserve one as a spare.

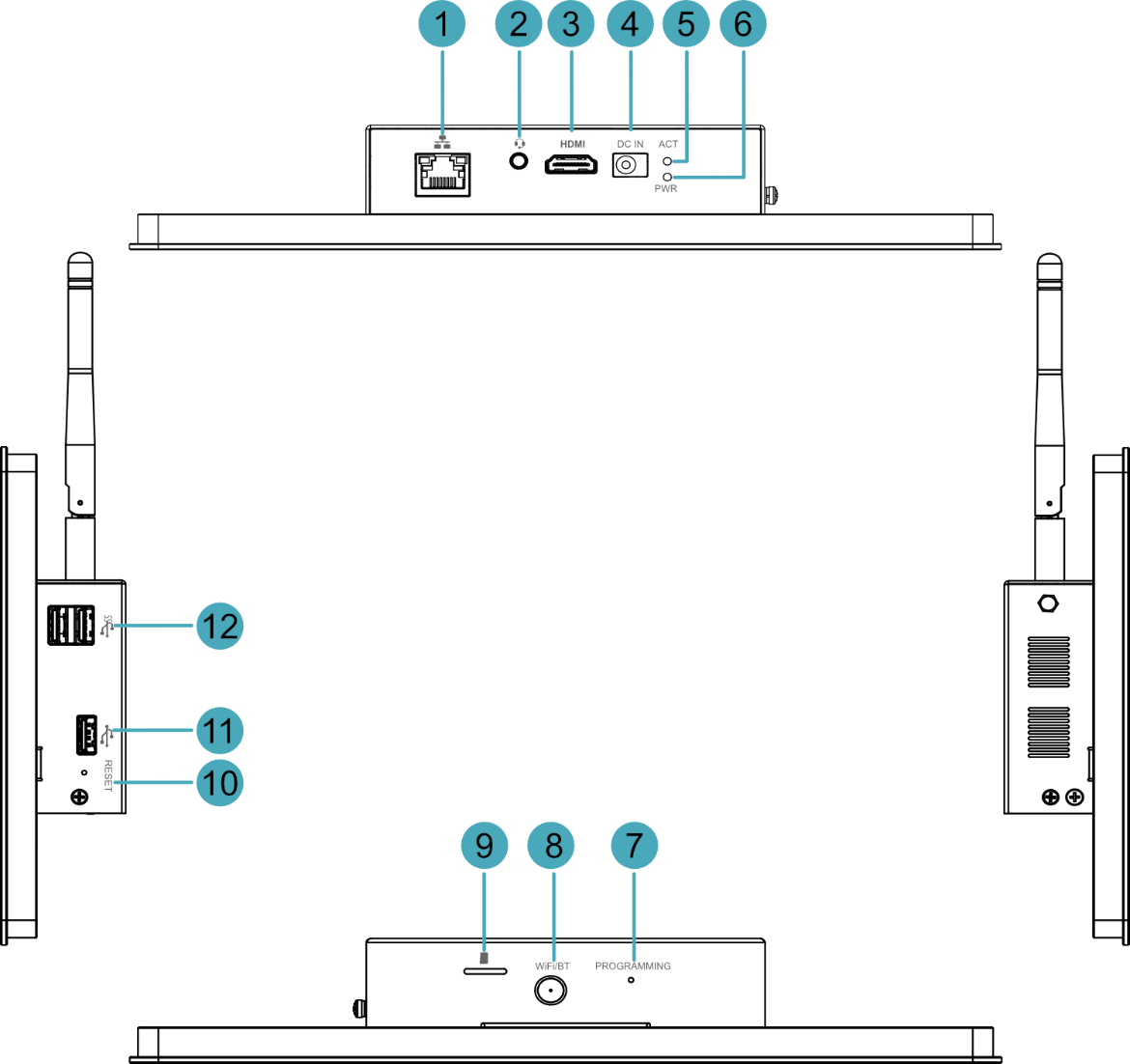

1.3.3 Side Panel

Introducing the types and definitions of side panel interfaces.

NO.	Function Definition
1	1 x 10/100/1000M adaptive ethernet port, RJ45 connector. It can be used to access the network.
2	1 x Audio input/Stereo output, 3.5mm audio jack connector. It can be used as MIC IN and LINE OUT. When a headphone is connected, the audio output is switched to the headphone. When a headphone is not connected, the audio output is switched to the speaker.
3	1 x HDMI port, Type-A connector, which is compatible with HDMI 2.0 standard and supports 4K 60Hz. It supports to connect a displayer.
4	1 x DC input, DC Jack connector, supports 9V~28V input.
5	1 x system status indicator, green, which is used to view the status of system reading and writing data.
6	1 x power indicator, red, which is used to check the status of device power-on and power-off.
7	1 x PROGRAMMING button, which is used to flash to eMMC for the system.
8	1 x Wi-Fi/BT antenna port (optional), SMA connector, which can connect to Wi-Fi/BT antenna.
9	1 x Micro SD card slot, which is used to install SD card for storing user data.
10	1 x reset button, hidden button, press the button to reset the device.
11	1 x USB 2.0 port, Type-A connector, supports up to 480Mbps transmission rate.
12	2 x USB 3.0 ports, Type-A connector, each channel supports up to 5Gbps transmission rate.

1.4 Button

Introducing the button functions included in the ED-HMI2020-101C device.

1.4.1 RESET Button

ED-HMI2020-101C includes a RESET button, which is a hidden button, and the silkscreen on the case is "RESET". Pressing the RESET button will reset the device.

1.4.2 PROGRAMMING Button

ED-HMI2020-101C includes a PROGRAMMING button, the silkscreen on the case is "PROGRAMMING".

Press the PROGRAMMING button before the device is powered on (keep pressing it for a long time), and then power on the device (release the PROGRAMMING button after powering on), the system will enter the programming mode. The user can flash to eMMC through the USB 2.0 port on the device and the programming tool.

1.5 Indicator

Introducing the various statuses and meanings of indicators contained in ED-HMI2020-101C.

Indicator	Status	Description
PWR	On	The device has been powered on.
	Blink	Power supply of the device is abnormal, please stop the power supply immediately.
	Off	The device is not powered on.
ACT	Blink	The system started successfully and is reading and writing data.
ACT	Off	The device is not powered on or does not read and write data.
Yellow indicatorof Ethernet port	On	The data transmission is abnormal.
	Blink	Data is being transmitted over the Ethernet port.
	Off	The Ethernet connection is not set up.
Green indicatorof Ethernet port	On	The Ethernet connection is in the normal state.
	Blink	The Ethernet connection is abnormal.
	Off	The Ethernet connection is not set up.

1.6 Interface

Introducing the definition and function of each interface in the product.

1.6.1 Micro Card Slot

The silkscreen on the case of Micro SD card slot is "", which is used to install Micro SD card for storing user data.

1.6.2 Power Supply Interface

The ED-HMI2020-101C includes one power input, The silkscreen of port is "DC IN", which uses DC Jack connector, and supports 9V~28V input.

1.6.3 Audio Interface

ED-HMI2020-101C includes one audio input, the connector is a 3.5mm 4-pole headphone jack. The silkscreen of port is "", which supports OMTP stereo headphone output and mono microphone recording.

When the headphone is connected, the audio output is switched to the headphone.
When the headphone is not connected, the audio output is switched to the speaker.

1.6.4 Speaker

The ED-HMI2020-101C includes a power amplifier output, built-in a 4Ω 3W speaker, supporting single-channel stereo output. When playing audio, if the headphone is connected to the Audio interface, the speaker will have no audio output.

1.6.5 1000M Ethernet Interface

ED-HMI2020-101C includes one adaptive 10/100/1000M Ethernet port, and the silkscreen is "". The connector is RJ45, it is recommended to use the network cable of Cat6 and above. The pins corresponding to the terminal are defined as follows:

	Pin ID	Pin Name
	1	TX1+
	2	TX1-
	3	TX2+
	4	TX2-
	5	TX3+
	6	TX3-
	7	TX4+
	8	TX4-

Only the Wi-Fi/BT version has an antenna port.
