3 Installing Device

This chapter introduces how to install the device.

3.1 DIN-Rail Installation

When the ED-CM4SEN device leaves the factory, the DIN-rail bracket is installed as standard by default.

Steps:

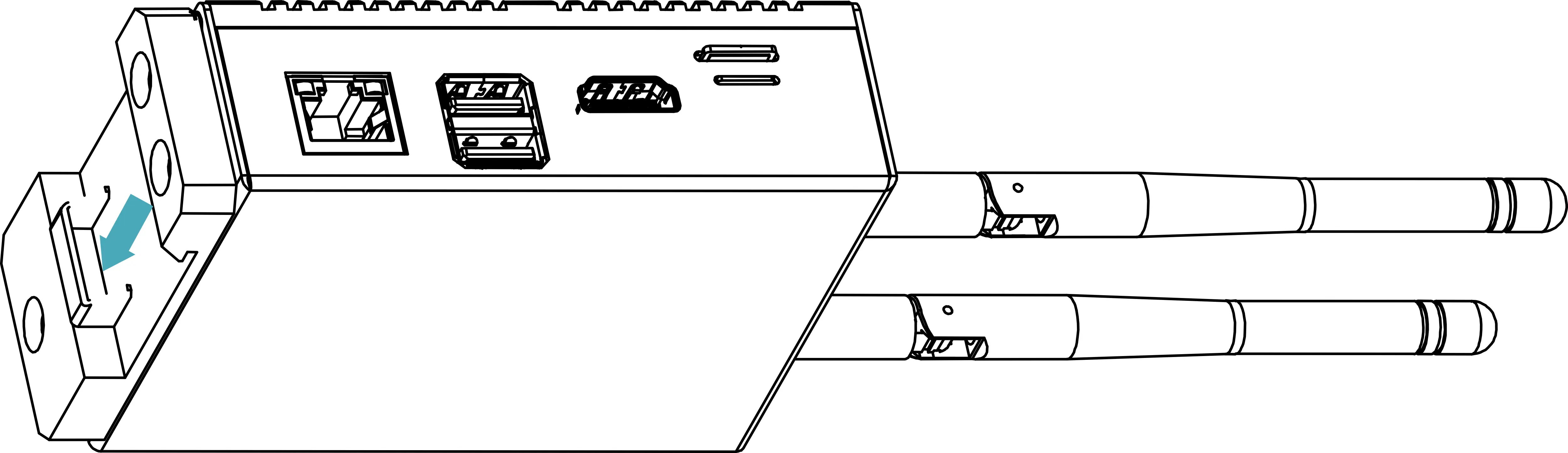

  1. Face the side of the DIN-rail bracket to the rail to be installed, and the upper side of the bracket is sleeved on the upper side of the rail.
  1. Press down the buckle on the lower side of the DIN-rail bracket until the bracket can be buckled on the rail, and the installation is completed.
