2 Installing The Device

The ED-PAC3100 supports ​DIN rail installation. The DIN rail bracket is pre-installed and provided as standard. The following steps describe how to mount the device on a DIN rail.

Steps:

  1. Face the side of the device with the rail bracket toward the DIN rail, and hook the retractable buckle of the bracket onto the lower edge of the DIN rail from bottom to top.

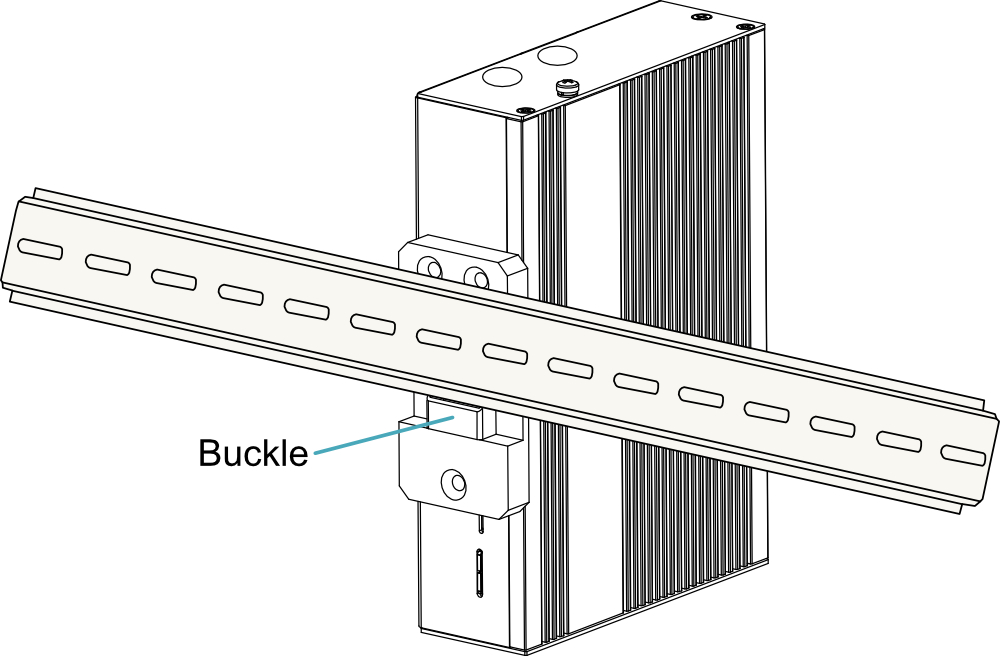

PAC31001
  1. Hold the device with your hand, press the buckle firmly upward, and ensure the top of the bracket fully snaps onto the upper edge of the DIN rail.

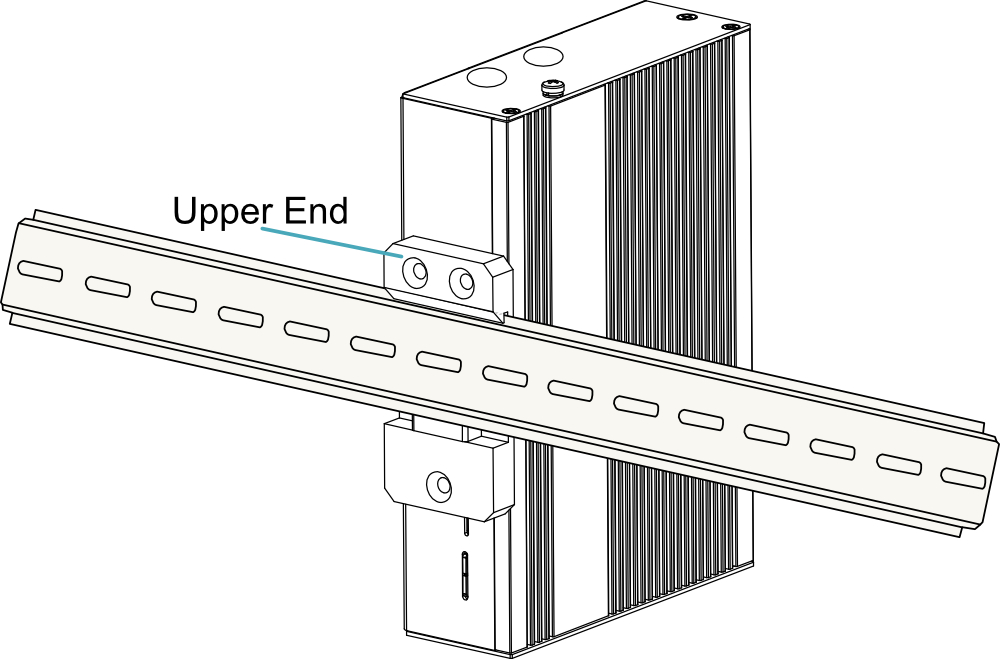

PAC31002
