ED-LENS-M12-230112-04

1/2.3" 4 Megapixel wide range M12 lens

Overview

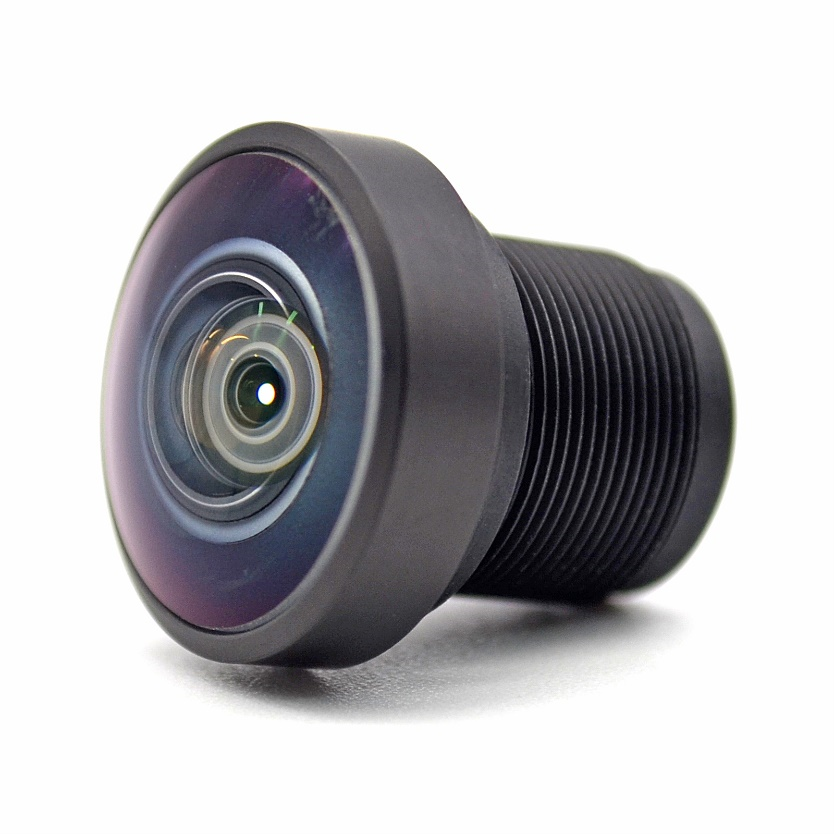

ED-LENS-M12-230112-04 lens can be used on various cameras with M12 interfaces. This 1.12mm M12 lens provides a 225° Horizontal Field of View on 1/2.3" sensors.

Specifications

Resolution		4 Megapixel
Optical format		1/2.3"
TTL (Total Track Length)		20.35mm
EFL (Effective Focal Length)		1.12mm
Aperture		F2.2
Mount		M12
FOV (Field of View) DxHxV		1/2.3"
	D	225°
	H	225°
	V	225°
Optical Distortion		<-11.8%
CRA (Chief Ray Angle)		9.9°
MOD (Minimum Object Distance)		0.17m
BFL (Back Focal Length)		3.01mm
MBF (Mechanical Back Focal)		2.16mm
Structure		4G2P
Operation		Focus	Manual
		Iris aperture	Fixed
Dimension (mm)		Φ17×18.19
Weigh (g)		6
Working Temperature		-20ºC to +70ºC

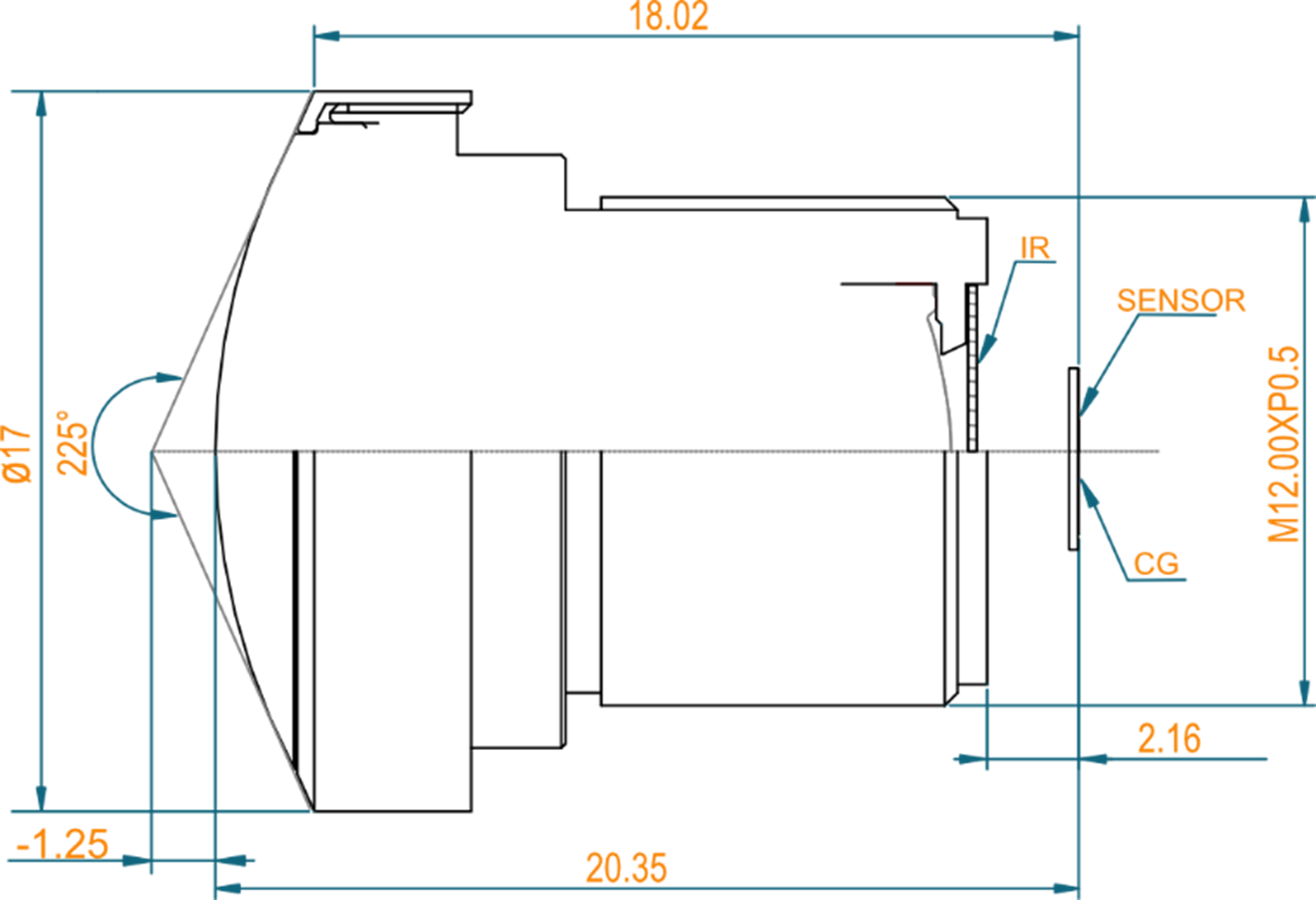

Mechanical Drawing

Unit		mm
Size Tolerance		0-10±0.1, 10-30±0.3, 30-120±0.5
Angle Tolerance		±2°

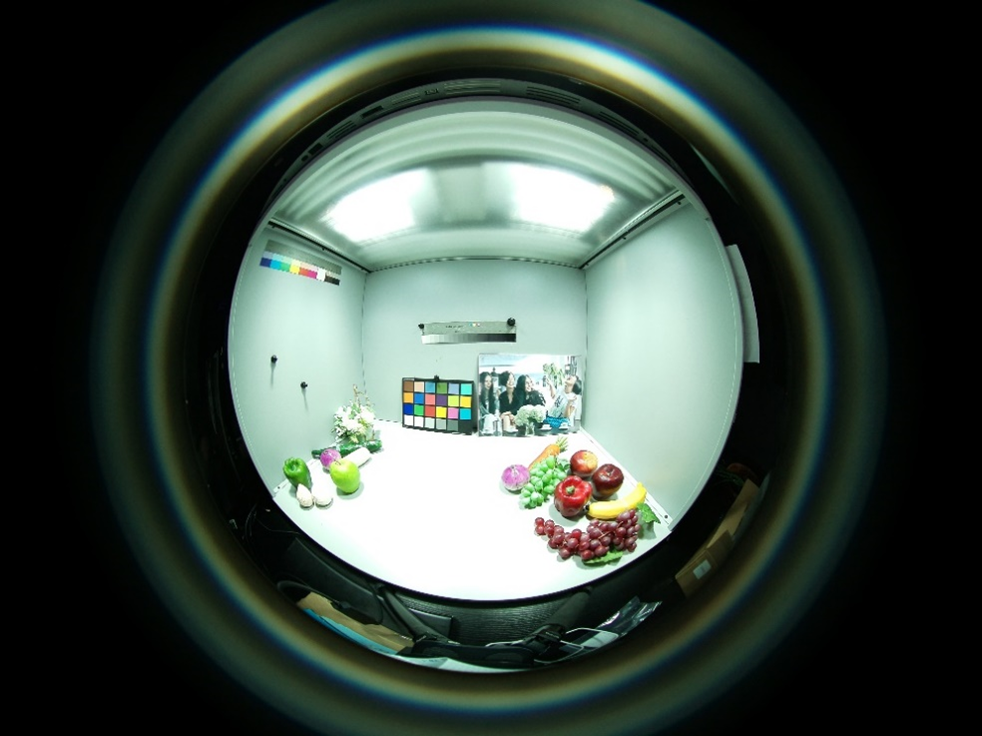

Below picture was taken by camera module with this lens in the lab, it just gives a reference about the Field of View and resolution of the lens, it may be different with the pictures taken in different light environment and other different conditions.

TIP

The MBF (Mechanical Back Focal) value of this lens is relatively small, making it unsuitable for Raspberry Pi M12 HQ camera module.

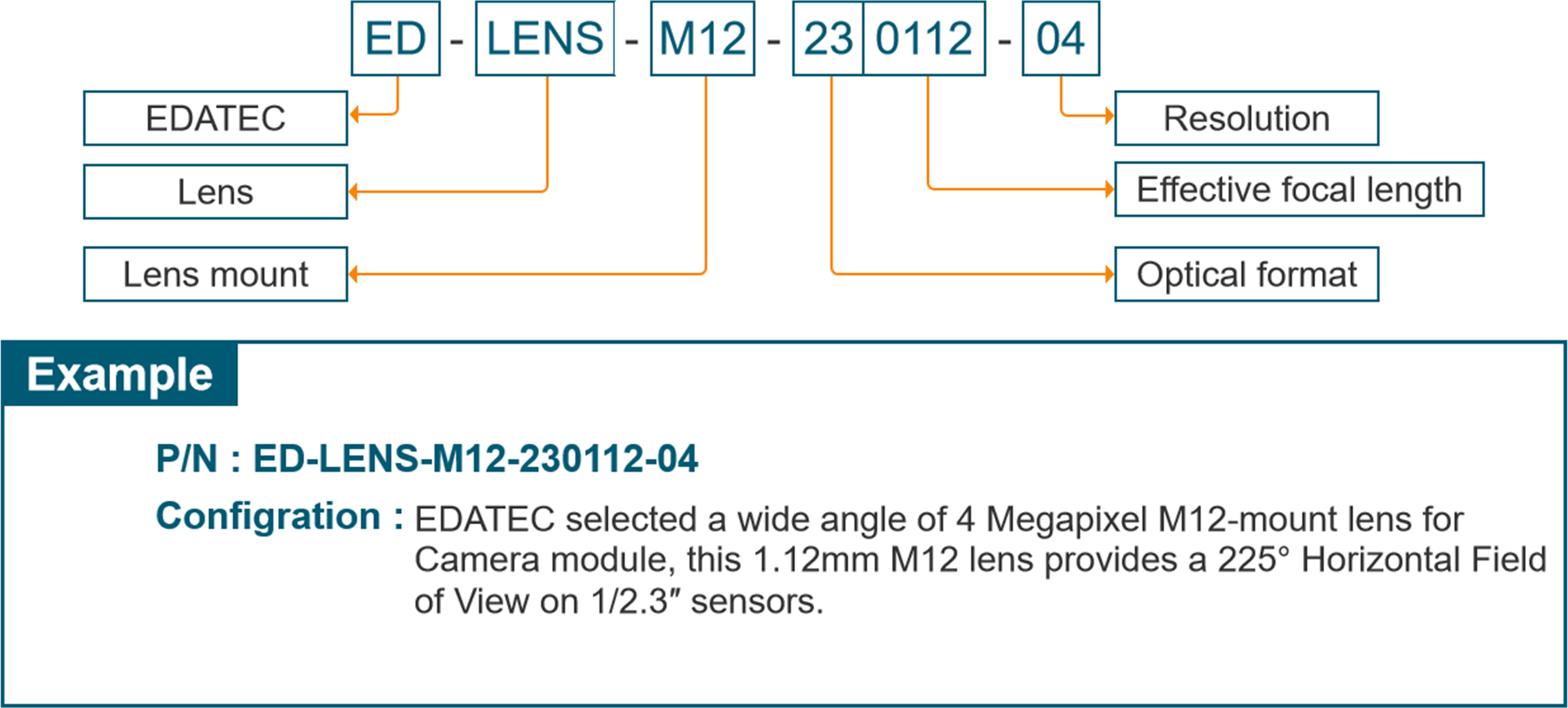

Ordering Code

Selection Guide

More details about Ordering Code, please check Selection Guide.
